Blu Stream HEX31WPB-TX User manual

HEX31WP-TX
User Manual
RevA5 HEX31WP-TX User Manual

HEX31WP-TX USER MANUAL
02 www.blustream.com.au |www.blustream.co.uk
Contents
Surge protection device
recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc. Use
of surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Panel Descriptions 04
Output On/O Function 05
Auto Switching 06
USB Type C 06
Mounting the HEX31WP-TX 06
EDID Control 07
Loading A Custom EDID 07
RS-232 Configuration 08
RS-232 Commands 08 - 09
Product Schematic 10
Specification 11
Package Contents 11
Maintenance 11
Installer Notes 12 - 13

HEX31WP-TX USER MANUAL
03contact [e-mail] | [e-mail]
Our HEX31WP HDMI / USB-C wall plate HDBaseT™ Transmitter is a multi-format
4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p
(40m at 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated
source selection and includes display on / o control via CEC, RS-232 and IR (via
compatible HDBaseT™ Receiver / Matrix). The HEX31WP-TX has been designed
to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed
in both UK and European backboxes, and can be powered locally or from
compatible Blustream HDBaseT™ products.
Introduction
• Features 2 x HDMI & 1 x USB-C inputs with manual / auto source selection
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• USB-C input for Video / Audio interface with Windows®, Mac® & Chromebook™ PC’s as well as tablets or
smartphones using the same connector type
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Input selection via front panel and RS-232
• Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ Receiver
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
• Bi-directional RS-232 pass through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ Receiver / Matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 compliant
*Technical performance is subject to the features supported on the connected HDBaseT™ device
FEATURES:

HEX31WP-TX USER MANUAL
04 www.blustream.com.au |www.blustream.co.uk

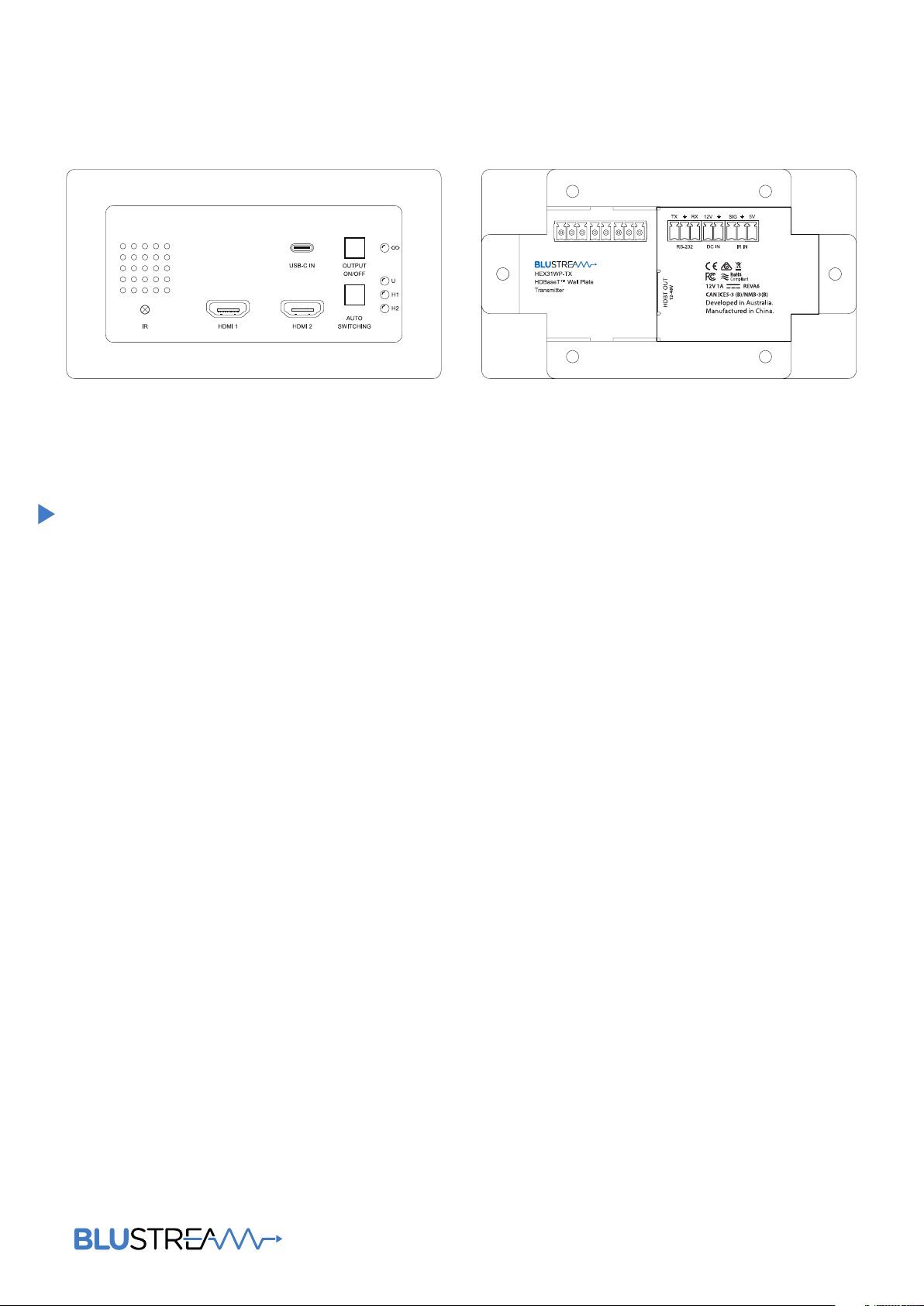

Front Panel Description
1USB-C Input - Type C USB port to connect to USB-C source device
2Output ON / OFF Button - Triggers the output on / o sequence (see Output On / O section on next page)
3HDBaseT™ link status indicator - Illuminates when the Transmitter is connected to the Receiver / Matrix successfully
4IR Receiver - Built in IR sensor for IR pass through
5HDMI Input 1 - Type A HDMI port to connect HDMI source device
6HDMI Input 2 - Type A HDMI port to connect HDMI source device
7Auto Switching Button - Press to change source, hold for 3 seconds to enable / disable auto signal sense switching
8HDMI Input 2 Indicator - Illuminates when HDMI 2 input is connected
9USB Input Indicator - Illuminates when USB-C input is connected
qHDMI Input 1 Indicator - Illuminates when HDMI 1 input is connected
wRS-232 - 3-pin phoenix connector for RS-232 pass through to / from compatible HDBaseT™ Receiver / Matrix products
e12V DC Input - 2-pin phoenix connector to connect to Blustream 12V power supply (supplied)
rIR Receiver Input - 3-pin phoenix connector to connect to Blustream IR Receiver (phoenix block supplied, IR Receiver
not supplied)
tHDBaseT™ Output - RJ45 HDBaseT™ port to connect to the HDBaseT™ input port of the compatible Blustream
HDBaseT™ Receiver / Matrix device
4 5 6 7
Rear Panel Description
21
8
10
9
3
1211 13 14

HEX31WP-TX USER MANUAL
05contact [e-mail] | [e-mail]
Output On/O Function
The HEX31WP-TX features a variety of ways that the unit can be automated to, or allow for, the powering of the display
connected to the HDBaseT™ receiver.
Output On/O Button
The Output On/O button can be programmed to power on, or o, the display connected to the HDBaseT™ Receiver
via CEC, IR or RS-232 as required by the user. The default setting on the unit is enabled for CEC (Consumer Electronic
Control), but disabled for IR and RS-232. When triggered, the Display On/O button will be illuminated. When removing
the last source device connection from the HEX31WP-TX, the display will (by default) remain powered.
The default function can be disabled (or re-enabled) as required - see below. Or refer to the RS-232 command section
of this user manual on page 08 for the full list of function commands.
Output On/O via CEC
As outlined above, the HEX31WP-TX wallplate, by default, will send out a Power On command via CEC automatically
when a video signal is sensed by the unit.
To disable this automatic feature via RS-232, send the following command:
CECAUTO OFF
To enable this automatic feature via RS-232, send the following command:
CECAUTO ON
Output On/O via IR Learning
The HEX31WP-TX can be programed to issue an IR command, via HDBaseT™ to the connected display device, when it
either detects a new signal / loss of signal, or when pressing the Output On/O button on the wall plate. To learn an IR
command into the unit, follow these steps:
1) Press and hold both Output On/O and Auto Switching buttons simultaneously for approximately 3 seconds until
both of the button LED’s flash alternately.
2) Use the Output On/O button to select between the command to be set as follows:
• A quick flashing LED for the Output On/O button indicates that Output On mode is selected
• A slow flashing LED for the Output On/O button indicates that Output O mode is selected
3) Within 30 seconds, point the IR remote control that you wish to learn at the IR sensor on the HEX31WP-TX and press
the respective button on the IR remote control.
4) The Output On/O button LED will stop flashing, and remain lit to indicate that the IR command has been learnt.
5) Press and hold the Auto Switching button for approximately 3 seconds until both the button LED’s turn o to exit IR
learning mode. The unit will return to normal operation 5 seconds aer.
Output On/O via RS-232
To enable RS-232 commands to be triggered on signal sense/loss or via the Output On/O button, send the following
commands via RS-232 to the unit:
1) To configure a command to be sent on signal sense, use the following RS-232 command:
RS232ON y:z:a
2) To configure a command to be sent on signal loss, use the following RS-232 command:
RS232OFF y:z:a
where: y = a: ASCII, h: HEX
z = 1: 2400, 2: 4800, 3: 9600, 4: 19200, 5: 38400, 6: 57600 (Default), 7: 115200
a = RS-232 command to be sent
You can also disable the RS232ON/OFF command by replacing y:z:a with DISABLE in the above commands.

HEX31WP-TX USER MANUAL
06 www.blustream.com.au |www.blustream.co.uk
Auto Switching
The HEX31WP-TX can automatically switch sources based on when an input signal is detected or lost. This feature will
automatically switch to any new source that is connected to the HEX31WP-TX, and subsequently will switch back to the
previous source when a signal is lost.
To enable or disable this feature, press and hold the the Auto Switching button for 3 seconds. The Auto Switching
button LED will blink to confirm this command has been received.
The Auto Switching button will remain lit when auto switching is enabled.
When the HEX31WP-TX is powered via HDBT from a product such as the SW41HDBT switcher, the signal trigger mode
must be set to PoC. This must be done via sending the command TRGPOCPWR via RS-232 to the HEX31WP-TX, using
the supplied DB9 to phoenix cable and serial soware such as Putty, Hercules or SSCOM.
Further information how to achieve this can be found on the RS-232 Configuration page.
USB Type C
The USB-C input of the HEX31WP-TX gives instant connectivity with laptops and smart devices with USB-C, negating
the requirement of having to use USB-C to HDMI adaptors to obtain AV connectivity.
Not all USB-C cables support the transfer of Video and Audio. A type 3.1 USB-C cable must be used to ensure AV can
be transferred over the USB-C cable. The cables supplied with laptops or mobile devices are normally reserved for
charging only and are generally not type 3.1.
The USB-C input of the HEX31WP-TX does not support charging of mobile devices.
Mounting the HEX31WP-TX
The HEX31WP-TX has been designed to fit into a standard UK or European double-gang backbox. The mounting holes
are hidden under the magnetic faceplate on the le / right (for UK backboxes), and top / bottom (for EU backboxes).
A minimum backbox depth of 40mm is required, however, due to the normal operating temperature of HDBaseT™
equipment, we would recommend using a deeper backbox (47mm) to assist with additional heat displacement and air
circulation to the rear of the unit.
Prior consideration should be made to the choice of backbox, with particular emphasis to the location/s of cable entry
so that the maximum bend radius of the CAT cable is not exceeded.

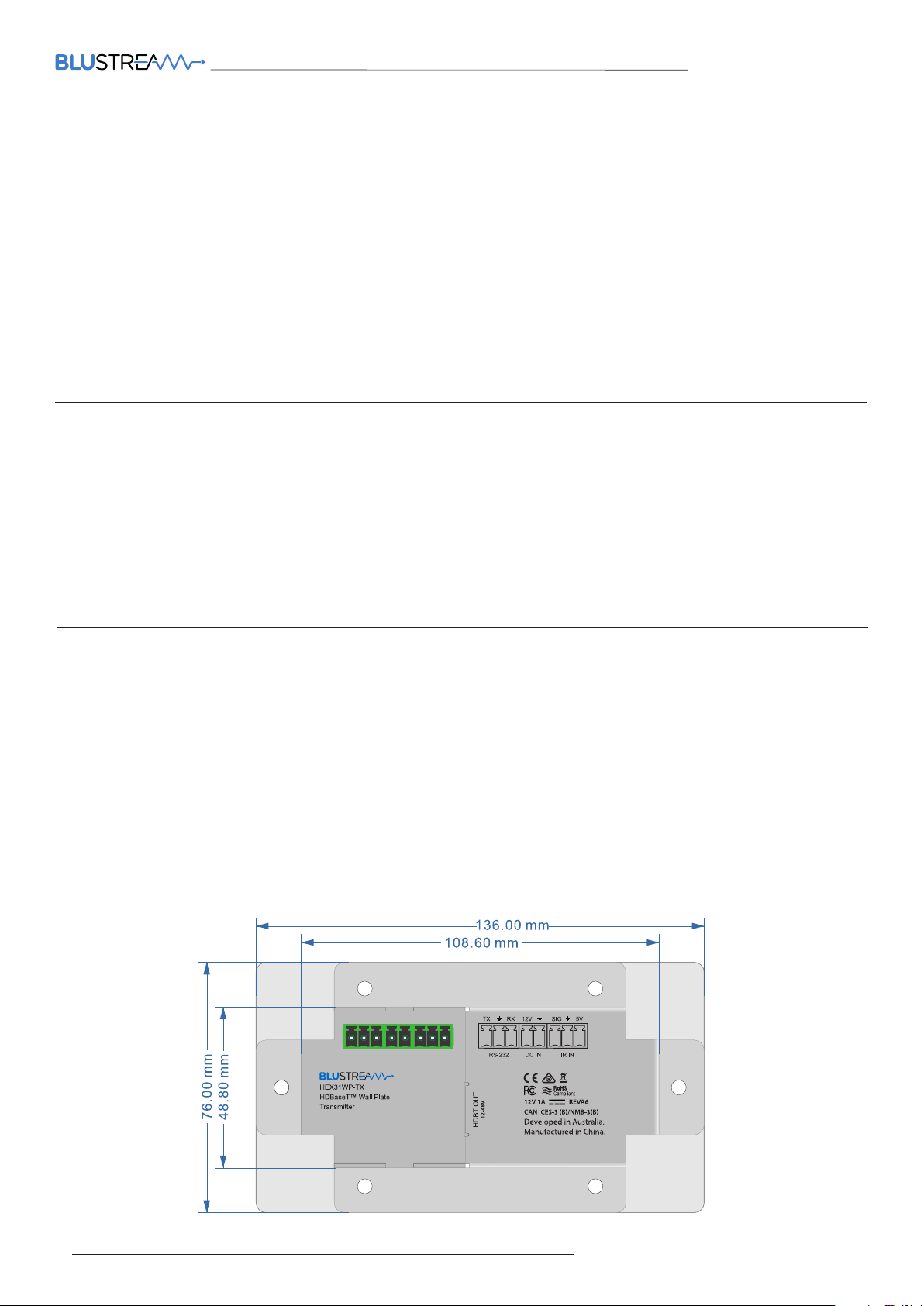

If mounting the wallplate into a counter top, table top, or lecturn, a backbox may not necessarily be required. Please
see below technical drawing of the unit for overall and cut-out dimensions:

HEX31WP-TX USER MANUAL
07contact [e-mail] | [e-mail]
EDID Control
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data
is used by the source to find out what audio and video resolutions are supported by the display. By pre-determining
the video resolution and audio format of the source and display device you can reduce the time needed for EDID hand
shaking thus making switching quicker and more reliable. Configuration of the EDID settings for each input can be
achieved using the following RS-232 commands to specify the required EDID:
EDIDxxDFzz
Where xx = Input: 00 refers to ALL inputs; 01 = input 1 (HDMI 1); 02 = input 2 (HDMI 2); 03 = input 3 (USB-C)
zz = EDID as shown below:
zz=00: HDMI 1080p@60Hz, Audio 2ch PCM
zz=01: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2ch PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2ch PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1ch PCM/DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=09: HDMI 4K2K@30Hz, Audio 2ch PCM
zz=10: HDMI 4K2K@30Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=11: HDMI 4K2K@30Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=12: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 2ch PCM
zz=13: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 5.1ch PCM/DTS/DOLBY
zz=14: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=15: DVI 1280x1024@60Hz, Audio None
zz=16: DVI 1920x1080@60Hz, Audio None
zz=17: DVI 1920x1200@60Hz, Audio None
zz=18: DVI 1920x1200@60Hz, Audio 2ch
zz=19: Copy User EDID 1 - see below
zz=20: Copy User EDID 2 - see below
zz=21: EDID Pass through
Loading A Custom EDID
A custom EDID file can be loaded into the HEX31WP-TX. Some custom EDID’s can be found on Blustream’s website, or
use a 3rd party EDID tool to create a custom EDID. To load an EDID onto the HEX31WP-TX complete the following steps:
1) Rename the EDID file to be “EDID.bin”
2) Copy the EDID.bin file to a USB drive
3) Connect the USB drive to the HEX31WP-TX Micro-USB upgrade port (a USB to Micro USB cable may be required)
4) Connect your PC to the HEX31WP-TX RS-232 port via a serial RS-232 cable, see page 06 for RS-232 information
5) Send the command: EDID SAVE zz (where zz = 19 or 20 - see above) to save the EDID from the USB onto the
HEX31WP-TX into EDID position 19 or 20
6) Send the command: EDID 00 DF zz to recall the EDID for all inputs where zz is the position the EDID (19 or 20)

HEX31WP-TX USER MANUAL
08 www.blustream.com.au |www.blustream.co.uk
RS-232 Configuration
The RS-232 port is used for configuration / control of the product, including pass through of RS-232 commands to a
compatible Blustream HDBaseT™ Receiver / Matrix device.
The default RS-232 communication settings are:
Baud rate: 57600 Data bit: 8 Stop bit: 1 Parity bit: none
Common Mistakes
• Carriage return – Some programs do not require the carriage return where as other will not work unless sent directly
aer the string. In the case of some Terminal soware the token <CR> is used to execute a carriage return. Depending
on the program you are using this token maybe dierent. Some other examples that other control systems deploy
include \r or 0D (in hex)
• Spaces – Blustream commands do not require space between commands unless specified. There may be some
programs that require spacing in order to work.
- How the string should look is as follows OUT01FR02
- How the string may look if spaces are required: OUT{Space}01{Space}FR{Space}02
• Baud rate or other serial protocol settings not correct - please confirm the settings being used match the RS-232
configuration settings above.
RS-232 Commands
? Print Help Information
HELP Print Help Information
STATUS Print System Status And Port Status
INSTA Print All Input Status
OUTSTA Print All Output Status
CTRLSTA Print All Control Status
TRGSTATUS Print Auto Trigger Status
RESET Reset System To Default Setting
KEY ON/OFF Set System Key Control On Or O
IR ON/OFF Set System IR Passthrough Control On Or O
NOSIGDLY xxx Set No Signal Delay Timeout to xxx
TRGLOCALPWR Set Auto Trigger Power To Local
TRGPOCPWR Set Auto Trigger Power To PoC
AUTOTRG x Set The Trigger Method x On Input To Perform Auto Switching
x = 1 - HDMI (5V)
x = 2 - HDMI (TMDS)
OUT xx FR yy Set Output xx From Input yy
Input: yy [01-03]
01 = HDMI 1
02 = HDMI 2
03 = USB-C
OUT xx SWITCH yy Set Output xx Auto Switching To aa
aa = AUTO
aa = MAN

HEX31WP-TX USER MANUAL
09contact [e-mail] | [e-mail]
EDID xx DF zz EDID xx DF zz Set Input xx EDID To Default EDID zz
xx=[00]: All Input Port, [01...03]: Input Port
zz=00: HDMI 1080p@60Hz, Audio 2ch PCM
zz=01: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2ch PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2ch PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1ch PCM/DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=09: HDMI 4K2K@30Hz, Audio 2ch PCM
zz=10: HDMI 4K2K@30Hz, Audio 5.1ch PCM/DTS/DOLBY
zz=11: HDMI 4K2K@30Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=12: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 2ch PCM
zz=13: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 5.1ch PCM/DTS/DOLBY
zz=14: HDMI 4K2K@60Hz 4:2:0 8 bit, Audio 7.1ch PCM/DTS/DOLBY/HD
zz=15: DVI 1280x1024@60Hz, Audio None
zz=16: DVI 1920x1080@60Hz, Audio None
zz=17: DVI 1920x1200@60Hz, Audio None
zz=18: HDMI 1920x1200@60Hz, 2ch/6ch PCM
zz=19: Copy User EDID 1
zz=20: Copy User EDID 2
zz=21: EDID Passthrough
EDID xx CP yy Set Input xx EDID Copy From Output yy
xx = Input on product (00 refers to ALL inputs, 01 = input 1 etc)
yy = Output on product (00 refers to ALL outputs, 01 = output 1 etc)
EDIDSAVE zz Save EDID File From USB Into User Slot zz
zz=19: User EDID 1
zz=20: User EDID 2
CECAUTO ON/OFF Set Auto CEC Commands When Detecting Video Input Signal On Or O
OUT xx CEC INPUT yy Send Output xx CEC Input yy Command
OUT xx CEC VOLUP Send Output xx CEC Vol Up Command
OUT xx CEC VOLDOWN Send Output xx CEC Vol Down Command
OUT xx CEC MUTE Send Output xx CEC Mute Toggle Command
OUT xx CEC PON Send Output xx CEC Power On Command
OUT xx CEC POFF Send Output xx CEC Power O Command
OUT xx CEC yy:yy:yy Send Output xx CEC yy.yy.yy Command
RS232BAUD z Set RS-232 Baud rate To x
z = 1: 2400, 2: 4800, 3: 9600, 4: 19200, 5: 38400, 6: 57600 (default), 7: 115200
RS232ON y:z:a When Detecting A Triggering Signal, Automatically Send y Type Of Command a To The
Third-party Device Whose Baud Rate Is z
RS232OFF y:z:a When Not Detecting A Triggering Signal, Automatically Send y Type Of Command a To
The Third-party Device Whose Baud Rate Is z
RS232ON DISABLE Disable Automatic RS-232 Commands When Detecting Signal
RS232OFF DISABLE Disable Automatic RS-232 Commands When Not Detecting Signal
RS-232 Commands Continued...

HEX31WP-TX USER MANUAL
10 www.blustream.com.au |www.blustream.co.uk
RS-232 HDMI Infrared Cat 6 USB-C DC Power
HEX31WP-TX Example Schematic
HDMI & USB-C SOURCE
HDBaseT™ RX
Control Processor
Optional PSU when not powered via HDBaseT™
Compatible Blustream HDBaseT™ Matrix or Receiver product. * Technical performance is subject to the features supported on the connected HDBaseT™ device.
Display

HEX31WP-TX USER MANUAL
11contact [e-mail] | [e-mail]
Maintenance
Clean this unit with a so, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
Specifications
HEX31WP-TX
• Video Input Connectors: 2 x HDMI Type A, 19-pin, female; 1 x USB-C Type C, 24-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• RS-232 serial port: 1 x 3-Pin Phoenix connector
• IR Input port: 1 x 3-Pin Phoenix connector
• Product upgrade: 1 x Micro USB, female
• Local power input: 1 x 2-Pin Phoenix connector
• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
• Backbox Mounting Depth: 40mm (minimum), 47mm (recommended)
• Shipping Weight: 1.0kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC
Package Contents
HEX31WP-TX
• 1 x HEX31WP-TX
• 1 x 12V/1A DC Power Supply
• 1 x Magnetic Faceplate
• 1 x RS-232 to Phoenix Control Cable
• 1 x Quick Reference Guide

HEX31WP-TX USER MANUAL
12 www.blustream.com.au |www.blustream.co.uk
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmentally safe recycling.
Certifications

HEX31WP-TX USER MANUAL
13contact [e-mail] | [e-mail]

www.blustream.co.uk
www.blustream.com.au
