BLUE MOUNTAIN FANS 52 Tulip User manual

52” Tulip
Ceiling Fan
Owner’s Manual
Model #22500/22502

SAFETY INSTRUCTIONS
1
WARNING:
•To avoid risk of electrical shock, be sure to shut off power at the main fuse or circuit breaker
panel box before installing or servicing this fixture. Turning off the electrical power by using the
light switch only is not sufficient to prevent electrical shock hazard.
•To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 meters)
above the floor and at least 20 inches (0.5 meters) from the tip of the blades to the wall.
•To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked
“acceptable for fan support up to 35 lbs. (16 kg)” and use mounting screws provided with the
outlet box.
•All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70 and any
applicable local codes. Electrical installation should be performed by a qualified licensed
electrician.
•To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
CAUTION:
•Check and retighten all screws, nuts, and bolts to insure they are secured prior to operating the
fan.
•Do not bend the blade iron brackets when installing the brackets, balancing the blades, or
cleaning the fan. Do not insert foreign objects in between rotating fan blades.
•Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
•When changing (reversing) the blade direction, turn off the fan and wait for the fan blades to
stop completely.
•To reduce the risk of serious bodily injury, do not use power tools to assemble any part of the
fan, including the blades.
•To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
other than those provided with this fan will void the warranty.
•Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth is recommended to prevent scratching and will be suitable for most cleaning.
•In case this fan needs to be returned to the factory for repairs, it must be shipped in its original
carton and foam inserts to insure proper protection against shipping damage that may exceed
the initial cause for return.
•Please read and understand these safety instructions and the installation guide before
attempting to assemble, install, or operate the fan.

2
PACKAGE CONTENTS
PART
DESCRIPTION
QUANTITY
PART
DESCRIPTION
QUANTITY
A
Mounting Bracket
1
L
Blade Medallion Screws and
Washers
10 each
B
Downrod and Downrod Ball
1
M
Light Kit Plate and Stem (stem
pre-assembled to plate)
1
C
Canopy
1
N
Light Bulbs
2
D
Canopy Screws (pre-installed
in mounting bracket)
2
O
Light Kit Glass
1
E
Yoke Cup
1
P
Cap
1
F
Pin (pre-installed)
1
Q
Finial
1
G
Clip (pre-installed)
1
R
Remote Receiver
1
H
Motor Housing
1
S
Handheld Remote Control,
Battery
1
I
Blades
5
T
Hardware Kit and Balancing
Kit
1
J
Blade Screws and Washers
15 each
U
Installation Manual
1
K
Blade Medallion
5
IMPORTANT REMINDER: You must use the parts provided
with this fan for proper installation and safety.
HARDWARE KIT
OWNER’S MANUAL
A
G
I
B
D
C
K
M
J
N
L
H
R
S
T
U
F
E
O
P
Q

3
HARDWARD KIT CONTENTS
NOTE: For your convenience some extra hardware may be included. The quantity listed
above is the number required for installation.
Tools required for assembly: Step Ladder, Phillips Screwdriver, Wire Strippers, Safety
Glasses, Pliers, and Electrical Tape.
Helpful Tools: AC Tester Light/Multimeter, Tape Measure, and Wiring Handbook
PART
DESCRIPTION
QUANTITY
AA*
Wire Connector (*packed
with remote control)
6
BB
Blade Screw
15
CC
Blade Medallion Screw
10
DD
Fiber Blade Washer
25
EE
Balance Kit
1
FF
Machine Screw
2
GG
Wood Screw
2

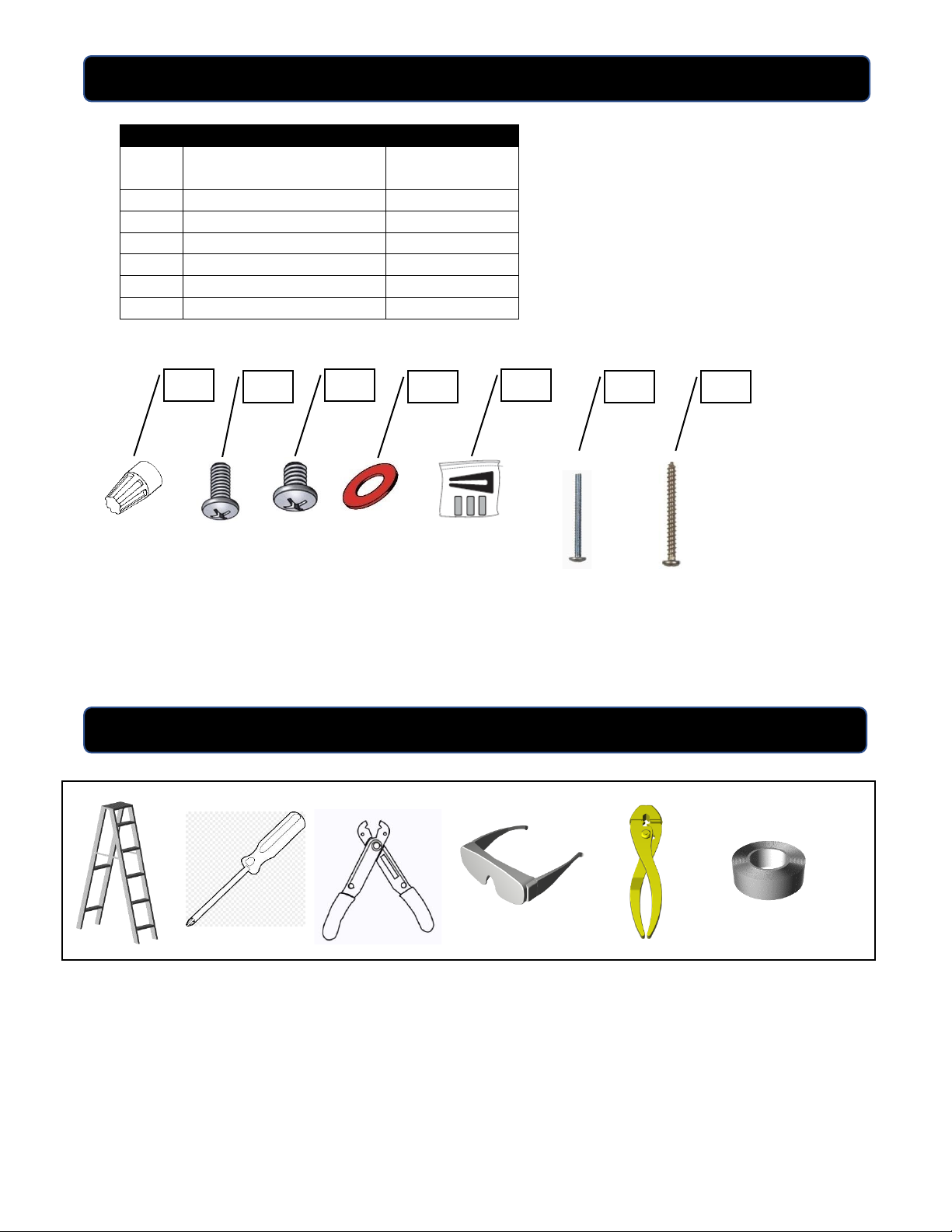

TOOLS REQUIRED (not included)
AA
BB
CC
EE
DD
FF
GG

4
DIMENSION REFERENCE
A: 20.1 in. B: 11.8 in. C: 9.9 in. D: 5.8 in.
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade clearance from the ceiling. If using the
angled mount, check to ensure that the ceiling angle is not steeper than 15 degrees.
NOTE: Make sure blades are at least 30 inches from any wall or obstruction and at least
7 feet above the floor.
A
B
N
C
Downrod Mount
Angled Mount
D
15⁰Max.

5
ASSEMBLY INSTRUCTIONS

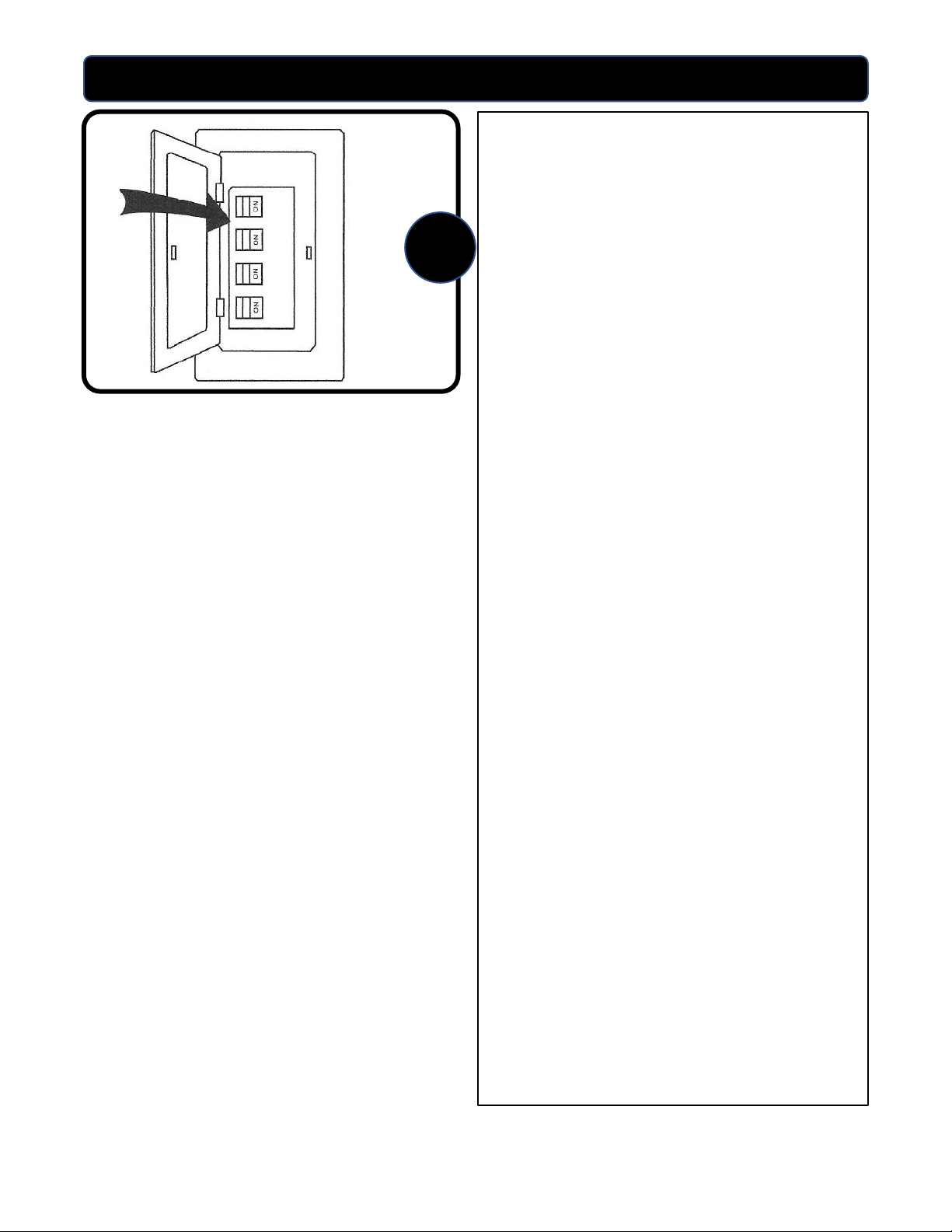

1. Turn OFF the electrical power at the
main fuse or circuit breakers.
NOTE: Before continuing installation,
confirm that the power is still turned
off at the main circuit breaker or by
removing the correct fuse. Turning
the power off using a wall switch is
not sufficient to prevent electrical
shock.
2. Secure the mounting bracket to the
outlet box (not included) using the
screws and washers provided with the
outlet box.
WARNING: To reduce the risk of fire
electrical shock, or personal injury,
mount to the outlet box marked
“acceptable for fan support” using the
mounting screws and washers
provided with the outlet box.

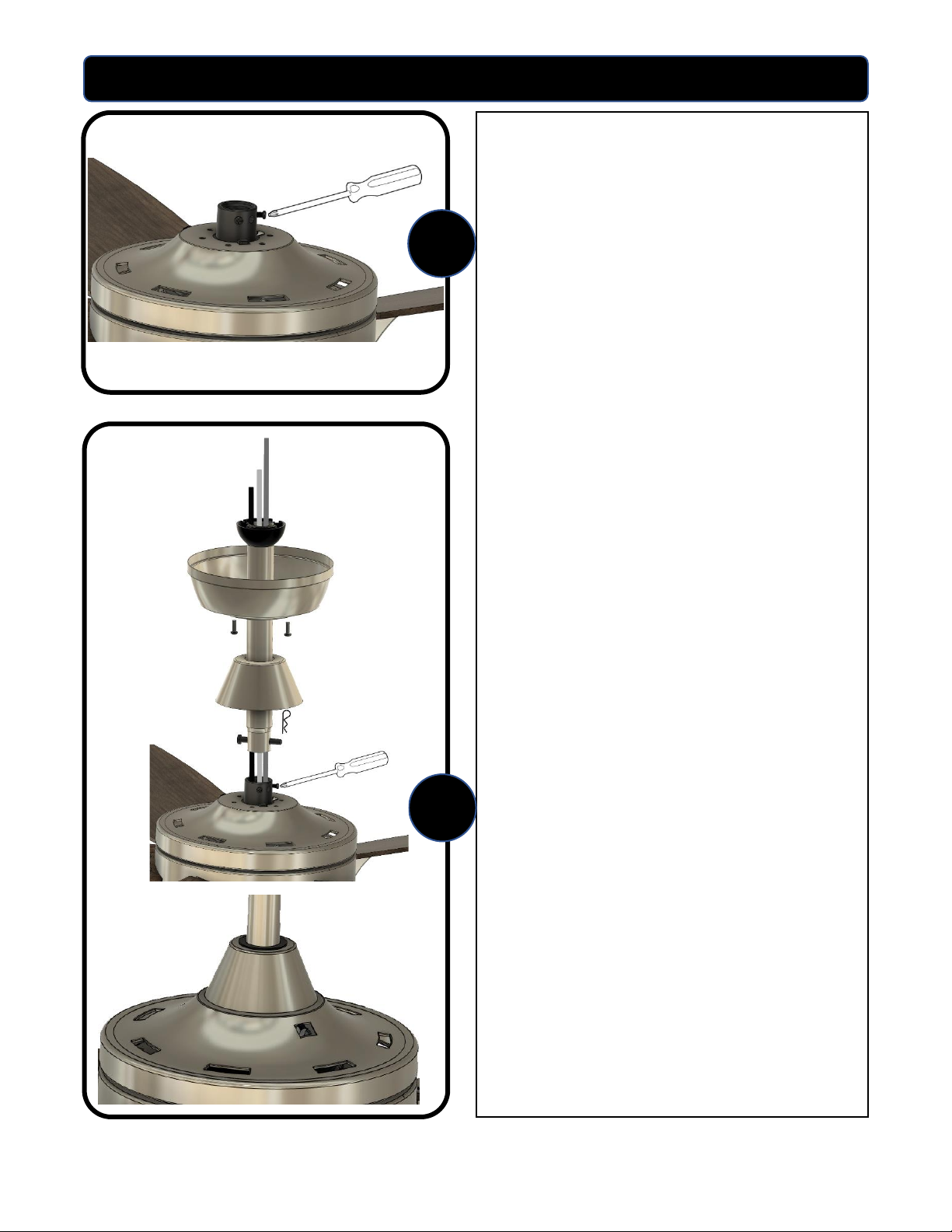

3. DOWNROD ASSEMBLY & MOUNT –
Remove the downrod pin and
downrod clip from the downrod.
Slide the canopy onto the downrod
with the open end facing up toward
the ball. Then slide the yoke cup onto
the downrod with the flat end toward
the canopy and downrod ball.
1
2
3
Downrod Clip
Yoke Cup
Downrod Pin
Downrod

6
ASSEMBLY INSTRUCTIONS
4. Loosen but do not remove the two set
screws in the yoke. Set screws need
to be loosened enough to fully insert
the downrod.
5. Feed all the wires coming from the
fan through the downrod and the
downrod ball. Insert the downrod into
the yoke and reinstall the downrod
pin and downrod clip. Then re-
tighten the two set screws.
NOTE: With wiring extending out of
the downrod, measure 8 - 10 inches
of lead wire and cut the excess wire
with wire cutters. Then strip ½” of
insulation from the end of each wire.
4
5

7
ASSEMBLY INSTRUCTIONS
6. Lift the downrod into the mounting
bracket. Rotate the downrod until
the tab in the mounting bracket is
seated in the slot in the downrod ball.
WARNING: The fan and/or downrod
should not rotate in the mounting
bracket if installed correctly. Failure to
align the slot in the downrod ball with
the tab may result in fan falling causing
serious injury or death.
7. WIRING THE FAN -- Slide the remote
receiver into the mounting bracket
with the slotted side facing down
toward the downrod ball.
7
Slot
Tab
6
Receiver

8
ASSEMBLY INSTRUCTIONS
8. Use the supplied wire connectors to connect
the fan wires to the remote receiver and
then the receiver to the power supply wires
according to the wiring diagram and
following instructions:
Connecting the fan to the remote receiver:
•Connect the white wire from the fan to the
white (common) wire from the 3-wire side
of the receiver.
•Connect the black wire from the fan to the
black wire from the 3-wire side of the
receiver.
•Connect the blue wire from the fan to the
blue wire from the 3-wire side of the
receiver.
Connecting the remote receiver to the power
supply:
•Connect the white wire from the 2-wire side
of the receiver to the white wire coming
from the ceiling.
•Connect the black wire from the 2-wire side
of the receiver to the black wire coming
from the ceiling.
•Connect all green (ground) wires together:
Connect the green wire from the downrod
to the green wire from the mounting
bracket and the green wire from the ceiling.
IMPORTANT: After the connections have been
made, the wire should be turned upward and
pushed carefully up into the outlet box. Place
the black and white wire connections on
opposite sides of the outlet box.
8

9
ASSEMBLY INSTRUCTIONS
9. Locate the (2) screws on underside of
hanging bracket and loosen screws.
Place rounded part of slotted hole in
canopy over the loosened screws in
hanging bracket and push up. Make
sure all wires are tucked into the
canopy and will not be pinched,
including the black antenna wire.
Twist canopy to lock. Tighten screws
securely.
10. INSTALLING THE BLADES –Insert the
blade into the blade slot around the
motor housing and line up the three
(3) holes at the end of the blade with
the 3 holes in the motor housing.
Secure the blade to the fan using (3)
blade screws and (3) washers.
Repeat for the remaining blades.
NOTE: Use the cut-out in the bottom
of motor housing for easier
accessibility to blade holder screw
holes.
11.Line up the (2) holes on the top of the
blade medallion with the (2) holes on
the blade. Using (2) blade medallion
screws and washers, attach the blade
medallion onto the bottom of the
blade by inserting the blade medallion
into the two holes on the blade and
screwing in from the top.
PROGRESS CHECK –YOUR FAN
BLADES SHOULD LOOK LIKE THIS
10
Blade Screw & Washers
Blade Medallion Screws & Washers
11
9

10
ASSEMBLY INSTRUCTIONS
12. CONNECTING THE LIGHT KIT --
Position the light kit plate and stem
under the fan. Connect the light kit
wiring harness by inserting the white
wire from the fan to the white wire
from the light kit and the black wire
from the fan to the black wire from
the light kit. Be sure connections are
firmly inserted and secure.

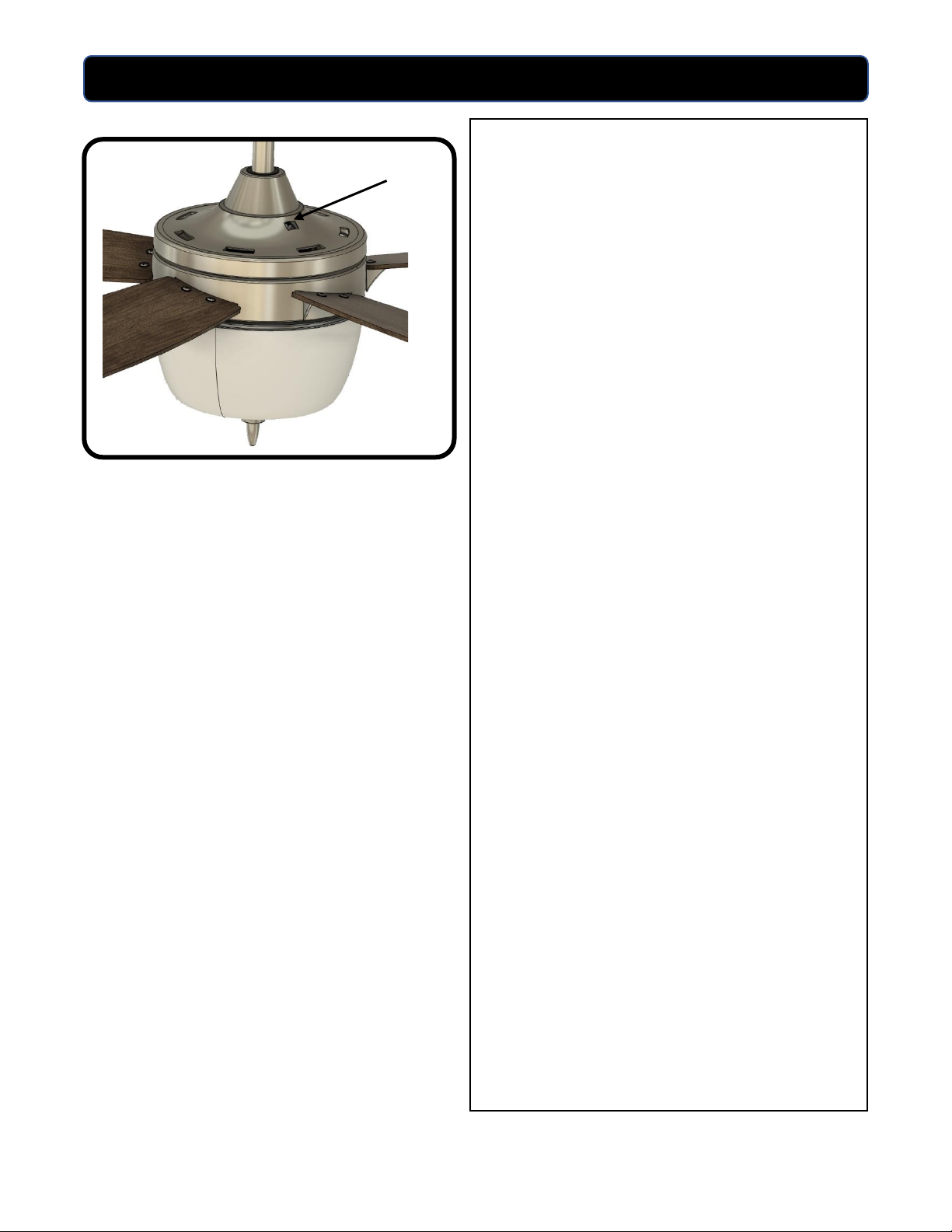

13.Remove the (4) pre-installed screws
on the ring on the bottom of fan and
line up the holes with the (4) holes on
the light kit plate. Firmly secure the
light kit plate to the fan with the (4)
screws.
14. Screw in (2) LED bulbs provided into
the light kit sockets
INSTALLING THE LIGHT KIT GLASS
AND FINIAL –Place the glass bowl
through the threaded stem on bottom
of light kit. While holding the glass
bowl in place, slide on the plastic
washer, secure the nut (DO NOT
OVER TIGHTEN), slide on the
decorative cap, and screw on the
finial (DO NOT OVER TIGHTEN).
14
12
13
14

11
ASSEMBLY INSTRUCTIONS
15.Restore the power to the main fuse or
circuit breaker.
15

12
OPERATING INSTRUCTIONS
USING THE REMOTE CONTROL
•To turn the fan ON, press any of the
three fan speed buttons (LOW, MED, HI).
•Press the OFF button to turn the fan off.
•To turn on the light, quickly press and
release the light bulb button.
•To raise or dim the light level, hold down
the light bulb button until the desired
level of brightness is reached then
release.
•To be sure your remote is set to the
proper type of bulbs installed in the light,
please check the switch in the battery
compartment on the back of the remote:
oSet the switch to “D” if using LED
or incandescent bulbs
oSet the switch to “CFL” if using
compact fluorescent bulbs
•Using the “Safe Exit” feature: Your
remote features our Safe Exit mode
which allows extra time to safely exit the
room with the light still on:
oPress the fan OFF button for 5
seconds to initiate the Safe Exit
mode.
oThe light will remain on, and the
fan will be off.
oThe light will stay on for
approximately 60 seconds and
then turn off automatically.
Remote Control

13
OPERATING INSTRUCTIONS
REVERSE SWITCH
Use the fan reverse switch, located on the
switch housing to optimize your fan for
seasonal performance. Using a ceiling fan
will allow you to raise your thermostat
setting in summer and lower your
thermostat setting in winter without
feeling a difference in your comfort.
In warmer weather, move the reverse
switch to the left which will result in
downward airflow creating a wind chill
effect.
In cooler weather, move the reverse
switch to the right which will result in
upward flow that can help move
stagnant, hot air off the ceiling area.
IMPORTANT: Wait for fan to stop before
moving the reverse switch. The reverse
switch must be set either completely to
the left or right for the fan to function
correctly. If the reverse switch is set in
the middle position, the fan will not
operate.
Reverse Switch

14
TROUBLESHOOTING
FAN DOES NOT START:
•Check the circuit breaker and confirm the power is ON.
•Make sure wall switch is ON.
•Confirm the battery is installed correctly in the handheld remote; install a fresh battery.
•Make sure you are in the normal range for the remote control of 10’ – 20’ (3m – 6m).
•Check that the motor reversing switch is correctly engaged and set to left or right position. The
reverse switch will either be on the top of the motor housing or in the remote battery
compartment (varies by model). Fan will not run if switch is in the middle.
•Confirm that the blades spin freely and that there are no obstructions between the blades or
into the motor housing. Turn off power at circuit breaker and at wall switch, loosen the canopy,
and check that all wiring connections from the household supply wires to the remote receiver
and to the fan wires are secure.
FAN IS NOISY:
•Make sure all screws are snug and secure including blade screws into the blade irons, blade
irons onto the motor, and screws on canopy and switch housing cover.
•Make sure all blades and blade irons are properly installed.
•Some ceiling fan motors are sensitive to solid state variable speed wall controls. If the fan is
controlled by these types of controls remove the control and replace with a standard wall
switch to enable the remote control to operate the fan and light.
FAN WOBBLES:
•Make sure fan mounting bracket is securely tightened to the ceiling outlet box and the ceiling
box is securely fastened to the ceiling joist or other adequate support structure.
•Confirm that the hanger ball is properly seated in the mounting bracket. The tab in the
mounting bracket should be seated in the slot in the downrod ball.
•Make sure all blades are installed correctly and all screws are secure. Also confirm that the two
set screws in the downrod are tight in the yoke.
•Balance the fan blades using the blade balancing kit included with the fan.
WARNING: Before beginning any troubleshooting or maintenance work always shut off the
power supply to avoid electrical shock hazard.

LIMITED LIFETIME WARRANTY
15
This limited lifetime warranty covers the ceiling fan from the date of purchase, for residential use by
the original purchaser, against defects in material and/or workmanship as follows:
Motor Limited Lifetime Warranty: If the ceiling fan motor fails during the ownership of the fan due to a
defect in material or workmanship, as determined solely by Blue Mountain Fans, a replacement fan will
be provided at no charge. If no replacement product or part can be provided, then we will provide a
comparable fan or part at the sole discretion of Blue Mountain Fans. This limited lifetime motor
warranty applies only to the motor itself and does not apply to electronic controls (remote control
transmitters, remote control receivers, or capacitors) used in conjunction with the motor. The
aforementioned electronic items are covered under the one-year warranty below.
One Year Warranty on all other parts: Except as otherwise indicated throughout this warranty, if any
part of your Blue Mountain ceiling fan fails at any time within one year of the date of purchase due to a
defect in material or workmanship and as solely determined by Blue Mountain Fans, a replacement
part will be provided at no charge.
Glass globes, light bulbs, remote control batteries, ordinary wear and tear, and fans that are damaged
by improper installation, mishandling, modifications, or damage to the fan while in your possession, or
unreasonable use including failure to provide necessary maintenance are not covered under this
warranty. This warranty does not cover any costs or fees associated with the labor required to install,
remove, or replace a fan or any fan parts, including electrician fees or labor charges.
Any replacement of defective parts for the ceiling fan must be reported within the first year from date
of purchase. Original purchaser must present a sales receipt or other document that establishes proof
of purchase. To obtain service please contact Blue Mountain Fans Customer Service online or by phone
as noted below. Do not attempt to ship your fan or any parts to Blue Mountain Fans without prior
written approval as otherwise your delivery will be refused. Blue Mountain Fans shall not be liable for
any incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties.
Blue Mountain Fans Customer Service:
1-770-486-2000 [email protected]
