Blue Ridge XK19 User manual

Thank you for choosing Commercial Air Conditioners, please read this
owner’s manual carefully before operation and retain it for future reference.
Wired Remote Controller XK19 and

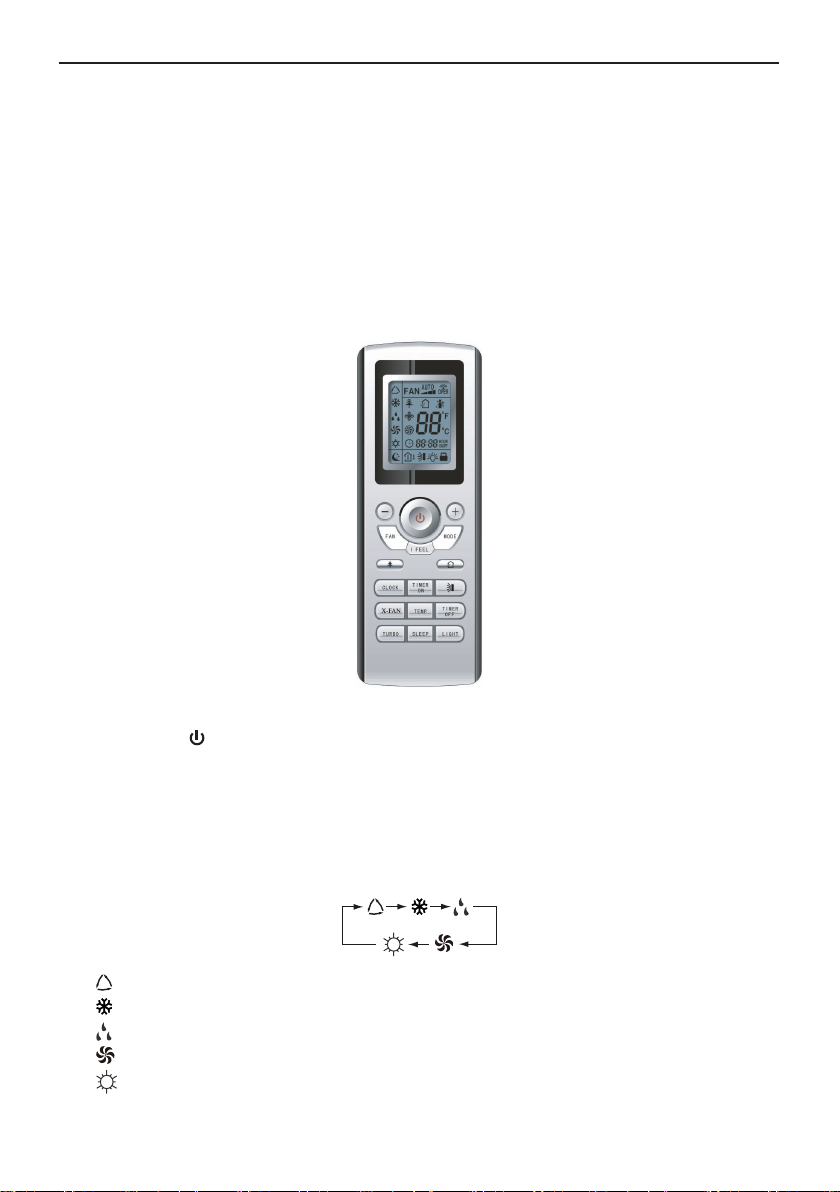

Wireless Remote Controller YT1FF
Commercial Air Conditioners
Owner's Manual

User Notice
◆Never install the wired remote controller in the moist circumstance or expose it directly under
the sunlight.
◆Never beat, throw, and frequently disassemble the wired remote controller and the wireless
remote controller.
◆Never operate the wired remote controller and the wireless remote controller with wet hands.
Please read the manual carefully before using and installing this product.

Contents
ⅠWired Remote Controller XK19...................................................................... 1
1 Symbols on LCD ...........................................................................................1
1.1 Outside View of the Wired Remote Controller ...................................................... 1
1.2 LCD of the Wired Remote Controller .................................................................... 1
2 Buttons ......................................................................................................... 2
2.1 Buttons on the Wired Remote Controller .............................................................. 2
2.2 Function of the Buttons ......................................................................................... 3
3 Operation Instructions ................................................................................... 3
3.1 On/Off ................................................................................................................... 3
3.2 Mode Setting......................................................................................................... 4
3.3 Temperature Setting.............................................................................................. 4
3.4 Fan Setting............................................................................................................ 4
3.5 Timer Setting......................................................................................................... 5
3.6 Swing Setting ........................................................................................................ 6
3.7 Sleep Setting......................................................................................................... 7
3.8 Turbo Setting......................................................................................................... 8
3.9 E-heater Setting .................................................................................................... 9
3.10 Blow Setting ...................................................................................................... 10
3.11 Other Functions................................................................................................. 11
4 Installation and Dismantlement .................................................................. 11
4.1 Connection of the Signal Line of the Wired Remote Controller .......................... 11
4.2 Installation of the Wired Remote Controller ........................................................ 11
4.3 Dismantlement of the Wired Remote Controller ................................................. 13
5 Errors Display.............................................................................................. 13
ⅡWireless Remote Controller YT1FF.............................................................. 15
1 Function of Press Buttons .......................................................................... 15
2 Guide for General Operation ......................................................................17
3 Guide for Optional Operation .....................................................................18

Wired Remote Controller XK19
1
ⅠWired Remote Controller XK19
1 Symbols on LCD
1.1 Outside View of the Wired Remote Controller
Enter/cancel
Enter/Cancel Fan Mode
Function Timer On/Off
SHIELD
MEMORY
MASTER
SAVE
BLOW
QUIET
CO
2
AUTO TURBO SET
HOUR
F
E-HEATER
A
U
T
O

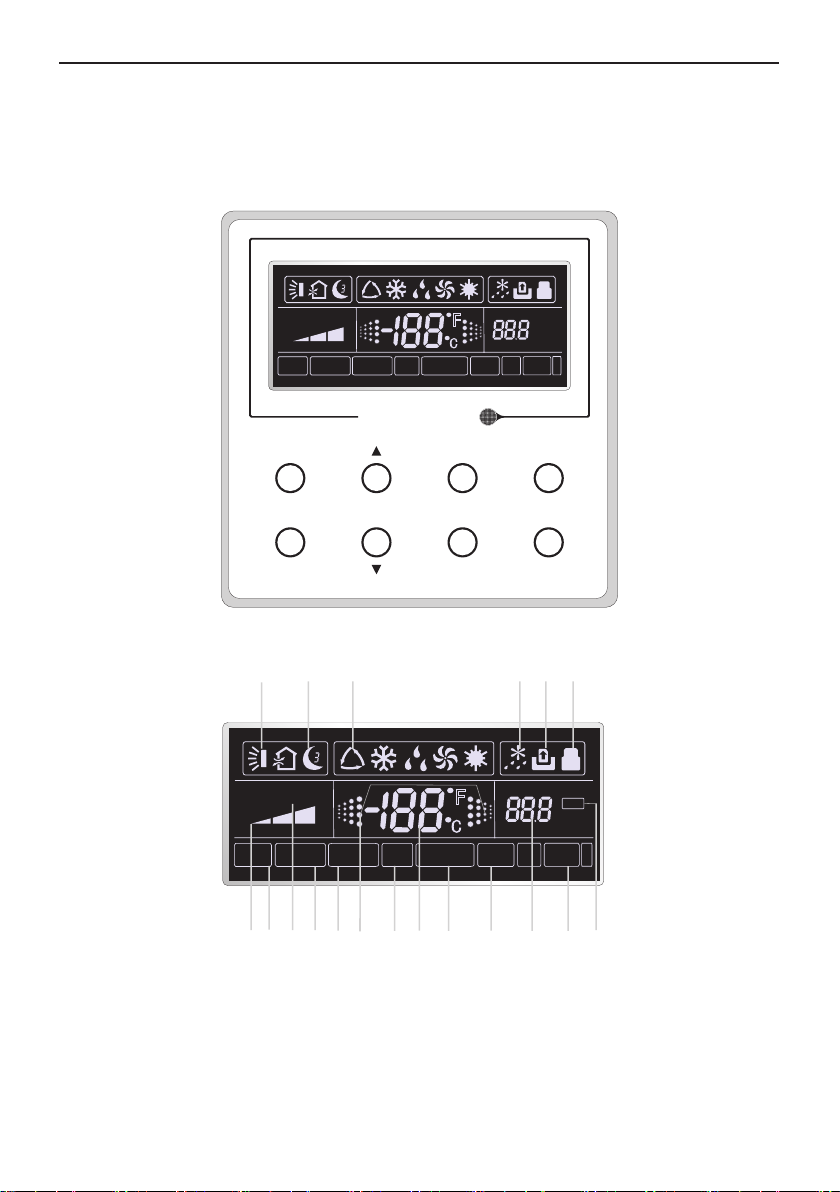

Fig.1 Outside View of the Wired Remote Controller
1.2 LCD of the Wired Remote Controller
SHIELD
MEMORY
MASTER
SAVE
BLOW
QUIET
CO
2
AUTOT URBO SET
HOUR
F
E-HEATER
A
U
T
O
12 3
4
5
6
78910 1211 13 14 15 16 17 18 19
Fig.2 LCD of the Wired Remote Controller

Wired Remote Controller XK19
2
Table 1
No. Symbols Description
1Swing function.
2 Sleep function (Only sleep 1).
3Running modes of the indoor unit (Cooling, Dry, Fan and Heating).
4 Defrosting function for the outdoor unit.
5 Gate-control function (this function is yet unavailable for this unit).
6Lock function.
7 High, middle, low or auto fan speed of the indoor unit.
8Shield functions (buttons, temperature, On/Off or Mode is shielded
by the remote monitor.
9Turbo function.
10 Memory function (The indoor unit resumes the original setting state
after power failure and then power recovery).
11 Master wired remote controller (this function is yet unavailable for
this unit).
12 It blinks under on state of the unit without operation of any button.
13 Energy-saving function (this function is yet unavailable for this unit).
14 Ambient/preset temperature value.
15 Electric auxiliary heating function.
16 Blow function.
17 Timing value.
18 Quiet function (two types: quiet and auto quiet)
(this function is yet unavailable for this unit).
19 SET It will be displayed under the debugging mode.
2 Buttons
2.1 Buttons on the Wired Remote Controller
Enter/cancel
Enter/Cancel Fan Mode
Function Timer On/Off
12 3 4
5678
Fig. 3 Buttons on the Wired Remote Controller

Wired Remote Controller XK19
3
2.2 Function of the Buttons
Table 2
No. Name Function
1 Enter/Cancel Function selection and cancellation.
2▲①Running temperature setting of the indoor unit, range:16 ～30℃.
②Timer setting, range:0.5-24 hr.
6▼
3 Fan Setting of the high/middle/low/auto fan speed.
4 Mode Setting of the Cooling/Heating/Fan/Dry/Auto mode of the indoor unit.
5 Function Switchover among the functions of Turbo/Save/E-heater/Blow etc..
7 Timer Timer setting.
8 On/Off Turn on/off the indoor unit.
4+2 ▲+Mode
Press them for 5s under off state of the unit to Enter/Cancel the Memory
function(If memory is set, indoor unit after power failure and then power
recovery willresume the original setting state. If not, the indoor unit is
defaulted to be off after power recovery. Memory off is default before
delivery.).
3
+6 Fan+▼
By pressing them at the same time under off state of the unit, will be
displayed on the wired remote controller for the cooling only unit, while
will be displayed on the wired remote controller for the cooling and heating
unit.
2
+6 ▲+▼
Upon startup of the unit without malfunction or under off state of the
unit,press them at the same time for 5s to enter the lock state, in which
case, any other buttons won’t respond the press. Repress them for 5s to
quit this state.
4+6 Mode+▼ Under OFF state, the Celsius and Fahrenheit scales can be switched by
pressing “Mode” and “▼” for ve seconds.
5+7 Function+Timer
Under OFF state, it is available to go to the commissioning status by
pressing “Function” and “Timer” for ve seconds, and let “00” displayed on
the temperature display area by pressing “Mode”, then adjust the options
which is shown on the timer area by pressing “▲” and “▼”. There are totally
four options, as follows:
①Indoor ambient temperature is sensed by the return air temperature
sensor ( 01 displayed on the timer area).
②Indoor ambient temperature is sensed by the wired controller (02
displayed on the timer area).
③The return air temperature sensor is selected under the cooling, dry, or
fan mode; while the wired controller temperature sensor is selected under
the heating or auto mode. (03 is displayed on the timer area).
④The wired controller temperature sensor is selected under the cooling,
dry, or fan mode; while the return air temperature sensor is selected under
the heating mode. (04 is displayed on the timer display area).
5+7 Function+Timer
Under OFF state, it is available to go to the commissioning status by
pressing “Function” and “Timer” for five seconds. Press “Mode” button to
until “01” icon is shown at the temperature display area. The setting status
will be shown at timer area. Press “▲” and “▼” button to adjust and two
options are available: ① Three low levels (01) ; ② Three high levels (02).

Wired Remote Controller XK19
4
3 Operation Instructions
3.1 On/Off
Press On/Off to turn on the unit and turn it off by another press.

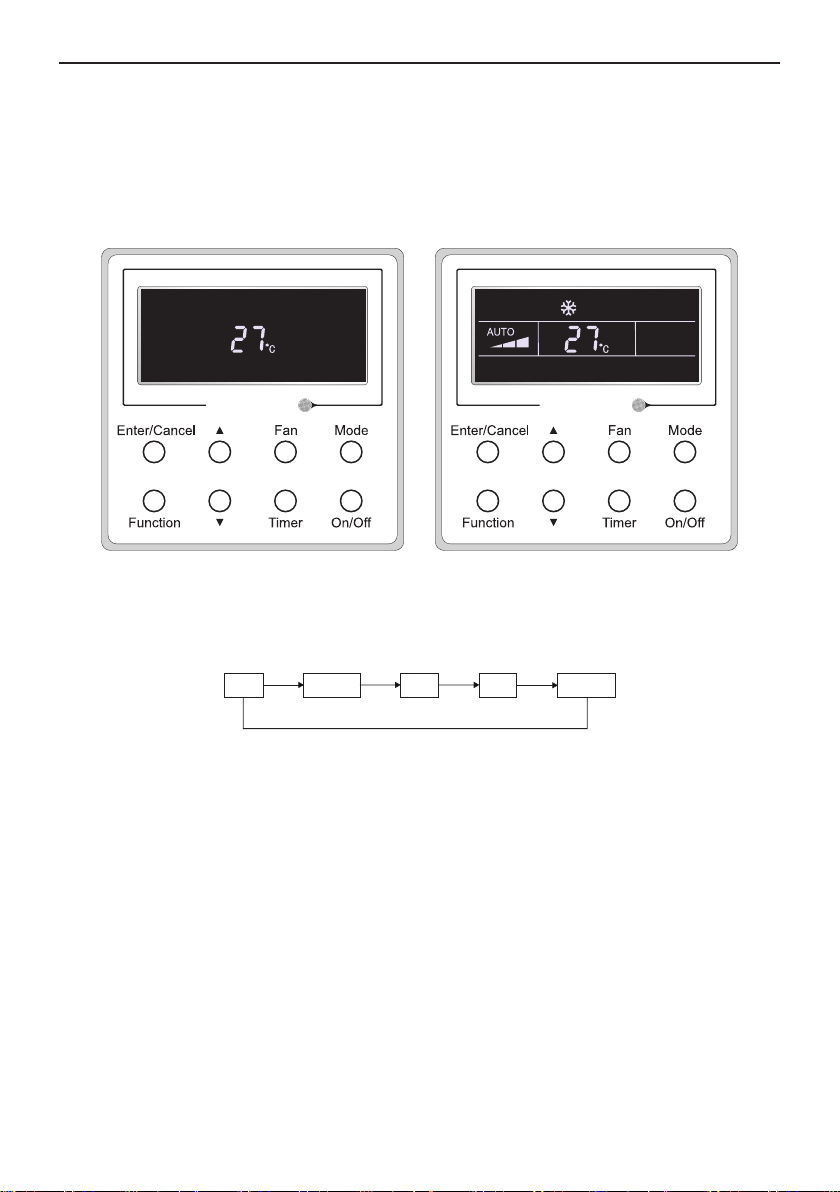

Note: The state shown in Fig.4 indicates the “Off” state of the unit after power on. The state
shown in Fig.5 indicates the “On” state of the unit after power on.
Fig. 4 “Off” State Fig. 5 “On” State
3.2 Mode Setting
Under the “On” state of the unit, press Mode to switch the operation modes as the following
sequence:Auto-Cooling-Dry-Fan-Heating.
Auto Cooling Dry Fan Heating
3.3 Temperature Setting
Press ▲or ▼ to increase/decrease the preset temperature. If press either of them continuously,
the temperature will be increased or decreased by 1℃every 0.5s,as shown in Fig.6.
In the Cooling, Dry, Fan or Heating mode, the temperature setting range is 16℃～ 30℃ .
In the Auto mode, the setting temperature is unadjustable.

Wired Remote Controller XK19
5
Fig.6
3.4 Fan Setting
Under the “On”/”Off” state of the unit, press Fan and then fan speed of the indoor unit will
change circularly as shown in Fig.7.
Low Middle High
Enter/Cancel Fan Mode
Function Timer On/Off
AUTO
Fig.7
3.5 Timer Setting
Under the “On”/”Off” state of the unit, press Timer to set timer off/on.
Timer on setting: press Timer, and then LCD will display “xx.x hour”, with “hour” blinking. In this
case, press ▲or ▼ to adjust the timing value. Then press Enter/Cancel to conrm the setting.
Timer off setting: press Timer, if LCD won’t display xx.x hour, and then it means the timer
setting is canceled.
Timer off setting under the “On” state of the unit is shown as Fig.8.

Wired Remote Controller XK19
6

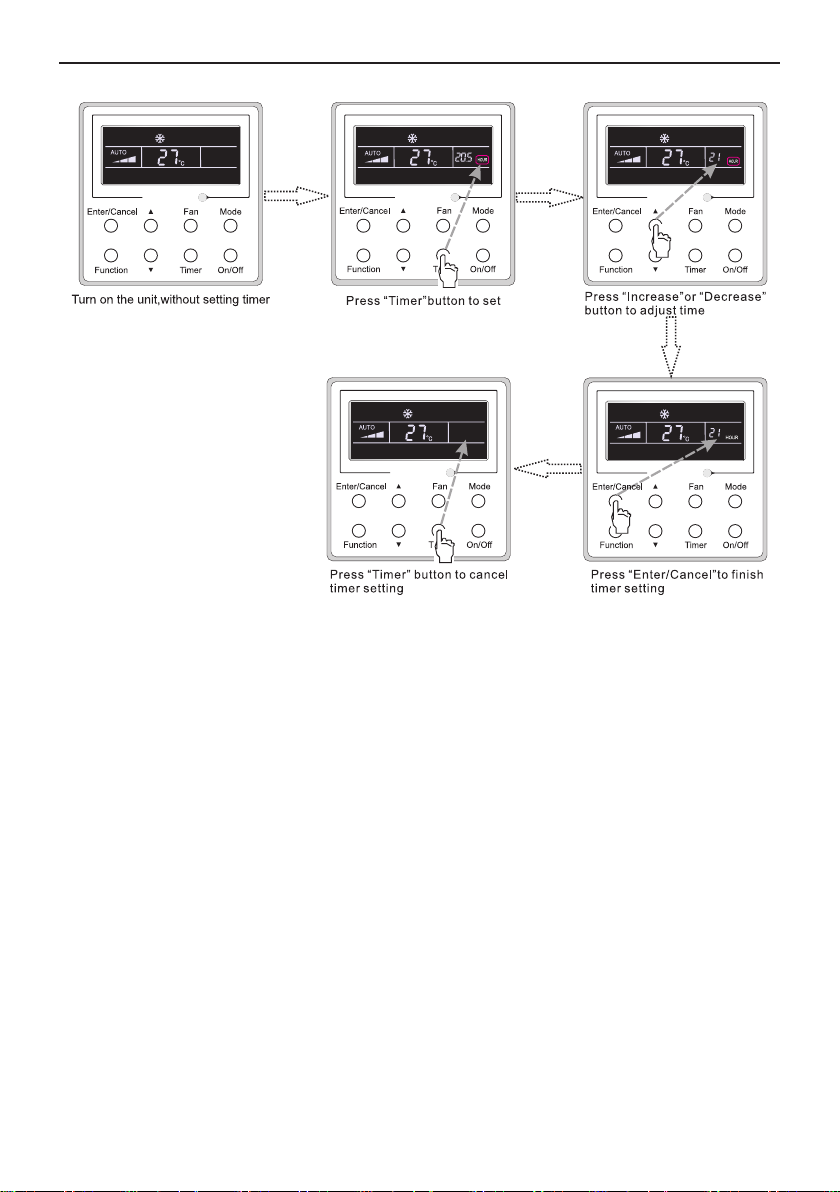

Fig. 8 Timer off Setting under the “On” State of the Unit
Timer range: 0.5-24hr. Every press of ▲or ▼ will make the set time increased or decreased by
0.5hr. If either of them is pressed continuously, the set time will increase/ decrease by 0.5hr every
0.5s.

Wired Remote Controller XK19
7
3.6 Swing Setting
Swing On: Press Function under on state of the unit to activate the swing function. In this case,
will blink. After that, press Enter/Cancel to make a conrmation.
Swing Off: When the Swing function is on, press Function to enter the Swing setting interface,
with blinking. After that, press Enter/Cancel to cancel this function.
Swing setting is shown as Fig.9.

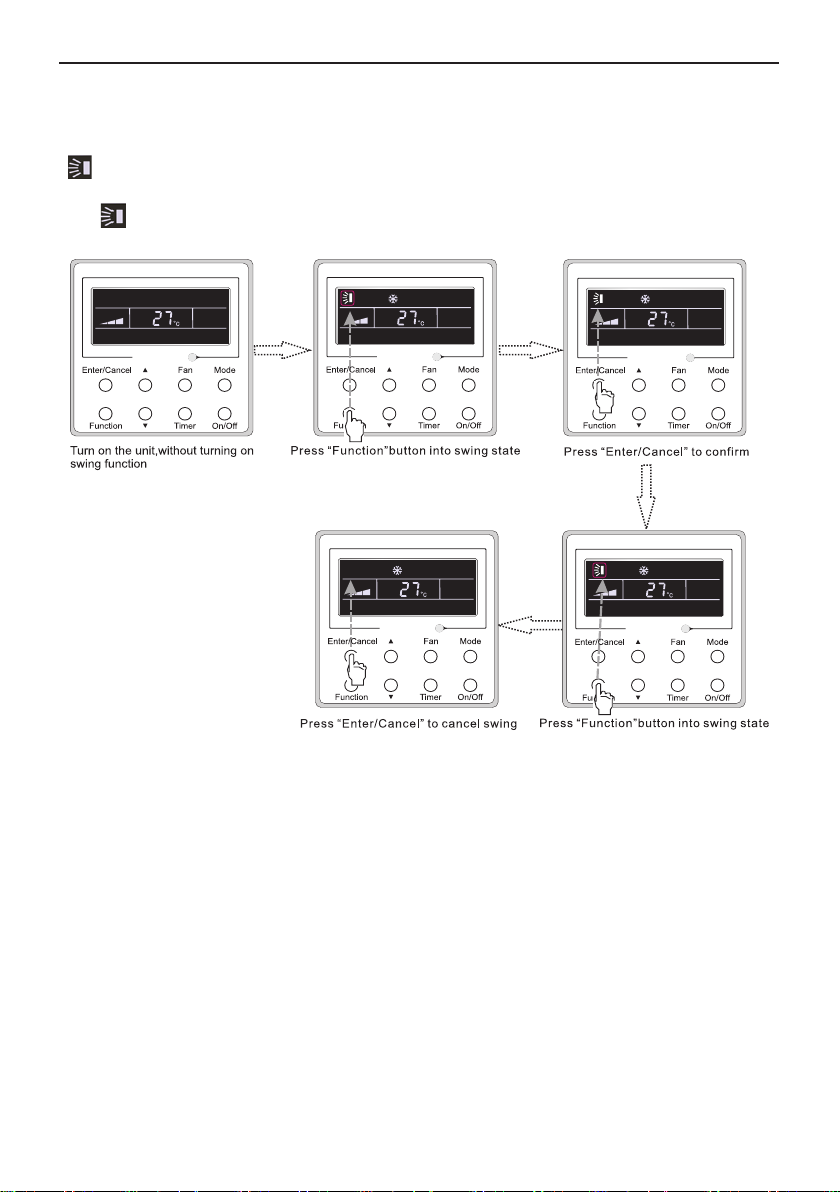

Fig. 9 Swing Setting
Note:
① .
Sleep, Turbo or Blow setting is the same as the Swing setting.
② .
After the setting has been done, it has to press the key “Enter/Cancel” to back to the setting
status or quit automatically ve seconds later.

Wired Remote Controller XK19
8
3.7 Sleep Setting
Sleep on: Press Function under on state of the unit till the unit enters the Sleep setting
interface. Press Enter/Cancel to conrm the setting.
Sleep off: When the Sleep function is activated, press Function to enter the Sleep setting
interface. After that, press Enter/Cancel to can this function.
In the Cooling or Dry mode, the temperature will increase by 1℃after the unit runs under Sleep
1 for 1hr and 1℃after another 1hr.After that, the unit will run at this temperature.
In the Heating mode, the temperature will decrease by 1℃after the unit runs under Sleep 1 for
1hr and 1℃after another 1hr. After that, the unit will run at this temperature.
Sleep setting is shown as Fig.10.
Fig. 10 Sleep Setting

Wired Remote Controller XK19
9
3.8 Turbo Setting
Turbo function: The unit at the high fan speed can realize quick cooling or heating so that the
room temperature can quickly approach the setting value.
In the Cooling or Heating mode, press Function till the unit enters the Turbo setting interface
and then press Enter/Cancel to conrm the setting.
When the Turbo function is activated, press Function to enter the Turbo setting interface and
then press Enter/Cancel to cancel this function.
Turbo function setting is as shown in Fig.11.
Fig.11 Turbo Setting

Wired Remote Controller XK19
10
3.9 E-heater Setting
E-heater (auxiliary electric heating function): In the Heating mode, E-heater is allowed to be
turned on for improvement of efciency.
Once the wired remote controller or the remote controller enters the Heating mode, this function
will be turned on automatically.
Press Function in the Heating mode to enter the E-heater setting interface and then press
Enter/Cancel to cancel this function.
Press Function to enter the E-heater setting interface, if the E-heater function is not activated,
and then press Enter/Cancel to turn it on.
The setting of this function is shown as Fig.12 below:
Fig.12 E-heater Setting

Wired Remote Controller XK19
11
3.10 Blow Setting
Blow function: After the unit is turned off, the water in evaporator of indoor unit will be
automatically evaporated to avoid mildew.
In the Cooling or Dry mode, press Function till the unit enters the Blow setting interface and
then press Enter/Cancel to active this function.
When the Blow function is activated, press Function to the Blow setting interface and then
press Enter/Cancel to cancel this function.
Blow function setting is as shown in Fig.13
Fig.13 Blow Setting
Notes:
① .
When the Blow function is activated, if turning off the unit by pressing On/Off or by the
remote controller, the indoor fan will run at the low fan speed for 2 min, with “BLOW” displayed on
the LCD. While, if the Blow function is deactivated, the indoor fan will be turned off directly.
② .
Blow function is unavailable in the Fan or Heating mode.

Wired Remote Controller XK19
12
3.11 Other Functions
(1). Lock
Upon startup of the unit without malfunction or under the “Off” state of the unit, press ▲ and
▼ at the same time for 5s till the wired remote controller enters the Lock function. In this case, LCD
displays .
After that, repress these two buttons at the same time for 5s to quit this function.
Under the Lock state, any other button press won’t get any response.
(2). Memory
Memory switchover: Under the “Off” state of the unit, press Mode and ▲ at the same time for
5s to switch memory states between memory on and memory off. When this function is activated,
Memory will be displayed. If this function is not set, the unit will be under the “Off” state after power
failure and then power recovery.
Memory recovery: If this function has been set for the wired remote controller, the wired
remote controller after power failure will resume its original running state upon power recovery.
Memory contents: On/Off, Mode, set temperature, set fan speed and Lock function.
(3). Selection of the Temperature Sensor
Under OFF state of the unit, press both “Function” and “Timer” for five seconds to go the
commissioning status. Under this status, adjust the display in the temperature display area to “00”
through the button “Mode”, and then adjust the option of the temperature sensor in the timer display
area through the button ▲ or ▼.
①.
Indoor ambient temperature is sensed at the return air inlet(01 in the timer display area).
②.
Indoor ambient temperature is the sensed at the wired controller(02 in the timer display area).
③.
Select the temperature sensor at the return air inlet under the cooling, dry and fan modes,
while select the temperature sensor at the wired controller under the heating and auto
modes.(03 in the timer display area).
④.
Select the temperature sensor at the wired controller under the cooling, dry and fan modes,
and select the temperature sensor at the return air inlet under the heating mode and auto
modes (04 displayed in the timer display area).
The factory defaulted setting is ③.
After the setting, press “Enter/Cancel” to make a conrmation and quit this setting status.
Pressing the button “On/Off” also can quit this commissioning status but the set data won’t be
memorized.
Under the commissioning status, if there is no any operation in 20 seconds after the last button
press, it will back to the previous state without memorizing the current data.
(4). Selection of the Fan Speed
Under OFF state of the unit, press both the buttons “Function” and “Timer” for ve seconds to
go to the commissioning status, and then adjust the display in the temperature display area to 01
through the button “Mode” and adjust the setting of the fan speed, which comes to two options.
01: Three low fan speeds; 02: Three high fan speeds
After the setting, press “Enter/Cancel” to make a conrmation and quit this setting status.
Pressing the button “On/Off” also can quit this commissioning status but the set data won’t be memorized.
Under the commissioning status, if there is no any operation in 20 seconds after the last button
press, it will back to the previous state without memorizing the current data.

Wired Remote Controller XK19
13
4 Installation and Dismantlement
4.1 Connection of the Signal Line of the Wired Remote Controller
●Open the cover of the electric control box of the indoor unit.
●Let the single line of the wired remote controller through the rubber ring.
●Connect the signal line of the wired remote controller to the 4-pin socket of the indoor unit
PCB.
●Tighten the signal wire with ties.
●The communication distance between the main board and the wired remote controller can
be up to 20 meters ( the standard distance is 8 meters)
4.2 Installation of the Wired Remote Controller
1
PVC Pipe
3 4 52
Fig.14 Accessories for the Installation of the Wired Remote Controller
Table 3
No. 1 2 3 4 5
Name
Socket box
embedded
in the wall
Soleplate of the
Wired Remote
Controller
Screw
M4X25
Front Panel of the
Wired Remote
Controller
Screw ST2.9X6

Wired Remote Controller XK19
14
1
6
8 9 10
7
3 4
5
2
Fig.15

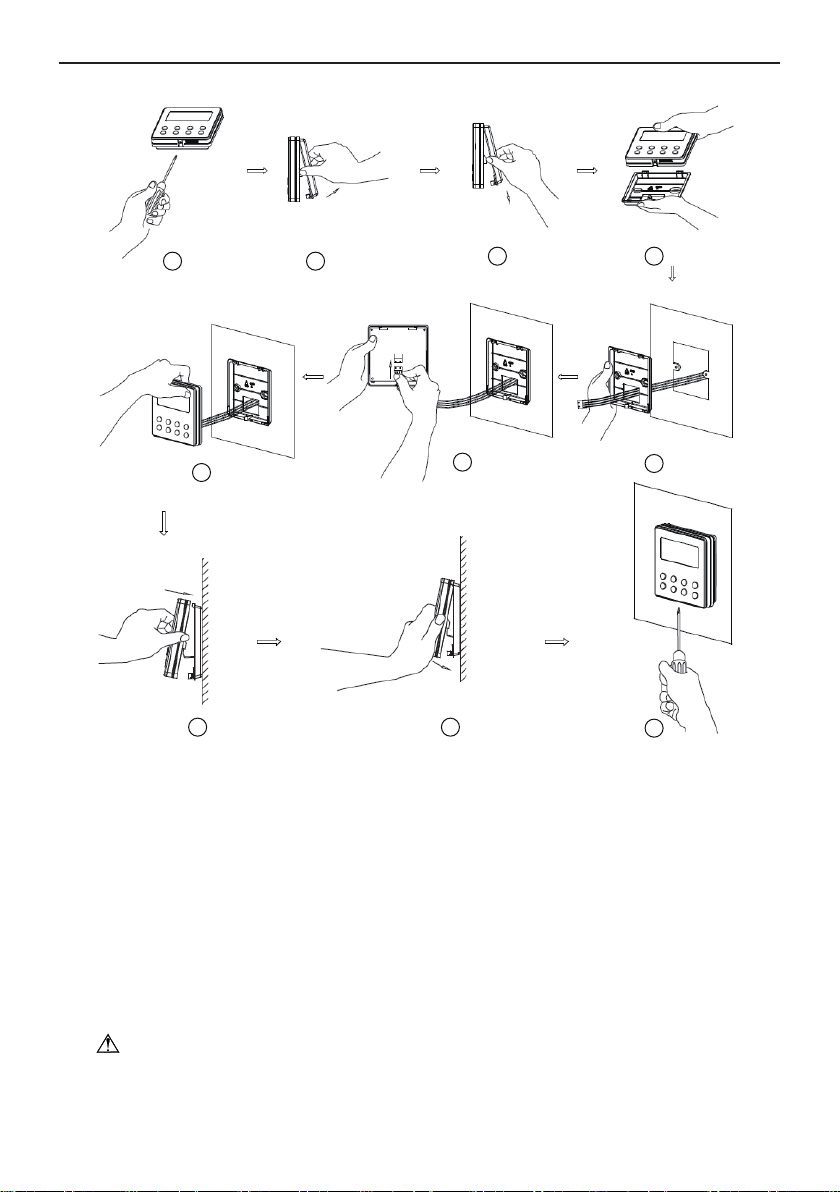

Fig.15 shows the installation steps of the wired remote controller, but there are some issues that need your attention.
(1). Prior to the installation, please firstly cut off the power supply of the wire buried in the
installation hole, that is, no operation is allowed with electricity during the whole installation.
(2). Pull out the four-core twisted pair line from the installation holes and then let it go through
the rectangular hole behind the soleplate of the wired remote controller.
(3). Stick the soleplate of the wired remote controller to the wall over the installation hole and
then x it with screws M4X25.
(4). Insert the four-core twisted pair line into the slot of the wired remote controller and then
buckle the front panel and the soleplate of the wired remote controller together.
(5). Finally, x the front panel and the soleplate of the wired remote controller tightly by screws
ST2.9X6.
CAUTION!
Please pay special attention to the followings during the connection to avoid the malfunction of
the air conditioning unit due to electromagnetic interference.
① .
Separate the signal and communication lines of the wired remote controller from the power

Wired Remote Controller XK19
15
cord and connection lines between the indoor and outdoor unit, with a minimum interval of 20cm,
otherwise the communication of the unit will probably work abnormally.
② .
If the air conditioning unit is installed where is vulnerable to electromagnetic interference,
then the signal and communication lines of the wired remote controller must be the shielding
twisted pair lines.
4.3 Dismantlement of the Wired Remote Controller
1 3 42
5 Errors Display
If there is an error occurring during the operation of the system, the error code will be displayed
on the LCD, as show in Fig.16. If multi errors occur at the same time, their codes will be displayed
circularly.
Note: In event of any error, please turn off the unit and contact the professionally skilled
personnel.
Enter/cancel
Enter/cancel Fan Mode
Function Timer On/Off
Fig.16

Wired Remote Controller XK19
16
Table 4 Meaning of Each Error
Error Error
Code Error Error
Code
Return air temperature sensor open/short
circuited F1 Drive board communication error P6
evaporator temperature sensor open/short
circuited F2 Compressor overheating protection H3
Indoor unit liquid valve temperature sensor
open/short circuited b5 Indoor and outdoor units unmatched LP
Indoor gas valve temperature sensor open/
short circuited b7 Communication line misconnected or
expansion valve error dn
IPM temperature sensor open/short circuited P7 Running mode conict E7
Outdoor ambient temperature sensor open/
short circuited F3 Pump-down Fo
Outdoor unit condenser mid-tube temperature
sensor open/short circuited F4 Defrost or oil return
Discharge temperature sensor open/short
circuited F5 Forced defrosting H1
Indoor and outdoor communication error E6 Compressor startup failure Lc
DC bus under-voltage protection PL High discharge temperature protection E4
DC bus over-voltage protection PH Overload protection E8
Compressor phase current sensing circuit
error U1 Whole unit over-current protection E5
Compressor demagnetization protection HE Over phase current protection P5
PFC protection Hc Compressor desynchronizing H7
IPM Temperature Protection P8 IPM Current protection H5
Over-power protection L9 Compressor phase loss/reversal
protection Ld
System charge shortage or blockage
protection F0 Frequency restricted/reduced with whole
unit current protection F8
Capacitor charging error PU Frequency restricted/reduced with IPM
current protection En
High pressure protection E1 Frequency restricted/reduced with high
discharge temperature F9
Low pressure protection E3 Frequency restricted/reduced with anti-
freezing protection FH
Compressor stalling LE Frequency restricted/reduced with
overload protection F6
Over-speeding LF Frequency restricted/reduced with IPM
temperature protection EU
Drive board temperature sensor error PF Indoor unit full water error E9
AC contactor protection P9 Anti-freezing protection E2
Temperature drift protection PE AC input voltage abnormal PP
Sensor connection protection Pd Whole unit current sensing circuit error U5
DC bus voltage drop error U3 4-way valve reversing error U7
Outdoor fan 1 error protection L3 Motor stalling H6
Outdoor fan 2 error protection LA PG motor zero-crossing protection U8

Wireless Remote Controller YT1FF
17
ⅡWireless Remote Controller YT1FF
Notes:
①.
Be sure that there are no obstructions between the receiver and the remote controller;
②.
Do not drop or throw the remote controller;
③.
Do not let any liquid into the remote controller and expose the remote controller to direct
sunlight or any place where is very hot.
④.
This is a general use remote controller. If press some button which is not available for the
corresponding function, the unit will keep the original running status.
1 Function of Press Buttons
Fig.17
1) ON/OFF ( )
Press this button to turn on/off the unit. After that, the sleep function will be canceled but the
preset time is still remained.
2) MODE
Auto, Cool, Dry, Fan, Heat modes can be selected circularly by pressing this button. Auto mode
is the default after power on. Under Auto mode, the temperature will not be displayed. Under Heat
mode, the initial value is 28℃(82 ℉); Under other modes, the initial value is 25℃(77 ℉).
Auto
Cool
Dry
Fan
Heat(Only for the cooling and heating unit)
