120 W POWER INVERTER
TM/MC

AC POWER
AC output voltage (nominal) 115 V, 60 Hz
Maximum continuous power 100 W
5 minutes AC output power 120 W
Peak power 200 W
AC output frequency 60 ± 1 Hz
AC output waveform Modied sine wave
DC POWER
USB output 5 V / 2.1 A max
No load current draw (at 12 V) < 0.32 A
Efciency (maximum) 85%
Low-voltage shutdown 10.0 – 11.0 V
High-voltage shutdown 15.0 – 16.3 V
PHYSICAL SPECIFICATIONS
Ambient operating temperature range 0–40°C (32–104°F)
Dimensions (L x W x H) 5 13/16 x 2 15/16 x 1 1/2" (148 x 74 x 38 mm)
Weight 6 oz (169 g)
TECHNICAL SPECIFICATIONS .....................................................................................................2
SAFETY INFORMATION .............................................................................................................. 3
KEY PARTS DIAGRAM.................................................................................................................6
INTENDED USE...........................................................................................................................7
OPERATION ................................................................................................................................8
Determining the maximum load of connected devices .......................................................8
Wattage of commonly used devices....................................................................................9
Before you start .................................................................................................................11
Connecting the Power Inverter ...........................................................................................12
Switching on / off ..............................................................................................................13
Using the USB port.............................................................................................................14
Automatic safety features..................................................................................................14
MAINTENANCE.........................................................................................................................15
Maintaining battery condition............................................................................................15
Fuse replacement..............................................................................................................16
TROUBLESHOOTING .................................................................................................................17
TABLE OF CONTENTS
1model no. 011-1945-0
TECHNICAL SPECIFICATIONS
2

WARNING!
• HEATED SURFACE. The power inverter housing may become uncomfortably warm, and can
reach up to 60°C (140°F) under extended high power operation.
• Do not operate the outlet if it has been dropped or damaged in any way.
• Always disconnect the device by pulling on the plug itself, not the power cable.
• The device must be fastened so that it does not cause a safety hazard in case of collision
or hard braking.
• Route the power cable so that it does not interfere with the driver of the vehicle when
plugged into the 12 V outlet.
• Prevent the power supply cable from hanging over sharp edges.
• Using improper voltage may result in damage to the device and possible injury to the user.
The correct voltage is listed on the rating plate.
• Never leave the outlet unattended during operation.
CAUTION!
• Do not connect live AC power to the power inverter's AC outlets. The outlet will be
damaged even if it is switched off.
• Avoid placing the power inverter outlet on or near heating vents, radiators or other sources
of heat. Do not place the outlet in direct sunlight (e.g. on the vehicle's dashboard) in order
to prevent an overheat shutdown caused by high temperatures. Do not use the outlet in
temperatures over 40°C (104°F).
• Do not insert foreign objects into the power inverter outlets or ventilation openings.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and
PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and
understand it thoroughly before using the product. The symbols listed below are used to
indicate this information.
DANGER!
Potential hazard that will result in serious injury or loss of life.
WARNING!
Potential hazard that could result in serious injury or loss of life.
CAUTION!
Potential hazard that may result in moderate injury or damage to equipment.
IMPORTANT!
Installation, operation, or maintenance information that is important but not hazard related.
SAFETY INFORMATION
3model no. 011-1945-0
SAFETY INFORMATION
4

D
E
A
B
C
D
E
A
C
B
LED DISPLAY
VENTILATION OPENNINGS
USB OUTPUT: 5 V/2.1 A max
AC OUTPUT: 115 V
DC Input: 14.2 V
CAUTION!
• DO NOT USE the power inverter with the following equipment:
Small battery-operated devices such as rechargeable ashlights,
some rechargeable shavers, and night lights that are plugged
directly into an AC receptacle to recharge. The device can be
damaged if connected to the power inverter. Always recharge
batteries using a separate battery charger.
Battery chargers used in power tools. These chargers display a
WARNING LABEL stating that there are dangerous voltages at the
charger’s battery terminals.
• Disconnect the power cable whenever the engine is switched off for extended periods of
time. In some vehicles, the power does not turn off after the engine has been switched off.
If the plug is left connected, the vehicle battery might become discharged or damaged.
• Using the power inverter for extended periods of time can completely discharge the
vehicle battery.
• When using a power inverter continuously inside a vehicle that is not running, the
engine should be started at least once an hour for 10 –15 minutes to keep the battery
from discharging. Do not start a vehicle in a closed garage, as the carbon monoxide in the
exhaust is fatal.
• Power inverters work best with a battery that is good condition and fully charged. A
weak battery will be drained easily if demands are too high. This could leave you stranded
so be sure to check the battery’s condition before using a power inverter in a stationary vehicle.
SAFETY INFORMATION
5model no. 011-1945-0
KEY PARTS DIAGRAM
6

Determining the maximum load of connected devices
WARNING!
DO NOT overload your power inverter! Overloading the power inverter, even for a short time,
could result in serious damage to the power inverter and/or to the connected device.
A few simple steps are necessary to avoid overloading the power inverter:
• Identify all devices that you would like to power.
• Add up the total wattage of devices that will be powered. The wattage can be found on the
individual device’s rating plate, as well as in the instruction manual.
IMPORTANT!
In some cases, the wattage might not be listed on the devices you want to connect to the
mobile power outlet. In that case, calculate the wattage using the following equation:
VOLTS x AMPERE = WATTS
Formula: 115 Volts x XAmperes = XXXX Watts
Example: 115 Volts x 0.5 Amperes = 60 Watts
CAUTION!
Understand the difference between rated (running) wattage and surge (starting) wattage.
The RATED (RUNNING) WATTAGE is the average amount of power that a device consumes
continuously.
The power inverter is an electronic device that converts the
low-voltage 12 V (direct current) from a battery, such as those found in cars, motor homes,
boats or other similar power sources, to the conventional 115 V (alternating current) like you
have in your home.
Do not connect this power inverter to batteries below 6 V and above 16 V as it might get
damaged.
This conversion process allows you to run standard household devices such as portable
music/mp3 players, cell phones, digital cameras, handheld video games, portable work
lights, portable DVD players battery chargers, stereo systems, laptop computers.
This power inverter uses a modied sine wave that delivers power consistent and
efcient enough to run most devices adequately.
Options for connecting devices to the power inverter
According to the wattage of the devices and their features, you can choose to connect the
device to the:
AC OUTLET (D) USB PORT
INTENDED USE
7model no. 011-1945-0
OPERATION
8

The SURGE (STARTING) WATTAGE is the amount of power that a device consumes at start-
up for a limited period of time (2–3 seconds). Some devices (e.g. induction motors of drills
and fans) may have a start-up surge of 3 to 7 times the rated wattage.
IMPORTANT!
The power inverter can supply momentary surge power that is higher (200 W) than
its maximum power rating (100 W). Some products with a rated wattage lower than the
maximum power rating for your power inverter may still exceed the power inverter's
surge capability and trigger an overload shutdown.
Products rated with the following power and surge ratings or less can be connected to the
power inverter.
POWER RATING MAXIMUM WATTAGE
5 min max. power rating 120 W
Continuous power rating (RATED WATTAGE) 100 W
Surge rating max. (SURGE WATTAGE) 200 W
Portable music device 10 W
Digital camera 10 W
60 W
100 W
Smart Phone/Tablet
Laptop
13" Television
20-30 W
Wattage of commonly used devices
IMPORTANT!
The wattages given on next page are estimates. The actual wattage required for your devices may
differ from those listed. Be sure to check the specic wattage requirements on the rating
label and in the operating instructions of devices to be used.
NOTE: Power requirements for product examples are estimates only. To calculate the wattage
of a product, use the following equation: amperage x 115.
IMPORTANT!
Add up the total wattage of devices to be powered.
TAKE INTO CONSIDERATION THE SURGE WATTAGE REQUIRED BY ELECTRICAL MOTORS
AS WELL AS THE RATED WATTAGE.
Example:
These devices can be operated simultaneously.
DEVICE SURGE (STARTING)
WATTAGE MAX. 200 W
RATED (RUNNING)
WATTAGE MAX. 100 W
Cell Phone 10 10
Laptop 50 50
Total wattage used 60 60
OPERATION
9model no. 011-1945-0
OPERATION
10
WATTS REQUIREDPRODUCTS

Positioning of the power inverter:
Position the power inverter on a at and stable surface in a location that is:
DRY Do not expose to water, rain, moisture, snow or spray.
COOL
Operate the power inverter in ambient temperatures between 0°C and
40°C (32°F and 104°F). Keep it away from heating vents and
direct sunlight. We recommend using the outlet in environments
not exceeding 25°C (77°F).
WELL-VENTILATED For proper cooling, allow at least 2" (5 cm) of clearance around
the outlet.
CLEAN Choose a location that is free of any debris that could get into the
outlet.
SAFE
Do not install the power inverter in a compartment with
batteries or ammable liquids, such as gasoline, or explosive
vapours.
Connecting the power inverter:
• Insert the lighter plug directly into the 12 V outlet of your vehicle. Make sure
the plug is fully inserted.
• Plug an AC product into the three-prong AC receptacle and turn it on. Ensure your product
draws 120 W or less of continuous AC power. To avoid discharging the battery, always
remove the power inverter from the 12 V outlet when not in use.
• The power inverter is now ready for use.

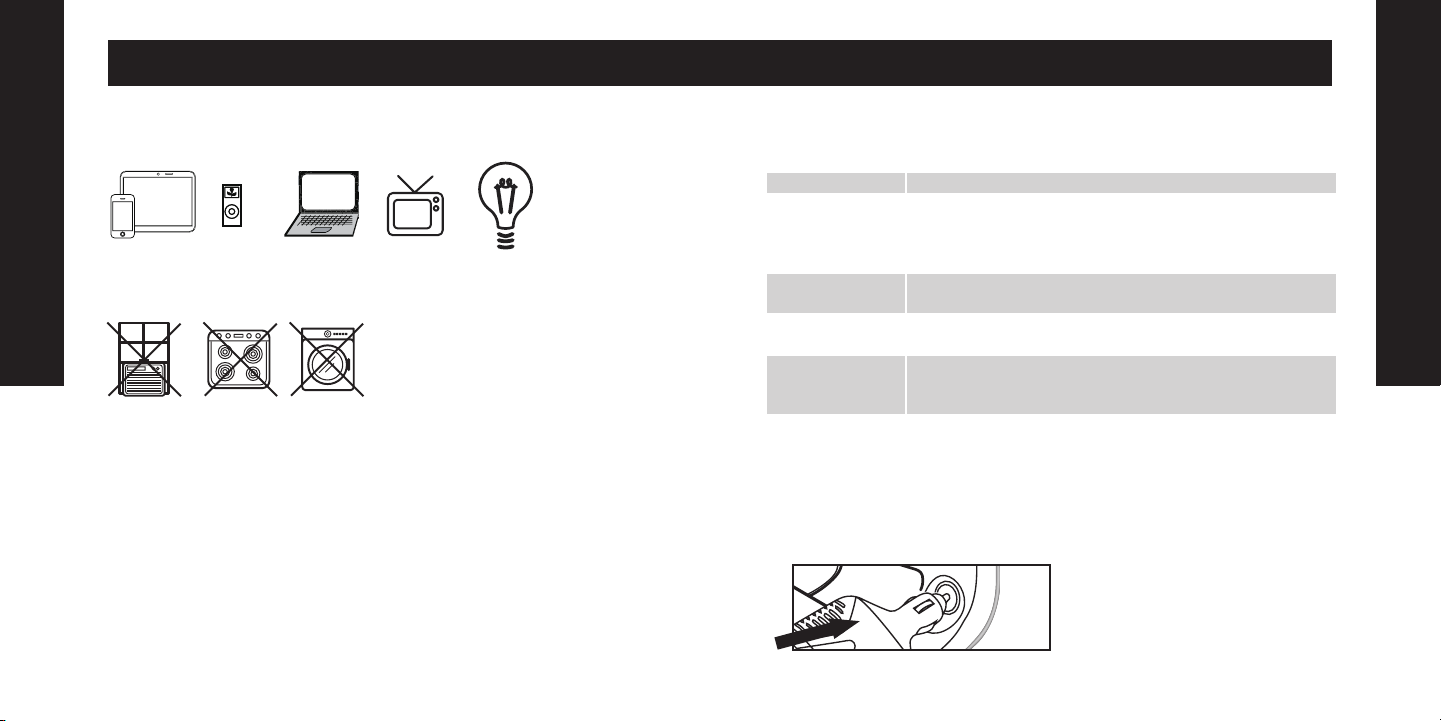

These devices usually CAN be connected to the power inverter:
These devices usually CANNOT be connected to the
power inverter,
as they might have a start-up surge or continuous rating that is too high.
IMPORTANT!
The device is not suitable for professional or industrial use.
Before you start
• Unpack the power inverter. Inspect the unit for damage. If the unit has been damaged,
contact the retailer immediately.
The carton should contain:
• Power inverter
• Owner’s manual
• Check the power inverter's identication label to ensure that you have purchased the
intended model and that it has the required specications for its intended use.
> 120 W
OPERATION
11 model no. 011-1945-0
OPERATION
12

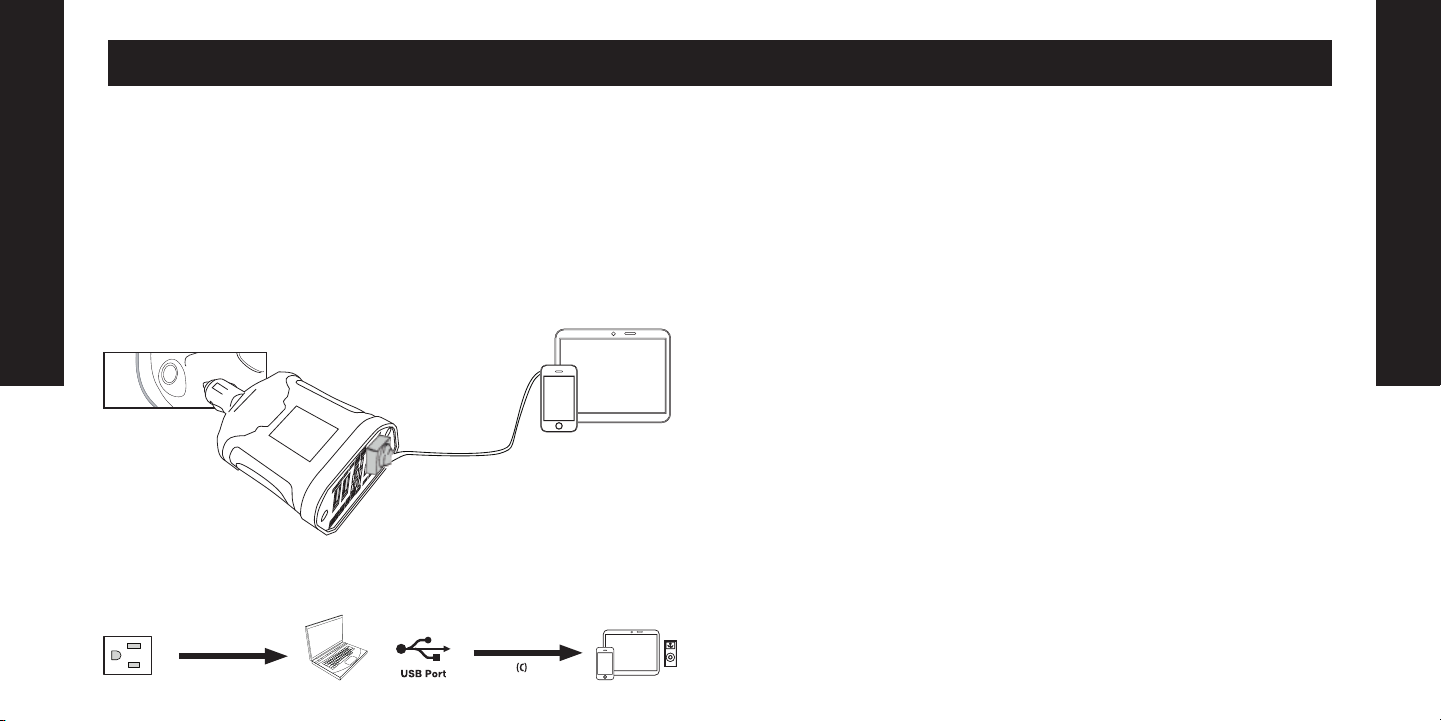

Using the USB port
Plug the USB-powered device into the inverter’s USB port (C) and operate
normally.
IMPORTANT!
This unit’s USB charging port does not support data communication. It only provides
5 V/2.1 A DC power to an external USB-powered device. Not all mobile phones are provided
with a charging cable. Data cables are not supported by this device. Please check with your
mobile phone dealer for the correct charging cable.
Automatic safety features
The power inverter includes the following automatic safety
features to ensure safe and trouble-free operation:
• Vehicle battery low-voltage automatic shutdown: activated when the battery voltage drops
to 10–11 V, to protect the battery from being damaged.
• Vehicle battery high-voltage automatic shutdown: activated when the battery voltage rises
to a dangerously high level due to a defective battery.
• Overload protection with automatic shutdown: activated when a device rated more than
120 W is plugged into the power inverter.
• Overheat protection with automatic shutdown: activated in case the power inverter
overheats due to improper ventilation or a high ambient temperature.
• Output short-circuit protection: activated in case of a short circuit in the connected device.
• Replaceable 8 A fuse: used for continued protection against a risk of re or electric shock
and should be replaced manually, if necessary.
The GREEN indicator (A) will ash in cases of short-circuit or overload shutdown.
The GREEN indicator (A) will turn off in case of low-/high-voltage shutdown.
CAUTION!
Always disconnect the power inverter from the 12 V outlet when you are not using the device.
IMPORTANT!
The normal voltage drop that occurs when the vehicle's engine is started may trigger the
power inverter's low-voltage shutdown feature. We recommend having the power inverter
disconnected from the 12 V outlet while starting the engine.
Switching on/off
• Be sure to have your power inverter properly placed and connected before attempting
to switch it on.
• Plug in the device that you want to operate by using either the AC outlet (D) or the USB
port (C).
• To switch the power inverter off, disconnect it directly from the 12 V outlet of your vehicle.
CAUTION!
Switch the power inverter off and disconnect it from the 12 V outlet when it is not in use.
IMPORTANT!
When the power inverter is switched off, it draws no current from the battery. When
the power inverter is switched on without any load connected to it, it draws approx. 0.32 A
from the battery. This low current draw will eventually discharge the battery.
OPERATION
13 model no. 011-1945-0
OPERATION
14

Fuse replacement
WARNING!
For continued protection against risk of re or electric shock, replace only with a fuse of the
same type and rating (125 V, 8 A).
Screw off the upper cover of the 12 V outlet plug.
Remove the faulty fuse.
Insert a new fuse and screw the cover of the plug back on.
FAULTY FUSE
NEW FUSE
WARNING!
Before cleaning, make sure the power inverter is switched off and
disconnected from the power source.
• The exterior of the device should be cleaned periodically with a damp cloth or sponge and
a mild soap solution.
• Be sure vents and fans are free of dust or debris.
• Never immerse the device in water or any other liquid.
• For cleaning, never use corrosive detergents, wire brushes, abrasive scourers, or metal or
sharp objects.
• Store the device in a cool, dry, location that is protected from moisture and out of the reach
of children.
Maintaining battery condition
• Vehicle batteries are designed to provide brief periods of very high current needed for
engine starting. They are not intended for constant deep discharge.
• The battery operating time depends on:
• the charge level of the battery,
• the battery capacity,
• the amount of power drawn by thedevices that are connected tothemobilepower outlet.
• With an average load of about 100 W connected to the mobile power outlet, consider that
the engine should be started at least once an hour for 10–15 minutes to keep the battery
from discharging.
• If you need to start the engine to recharge the battery, rst disconnect the power inverter
from the battery or the 12 V outlet.
• Once the engine is running, the power inverter can be connected to the 12 V outlet again.
MAINTENANCE
15 model no. 011-1945-0
MAINTENANCE
16

PROBLEM POSSIBLE CAUSE SOLUTION
The connected
device does
not switch on.
The battery is defective. Check the battery and replace it if required.
The power inverter is
damaged and needs to be
repaired.
Have the power inverter repaired by an
authorized service centre.
Connection to the power inverter
or 12 V outlet is not tight. Check all connections. Make sure the
connection is correct and tight.
Measured
power inverter
output
is too low.
The battery voltage is too low. Recharge the battery.
No power to
inverter. Blown fuse. Replace fuse.
Buzz in the
audio system.
Inadequate internal power supply
ltering of stereo system. Use an audio system with a high-quality lter.
Television
interference. TV signals are weak.
• Adjust the orientation of the power inverter,
television, antenna and cables.
• Maximize TV signal strength by using a
better antenna and use shielded antenna
cable where possible.
• Try a different TV model.
The power inverter is equipped with protective shut-down features.
The details are listed in the following table:
PROTECTION POSSIBLE CAUSE SOLUTION
Low battery
low-voltage
shutdown
Voltage drops to:
10.0–10.5 V = shutdown.
This protects the battery from
being over-discharged.
Recharge the battery.
High-
Voltage
shutdown
A defective battery charging
system can cause the battery
voltage to rise to high levels
(15.0–16.3 V).
Although the power inverter
has a protection against high
voltage, it might still be damaged
if the input voltage were to
exceed 16 V.
Disconnect the connected devices. Verify that
the charging system is properly regulated
and the battery is 12V nominal.
Overload
shutdown
If you connect a device that is
rated too high or a load that draws
excessive surge power, the
power inverter shuts down.
Use a product with a power rating within
the power inverter's continuous power
rating range (see Operation).
Overheat
shutdown
The power inverter shuts down
automatically if it exceeds its safe
operating temperature.
• Switch the power inverter off and
disconnect it from the 12 V outlet.
• Disconnect all connected devices and allow
the power inverter to cool for at least
15 minutes.
• Use a brush to clear any blocked ventilation
holes.
• Move the power inverter to a cooler
place. Reduce the load if continuous
operation is required.
TROUBLESHOOTING
17 model no. 011-1945-0
TROUBLESHOOTING
18
Made in China
Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
