Bluerock Tools Z1 TEL Quick start guide

OPERATIONAL MANUAL
MODEL: 10”Z1 TEL TELESCOPING CORE DRILLING
MACHINE
by BLUEROCK ® Tools
Volume
1.0

MWS-
10”Z1 TEL CORE DRILL
UNPACKING THE ITEM
CAUTION: This machine is packed together with items that may be sharp, oily and overly
heavy objects. Remove the machine from the packaging in a safe manner. Check to ensure
all accessories are included with the item while unpacking. If any parts are found to be
missing, contact the retailer as soon as possible. Do not throw away the packaging until the
item is out of the guarantee period. Dispose of the packaging in an environmentally
responsible manner. Recycle if possible. Keep all plastic bags away from children due to risk
of suffocation.
WEEE - Waste Electrical & Electronic Equipment. Note this machine should be disposed of as electrical & electronic
waste.
SLURRY DISPOSAL
NOTE: It is recommended to dispose of the drilling slurry (the muddy/dusty water material) in
an environmentally responsible manner. The disposal of slurry directly into sewage
systems, sewers, lakes, rivers, or direct earth without treatment can be environmentally
harmful and possibly illegal. Ask your local public authorities about current regulations in
your area.
ãTHE NEWMAN TRADING COMPANY LLC DBA BLUEROCK® TOOLS 2020
1033 Andover Park East, Tukwila WA 98188 USA
Phone [phone] • Fax [phone]
www.bluerocktools.com

10”Z1 TEL CORE DRILL
Table of Contents
SAFETY' 1!
PRE-OPERATIONAL SAFETY CHECKS! 1!
OPERATIONAL SAFETY CHECKS! 1!
HEALTH WARNINGS! 2!
SPECIFICATIONS' 4!
INCLUDED'ACCESSORIES' 4!
ADDITIONAL'AVAILABLE'ACCESSORIES' 5!
ADDITIONAL ACCESSORIES FOR THIS MACHINE CAN BE FOUND IN BLUEROCK ® TOOLS ONLINE SHOP AT
WWW.BLUEROCKTOOLS.COM OR FROM YOUR LOCAL RETAILER.! 5!
OPERATIONS' 6!
PURPOSE! 6!
OPERATIONAL PRINCIPLES! 6!
MACHINE COMPONENTS! 6!
TRANSPORTING THE MACHINE! 9!
RUNNING THE MACHINE!10!
INSTALLING CORING BITS!11!
TROUBLESHOOTING'12!
GENERAL'MAINTENANCE'13!
OCCASIONAL'MAINTENANCE'13!
MOTOR'AND'GEARBOX'PARTS'LIST'15!
BREAKDOWN'VIEW'–'MOTOR'16!
BREAKDOWN'VIEW'–'GEARBOX'17!
PARTS'LIST'–'DRILLING'STAND'18!
BREAKDOWN'VIEW'–'DRILLING'STAND'19!

10”Z1 TEL CORE DRILL
1
Safety
DO NOT USE THIS MACHINE UNLESS YOU HAVE READ THE OPERATING
INSTRUCTIONS!
Safety glasses must be worn at all
times in work areas.
Long and loose hair must be
contained.
Appropriate footwear must be worn.
Close fitting/protective
clothing must be worn.
Safety gloves should be worn at all
times and jewelry must not be worn.
Hearing protection should be
worn when using this
machine.
Hard-hat must be worn while using
machine.
Dust mask must be worn
while using this machine.
Read operational manual prior to use.
PRE-OPERATIONAL SAFETY CHECKS
Ø Examine the power cord and plug for damage. This tool is supplied with a ground plug and must always be used with
a properly grounded circuit.
Ø Examine the body of the machine and inspect for damage or defects.
OPERATIONAL SAFETY CHECKS
Ø ONLY to be operated by qualified personal who have read instructions.
o NOTE: Failure to read and follow instructions could result in electrical shock, fire, property damage and/or
serious injury!
Ø DO ensure all non-essential people are clear of the immediate work area.
Ø DO be attentive at all times. Keep your eye on the work piece. Always be in a sensible state of mind and do not use
the machine if you cannot fully concentrate.
Ø DO keep body parts, clothing & power cords clear of turning/cutting pieces. Stay alert and use common since when
using this tool.
Chapter
1

10”Z1 TEL CORE DRILL
2
Ø DO allow machine to reach operating speed before starting a hole.
Ø DO unplug machine while changing or adjusting cutting bits so as not to accidentally turn machine on.
Ø DO remove adjusting wrenches prior to turning the machine on.
Ø DO guard against electric shock by only operating this tool on a properly functioning GFCI (Ground Fault Circuit
Interrupt) circuit.
Ø DO be mindful that power tools can expose an operator to vibrations transmitted trough contact with the machine.
Prolonged exposure can lead to medical issues which should be discussed with a medical professional.
Ø DO tie in a drip loop in the power cord to prevent water from running into the power receptacle.
Ø DO use a dust extraction system for cutting materials that create dust. The operator should also wear a protective
respiratory device.
Ø DO NOT make adjustments to machine while the machine is running.
Ø DO NOT switch off the machine when it is under load, except in an emergency.
Ø DO NOT remove or modify grounding plug. Only to be used on a properly grounded GFCI circuit.
Ø DO NOT leave the machine running when not in use.
Ø DO NOT hold the work piece by hand or using body. Always mechanically clamp or secure work piece.
Ø DO NOT allow operator to make contact with grounded surfaces such as metal objects.
Ø DO NOT allow liquids to enter the machine’s ventilation system.
Ø DO NOT operate machine outside of machine specifications.
Ø DO NOT touch moving parts while the machine is running as death or dismemberment could occur.
Ø DO NOT operate machine overhead (Inverted) when drilling “wet” type cores.
Ø DO NOT remove machines electrical components while connected to a power source. Only to be removed for service
by qualified personal and put back on the machine after service is complete.
Ø DO NOT allow children or untrained personal to operate machine.
Ø DO NOT use this machine in the rain or a wet environment.
Ø DO NOT operate in the presence of explosive materials as power tools create sparks which may ignite dust or fumes.
Ø DO NOT drill into an area that may contain a live electrical wire/circuit.
Ø DO NOT use this machine without safely securing to the work piece being drilled.
Ø DO NOT use full water pressure when drilling with “wet” type bits! You only need minimal water to drill with these
machines. Extreme water pressure can cause water to enter the gearbox!
Ø DO NOT operate this machine on a lower voltage as it may result in reduced power level and the machine could
become unstable while cutting. This could also limit the motor life.
o NOTE: Use of long small gauge power extension cords can result in decreased voltage. As local voltages
can vary, it may be a good idea to test the voltage at the end of the extension cord to ensure proper voltage
requirements are met. You might also consult an electrician to make sure the length of cord matches up
with the proper wire gauge for this size motor. Make sure to use outdoor cords when operating outdoors.
HEALTH WARNINGS
Ø Certain dust created by drilling contains chemicals known to cause cancer, birth defects or other reproductive harm.
The examples of these chemicals are below:

10”Z1 TEL CORE DRILL
3
o Lead from lead based paint.
o Crystalline silica from bricks, cement and assorted masonry products.
§ TO REDUCE RISK OF EXPOSURE TO THESE CHEMICALS, WORK IN A WELL VENTILATED
AREA WITH VACUUM SYSTEMS, RESPIRATORS AND WITH ALL SUITABLE SAFETY
EQUIPMENT.

10”Z1 TEL CORE DRILL
4
Specifications
ELECTRICAL DATA
Voltage
110V, 50-60Hz, Single Phase
Current
21.6 Amps (30A Circuit Use Recommended)
Motor Size
2600W
Power Connection
US Standard 3 Prong Type B Plug
MECHANICAL DATA
Cutter Range
1” to 10” Max Diameter (255mm)
Cutting Speed
460/900 RPM Two Speed Gearbox
1) Gear 2 (900 rpm) for 1”-4” Holes
2) Gear 1 (460 rpm) for 4”-10” Holes
Tool Holder
Direct Arbor 1-1/4” 7 UNC Spindle
Safety Clutch
Yes
Water hose and Valve
Yes
Main Telescoping Stand Adjustability
105” Total Travel
Main Telescoping Stand Height
At Rest (Min): 68.75” (~5’ 8”)
Extended (Max): 111.25” (~9’ 3”)
Secondary Stand Travel
20”
SHIPPING DATA
Shipping Weights
64lbs & 60lbs
Shipping Cartons
38”x10”x15” & 71”x9”x9”
Included Accessories
DESCRIPTION
QTY
Instruction Manual
1
Wrenches
2
Feed Handle
1
Water Hose and Valve
1
Top Bolt for Binding in Ceilings
1
Hex Wrench
3
Spare Brushes (set)
1
Leveling Bolts with nuts M12
4
Stand Base Mounting Bolts M10
3
Drill Stand Connecting Bolts M10
2
Chapter
2

10”Z1 TEL CORE DRILL
5
Stand Base
1
Outer Pipe Stand Piece with 4 Point Carriage
1
Inner Pipe Stand Piece with Top Cap
1
Tightening Metal Pin
1
Locking Pin with D ring and Cotter Pin
1
Note
UPON RECEIPT, CHECK CAREFULLY TO ENSURE THAT THE
MACHINE IS IN GOOD CONDITION AND HAS ALL ACCESSORIES
LISTED ABOVE.
Additional Available Accessories
Additional accessories for this machine can be found in BLUEROCK ® Tools
online shop at www.bluerocktools.com or from your local retailer.

10”Z1 TEL CORE DRILL
6
Operations
Note
THOROUGHLY READ THROUGH THE ENTIRE MANUAL BEFORE OPERATING THIS
MACHINE!
PURPOSE
Ø The purpose of the 10”Z1 TEL Core Drill is to drill through masonry, concrete or other mineral rock types
using annular coring bits.
Ø These drills are designed to be wedged between parallel surfaces using their telescoping base. The
machine can then be turned in a variety of directions to enable angled drilling.
o NOTE: Make sure the base fits completely on the surface and the base is tightly fastened to avoid
stand movement during drilling.
Ø These machines can be used vertically, horizontally or overhead (inverted) provided an acceptable work
environment.
o CAUTION: If drilling overhead you are only permitted to use dry type core bits with a vacuum
system. “Wet” type holes overhead would allow water into the motor and create an extremely
dangerous situation.
OPERATIONAL PRINCIPLES
Ø The main drilling shaft rotates in a forward clockwise direction. The main drilling motor connects to the
tool spindle to make contact with a surface and slowly bore a hole. Using the feed handles on the side of
the drill, the user can raise or lower the drilling motor.
Ø These drills are ONLY to be used with diamond impregnated coring bits.
o When drilling with “wet” type bits, the bit end pulverizes the material and the water brings the
material out of the cut.
o When drilling with “dry” type bits, the bit end pulverizes the material and dust brings the material
out of the cut.
MACHINE COMPONENTS
Ø The main components of the 10”Z1 TEL are the spindle, gearbox, motor, carriage, drill stand and base. The
spindle is driven by the transfer case and the motor.
o These components must be not be removed except by a qualified technician. Power must be
disconnected prior to any service.
Chapter
3

10”Z1 TEL CORE DRILL
7
Ø This machine has one primary adjusting point for the travel between the drill carriage and the drill stand.
The main way to increase or decrease the user’s ability to move the drill by hand is with this system.
These are the black hex bolts on the side and back of the machine that have a locking nut around them.
These are generally used to tighten up the travel as the slides wear over time. Be mindful to evenly adjust
these so that the travel is even and smooth. The ideal travel generally keeps the drill in place when the
user is not using the drill (this is usually on the tighter side) although individual users needs may vary.
The side black carriage bolt can also be used for temporarily locking the carriage in place.

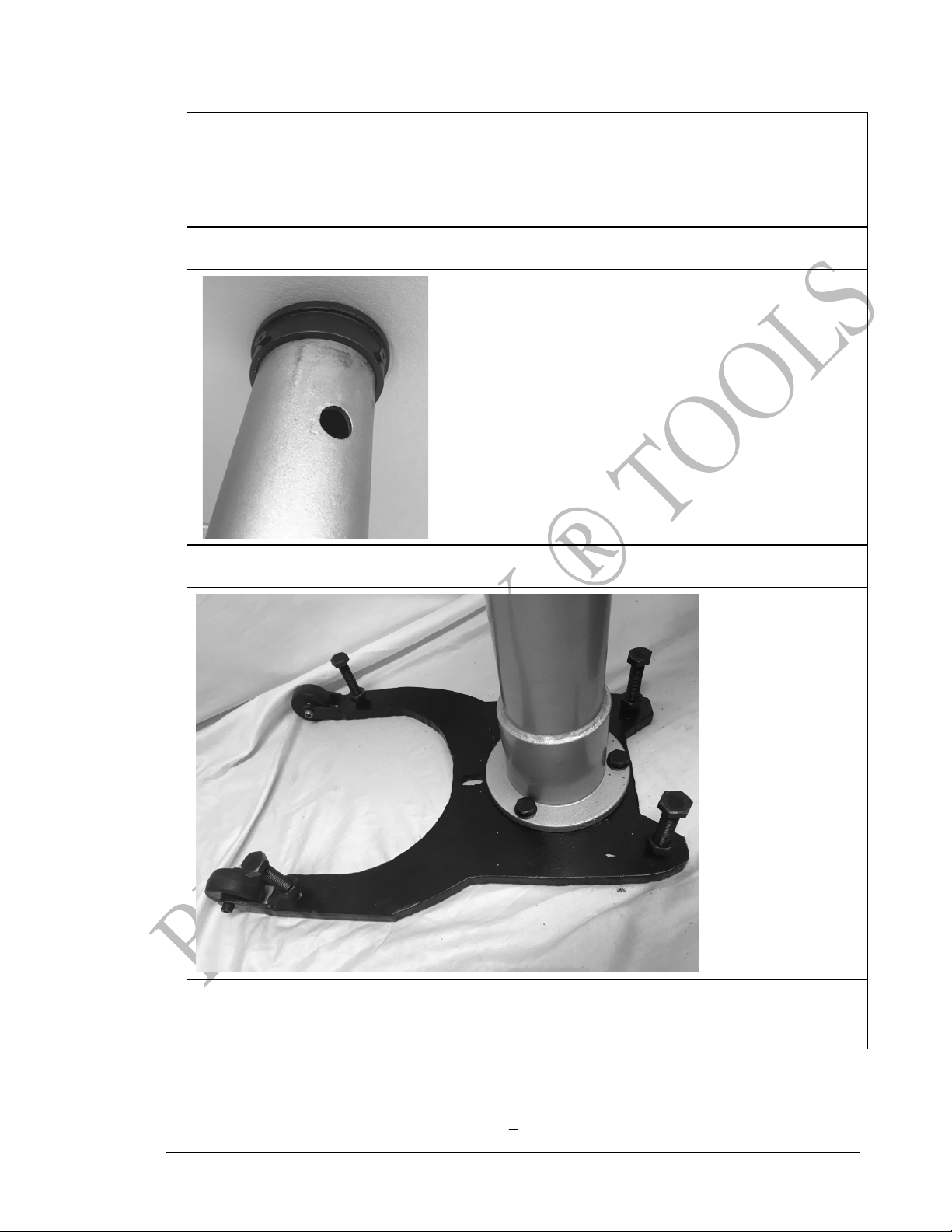

Ø The telescoping stand of this machine comes in four main parts. One is the inner pipe with a cap on the
top. The inner pipe is pictured below with the top cap attached:
Ø The outer pipe connects to the black rolling base with three bolts. The base is pictured below. The outer
pipe is connected to the base as pictured below:
Ø The drill stand has a four-point connection system that connects to the outer stand. This system is the
primary system used when setting the drill in the spot and angle needed. CAUTION: Make certain to
tighten all set screws and handles on all of these locking components prior to drilling. This is connection
system is pictured below:

10”Z1 TEL CORE DRILL
8
Ø If using the inner stand as your mounting surface, you must use the adapter collars that fit inside the main
adjusting collars on that four-point connections system. The slots in each are designed to fit the Allen
head screws on the four-point connection system. Those adapters are pictured below:
Ø The locking pin is used in the inner pipe hole and outer pipe slot to tighten the drill between structures.
Insert the locking pin with the D-ring on one side and the cotter pin on the other side. Use the straight
metal pin to turn the tightening nut on the outer pipe.

10”Z1 TEL CORE DRILL
9
Ø The main machine with it’s own secondary stand is connected to the primary stand using the round slotted
backer on the drill body. It is bolted down using two of the short bolts with washers (one on each side). If
planning to tilt the drill horizontally to the right, you would attach one bolt/washer on the left in the bottom
bolt hole and the bolt/washer on the right side through the top bolt hole as pictured below. If you are
planning to tilt the drill horizontally to the left, you would use the left top and right bottom bolt holes
opposite below. When your angle is set, tighten the bolts.
TRANSPORTING THE MACHINE
Ø When transporting the machine, always use two hands.
Ø DO NOT transport the machine with bits in the spindle.
Ø If transporting inside a vehicle, it is recommended to transport it on its side so as to avoid the item falling
over.
Ø DO NOT carry the machine by the cord.

10”Z1 TEL CORE DRILL
10
Ø DO NOT allow the cord or plug to drag along the floor when transporting.
RUNNING THE MACHINE
Ø Do all pre-operational and operational safety checks from Chapter 1.
Ø Consider your security and stability as well as the orientation of the machine in the work area.
o Consider the work surface material, condition, strength, density and rigidity. These factors
directly affect the tools efficiency.
Ø Secure the machine to the work surface by using the telescoping function to wedge the stand. Make
certain the two parallel surfaces being wedged are strong enough to support the extreme tightening of the
telescoping stand. Generally acceptable surfaces will consist of two reinforced concrete walls.
Ø Ensure the feed handles are securely attached to the feed spindle.
Ø Ensure the work surface is free of debris, oil, etc.
Ø Select and set up fluid delivery method or dust system.
Ø Select the gear you will be using.
o Do not force the gear shifter when changing between gears. There is a neutral position between
gear 1 and gear 2.
o Change gears when the machine is stopped or almost stopped.
Ø If using the machine horizontally with the water system, connect hose to the side of the machine using the
connector.
o This connector takes standard ¾” US garden hose hookup.
o Make sure the water valve is in the off position.
§ This is generally at a 90 degree angle from the valve hose.
o Partially turn the water spigot on (usually half a turn).
§ CAUTION: DO NOT turn the hose on fully! You need sufficient water when using wet
type bits. Using too much water pressure can cause the bits to not cut properly as well
as water entering the gearbox.
Ø Select appropriate size cutting bit. See section below for details on securing bit.
Ø Check that the machine is firmly attached to the work area.
Ø Plug the machine into power source.
o Form a loose knot in the power cord close to the plug connection to prevent fluid from running
down the cord and into the power receptacle.
Ø Turn feed handle raising the cutter until the bit is above the work surface.
Ø Open the water valve to allow water to come out to the work surface.
Ø ATTENTION: BE AWARE THESE MACHINES ARE EXTREMELY POWERFUL. THEY HAVE A TREMENDOUS
AMOUNT OF TORQUE WHICH MIGHT NOT BE SUITABLE FOR ALL POTENTIAL USERS. ESPECIALLY IN
LOW GEAR AND WITH LARGER BITS. DESPITE THE SAFETY CLUTCH, THESE DRILLS CAN STILL
INJURE THE USER. IF IN DOUBT, CONTACT A PROFESSIONAL FOR ADVICE.
Ø Turn the machine on by flipping the breaker switch to the “on” position.
Ø Very slowly engage the cutting bit with the material surface by lightly engaging the hand crank down
towards the material.
o NOTE: During the initial stages of contact the bit may wander.

10”Z1 TEL CORE DRILL
11
Ø After about 1/8” of cutting has been achieved in the work surface, slightly more force can be applied. This
will be the normal amount of force the rest of the hole.
o NOTE: Do not force the hole. Let the machine do most of the work. Excessive physical effort
should be avoided as it can cause damage to the machine or the user.
o If the unit jams in a hole, stop the drill immediately to prevent injury. Disconnect the drill from the
power supply and loosen the cutter by turning drill spindle counterclockwise. Never attempt to
free bit by starting motor!
§ After an interruption in drilling, make sure the drill bit is free and turns before restarting
the hole. Be very careful at this point to make certain the drill does not bind when
restarting.
Ø Make sure to keep the cutting material lubricated.
Ø Ease up on feed pressure as the cutter starts breaking through the backside of the material.
o Be certain all is clear on the output side of this core to prevent injury to persons or property.
Ø Finish drilling the hole.
Ø Turn the motor off and disconnect power once the drill is safely back up in the non-drilling position.
Ø Turn water valve off.
INSTALLING CORING BITS
Ø WARNING: Core bits can be sharp and should only be handled with gloves so as not to cut the user during
installation or removal.
Ø Check that the bits are not damaged.
o Coring bits that are damaged should not be used.
Ø Make certain the machine is unplugged from power.
Ø Raise the drill motor to ensure ample room to install the bit.
o Apply grease to the spindle thread to prevent corrosion and allow easier core bit removal.
Ø Insert the coring bit and screw it onto the drill spindle.
Ø Tighten the bit until fully tightened.
o Use wrenches that fit the spindle and coring bit to fully tighten.

10”Z1 TEL CORE DRILL
12
Troubleshooting
Note
SERVICING SHOULD ONLY BE DONE BY A QUALIFIED TECHNICIAN.
DON’T FORGET TO UNPLUG POWER TO UNIT PRIOR TO SERVICE!
PROBLEM
SOLUTION
Motor does not
turn on.
1) Check external power source (extension cord, breaker, etc).
2) Loose internal wire. Check and secure if necessary.
3) Motor brushes defective. Replace if necessary.
4) Check to ensure the motor on/off switch is operable. Replace if necessary.
Excessive
sparking when
motor is running.
1) This may indicate the presence of debris in the motor or worn out carbon
brushes. Check the brushes for unusual wear and replace if necessary.
Clean out the internal motor armature if necessary.
2) Armature has a rough edge. Inspect and replace if necessary.
Hole is not
cutting.
1) Cutting bit is dull. Replace bit.
2) Work area material is not appropriate for bit type.
Bit is jammed
while coring.
1) Debris is lodged between core hole and bit. Rotate bit in both directions to
and inspect bit for debris.
2) Make sure stand is secured to work surfaces.
Coring speed
has reduced.
1) Bit has hit rebar. Adjust feed control to prevent motor overload while cutting
through rebar.
2) Diamonds on bit have glazed over. Deglaze bit or dress diamond rim on bit
and check water flow rate.
3) Diamonds on bit have worn away. Replace core bit.
4) New core bit. Core at slow rate with new bits for 2-3 coring cycles.
5) The safety clutch is slipping. Tighten clutch.
6) Drilling progress is prevented by an accumulation of dust. Use suitable
vacuum cleaner.
7) Water flow rate is too low. Increase water flow.
8) Core is stuck in the core bit. Remove core.
Core bit appears
to wobble.
1) Spindle is damaged. Replace spindle and check bearings.
2) Bit is bent or damaged. Replace bit.
3) The core bit is not screwed securely onto the spindle.
4) Coring material is attaching to the bit. Inspect bit and increase water flow
rate.
Water escapes at
the water swivel
or gear housing.
1) The water pressure is too high. Turn down water flow.
2) The shaft seal is defective. Replace seal
3) The water hose is damaged. Replace hose.
Chapter
4

10”Z1 TEL CORE DRILL
13
General Maintenance
Ø Inspect electrical cords and electrical connections.
Ø Keep machine clean and free of debris.
Ø Check for misalignment, binding and breakage of all moving parts. If damaged, repair tool before use.
Ø Keep cutting tools sharp and clean. Sharp bits are less likely to bind and are easier to control.
Occasional Maintenance
Ø Have the power tool serviced by a qualified service technician using identical replacement parts.
o Change motor brushes:
1) Disconnect drill from power.
2) Unscrew left and right side brush holder caps using a flathead screw driver.
3) Take out old brushes.
o If you need to, use the screw driver to nudge them out.
4) Replace with exact same size new brushes.
5) Screw in brush holder caps tightly.
o Adjusting Carriage:
1) Periodically check and adjust slides as necessary.
2) Use hex wrench to loosen the hex bolts on the carriage. There are four hex bolts on
each adjusting slide. Backing out the bolts will loosen feed tension, while tightening
the bolts will increase feed tension.
3) Adjust the bolts evenly while moving the handle up and down so that there’s no free
play yet not binding anywhere through its range of travel.
o Change Gear Oil:
1) Change if necessary using NLGL-2 grade grease. This service is generally done around
the 50 hour service mark.
o Adjust Safety Clutch:
1) Adjust clutch as necessary.
o NOTE: A torque wrench is necessary for this service.
Chapter
5

10”Z1 TEL CORE DRILL
14
o Make certain the spindle is facing the ground so as not to get oil/grease
everywhere. Locate the hex screws holding the gear housing together and
remove them.
o Gently pull the gear housing apart. You may use a couple flat screwdrivers to
gently apply pressure to separate the housings.
o Take the main clutch nut off of the clutch. Apply some Loctite type of thread
glue on the clutch threads.
o Reapply the nut to the thread.
o Hold the spindle in place using the box wrench. See diagram below.
o Use the torque wrench to tighten the clutch nut.
o Torque the tensioning nut to 40 NM (354 inch/lbs, 29.5 ft/lbs).
o With the clutch nut tightened, reassemble the housings. Make sure the
orientation of the internal gears is correct and the housings mate correctly.
o Reattach the bolts that hold the housing together.

10”Z1 TEL CORE DRILL
15
Motor and Gearbox Parts List
#
Description
#
Description
#
Description
1
Spring ring for holes
33
Friction disk
65
Bead flange
2
Washer
34
Inner spline friction disk
66
Stator
3
Rubber sealing 42x55x8
35
Disk spring
67
Cover of stator
4
Label
36
Shaft sleeve
68
6201 32mm bearing
5
Water sealer
37
Hex nut
69
Shell
6
Adjust shim
38
Needle bearing BK1816
70
Brush cap cover
7
Main spindle
39
Seal ring
71
Brush assembly
8
Spring ring for holes 52
40
Adapter of water switch
72
Brush holder
9
6205 bearing
41
Water switch
73
Rivet of label
10
Label
42
Ball valve
74
Label
11
Seal gland
43
Binding ring
75
M5x10 socket head cap screw
12
Small cover plate
44
Shim
76
Rear cover of shell
13
M4x6 nut bolt
45
Binding bolt
77
M4x14 nut bolt
14
Spring plate
46
Water adapter with machine
78
Socket head cap screw M4x90
15
Pin 10x30
47
6201 bearing
79
Spring washer
16
Spring column pin
48
No7 gear spindle
80
Plain washer
17
Spring
49
Ball thrust bearingAXK3047
81
Nut
18
Spring plate
50
No6 gear
82
Washer
19
Column pin A3x25
51
Copper tube
83
Spring washer
20
Button
52
Flat key C4x12
84
M5x6 nut bolt
21
Spring for shaft
53
Change speed spindle
85
Cover of switch box
22
Middle cover
54
Ball thrust bearingAXK4060
86
M4x10 nut bolt
23
Mechanic stick
55
Copper tube
87
Seal of switch box
24
Inner hexagonal screwM6x105
56
No4 gear
88
Electric capacity
25
Spring washer
57
Ball thrust bearingAXK1730
89
Switch
26
Plain washer
58
6200 bearing
90
Switch box
27
Gear box
59
Gear spindle
91
ST4.2x13 nut bolt
28
Pressing ring
60
Flat key C4x16
92
Wire with plug
29
Small friction disk
61
No2 gear
93
PRCD switch (Optional)
30
No8 gear
62
6202 35mm bearing
94
Protecting jacket
31
Spline tube
63
Armature
95
Ring of wire
32
Outer friction disk
64
Draught ring
96
M4x16 nut bolt
Chapter
6

10”Z1 TEL CORE DRILL
16
Breakdown View – Motor

10”Z1 TEL CORE DRILL
17
Breakdown View – Gearbox
