Blueshape CVS8XW User manual

INTELLIGENT BATTERY CHARGER
FOR V-LOCK LITHIUM-ION BATTERIES ONLY
CVS8XW - WALL MOUNT
OPERATING MANUAL
Revision 1.0
www.blueshape.net Printed in Malta 2023
Model:

1
Read all instructions and cautionary markings
in this manual and on the charger before
using this product. Adhere to these
instructions to prevent misuse of the products
and possible injury or damage to property.
Keep these instructions. This manual contains
important safety and operating instructions for
the charger.
Explanation of symbols used in this manual
DANGER
ELECTRIC SHOCK
This symbol indicates the presence of an
electrical shock hazard. It is intended to avert
users not to open the product as there are no
user serviceable parts inside. Any form of
servicing should be done by qualified service
personnel only.
This symbol is intended to alert the user to
important operating, servicing and
maintenance instructions within this product
manual.
This symbol is intended to alert the user to
the presence of uninsulated and potentially
dangerous voltage within the product's
enclosure that may be of sufficient strength
to constitute a risk of electric shock to
persons.
The contents in this operating manual are subject to change without
notice.

2
General Safety Instructions
This equipment must be earthed.
DANGER
ELECTRIC SHOCK
Do not remove cover or dismantle the
apparatus. There are no user-serviceable
parts inside. Always refer servicing to
qualified personnel.
BLUESHAPE CHARGERS ARE INTENDED FOR OPERATION
WITH LINE VOLTAGES BETWEEN 100V AND 240V AC AND LINE
FREQUENCIES BETWEEN 43Hz AND 60 Hz
To prevent fire or shock hazard do not
expose the unit to rain or moisture.
The user is being alerted of the importance of
going through the literature accompanying
this product and familiarising himself with the
important safety and operating instructions.
The equipment is being supplied with a
compatible AC mains power cord. In the case
when the UK Plug is fitted, this plug is
equipped with a 13A replaceable fuse.
Damage to the power cord can lead to electric
shock.

3
When using electric appliances, basic
precautions should always be followed
including the following:
 Only use attachments recommended or sold by manufacturer.
 To reduce the risk of injury, close supervision is necessary when
an appliance is used near children.
 Do not use the charger outdoors or expose it to wet or damp
conditions. Water entering the charger will increase the risk of
electric shock.
 Do not misuse the cord or charger. Never use the cord to carry
the charger. Do not pull the charger cord to disconnect the plug
from a receptacle. Damage to the cord or charger could occur
and create an electric shock hazard. Replace damaged cords
immediately.
 Do not operate the charger with a damaged cord or plug, which
could cause shorting and electric shock.
 This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
 For a portable appliance, to reduce the risk of electrical shock,
do not submerge charger in water or other liquid. Do not place or
store appliance where it can fall or be pulled into a tub or sink.
Usage and Handling Safety Instructions
Charge only lithium-ion rechargeable
batteries as specifically designated on your
charger’s label. Other types of batteries may
burst, causing personal injury or damage.
BLUESHAPE lithium-ion battery chargers have been designed to
provide a superior performance by managing relatively high currents
during their operation in order to reduce charging time. As may be
expected, the chargers become warm during operation.

4
The charger is also equipped with over-
temperature protection. Please consult your
BLUESHAPE dealer if you notice that either a
charger or a battery has become excessively
hot during the charging operation.
Keep ventilation openings unobstructed to
allow adequate airflow through the device.
Never insert any metallic or any objects inside
the equipment through the ventilation
openings or otherwise.
 Do not handle charger, including the charger plug and charger
terminals with wet or damp hands.
 Use of an attachment not recommended or sold by the battery-
charger manufacturer may result in a risk of fire, electric shock,
or injury to persons.
 Make sure that the cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges or moving
parts, or otherwise be subjected to damage or stress. This will
reduce the risk of accidental falls, which could cause injury and
damage to the cord, which could then result in electric shock.
 Do not operate the charger if it has received a sharp blow, been
dropped, or has otherwise been damaged in any way. Take it to
an authorized service technician for an electrical check to
determine if the charger is in good working order.
 Do not disassemble the charger. Take it to an authorized service
technician when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
 Unplug the charger from the electrical outlet before attempting
any maintenance or cleaning to reduce the risk of electric shock.
 Disconnect charger from the power supply when not in use. This
will reduce the risk of electric shock or damage to the charger if
metal items should fall into the opening. It will also help prevent
damage to the charger during a power surge.
 Do not touch the uninsulated portion of output connector or
uninsulated battery terminal.

5
CVS8XW Package Contents
This device package contains the following:
- CVS8XW wall-mount charger
- Wall Hanging Bracket
- AC Power Cord [according to region]
Device-End Connector: IEC 60320 C13
EU Plug: IEC 884/CEE7-VII3
UK Plug: BS1363A w/13A FUSE
US Plug: NEMA 5-15-P
- CORDAGE: H05VV-F, 3 x 1.0mm, UNSHIELDED
CEE COLOR CODE, TEMP. RATING 60°C
RATING: 250V 10A
JACKET COLOR: BLACK
- Operating Manual
 Recharge battery packs only with the charger specified by the
manufacturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery
pack.
 Keep the cord and charger away from heat to prevent damage to
housing or internal parts.
 Do not allow gasoline, oils, petroleum-based products, etc. to
come in contact with plastic parts. These materials contain
chemicals that can damage, weaken, or destroy plastic.

6
Overview
This charger comes in three different model variants:
 CVS8XW: For v-lock lithium-ion batteries only
 CGS8XW: For 3-stud lithium-ion batteries only
 CBS8XW: For b-mount lithium-ion batteries only

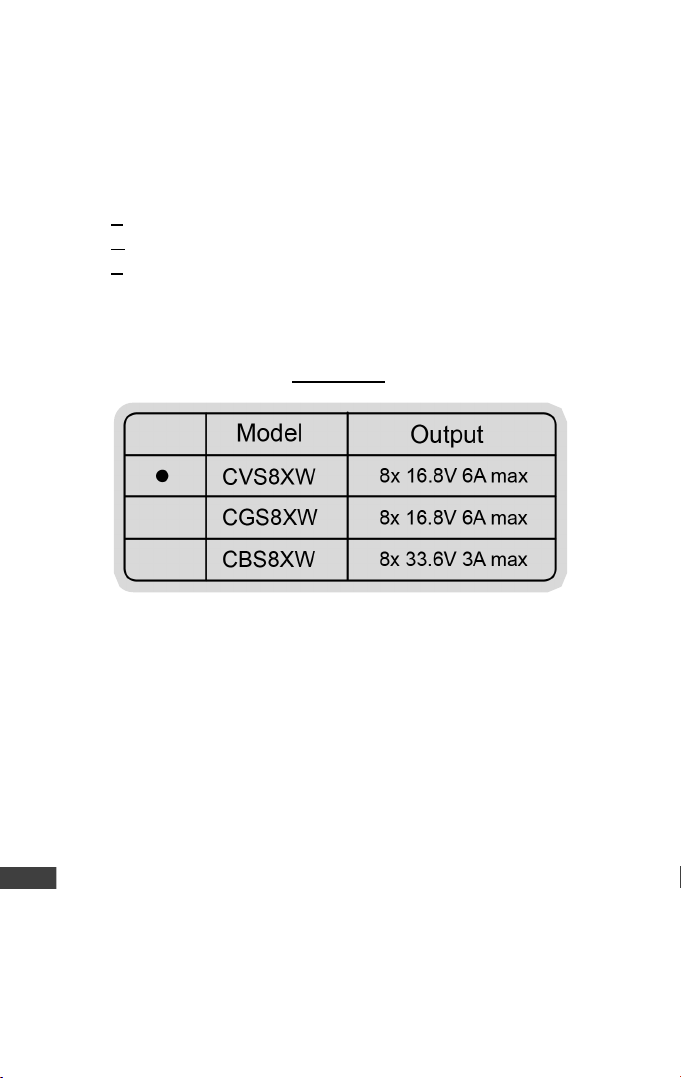

To clarify your model, check the front panel markings as illustrated
below.
CVS8XW
Charger Variants

7
Graphic Description
CVS8XW - Front View
The Charger front facing panel consists of the following:
1. V-Lock Battery charging bays
2. 3.5” Touch Display
3. Mains switch
4. Aux output connector (14.4V 115W) 4-pin XLR

8
CVS8XW - Side View
The Charger frame consists of the following:
1. Ventilation Outlets
2. Carrying Handle
3. Data connector
4. AC mains input, 100-240V
5. Ventilation Inlets
6. Wall Hanging Bracket (refer to page 9)
7. Supporting lateral studs

9
Installation
This charger is designed to ideally be installed on a wall.
Find a suitable location allowing for easy access, ensuring that the
ventilation inlets/outlets are free from any obstruction.
1. Fix the mounting bracket against the wall, using suitable screws
and/or fittings. The screws should have sufficient holding power.
Tighten all 4 screws and ensure that the bracket is fixed firmly in
place.

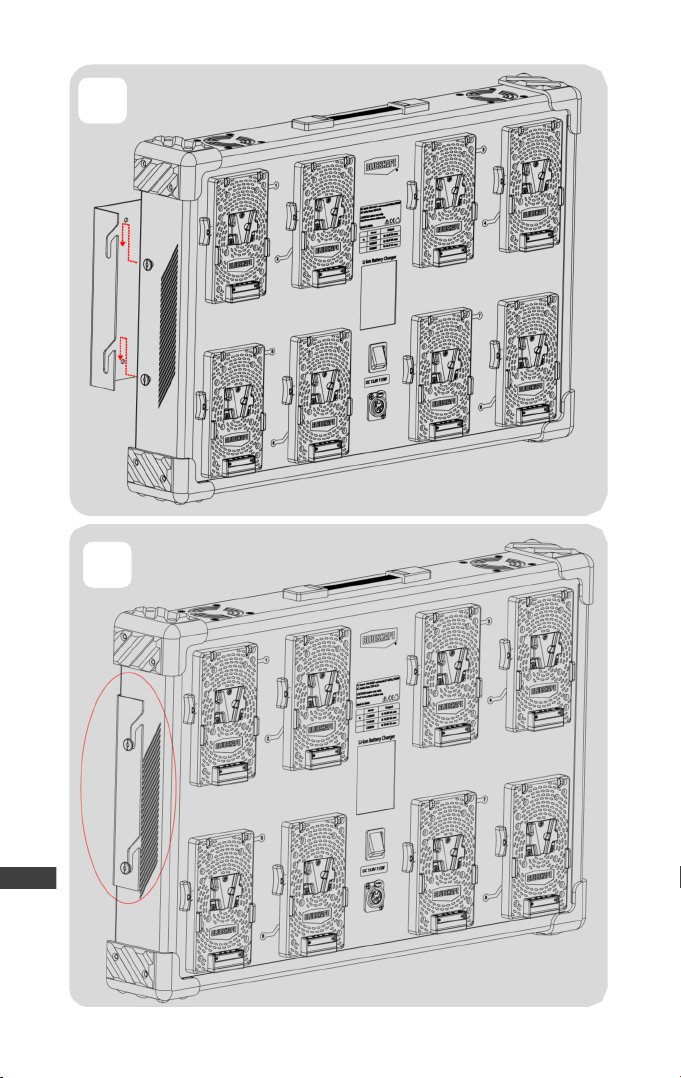

2. Lift the charger and align the 4 lateral studs with the
corresponding slots on the mounting bracket.
3. Slide the studs carefully in the slots and lower the charger to
seat in its definitive position. Ensure that all 4 studs are correctly
and firmly inserted in their relative slots.
1

10
2
3

11
Introduction
The BLUESHAPE series of intelligent lithium-ion battery chargers
have been specifically designed for fast and reliable charging of
BLUESHAPE batteries. The charging speed depends on the type of
batteries on charge since the charger communicates and acquires
information from the batteries during operation. The charger is
capable of delivering up to a maximum of 6Amps in constant current
(CC) mode on all eight channels simultaneously. This makes it ideal
for fast turnaround, especially when using higher capacity batteries.
However, when charging smaller batteries, the charger never
exceeds currents higher than 0.5C* to avoid overheating and stress
to the lithium-ion cells.
Nevertheless, these chargers can also charge 3rd party, non-
communicative batteries but at a fixed rate. A precaution is included
by design in order not to overcharge 3rd party batteries or render
them unsafe.
This charger has been designed for users having large fleets of
batteries, and with a higher daily rotation; the wall mounting feature
and the flat form factor makes it discrete and minimally intrusive in
any installation.
This charger features a 3.5” touch display for intuitive and direct
access to charger control and information.
*0.5C is equivalent to half the battery Ah capacity
Features of CVS8XW
 Elegant and robust design. Ideal for indoor use.
 Sophisticated electronics for accurately detecting the charging
requirements and applying the correct charging rate accordingly.
 Simultaneous charging of 8 batteries at a maximum of 6A each
when fan is switched on.
 3.5” touch display with adjustable backlight
 Pre-charge function for protecting heavily discharged cells
against high currents until their voltages rise to a safe level .
 Maximum compactness and space utilisation.
 Switchable fan for selection of ‘FAST’ or ‘SILENT’ charging
modes.

12
 Precise constant current (CC) and constant voltage (CV)
charging algorithms to match the battery programmed charging
voltage.
 Powerful auxiliary output at 14.4V / 115W through 4-pole XLR
 If AC mains is not present or is suddenly cut off, the AUX power
is drawn from the batteries and the equipment operates as a
UPS and continues delivering power.
 If the battery is placed on charge, the AUX power will be derived
from both mains and battery if necessary
 USB connection to interface the charger with a PC: up to 4
chargers can be monitored by a single PC using BSCVMon - a
custom BLUESHAPE software for tracking and monitoring
chargers and logging battery fleet history.
BLUESHAPE Battery Charging and Performance
Features
The electronic circuitry provides a very accurate lithium-ion charge
algorithm. Initially, the chargers will only apply a pre-charge current of
a few mA to batteries that are heavily discharged. Once the cells
inside the batteries reach a safe level, the full (maximum) charging
current is delivered at a maximum rate of 6A (but less than 0.5C)
until the batteries reach almost 90% state of charge (SOC).
This charging rate is only applied when the fan is set to ON. If the fan
is switched to OFF for silent operation, the charging current is
reduced to not exceed 4A (but less than 0.5C).
After the constant current (CC) phase is completed, a constant
voltage (CV) phase initiates with the current tapering slowly to 150mA
until full cut-off.
*The output voltage of the auxiliary output is
dependent on the battery voltage. It can
therefore range between 12.5V up to 17V

13
CVS8XW Charging Performance with Fan ON
Approximate charging time per channel (minutes)
Battery Model Battery
Capacity CC rate (0.5C)
State of Charge
(SOC)%
100% (mins)
BV095HDmini 6.6Ah - 95Wh 3.3A 150
BV140HDmini 9.9Ah - 143Wh 4.95A 150
BV090 6.6Ah - 95Wh 3.3A 150
BV100HDplus 6.7Ah - 100Wh 3.35A 150
BV150 10Ah - 150Wh 5A 150
BV190HDplus 13.4Ah - 193Wh 6A 180
BV290HDplus 20.2Ah - 290Wh 6A 260
CVS8XW Charging Performance with Fan OFF
Approximate charging time per channel (minutes)
Battery Model Battery
Capacity CC rate (0.5C)
State of Charge
(SOC)%
100% (mins)
BV095HDmini 6.6Ah - 95Wh 3.3A 150
BV140HDmini 9.9Ah - 143Wh 4A 190
BV090 6.6Ah - 95Wh 3.3A 150
BV100HDplus 6.7Ah - 100Wh 3.35A 150
BV150 10Ah - 150Wh 4A 200
BV190HDplus 13.4Ah - 193Wh 4A 270
BV290HDplus 20.2Ah - 290Wh 4A 390

14
Operating Instructions
This device simultaneously charges eight batteries with charging
currents of up to 6A, depending on the battery capacity.
The Li-ion batteries can be either BLUESHAPE (preferred) or any
other 3rd party compatible batteries can be of any capacity ranging
from:
 40Wh or even less [having 4 cells in series – total 4 cells] up to
 290Wh or even more [having 4 cells in series and 6 cells or more
in parallel – total 24 cells or more]
The charger will automatically select the charging rate to apply.
 Plug the AC power cord provided into the charger AC input and
switch on. Display will temporarily show splash screen and main
page.
 The batteries are to be inserted in any of the eight battery bays
as illustrated below.

15
 The charging page will
show the status of the eight
bays independently.
 When no battery is connect-
ed or detected in a battery
bay ‘NO BAT’ is shown in
the battery status.
NO
BAT
 When a battery is detected,
a throbber indicates battery
communication initialisation.
 Charging capacity status is
indicated accordingly graph-
ically and through percent-
age. A blue pulsing boarder
indicated charging in pro-
gress.
 Failure state may be indi-
cated accordingly in case of
charge failure to safeguard
the charger and battery.

16
 During charging mode, the
fan state can be toggled by
tapping on the fan icon in the
main screen. This may be
done if silent operation of the
CVS8XW is required. For
charging performance as
determined by fan state, refer
to the technical specification
table in this manual.
ON OFF
 Detailed status information on the individual batteries can be
accessed by tapping the respective battery symbol. Note,
some details on third party battery packs may not be dis-
played.
 Message box shows additional detail on the bay charging
mode. Any error state detail is also shown in this message
box.

17
 Diagnostic page shows additional battery pack information
which may be helpful with battery pack troubleshooting.
 Tapping on the cog icon on the main screen will show gen-
eral charger status and information. Display backlight bright-
ness can be adjusted via the slider at the bottom of the
screen.

18
Working with AC Input
When AC is present and no batteries are installed, the power
available on the AUX port depends on the fan state:
 with fan set ON - 14.4V regulated at max 10A
 with fan set OFF - 14.4V regulated at 8A
Whenever a battery is connected in charge, the max available power
on the AUX port depends on the power of the installed battery since if
the load on AUX exceeds the available current, the extra power is
provided by the battery that in such case is getting discharged. The
maximum current is capped at 8A.
When a battery is in charge and the AUX is powered, please note
that AUX takes priority:
 The available current is shared between the battery on charge
and the load on the AUX port. Therefore, the charging current is
reduced when the AUX is draining power.
 If the AUX port demand is less than the current that is able to be
drawn from the charger then the remaining current will be used
to charge the battery.
 If the AUX port demand greater than the current that is able to be
drawn from the charger then the battery will go into discharge to
supply the rest of the demand
See the technical specifications table in this manual to understand
the different current handling under different conditions.
Using the Charger as an Auxiliary Power Supply
In the case when a device is plugged into the auxiliary XLR port, the
charging process may continue but can be slowed down, depending
on the power taken by the AUX port that has the priority.
When a device is powered by the AUX port and at least a battery is
installed, the unit operates as an UPS: in case of a sudden AC power
cut, the device remains powered if at least a battery is installed and
its voltage is higher than 12500mV.
Once the device has been unplugged, the charger will continue the
previous charging sequence and from the same point of interruption.
The AUX port is always available whenever AC is connected or at
least one battery is present and with a voltage greater than
12500mV.
