Blueshape CVTR2PV User manual

BATTERY CHARGER
Model
CVTR2PV - SIMULTANEOUS
FOR V-LOCK LITHIUM-ION BATTERIES ONLY
Model
CGTR2PV - SIMULTANEOUS
FOR 3-STUD LITHIUM-ION BATTERIES ONLY
OPERATING INSTRUCTIONS
Revision 1.0
www.BLUESHAPE.net Printed in Malta 2022

1
Explanation of symbols used in this manual
The contents of this operating manual are subject to change without
notice.

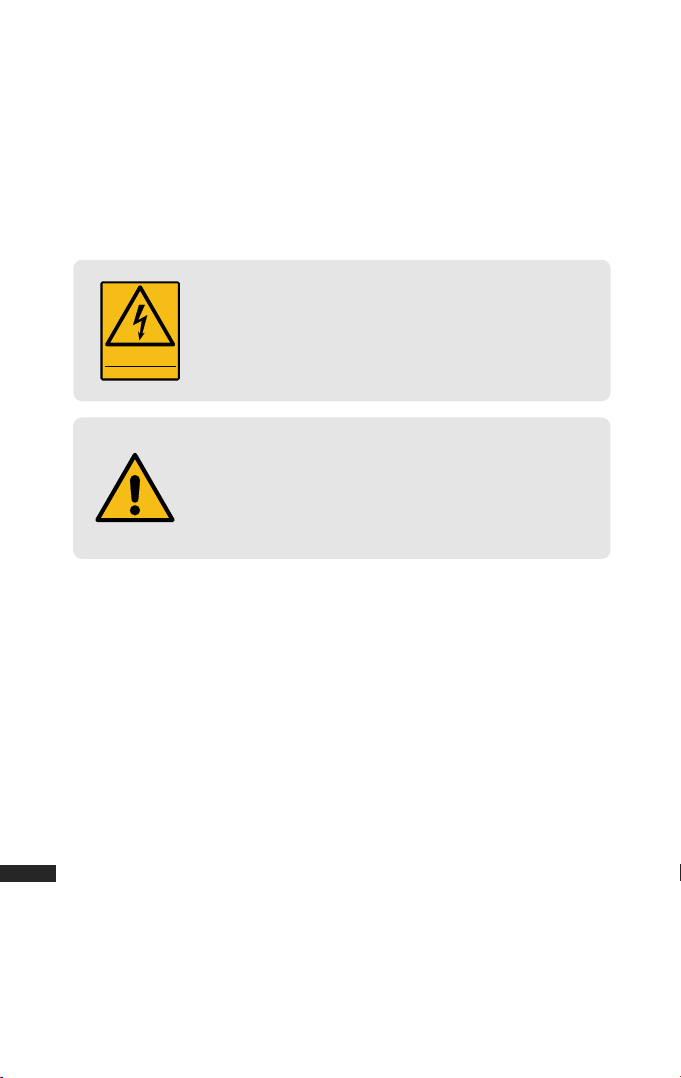

DANGER
ELECTRIC SHOCK
This symbol indicates the presence of an
electrical shock hazard. It is intended to avert
users not to open the product as there are no
user serviceable parts inside. Any form of
servicing should be done by qualified service
personnel only.
This symbol is intended to alert the user to
important operating, servicing and maintenance
instructions within this product manual.
This symbol is intended to alert the user to the
presence of uninsulated and potentially
dangerous voltage within the product's
enclosure that may be of sufficient strength to
constitute a risk of electric shock to persons.

2
Please read these instructions concerning your safety
BLUESHAPE lithium-ion battery chargers have been designed to
provide a superior performance by managing relatively high currents
during their operation in order to reduce charging time. As may be
expected, the chargers become warm during operation and it is
therefore very important to keep their ventilation openings
unobstructed.
DANGER
ELECTRIC SHOCK
To reduce the risk of electric shock or damage to
the charger and battery, charge only those
lithium-ion rechargeable batteries specifically
designated on your charger’s label. Other types
of batteries may burst, causing personal injury or
damage
Before using the battery charger, read all
instructions and cautionary markings in this
manual and on the battery charger, the battery
and the product using the battery to prevent
misuse of the products and possible injury or
damage
 Do not handle charger, including the charger plug and charger
terminals with wet hands.
 This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
 Do not use the charger outdoors or expose it to wet or damp
conditions. Water entering the charger will increase the risk of
electric shock.
 Use of an attachment not recommended or sold by the battery-
charger manufacturer may result in a risk of fire, electric shock,
or injury to persons.
 Do not abuse the cord or charger. Never use the cord to carry
the charger. Do not pull the charger cord to disconnect the plug
from a receptacle. Damage to the cord or charger could occur
and create an electric shock hazard. Replace damaged cords
immediately.

3
 Make sure that the cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges or moving
parts, or otherwise be subjected to damage or stress. This will
reduce the risk of accidental falls, which could cause injury and
damage to the cord, which could then result in electric shock.
 Do not operate the charger with a damaged cord or plug, which
could cause shorting and electric shock. If damaged, have the
charger repaired or replaced by an authorized BLUESHAPE
repair service centre.
 Do not operate the charger if it has received a sharp blow, been
dropped, or has otherwise been damaged in any way. Take it to
an authorized service technician for an electrical check to
determine if the charger is in good working order.
 Do not disassemble the charger. Take it to an authorized service
technician when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
 Unplug the charger from the electrical outlet before attempting
any maintenance or cleaning to reduce the risk of electric shock.
 Disconnect charger from the power supply when not in use. This
will reduce the risk of electric shock or damage to the charger if
metal items should fall into the opening. It will also help prevent
damage to the charger during a power surge Do not touch the
uninsulated portion of output connector or uninsulated battery
terminal.
 Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a
risk of fire when used with another battery pack.
 Keep the cord and charger away from heat to prevent damage to
housing or internal parts.
 Do not allow gasoline, oils, petroleum-based products, etc. to
come in contact with plastic parts. These materials contain
chemicals that can damage, weaken, or destroy plastic.
 Save these instructions. Refer to them frequently and use them
to instruct others who may use this tool. If you lend this tool to
someone else, also lend these instructions to them to prevent
misuse of the product and possible injury.

4
IMPORTANT SAFETY INSTRUCTIONS
 Save these instructions. This manual contains important safety
and operating instructions for the CVTR2PV/CGTR2PV
chargers.
 Before using the battery charger, read all instructions and
cautionary markings on the battery charger, the battery and the
product using the battery.
When using electric appliances, basic precautions should
always be followed, including the following:
1. To reduce the risk of injury, close supervision is necessary when
an appliance is used near children.
2. Only use attachments recommended or sold by manufacturer.
3. Do not use outdoors.
4. For a portable appliance, to reduce the risk of electrical shock,
do not put charger in water or other liquid. Do not place or store
appliance where it can fall or be pulled into a tub or sink.
To reduce the risk of injury, charge only lithium-ion
rechargeable batteries. Other types or different chemistry
batteries may burst, causing personal injury or damage.
Warning
 This equipment must be earthed.
 Chargers and/or batteries may become hot during charging. This
is normal. The charger is also equipped with over-temperature
protection. Please consult your BLUESHAPE dealer if you notice
that either a charger or a battery become excessively hot during
the charging operation.
 Be careful not to block the equipment’s ventilation outlets.
 Never insert any metallic or any other objects inside the
equipment through the ventilation openings or otherwise.
 Blueshape chargers are intended for operation with line voltages
between 100V and 240V AC and line frequencies between 47Hz
and 63Hz.
 The equipment is being supplied with a compatible AC mains
power cord. In the case when the UK plug is fitted, this plug is
equipped with a 13A replaceable fuse. Damage to the power
cord can lead to an electric shock.

5
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electric shock, do not open the
apparatus and always refer any servicing to
qualified personnel.
Package Contents
 CVTR2PV/CGTR2PV simultaneous dual position charger.
 AC power cord [according to region]
CORDAGE: H05VV-F, 3 x 1.0mm, UNSHIELDED
CEE COLOR CODE, TEMP. RATING 60°C
RATING: 250V 10A
JACKET COLOR: BLACK
CONNECTOR: IEC 60320 C13
EU:
EU PLUG: IEC 884/CEE7-VII3
UK:
UK PLUG: BS1363A W/13A FUSE
US:
US PLUG: NEMA 5-15-P
 Instruction manual including safety operating instructions.

6

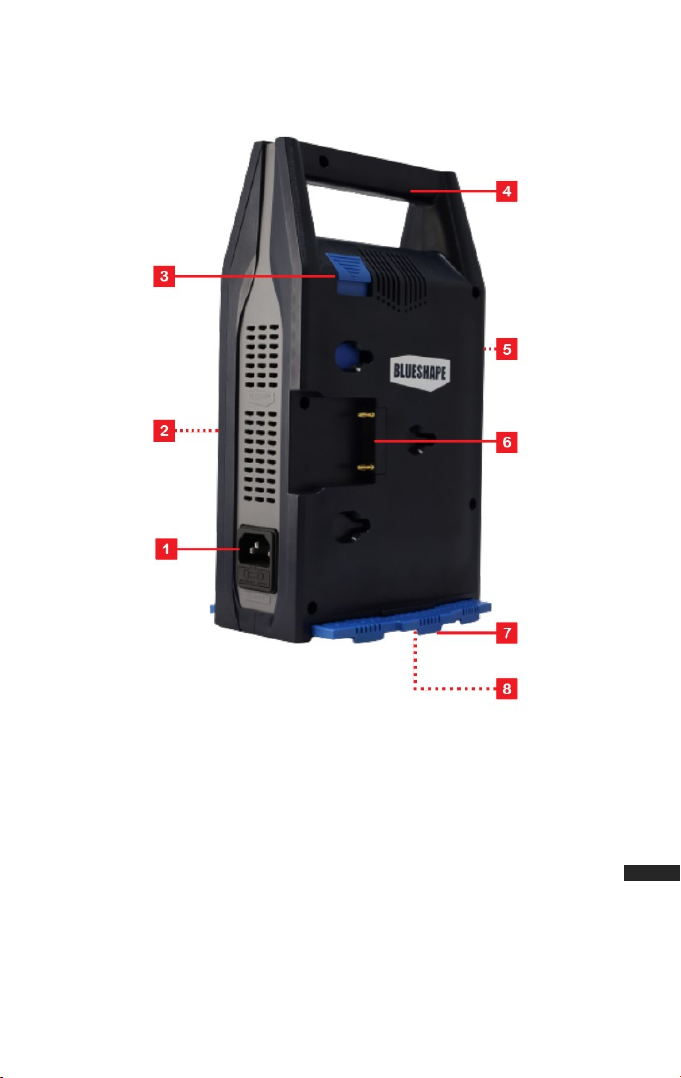

CVTR2PV Graphic Description
1. Mains socket with fuse
2. Battery release button
3. V-Lock Battery #2 installation bay
4. Carrying Handle
5. LEDs (Bat #1, Bat #2)
6. V-Lock Battery #1 installation bay
7. Extending foot support on both sides (shown retracted in image)
8. Foot extender button

7
CGTR2PV Graphic Description
1. Mains socket with fuse
2. 3-Stud Battery #2 installation bay
3. Battery release button
4. Carrying Handle
5. LEDs (Bat #1, Bat #2)
6. 3-Stud Battery #1 installation bay
7. Extending foot support on both sides (shown extended in image)
8. Foot extender button

8
Introduction
The BLUESHAPE CVTR2PV and CGTR2PV lithium-ion battery
chargers have been specifically designed for safe and reliable
charging of BLUESHAPE batteries and other 3rd party batteries. The
chargers deliver 3 Amps on both channels simultaneously..
For the users’ convenience, the external dimensions have been kept
as compact as possible for better portability.
Properties of CVTR2PV/CGTR2PV
 Modern, original but robust design. Ideal for regular daily use.
 Simultaneous charging of 2 batteries at a maximum of 3A each.
 Two-colour LED indicators for individual charge-station
monitoring.
 No power switch has been provided.
 Precise constant current (CC) and constant voltage (CV)
charging algorithms to match the battery charging voltage.
 Maximum compactness and space utilisation. Extendable, spring
loaded support foot for excellent stability even when there is just
1 large battery installed. The foot extension is activated by
pressing a push button underneath the charger.

9
CVTR2PV/CGTR2PV Charging Performance
Approximate charging time per channel (minutes)
Battery Model Battery Capacity
State of Charge
(SOC)%
90% 100%
BV095HDmini 6.6Ah - 95Wh 120 160
BV140HDmini 9.9Ah - 143Wh 180 220
BV090 6.6Ah - 95Wh 120 160
BV100HDplus 6.7Ah - 100Wh 130 170
BV150 10Ah - 150Wh 180 230
BV190HDplus 13.4Ah - 193Wh 250 310
BV290HDplus 20.2Ah - 290Wh 370 450

10
Operating Instructions — CVTR2PV
This charger simultaneously charges two batteries with a charging
current of 3A.
The batteries to be charged are V-Lock batteries, which can be
BLUESHAPE (preferred) or any other 3rd party compatible batteries
which can be of any capacity ranging from:
40Wh or even less [having 4 cells in series – total 4 cells]
up to
290Wh or even more [having 4 cells in series and 6
cells or more in parallel – total 24 cells or more]

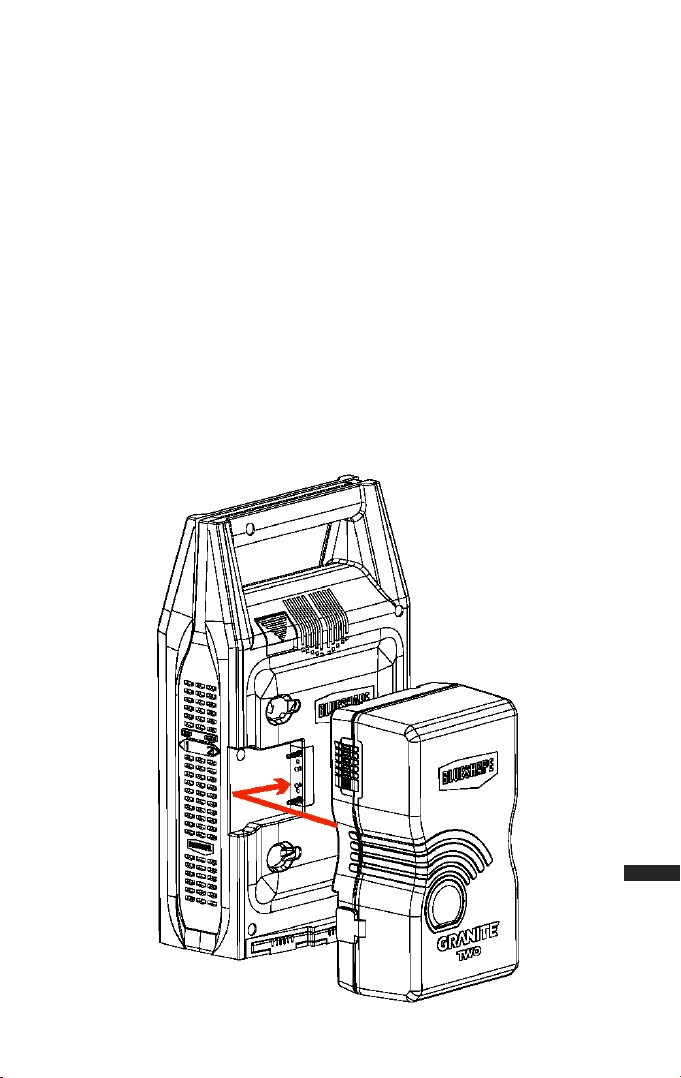

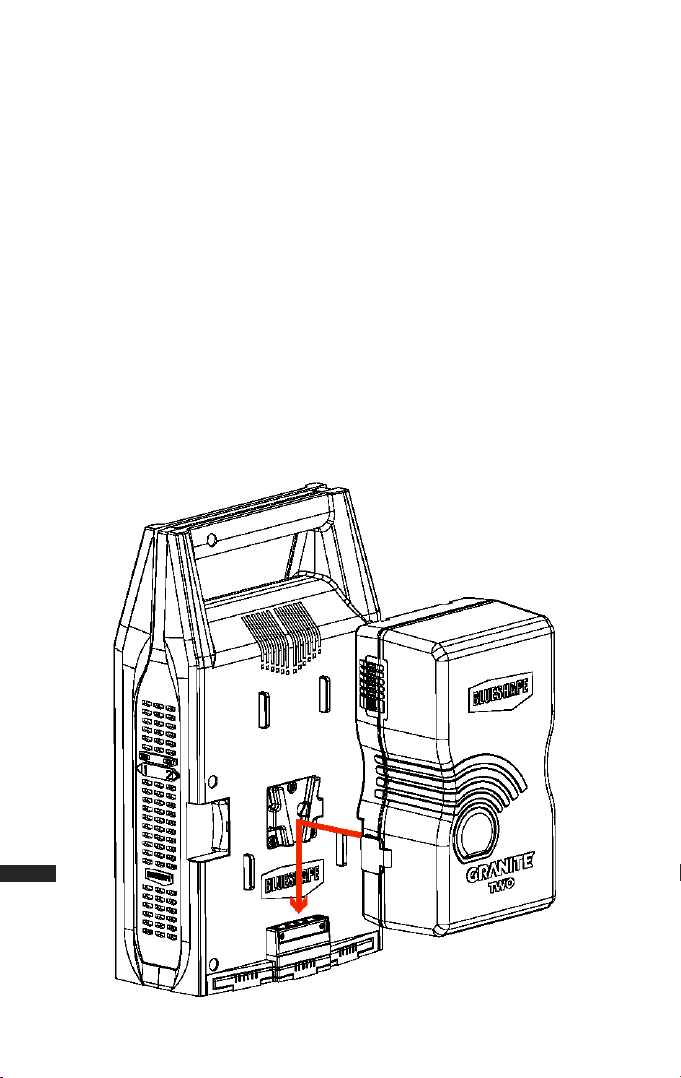

The batteries are to be inserted in any one or both of the 2 V-plates
as indicated in the diagram below:

11
Operating Instructions — CGTR2PV
This charger simultaneously charges two batteries with a charging
current of 3A.
The batteries to be charged are 3-Stud mount, which can be
BLUESHAPE (preferred) or any other 3rd party compatible batteries
which can be of any capacity ranging from:
40Wh or even less [having 4 cells in series – total 4 cells]
up to
290Wh or even more [having 4 cells in series and 6
cells or more in parallel – total 24 cells or more]
The batteries are to be inserted in any one or both of the 2
receptacles as indicated in the diagram below:

12
How to Proceed:
 From underneath the charger, push the centre push button to
extend the foot support. When not in use, or for transport, the
foot support can be pushed back in to lock once again.
 The unit has been designed to remain in balance with just one
battery or with both batteries installed.
 Plug and switch on the AC power cord provided into the charger
AC input (note: there is no power switch in the charger).
 Insert a battery in any one of the two designated locations as
indicated in the previous pictures.
 Observe the battery LED. In addition, the charge status may be
read in 20% steps through the BLUESHAPE battery LED array
or continuously, using the Wi-Fi features of the battery (see the
battery operating manual for the activation of the internal Wi-Fi
transmitter).
 Leave the battery to charge for the appropriate time (see table
on page 9).
 The battery is fully charged when the LED becomes steady
Green.
In order to charge 2 batteries at the same time, insert the second
battery into the second V-plate adapter/3-stud receptacle and
charging will commence immediately. Once again, observe the LED
or monitor the battery status using the Wi-Fi feature.
The LEDs will accurately display the correct status of the charging
process for each battery.

13
Battery LED Indications
Indication Explanation
Steady Green Battery is full
Steady Orange Battery is charging
Technical Specifications
Type Li-ion constant current and voltage
control system
CC-Mode Output 3000mA
Maximum Voltage 16700 ±200mV
Charge Termination
Current 300mA
Short circuit protection Available
Overcharge protection Available
Overtemperature
protection Available
LEDs 2-colour type for BAT #1, BAT #2
Power Supply AC mains 100V - 240V ~ 47 – 63 Hz
universal
Fuse 1 x 220V 2.5A (5x20mm timed) + 1
spare
Power Consumption 120W max
Operating temperature
range 0oC – 45oC
Storage temperature
range -20oC - 65oC (-4oF - 149oF)
Dimensions 260 x 150 x 85mm (10.24”x 5.91” x
3.35”)
Weight
CVTR2PV: 1050g (2.32lbs)
CGTR2PV: 950g (2.1lbs)
Product Information

14
Notes concerning charger usage with
BLUESHAPE battery packs
It is recommended that the users always have at least another spare
battery readily available.
It is preferable to charge batteries immediately before use.
Some loss from self-discharge would result if the batteries are
charged several weeks in advance of their use. However, this slight
loss can be topped up at any time without any degradation of battery
performance (no memory effect).
It is recommended to store batteries in a cool and dry place.
Charging should be done at temperatures above 0°C and below
45°C.
Slight heating of the battery is expected to occur during charge.
However if for some reason, the pack temperature reaches 60°C,
then the charge activity is suspended. The pack resumes normal
charging once the temperature drops back to below 50°C. This is a
safety feature incorporated in all BLUESHAPE battery packs

15
Disposal
When the equipment has reached the end of its life please dispose of
the components in accordance with your local waste directive in your
country. Electronic equipment should be recycled wherever possible
and not disposed of with regular waste.

16
Warranty
BLUESHAPE Chargers are warranted to be free from defects in
materials, workmanship and functionality for a period of 18 months
commencing from the date of purchase.
This warranty shall not apply to any products or parts of, that have
been subjected to misuse, negligence or damage. The buyer should
always contact the place of purchase for any return of defective
product. It is important that the buyer provides us with as much
information as possible about the failure being claimed.
In the event of product failure for which warranty applies, we will
repair or replace the product free of charge. In these cases, all
expenses including transport charges will be borne by us.
In the case where the failure has been caused by misuse, negligence
or damage, repairs would be billed at a nominal cost. Prior to the
carrying out of any repairs, we will inform the customer of the
estimated costs of these repairs.
These warranty conditions are the only ones applicable to our
products and overrule any other expressed or implied warranties. We
shall not be held liable for any damages resulting from warranty
statements other than those contained in this declaration. This
warranty is not transferable and is only applicable to the original
buyer. In all warranty claims, the buyer must reproduce the original
purchase invoice.

This page has been left intentionally blank.

BLUESHAPE ®
is a registered trademark of:
NEW CELL TOP Srl
VIA LIGURIA 4-6,
42124 REGGIO EMILIA, ITALY
TEL. [phone]
FAX. [phone]
WEB: www.BLUESHAPE.net
EMAIL: [email protected]
