Instruction Manual
Contents
※
Cautions for Safety
Features of Product
Name of Each Part
Drawing of Finished Installation
Cautions in Installation
Installation Method
How to Use
How to Clean
Trouble Shooting
Warranty
1
1
2
2
3
3
4
4
5
5
7
7
8
8
9
9
10
10
6
6
Please read through the manual for appropriate
use of the product.
After you read through the manual, keep it
in a proper place for the users.
PUSH
JET HAND DRYER

1. Cautions for Safety
(You must observe the followings for your safety.)
This manual is for users to use the machine safely and properly and has several indications
to prevent the risks and property damage in use beforehand.
You should read it carefully for a proper use.
And make sure to keep this manual in a place where a user can easily access to read after
reading it.
This indication means that the person can be seriously injured or
even dead if he or she uses the machine improperly, ignoring
this indication.
This is the indication that you must not do. (General Bans)
Do not put foreign substances (such as nail, needle, wire, and other
Make sure to keep the plug out while you are cleaning.
If you don't so, electric shocks may possibly occur.
Never spray cleanser on the main body or the power cable part.
Do not put the electric cable in or pull it out with a wet hand.
If you do so, electric shocks may possibly occur.
Do not insert the plug into the shaking or worn-out socket.
A user must not disassemble or remodel personally.
This is the indication that you must do. (General Instructs)
This indication means that the person may be possibly injured or
property damage may occurs if he or she uses the machine
improperly, ignoring this indication
■ Each kind of observance is as following indications.
Warning
Warning
Caution
Insertion-type Hi-speed Hand Dryer

BWD2000
(1) General Features
Do not hang heavy stuffs on the power cable or give a pull on it.
Also do not get it damaged, bend it by force, or twist it. If you do so,
Check and clean the machine regularly so that dust is not stacked
up on the interior of the machine and the power cable part.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
children should be supervised to ensure that they do not play with the
appliance.
This machine is sanitary as you can use it without touching any instrument or
switch by automatic coming-out of warm wind right after putting your hands into
the air vent.
To prevent children's mischief or continuous running by the sensing error of the sensor,
the machine is designed to be stopped about 20 seconds after continuous running.
You can reuse it by pull the hands out and then put them in again.
The built-in water receiver is removable slide, therefore anyone can easily remove the
water that is full in the receiver.
Do not lean on or hang on the machine - You may be possibly injured
with the separation of the machine.
Do not use the machine other than drying hands (Ex: Drying hair) - You
may be possibly injured or burned with bumping against the machine.
Do not put a towel or other stuffs on the machine - Fire may possibly
occur or you may be injured with the falling stuff on the machine.
Do not use toilet detergent, house detergent, benzene, thinner, cleanser
and nylon scrubber when you clean the machine because they can
damage plastics.
2. Features of Product
If the supply cord is damaged, it must be replaced by the manufacturer,
Warning
Caution

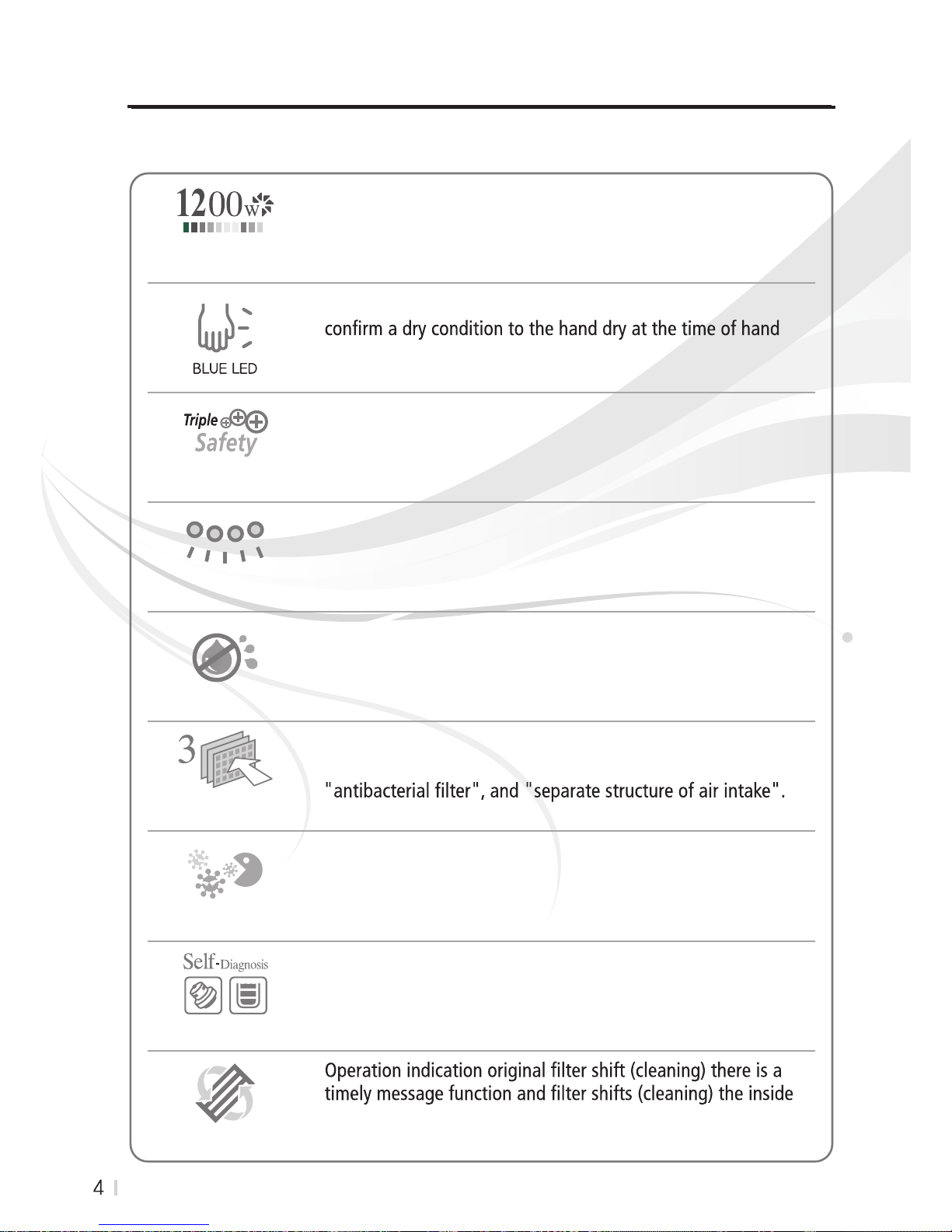

6-phased Wind Speed
Lighting & Operation Lamp
Self-diagnosis
Fliter exchange
Triple Safety Structure
Application of
Antibacterial Resin
Prevention ofWater Splash
Triple Channels for
Removing Odor
2. Features of Product
You can control the strong wind speed coming out of the
1200W motor in 6 phases.
Blue led illuminations come to light time it will be able to
area and a possibility of seeing a superior illuminating
effect there is
The machine is easy to use as a user and a care tak
er can look
at the present operating status of it and its design is
outstanding with its lighting.
With its mechanical design for prevention of splashing water
into face or body, the machine is sanitary.
This machine is sanitary with its "antibacterial intake",
With the application of antibacterial resin to the injection
molding material in the region where bacteria may breed,
the machine is sanitary.
There will be an own diagnostic feature and the case
operational indication original LED ramp which the water
will kick full in motor breakdown or the eave with twinkling,
To inform to the user, it is safe and it is hygienic.
2 all to inform a time with 1 month period ,it is convenient
and it is hygienic.
The machine is safe with the triple safety devices
(temperature fuse, overcurrent fuse, and bimetal).
Insertion-t ype Hi-speed Hand Dry er
(2) Unique Featu res of "BWD2000"

Instruction Manual
Contents
※
Cautions for Safety
Features of Product
Name of Each Part
Drawing of Finished Installation
Cautions in Installation
Installation Method
How to Use
How to Clean
Trouble Shooting
Warranty
1
1
2
2
3
3
4
4
5
5
7
7
8
8
9
9
10
10
6
6
Please read through the manual for appropriate
use of the product.
After you read through the manual, keep it
in a proper place for the users.
UP HS
●
When the power is on, the blue LED lights up and the green LED of chosen function also lights up.
●
Power : When the power is on, the green LED lights up.
●
Work east : The hand it puts in and dry at the time of green LED lights up
●
Wind-speed :
a wind velocity at 6 phases, the icon green LED which is selected to light up.
●
I llumination : Illumination it comes to light in the hand dry at the time of hand, green LED it comes to
(According to the product evening sunlight it could be changed.)
●
Self-diagnosis : Motor out-of-order yes or no under own diagnosing discovery at the time of green LED
above the woman being winking.
Filter shift (cleaning) the case green LED where has become the time being winking.
water to perceive, green LED being winking.
140
28.8
354.4
145
설치 가이드의 접힌 부분을 펴신 후바닥면에
대고 드릴작업을 하시면 제품 설치의 권장 높이인
320mm가됩니다.
설치 가이드를 설치할 알맞은 위치에 부착 후
아래 그림의 위치에 드릴 작업을 해주십시요.
*Power would be on by pressing the upper part.
*Power would be off by pressing the lower part.
■ Operation-manipulating Part
Front Case
Water Receiver
Bracket Brush User Manual
Mounting surface
Guiding Sheet
Power Cable
Operation-manipulating Part
Operation-indicating Window
*If you turn the volume clockwise, the machine
releases the strong wind-speed.
*If you turn the volume counterclockwise, the
machine release the weak wind-speed.
Accessories
3. Name of Each Part
Wind-speed Adjusting Volume
Power Switch
Sensor & Lighting
Window
Air Nozzle
BLUWASH
BWD2000
Wind Speed
OFF
ON
DOWN
Power
UP
PUSH
JET HAND DRYER

■
After sticking the installation guide placed in the product
box on the wall,make the holes with the depth of 30mm
in 4 upper sides and 2 lower sides by using a concrete
drill with the diameter of 6mm as shown in the drawing.
Insert nylon anchors into the hole
s.
In case of installation on the otherwalls than a concrete
6. InstallationMethod
Make sure to put the power cable tightly into the socket with AC230V, 50Hz/60Hz
and do not put it into the shaking or worn-out soc ket.If the power cable is not
This indication means that the person may be possibly injured or
property damage may occurs if he or she uses the machine
improperly, ignoring this indication.
don't so, you may be injured or the machine may be damaged due to the separation
of the machine.
The rated power consumption of the machine with AC 230V and 50/60Hz is 1200W.
Make sure to install the appropriate wiring according to the above.
Use a single-phase alternating current 230
V.
(If you use 110
V,
the machine cannot be ope
rated.)
1. F
ixation of Installation Plate (Consideration for
installation environment)
Install the wiring correctly following the regulation for electrical installation
and the domestic wiring regulation.
(In case of interior wiring,
use exclusive wire
s.)
Do not install the machine in the following places.(Installing so causes troubles
on the machine.)
- Places where temperature is more than 40,condensation breaks out,and water is directly contacted
Hand Drill for
Concrete
- Places where direct sunlight or strong light exists and there is corrosiv
e, neutral,or reducing gas
The effective length of the power cable is about 1.8m.Install the socket in a space
within about 1m from the place where you try to install the machine and without
water splash.
Do not let the machine exposed to direct sunlight.Direct exposure to sunlight
causes discoloration or malfunction.
Cautions before Installation
Caution
BWD2000

320
PUSH
H
S
U
P
About the Installation Location
Test Run
Checkup Table
1
2
3
Fix the machine in the locking sill. (At this time,
install the water receiver independently.)
screws completely into the 2 holes in the bottom.
Connect the water receiver into the machine.
2. Fix the machine in the installation plate.
After connecting the power cable into the socket,
check if the machine operates normally.
If the machine doesn't operate, refer to page 12
of this manual.
If the problem maintains on the machine, please
contact the Repair & Service Center of our
company.
Floor
Wall
More than 10mm
Install the machine with the space of 320mm in height from
Make sure to install the machine so the distance from the
wall is more than 10mm.
The wall where the machine is to be installed should be
Avoid the place for installation where people bump into the
machine easily and doors contacts it.
Do not turn the power switch on after inserting your hands.
After turning the power switch on, check if the beat sound comes out and the operating lamps
works correctly.
Check the power and voltage.
- Are you using a single-phase alternating current 230V?
- Are the operating lamps lighting up?
- Is the wing coming forth?
- Isn't there any vibrating strange sound?
Turn the power switch on.
Dry hands, inserting them.
3. Check if the machine works normally.
Procedure Checkups
Insertion-type Hi-speed Hand Dryer
6. Installation Method

※
Following the below way can get a fast dry effect.
How to Use Hi-speed Switch

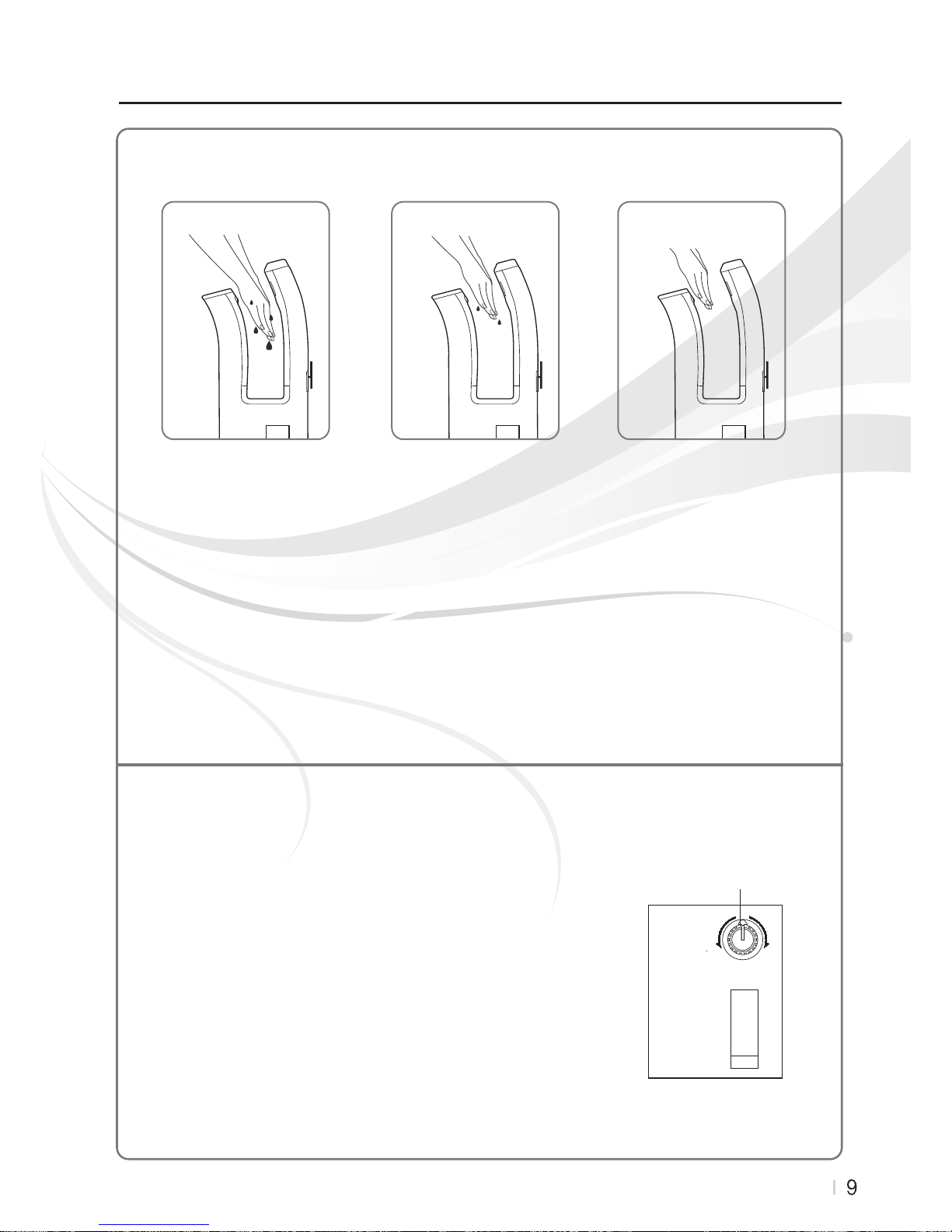

7. How to Use
1. As soon as you insert your
hands into the air vent,
opening and supinating
your hand, the drying
begins automatically.
The machine is automatically stopped when it operates continuously by unnecessary
substance beneath the sensor or you use it continuously for more than 20 seconds.
※
If you set the wind strength to the weak mode, you can use
the machine a little bit more quietly as the motor output decreases.
It will be able to economize an electricity.
If you spin the wind-speed adjusting volume clockwise
of the operation-manipulating part located on the right
middle of the main body, the wind becomes strong.
And if you spin it counterclockwise, the wind becomes
weak. You can adjust the wind strength in 6 phases and
the green LED lights up on one of the strong, medium,
and weak lamps according to the wind strength.
Safe Circuit
2. Take your hands out,
shaking water off your
hands with the wind.
Wind-speed
Adjusting Volume
3. By removing the water
thoroughly through
repetition of the step 2,
the drying of your hands
is ended.
Wind Speed
OFF
ON
DOWN
Power
UP
BWD2000

■
■
Cleaning of Sensor Part (Once or Twice a Month)
Cleaning of Water Receiver
Make sure to remove the power cable from
the socket while you are cleaning the machine.
(Or electric shocks may possibly occur.)
Do not insert or pull out the power cable with
a wet hand. (There is an electric shock hazard.)
Never spread water or cleanser on the main
body or the power cable part.
The disassembling of the machine by anyone
except our technicians is absolutely banned.
Do not use toilet detergent, house detergent,
benzene, thinner, cleanser and nylon scrubber
when you clean the machine because they
can damage plastics.
Sensor Part
The contamination of the sensor part
can cause poor sensing or malfunction.
Clean the machine regularly with a
soft cloth.
(Note)
sensor part while you are cleaning it.
Remove the removable slide water receiver
from the main body.
Remove the stacked water from the water
receiver.
Connect the water receiver into its original
the cleaning.
Clean the water receiver regularly according
to the frequency of use.
Warning
Caution
8. How to Clean
Insertion-type Hi-speed Hand Dryer

11
■
■

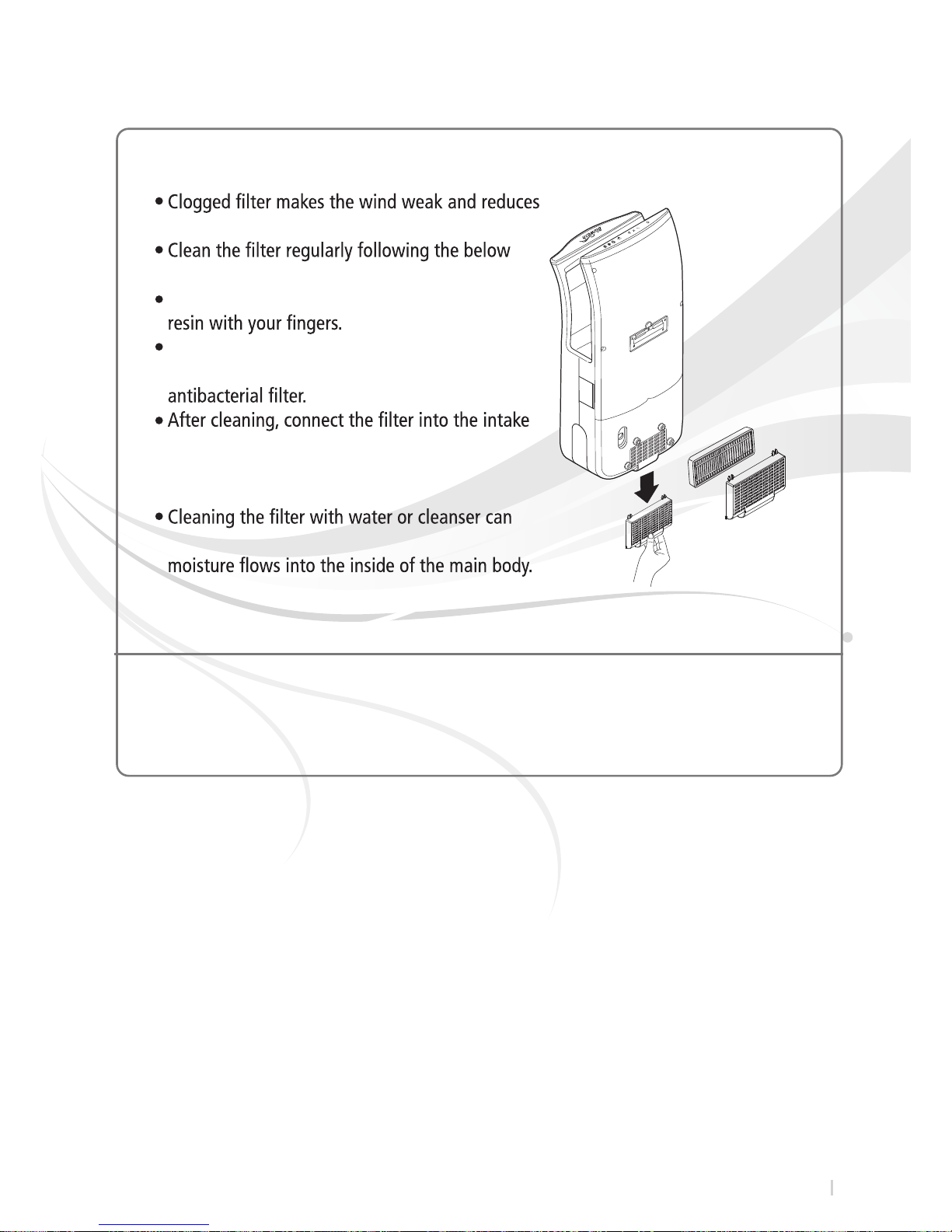

How to Clean Filter
After cleaning
the drying effect of the machine.
instructions.
Pull out the grip of the intake of the antibacterial
Remove the dust or foreign substances from the
intake of the antibacterial resin and the
of the antibacterial resin and then place it into
the original location, keeping the grip of the
intake of the antibacterial resin downward.
cause the problem on the machine as the
In case of cleaning it with water or cleanser,
connect them after drying out the water completely.
Turn the power switch on with an unwet hand.
BWD2000

-Is there any power failure?
-Is the power cable unplugged?
-Is the power 230V?
-Do the operating lamps lights up?
Symptoms Checkups Actions
In case that the
wind doesn't
come out even
after you insert
your hands
In case of
making severe
noise and
strange sound
In case that the
wind smells bad
In case that
water is dripping
In case that
the wind
doesn't stop
In case that the
self-diagnosis
lamp is
If the problem remains even after the above actions are taken, contact the store that you
purchased the machine or our repair & service center after turning off the power.
-Isn't the wall where the machine is
-installed weak or isn't the machine
unstably installed?
-Is any stuff placed on the back side
of the product or on the machine?
with the wall?
-Isn't the water receiver full with
water?
-Is the water receiver properly
inserted?
-Is the water spilling over from the
water receiver?
-Isn't there any foreign substance
or pollutant on the sensor?
green?
-Isn't the motor running with the
motor lamp lighting up green?
-Does the water level lamp light up
red?
-Empty the water receiver and clean it.
-Insert the water receiver properly.
-Remove the water from the water
receiver.
-Turn the power off and clean the sensor
part and then turn the power on.
-There is a problem on the heater and
contact the repair & service center.
-Remove the water from the water
receiver.
wall.
-Remove the stuff.
wouldn't shake.
-Check the power state of other product.
-It makes the power plug paste in the cone
cent, to connect.
-Connect into 230V power supply.
-Insert your hands into the vent correctly.
-Turn the power off and clean the sensor
part and then turn the power on.
9. Trouble Shooting
Insertion-type Hi-speed Hand Dryer

In case that you need to replace the power cable,make sure
to contact our distributor where you purchased the machine
or our repair & service cente r. (Anyone other than our repair
technician must not replace the power cable
.)
BWD2000
BWD2000
Anyone other than our repair technician must not assemble or
repair the machin e. In that case, there is an electric shock hazard.
Size
RatedPower
RatedPower Consumption
Motor
Filter
BlastFan
Safety Device
Cover Material
Capacity of
Water Receiver
Wind Speed
RPM
Weight
300(W) x 669(H) x 234(D) mm
AC230V / Usable for both 50Hz and 60Hz
1160W
Brush Motor
HEPA Filter
Turbo Fan
Temperature Fuse, Overcurrent Fuse, and Bimetal SW
ABS Resin / Heat-resistant Resin
1100 ㎖
160 m/sec
33,000 rpm
10 kg
Model Name
10. Specifications
Warning

Memo

※
Regulation on Free Repairs
BWD2000
Product Warranty
warranty cautiously.
This warranty guarantees free repairs according to the contents written in the warranty.
Contact our repair & service center if there is a problem on the machine during the
warranty period.
Make sure to present this warranty at the time of repair.
Free repair can be provided only when the machine has troubles within year after
purchasing date (warranty period).
Free repair is provided for the trouble in a normal use according to the user manual and
the caution labels during the warranty period.
In case of the followings, you are charged for repairs.
Troubles or damages caused by carelessness in use and improper repair or remodeling
andpollution or abnormal voltage
Troubles or damages from careless transportation or handling after purchase
Troubles or damages caused by use of undesignated power(voltage or frequency) or abnormal
water quality
Troubles or damages caused by relocation after installation
Troubles or damages of consumable components caused by sand or dust
When there is no written contents in the warranty or the written contents was changed
Product Name Insert-type Hi-speed Hand Dryer
Model Name
Customer
Selling Price
Name
Address
Store Name
Tel.
Distributor
Purchasing Date
Warranty Period ( Year)
Regulation on Repair with Cost
This warranty cannot be reissued and keep it with care.
When requesting a repair, make sure to present the warranty.
If you have any questions about the repair after expiration of warranty period etc.
please contact our repair & service center.
DYNE GLOBAL CO., LTD
178-50, Myeonmok2-dong, Jungrang-gu, Seoul, 131-820, Korea
Tel: [phone]
Fax: [phone]

www.bluwash.co.kr
