Sheer
Driving Pleasure
BMW Z4
www.bmw.com
THE BMW Z4 .
EXPERIENCE PURE JOY.
BMW EfficientDynamics
Less emissions. More driving pleasure.

IF ONLY ALL FIRST IMPRESSIONS
LASTED THIS LONG.

THE ROAD DOESN’T HAVE TO BE GREY.
LIGHT IT UP WITH THE BMW Z4 ROADSTER.

One rOadster
fOr all fOur seasOns.

Electric Power Steering
Unlike conventional, hydraulic steering systems,
the electrical steering only uses energy while
steering is actually taking place. When the
steering wheel position is constant – for example
at high speed along the motorway – the electric
motor is inactive.
BMW TwinPower Turbo technology
This innovative exhaust gas turbo charger
effi ciently recaptures the energy present
in exhaust through the use of two chargers
(Z4 3 5 i and Z4 sDrive3 5 is).
Optimum Shift Indicator
Timely gear shifts are one of the most effective
and easiest ways to save fuel. This is where the
Optimum Shift Indicator in conjunction with six-
speed manual transmission comes in. It shows
the driver what gear to use in order to drive more
effi ciently.
Brake Energy Regeneration
To supply a battery with electrical energy,
the generator (alternator) is permanently
driven using engine power, which demands
additional fuel consumption. Brake Energy
Regeneration means the generator usually
only generates electricity when the driver
either takes their foot off the accelerator or
the brake – previously
unused kinetic energy
is transformed in coasting
mode into electrical
energy before being fed into the battery.
In this way, electricity is generated while
coasting, without consuming fuel.
Tyres with reduced rolling-resistance
While driving, tyres are constantly changing
shape. This uses up energy and thus fuel.
Tyres with reduced rolling-resistance have an
improved design and use special materials for
their road treads and side walls, thus reducing
deformation.
Lightweight construction
Our engineers use aluminium where lighter
materials are more expedient, for instance in
the front section or for the suspension, in the
bonnet and in the hardtop. The six-cylinder
in-line petrol engine, for instance, is composed
of aluminium and magnesium. Making these
engines the lightest in their class. These weight
savings lead to lower fuel consumption and
better axle load distribution, for more agility,
especially in bends.
Some BMW EfficientDynamics features are dependent
on the car’s equipment and are not available for all model
variants. Your BMW Partner will be happy to provide you
with information on all equipment details.
THIS HAS GONE IN.
The pleasure you get from driving a BMW is the result of fi ne engineering – always setting standards, as it is based on much more than engine power.
This is the tradition behind BMW Effi cientDynamics. It includes the visionary Hydrogen engine, already used in the completely emission-free
BMW 7 Series saloons, and the BMW ActiveHybrid – an intelligent, demand-oriented combination of internal combustion engine and electric motor.
And every BMW already includes the multi-award-winning BMW Effi cientDynamics technology package as standard that boosts dynamics even
further whilst simultaneously reducing fuel consumption and CO2emissions.
Thanks to the innovative features of
Effi cientDynamics, BMW has been able
to signifi cantly reduce CO񂢗 emissions in
many models. But that’s just for starters.
We’re carrying on our research with
Effi cientDynamics – in the quest to bring you
more driving pleasure and less emissions.
AND THIS IS WHAT COMES OUT.
BMW Ef񂐷 cientDynamics
Less emissions. More driving pleasure.

Standard equipment Optional equipment
TWO SEATS. ELEVEN PLACES.
 Storage compartment in the partition
 Coat hook (both sides)
 Through-loading system
with transport bag
 Storage compartment behind the seats
 Driver’s side folding compartment
 Cup holder under the centre armrest  Folding compartment on instrument panel*
 Storage compartments in
centre console
 Glove compartment
 Net in passenger footwell
 Door trim folding compartment (both sides)

Standard equipment Optional equipment

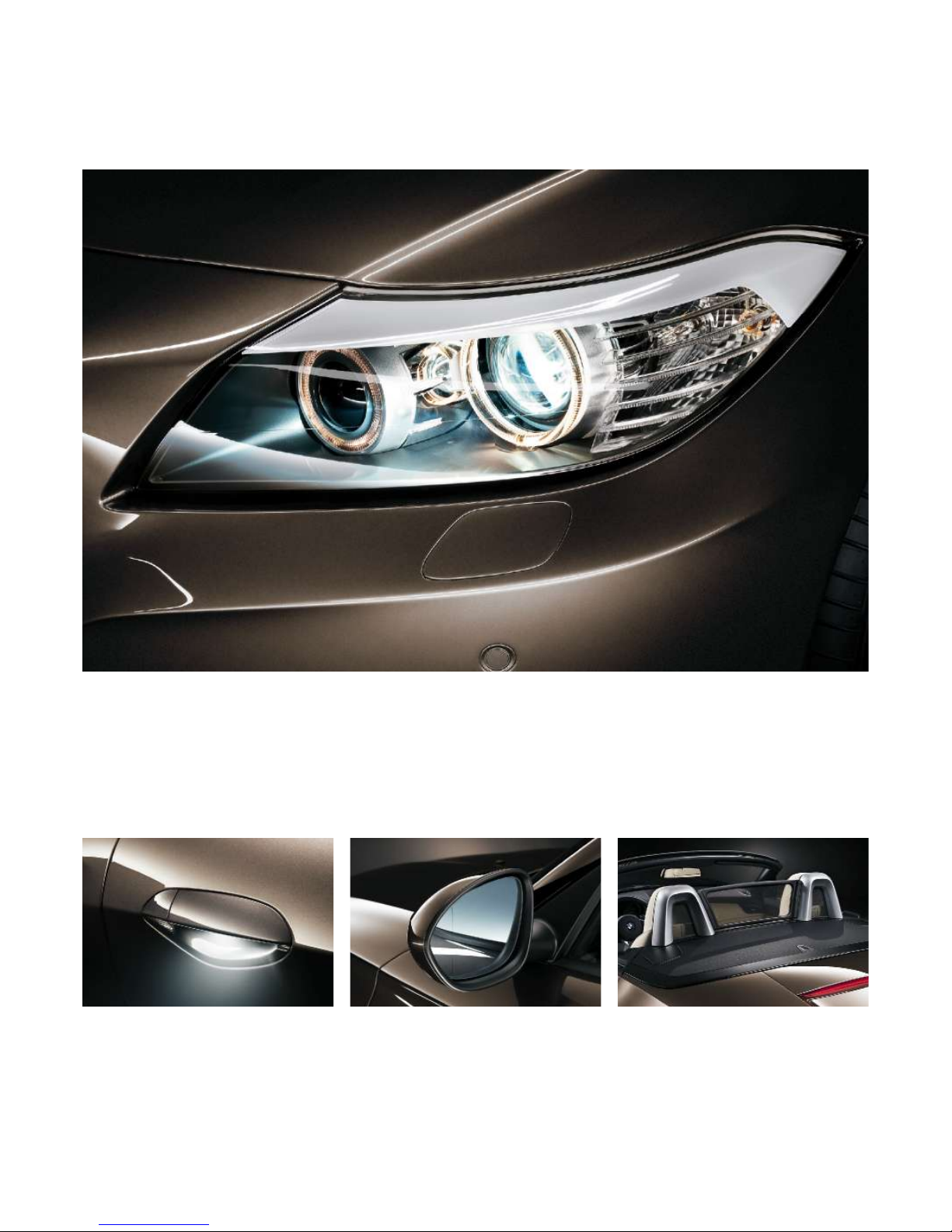

Xenon Headlights for high and low beam, incl. four light rings used as daytime running lights and automatic headlight range control, for optimal
illumination of the road ahead at night and when visibility is poor.
Adaptive Headlights with variable light distribution use electro-mechanical control of the moving headlights to provide optimum
illumination through corners as soon as the driver turns into the bend. In addition, variable light distribution is a standard feature of this equipment
package and will illuminate a wider or narrower section of the road depending on your speed.
High-beam assistantsupportsthedriveratnightbyautomaticallyswitchingtolowbeamwhenthereisoncomingtraffi coranothercarahead,
orwhentheroadissuffi cientlyilluminated.
Headlight washing system.
Exterior mirror package with mirrors that can
be folded in automatically using the integrated
electric fold-in function (e.g. in a carwash), and
can then be folded back into position at the
touch of a button, incl. parking function for
passenger-side mirror.
Interior mirror with automatic anti-glare
function. Automatically dims when light from
followingcarsexceedsaspecifi edintensity.
Lights Package encompasses door exit
lights, handle-area illumination, which illuminates
theentrywayfor2 0 secondswhenthedoors
are unlocked, for added convenience in the dark.
Also includes: storage compartment illumination,
ambient lighting, reading lights, footwell lighting.
Retractable hardtop can be quickly opened
at the touch of a button (opens and closes only
when vehicle is stationary).
Wind deflector lets you enjoy open-top
driving without annoying drafts and turbulence
intheshoulderandneckarea;thewinddefl ector
is easy to operate and can be stowed compactly
in the luggage compartment.

Standard equipment Optional equipment
1
Wheel/tyre combination with high-performance look
and limited suspension and roll comfort.
2Available with the M Sports package, optional for the
Z4 sDrive3 5 is.
3Only available in conjunction with M Sports package or
Z4 sDrive3 5 is.
 BMWlight-alloywheelsturbine-styling
292 with mixed runfl at tyres, 8 J x 1 7 -inch with
2 2 5 /4 5 R 1 7 tyres at the front, 8 .5 J x 1 7 -inch
with 2 5 5 /4 0 R 1 7 tyres at the rear (standard for
Z4 sDrive3 5 i).
 BMWlight-alloywheelsmulti-spoke2 9 3
with mixed runfl at tyres, 8 J x 1 8 -inch with
2 2 5 /4 0 R 1 8 tyres at the front, 8 .5 J x 1 8 -inch
with 2 5 5 /3 5 R 1 8 tyres at the rear.
 BMWcompositelight-alloywheels
V-spoke2 9 4 , bolted, with mixed runfl at tyres,
8 J x 1 8 -inch with 2 2 5 /4 0 R 1 8 tyres at the front,
8 .5 J x 1 8 -inch with 2 5 5 /3 5 R 1 8 tyres at the rear.
BMWlight-alloywheelsstarspoke2 9 5
with mixed runfl at tyres, front 8 J x 1 8 -inch with
2 2 5 /4 0 R 1 8 tyres, rear 8 .5 J x 1 8 -inch with
2 5 5 /3 5 R 1 8 tyres (exclusively available for the
Z4 sDrive3 5 is).
BMWlight-alloywheelsstar-spoke2 9 0 ,
8 J x 1 7 -inch with 2 2 5 /4 5 R 1 7 runflat tyres
(standard for Z4 sDrive2 3 i and Z4 sDrive3 0 i).
 BMWlight-alloywheelsV-spoke2 9 6 1
with mixed runflat tyres, 8 J x 1 9 -inch with
2 2 5 /3 5 R 1 9 tyres at the front, 9 J x 1 9 -inch with
2 5 5 /3 0 R 1 9 tyres at the rear.
 Mlight-alloywheelsstarspoke3 2 5 M2
with mixed runfl at tyres, front 8 J x 1 8 -inch with
2 2 5 /4 0 R 1 8 tyres, rear 8 .5 J x 1 8 -inch with
2 5 5 /3 5 R 1 8 tyres.
 Mlight-alloywheelsdouble-spoke3 2 6 M1 ,3 
with mixed runfl at tyres, front 8 J x 1 9 -inch with
2 2 5 /3 5 R 1 9 tyres, rear 9 J x 1 9 -inch with 2 5 5 /3 0
R 1 9 tyres.

Standard equipment Optional equipment

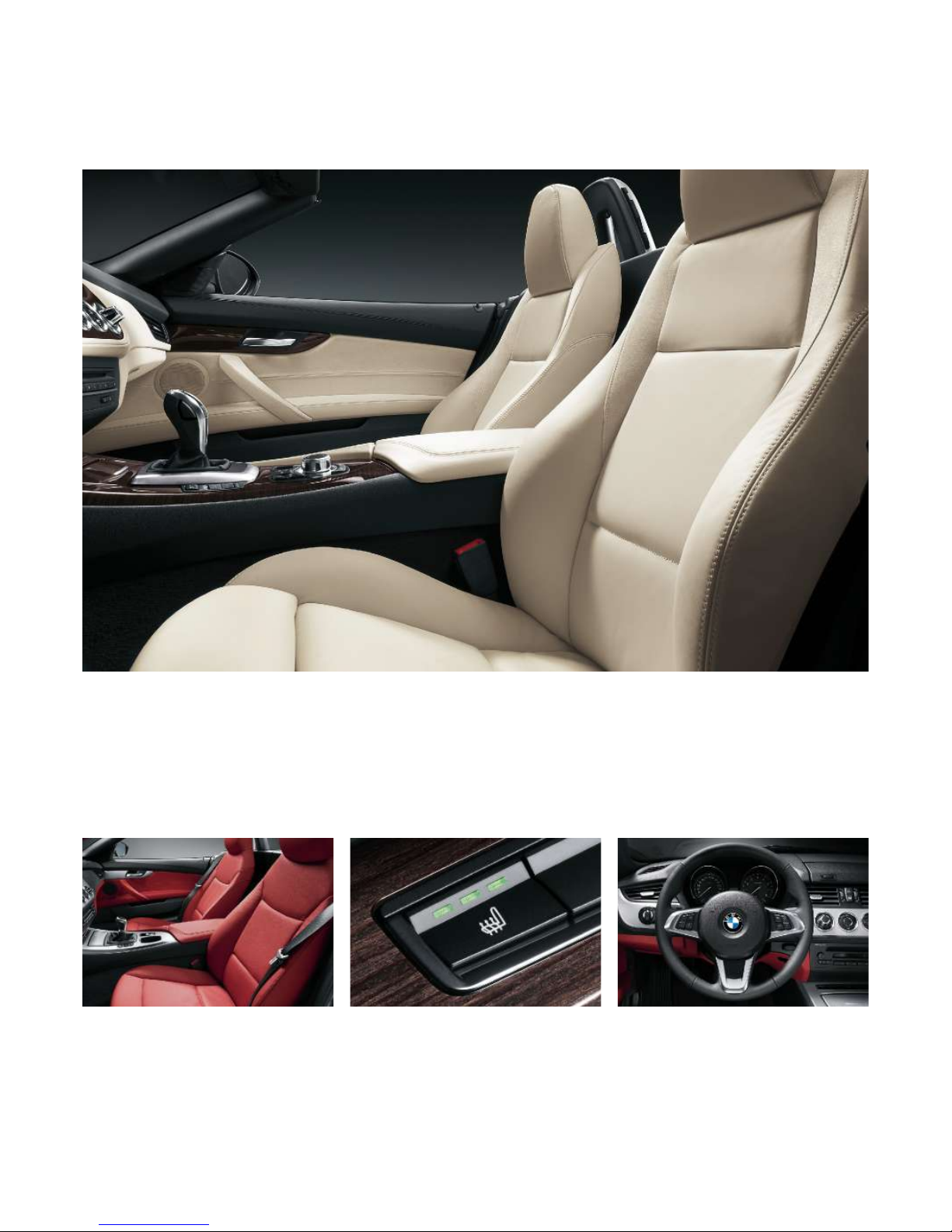

Sports seats for driver and front passenger (shown here with optionally available Ivory White Exclusive Nappa leather) with manual adjustment
for seat length position, seat height, seat and seat back angle, and thigh rest; the electrically adjustable lateral supports give optimal side support for
peopleofallsizeswhencornering(standardfortheZ4 sDrive3 5 is).
Lumbar support for driver’s and front passenger’s seats, electrically adjustable in height and depth to provide a perfect, ergonomic seating
positionandsupportyourbackmuscles.
Armrest,foldable,withcapaciousstoragecompartment.
Seat heating for driver and front passenger
(three phase); seat, backrest and lateral supports
can be heated to provide a comfortable warmth
only moments into your drive (standard for the
Z4 sDrive3 0 i,Z4 sDrive3 5 iandZ4 sDrive3 5 is).
Standard seats (shown here with optionally
available Coral Red Kansas leather) with integrated
fi xedheadrestsandlongadjustablerangefor
seat length position as well as individually
adjustableseatheightandbackrestangle.
Seat adjustment, electric, for driver’s
and front passenger’sseatincl.twomemory
positionsforthedriver’sseat.
Child seat fastening ISOFIX for passenger
seat.Frontpassengerairbagcanbedeactivated.
Sports leather steering wheel.Theuse
ofSunRefl ectiveTechnologyensuresthat
the leather steering wheel rim never becomes
uncomfortable to the touch when heated by
directsunlight.
Multifunction buttons for sports leather
steering wheel,controlofradio,CDdriveand
telephone (optional) via integrated buttons –
so you can keep your hands on the wheel for
saferdriving.

Standard equipment Optional equipment
Dynamic Driving Control allows you to easily switch between the Normal, Sport or Sport Plus
driving modes. For sporty drivers, this option allows you to sharpen all the vehicle’s responses. The
system encompasses direct feedback from the steering system, control maps for the accelerator
and dynamic gearshift on the optional automatic transmissions. Additionally, at the push of a
button (DSC off) you can deactivate Dynamic Stability Control or change to Traction mode,
allowingwheelslipwithindefi nedlimitsforasportierdrivingstyle.
Adaptive M suspensionlowersthechassisby1 0 mmandelectronicallyadjuststhedampers
(from sportingly tight to relaxed and comfortable) for a further boost to agility and an impressively
preciseresponse(standardfortheZ4 sDrive3 5 is).
6 -speed manual transmission for an
unbelievably athletic driving style. Smooth
and optimally synchronized, it boasts precise,
short-throw gearshifts. Thanks to the narrow
transmission ratios with an additional sixth
gear the engine is even more responsive to
your own personal style of driving (not
availablefortheZ4 sDrive3 5 is).
Sports leather steering wheel with
gearshift paddlesinconjunctionwith
automatic transmission for even more dynamic
gear shifts.
M leather steering wheel with gearshift
paddlesinconjunctionwithautomatic
transmission for even sportier gear shifts
(standardfortheZ4 sDrive3 5 is).
Steering wheel heating,justpressabutton
to quickly warm up the steering wheel rim – a
particularly pleasant amenity in winter.
6 -speed sports automatic transmission
Steptronic (far left) for highly convenient and
sporting gearshifts using the gear lever or
the gearshift paddles on the leather steering
wheel – for a maximum of driving dynamism
and efficient consumption behaviour (available
forsDrive2 3 iandsDrive3 0 i).
Sports automatic transmission with
double clutch for particularly fast gearshifts
with no loss of traction, using the gear lever or
the gearshift paddles on the leather steering
wheel; for optimum driving dynamics and
efficient fuel consumption patterns (standard
fortheZ4 sDrive3 5 is,optionallyavailablefor
theZ4 sDrive3 5 i).

Standard equipment Optional equipment

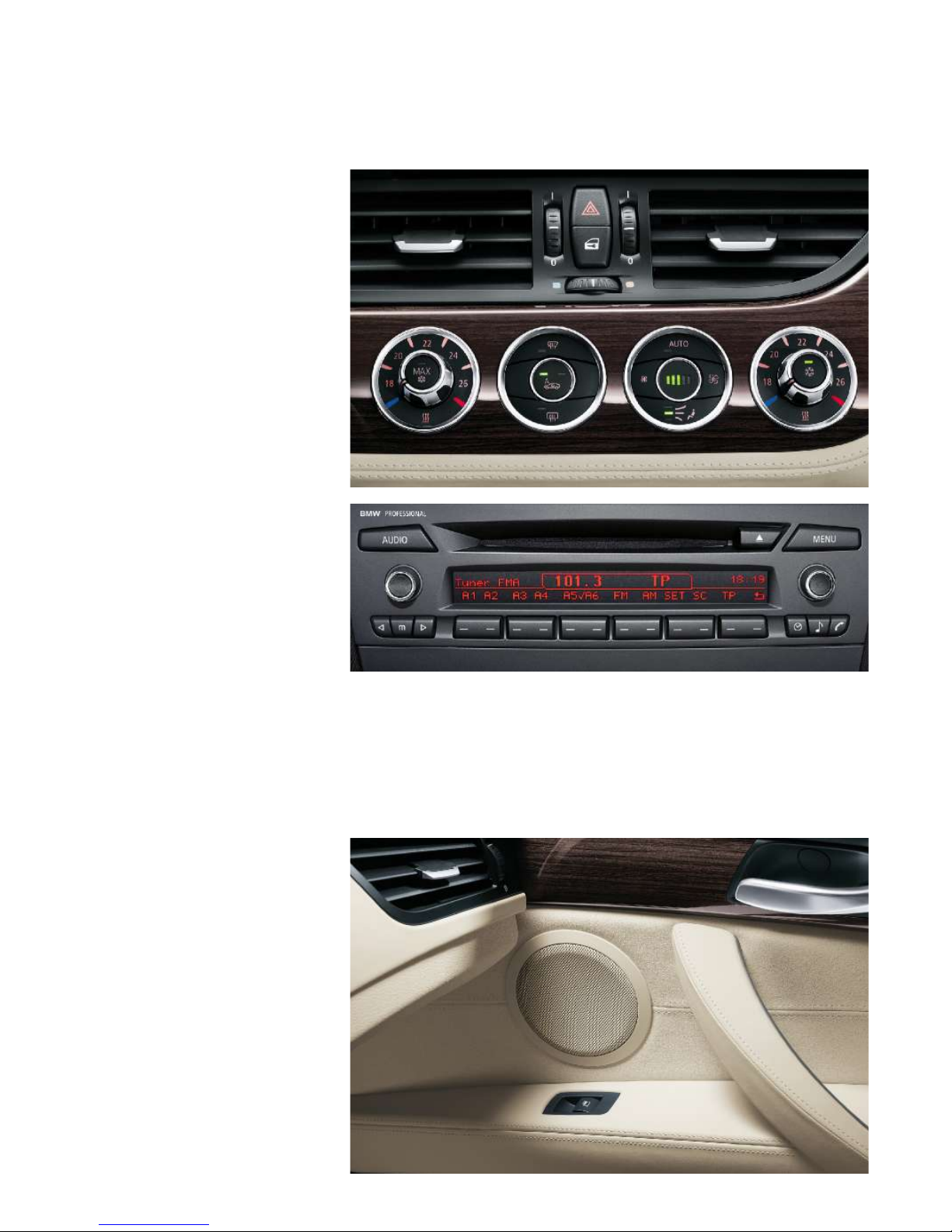

Air conditioning,incl.microfi lter,providing
youridealenvironmentanytimeofyear,manual
temperatureadjustmentandairrecirculation,
seven-phaseblowersandknee-levelvents.
Automatic air conditioning (shownhere),
incl.AutomaticRecirculationControl(ARC)
withrecirculatedairfi lter,sunandprecipitation
sensor,fully-automatictemperatureadjustment
(twoseparatecontrolsfordriverandfront
passenger)andadditionalconvertiblemode
setting.
Radio BMW Business CD,4 -channelamplifi er,scanfunction,CDdrive,MP3 decoder,
automaticvolumecontrol,incl.stereoloudspeakersystemwithsixloudspeakers.
Radio BMW Professional (picturedhere),likeradioBMWBusinessCD,alsoincludingdouble
tuner,connectionforaCDchangerandtwo-linedisplayforextendedpresentationoftelephone
numbers,namesandaudio/MP3 tracks.
DAB tunerforadditionalreceptionofdigitalradioprograms(inconjunctionwithradioBMW
Professional).
HiFi loudspeaker systemwithdigital
amplifi er(2 4 5 watts)and1 1 loudspeakers,
featuringdigitalequalizing,tooptimallyadjust
soundtotheinternaldimensionsofthevehicle.
HiFi system Professional, multi-channel
capability,withdigitalamplifi er(6 5 0 watts)anda
totalof1 4 loudspeakersforahigh-intensity
soundexperience.
CD changer,for6 CDs,incl.scanfunction,
randomplayandMP3 decoder;installedin
theglovecompartment.
DVD changer,featuresandlocationasfor
CDchanger.TheDVDchangeralsohas
multi-channelcapability.

Standard equipment Optional equipment
BMW Assist* offers a range of services to
support the driver: automatic and manual
emergencycall,Traffi cInfoPlus*,MyInfoand
personal information services.
BMW Online* offers access to online
services.

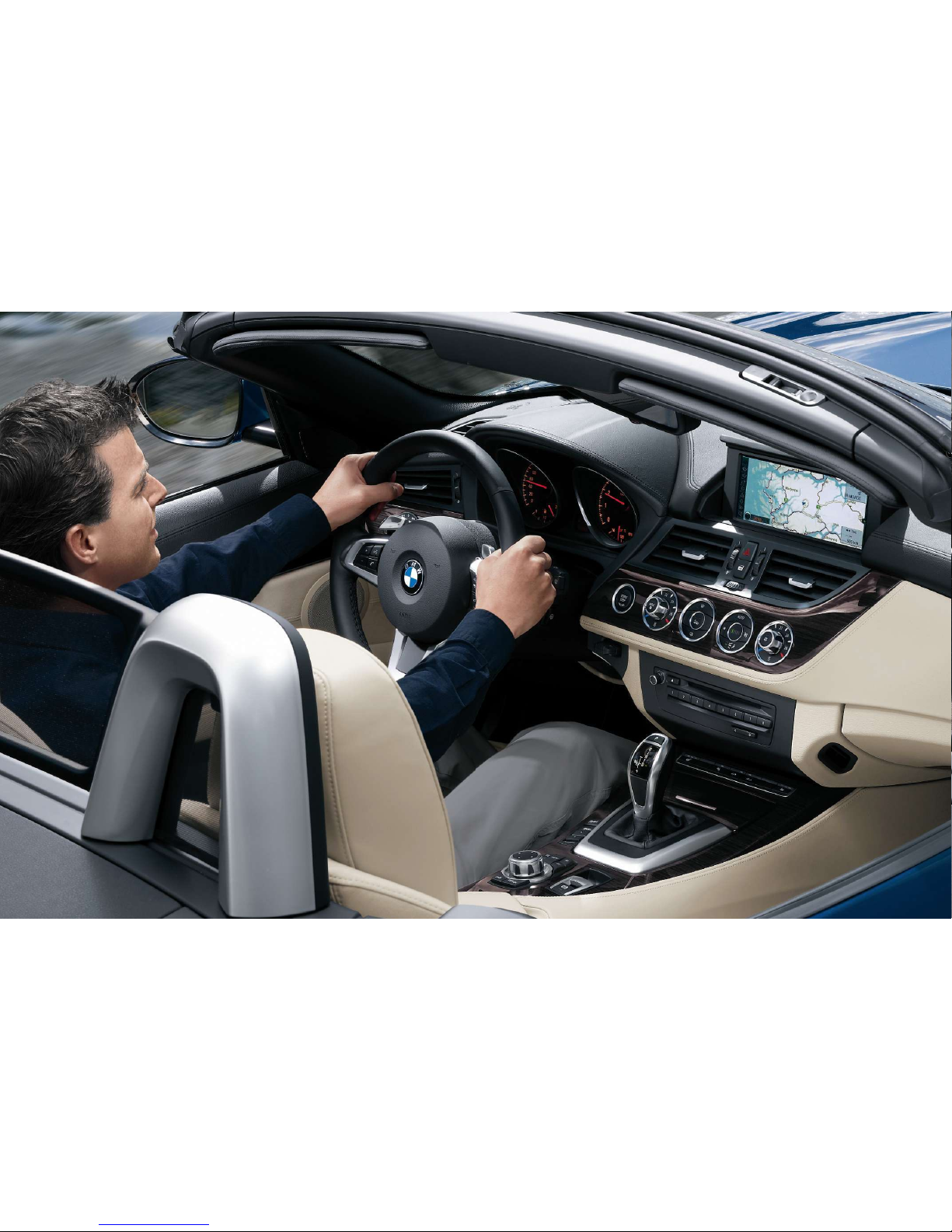

Navigation system Professional*, incl. DVD
drive, iDrive Controller with direct menu control
buttons, functional bookmarks, integrated hard
discforaudiofi lesandnavigationdata,3 Dmap
presentationandfoldinghigh-resolution8 .8 -inch
display.
Voice control system (available in conjunction
withNavigationsystemProfessional*)allows
you to control functions such as radio station
selection, navigational destinations or telephone
system entries while on the move. These
functions are shown simultaneously in the
Control Display.
TV function allows the Control Display to be
used as a television when the vehicle is stationary.
Bothanalogueanddigital(DVB-T)programscan
be viewed.
Connectivity package comprises Business
mobile phone preparation with Bluetooth
interface (incl. hands-free installation, sockets
forchargerandexternalantenna)andUSB
audiointerfaceforaUSBstickorMP3 player,
as well as the extended comfort connection
for mobile phone music player. Track titles are
shown in the control display (only in conjunction
withanavigationsystem).
* Not available in all countries. Please consult your BMW partner.

Standard equipment Optional equipment
* This service may vary by country.
Storage options for all kinds of objects is
provided by the storage compartment behind
the seats, a folding compartment in the
dashboard and one under the centre console,
two trays in the centre console, door trim
folding compartment on both sides, the glove
compartment and a tray in the luggage
compartment (for vehicles without navigation
system).
Storage package includes two cup holders
under the centre console, a folding compartment
on the driver’s side, a storage compartment
in the separating wall in front of the luggage
compartment, net in the passenger footwell
and on the rear of the seat backrests, a coat
hook on each rollover bar and fastening straps
in the luggage compartment.
Luggage compartment,with1 8 0 litre
capacity(withhardtopopen)or3 1 0 litreswhen
hardtop is retracted. When the hardtop is
retractedthevehiclehasroomfora4 6 -inch
golf bag, for example.
Through-loading system with integrated transport bag, offers lots of space, an ideal extension
of the luggage compartment, incl. ski holder on the sill in the luggage compartment. Even larger
objects,suchasasecondgolfbag(4 6 "),canthusbeconvenientlyaccommodated.Andregardless
ofwhetherthehardtopisopenorclosed,twopairsofskis(max.1 7 0 cm)canstillbetransported.
BMW Welt: taking delivery of a car has always
ranked among the best moments for any car
driver. Now that moment can become a truly
unforgettable day – at the new BMW Welt,
the experience and delivery centre in Munich,
Germany. Visit the Museum, tour the plant or
explore the Technology studio: BMW Welt brings
you the true fascination of BMW. Experience
more online at www.bmw-welt.com
 BMW Service Inclusive*. Your BMW
partner has intelligent solutions on hand,
including for service. With BMW Service
Inclusive you entail no further costs for
maintenance work within the agreed period/
service level. For more information visit
www.bmw.com/ServiceInclusive

 Standardequipment  Optionalequipment  Notavailable
Safety Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Airbags:
– Driver and front passenger airbags    
– Side airbags for driver and front passenger (head/upper body)    
BMW Service Inclusive* encompasses various service and maintenance work that can be carried out at all
participating BMW Service Partners worldwide. Individual contract length and service level can be selected 
  
Brakes:
– Disc brakes, front and rear, inner-vented    
Brake light, third    
Bumpers with aluminium impact absorbers front and rear, fully regenerating from impacts of up to
4 km/h, deformation elements at the front and rear absorbing impacts up to 1 5 km/h    
Central locking locks doors, boot lid, fuel filler cap, crash sensor    
Child seat fastening, ISOFIX, on passenger seat (with airbag deactivation)    
Crash sensor overrides the central lock function in the event of an accident    
Dynamic Braking Lights    
Dynamic Stability Control (DSC) with additional functions, incl. ABS, DBC and Dynamic Traction Control (DTC)    
Rollover safety system behind the headrests    
Safety belts, automatic with belttensioners and belt force limiters    
Side impact protection, integrated    
Exterior Design Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Air inlet grille in front spoiler, Black (Z4 sDrive3 5 i: Aluminium matt, Z4 sDrive3 5 is: fi nisher struts in
Aluminium matt)    
Auxiliary LED indicators in the front side panel    
Exhaust tailpipe, double, round    
Exhaust tailpipe, single, round, left and right    
Exterior mirror in body colour, electrically adjustable, heated    
Exterior mirrors in Oxide Silver matt, electrically adjustable, heated    
Exterior mirror package, incl. fold-in mirrors and automatic parking function    
Headlight surrounds in Black    
Metallic paintwork    
Model designation, deletion    
Ornamental front grille with kidney grille slats in Black (Z4 sDrive3 5 i/is: Aluminium matt),
with chrome surrounds    
Retractable hardtop, electric    
Wheels Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Wheels:
– Light-alloy wheels star-spoke 2 9 0 , 1 7 "    
– Light-alloy wheels turbine styling 2 9 2 with mixed tyres, 1 7 "    
– Light-alloy wheels star-spoke 2 9 5 with mixed tyres, 1 8 "    
– Light-alloy wheels multi-spoke 2 9 3 with mixed tyres, 1 8 "    
– Composite light-alloy wheels V-spoke 2 9 4 , bolted, with mixed tyres, 1 8 "    
– Light-alloy wheels V-spoke 2 9 6 with mixed tyres, 1 9 "1   
– M light-alloy wheels, star-spoke 3 2 5 M with mixed tyres, 1 8 -inch2   
– M light-alloy wheels double-spoke 3 2 6 M with mixed tyres, 1 9 -inch1 , 3    
Runflat tyres incl. runflat indicator    
Equipment package Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
M Sports package includes specially designed Aerodynamics package, M light-alloy wheels in star
spoke 3 2 5 M, 1 8 -inch, with mixed tyres or optionally with M double-spoke 3 2 6 M, 1 9 -inch, with mixed tyres,
sports seats, M Sports suspension (Z4 sDrive3 5 is: adaptive M suspension), M leather steering wheel,
Aluminium Carbon interior trim, M door sill finishers, M footrest, BMW Individual roofliner Anthracite
    4
Interior design Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
BMW Individual roofliner Anthracite    
Design Pure White2 features fine-wood trim in Anthracite, exclusive Ivory White Nappa leather extended
and sports seats for driver and front passenger with integrated, fixed headrests    
Instrument panel with circular speedometer and rev counter, as well as tank level and oil temperature gauges    
For an explanation on the footnotes see the following page.

 Standardequipment  Optionalequipment  Notavailable
Interior design Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Interior trims:
– Satin Silver matt    
– Aluminium Carbon 
5 5 5
– Fine Brushed Aluminium    
– Fine-wood trim Ash Grain    
Upholstery:
– Panama cloth    
– Kansas leather6   
– Kansas leather, extended6   
Transmission and technology Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
6 -speed manual transmission    
6 -speed sports automatic transmission Steptronic with gearshift paddles on steering wheel    
6 -cylinder in-line petrol engine with 4 -valve technology    
7 -speed sports automatic transmission with double clutch, with gearshift paddles on steering wheel    
Adaptive M suspension, vehicle lowered by 1 0 mm and dampers operated via Dynamic Driving Control    
Brake Energy Regeneration7   
BMW TwinPower Turbo    
Central arm rear axle    
Double-VANOS    
Double-joint spring strut front axle    
Dynamic Driving Control (Sport mode)    
Electric Power Steering    
Emissions standard EU5    
High Precision Injection    
Light-alloy engine and cylinder head    
Multi-stage intake manifold    
Parking brake, electro-mechanical, operating switch on the centre console    
Servotronic    
Steering wheel column, adjustable for reach and height, manual    
Valvetronic    
Driver assistance Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Cruise Control with braking function    
Park Distance Control (PDC) front and rear    
Light and sight Z4
sDrive2 3 i
Z4
sDrive3 0 i
Z4
sDrive3 5 i
Z4
sDrive3 5 is
Adaptive Headlights with variable light distribution    
Courtesy light front, centre, with delay function    
Exterior mirror, heated    
Glass rear window, heated    
Headlight range control, automatic    
Headlight washing system    
Heat insulation glass, green, front and side windows    
Interior and exterior mirrors, with automatic anti-glare function and automatic parking function    
Interior mirror with automatic anti-glare function    
Lights package, incl. door lights, vicinity lighting integrated in handles, lighting for storage compartment,
footwell lights and ambient light    
Rain sensor incl. automatic driving lights control    
Windscreen washer nozzles on the bonnet, heated    
Windscreen with grey shade band    
Xenon Headlights for high and low beam    
* This service may vary by country.
1 Wheel/tyre combination for an extremely sporty appearance, limited suspension and roll comfort.
2Included in M Sports package.
3 Only available in conjunction with M Sports package or Z4 sDrive3 5 is.
4 In Z4 sDrive3 5 is front and rear aprons are different.
5In conjunction with the M Sports package.
6 Equipped with SunReflective Technology.
7Not available in all countries. Please consult your BMW partner.
