BMW R 1250 GS Adventure HP User manual

Supplementary rider's manual
R 1250 GS Adventure HP
BMW Motorrad

Vehicle data/dealership details
Vehicle data
Model
Vehicle Identification Number
Colour code
Date of first registration
Registration number
Dealership details
Person to contact in Service department
Ms/Mr
Phone number
Dealership address/phone number (com-
pany stamp)

Welcome to BMW
Thank you for choosing the
HP style variant for your
R 1250 GS Adventure from
BMW Motorrad and welcome to
the BMW rider family. Familiarise
yourself with your new vehicle to
ensure that you can travel safely
in traffic.
About this equipment range
Read this rider's manual before
you start your new BMW. You
can find important information
about vehicle operation here.
This information will help you
to make full use of the tech-
nical merits of your BMW with
HP style variant.
Furthermore, the manual contains
information on maintenance and
care. This helps to ensure op-
erational and road safety, and to
maintain your vehicle in the best
possible condition.
The record of the maintenance
work performed on your vehicle
is a prerequisite for goodwill
claims.
If the time comes when you want
to sell your BMW, please re-
member to hand over this rider's
manual. It is an important ele-
ment of your vehicle.
Suggestions and criticism
If you have any questions con-
cerning your vehicle, your author-
ised BMW Motorrad partner will
gladly provide advice and assist-
ance.
We hope you enjoy your BMW
and that all your journeys will be
pleasant and safe
BMW Motorrad.
01 40 9 457 471
*01409457471*
*01409457471*
*01409457471*

Table of Contents
1 General instructions ... . 3
Overview..................... 4
Abbreviations and
symbols...................... 4
Equipment ................... 5
Technical data . . . . . . . . . . . . . . . 5
Currentness.................. 6
Additional sources of informa-
tion........................... 6
2 General views . . . . . . . . . . . . 7
Overview..................... 9
3 Introduction . . . . . . . . . . . . . 11
HP style variant . . . . . . . . . . . . . 12
4 Adjustment . .. .. .. . .. . . .. 13
Windscreen ................. 14
Clutch....................... 14
Mirrors ...................... 15
Gearshift lever . . . . . . . . . . . . . . . 16
Brakes ...................... 16
Footrests.................... 17
5 Operation................ 19
Rallye motorcycle seat . . . . . . 20
Frame guard ................ 21
HP battery .................. 22
6 Off-road use .. .. .. .. .. .. 23
Conversion.................. 24
Riding....................... 28
Cleaning..................... 30
7 Maintenance . . . . . . . . . . . . 33
General instructions . . . . . . . . . 34
Service tool kit . . . . . . . . . . . . . . 34
Tyres........................ 34
Wheel rims.................. 35
Maintenance work after off-
road use .................... 36
8 Accessories . . . . . . . . . . . . . 39
General instructions . . . . . . . . . 40
Accessories for the HP style
variant....................... 40
Accessories for the HP style
variant....................... 43
LED flashing turn indicat-
ors .......................... 44
Headlight guard . . . . . . . . . . . . . 44
Hand levers, milled . . . . . . . . . . 44
Enduro engine guard . . . . . . . . 45
Cylinder-head cover
guard........................ 45
Rider footrests, ad-
justable...................... 45
Sports silencer . . . . . . . . . . . . . . 46
Off-road tyres . . . . . . . . . . . . . . . 46
Preparation for navigation
system ...................... 46
Case system ................ 47
9 Technical data .. .. .. .. .. 49
Frame....................... 50
Chassis and suspension. . . . . 50
Wheels and tyres. . . . . . . . . . . . 51
Dimensions ................. 52
10 Index ................... 55

General instructions
Overview ............................ 4
Abbreviations and symbols . . . . . . . . . . 4
Equipment........................... 5
Technicaldata....................... 5
Currentness ......................... 6
Additional sources of information . . . . 6
1
3
z General instructions

Overview
An important aspect of this
Rider's Manual is that it can
be used for quick and easy
reference. Consulting the
extensive index at the end of this
Rider's Manual is the fastest way
to find information on a particular
topic or item. To first read an
overview of your motorcycle,
please go to Chapter 2.
When the time comes to sell
your BMW, please remember
to hand over this Rider's Manual;
it is an important part of the mo-
torcycle.
Abbreviations and
symbols
CAUTION Low-risk hazard.
Non-avoidance can lead to
slight or moderate injury.
WARNING Medium-risk
hazard. Non-avoidance can
lead to fatal or severe injury.
DANGER High-risk haz-
ard. Non-avoidance leads
to fatal or severe injury.
ATTENTION Special
notes and precautionary
measures. Non-compliance can
lead to damage to the vehicle or
accessory and, consequently, to
voiding of the warranty.
NOTICE Specific instruc-
tions on how to operate,
control, adjust or look after items
of equipment on the vehicle.
Indicates the end of an
item of information.
Instruction.
Result of an activity.
Reference to a page with
more detailed informa-
tion.
Indicates the end of a
passage relating to spe-
cific accessories or items
of equipment.
Tightening torque.
Technical data.
NV National-market version.
OE Optional extras.
The vehicles are as-
sembled complete with
all the BMW Motorrad
optional extras originally
ordered.
1
4
z General instructions

OA Optional accessories.
You can obtain
BMW Motorrad
optional accessories
through your authorised
BMW Motorrad dealer;
optional accessories
have to be retrofitted to
the vehicle.
ABS Anti-lock brake system.
ASC Automatic Stability Con-
trol.
D-
ESA
Electronic chassis and
suspension adjustment.
DWA Anti-theft alarm (Dieb-
stahlwarnanlage).
EWS Electronic immobiliser.
RDC Tyre pressure monitor-
ing.
Equipment
When purchasing your BMW mo-
torcycle, you chose a model with
individual equipment. This rider's
manual describes optional equip-
ment (OE) and selected optional
accessories (OA) provided by
BMW. Please make allowance
for the fact that some equip-
ment specifications may be de-
scribed that you have not selec-
ted. Equally, country-specific de-
viations to the motorcycle shown
are also possible.
If your motorcycle has equipment
that is not described, you will find
the relevant description in a sep-
arate manual.
Technical data
All dimensions, weights and
power outputs in the rider's
manual refer to the German
standard DIN (Deutsches Institut
für Normung e. V.) and comply
with its specified tolerances.
Technical data and specifications
in this rider's manual serve as
reference points. The vehicle-
specific data may deviate from
these, for example as a result of
selected optional equipment,
the national-market version or
country-specific measuring
procedures. Detailed values
can be taken from the vehicle
registration documents and
signs on the vehicle, or can be
obtained from your authorised
BMW Motorrad Retailer or
another qualified service partner
or specialist workshop. The
specifications in the vehicle
documents always have priority
over the information provided in
this rider's manual.
1
5
z General instructions

Currentness
The high safety and quality level
of BMW motorcycles is ensured
by constant further development
in the areas of design, equipment
and accessories. This may res-
ult in deviations between these
operating instructions and your
motorcycle. Also, mistakes can-
not be completely excluded by
BMW Motorrad. Please therefore
understand that we do not ac-
cept any liability for claims arising
from incorrect information, draw-
ings and descriptions.
Additional sources of
information
BMW Motorrad Retailer
Your BMW Motorrad Retailer will
be happy to answer any ques-
tions you may have.
Internet
The rider's manual for your
vehicle, operating and installation
instructions for any accessories
and general information on
BMW Motorrad, for example
relating to technology, are
available at www.bmw-
motorrad.com/service.
1
6
z General instructions

General views
Overview ............................ 9 2
7
z General views

2
8
z General views

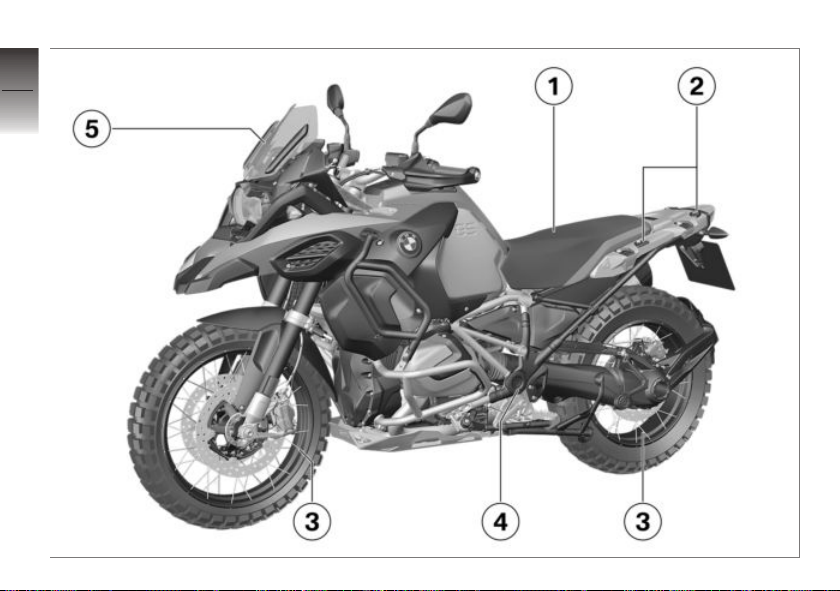

Overview
1Rallye motorcycle seat
(deep) ( 20)
2Cover caps ( 24)
3Cross-spoked wheels
( 35)
4Frame guard ( 21)
5Sport windscreen ( 14)
2
9
z General views

2
10
z General views

Introduction
HPstylevariant ..................... 12 3
11
z Introduction

HP style variant
The HP style variant highlights
the sporty character of the
R 1250 GS Adventure HP. The
racing blue metallic and light
white uni colour scheme, the
gold anodised cross-spoked
wheels and, in particular, the
powder-coated frame in light
white uni and black matt visually
reflect the character of the
sportiest series-produced
R 1250 GS Adventure of all time.
The equipment of the
R 1250 GS Adventure HP was
designed consistently with
the aim of increasing off-road
performance.
The HP style variant consists
of:
Rallye motorcycle seat with
exclusive HP colour scheme,
optimum ergonomic design for
maximum freedom of move-
ment and good comfort, even
when two people are riding.
Sport windscreen, cut low
for an unrestricted view of the
rough terrain ahead and for
freedom of movement when
riding in a standing position.
Cross-spoked wheels, with
lugged tyres upon request.
Accompanying frame guard
protects the frame against hard
boots.
Accompanying cover caps
ensure a sporty, sleek rear end
when the luggage carrier is re-
moved.
3
12
z Introduction

Adjustment
Windscreen......................... 14
Clutch .............................. 14
Mirrors.............................. 15
Gearshiftlever ...................... 16
Brakes.............................. 16
Footrests ........................... 17
4
13
z Adjustment

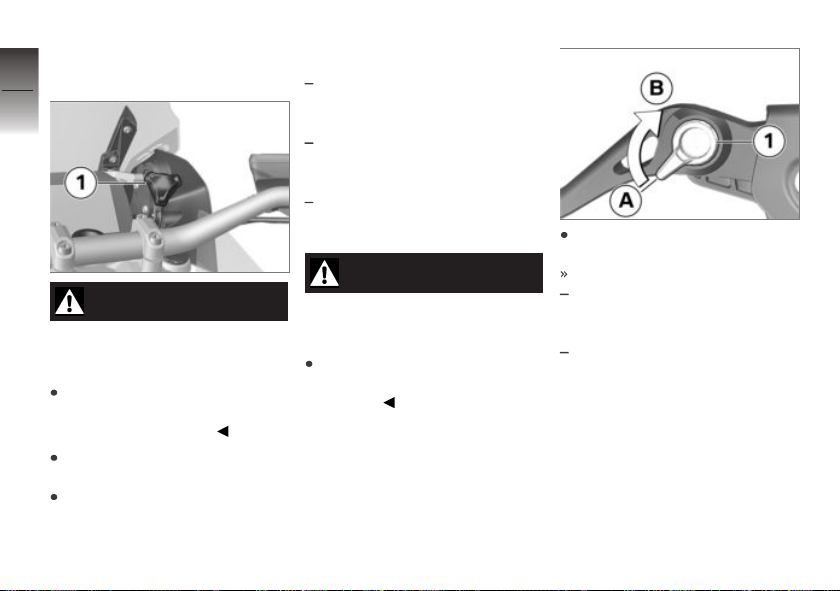

Windscreen
Adjust windscreen
WARNING
Adjusting the windscreen
while riding
Risk of falling
Do not attempt to adjust the
windscreen unless the motor-
cycle is at a standstill.
Turn adjuster knob 1clockwise
to lower the windscreen.
Turn adjuster knob 1counter-
clockwise to raise the wind-
screen.
Clutch
with Option 719, Classic milled
part packageOE
or
with Option 719, Storm milled
part packageOE
or
with HP milled part packageOE
Adjust the clutch lever
WARNING
Adjusting the clutch lever
while riding
Risk of accident
Adjust the clutch lever only
when the motorcycle is at a
standstill.
Turn the adjustment lever 1
into the desired position.
Adjustment options:
From position A: narrowest
distance between handlebar
grip and clutch lever.
In 5 steps in direction of po-
sition Bfor enlarging the dis-
tance between handlebar grip
and clutch lever.
4
14
z Adjustment

Mirrors
with Option 719, Classic milled
part packageOE
or
with Option 719, Storm milled
part packageOE
or
with HP milled part packageOE

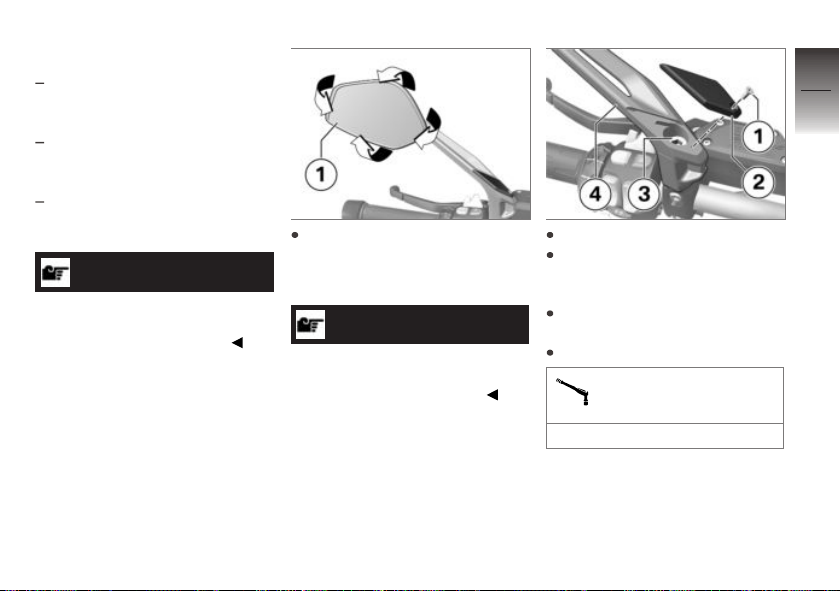

Adjusting mirrors
NOTICE
A small and a large angle screw-
driver is supplied with the vehicle
for adjusting the mirror arm.
Turn the mirror 1to the correct
position.
Adjusting mirror arm
NOTICE
A small and a large angle screw-
driver is supplied with the vehicle
for adjusting the mirror arm.
Remove bolt 1and cover 2.
Loosen adjusting screw 3and
turn the mirror arm 4to the
desired position.
Tighten adjusting screw 3,
while holding the mirror arm.
Attach cover 2and fit bolt 1.
Mirror on handlebars
25 Nm
4
15
z Adjustment

Gearshift lever
with Option 719, Classic milled
part packageOE
or
with Option 719, Storm milled
part packageOE
or
with HP milled part packageOE
Adjusting gearshift lever
peg
Foot distance and height to
peg 2can be adjusted by turn-
ing to different positions.
Remove the bolt 1.
Clean the threads.
Turn the peg 2in the desired
position.
Fit new bolt1.
Peg to gearshift lever
Thread-locking compound:
Micro-encapsulated
10 Nm
Brakes
with Option 719, Classic milled
part packageOE
or
with Option 719, Storm milled
part packageOE
or
with HP milled part packageOE
Adjust the handbrake
lever
Turn the adjustment lever 1
into the desired position.
Adjustment options:
4
16
z Adjustment

From position A: narrowest
distance between handlebar
grip and handbrake lever.
In 5 steps in direction of po-
sition Bfor enlarging the dis-
tance between handlebar grip
and handbrake lever.

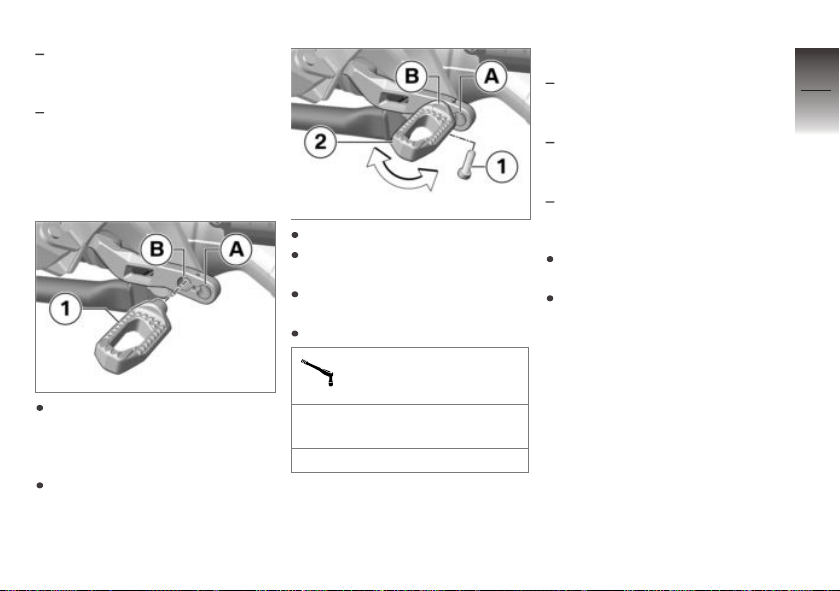

Adjust footbrake lever peg
Foot distance and height to
peg 1can be adjusted by turn-
ing through 180° and installa-
tion in position Aor B.
Remove the bolt 1.
Clean the threads.
Install peg 2in desired posi-
tion Aor B.
Turn the peg 2in the desired
position.
Fit new bolt1.
Peg to footbrake lever
Thread-locking compound:
micro-encapsulated
10 Nm
Footrests
with Option 719, Classic milled
part packageOE
or
with Option 719, Storm milled
part packageOE
or
with HP milled part packageOE

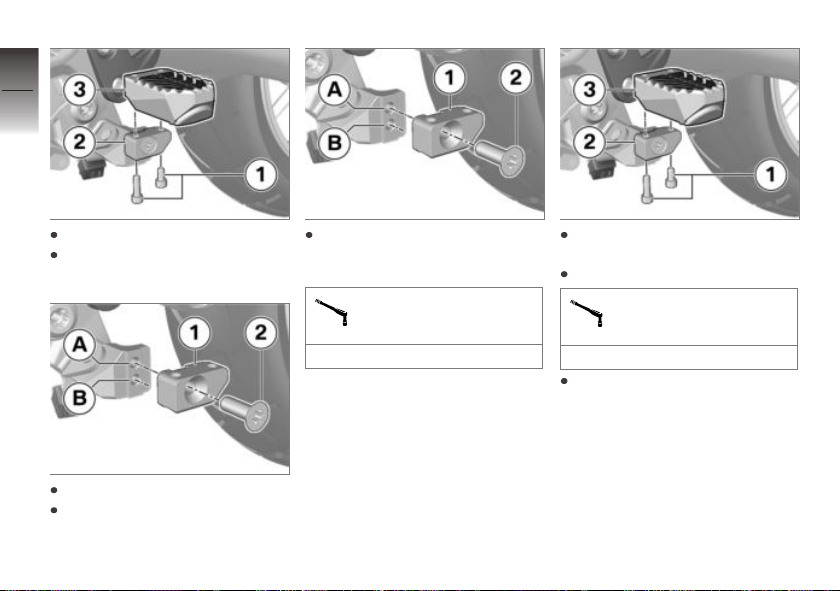

Adjusting footrests
The footrest is adjusted on the
right and left in the same way.
The position of the footrest
must be set identically on the
right and on the left.
4
17
z Adjustment

Remove screws 1.
Remove footrest 3from clamp-
ing block 2.
Remove bolt 2.
Remove clamping block 1.
Install clamping block 1in re-
quired position Aor Band
tighten bolt 2.
Clamping block on
footrest hinge
20 Nm
Position footrest 3on clamping
block 2.
Install screws 1.
Footrest on clamping
block
10 Nm
Remove and refit the footrest
on the other side in the same
way.
4
18
z Adjustment
