Operation & Instruction Manual
Model BNCE-20-24V SN#___________
Cordless Saw
Keep this booklet and enter your tool serial number
in the appropriate space above.
BNCE-20-24V_Operations_Manual_2018.indd

~ Page | 2 ~
Contents
3 General Safety Rules
3 Work Area Safety
3 Electrical Safety
4 Service
4 Functions and Applications
4 Specication
5 Standard Blade:
5 Operation
5 Operation Instructions
5 Maintenance of the Main Unit
6 RB-BNCE-KNH Blade
6 General Operating Cautions
7 Abnormal Display Mode Function
7 Fuel Gauge

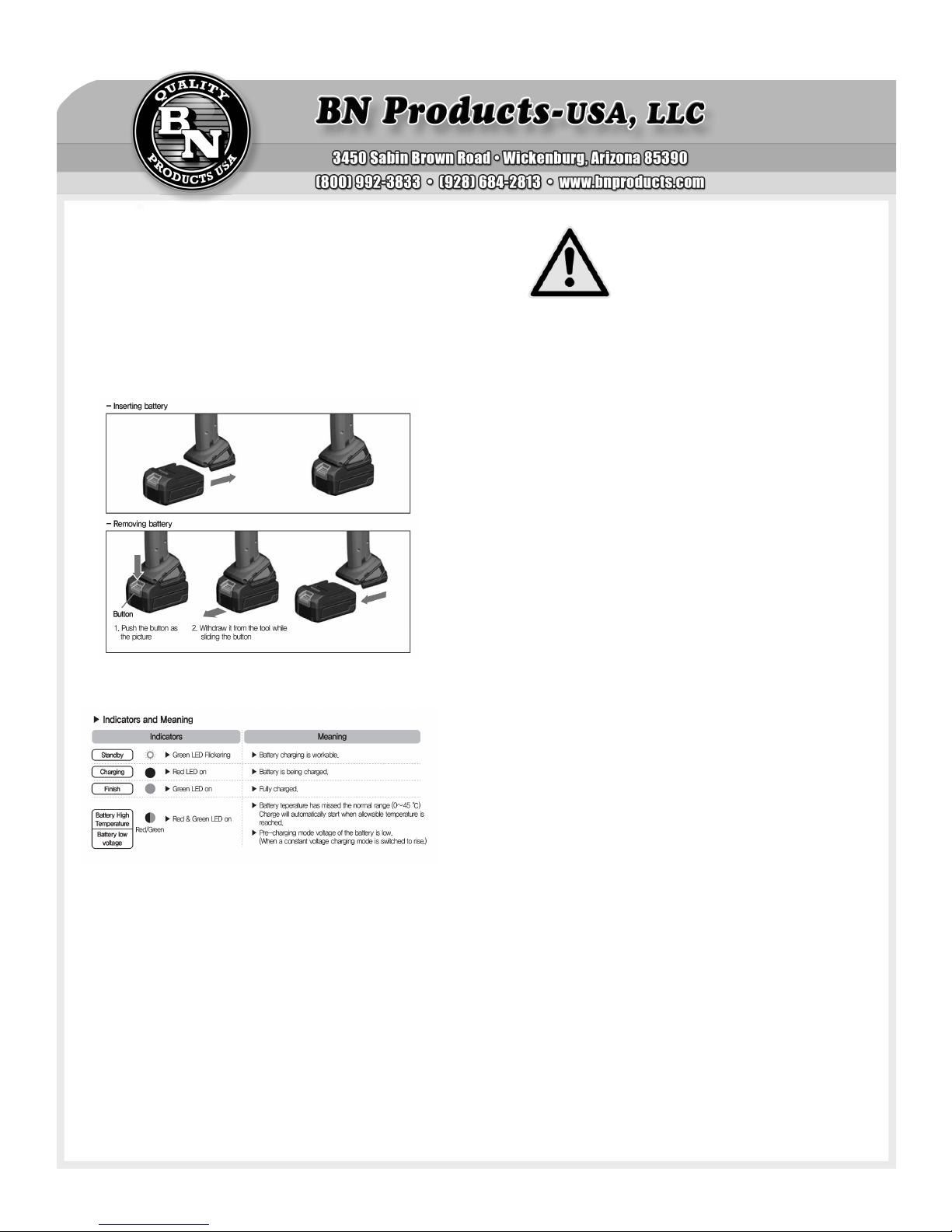

8 Installing and removing battery
8 Charging
8 Charger Light
9 Charger troubleshooting
10 Exploded View
11 Parts List
Instruction Manual
Please read this manual before operating this tool.
Purpose of this manual - This manual is intended to provide users with correct
knowledge and the procedures for operation, maintenance and inspection of the
tool, a multipurpose ush cutting saw for cutting reinforcing bar, coil rod, all-
threaded rod, pipe, tubing, and conduit. Improper use of the tool may possibly lead
to a serious accident. Therefore, always read this instruction manual before using
the tool to familiarize yourself with its correct usage, operating method, and warn-
ings.

~ Page | 3 ~
General Safety Rules
Warning! Read and understand all
instructions. Failure to follow all
instructions listed below may result
in electric shock, re and/or serious
personal injury.
PLEASE SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase
the risk of damage.
Personal Safety
• Always wear eye protection. Care must be
taken to prevent chips from hitting other
workers in the same area.
• Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the inuence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for ap-
propriate conditions will reduce personal
injuries.
• Prevent unintentional starting. Ensure the
switch is in the o-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your nger on the switch or energizing
power tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power
tool may result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better con-
trol of the power tool in unexpected situa-
tions.
• Dress properly. Do not wear loose cloth-
ing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
jewelry or long hair can be caught in moving
parts.
• If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
• Keep ngers and body parts away from the
blade opening.
Power Tool Use and Care
• Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
• Do not use the power tool if the switch does
not turn it on and o. Any power tool that
cannot be controlled with the switch is dan-
gerous and must be repaired.
• Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing ac-

~ Page | 4 ~
cessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting
the power tool accidentally.
• Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool.
• Power tools are dangerous in the hands of
untrained users.
• Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may aect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many acci-
dents are caused by poorly maintained power
tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
• Use the power tool, accessories and blades
in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the power tool
for operations dierent from those intended
could result in a hazardous situation.
Service
Have your power tool serviced only by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
Cutting Edge Saw™ Package
Upon purchasing the Cutting Edge Saw, open the
carrying case and check the contents for the fol-
lowing:
• BNCE-20-24V Cutting Edge Saw with blade
mounted : 1 unit
• Removable Side Handle and chip collector
attachment: 1 unit
• Allen Wrenches for Blade Removal and
Installation: 1 unit
• Additional Saw Blade: 1 unit
• Additional Battery: 1 unit
• Operation Manual: 1 copy
If anything is missing or damaged please do
not return this packaged unit to the distributor,
please call the Benner-Nawman customer service
department: 800-992-3833 or 928-684-2813
Functions and Applications
This section describes the functions, applica-
tions, service environment and other aspects of
the Cutting Edge Saw. The Cutting Edge Saw is a
power tool developed for fast and ecient cut-
ting of various ferrous and non-ferrous materials.
This multipurpose tool can be used by a variety of
contractors however the primary design was for
ush cutting or free cutting reinforcing bars, coil
rod and all-threaded rod used in the construction
industry.
Application of the Tool - Actual areas of ap-
plication the Cutting Edge Saw is used for are as
follows:
3/8” to 3/4“or 10 mm to 20 mm grade 60 rebar
(reinforcing bars), up to ½” I.D pipe, ¾” O.D.
copper water pipe, ¾” O.D. tubing, 1/2” conduit,
¾” square steel tubing & bar, and up to 7/8” O.D.
all-threaded or coil rod.
Rules of Use and Storage - To use the tool to its
fullest performance, the user is required to be ful-
ly familiar with the saw itself, the cutting blades,
and storage procedures upon completion of work.

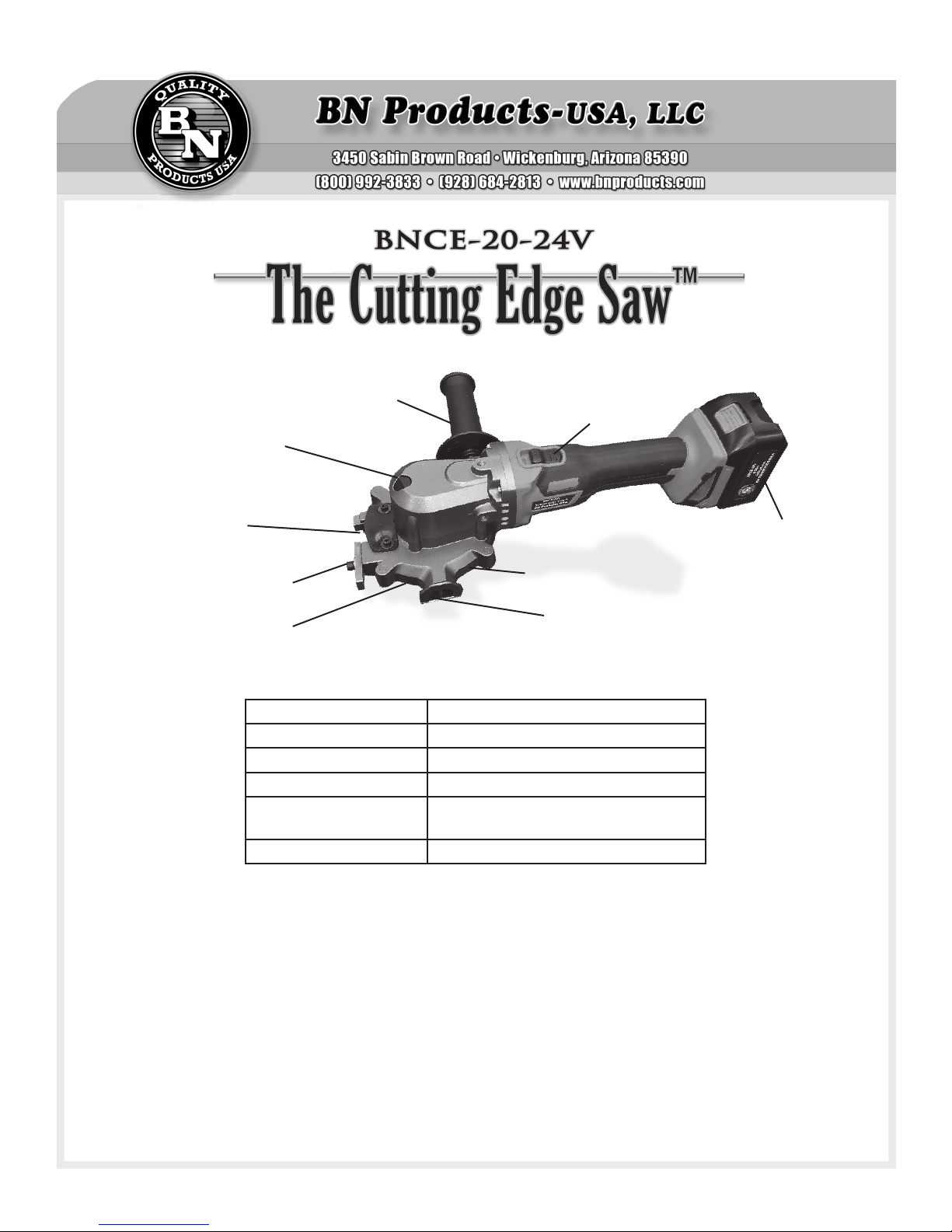

Specication
The power tool is a multipurpose saw with an
enclosed guard and ush cutting capabilities. The
specications of the main unit are as follows.

~ Page | 5 ~
Standard Blade:
(Best for Ferrous Metals)
Supplied with (2) each 110 mm Blade diameter ×
1.6mm thickness, 24 teeth. The maximum blade
RPM is 2000. The blade replacement number is:
RB-BNCE-KNH
Operation
• Checking and Preparation of Working Envi-
ronment
• Check the following before using the Cutting
Edge Saw. Always observe the instructions
and prohibited items.
• Checking of weather conditions, do not use in
the rain or snow
•
!DANGER: The Cutting Edge is
not a waterproof power tool. If it
becomes wet, the power source
system may become faulty or the
operator may get an electric shock.
Therefore, when it is raining or
snowing, never operate this saw outdoors, on top
of buildings or under roofs where rain or snow
enters freely. Do not use where water accumulates
or where water splashes.
Operation Instructions
Locate the front handle in the mounting hole
that provides the best grip. To operate the trig-
ger, depress the trigger to start the saw. Start the
saw before cutting and then apply a light pressure
moving forward through the cut.
! DANGER: Electric Shock Hazard.
Ignoring this warning may lead to
death or serious injury. When
raining or snowing, do not operate
outdoors or indoors where rain or
snow enters freely or in extreme temperatures.
Do not use under high temperature and humid-
ity or extremely cold temperature conditions. The
tool is designed for use under an allowable envi-
ronmental temperature of 0 to 120°F.Operation
at higher temperature may cause the tool’s main
unit to overheat. Operation at high temperature
with high humidity may cause the tool to fail due
to condensation.
Also, do not operate the Cutting Edge Saw™ in
very cold places or inside refrigerators where the
temperature is freezing or below.
Check The State of Your Work Site.
Before using the tool, check whether the state of
the work site is as follows. Is the worksite free of
foreign objects, debris, water, ice, snow, powered
electrical cables, and excessive dust? Is the oor
free of obstructions? Is their adequate ventila-
tion? Is the worker properly insulated from the
ground. Follow the operation instructions and
avoid prohibited items.
Remove Hazardous Substances.
Since the tool is an battery operated, it may spark
and cause an explosion or a re if operated near
gas cylinders, thinner, or explosive and other haz-
ardous substances or in a place lled with am-
mable gas, etc. Therefore, do not use the tool in
places where such hazardous substances are pres-
ent. Ignoring this warning may cause death or
serious injury. Never use the tool in places lled
with ammable gas or near hazardous substances
of high ammability.
Maintenance of the Main Unit
Clean the entire unit occasionally by remov-
ing dust, debris and oils. Occasionally remove
the ush cutting bottom plate; then remove any
cutting chips that remain lodged in the area the
cutting blade rotated.
