Bodyfit BDEX1996.0 User manual

STATIONARY BIKE
Owner’s Manual
Model No. BDEX1996.0
SKU No. 20181608

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety & Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Exploded Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8–11
Console Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12–13
Training Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
TABLE OF CONTENTS
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
2

BEFORE YOU BEGIN
BDEX1996.0
• A flat area of 5’ x 4’ will be required to assemble and properly use the BF Stationary Bike.
• For your benefit, read this manual carefully before using the BF Stationary Bike. Please review the exploded
diagram and familiarize yourself with the parts that are labeled.
• Before beginning assembly, make sure to read the information on this page. This brief introduction will help
you with assembly and save you time.
•Assembly Requires Two Persons. For your convenience and safety, assemble the BF Stationary Bike with
the help of another person.
•Set Aside Enough Time. The BF Stationary Bike has many features, so the assembly process will take
approximately 30 to 60 minutes. Assembly will go smoothly if you set aside plenty of time and decide to
make the task enjoyable.
•Select A Location. Because of its weight and size, the BF Stationary Bike should be assembled in the loca-
tion where it will be used. Make sure that there is enough room to walk around the BF Stationary Bike as you
assemble it.
•How to Unpack the Box. Place all parts of the BF Stationary Bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Note: The assembly hard-
ware for the BF Stationary Bike can be found in the carton.
•Tools Required For Assembly. Assembly will require a Phillips screwdriver and an adjustable wrench.
•How to Identify Parts. Remove all the parts from the carton and carefully place them on the floor. To help
you identify the small parts used in assembly, we have included a PARTS LIST in this manual. Place the list
on the floor and use it to easily identify parts during each assembly step.
Note: Some small parts may have
been preattached. If a part is not in the parts bag, check to see if it has been preattached.
•Tightening Parts. Tighten all parts as you assemble them, unless instructed to do otherwise.
•The decal shown at the right has been placed
on the stationary bike. If the decal is missing
or illegible, call the toll-free telephone number
on the back cover of this manual and order a
free replacement decal. Apply the decal in the
location shown.
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
3

IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
• Thank you for purchasing our product. Even though we make great efforts to ensure the quality of each prod-
uct we produce, occasional errors and/or omissions do occur. If you should find this product to have either a
defective part or a missing part, please contact us for a replacement.
• This product has been designed for home use only. Product liability and guarantee conditions will not apply to
products being subjected to professional use or to products being used in a gym center.
• This exercise equipment was designed and built for optimum safety. However, certain precautions apply
whenever you operate exercise equipment. Make sure to read the entire manual before assembling and oper-
ating this machine. Also, please note the following safety precautions:
1. Keep children and pets away from this equipment at all times.
2. Only one person at a time should use this equipment.
3. If you experience dizziness, nausea, chest pains, or any other abnormal symptoms while using this equip-
ment, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Always use this equipment on a clear and level surface. Do not use it outdoors or near water.
5. Keep hands and feet away from any moving parts.
6. Do not insert any object into any openings.
7. Read all instructions before assembly and operation.
8. Before using this equipment to exercise, always perform stretching exercises to properly warm up.
9. Use this equipment only for its intended use as described in this manual.
10. Always wear appropriate workout clothing and shoes when exercising; do not wear robes or other cloth-
ing that could become caught in the equipment.
• Weight on this product should not exceed 250 pounds.
• Exercise of a strenuous nature, as is customarily done on this equipment, should not be undertaken
without first consulting a physician. No specific health claims are made or implied as they relate to the
equipment. Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN.
THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS
WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY
FITNESS EQUIPMENT. WE ASSUME NO RESPONSIBILITY FOR PERSONAL INJURY OR
PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAFETY & PRECAUTIONS
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
4

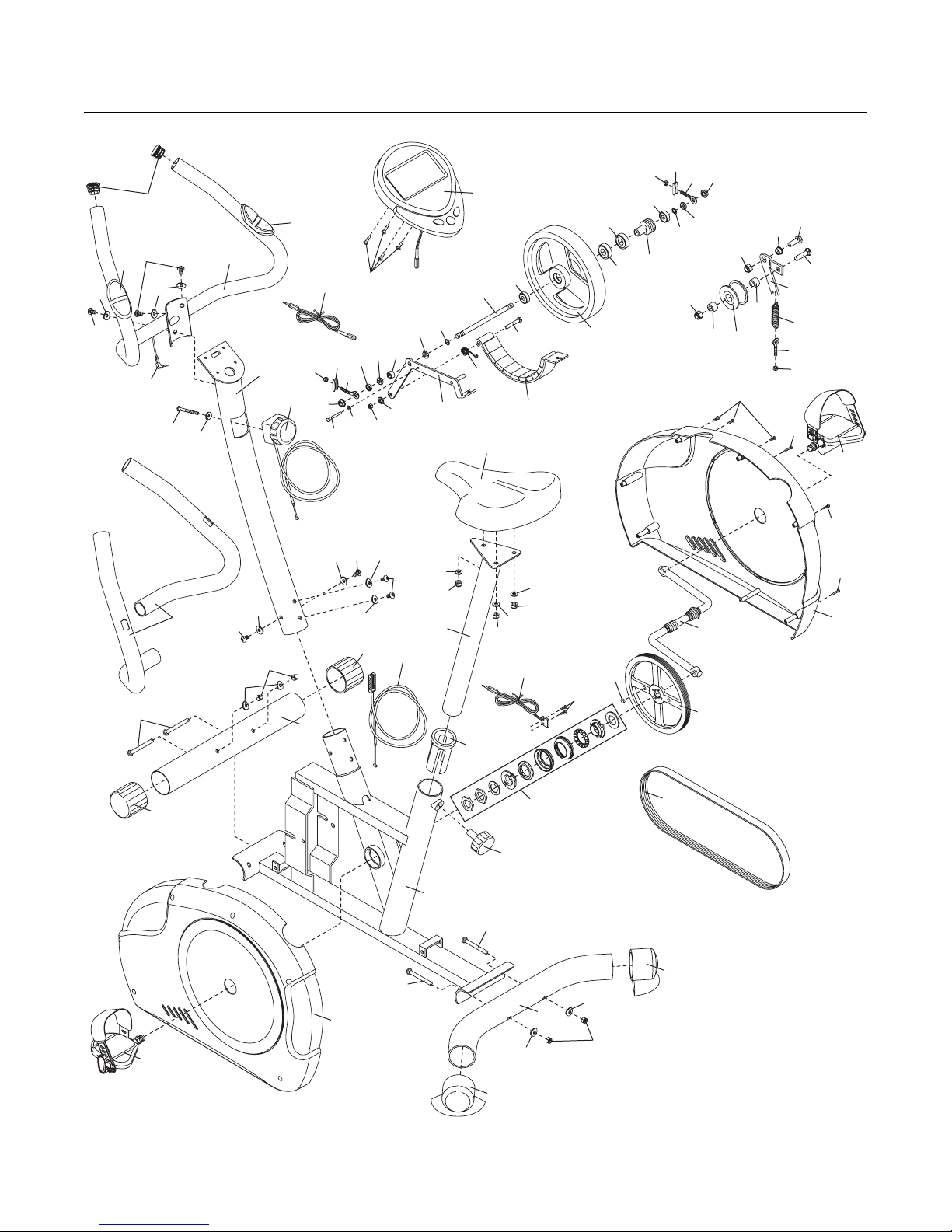

EXPLODED DIAGRAM
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
1
2
23
69
6
9
10
11
4
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29 30
31
32
33 34
34
44
36
37
38
39 40
41
41
42
43
35
8
8
46
47
48
48
49
50
47
48
50
49
52
52
54 55 50
57
58
59
59
60 60
60
60
59 56
56 56
57
57
57
56
61
51
61
61
45
65
56
62
50
49
5
60
59
60
59
63 64
7
66
60
60
60
68
68
67
67
53
5

PARTS LIST
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
BDEX1996.0
1. Console 1
2. Handgrip pulse sensors 2
3. Handlebar 1
4. Handlebar upright 1
5. Pulse wire 1
6. Handlebar endcaps 2
7. Foam grips 2
8. “U” brackets 2
9. Resistance control and cable 1
10. Lower cable 1
11. Seat 1
12. Seat post 1
13. Frame 1
14. Front stabilizer 1
15. Rear stabilizer 1
16. Front stabilizer endcaps 2
17. Rear stabilizer endcaps 2
18. Seat post knob 1
19. Drive belt 1
20. Left side shield 1
21. Right side shield 1
22. Left pedal with strap 1
23. Right pedal with strap 1
24. Handlebar upright wire 1
25. Reed switch and wire 1
26. Crank bearing set 1
27. Crank 1
28. Crank pulley 1
29. Flywheel bracket 1
30. “C” magnet 1
31. Flywheel 1
32. Magnet 1
33. Flywheel axle 1
34. 6000Z bearings 2
35. Flywheel clutch bearing 1
36. Flywheel pulley 1
37. Seat post sleeve 1
38. Idler arm 1
39. Idler pulley 1
40. Idler spring 1
41. Idler spacers 2
42. Idler bushing 1
43. “C” magnet spring 1
44. 6003Z bearing 1
45. M8 x 20mm idler bolt 1
46. M10 x 16mm x 10mm spacer 1
47. 3/8” flange nuts 2
48. M6 eye bolts 3
49. 3/8” nuts 3
50. M6 nylon locknuts 4
# Description Qty # Description Qty
6

PARTS LIST
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
BDEX1996.0
51. M8 acorn nuts 2
52. M10 x 14mm washers 2
53. M10 x 16mm x 2.5mm spacer 1
54. M5 x 30mm round head screw 1
55. M5 x 15mm washer 1
56. M8 nylon locknuts 6
57. M8 x 15mm washers 4
58. M6 x 45mm bolt 1
59. M8 x 16mm upright screws 7
60. M8 curved washers 11
61. M8 x 70mm carriage bolts 4
62. M10 nylon locknut 1
63. M5 x 50mm button bolt 1
64. M5 curved washer 1
65. M10 x 35mm carriage bolt 1
66. M3 x 10mm screws 2
67. M4 x 25mm screws 4
68. M4 x 50mm screws 2
69. M4 x 8mm screws 4
# Description Qty # Description Qty
7

STEP 1
While another person lifts the front of the Frame (13)
slightly, attach the Front Stabilizer (14) with two
M8 x 70mm Carriage Bolts (61), two M8 Curved
Washers, and two Acorn Nuts (51).
ASSEMBLY INSTRUCTIONS
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
BDEX1996.0
STEP 2
While another person lifts the rear of the Frame (13)
slightly, attach the Rear Stabilizer (15) with two
M8 x 70mm Carriage Bolts (61), two M8 Curved
Washers, and two M8 Nylon Locknuts (56).
8
13
61
51
60
14
13
61
56
15
60
60
61

STEP 3
Insert the Seat Post (12) into the Frame (13), and align
one of the adjustment holes in the Seat Post with the
indicated hole in the Frame. Next, insert the Seat Post
Knob (18) into the Frame and the Seat Post, and turn
the Seat Post Knob clockwise until it is tight. Make
sure that the Seat Post Knob is inserted into one
of the adjustment holes in the Seat Post.
Then, attach the Seat (11) to the Seat Post (12) with
three M8 x 15mm Washers (57) and three M8 Nylon
Locknuts (56). Note: The Washers and Nylon Locknuts
may be preattached to the underside of the Seat.
ASSEMBLY INSTRUCTIONS
BDEX1996.0
STEP 4
While another person holds the Handlebar Upright (4)
as shown, connect the Reed Switch Wire (25) to the
Handlebar Upright Wire (24) (see the inset drawing).
Next, connect the Resistance Cable (9) to the plastic
connector on the Lower Resistance Cable (10) in the
following way:
• Insert the end of the Resistance Cable (9) through
the connector from the side shown. Next, press the
small cylinder on the end of the Resistance Cable
into the indicated hole in the connector.
• Pull the Resistance Cable (9) upward and insert it
into the hole in the top of the connector.
• Remove the metal clip (not shown) from the bottom
of the connector.
Insert the Handlebar Upright (4) into the Frame (13).
Be careful to avoid pinching the wires and the
cables. Attach the Handlebar Upright with four
M8 x 16mm Upright Screws (59) and four M8 Curved
Washers (60).
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
9
11
12
56
13 Hole
57
56
57
18
4
924
59
60
25
13
10
59
59
60
60
60
9
24
25
10

STEP 5
Orient the Handlebar (3) as shown. Attach the
Handlebar to the Handlebar Upright (4) with three
M8 x 16mm Upright Screws (59) and three M8 Curved
Washers (60).
ASSEMBLY INSTRUCTIONS
BDEX1996.0
STEP 6
The Console (1) requires two 1.5 V “AA” batteries (not
included). Remove the battery cover from the
Console, and insert two batteries into the battery com-
partment. Make sure that the batteries are oriented
as shown by the diagram inside the battery com-
partment. Then, reattach the battery cover.
While a second person holds the Console (1) near the
Handlebar Upright (4), connect the console wire to the
Handlebar Upright Wire (24). Insert the excess wire
into the Handlebar Upright.
Next, attach the Console (1) to the Handlebar Upright
(4) with four M4 x 8mm Screws (69). Be careful to
avoid pinching the wires.
Then, plug the Pulse Wire (5) into the back of the
Console (1).
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
10
3
4
59
59
60
60
5
1
4
Console
Wire
24
69
Battery
Compartment

ASSEMBLY INSTRUCTIONS
BDEX1996.0
STEP 7
Identify the Left Pedal (22), which is marked with a
sticker. Using the included wrench, firmly tighten the
Left Pedal counterclockwise into the left arm of the
Crank (27). Tighten the Right Pedal (not shown)
clock-
wise into the right arm of the Crank. Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the strap on the Left Pedal (22) to the desired
position, and press the end of the strap onto the tabs
to secure it. Adjust the Right Pedal strap (not
shown) in the same way.
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
11
Strap
22
Tabs
27

CONSOLE INSTRUCTIONS
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
12
FEATURES OF THE CONSOLE
The easy-to-use console features five displays that
provide instant exercise feedback during your work-
outs. The displays are described below.
Speed—This display shows your pedaling speed, in
miles or kilometers per hour.
Time —This display shows the elapsed time. Note: If
you set a time goal (see step 2), this mode will display
the time remaining in your workout.
Distance—This display shows the distance you have
pedaled during your workout, in miles or kilometers.
Note: If you set a distance goal (see step 2), this dis-
play will show the distance remaining in your workout.
Calories—This display shows the approximate num-
ber of calories you have burned during your workout.
Note: If you set a calorie-burning goal (see step 2),
this display will show the number of calories still to be
burned in your workout.
Pulse—This display shows your heart rate in beats
per minute when the console detects your pulse.
When no pulse is detected, a “P” will appear in the dis-
play.
HOW TO USE THE CONSOLE
Make sure that the console has batteries (see assem-
bly step 6 on page 10). If there is a sheet of clear plas-
tic on the face of the console, remove it.
Note: You can set the
console to display
speed and distance in
either kilometers or
miles. When you insert
batteries into the console,
a “1” will begin to flash in
the Speed display. While the “1” is flashing, you can
press the MODE button repeatedly to switch between
“1” (kilometers) and “2” (miles). A few seconds after
you have selected “1” or “2,” the unit of measurement
will be set.
Follow the steps below to operate the console.
1. Turn on the console.
To turn on the console, press any button on the
console or simply begin pedaling.
2. Set a workout goal, if desired.
To set a time, dis-
tance, or calorie-burn-
ing goal for your work-
out, press the MODE
button repeatedly until
the word SET begins
to flash in the Time,
Distance, or Calories display.
Next, press the SET button repeatedly to set a
goal. To set a goal quickly, hold down the SET but-
ton. To reset the goal, press the RESET button
while the word SET is flashing in the display.

13
CONSOLE INSTRUCTIONS
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
3. Begin pedaling and follow your progress with
the displays.
As you exercise, the console will provide instant
feedback about your workout. If you have set a
workout goal, a tone will sound for several seconds
when you reach your goal; if you continue to exer-
cise, the display will begin to count upward.
4. Measure your heart rate, if desired.
If there are
sheets of clear
plastic on the
metal contacts
of the hand-
grip pulse
sensor, peel
off the plastic.
Place your
hands on the
handgrip pulse
sensor, with
your palms on the contacts. Avoid moving your
hands. When your pulse is detected, your heart
rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Avoid moving
your hands excessively or squeezing the metal
contacts too tightly. For optimal performance, peri-
odically clean the metal contacts using a soft cloth;
never use alcohol, abrasives, or chemicals to
clean the contacts.
5. When you are finished exercising, the console
will automatically turn off.
If the pedals do not move for a few seconds, the
console displays will pause.
The console has an “auto-off” feature. If the pedals
do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
Contacts

EXERCISE SPECIFICATIONS
To achieve a considerable improvement of your
physical fitness and health, take note of the following
information and recommendations. To avoid health
risks, especially if you have not been physically active
for a long period of time, you should consult your gen-
eral physician before starting to exercise.
INTENSITY
To achieve maximum results, you need to choose the
right exercise intensity. Use your pulse rate as a
guide during your workouts. As a rule of thumb, use
the following formula: Maximum pulse rate = 220 –
Age.
While exercising, your pulse rate should always be
between 60% and 85% of your maximum pulse rate.
When starting to exercise, you should keep your
pulse rate at 60% of your maximum pulse rate during
the first couple of weeks. As your fitness improves,
slowly increase your pulse rate to 85% of your maxi-
mum pulse rate.
FAT BURNING
The body starts to burn fat at approximately 60% of
the maximum pulse rate.
To reach an optimum burning rate, it is advisable
to keep your pulse rate between 60% and 70% of
your maximum pulse rate.
The optimum training consists of three workouts of 30
minutes each per week.
Example:
• You are 52 years old and would like to start
exercising.
• Maximum pulse rate = 220 – 52 (age) = 168
pulse/min
• Minimum pulse rate = 168 x 0.6 = 101 pulse/min
• Highest pulse rate = 168 x 0.7 = 117 pulse/min
• During the first weeks it is advisable to start with a
pulse rate of 101, later increasing to a pulse rate of
117.
As your fitness improves, you can increase your exer-
cise intensity to 70% to 85% of your maximum pulse
rate.
You can increase your exercise intensity by adjusting
the resistance on the equipment, by exercising more
frequently, or by increasing the length of your training
periods.
WARM UP
Before every training period, you should warm up for
5 to 10 minutes by performing low-resistance stretch-
ing.
TRAINING PERIOD
During your actual training period, try to achieve a
pulse rate that is 70% to 85% of your maximum pulse
rate.
Calculate the length of your training session with the
following rule of thumb:
•
Daily training session: approximately 10 minutes per
unit
• 2–3 times per week: approximately 30 minutes per
unit
• 1–2 times per week: approximately 60 minutes per
unit
COOL DOWN
For an effective cool-down of your muscles and
metabolism, reduce your exercise intensity during the
last 5 to 10 minutes of your training period.
Stretching is also helpful for preventing muscle aches.
SUCCESS
Even after a short period of regular exercises, you
will notice that you constantly have to increase the
equipment resistance to reach your optimum pulse
rate. Exercising will become easier and you will feel a
lot fitter in your everyday life.
TRAINING INSTRUCTIONS
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
14

• Make sure to consult with your physician before starting any exercise program.
• To minimize injury, make sure to fully stretch your muscles before and after exercising.
• To avoid dehydration while exercising, make sure to drink plenty of water.
• Wear appropriate athletic shoes and clothing while exercising. Do not wear loose clothing that could interfere
with your workout by becoming caught in the equipment.
• Always check your equipment to make sure that it is in good working order prior to beginning your workout.
• This product is not a toy; please keep it away from children when not in use.
• Maximum weight capacity: 250 pounds.
LIMITED WARRANTY
BDEX1996.0
PLEASE DO NOT RETURN TO STORE; CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT 1-877-872-6970
WARRANTY INFORMATION
Sports Authority warrants that this product will be free from defects in materials and workmanship for a period of
90 days from date of purchase. This warranty applies only to the original purchaser when purchase of the product
is from an authorized retailer and is for personal or household use, but not when the sale is for commercial use.
This warranty is not transferable.
EXCEPT FOR THE LIMITED EXPRESS WARRANTY STATED HEREIN, SPORTS AUTHORITY DISCLAIMS
ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WAR-
RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY
NOT APPLY TO YOU. Sports Authority will not be liable for any loss or damage, including incidental or consequen-
tial damages of any kind, whether based upon warranty, contract or negligence, and arising in connection with the
sale, use or repair of the product. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI-
DENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE.
In the event of failure of this product to conform to this warranty during the warranty period, please call
Sports Authority Customer Service at 1-877-872-6970 for assistance in the repair or replacement of the
product or any covered part. Sports Authority will repair or replace, at its own option, the product or any
covered part, except that this warranty does not cover damage caused by accident (including in transit),
or repairs or attempted repairs by any person not authorized by Sports Authority, or by vandalism, mis-
use, abuse, or alteration.
15

PLEASE DO NOT RETURN TO STORE;
CALL OUR CUSTOMER SERVICE DEPARTMENT FIRST AT
1-877-872-6970
This department is open Mon.–Fri. from 8:00 am–5:00 pm MST
SPORTS AUTHORITY
1090 West Hampden Avenue
Englewood, CO 80110
www.sportsauthority.com
Part No. 239689 R0406A
