Sunny Health & Fitness SF-B1913 User manual

TRAINING CYCLING BIKE
SF-B1913
USER MANUAL
English, Page 13~23 IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very
important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
[e-mail] or 1- 877 - 90SUNNY (877-907- 8669).
Español, Page 24~34 ¡IMPORTANTE! Conserve el manual del propietario para las instrucciones de mantenimiento y ajuste. Su satisfacción
es muy importante para nosotros, NO DEVUELVA HASTA HABERNOS CONTACTADO:
[e-mail] ó1- 877 - 90SUNNY (877-907-8669).
Français, Page 35~45 IMPORTANT! Veuillez conserver le manuel du propriétaire pour les instructions de réglage et d’entretien. Votre
satisfaction est très importante pour nous, VEUILLEZ NE PAS EFFECTUER DE RETOUR AVANT DE NOUS AVOIR
CONTACTÉ: [e-mail] ou 1- 877 –90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only. It is not intended for commercial use!

2
INFORMACIÓN IMPORTANTE DE SEGURIDAD
Gracias por haber elegido nuestro producto. Para garantizar su seguridad y salud, utilice este equipo
correctamente. Es importante que lea todo el manual antes de instalar y usar el equipo. Solo se puede
garantizar el uso seguro y eficaz del equipo si se instala, mantiene y utiliza correctamente. Es su
responsabilidad asegurarse de que todos los usuarios de los equipos conozcan todas las advertencias y
precauciones.
1. Antes de comenzar algún programa de ejercicios, deberáconsultar con su médico para determinar si tiene
alguna condición médica o física que pudiera poner en riesgo su salud y seguridad o que pudiera impedir
que utilice correctamente el equipo. Es importante que reciba las recomendaciones de su médico en caso
de que estétomando algún medicamento que pudiera afectar su ritmo cardíaco, presión arterial o nivel de
colesterol.
2. Esté atento a las señales que le envía su cuerpo. Ejercitarse de manera incorrecta o excesiva puede
dañar su salud. Deje de hacer ejercicio si experimenta alguno de los siguientes síntomas: dolor, opresión
en el pecho, latidos cardíacos irregulares, falta de aire, sensación de desmayo, mareos o sensación de
náuseas. Si presenta alguna de esas condiciones, deberáconsultar con su médico antes de continuar con
su programa de ejercicios.
3. Mantenga el equipo lejos del alcance de niños y mascotas. El equipo estádiseñado para el uso exclusivo
de adultos.
4. Utilice el equipo en una superficie plana y sólida con una cubierta protectora para su piso o alfombra. Para
garantizar su seguridad, el equipo debe tener por lo menos 4 pies (1.2 m) de espacio libre a su alrededor.
5. Asegúrese de que todas las tuercas y pernos estén bien ajustados antes de usar el equipo. Solo puede
conservarse la seguridad del equipo si se inspecciona regularmente para detectar daños o desgaste.
6. Siempre utilice el equipo como se indica. Si encuentra algún componente defectuoso mientras instala o
revisa el equipo, o si escucha ruidos extraños que provienen de este mientras se ejercita, deje de utilizarlo
inmediatamente y no lo utilice hasta que el problema se haya corregido.
7. Use ropa adecuada cuando utilice el equipo. Evite usar ropa suelta que pueda enredarse en el equipo.
8. No coloque los dedos u objetos en las piezas móviles del equipo.
9. La capacidad de peso máximo de esta unidad es de 300 libras (135 kg).
10. Este equipo no es adecuado para uso terapéutico.
11. Muévase con cuidado cuando levante y mueva el equipo. Siempre utilice la técnica de levantamiento
adecuada y pida ayuda en caso de que sea necesario.
12. Su producto está diseñado para usarse en un lugar fresco y seco. Debe evitar tenerlo en lugares
extremadamente fríos, calientes o húmedos, ya que podría provocar corrosión y otros problemas afines.
13. ¡Este equipo estádiseñado solo para uso interior! ¡No es para uso comercial!

3
INFORMATIONS DE SÉCURITÉIMPORTANTES
Nous vous remercions d’avoir choisi notre produit. Pour votre santéet votre sécurité, veuillez utiliser
correctement cet appareil. Il est important de lire entièrement le présent manuel avant d’assembler
l’appareil et de l’utiliser. L’utilisation sûre et efficace n’est possible que si l’appareil est correctement
assemblé, entretenu et utilisé. Il vous incombe de vous assurer que tous les utilisateurs de l’appareil
soient informés de tous les avertissements et précautions.
1. Avant d’entamer un programme d’exercices, consultez votre médecin pour déterminer si vous
avez une quelconque disposition physique ou médicale susceptible de mettre en danger votre
santéet votre sécuritéou de vous empêcher d’utiliser cet appareil correctement. L’avis de votre
médecin est essentiel si vous prenez un médicament pouvant affecter le rythme cardiaque, la
pression ou le niveau de cholestérol.
2. Soyez à l’écoute des signaux de votre corps. Accompli de façon incorrecte ou excessive,
l’exercice peut nuire à la santé. Cessez de faire de l’exercice si vous ressentez l’un des
symptômes suivants: douleur, serrement de la poitrine, rythme cardiaque irrégulier, souffle court,
étourdissement, vertige, ou sensations de nausée. Si vous éprouvez l’un de ces états, consultez
votre médecin avant de poursuivre votre programme d’exercice.
3. Gardez les enfants et les animaux de compagnie à distance de l’appareil. L’appareil est conçu
pour l’utilisation exclusive par des adultes.
4. Utilisez l’appareil sur une surface dure, plane et de niveau, avec une protection pour votre parquet
ou tapis. Pour un usage sûr, l’appareil doit disposer d’au moins 60 cm (2 pi) d’espace libre tout
autour de lui.
5. Assurez-vous que tous les boulons et écrous soient bien serrés avant d’utiliser l’appareil. La
sécurité de l’appareil ne peut être entretenue qu’à condition de régulièrement vérifier l’absence de
dommages ou d’usure.
6. Utilisez toujours l’appareil comme indiqué. Si vous trouvez un composant défectueux lors de
l’assemblage ou de la vérification de l’appareil, ou si vous entendez un bruit inhabituel en provenir
pendant l’utilisation, cessez immédiatement l’exercice et n’employez plus l’appareil tant que le
problème n’a pas été résolu.
7. Portez des vêtements adéquats lors de l’utilisation de l’appareil. Évitez les vêtements amples qui
risqueraient de se prendre dans l’appareil.
8. Ne mettez pas le doigt ni aucun objet dans les pièces mobiles de l’appareil.
9. La capacitéde poids maximale de cet appareil est de 135 kg (300 lb).
10.Cet appareil n’est pas adapté à un usage thérapeutique.
11.Soulevez et déplacez l’appareil avec précaution. Utilisez toujours les techniques adéquates de
levage et demandez de l’aide si nécessaire.
12.Votre produit est conçu pour usage dans un endroit sec et frais. Éviter de l’entreposer dans un
endroit extrêmement froid, chaud ou humide, car cela peut entraîner de la corrosion et des
problèmes du même ordre.
13.Cet appareil est conçu pour un usage intérieur uniquement! Il n’est pas fait pour une utilisation
commerciale!

4

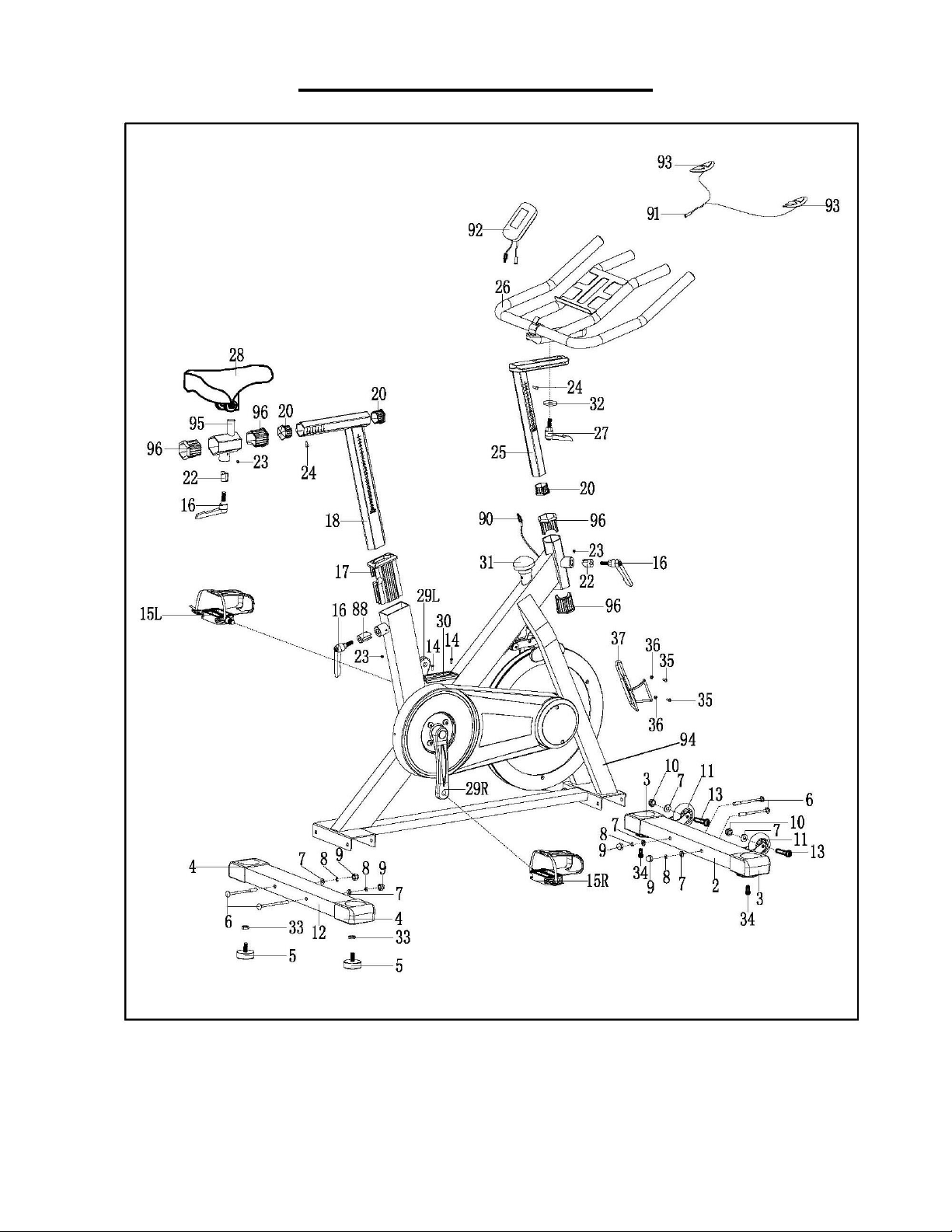

EXPLODED DIAGRAM 1

5

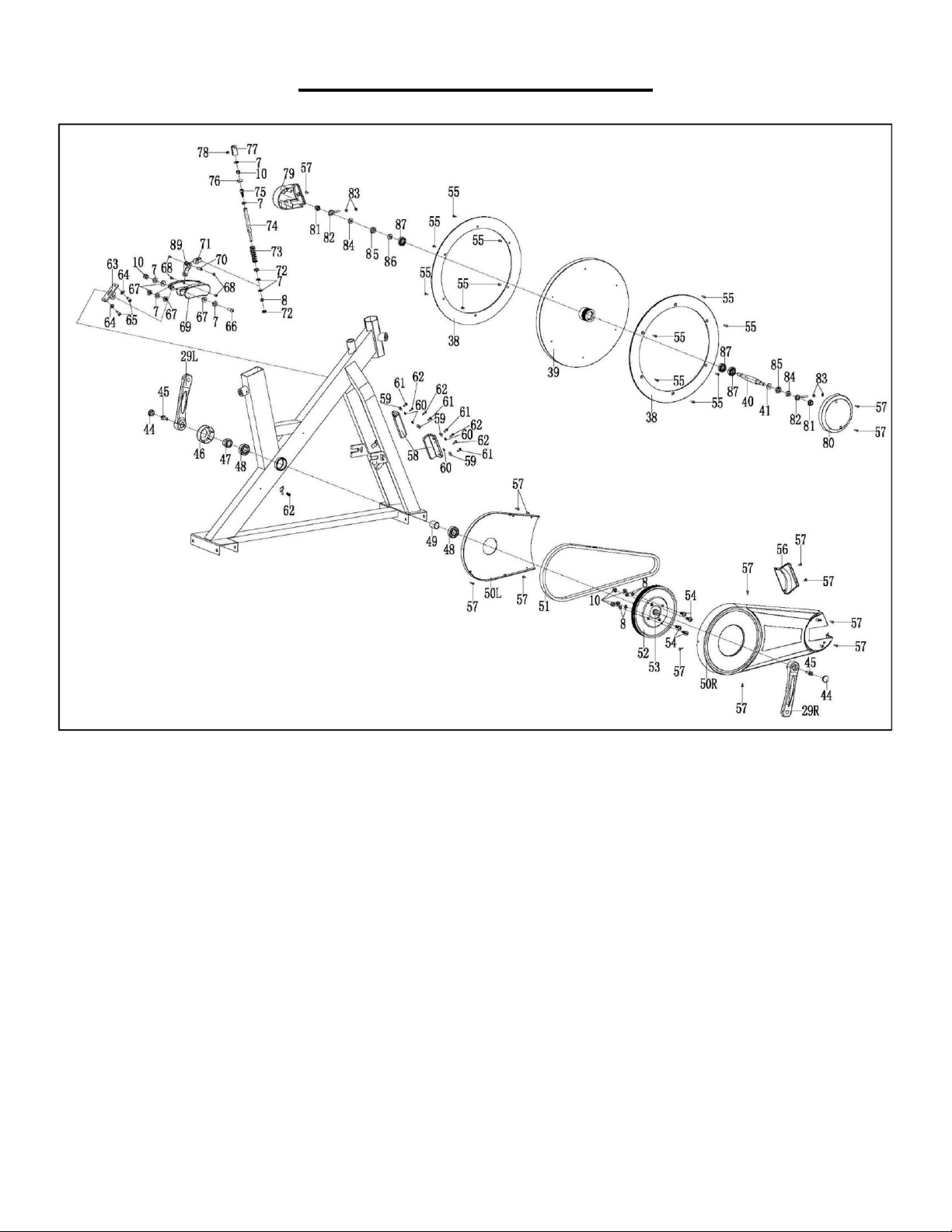

EXPLODED DIAGRAM 2

6
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Refer to #94
34
Inner Hexagon Pan
Head Bolt
M10X18
2
2
Front Stabilizer
1
35
Cross Head Screw
M5X12
2
3
Front End Cap
2
36
Flat Washer
Φ5.2XΦ10X1
2
4
Rear End Cap
2
37
Bottle Holder
1
5
Foot Pad
2
38
Aluminum Ring
2
6
Carriage Bolt
M8XL100
4
39
Flywheel
1
7
Flat Washer
Φ8XΦ16X1.5
13
40
Flywheel Axle
1
8
Spring Washer
D8
9
41
Flat Washer
Φ12XΦ17X1.5
1
9
Acorn Nut
M8
4
42
Spanner
S=10,13,14,15,17
1
10
Nylon Nut
M8
8
43
Spanner
S=13,15
1
11
Wheel
2
44
Crank Cap
2
12
Rear Stabilizer
1
45
Flange Bolt
M8X20
2
13
Hexagon Socket
Head Screw
M8X45
2
46
Cover for Axle
1
14
Cross Recessed
Countersunk Head
Screw
M4X12
2
47
Nylon Nut
M20X1.5
1
15L/R
Pedal
1 pr.
48
Bearing
2
16
L Shaped Knob
3
49
Center Inner
Bushing
1
17
Bushing
1
50L/R
Belt Cover
1 pr.
18
Seat Post
1
51
Belt
1
19
Refer to #95
-
52
Belt Pulley
1
20
Tube Plug
3
53
Center Axle
1
21
Refer to #96
-
54
Hexagon Socket
Head Screw
M8X20
4
22
V Shape Block
2
55
Bolt
M5X10
12
23
Hex Stopper Screw
M6X6
3
56
Protective Cover
1
24
Hex Socket Cap
Screw
M5X12
2
57
Screw
ST4X10
14
25
Handlebar Post
1
58
Stop Block
2
26
Handlebar
1
59
Flat Washer
Φ5XΦ16X1
4
27
L Shaped Knob
1
60
Flat Washer
Φ5XΦ12X1
4
28
Seat
1
61
Bolt
M5X12
4
29L/R
Crank
1 pr.
62
Bolt
ST4.2X16
5
30
Protective Cover
1
63
Brake Block
1
31
Brake Knob
1
64
Flat Washer
Φ6XΦ12X1.2
2
32
Flat Washer
Φ40XΦ10X4
1
65
Hex Bolt
M6X18
2
33
Hex Screw
M10
2
66
Bolt
M8X32
1

7
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
67
Plastic Bushing
4
82
Adjusting Belt Bolt
2
68
Bolt
M5X6
4
83
Hex Screw
M6
4
69
Brake Block
1
84
Spacer
2
70
Bushing
1
85
Hex Screw
M12X1.0
2
71
Linking Axle
Sleeve
1
86
Sleeve
1
72
Hex Nut
M8XH6
2
87
Bearing
3
73
Spring
1
88
V Shape Block
1
74
Brake Rod
1
89
Connecting Sheet
1
75
Bolt
M8X20
1
90
Sensor Wire
1
76
Washer
1
91
Pulse Wire
1
77
Sleeve
1
92
Meter
1
78
Bolt
M8X8
1
93
Pulse Sensor
2
79
Protective Cover
1
94
Main Frame
1
80
Round Cover
1
95
Seat Horizontal Post
1
81
Flange Nut
M12X1.0
2
96
Sleeve
4

8
LISTA DE PIEZAS
n.°
Descripción
Especificaciones
Cant.
n.°
Descripción
Especificaciones
Cant.
1
Consulte el n.°94
34
Perno de Cabeza
troncónica con
Hexágono interior
M10X18
2
2
Estabilizador Delantero
1
35
Tornillo de Cabeza de
Estrella
M5X12
2
3
Tapa de Extremo
Delantera
2
36
Arandela Plana
Φ5.2XΦ10X1
2
4
Tapa de Extremo
Trasera
2
37
Soporte para Botella
1
5
Almohadilla Para Pies
2
38
Anillo de Aluminio
2
6
Perno de Carrocería
M8XL100
4
39
Volante
1
7
Arandela Plana
Φ8XΦ16X1.5
13
40
Eje del Volante
1
8
Arandela Elástica
D8
9
41
Arandela Plana
Φ12XΦ17X1.5
1
9
Tuerca Hexagonal
M8
4
42
Llave Inglesa
S=10,13,14,15,17
1
10
Tuerca de Nailon
M8
8
43
Llave Inglesa
S=13,15
1
11
Rueda
2
44
Tapa de la Manivela
2
12
Estabilizador Trasero
1
45
Perno de Brida
M8X20
2
13
Tornillo de Cabeza
Hueca Hexagonal
M8X45
2
46
Cubierta Para el Eje
1
14
Tornillo con Cabeza
Avellanada de Estrella
M4X12
2
47
Tuerca de Nailon
M20X1.5
1
15L/R
Pedal
1 pr.
48
Cojinete
2
16
Perilla en Forma de L
3
49
Buje Interno Central
1
17
Buje
1
50L/R
Cubierta de la Correa
1 pr.
18
Barral del Asiento
1
51
Cinta
1
19
Consulte el n.°95
-
52
Polea de la Correa
1
20
Tube Plug
3
53
Eje Central
1
21
Consulte el n.°96
-
54
Tornillo de Cabeza
Hueca Hexagonal
M8X20
4
22
Bloque en Forma de V
2
55
Perno
M5X10
12
23
Tornillo Tapón
Hexagonal
M6X6
3
56
Cubierta Protectora
1
24
Tornillo de Cabeza
Hexagonal
M5X12
2
57
Tornillo
ST4X10
14
25
Barral del Manubrio
1
58
Tope
2
26
Manubrio
1
59
Arandela Plana
Φ5XΦ16X1
4
27
Perilla en Forma de L
1
60
Arandela Plana
Φ5XΦ12X1
4
28
Asiento
1
61
Perno
M5X12
4
29L/R
Manivela
1 pr.
62
Perno
ST4.2X16
5
30
Cubierta Protectora
1
63
Bloque de Freno
1
31
Perilla del Freno
1
64
Arandela Plana
Φ6XΦ12X1.2
2
32
Arandela Plana
Φ40XΦ10X4
1
65
Perno Hexagonal
M6X18
2
33
Tornillo Hexagonal
M10
2
66
Perno
M8X32
1

9
n.°
Descripción
Especificaciones
Cant.
n.°
Descripción
Especificaciones
Cant.
67
Buje de Plástico
4
82
Perno de Ajuste de
la Correa
2
68
Perno
M5X6
4
83
Tornillo Hexagonal
M6
4
69
Bloque de Freno
1
84
Espaciador
2
70
Buje
1
85
Tornillo Hexagonal
M12X1.0
2
71
Unión de la Cubierta
del Eje
1
86
Manguito
1
72
Tuerca Hexagonal
M8XH6
2
87
Cojinete
3
73
Resorte
1
88
Bloque en Forma
de V
1
74
Varilla del Freno
1
89
Lámina de
Conexión
1
75
Perno
M8X20
1
90
Cable del Sensor
1
76
Arandela
1
91
Cable del Sensor
de Pulso
1
77
Manguito
1
92
Computadora
1
78
Perno
M8X8
1
93
Sensor de Pulso
2
79
Cubierta Protectora
1
94
Estructura Principal
1
80
Cubierta Redonda
1
95
Barral Horizontal
del Asiento
1
81
Tuerca de Brida
M12X1.0
2
96
Manguito
4

10
LISTE DES ÉLÉMENTS
Nº
Description
Spécification
Qté
Nº
Description
Spécification
Qté
1
Voir la Pièce Nº94
-
32
Rondelle Plate
Φ40×Φ10×4
1
2
Stabilisateur Avant
1
33
Vis Hexagonale
M10
2
3
Embout d’ExtrémitéAvant
2
34
Vis àTête
Cylindrique
Hexagonale Creuse
M10×18
2
4
Embout d’Extrémité
Arrière
2
35
Vis Cruciforme
M5×12
2
5
Patin de Pied
2
36
Rondelle Plate
Φ5.2×Φ10×1
2
6
Boulon de Carrosserie
M8XL100
4
37
Porte-Bouteille
1
7
Rondelle Plate
Φ8XΦ16X1.5
13
38
Bague en Aluminium
2
8
Rondelle àRessort
D8
9
39
Volant d’Inertie
1
9
Écrou Borgne
M8
4
40
Axe de Volant
d’Inertie
Φ12xΦ17x1.5
1
10
Écrou en Nylon
M8
8
41
Axe de Volant
d’Inertie
1
11
Roue
2
42
CléTricoise
S=10,13,14,15,17
1
12
Stabilisateur Arrière
1
43
CléTricoise
S=13,15
1
13
Vis àSix Pans Creux
M8X45
2
44
Embout de Manivelle
2
14
Vis Autotaraudeuse à
Tête Fraisée Cruciforme
M4X12
2
45
Boulon àEmbase
M8×20
2
15L/R
Pédale
1 pièce
46
Carter de l’Axe
1
16
Bouton en Forme de L
3
47
Écrou en Nylon
M20×1.5
1
17
Bague
1
48
Roulement
2
18
Tige de Selle
1
49
Manchon Intérieur
Central
1
19
Voir la Pièce Nº95
-
50L/R
Protège- Courroie
1 pièce
20
Bouchon Tubulaire
3
51
Courroie
1
21
Voir la Pièce Nº96
-
52
Poulie de Courroie
1
22
Butée en Forme de V
2
53
Axe Central
1
23
Vis Hexagonale à
Embase
M6×6
3
54
Vis àSix Pans
Creux
M8×20
4
24
Vis àTête Creuse
Hexagonale
M5×12
2
55
Boulon
M5×10
12
25
Tige de Guidon
1
56
Protection
1
26
Guidon
1
57
Vis
ST4×10
14
27
Bouton en Forme de L
1
58
Butée d’Arrêt
2
28
Selle
1
59
Rondelle Plate
Φ5×Φ16×1
4
29L/R
Manivelle
1 pièce
60
Rondelle Plate
Φ5×Φ12×1
4
30
Protection
1
61
Boulon
M5X12
4
31
Bouton de Frein
1
62
Boulon
ST4.2X16
5

11
Nº
Description
Spécification
Qté
Nº
Description
Spécification
Qté
63
Patin de Frein
1
80
Protection Ronde
1
64
Rondelle Plate
Φ6×Φ12×1.2
2
81
Écrou àEmbase
M12×1.0
2
65
Boulon Hexagonal
M6×18
2
82
Boulon de Réglage de
la Courroie
2
66
Boulon
M8×32
1
83
Vis Hexagonale
M6
4
67
Manchon de
Plastique
4
84
Bague d’Espacement
2
68
Boulon
M5×6
4
85
Vis Hexagonale
M12×1.0
2
69
Patin de Frein
1
86
Manchon
1
70
Bague
1
87
Roulement
3
71
Manchon de Liaison
d’Axe
1
88
Butée en Forme de V
1
72
Écrou Hexagonal
M8×H6
2
89
Plaque de Raccord
1
73
Ressort
1
90
Fil de Capteur
1
74
Tige de Frein
1
91
Fil d'Impulsion
1
75
Boulon
M8×20
1
92
Ordinateur
1
76
Rondelle
1
93
Capteur d'Impulsions
2
77
Manchon
1
94
Cadre Principal
1
78
Boulon
M8×8
1
95
Tige de Selle
Horizontale
1
79
Protection
1
96
Manchon
4

12
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
Pedido de piezas de repuesto (solo para clientes de EE. UU. y Canadá)
Proporcione la siguiente información para que podamos identificar con precisión las piezas necesarias:
✓El número de modelo (se encuentra en la portada del manual).
✓El nombre del producto (se encuentra en la portada del manual).
✓El número de pieza que se encuentra en el “ESQUEMA DE LAS PIEZAS” y en la “LISTA DE
PIEZAS” (se encuentra al principio del manual).
Contáctenos en [email protected] o 1- 877 - 90SUNNY (877-907-8669).
Pour commander des pièces de rechange (clients américains et canadiens seulement)
Veuillez fournir les informations suivantes afin que nous puissions identifier avec précision la pièce ou
les pièces requise(s):
✓Le numéro de modèle (situésur la couverture du manuel)
✓Le nom du produit (situésur la couverture du manuel)
✓Le numéro de pièce figurant sur le «SCHÉMA ÉCLATÉ» et la «LISTE DES ÉLÉMENTS »
(situévers le début du manuel)
Veuillez nous contacter àsuppo[email protected] ou 1- 877 - 90SUNNY (877-907-8669).

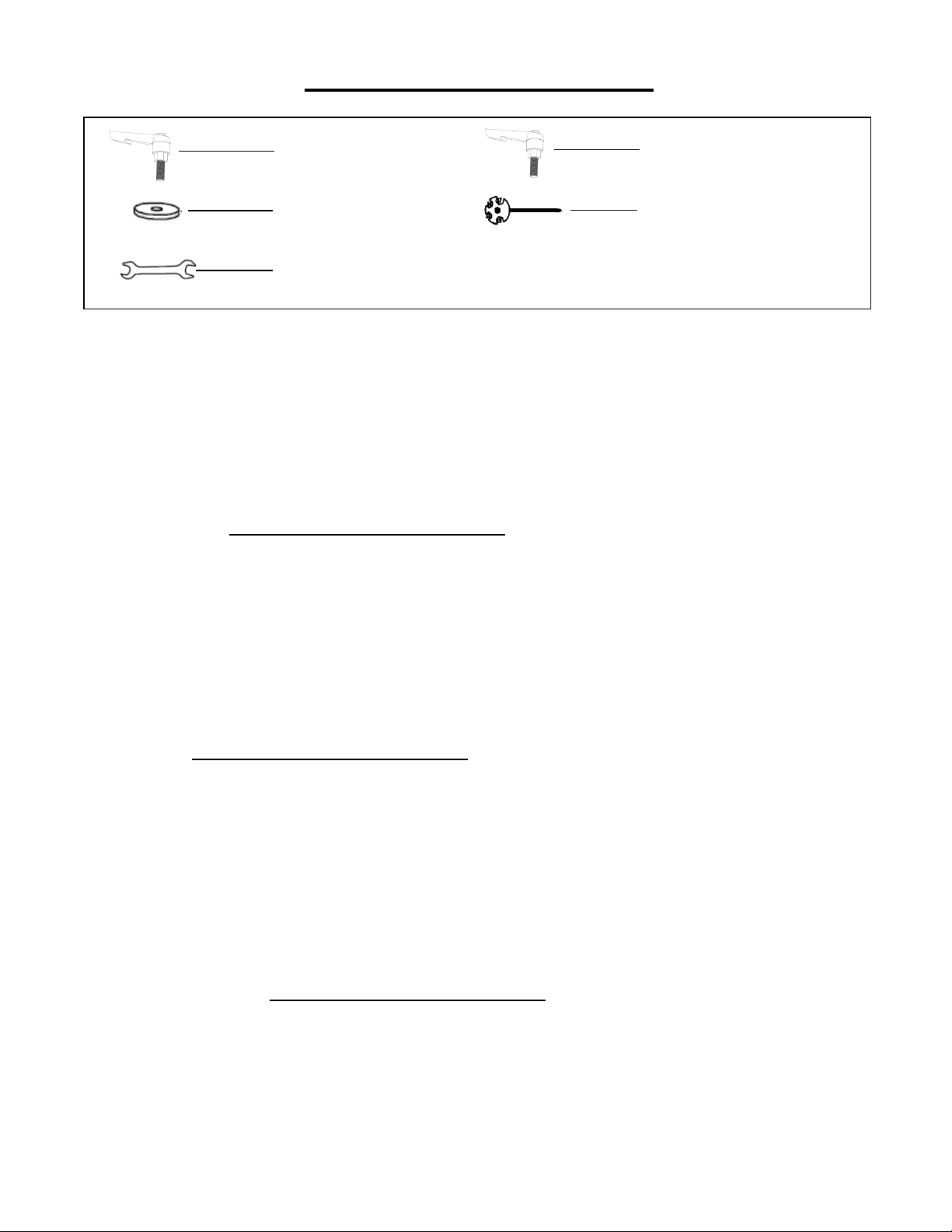

#27 1PC
#16 1PC
#42 S10,13,14,15,17 1PC
#43 S13,15 1PC
#32 Φ40XΦ10X4 1PC

13
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-
8669).
STEP 1:
Remove the preassembled 4 Carriage Bolts
(No. 6), 4Flat Washers (No. 7), 4 Spring
Washers (No. 8), 4 Acorn Nuts (No. 9) and 2
Shipping Tubes (A), from the Main Frame
(No. 94) with the Spanner (No. 42).
Attach the Front & Rear Stabilizer (No. 2 &
No. 12)to the Main Frame (No. 94) using 4
Carriage Bolts (No. 6), 4Flat Washers (No. 7),
4 Spring Washers (No. 8) and 4 Acorn Nuts
(No. 9) that were just removed. Tighten and
secure with the Spanner (No. 42).
Insert the Seat Post (No. 18) into the Main
Frame (No. 94), and lock with L Shaped Knob
(No. 16).
STEP 2:
First, insert the L Shaped Knob (No. 16) into
the front tube of the Main Frame (No. 94).
Turn clockwise to tighten all the way. Then
turn counter-clockwiseto loosen the L Shaped
Knob (No. 16) enough to insert the
Handlebar Post (No. 25).
Insert the Handlebar Post (No. 25) to the
front tube of Main Frame (No. 94), adjust to
the proper height, and insert and tighten L
Shaped Knob (No. 16) to secure.
Attach the Handlebar (No. 26)to the
Handlebar Post (No. 25). Insert L Shaped
Knob (No. 27) and Flat Washer (No. 32) and
tighten to secure.
Attach the Seat (No. 28) to the Seat
Horizontal Post (No. 95). Tighten and secure
with the Spanner (No. 43).
NOTE: Before exercise, please make sure the
Seat (No. 28) is tightened to the Seat
Horizontal Post (No. 95).

14
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at su[email protected] or 1-877-90SUNNY (877-907-
8669).

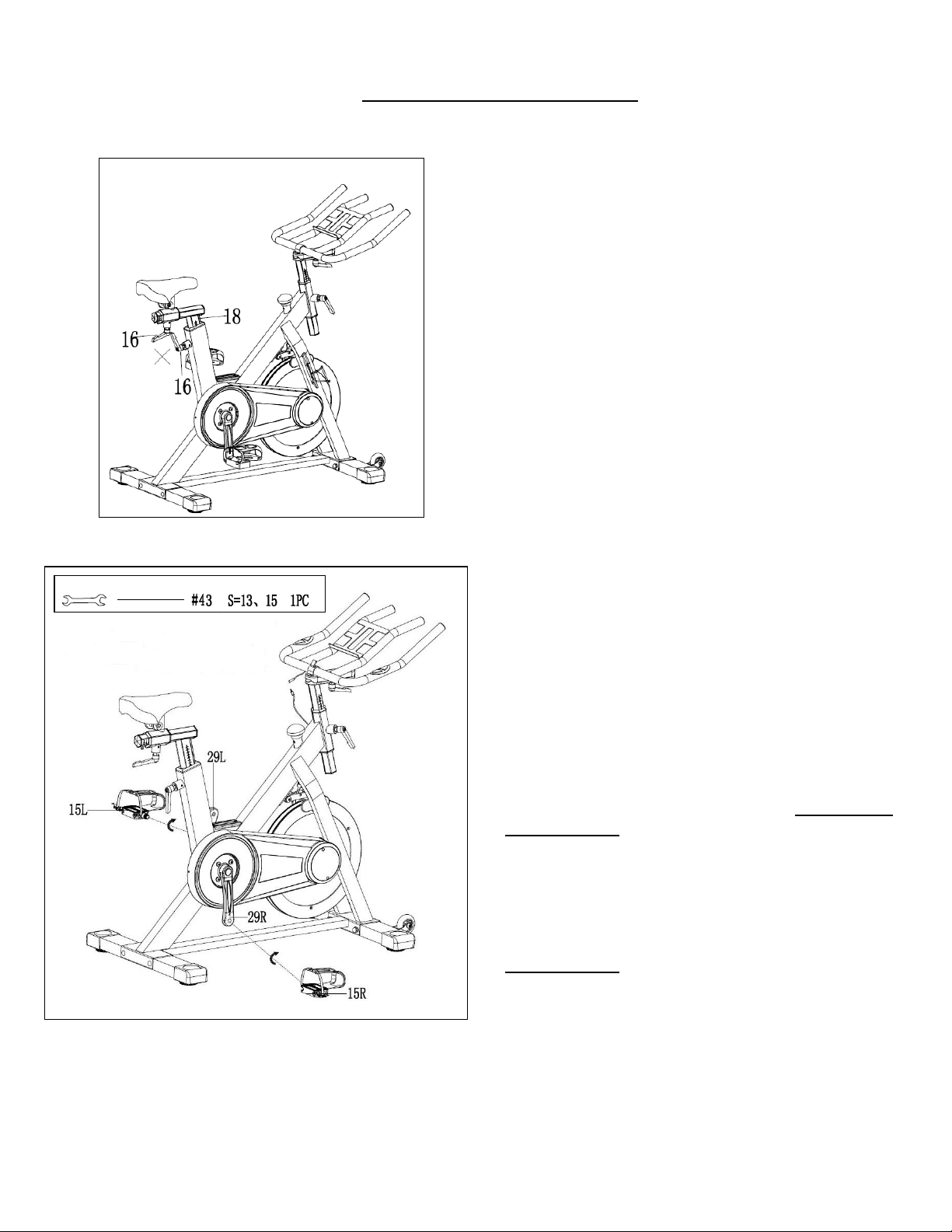

STEP 3:
IMPORTANT! Read instructions carefully,
failure to do so may cause permanent
damage to your bike.
Before installation, please make sure you have
the Left Pedal (No. 15L) in hand. Align the
Left Pedal (No. 15L) with the Left Crank (No.
29L)at 90°and gently insert the Left Pedal
(No. 15L) into the Left Crank (No. 29L).
Screw the Left Pedal (No. 15L) COUNTER-
CLOCKWISE into the Left Crank (No. 29L).
Tighten and secure with Spanner (No. 43).
Align the Right pedal with the Right Crank
(No. 29R)at 90°and gently insert the Right
Pedal (No. 15R) into the Right Crank (No
29R). Screw the Right Pedal (No. 15R)
CLOCKWISE into the Right Crank (No. 29R).
Tighten and secure with Spanner (No. 43).

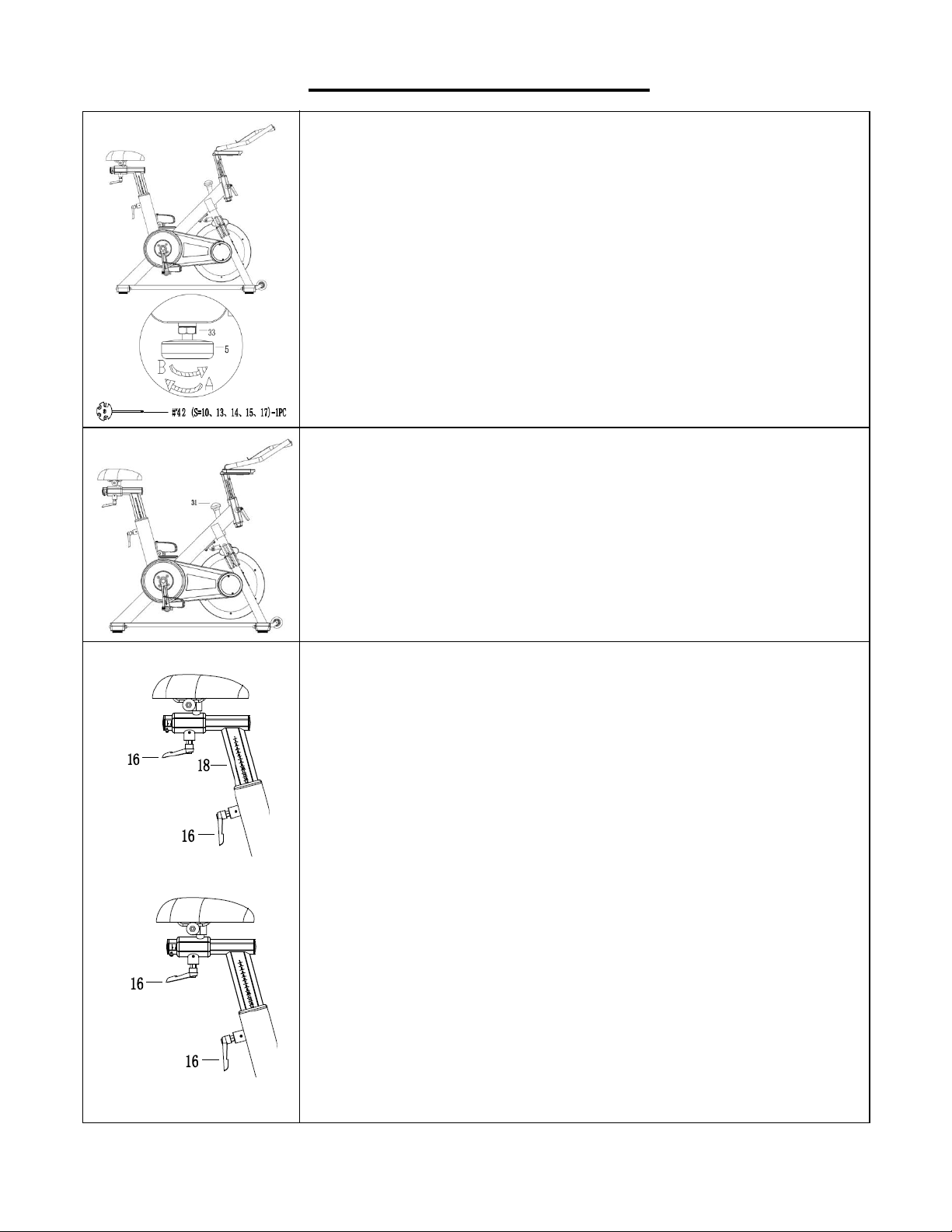

NOTE: ADJUSTING THE SEAT POST AND
THE SEAT HORIZONTAL POST
When the Seat Post (No. 18) is at the lowest
setting, the handles on the L Shaped Knobs
(No. 16) may not have enough space to turn
(See drawing on left). If this happens, the
handles can be adjusted.
To adjust the handle, pull on the handle, turn
the handle to a position that is not blocked,
and release the handle. Repeat as needed. It
may take several adjustments to get the
handle to a position where it can be turned.

15
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY (877-907-
8669).

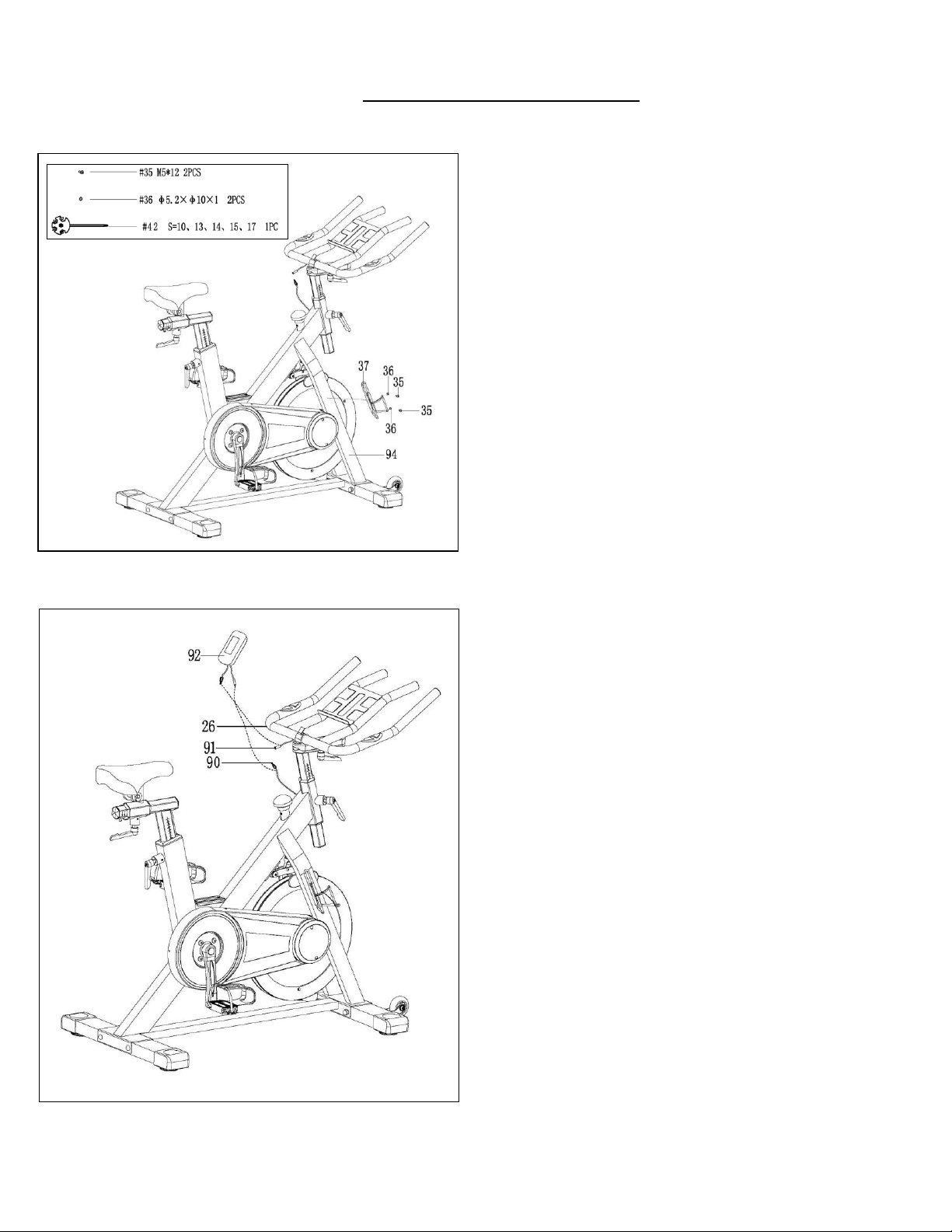

STEP 5:
Connect the Sensor Wire (No. 90) and Pulse
Wire (No. 91) with the relative wires of Meter
(No. 92), then insert the Meter (No. 92) to the
meter tablet of the Handlebar (No. 26).
The assembly is complete!
STEP 4:
Remove the preassembled 2 Cross Head
Screws (No. 35) and 2 Flat Washers (No. 36)
from the Main Frame (No. 94) with the
Spanner (No. 42).
Attach the Bottle Holder (No. 37) to the Main
Frame (No. 94)with 2 Cross Head Screws
(No. 35) and 2 Flat Washers (No. 36) by using
Spanner (No. 42).

16

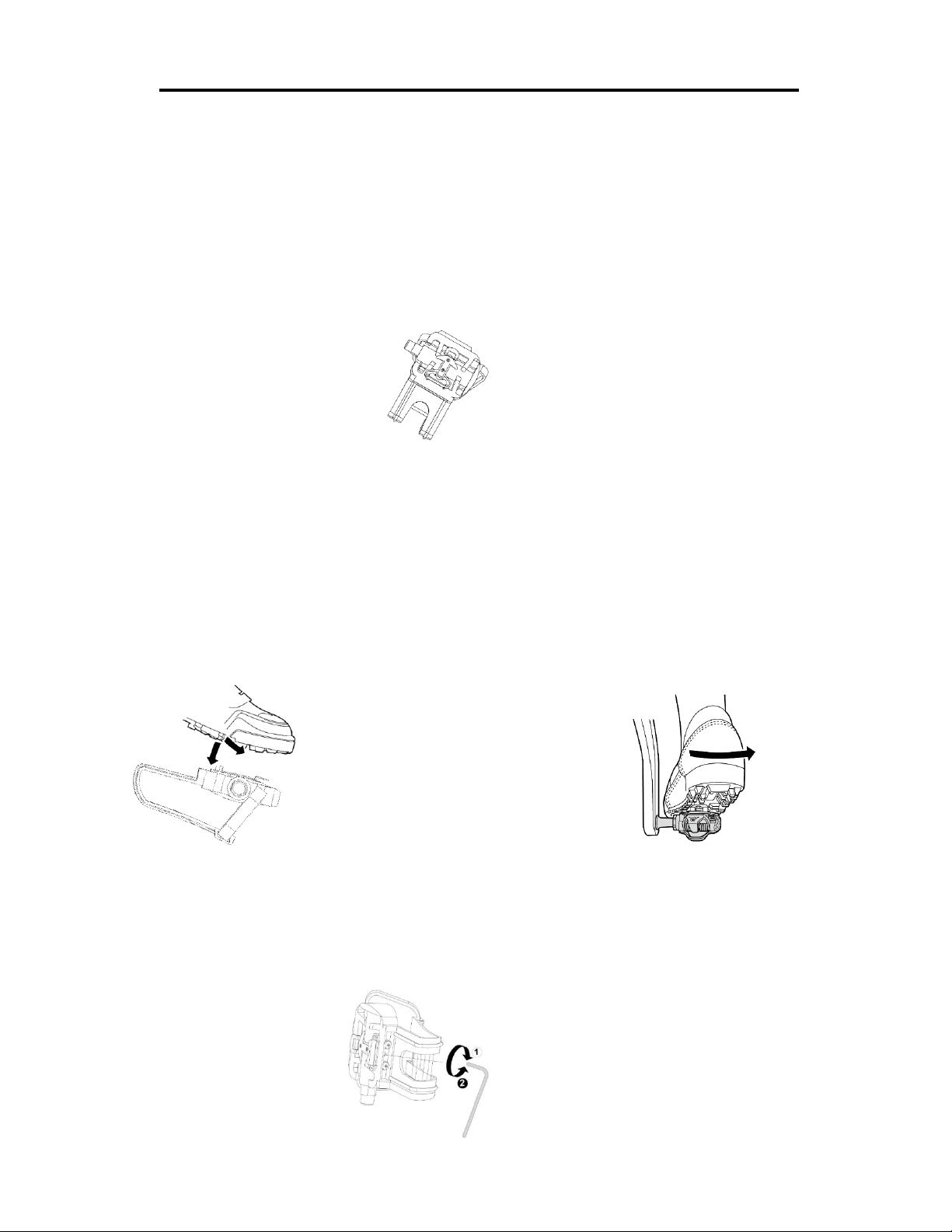

SPD TECHNICAL SERVICE INSTRUCTIONS
Caution!
Before use, read these instructions carefully.
⚫Practice engaging and disengaging from the pedals several times in a stationary position before
riding.
⚫Before using, lubricate the concave area of the clip.
⚫Keep the cleat and pedal clean to ensure proper usage.
⚫Before using, adjust the retention force of the pedal to suit your needs.
Note:
1. After tightening the cleat, practice engaging and releasing one shoe at a time.
2. Check your pedals each time before you ride the bike.
3. When the pedal starts to wear on the axle, it will not function properly. We recommend you replace
the entire pedal.
USE Engaging Disengaging
Press the cleat into the pedal. Remove by twisting your heel to the outside.
ADJUSTING THE SPRING TENSION OF THE BINDING
The tension of the spring is adjusted for each pedal (top & bottom) with the adjustment bolt in the rear
using a 3mm Allen Wrench. Turn the bolt in a clockwise direction to increase retention force. Turn the
bolt in a counter-clockwise direction to decrease retention force.
Decrease
Increase
3mm Allen Wrench

17
ADJUSTMENTS GUIDE
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride, you must
ensure that the stability of the bike is secured. If you notice
that the bike is unbalanced during use, you should adjust the
foot levelers located beneath the front and rear stabilizers.
To do so, use Spanner (No. 42)to loosen Hex Screw (No.
33)by turning it clockwise (direction A). With the screw
loosened, rotate Foot Pad (No. 5) until it sits level with the
surface that the bike is on. When you have finished adjusting
the foot leveler, use Spanner (No. 42)to re-tighten the Hex
Screw (No. 33)by turning it counter-clockwise (direction B).
If required, repeat this process to adjust the remaining feet.
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Brake Knob (No.
31). Increase the level of resistance by turning the tension
knob to the RIGHT (clockwise), decrease the level of
resistance by turning the tension knob to the LEFT (counter-
clockwise). Push down on the Brake Knob (No. 31) for
emergency brake.
ADJUSTING THE SEAT
An appropriate seat height helps to ensure your exercise
efficiency and reduce the risk of injury. Adjusting the seat
forward or backward can help you exercise different muscle
groups.
With one pedal in the upward position, place your foot in the
toe clip and get on the bike. If your leg is bent too much, you
should move the seat up. If your foot cannot touch the pedal
or your leg is too straight, you should move the seat down.
Loosen the L Shaped Knob (No. 16)to raise or lower Seat
Post (No. 18) to the desired position. Make sure L Shaped
Knob (No. 16)secures into the desired hole. Do not raise
past the STOP mark on the post.
Loosen L Shaped Knob (No. 16) to move the seat forward
or backward to the desired position. Once the position is
located, firmly secure L shaped Knob (No.16)by turning
clockwise.

18
DISMOUNTING THE BIKE
WARNING! Do not dismount the bike or remove your feet
from the pedals until the pedals have stopped completely.
You can stop the flywheel at anytime by pushing down on
Brake Knob (No. 31).
ADJUSTING THE HANDLEBAR
Loosen the L Shaped Knob (No. 16)to raise or lower the
handlebar to the desired position. Make sure the L Shaped
Knob (No. 16)settles into the desired hole and secure it
firmly by turning clockwise. See Figure A.
Loosen the L Shaped Knob (No. 27)to move the handlebar
forward or backward to the desired position. Once the
handlebar is in the desired position, firmly secure the L
Shaped Knob (No. 27) by turning clockwise. See Figure B.
ADJUSTING THE PEDAL STRAP
Place the ball of each foot in the toe clips so the front of your
shoe fits snugly in the toe clip cage. Rotate one foot to within
arm’s reach and pull the strap until the top clip cage fits your
shoe snugly. Insert the strap back into the hoop of the toe
clip. Repeat this for the other foot.
MOVING THE BIKE
To move the bike, first ensure that the handlebar is properly
secured. If the handlebar is loose, tighten the L Shaped
Knobs (No. 16 & 27) to secure it. Next, stand at the front of
the bike so that you’re directly in front of the handlebar.
Firmly grasp and hold each side of the handlebar, place one
foot on the front stabilizer and tilt the bike towards you until
the transportation wheels on the front stabilizer touch the
ground. With the wheels on the ground, you can transport
the bike to the desired location with ease.

19
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your bike.
DAILY MAINTENANCE
After each exercise session, wipe down all
the equipment: seat, frame and handlebars.
Pay special attention to the seat post,
handlebar post and belt/chain guard. Sweat
is very corrosive and may cause problems
that require parts replacement later.
1. Get on the bike and engage the drive
train.
2. Pay attention to any vibrations felt
through the pedals. If you feel any
vibrations, you may need to tighten the
pedals, bottom bracket, or adjust the drive
belt/chain tension.
3. Use a wrench to tighten the pedals until
they are secure.
MONTHLY MAINTENANCE
1. Check that hardware is secure, such as:
water bottle holder, flywheel nuts, belt/chain
guard bolts, brake caliper lock nuts and
brake caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any buildup of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings, making
sure the fittings are snug. Loose frame
fittings may strip out threads over time
and cause extensive damage.
3. Clean and lubricate pop pin assemblies.
Pull on the pin and spray a small amount
of lubricant onto the shaft.
4. Tighten the seat hardware, to make sure
the seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may
have collected on the pads. Spray the
pads with silicone lubricant. This helps to
reduce noise from friction between the
pads and the flywheel.
6. Visually inspect the bottom bracket, toe
clips and toe straps. If any of them are
loose or disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If Applicable)
1. Perform this maintenance when the brake
pad is first installed and for the life of the
brake pad. Following these simple guidelines
can increase the life of your brake pads.
2. Some brake pad assemblies are pre-
lubricated. Squeeze the brake pad. If
lubricant is released, then the pad has been
pre-lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil. Brush the leather with a
clean, wire bristle brush, and then apply the
oil. The oil should be allowed to soak into the
pad. Repeat 4-5 times until the pad is
saturated, but not dripping with oil. When the
pad is saturated, it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with a wire brush and apply lubricant
as needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.
