Bole BL-702A User manual

BL-702A
Operating Instructions
Model No. BL-702A
HumidiBreeze

2
Thank you for choosing a Bole HumidiBreeze Misting System. This owner’s manual will provide
you with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all the op-
erational aspects of your new Bole HumidiBreeze.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
Before installing and using your HumidiBreeze, please read this owner’s manual carefully. Store this manual in a
safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this
manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or
outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this
manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced
by the manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
12) This unit can create a slippery surface at times. Please be careful if the floor becomes too wet to not slip
and fall. Excessive water may damage floor or carpet.

3
SPECIFICATIONS
• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. BOLE INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
PACKAGE CONTENTS
HumidiBreeze Misting System
Operating Instructions
MODEL BL-702A
Humidifying Capacity 25 Gallons per Day
Water Tank Size 2.5L
Power Consumption 122 Watts
Air Flow Volume 700 CFM / 1180m3/h
Power Source 220-240V 50 / 60 HZ
Weight 12KG
Dimensions (WxDxH) 706*424*905mm

4
PRODUCT ASSEMBLY
LOCK SCREW
BRACKET COVER
BOTTOM BRACKET
BRACKET
4*16 SCREW
FAN ASSEMBLY
Name QITY
FAN ASSEMBLY 1
LOCK SCREW 2
BRACKET COVER 2
BRACKET 2
BOTTOM BRACKET 1
4*16 SCREW 6
MANUAL 1
Packing list
1、Such as figure, using three 4*16 screw fix the ‘bracket’ to the ‘bottom bracket’.
2、Put ‘bracket cover’ in the ‘bracket’, the bracket and the unit was fixed with two lock screws.

5
Floor type
Hang top type
Remark：Hang top type need to have a strong enough stand or connection before you can use this function.
Vertical state （Manually
add water angle ）
Forerake 10 degrees
leaning back 10 degree
Vertical state （Manually
add water angle ）
Forerake 10 degrees
leaning back 10 degree

6
PRODUCT DIAGRAM
POWER BUTTON
FAN LOE/HIGH SWITCH
CONTROL DIAL
WATER LEVEL
INDICATOR
AUTO CONNECTOR
WATER RESERVOIR
DRAWER
WATER DRAIN
AIR INLET&FAN
CARRYING HANDLE
CENTRIFUGAL DISK
SECURING KNOB
Remote control

7

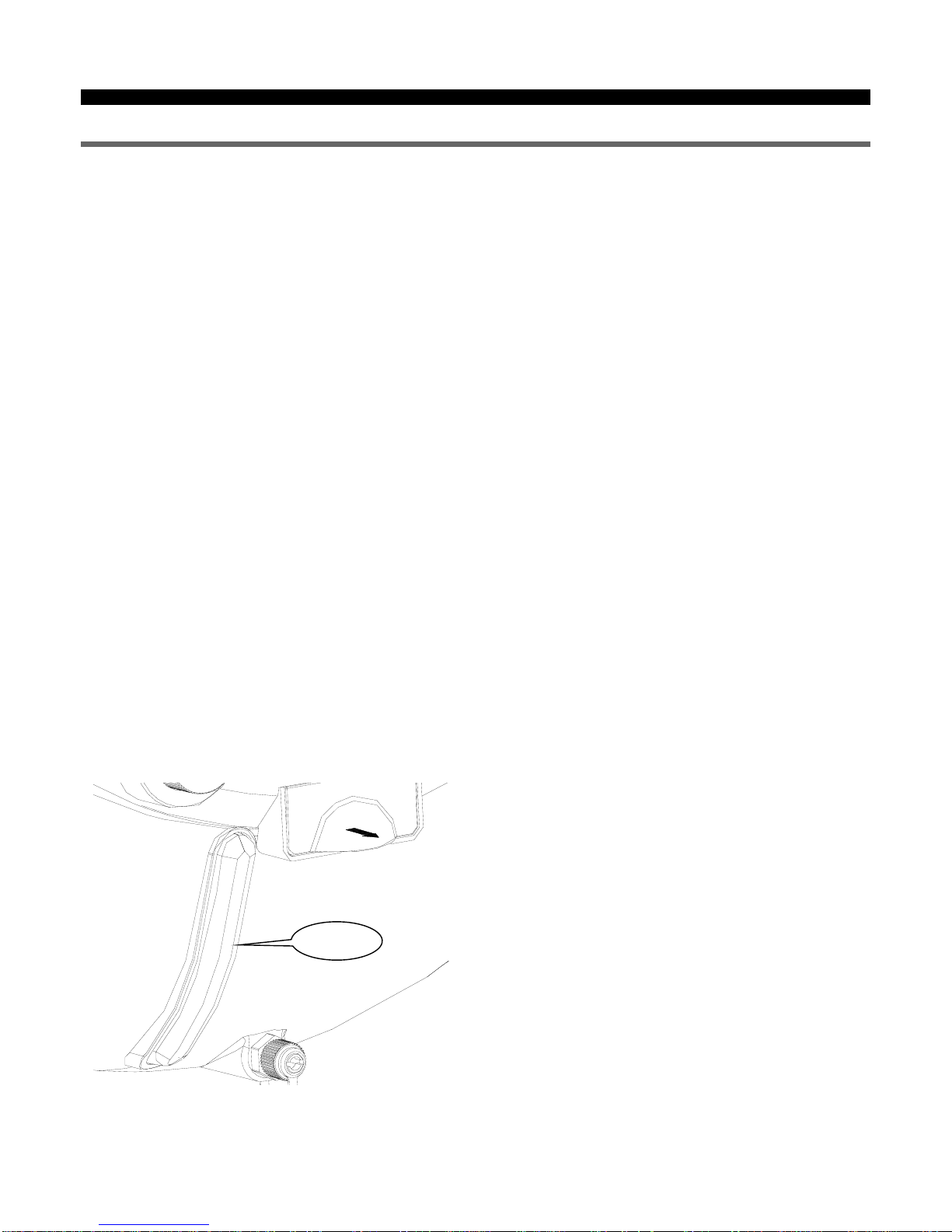

OPERATING INSTRUCTIONS
1、Installation: First install the bracket on the product (Choose Floor type or Hang top type )
2、Adding water
A、Manual Adding water: Please the product in a vertical state, open the water reservoir drawer and add water, then shut the
"drawer" after adding water end. (When add water, please note the water level indication, don’t allow the water lever
more the MAX line)
B、Auto adding water: Connected to the pipe "connector" and Auto connector on product through connecting nut, connected to the
other end of pipe with tap water. Confirm the connection in place, not leaking, then open the tap water switch, auto adding water
start. ( Bulit -in float lever switch will automatically stop adding water according to water level).
3、Power : Switch on the power, according to the product nameplate voltage, insert the power plug into the relevant power outlet.
4、Water: Turn ‘control dial’ switch to ‘High’ direction. (According to the need to turn the modest position.)
5、Power on: Press the power switch on the top of the product, the machine will begin to humidify and blow wind. (In order to suc-
cessfully out of the water, the internal pump may have a slight pause after running 20 seconds, which is a normal phenomenon.)
6、The air flow options: Around power on, can press the ‘fan low/high switch’ in the rear of product to choose the size of air flow.
(I: low-speed wind II: high-speed wind)
7、The mist options: Turn the ‘control dial’ to the direction of ‘High’ or ‘Low’, can be adjusted to the need of mist.
8、Remote control function: When the machine connect to power and turn it on, you can use the remote control to control machine
itself. Press ‘ON/FAN’ button once, the machine begin to blow wind. Press ‘ON/HUMIDI’ button once, the machine will shift hu-
midifying and blowing wind state. Press ‘OFF’ button once, the machine will stop working. (When the remote control machine to
stop working, you can press twice power switch in the top of machine, it can work again.) When using remote control, Please di-
rectly directing the red indicator light that in front of the machine.
Manual adding water
MIN
I
MAX
I
MAX

8
MIN
I
MAX
I
MIN
I
MAX
I
Troubleshooting
MAINTENANCE
Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to
performing any maintenance on the unit.
1. Unplug the unit and let it cool completely.
2. To keep the product clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild
detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid en-
ter the product.
3. DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the prod-
uct. This may cause damage or deterioration to the surface of the product.
4. DO NOT immerse the product in water.
5. If the unit is wet, wait until the unit is completely dry before use.
STORAGE
1. Drain all of the water from the water reservoir. SEE FIGURE C.
2. Store the product in a cool, dry location when not in use. Repack the unit in the original packaging to
prevent dust and dirt buildup.

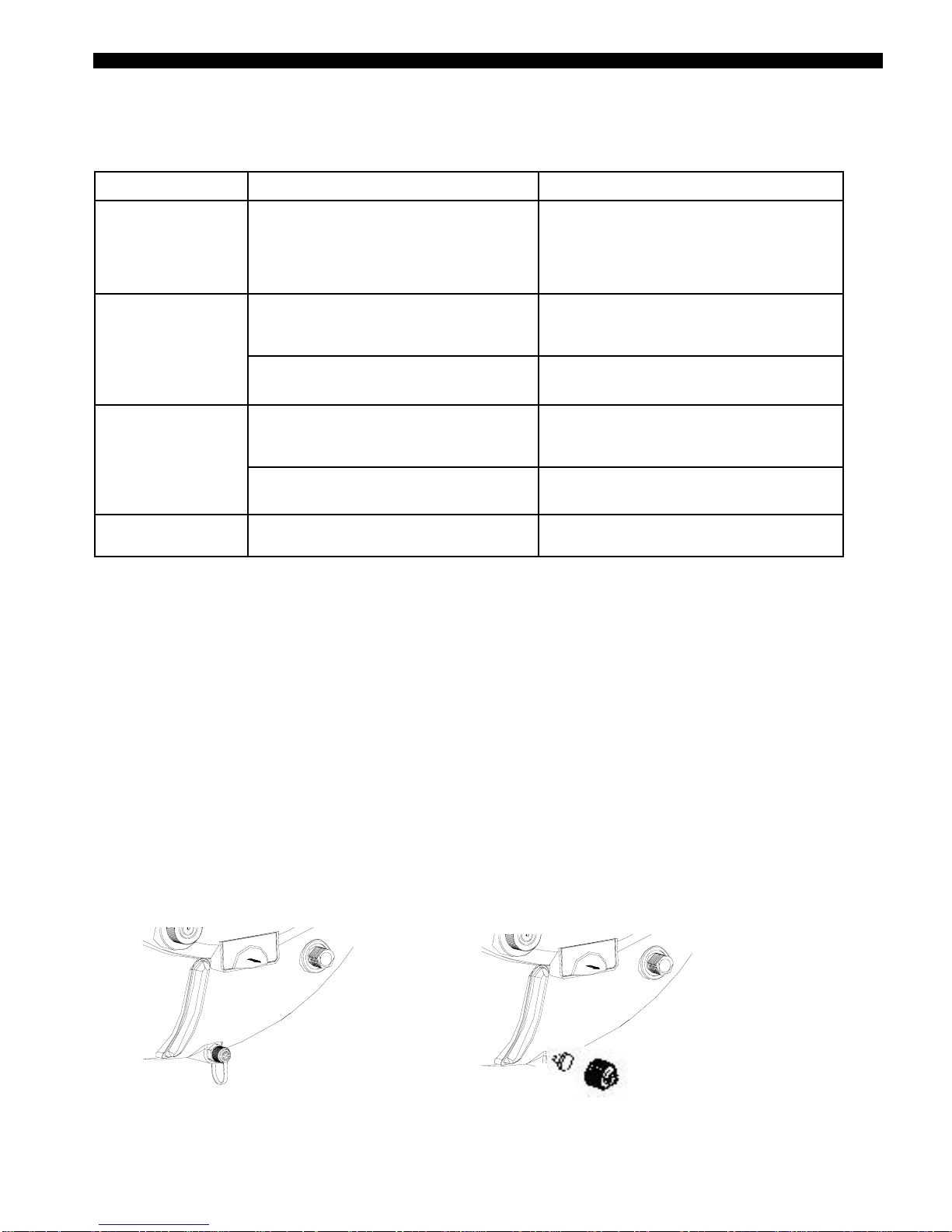

Problem Possible Reason Solution
Not Working
No Power Plug in power cord to grounded three
pronged outlet
Bad Electrical Outlet Repair or change outlets
Little or No Water
Mist
Cooling control valve is set too low Turn the control dial counter-clockwise
to increase power.
Water Tank is Empty Fill Water Reservoir
Low Misting
Power
Cooling control valve is set too low Turn the control dial counter-clockwise
to increase power.
Low voltage coming from electrical
outlet Repair or change outlets
Not Enough Air-
flow Low voltage coming from electrical outlet Repair or change outlets
FIGURE C

9
WARRANTY
One Year Limited Warranty
Bole International Inc. warrants the accompanying Bole HumidiBreeze to be free of defects in material and workman-
ship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original re-
tail purchase in the United States.
If the unit exhibits a defect in normal use, Bole International Inc. will, at its option, either repair or replace it, free of
charge within a reasonable time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a
copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
• Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in
material or workmanship.
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
• Damage to the finish of the case, or other appearance parts caused by wear.
• Damage caused by repairs or alterations of the unit by anyone other than those authorized by Bole Interna-
tional Inc.
• Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. BOLE INTERNATIONAL INC.
DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT
SHALL BOLE INTERNATIONAL INC’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR
BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow
limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state.
