bolid S2000-SP2 User manual

ADDRESSABLE TWO OUTPUT ALARM ACTUATING UNIT
S2000-SP2 Rev.02
User’s Manual

3
Table of Contents
1 Description and Operation....................................................................................................... 5
1.1 Purpose .......................................................................................................................... 5
1.2 Specifications................................................................................................................. 6
1.3 Standard Delivery........................................................................................................... 7
1.4 Arrangement and Operation............................................................................................ 7
1.4.1 Outputs ...................................................................................................................... 7
1.4.2 Polling Loop .............................................................................................................. 8
1.5 Measuring Instruments, Tools, and Accessories.............................................................. 8
1.6 Marking and Sealing ...................................................................................................... 8
1.7 Packaging....................................................................................................................... 8
2 Intended Use ........................................................................................................................... 9
2.1 Operating Restrictions.................................................................................................... 9
2.2 Preparing for Use ........................................................................................................... 9
2.2.1 Safety Precautions...................................................................................................... 9
2.2.2 Design ....................................................................................................................... 9
2.2.3 Mounting the Unit.................................................................................................... 10
2.2.4 Wiring the Unit........................................................................................................ 12
2.2.5 Programming the Unit.............................................................................................. 13
2.2.6 Usage....................................................................................................................... 15
2.2.7 Testing Operability .................................................................................................. 15
2.2.8 Extreme Situation Actions ....................................................................................... 16
2.2.9 Troubleshooting....................................................................................................... 16
3 Maintenance.......................................................................................................................... 17
3.1 General......................................................................................................................... 17
3.2 Safety Precautions........................................................................................................ 17
3.3 Maintenance Procedures............................................................................................... 17
3.4 Testing Operability....................................................................................................... 17
3.5 Technical Examination................................................................................................. 17
3.6 Preservation (Depreservation, Represervation) ............................................................. 17
4 Repair ................................................................................................................................... 18
5 Storage.................................................................................................................................. 18
6 Transporting.......................................................................................................................... 18
7 Disposal ................................................................................................................................ 18
8 Manufacturer Warranty ......................................................................................................... 18
9 Certification Information....................................................................................................... 18

4
The purpose of this User’s Manual is to provide a basic understanding of principles and rules of
operation of S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit.
Only the personnel who have studied this manual are allowed to operation activities. All
activities on mounting, start-up, programming, and testing shall be performed in compliance with the
requirements of the regulatory documentation in force at the place of operation.
Abbreviations:
CIE: Control and Indicating Equipment;
ISS: Integrated Security System;
PL: Multiplex Addressable Polling Loop.

5
1Description and Operation
1.1 Purpose
S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit (hereinafter referred to as
SP2.02 or the unit) is intended to:
-Control executive appliances (light and sound alarms etc.) and automated fire protection equipment
in public address systems and smoke control systems;
-Control clean agent suppression systems and fire-fighting equipment in water-based fire suppression
systems, foam extinguishing systems, gas fire-fighting systems, dry powder fire-fighting systems,
and aerosol fire-fighting systems;
-Generate control signals for engineering equipment and other devices involved in fire safety
providing;
-Control other appliances (light and sound alarms, cameras, EM locks and so on) in intrusion alarm
systems, panic alarm systems, process signaling systems, and access control systems.
The unit is used with an S2000-KDL or S2000-KDL-2I polling loop controller under an S2000M
control panel, or Sirius Fire Alarm Control Panel, or one of their modifications as a component of
modular control and indicating equipment in such system as a fire / intrusion / panic alarm system, a
voice fire alarm and evacuation system, a fire suppression and smoke control system, an access
control system, a CCTV, or building automation system.
The unit controls actuating devices by switching voltage from its own contacts U
main
and U
backup
to the output terminals. Connecting external power supplies to the terminals of the outputs is
prohibited and can cause malfunctions of the unit.
The unit is intended for round-the-clock operation.
The unit is classed as a restorable and regularly maintainable item.
The design of the unit doesn’t provide its operating in aggressive and / or dusty environments as
well as in explosion hazardous and flammable premises.
The unit appearance and overall and mounting dimensions are shown in 2.2.2.

6
1.2 Specifications
Table 1.2.1
Parameter Value
Power inputs 2
Power input voltage
- for executive elements
- for receive/transmit part
10.2 through 28.4 V dc
via PL, 8 through 12 V
Consumed Current
- for executive elements
- for receive/transmit part
60 mA max(w/o regard to outputs’
current)
1 mA max
Start-up time 15 s
PL/executive part insulation voltage 500 V
Number of outputs 2
Maximum commuting current per a single output 3 A
Maximum total commuting current for the unit 4 A
Circuit operability monitoring current, max 1.5 mA
Circuit operability monitoring voltage 5 V
Commuting Voltage 10.2 through 28.4 V from the power
supply of the executive part
Enclosure Protection Degree as per GOST 14254-2015 IP40
Resistance to mechanical exposure as per OST 25 1099-83 Arrangement Category III
Vibration exposure:
- Frequency range
- Max acceleration
1-35 Hz (for Category III)
0.5 g (for Category III)
Environmental category as per OST 25 1099-83 O3
Operating temperatures Minus 30 through + 55 °С
Weight 0.2 kg max
Overall dimensions 102
×
107
×
39 mm
Non-stop operation 24/7
MTBF in the quiescent mode 80,000 hours min
Survival probability (after 1000 h) 0.98758
Expected lifetime 10 years
As to immunity to man-made radio disturbance, the unit meets the requirements for Test Severity
Level III of the relevant standards listed in Appendix ‘Б’ of GOST R 53325-2012.
The unit passes the man-made radio disturbance standards prescribed for Class ‘Б’ equipment as
per GOST R 30805.22.

7
1.3 Standard Delivery
The standard delivery for the unit is shown in Table 1.3.1.
Table 1.3.1
Item Quantity
S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit 1 pc.
Accessory Kit:
Woodscrew 1-3х25.016 GOST 1144-80
Wall Plug 6х30
DIN 7982 Flat Head Tapping Screw with Cross Drive 2.2×6.5
MPN Load Connection Module
3 pcs.
3 pcs.
1 pc.
2 pcs.
Documentation:
S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit Operations Manual 1 pc.
1.4 Arrangement and Operation
1.4.1 Outputs
The unit controls actuating devices by switching voltage from its own contacts U
main
and U
backup
to the output terminals. Connecting external power supplies to the output terminals is prohibited and
can cause a unit fault.
The unit provides switching outputs (on, off, on and off alternately) under the given program in
accordance with control commands received via the polling loop as well as monitoring control
outputs and circuits connected to them.
Status of a switched off monitored circuit is defined by the value of voltage at the positive output
terminal relatively to the 0V terminal:
-Normal: between minus 0.15 V and minus 1.125 V;
-Open-Circuit Fault: less than minus 1.125 V;
-Short-Circuit Fault: higher than minus 0.15 V.
Status of a switched on monitored circuit is defined by the value of monitored circuit current:
-Normal: between 5 mA and 3 A;
-Open-Circuit Fault: less than 5 mA;
-Short-Circuit Fault: higher than 3 A.
Note: If an output while being switched on is in the short circuit condition then it will not be
switched on. The output can be switched on in 15 seconds after the failure is repaired.
On detecting a short or open circuit failure in a monitored circuit, the unit sends an Output Open
or Output Short message respectively over the interface bus. When the monitored circuit returns into
the Normal status the unit sends an Output Restored message over the interface bus.
Conditions of the actuating outputs and the monitored circuits connected to them in the quiescent
mode are indicated by the “1” and “2” LEDs as shown in Table 1.4.1.
Table 1.4.1. Output Status Indication
Circuit
Condition Output Status Indicator Performance
Norm On Illuminates steady with green
Off Off
Open-Circuit
Fault
On Flashes doubly with amber once per 4 sec
Off
Short-Circuit
Fault
On Flashes with amber once per 4 sec
Off

8
1.4.2 Polling Loop
The unit receives control commands and sends states of monitored parameters via the digital
multiplex addressable polling loop.
Current status of communications with the polling loop controller is indicated by the READY
indicator as shown in Table 1.4.2. The indicator also indicates conditions of communications with the
executive part of the unit.
Table 1.4.2.
Polling Loop Status Indicator Performance
PL is starting to operate. This lasts
from the moment
the power is applied to the PL terminals of the unit
and up to
the first request of the polling loop
controller to the unit
Illuminates steady with green
Quiescent mode Flashes with green once per 4 sec
No communications with the executive part of the unit Flashes doubly with green once per 4 sec
Setting an address Flashes four times with green once per 4 sec
1.5 Measuring Instruments, Tools, and Accessories
While mounting, commissioning, and maintaining the equipment, one should use the instruments,
tools, and accessories shown in Table 1.5.1.
Table 1.5.1
Instrument Specifications
Digital multimeter AC/DC voltage up to 500 V, AC/DC current up to 5 A,
resistance up to 2 MOhm
Flat head insulated screwdriver ZUBR ELECTRO-EXPERT SL 3.0х75 mm
Cross slot insulated screwdriver ZUBR ELECTRO-EXPERT PH 2x100 mm
Side-cutting pliers ZUBR ELECTRIC 160 mm
Pliers ZUBR EXPERT 160 mm
To assign the PL address to the unit, one can also use an S2000-APA standalone addressable
device programmer.
Note: One can use other instruments, tools, and accessories with similar characteristics
1.6 Marking and Sealing
Every unit has a marking applied to the back of its enclosure.
The marking contains the name of the unit, its decimal number, factory number, the year and
quarter of production, and conformity marks.
1.7 Packaging
The unit along with its accessory kit and operation documentation is packed in a separate
cardboard box.

9
2Intended Use
2.1 Operating Restrictions
The design of the unit doesn’t provide its operation in aggressive and / or dusty environments as
well as in explosion hazardous and flammable premises.
Correct performance of the unit cannot be guaranteed if electromagnetic environment does not
meet the requirements defined in Section 1.2 of this manual.
2.2 Preparing for Use
2.2.1 Safety Precautions
-The design of the unit meets the requirements of electric and fire safety including emergency
operation in accordance with Russian standards GOST 12.2.007.0-75 and GOST 12.1.004-91;
-The unit has no circuits under a hazardous voltage;
-Do SHUT OFF power from the equipment before mounting, installing, and maintaining this one;
-Installation and maintenance of the unit shall be carried out by professionals qualified for
Accident Prevention of Class II or higher.
2.2.2 Design
The unit is composed of a PC board and an enclosure, which is assembled from a plastic base and
a cover.
The view of the unit along with its overall and mounting dimensions is shown in Figure 2.2.1.

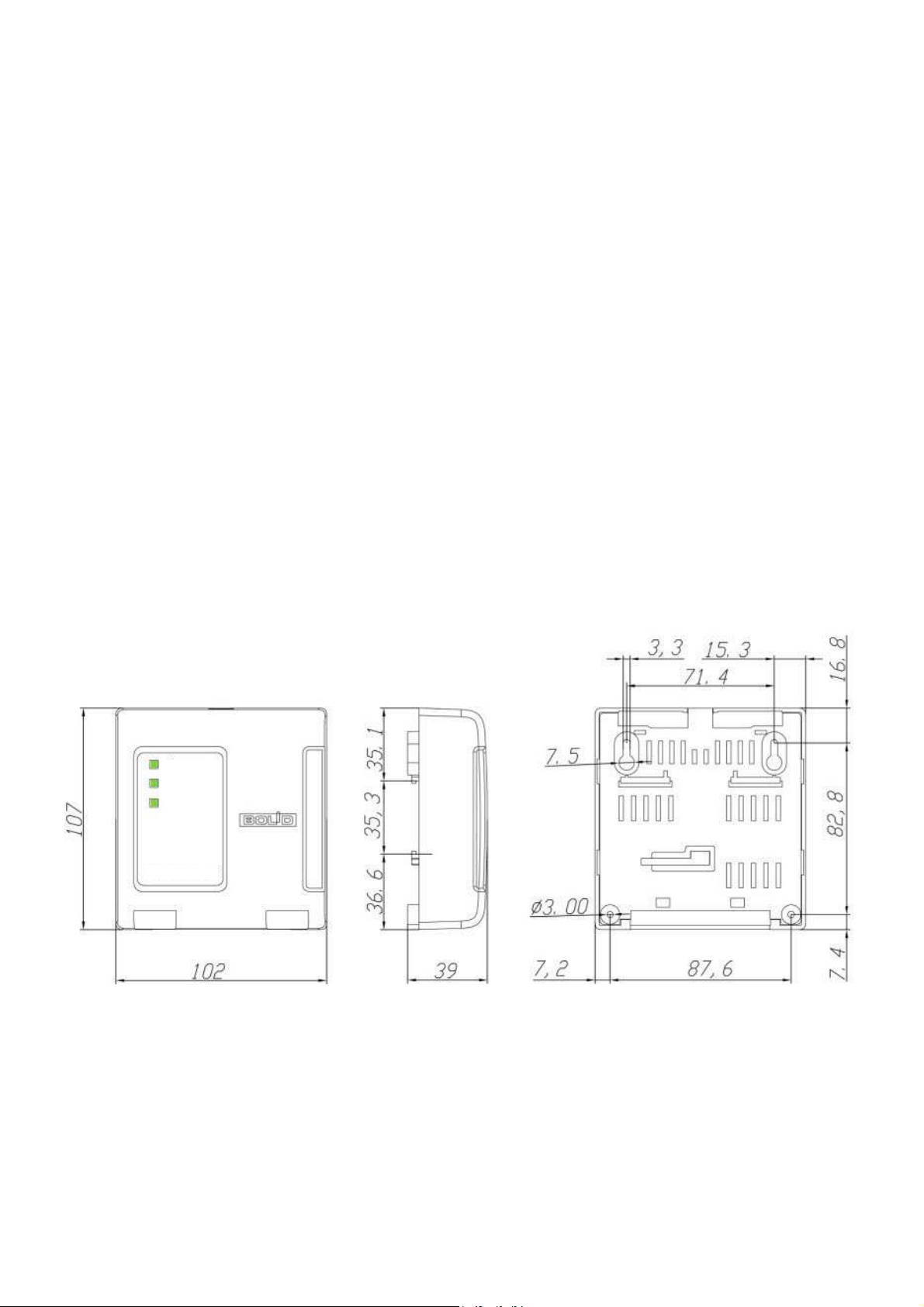

Figure 2.2.1. The Unit’s View along with Overall and Mounting Dimensions
1
2
READY
S2000-SP2 02

10
2.2.3 Mounting the Unit
Prior to mounting the unit, this one shall be assigned with a unique range of addresses within the
polling loop. These addresses shall not coincide with addresses of any devices connected to the same
polling loop the unit is connected to. To get more detailed information on changing the unit addresses
please see 2.2.5 in this manual.
The unit shall be installed inside the premises to be protected.
The unit can be installed within mounting enclosures (fire and intrusion alarm cabinets, boxes,
etc.) on walls, behind suspended ceilings, or on other structures near the actuating appliances in the
premises protected against exposure to atmospheric precipitations and mechanical damage.
In case when various devices are arranged adjacently, vertical and horizontal distances between
them shall be at least 10 mm each.
The design of the unit doesn’t provide its operation in aggressive and / or dusty environments as
well as in explosion hazardous and flammable premises.
The unit shall be installed at a height suitable for operating and maintenance.
Installation and maintenance of the unit shall be carried out by professionals qualified for
Accident Prevention of Class II or higher.
Figure 2.2.2 shows how to remove the unit cover.
Figure 2.2.3 shows how to mount the unit on a DIN rail.
Figure 2.2.4 shows the template for drilling holes to mount the unit on a wall.
Figure
2.2.2
.
Removing the Unit Cover
Figure
2.2.3
.
DIN Rail Mounting
Unscrew the screw
fixing the cover
Slide the cover
forward
Push the top end of the
cover down with
your thumbs
Slightly push on the
lower edge of the unit
Turn the unit until
clips onto the rail
Place the unit base
hooks under the edge
of the DIN-rail

11

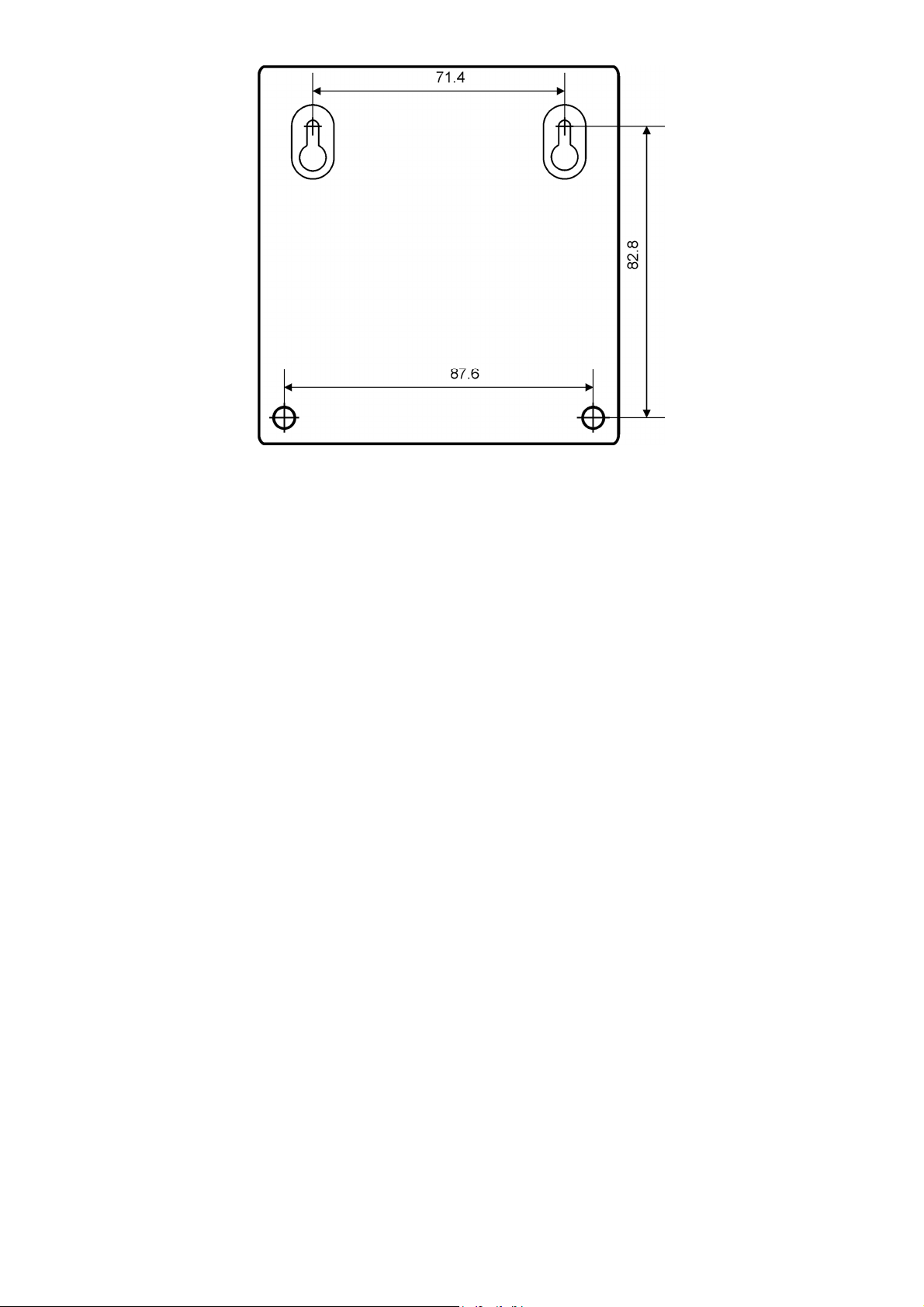

Figure 2.2.4. Drilling Template
Mounting on a Wall:
-Please ensure that the wall the unit is to be mounted onto is solid, flat, clean, and dry;
-Drill three holes in the wall: two upper ones and a lower one;
-Insert wall plugs to the holes and screw provided woodscrews into the two upper holes so that
distances between a screw head and the wall is about 7 mm;
-Remove the cover from the unit;
-Hang the unit on the two screws. Screw the third screw into the lower mounting hole and fasten
the unit to the wall;
-Connect electric wires to the unit as per the project design documentation and the connection
diagram;
-Close the unit with its cover;
-To dismantle the unit, please follow all the steps in the reverse order.
Mounting on a DIN-rail:
-Install the unit on the DIN rail;
-Remove the cover from the unit;
-Connect electric wires to the unit as per the project design documentation and the connection
diagram;
-Close the unit with its cover;
-To dismantle the unit, please follow all the steps in the reverse order.
It is acceptable to use mounting enclosures (cabinets, boxes, etc.) for installation. If the unit and
other units are arranged adjacently then vertical and horizontal distances between them shall be at
least 10 mm each.

12
2.2.4 Wiring the Unit
Figure 2.2.5 shows the general schematic for wiring the unit.
Notes:
1. The kinds of actuating devices being connected to the outputs are defined by user and can differ from the
ones specified above.
2. Load connection modules (MPN) shall be installed inside the actuating appliances (except for starting
circuits of fixed fire extinguishing systems).
3. In case of connecting starting circuits of fire-fighting systems or equipment in explosion protected housing,
load connection modules can be installed in close vicinity from them.
4. If an output is not in use, one can replace load connection module with a 510 Ohm – 1/2W resistor.
Figure 2.2.5. General Schematic for Connecting the Unit
Connecting to fixed fire-fighting systems should be conducted in accordance with the schematic
in Figure 2.2.6. The length of wires used to connect a fire-fighting systems and the resistance of the
additional resistance shall be such that the required squib activation current will be provided.
Figure 2.2.6. Preferable Diagram for Connecting a Discharge Circuit

13
The nominal value of the additional resistance R
add
should be estimated using the formula below:
min
2 1 fight
1
( )
add
U
R R R R
I
−
= − + +
where :
U
min
is for the minimum voltage of the power supply (10 V for an RIP-12 or 20 V for an RIP-24);
Iis for the required current of activation, [A];
R
1
is for the resistance of the wires between the power supply and the unit, [Ohm];
R
2
is for the resistance of the wires between the S2000-SP2 rev.02 and the fixed fire-fighting
system, [Ohm];
R
fight
is for the effective resistance of the explosive squib (bridgewire), [Ohm].
The preferred value for the current-limiting resistor R
add
is to be selected as the nearest smaller
value in E24 series.
The R
add
resistor must be of enough power, especially if the activation time exceeds one second.
For example, when the unit is fed by a 24 V power supply, the resistance of connecting wires is
less than 0.3 Ohm, the squib resistance is 6 Ohm, and the squib operating current is 0.1 A, then the
resistance of the additional resistor is selected as 160 Ohm.
Several appliances (light signs, sirens and so on) can be connected in parallel across a single
output if the following requirements are met:
-In the quiescent mode the appliances are turned off;
-The total current per the output doesn’t exceed the maximum allowed one (3 A);
-Mounting is conducted in accordance with the schematic shown in Figure 2.2.7.

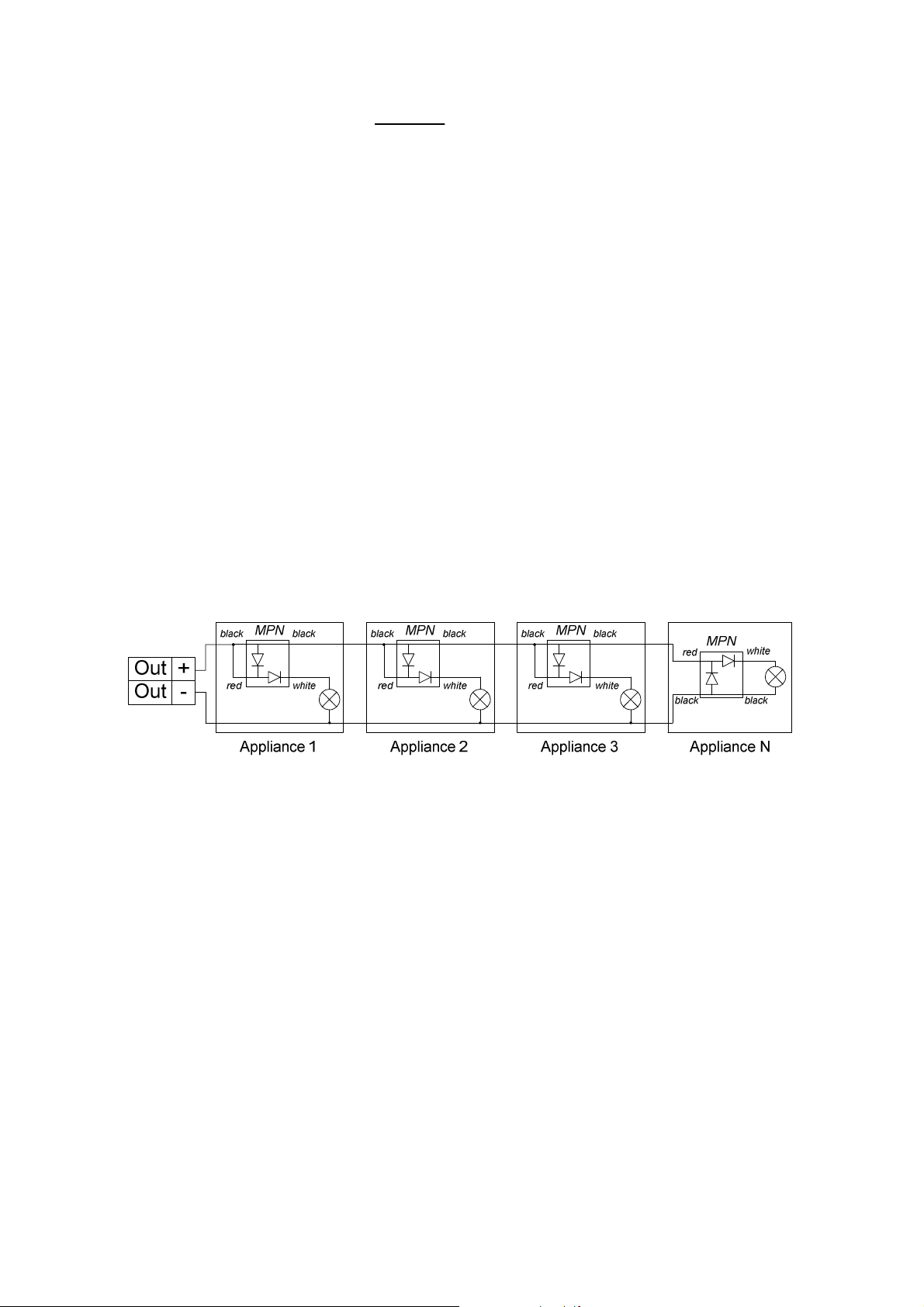

Figure 2.2.7. The Diagram for Connecting Several Normally Turned Off Sirens or Light Signs to
a Single Output
2.2.5 Programming the Unit
Setting an address:
Prior to operating the unit, please assign it with a unique address in the PL. This address shall not
be the same as any device connected to the same PL may have.
The unit occupies two addresses in the PL address space and provides storing them in the non-
volatile memory.
The addresses are adjacent, that is the unit occupies two addresses in series.
The unit comes with addresses 126, 127.
To set the addresses, please send one of the following commands for the polling loop controller
in use from the S2000M control panel or a PC with installed UProg Configuration Tool:
–Set Device Address;
–Change Device Address.
A Set Device Address command assigns an address to the unit without regard to what address
this one is assigned to at the time. This option can be used when the same address is erroneously

14
assigned to two or more devices. To set the unit address, send a relevant command from the network
controller specifying an address to be assigned to the first relay. Then within 5 min perform the
following combination of presses on the unit tamper switch: three long ones (> 1 sec) and one short
press. The network controller shall display events about loss of communication with the device with
the old addresses and connecting with devices with the new addresses. For the case of two or more
devices which have the same addresses, there will be no messages about missing the devices with old
addresses.
If you need to change the unit addresses which are known, send the Change Device Address
command from the control panel or the PC specifying the current address and the new address as the
parameters. The network controller shall display messages about disconnecting the devices with the
old addresses followed by messages about detecting the devices with newly set addresses.
Note!If the unit is assigned to the address 127, then the second relay (address) fails to be used
because 127 is the maximum value of address in the system.
Defining parameters:
Configuration parameters of the unit are stored in the memory of the polling loop controller; they
are to be defined on the Outputs tab of UProg Configuration Tool. The list of the configuration
parameters is presented in Table 2.2.1.
Specific values of the configuration parameters to be defined are to be selected depending on the
type of the actuating devices connected to the unit and the requirements for their operation in scope
of the specific project.
To have more details on the purpose and assigning configuration parameters of the unit, please
refer to the polling loop controller operation documentation.
Table 2.2.1 – Configuration Parameters of the Unit
Parameter Description Range Default Value
Control Program Defines how the output
is to be
operated 0 – 53 0
Operation Time The time for a time-lim
ited program to
operate for
0…8160 s
(up to 2 h 16 min)
with 0.125s increment
(8160 s: Always On)
60 s
Activation Delay
The time after
which the related control
program shall be run.
Used in the
programs 1…8, 11, 12, 17…53
0…8160 s
(up to 2 h 16 min)
with 0.125s increment
0
AND / OR Logic
Condition for turning the programs
36
and 37 on (off) when the output
is
related to several inputs of Type 10
or
Type 15
0 – OR
1 – AND 0 (OR)
Temperature
Increased
Threshold
The temperature value on reaching
which the output is to be turned on
(off) for the control program 36 (37)
Minus 55…+125°С22
Temperature
Decreased
Threshold
The temperature value at which the
output is turned off (on) for the control
program 36 (37)
Minus 55…+125 °С20

15
Parameter Description Range Default Value
Humidity
Increased
Threshold
The value of relative humidity on
reaching which the output is to be
turned on (off)
for the control program
36 (37)
0…100 % 70
Humidity
Decreased
Threshold
The value of relative humidity at which
the output is turned off (on) for the
control program 36 (37)
0…100 % 60
Gas Increased
Threshold
The value of gas concentration in ppm
at which the output is to be turned on
(off) for the control program 36 (37)
0 … 100 40
Gas Decreased
Threshold
The value of gas concentration in ppm
at which the output is to be turned off
(on) for the control program 36 (37)
0 … 100 0
Report If Relay
Status Changed
Enables or disables generating
messages about changes in the output
status
Yes
No No
Backup Power
Input Monitoring
Generating events upon a change in
conditi
ons of the backup battery or the
second power input of the addressable
device
On / Off On
Warning!
To change configuration parameters, please use UProg utility v.4.1.0.26+
2.2.6 Usage
The unit is operated under an S2000-KDL polling loop controller and S2000M control panel or
Sirius fire alarm control panel.
All operating conditions (control program, time to operate, delay before operating the output) are
defined by configuration parameters of the equipment mentioned above. To get information how to
define an addressable device type and configuration parameters, please refer to operation
documentation for the polling loop controller, S2000M, Sirius, and Orion Pro Suite.
While selecting power supply for the unit, one should ensure that it is able to provide a current
sufficient for powering all actuating appliances connected to the unit.
The power supply should be located at such distance from the unit that the resistance of wires
between the power supply and the unit meets the following condition:
-While being powered by a 12 V power supply: R ≤0.25 Ohm;
-While being powered by a 24 V power supply: R ≤0.34 Ohm.
2.2.7 Testing Operability
Testing operability is conducted as described in Clause 3.4 of this manual.

16
2.2.8 Extreme Situation Actions
2.2.9 Troubleshooting
Table 2.2.9.1
Fault Possible Cause Solution
The unit fails to control
outputs
Polling loop failure Check the polling loop for
open or short circuit failure
Unit address failure or error Change the unit address for or
set it to the required value in
the range of 1 – 123
Unit failure Replace the unit for a healthy
one following the instructions
of this manual
No power for executive part of
the unit
Check the power voltage at the
unit power inputs
The unit address is not shown
in the UProg utility
Collision of addresses of
various addressable devices in
the polling loop
Set the unit address to another
value, the value should be
between 1 and 123
Warning!
If sparks, fire, smoke, or smell of burning is found at the installation site of the
product, the product must be de-energized and sent for repair

17
3Maintenance
3.1 General
The unit is to be maintained under the following schedule:
Table 3.1
Task Description Frequency
Visual checking Once a year
Check for operability Once a year
3.2 Safety Precautions
The unit shall be maintained by personnel qualified for Accident Prevention of Level II or higher.
3.3 Maintenance Procedures
3.3.1 Visual checking of the unit includes checks for no mechanical damages, fastening reliability,
and proper condition of connecting wires and contact joints.
3.3.2 To verify the unit operates properly, please follow the instructions of Section 3.4 of this manual.
3.4 Testing Operability
Be sure that the unit configuration and wiring are consistent with this manual and the system
design documentation.
While the unit is being tested, all monitored circuits coupled with automated fire-fighting
equipment shall be disconnected from the outputs of the unit and be replaced with the simulators
similar in the load current.
After applying power to the unit, the built-in indicator READY start lighting steady until the
moment the polling loop controller polls the given address. Then the indicator goes to flash slowly.
Remove the cover from the unit and ensure that a tamper alarm message has been received by the
network controller S2000M, Orion Pro, or Sirius (a message on having restored the tamper will come
on elapsing 15 seconds after closing the unit cover).
Further checking of the unit is conducted within the system by sending the unit commands to
control its outputs.
3.5 Technical Examination
Technical examination is not applicable for this equipment.
3.6 Preservation (Depreservation, Represervation)
Preservation is not applicable for this equipment.
Warning!
Removing the unit’s PC board from its housing automatically voids the
manufacturer’s warranty

18
4Repair
Repair of faulty equipment is to be conducted by the manufacturer or in authorized repair centers.
The product shall be sent for repair in compliance with Company Standard QMS 8.5.3-2015, which
can be found online at our website https://bolid.ru/support/remont/.
An equipment fault resulted from consumer’s not observing rules of mounting and operation is
not a reason for claims and warranty repair.
Claims shall be submitted to the following address:
NVP BOLID, #4 Pionerskaya Str., Korolyov, Moscow Region, 141070, Russia
Phone: [phone], E-mail: [e-mail].
In case of any issue related to use of the product, please contact the technical support: +7 (495)
775-71-55 or e-mail [email protected].
5Storage
Storage in a transport container is permitted at ambient temperatures minus 50 through + 55 °С
and relative humidity up to 95% at + 35 °С.
Storage in the consumer package is permitted only in heated premises at temperatures +5 through
+40 °Сand relative humidity up to 80% at + 20 °С.
6Transporting
The units can be transported in a transport container at ambient temperatures minus 50 up to + 55
°Сand relative humidity up to 95% at + 35 °С.
7Disposal
The unit can be disposed of considering that there are no toxic components in it.
The content of precious materials: doesn’t require accountability for storage, retirement, and
disposal (Clause 1.2 of GOST 2.608-78).
The content of non-ferrous metals: does not require accountability for retirement and further
disposal.
8Manu acturer Warranty
The manufacturer guaranties the product meets with technical requirements stated in the manuals
if the user follows the instructions for transportation, storage, installation, and usage.
The warranty period is 18 months since putting the product into operation but no more than 24
months from the manufacturer’s date of production.
9Certi ication In ormation
S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit meets the requirements of
Technical Regulations of Eurasian Economic Union TR EAEU 043/2017 ‘On Requirements for Fire
Warning!
The equipment shall be submitted for repair being assembled and clean and along
with all the parts listed in the documentation.
Claims are accepted only if a reclamation report describing the failure is applied to
the submitted equipment.

19
Safety and Fire Extinguishing Equipment’ and is covered by the conformity certificate ЕАЭС RU С-
RU.ПБ68.В.00382/21 issued by the certification body ‘Fire Certification Company’.
S2000-SP2 Rev.02 Addressable Two Output Alarm Actuating Unit meets the requirements of
Technical Regulations of Custom Union ‘Electromagnetic Compatibility of Technical Equipment’
(TR CU 020/2011). It is covered by the conformity declaration ЕАЭС No. RU Д-
RU.HP15.B.06633/20.
Production of S2000-SP2 rev.02 is awarded with the conformity certificate GOST R ISO 9001.
The certificate can be found online at the website http://bolid.ru in the section ABOUT COMPANY.
