INDEX
FOREWORD , . .. . . . . . . . . . . . , .. , , 2
HOW TO IDENTIFY YOUR SNOWMOBILE ,3
THE 1982IILIMITED WARRANTY" . . . . .. . . . .. ,4
OFTEN ASKED QUESTIONS, ., .. ,.......... .6
LISTING OFAREA DISTRIBUTORS. , , ,8
SAFETY IN MAINTENANCE . , .. , , 9
CONTROLSIINSTRUMENTS
Throttle lever, brake lever, ignition/light switch! headlamp dimmer switch, emer-
gency
cut-out switch! decompressor, manual starter handle! primer, tether cut-
out switch, hood opening, tool box, fuel gauge. , , . .10
BREAK-IN PERIOD
Break-in, inspection, inspection checklist ., ... ,
FUEL MIXING
Recommended gasoline, recommended oil, fuel mixture
cedu
re, .. " "....................
FUEUOIL MIXING CHART .
PRE-START CHECK
Check points , . .. . , ". .,.... ..16
STARTING PROCEDURE
Emergency cut-out switch, manual starting, emergency starting 16
LUBRICATION
Frequency, boggie wheel mechanism, chaincase oil, drive
pulley , ' , , . . 17
MAINTENANCE
Maintenance chart, console removal, pulley guard removal, drive belt removal,
drive belt condition!
new drive belt, brake condition, brake adjustment, brake
light adjustment/ spark plug, suspension condition, track condition, track tension
and alignment, steering mechanism condition, steering adjustment, muffler at-
tachment, engine head nuts, engine
mount nuts, carburetor adjustment, head-
lamp beam aiming, headlamp beam adjustment, headlamp bulb replacement,
taillight bulb inspection , , 19
STORAGE
Track, suspension! ski assembly, controls, chaincase, drive pulley! driven pulley,
fuel tank and carburetor, cylinder lubrication! general inspection
.... .28
PRE-SEASON PREPARATION
Pre-season preparation, chart, " .. , , 31
TROUBLE SHOOTING . . . . . . . .. .32
TOOLS . , , , , .34
SPECIFICATIONS .. , , , ,
.', '.... , , .. , , 35
WIRING
DIAGRAM ' . . . .. . . . . . . . . .. . . . . . . . . . . . . .. . .. .37
SI METRIC
INFORMATION GUIDE . . , .. , ,. . . . .38
CHANGE OF ADDRESS OR OWNERSHIP. . . . . . . . . . . . . . . . . . 39

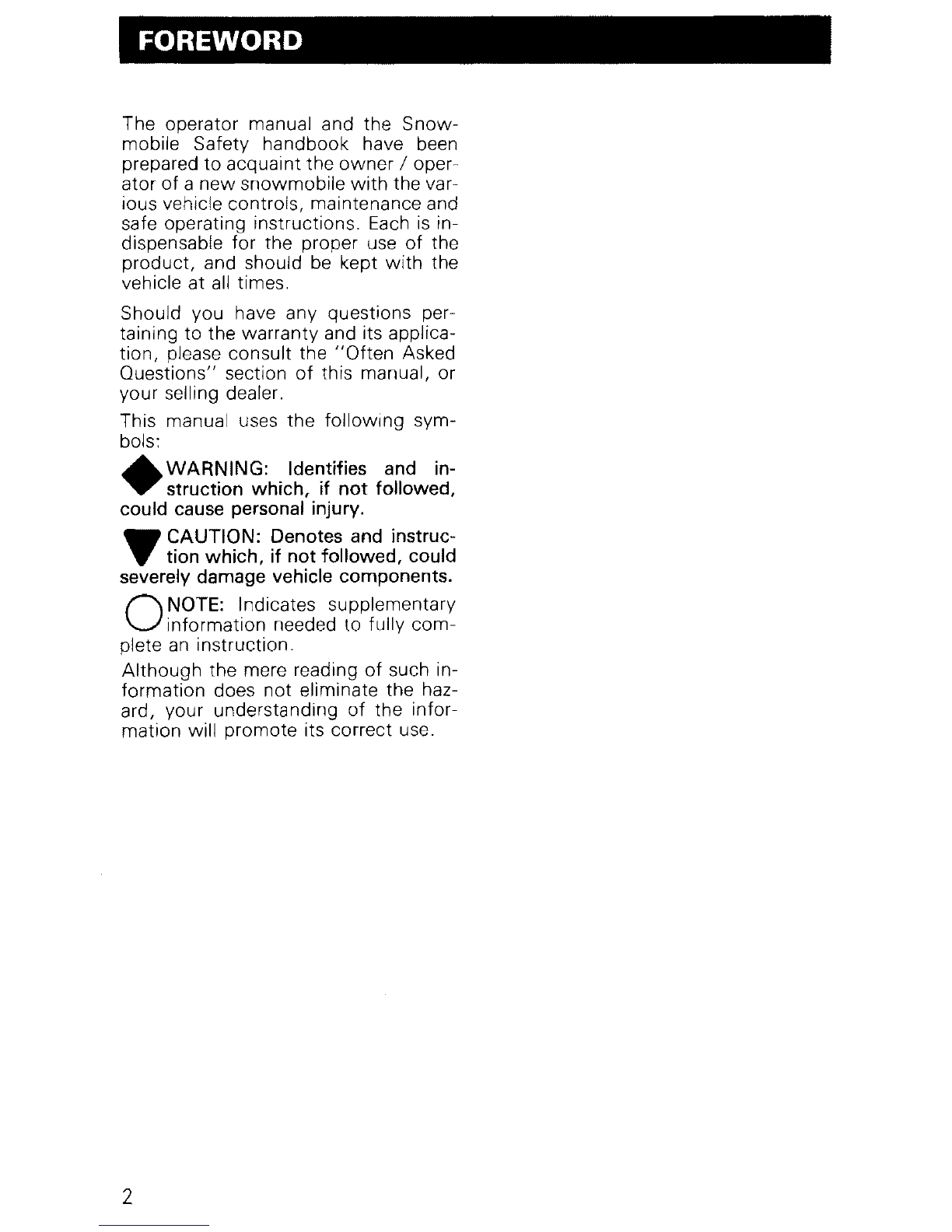

FOREWORD
The operator manual and the Snow-
mobile handbook have been
prepared to acquaint the owner / oper-
ator of a new snowmobile
with the var-
ious vehicle maintenance and
safe operating instructions. Each is in-
dispensable for the proper use of the
product, and should be kept
with the
vehicle at all times.
Should you have any questions per-
taining to the warranty and its applica-
tion, please consult the
"Often Asked
Questions" section of this manual, or
your selling dealer.
This manual uses the following sym-
bols:
.A.. WARNING: Identifies and in-
... struction which, if not followed,
could cause personal injury.
tIP CAUTION: Denotes and instruc-
~ tion which, if not followed, could
severely damage vehicle components.
ONOTE: Indicates supplementary
information needed to fully com-
plete an instruction.
Although the mere reading of such in-
formation does not eliminate the haz-
ard, your understanding of the infor-
mation will promote its correct use.
2

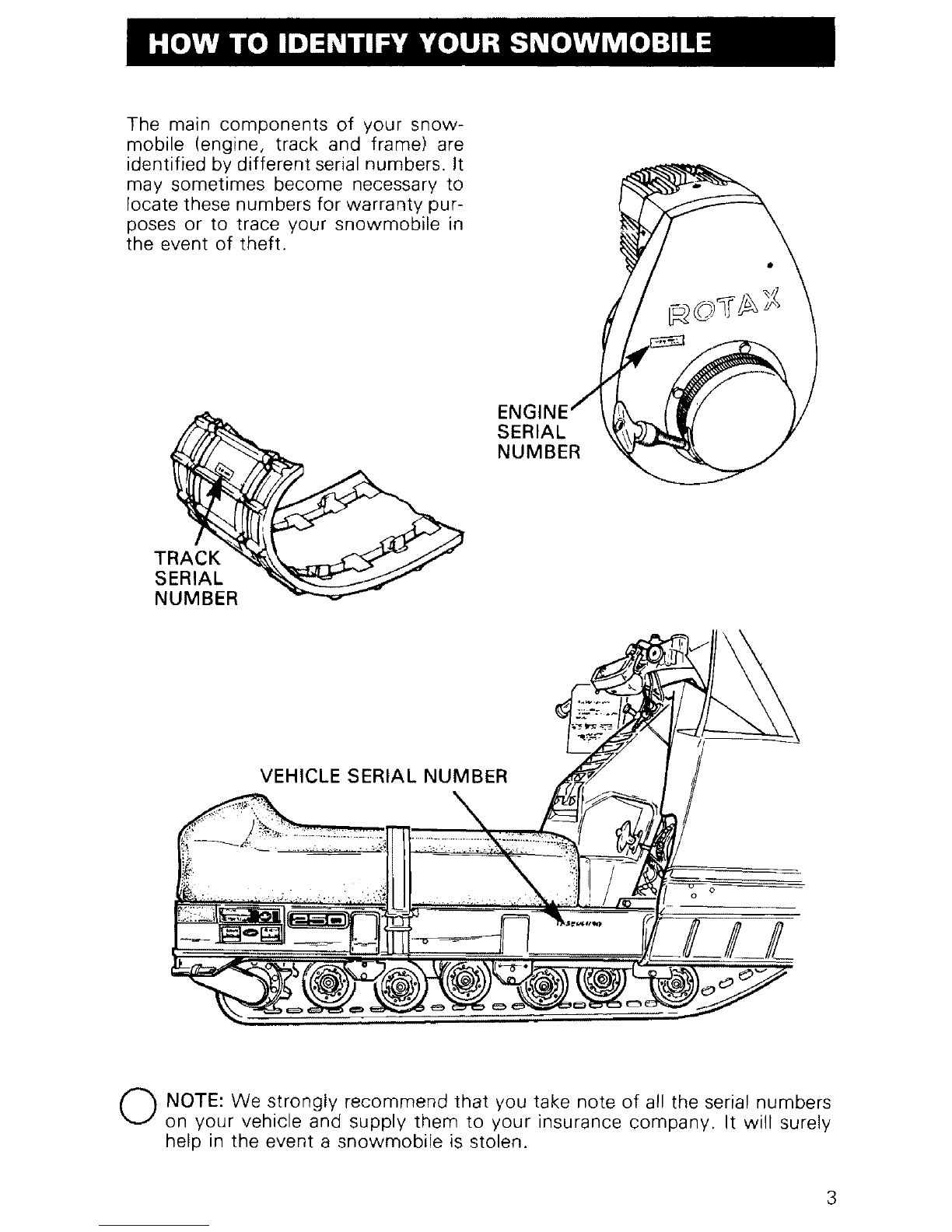

HOW TO IDENTIFY YOUR SNOWMOBILE
The main components of your snow-
mobile (engine, track and frame) are
identified by different serial numbers. It
may sometimes become necessary to
locate these numbers for warranty pur-
poses or to trace your snowmobile in
the event of theft.
ENGINE
SERIAL
NUMBER
ONOTE: We strongly recommend that you take note of all the serial numbers
on your vehicle and supply them to your insurance company. It will surely
help in the event a snowmobile is stolen.
3

LIMITED WARRANTY 1982 SKI-DOO® SNOWMOBILES
1-PERIOD
BOMBARDIER® INC. as manufacturer, warrants FROM THE DATE OF FIRST
CONSUMER SALES, every 1982SKI-DOO® snowmobile, sold as NEW AND UN-
USED, by an authorized SKI-DOO dealer, for periods of:
• 12 consecutive months for ELAN®, CITATION*, EVEREST®, ELlTE®,
ALPINE® models.
• 90 consecutive days for NORDIK*, SKANDIC*, BLiZZARD® 5500MX and 9500
MX models subject to the following:
1. If delivery is made after the 31st day of March of a given year and before the 1st
day of December of the same year, the above 90 day warranty will start on De-
cember 1st.
2. If delivery is made
on/or after the 2nd day of January of a given year but before
the 31st day of March of the same year, all the unused portion of the 90 day pe-
riod will be carried over to the next winter and start again on the 1st day of De-
cember of the same year.
2· WHAT BOMBARDIER WILL DO
BOMBARDIER will repair and/or replace, at its option, components defective in
material
and/or workmanship (under normal use and service.) with a genuine
BOMBARDIER component
without charge for parts or labour, at any authorized
SKI-DOO dealer during said warranty period.
3· CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER Customer Re-
gistration card received by the customer from the selling dealer at time of pur-
chase.
4-WARRANTY TRANSFER
This warranty is transferable to subsequent ownerls) for remainder of warranty pe-
riod from original date of sale.
5 .. EXCLUSIONS .. ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
- drive belts
slider shoes
- spark plugs
- breaker points
- runners on skis
• Replacement parts
and/or accessories which are not genuine BOMBARDIER
parts and/or accessories.
• Damage resulting from installation
of parts other than genuine BOMBARDIER
parts.
• Damage caused by failure to provide proper maintenance as detailed in the
Operator Manual. The labour, parts and lubricants costs of all maintenance ser-
vices, including tune-ups and adjustments will be charged to the owner.
• A sulphated battery.
4

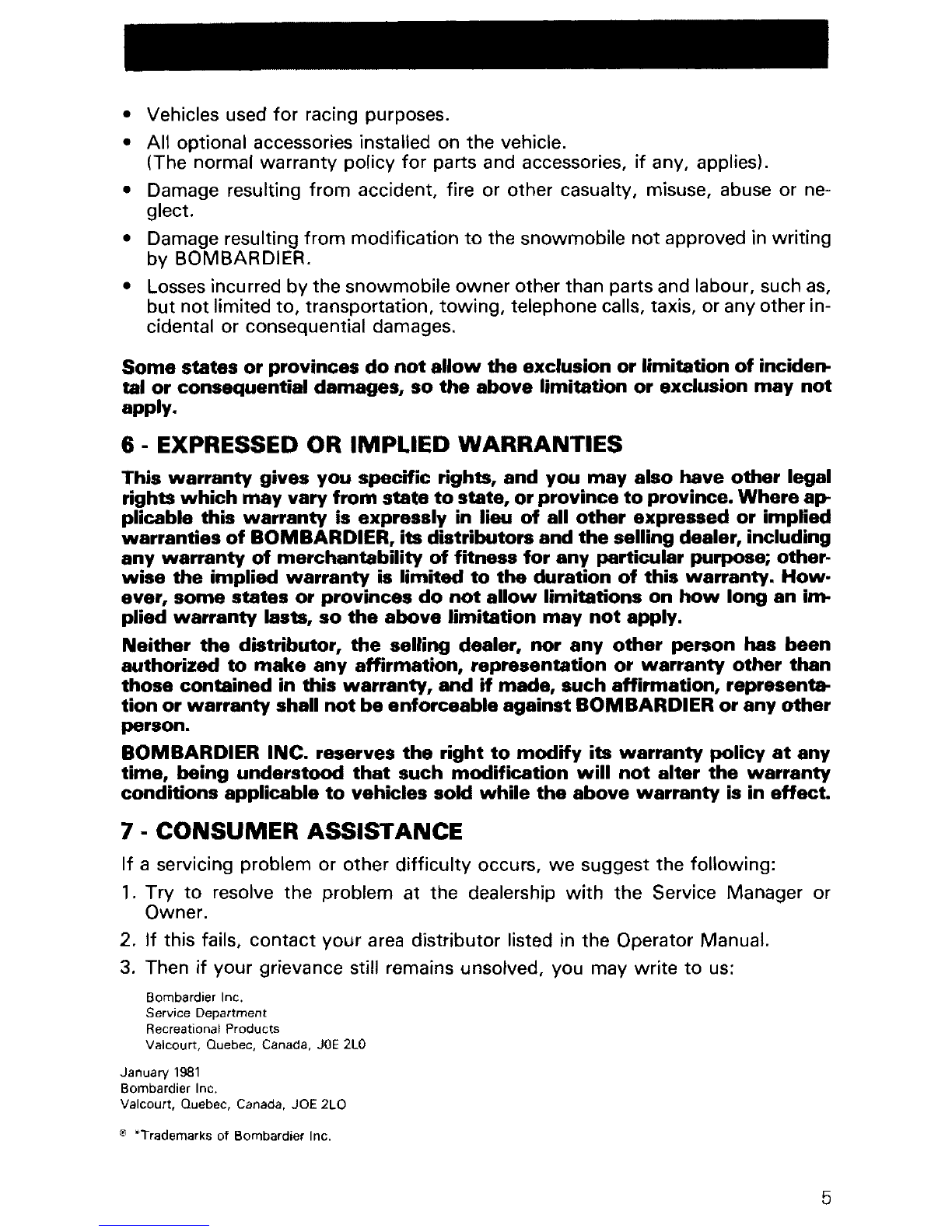

• Vehicles used for racing purposes.
• All optional accessories installed on the vehicle.
(The normal warranty policy
for parts and accessories, if any, applies).
• Damage resulting from accident, fire or other casualty, misuse, abuse or ne-
glect.
• Damage resulting from modification to the snowmobile not approved in writing
by BOMBARDIER.
• Losses incurred by the snowmobile owner other than parts and labour, such as,
but not limited to, transportation, towing, telephone calls, taxis, or any other in-
cidental or consequential damages.
Some states or provinces do not allow the exclusion or limitation of inciden-
tal or consequential damages, so the above limitation or exclusion
may not
apply.
6-EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights, and you may also have other legal
rights which may vary from state to state, or province to province.
Where ap-
plicable this warranty is expressly in lieu of all other expressed or implied
warranties of
BOMBARDIER, its distributors and the selling dealer, including
any warranty of merchantability of fitness for any particular purpose; other-
wise the implied warranty is limited to the duration of this warranty. How-
ever, some states or provinces do not allow limitations on how long an im-
plied warranty lasts, so the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been
authorized to
make any affirmation, representation or warranty other than
those contained in this warranty, and if made, such affirmation, representa-
tion or warranty shall not be enforceable against
BOMBARDIER or any other
person.
BOMBARDIER INC. reserves the right to modify its warranty policy at any
time, being understood that such modification
will not alter the warranty
conditions applicable to vehicles sold
while the above warranty is in eHect.
7- CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to resolve the problem at the dealership
with the Service Manager or
Owner.
2. If this fails, contact your area distributor listed in the Operator Manual.
3. Then if your grievance sti/l remains unsolved, you may write to us:
Bombardier Inc.
Service Department
Recreational Products
Valcourt, Quebec, Canada, JOE2LO
January 1981
Bombardier Inc.
Valcourt, Quebec, Canada, JOE 2LO
"Trademarks of Bombardier Inc.
5

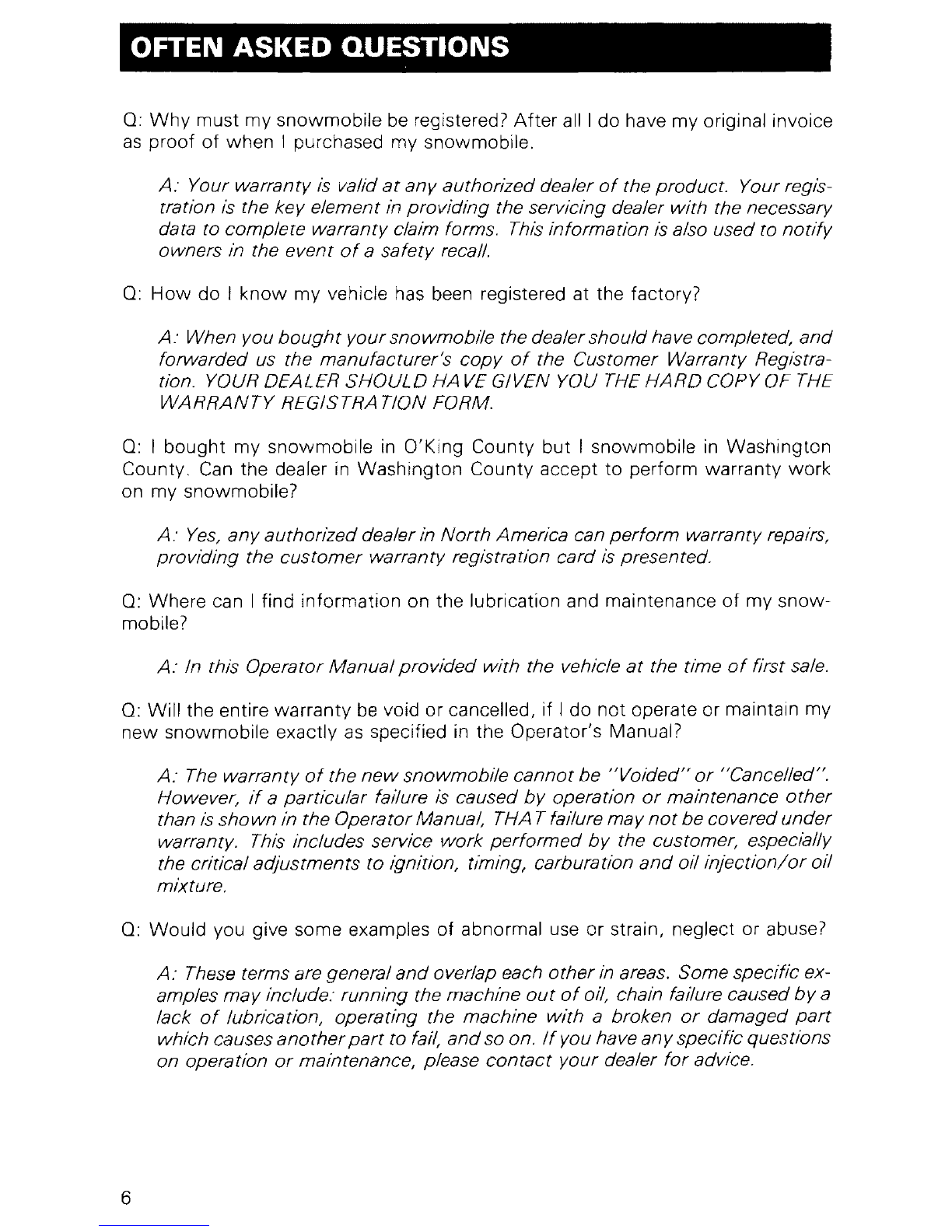

OFTEN ASKED QUESTIONS
Q: Why must my snowmobile be registered? After alii do have my original invoice
as proof of when I purchased my snowmobile.
A: Your warranty is valid at any authorized dealer of the product. Your regis-
tration is the key element in providing the servicing dealer
with the necessary
data to complete warranty claim forms. This information is also used to
notify
owners in the event of asafety recall.
Q: How do I know my vehicle has been registered at the factory?
A: When you bought yoursnowmobile the dealer should have completed, and
forwarded us the manufacturer's copy of the Customer Warranty Registra-
tion. YOUR DEALER SHOULD HA VEGIVEN YOU THE
HARD COpy OF THE
WARRANTY REGISTRA TION FORM.
Q: Ibought my snowmobile in O'King County but I snowmobile in Washington
County. Can the dealer in Washington County accept to perform warranty work
on my snowmobile?
A: Yes, any authorizeddealer in North America can perform warranty repairs,
providinq the customer warranty registration card is presented.
Q: Where can I find information on the lubrication and maintenance of my snow-
mobile?
A: In this Operator Manual provided with the vehicle at the time of first sale.
Q: Will the entire warranty be void or cancelled, if I do not operate or maintain my
new snowmobile exactly as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be "Voided" or "Cancelled".
However,
if aparticular failure is caused by operation or maintenance other
than is shown in the OperatorManual, THATieilure may not be coveredunder
warranty. This includes service
work performed by the customer, especially
the critical adjustments to ignition, timing, carburation
and oil injection/or oil
mixture.
Q: Would you give some examples of abnormal use or strain, neglect or abuse?
A: These terms are general and overlap each other in areas. Some specific ex-
amples
may include: running the machine out of oil, chain failure caused by a
lack
of lubrication, operating the machine with abroken or damaged part
which causes another part to fail, and so on. If you have any specific questions
on operation
or maintenance, please contact your dealer for advice.
6

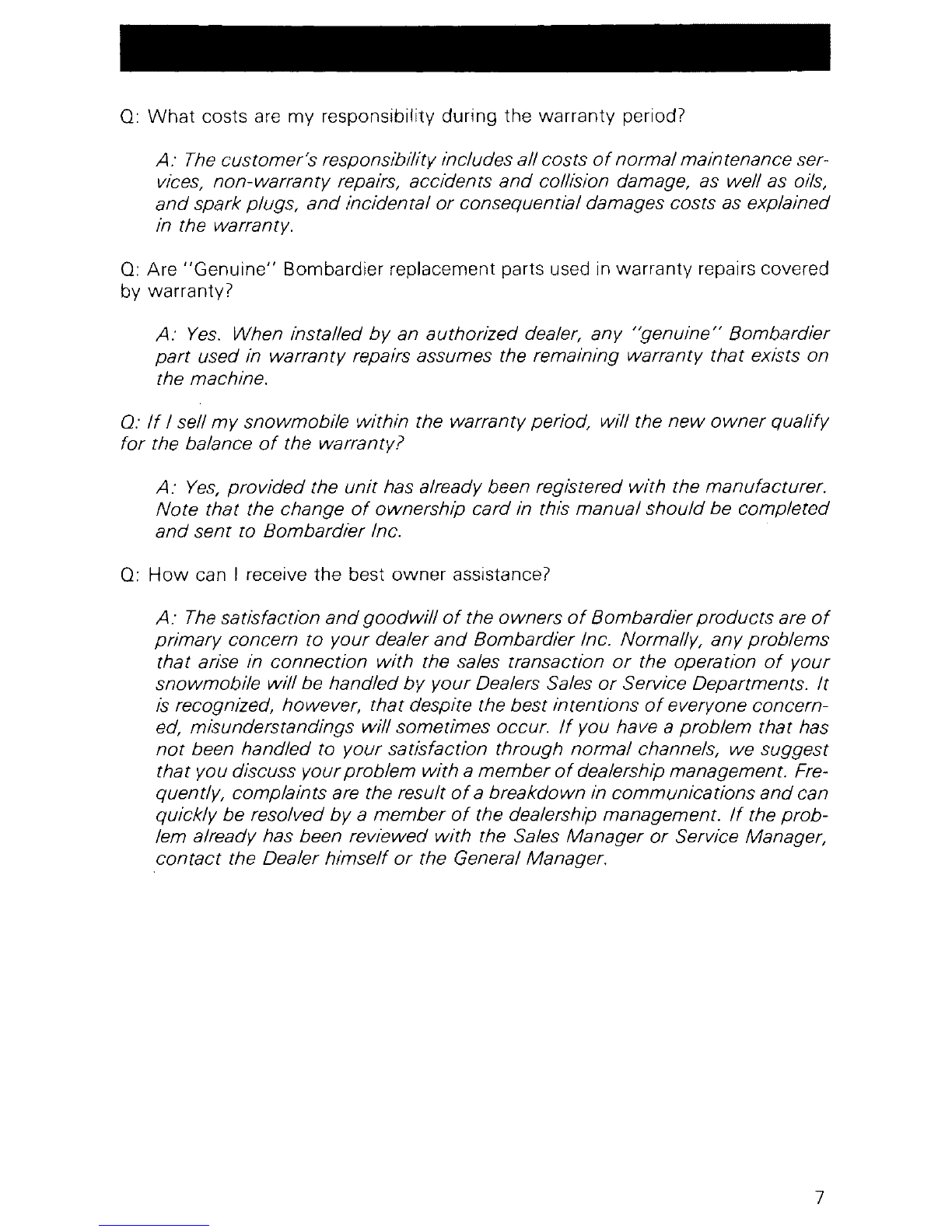

Q: What costs are my responsibility during the warranty period?
A. The customer's responsibilitv includes all costs of normalmaintenance ser-
vices, non-warranty repairs, accidents
and collision damage, as well as oils,
and spark plugs, and incidental or consequential damages costs as explained
in the warranty.
Q: Are "Genuine" Bombardier replacement parts used in warranty repairs covered
by warranty?
A: Yes. When installed by an authorized dealer, any "genuine" Bombardier
part used in warranty repairs assumes the remaining warranty that exists on
the machine.
Q: If I sell my snowmobile within the warranty period, will the new owner quality
for the balance
of the warranty?
A: Yes, provided the unit has already been registered with the manufacturer.
Note that the change
of ownership card in this manual should be completed
and sent to Bombardier Inc.
Q: How can I receive the best owner assistance?
A: Thesatisfaction and goodwill of the owners of Bombardierproducts are of
primary concern to your dealer and Bombardier Inc. Normal/y, any problems
that arise in connection with the sales transaction
or the operation of your
snowmobile will be handled
by your Dealers Sales or Service Departments. It
is recognized, however, that despite the best intentions
of everyone concern-
ed, misunderstandings
will sometimes occur. If you have a problem that has
not been handled to your satisfaction through normal channels, we suggest
that you discuss your problem with amember
of dealership management. Fre-
quently, complaints are the result
of abreakdown in communications and can
quickly be resolved by a member
of the dealership management. If the prob-
lem already has been reviewed with the Sales Manager or Service Manager,
contact the Dealer
himself or the General Manager.
7

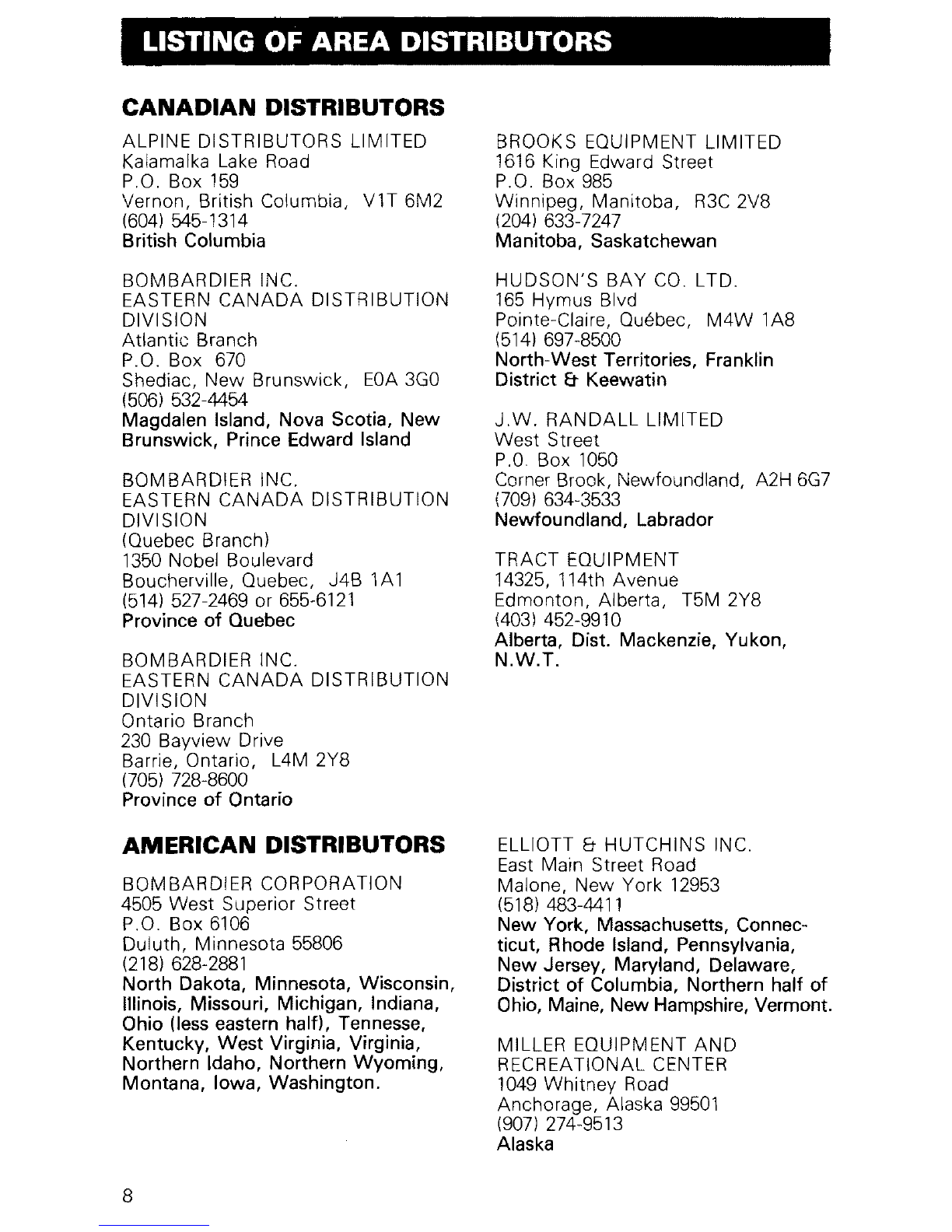

LISTING OF AREA DISTRIBUTORS
CANADIAN DISTRIBUTORS
ALPINE DISTRIBUTORS LIMITED
Kalamalka Lake Road
P.O. Box 159
Vernon, British Columbia,
Vl T 6M2
[phone]
British Columbia
BOMBARDIER INC.
EASTERN
CANADA DISTRIBUTION
DIVISION
Atlantic Branch
P.O. Box 670
Shediac,
New Brunswick, EOA 3GO
[phone]
Magdalen Island, Nova Scotia,
New
Brunswick, Prince Edward Island
BOMBARDIER INC.
EASTERN
CANADA DISTRIBUTION
DIVISION
(Quebec Branch)
1350 Nobel Boulevard
Boucherville, Quebec, J4B 1A1
[phone] or 655-6121
Province of Quebec
BOMBARDIER INC.
EASTERN
CANADA DISTRIBUTION
DIVISION
Ontario Branch
230 Bayview Drive
Barrie, Ontario, L4M 2Y8
[phone]
Province of Ontario
AMERICAN DISTRIBUTORS
BOMBARDIER CORPORATION
4505
West Superior Street
P.O Box 6106
Duluth, Minnesota 55806
[phone]
North Dakota, Minnesota, Wisconsin,
Illinois, Missouri, Michigan, Indiana,
Ohio (less eastern half), Tennesse,
Kentucky, West Virginia, Virginia,
Northern Idaho, Northern Wyoming,
Montana, Iowa, Washington.
8
BROOKS EQUIPMENT LIMITED
1616 King Edward Street
P.O. Box 985
Winnipeg, Manitoba, R3C 2V8
[phone]
Manitoba, Saskatchewan
HUDSON'S BAY CO. LTD.
165 Hymus Blvd
Pointe-Claire, Quebec,
M4W 1AB
(514) 697-B500
North-West Territories, Franklin
District &Keewatin
J.W. RANDALL LIMITED
West Street
P.O. Box 1050
Corner Brook, Newfoundland, A2H 6G7
[phone]
Newfoundland, Labrador
TRACT EQUIPMENT
14325, 114th Avenue
Edmonton, Alberta, T5M 2YB
[phone]
Alberta, Dist. Mackenzie, Yukon,
N.W.T.
ELLIOTT &HUTCHINS INC.
East Main Street Road
Malone,
New York 12953
[phone]
New York, Massachusetts, Connec-
ticut, Rhode Island, Pennsylvania,
New Jersey, Maryland, Delaware,
District of Columbia, Northern half of
Ohio, Maine, New Hampshire, Vermont.
MILLER EQUIPMENT
AND
RECREATIONAL CENTER
1049
Whitney Road
Anchorage, Alaska 99501
[phone]
Alaska

SAFETY IN MAINTENANCE
Observe the following
precautions:
•Throttle mechanism should be
checked for free movement before
starting engine.
• Engine should be funning only when
pulley guard is secured in place.
• Never run engine
without drive belt
installed. Running an unloaded en-
gine can prove to be dangerous.
• Never run the engine when the track
is raised
off the ground.
• It can be dangerous to run engine
with the hood removed.
• Gasoline is flammable and explosive
under certain conditions. Always
manipulate in a well ventilated area.
Do not smoke or allow open flames
or sparks in the vicinity. If gasoline
fumes are noticed while driving, the
cause should be determined and
corrected
without delay.
•Maintain your vehicle in top mecha-
nical condition at all times.
• Your snowmobile is
not designed to
be driven or operated on black top,
bare earth, or other abrasive sur-
faces. On such surfaces abnormal
and excessive wear of critic-al parts
is inevitable.
•Installation of other than standard
equipment, including ski-spreaders,
bumpers, pack racks. etc., could
severely affect the stability and safe-
ty of your vehicle. Avoid adding on
accessories that alter the basic vehi-
cle configuration.
• The snowmobile engine can be
stopped by activating the emergen-
cy cut-out switch, tether switch or
by turning
off the key.
•Whenever the vehicle IS parked out-
doors, overnight or for a long peri-
od, it issuggested to protect It against
the inclemency of the weather
with
asnowmobile cover.
• Do not lubricate throttle
and/or
brake cables and housings.
• Only perform procedures as detailed
in this manual. Unless otherwise
specifiedIengine should be turned
OFF for all lubrication and mainte-
nance procedures.
• Clean and check operation of the
headlight, taillight and brake light.
Please read and understand all war-
nings and cautions in this manual
and on the vehicle.
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE AT
THE TIME OF RESALE.
9

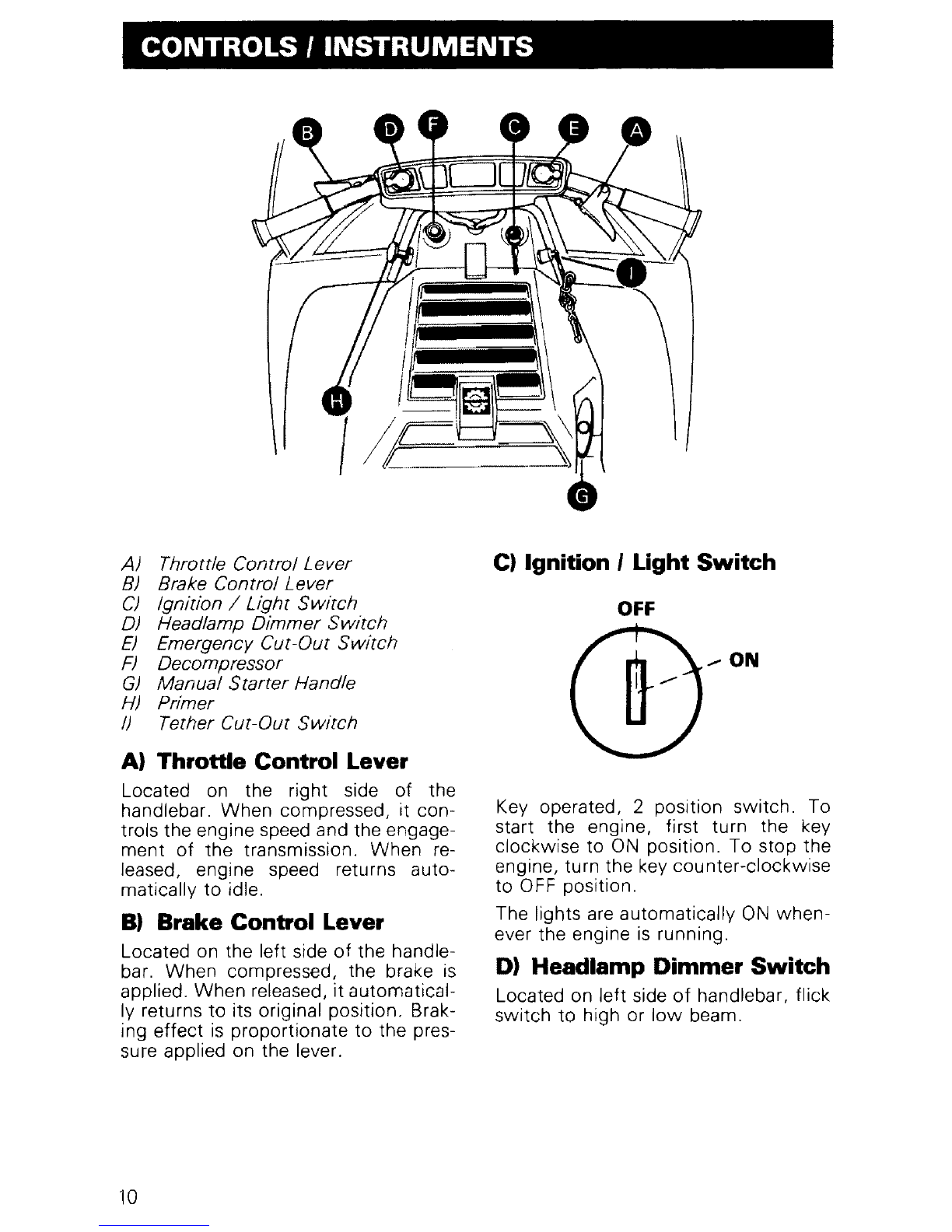

CONTROLS I INSTRUMENTS
A) Throttle Control Lever
B) Brake Control Lever
C) Ignition /Light Switch
D) Headlamp Dimmer Switch
E) Emergencv Cut-Out Switch
F) Decompressor
GJ Menuet Starter Handle
H) Primer
/) Tether Cut-Out Switch
A) Throttle Control Lever
Located on the right side of the
handlebar. When compressed, it con-
trols the engine speed and the engage-
ment of the transmission. When re-
leased, engine speed returns auto-
matically to idle.
B) Brake Control Lever
Located on the left side of the handle-
bar. When compressed, the brake is
applied. When released, it automatical-
ly returns to its original position. Brak-
ing effect is proportionate to the pres-
sure applied on the lever.
10
C) Ignition ILight Switch
OFF
,. ON
Key operated, 2 position switch. To
start the engine, first turn the key
clockwise to ON position. To stop the
engine, turn the key counter-clockwise
to OFF position.
The lights are automatically ON when-
ever the engine is running.
D) Headlamp Dimmer Switch
Located on left side of handlebar, flick
switch to high or
low beam.

E) Emergency Cut-Out Switch
A 3 position switch located on the right
side of the handlebar. To stop the en-
gine in an emergency, flick the lever to
either upper or lower IIOFF" position.
To start engine, lever must be in mid-
dle
"Obl" position
The driver of this vehicle should
familiarize himself with the function of
this device by using it several times on
the first outing, thereby being mentally
prepared for emergency situations re-
quiring its use.
.... WARNING: If the switch has
~ been used in an emergency situa-
tion the source of malfunction should
be determined and corrected before re-
starting the engine.
F) Decompressor
Two position (OFF ION), push-pull
knob. To engage, pull the decompres-
sor knob fully out.
~ CAUTION: The decompressor
.. provides easier starting by redu-
cing engine compression. However,
leaving the decompressor engaged
while running wilt damage your engine.
Always disengage after the engine has
started.
G) Manual Starter Handle
Auto rewind type located on the right
hand side of vehicle. To engage mech-
anism, pull handle.
H) Primer
Apush-pull button. Pull and push but-
ton (2-3 times) to activate primer. The
primer should always be used for cold
engine starts. After engine is warm
however, it is not necessary to use pri-
mer when starting.
I) Tether Cut-Out Switch
Attach tether cord to wrist or other
convenient location then snap tether
cut-out cap over receptacle before
starting engine.
If emergency engine
"SHUT-OFF" is
required completely pull cap from safe-
ty switch and engine power will auto-
matically shut "oHII.
ONOTE: The cap must be installed
on the safety switch at all times in
order to the vehicle.
.... WARNING: If the switch is used
~ in an emergency situation the
source of malfunction should be de-
termined and corrected before restart-
ing engine.
Hood Opening
Unlock latches on both sides where the
hood meets the frame.
ONOTE: Always lift the hood gently
up until stopped by the restrain-
ing wire.
.... WARNING: It is dangerous to run
~ engine with hood opened, off or
unfastened. Personal injury could re-
sult.
ToolBox
Located under the hood. To gain ac-
cess, tilt the hood. Ideal location for
spare plug, rope, flash light, first aid
kit, etc.
Fuel Gauge
The tank is translucent and fuel level
can be checked by opening hood and
glancing at tank.
.... WARNING: Never use a lit match
~ or open flame to check fuel level.
11

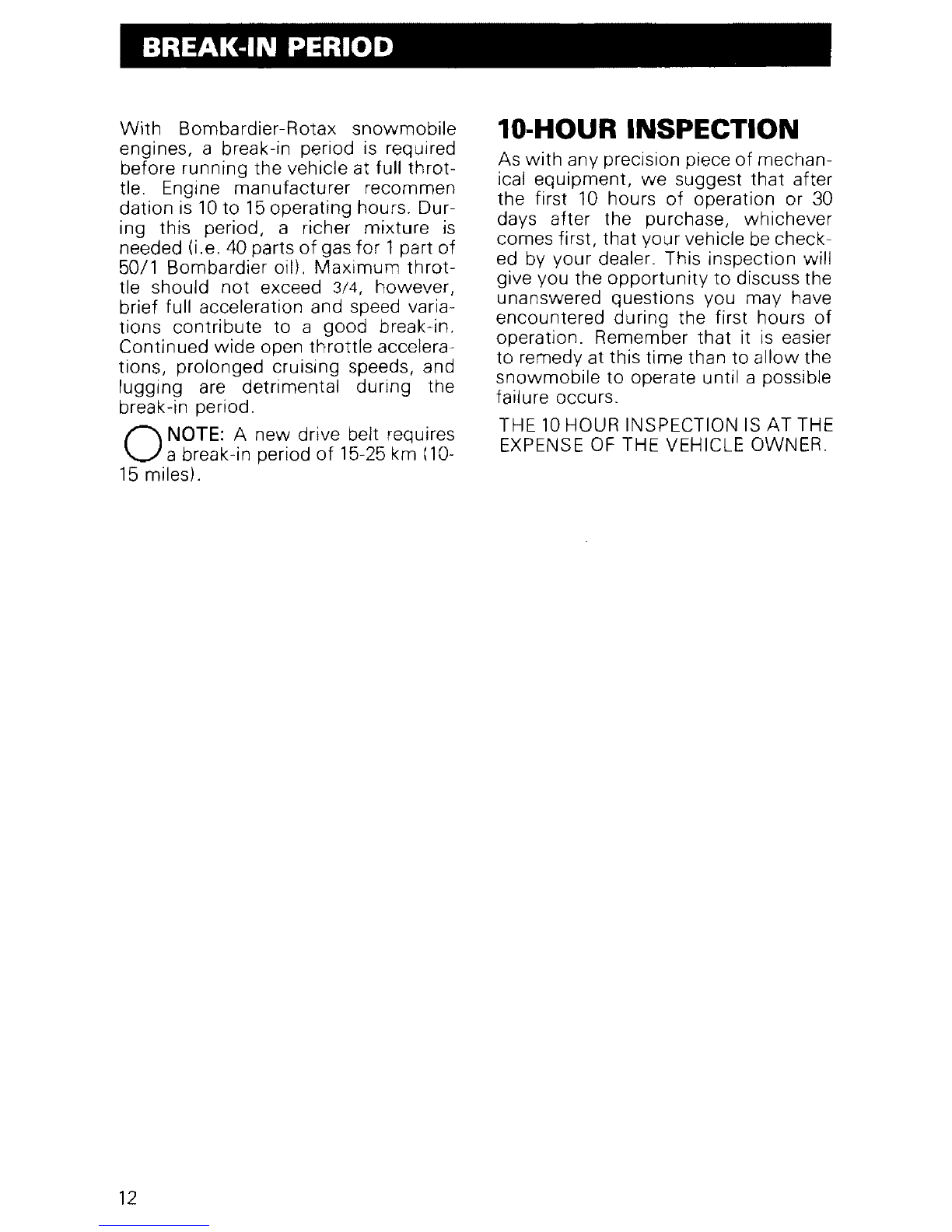

BREAK-IN PERIOD
With Bombardier-Rotax snowmobile
engines, a break-in period is required
before running the vehicle at full throt-
tle. Engine manufacturer recommen
dation
.is 10 t<? 15operating hours. Dur-
Ing this period, a richer mixture is
needed (i.e. 40 parts of gas for 1part of
50/1 Bombardier oil). Maximum throt-
tl~ should not exceed 3/4, however,
brief full acceleration and speed varia-
tions contribute to a good break-in.
Continued wide open throttle accelera-
tion~, prolonged cruising speeds, and
lugging are detrimental during the
break-in period.
ONOTE: A new drive belt requires
a break-in period of 15-25 km (10-
15 miles).
12
10·HOUR INSPECTION
As with any precision of mechan-
ical e.quipment, we suggest that after
the first 10 hours of operation or 30
days after the purchase, whichever
comes first, that your vehicle be check-
ed by your dealer. This inspection will
give you the opportunity to discuss the
unanswered questions you may have
encountered during the first hours of
operation. Remember that it is easier
to remedy at this time than to allow the
snowmobile to operate until a possible
failure occurs.
THE 10HOUR INSPECTION IS AT THE
EXPENSE OF THE VEHICLE OWNER.

10-HOUR INSPECTION CHECKLIST
.;
Engine timing
Spark plug(s) condition
Carburetor adjustment
Engine head nuts
Engine
mount nuts
Muffler attachment
Chaincase oil level
Suspension components
Brake operation and lining condition
Ski alignment (runners condition)
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubricate (steering, suspension)
Electrical wiring (loose connections, stripped wires, damaged insula-
tion) 1tightend all loose bolts, nuts and linkage
Operation of lighting system (HI / LO beam, brake light, etc.). test
operation of emergency cut-out switch and tether switch
We recommend that you have your dealer sign this inspection list.
Date of 10 hour inspection Dealer signature
13

FUEL MIXING
Oil must be added to the gasoline in
pre-measured
amounts then both oil
and gasoline should be
thoroughly
mixed together before fueling the tank.
Recommended Gasoline
Use regular leaded or unl~aded ssso-
line available from all service stations.
.. CAUTION: Never experiment
... with different fuel or fuel ratios.
Never use naphtha, methanol, gasohol
or similar products.
Recommended Oil
Use concentrated Bombardier snow-
mobile oil available from your dealer.
This type
of oil has specially tor-
mulated oil bases to meet the lubrica-
tion requirements of the Bombardier-
Rotax engine.
If Bombardier
snowmobile oil is un-
available, substitute with ahigh-quality
2cycle snowmobile oil. T.he oil / ~as
mix must meet the vehicle requrre-
ments. See oil manufacturer recom-
mendations on the container.
~ CAUTION: Never use outboard
... or straight mineral oils.
Fuel Mixture Ratio
The importance of using the correct
fuel
mixture cannot be overstressed.
An incorrect fuel ratio results in serious
engine damage. Recomr'!'ended
fU~1
ratio is 50/1 (40/1 durinq break-In
period),
SI UNITS
500 mL oil to 25 liters 50/1
IMPERIAL UNITS
1can 16 oz oil to 5 imp. gals 50/1
or
1can 500 mL oil to 5 1/2 imp. gals =50/1
U.S. UNITS
1 can 12 oz oil to 5 U.S. gals 50/1
ONOTE: To facilitate fuel mixing oil
should be kept at room tempera-
ture.
14
Fuel Mixing Procedure
To mix the gasoline and oil always u~e
aseparate clean container. Never mix
directly in your snowmobile tan~. For
best results, acquire
two contarners,
either plastic or metal.
Draw from one
until
empty then use the second one.
.... WARNING: Gasoline is flamma-
.... ble and explosive under certain
conditions. Always manipulate in a
well ventilated area. Do not smoke or
allow open flames or sparks
in. the
vicinity. If gasoline fumes are noticed
while driving, the cause should be
determined and corrected without
delay. Never add fuel while the
!3ngine
isrunning. Avoid skin contact Withfuel
at below freezing temperatures.
1. Pour approximately one gallon of
gasoline
into a clean container.
2. Add the full amount of oil.

3. Replace the container cap and
shake the container thoroughly. FUEUOIL
MIXING CHARTS
(50 to 1ratio)
10 12 15 20
50 1. 150 • 250 • 350 • 450 •
for
you need
U.S. oz.
of oil ...
25 ~-+-+--l-+.....j-l-+++-+-+--+-t-t-++-t-i-#-t
24
23
22
21 ....-.+-+-+-+--t---+--1I-t-t-
201-+--I-+--+-f.....j-f.--I-++--+---+-1-t-+-JL-+-+---1H-4
19 I-+--I--+-+-+---+--i-+-+-+-+-+---+--+--
18 1-+--I-+--+--t-l-f.--I-++--+---+-1-tr
171-+--I-+-+---+-I-f.--I-++-+---+---+7'lr-
16
15
14
13
12
11 I-+-+-++-+-+-I-+::J,f++-+-+-+--++--t--H-+-I
lO~-+-+--I--4"""""'I-#-++--+---+-1-t-++-+-+-i--t--i
gl-+--I-+-+---+-I-~++--+---+-I-t-++-+-+---1...--+---1
81-+--I--+-+-+~i-+-+-+-+-+---+--t-+--+-+-+-Ir--+--1
7
6
Liters 5
of gas 4t-+-+---ifL+-+--+-+-
A ~ ~IT-+-+-+-t-t-t-++-+-+-t-t-t-+-+-+-i!'--t-l
for 1 ~-I-+--+--t-t-t-t-++-+-+-t-t-t-+-+-+---1r-t---1
you need
mLofoil'"
U)
~
Q
w
~
i:::;)
U.S. gal
of gas
Imp. gal
of gas
A
for
you need
Imp. oz.
of oil
4. Add the remainder of the gasoline.
5. Once again thoroughly agitate the
containe. Then using a funnel with a
F~NE MESH SCREENto prevent the
entry of water and foreign particles,
pour the mixture into the snowmo-
bile tank.
... WARNING: To prevent fuel spill-
~ age in the engine compartment, a
funnel must always be used when fill-
ing the gas tank.
aNOTE: When using pre-mixed
fuel, always shake the container
thoroughly as the oil has a tendency to
settle.
... WARNING: Never 'top up' the
~ gas tank before placing the vehi-
cle in a warm area. At certain tempera-
tures, gasoline will expand and over-
flow. Always wipe off any gasoline
spillage from the snowmobile.
USE BOMBARDIER CONCENTRATED OIL
15

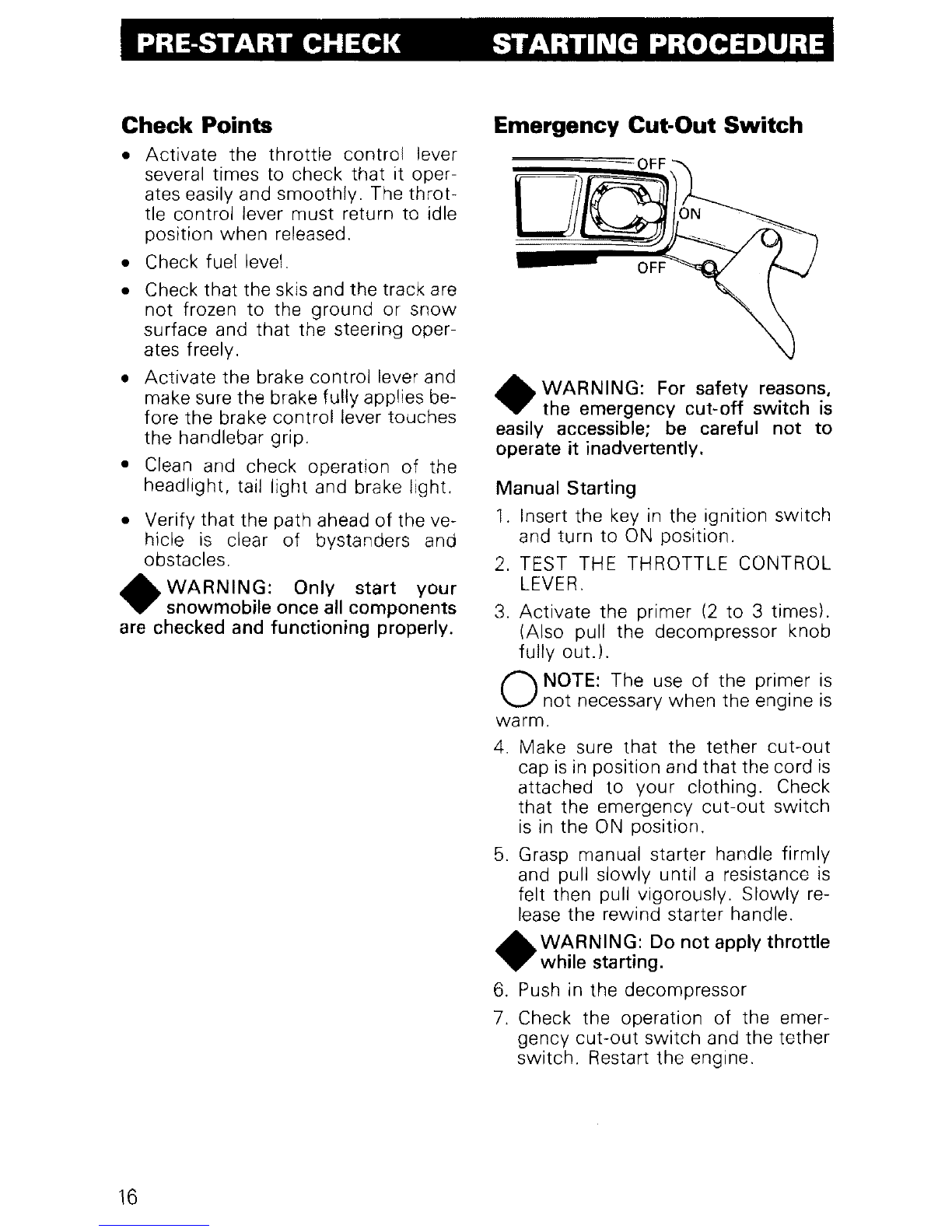

PRE-START CHECK STARTING PROCEDURE
Check Points
•Activate the throttle control lever
several times to check that it oper-
ates easily and smoothly. The throt-
tle control lever must return to idle
position when released.
• Check fuel level
• Check that the skis and the track are
not frozen to the ground or snow
surface and that the steering oper-
ates freely.
•Activate the brake control lever and
make sure the brake fully applies be-
fore the brake control lever touches
the handlebar grip.
• Clean and check operation of the
headlight, tail light and brake light.
•Verify that the path ahead of the ve-
hicle is clear of bystanders and
obstacles.
A WARNING: Only start your
Tsnowmobile once all components
are checked and functioning properly.
16
Emergency Cut-Out Switch
A WARNING: For safety reasons,
Tthe emergency cut-off switch is
easily accessible; be careful not to
operate it inadvertently.
Manual Starting
1. Insert the key in the ignition switch
and turn to ON position.
2. TEST THE THROTTLE CONTROL
LEVER.
3. Activate the primer (2 to 3 times).
(Also pull the decompressor knob
fully out.).
ONOTE: The use of the primer is
not necessary when the engine is
warm.
4. Make sure that the tether
cut-out
cap is in position and that the cord is
attached to your clothing. Check
that the emergency
cut-out switch
is in the ON position.
5. Grasp manual starter handle firmly
and pull slowly until a resistance is
felt then pull vigorously. Slowly re-
lease the rewind starter handle.
A WARNING: Do not apply throttle
Twhile starting.
6. Push in the decompressor
7. Check the operation of the emer-
gency
cut-out switch and the tether
switch. Restart the engine.

...... WARNING: If engine does not
Tshut-off when flicking the emer-
gency cut-out switch to OFF position
and pulling the tether cut-out cap, stop
the engine by turning off the ignition
key. Do not operate the vehicle fur-
ther, see your dealer.
8. Allow the engine to warm before
operating at full throttle.

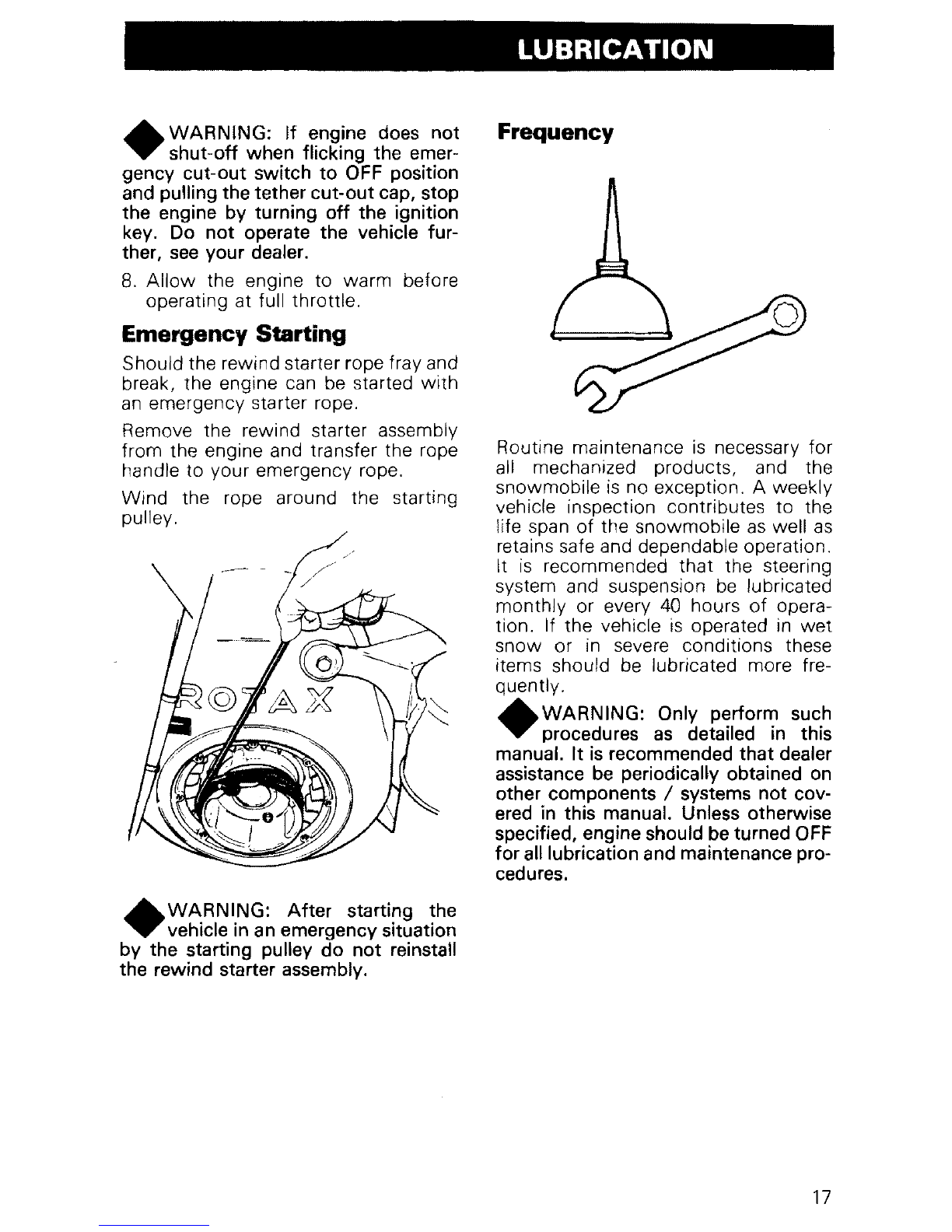

Emergency Starting
Should the rewind starter rope fray and
break, the engine can be started with
an emergency starter rope.
Remove the rewind starter assembly
from the engine and transfer the rope
handle to your emergency rope.
Wind the rope around the starting
pulley.
...... WARNING: After starting the
Tvehicle in an emergency situation
by the starting pulley do not reinstall
the rewind starter assembly.
LUBRICATION
Frequency
Routine maintenance is necessary for
all mechanized products, and the
snowmobile is no exception. A weekly
vehicle inspection contributes to the
life span of the snowmobile as well as
retains safe and dependable operation.
It is recommended that the steering
system and suspension be lubricated
monthly or every 40 hours of opera-
tion. If the vehicle is operated in
wet
snow or in severe conditions these
items should be lubricated more fre-
quently.
...... WARNING: Only perform such
Tprocedures as detailed in this
manual. It is recommended that dealer
assistance be periodically obtained on
other components Isystems not cov-
ered in this manual. Unless otherwise
specified, engine shouldbe turned OFF
for all lubrication and maintenance pro-
cedures.
17

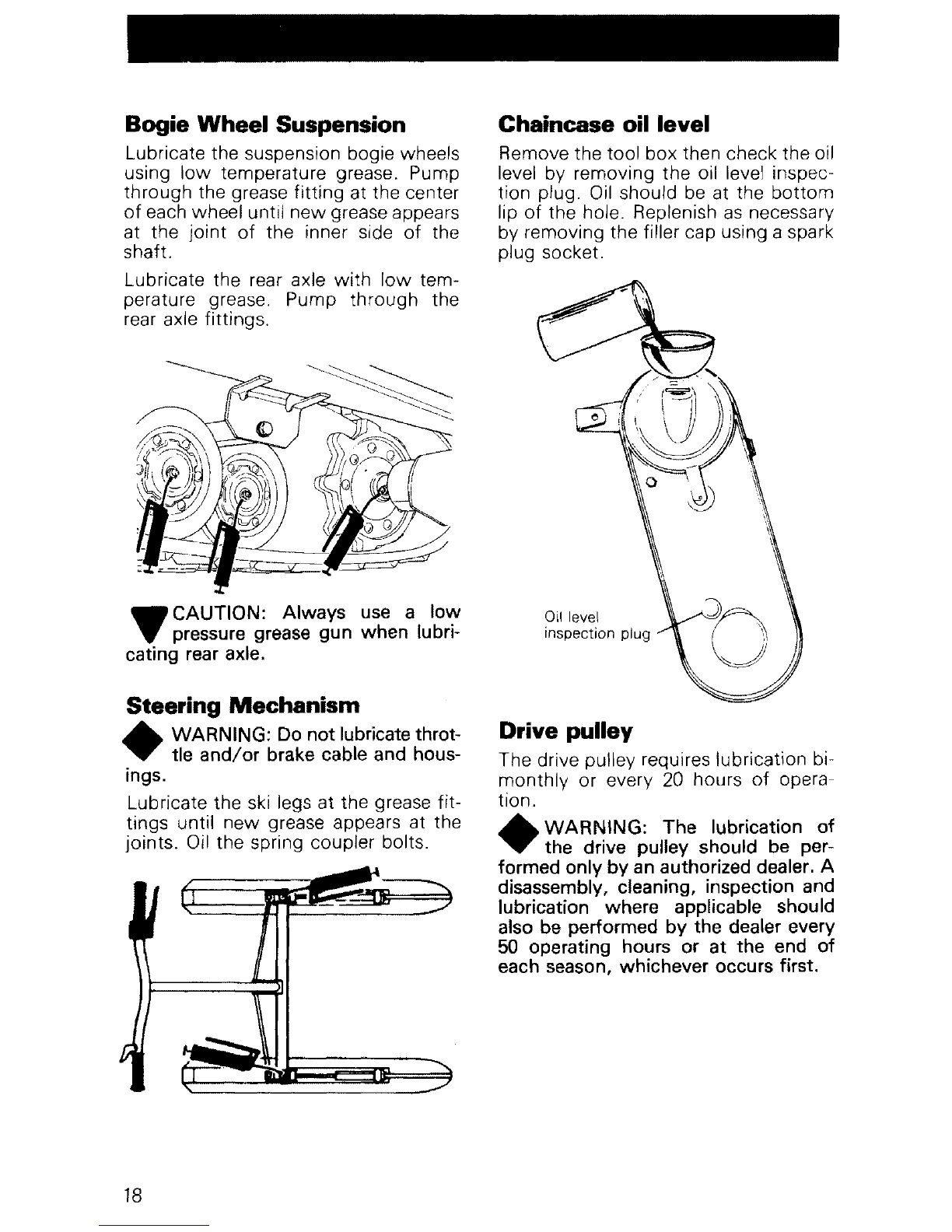

Bogie Wheel Suspension
Lubricate the suspension bogie wheels
using
low temperature grease. Pump
through the grease fitting at the center
of each wheel until new grease appears
at the joint of the inner side of the
shaft.
Lubricate the rear axle
with low tem-
perature grease. Pump through the
rear axle fittings.
_CAUTION: Always use a low
... pressure grease gun when lubri-
cating rear axle.
Steering Mechanism
.... WARNING: Do not lubricate throt-
... tie and/or brake cable and hous-
ings.
Lubricate the ski legs at the grease fit-
tings until new grease appears at the
joints. Oil the spring coupler bolts.
18
Chaincase oil level
Remove the tool box then check the oil
level by removing the oil level inspec-
tion plug. Oil should be at the bottom
lip of the hole. Replenish as necessary
by removing the filler cap using a spark
piug socket.
Oil level
inspection plug
Drive pulley
The drive pulley requires lubrication bi-
monthly or every 20 hours of opera-
tion.
.... WARNING: The lubrication of
... the drive pulley should be per-
formed only by an authorized dealer. A
disassembly, cleaning, inspection and
lubrication where applicable should
also be performed by the dealer every
50 operating hours or at the end of
each season, whichever occurs first.
