Bona Belt Lite Manual
2
Foreword
For a new manual contact:
Bona AB
Murmansgatan 130
P.O. Box 21074
SE-200 21 Malmö, Sweden
Tel [phone]
www.bona.com
ATTENTION:
This manual contains important information on the safe use
and operation of this machine. Failure to read this manual
before operating, adjusting or servicing this machine could
cause injury or damage to persons or objects.
Anybody operating the machine should understand how to
use and operate it before starting it up. Keep this manual for
future reference.
This manual is an ENGLISH translation of the original
version in Italian.

Bona Belt Lite Manual
3
EN
Table of Contents
Foreword 2
Table of Contents 3
Machine Symbols Key 4
Operator Safety 4
Storage 6
Transporting and Handling 7
With one person 7
With two people 9
Introduction 10
Safe and correct use 10
Machine data plate 11
Commencing Operation 11
Instructions for assembly following transportation 11
Instructions for electrical connection 13
Cables, extensions and plugs 14
Removing sawdust generated during use 15
Prevention Measures for Users 15
Personal safety measures 15
Compliance with safety measures and warnings 15
Instructions on Correct Machine Use 17
Machine Specifications 18
Machine Warnings 19
Prohibited use 19
Starting the Machine 20
Machine Adjustment Procedures 23
Centering the abrasive belt 23
Adjusting sanding pressure 23
Wall edge castor 24
Wheel adjustment (on a surface parallel to the axis of the drum) 24
Routine Maintenance 25
Sawdust chamber (for the user) 25
Drums (for the user) 26
Wheels (for the user) 26
Dust bag (for the user) 26
Belt tension (for the user) 27
Bearings (only for tech support service) 27
Drum pulley and motor pulley (for the user) 27
Spare Parts 28
Emergency Situations (for the user) 28
Problem 28
Causes 28
Solutions 28
Declaration of Conformity 30
Disposal 31

Bona Belt Lite Manual
4
4
4
Machine Symbols Key
Operator Safety
Read the instructions
contained in this user
and maintenance
manual before using
the machine.
Hearing protection
during use is
recommended.
Protection of the
airways during use
is recommended.
Hazard due to
moving parts.
Hazard due
to electricity.
HAZARD means:
Serious injury or death may
occur to the operator or
others if 'HAZARD' warnings
on the machine or in this
manual are ignored or not
kept to. Read and follow all
'HAZARD' warnings on this
machine or in this manual.
WARNING means:
Injury may occur to the
operator or others if
'WARNING' notices on the
machine or in this manual are
ignored or not kept to. Read
and follow all 'WARNING'
notices on this machine or in
this manual.
CAUTION means:
Damage may occur to
the operator or others if
'CAUTION' alerts on the
machine or in this manual are
ignored or not kept to. Read
and follow all 'CAUTION'
alerts on this machine or in
this manual.
Failure to read the Bona Belt Lite machine manual
before operating, adjusting or performing maintenance
operations on the machine could cause injury or
damage to persons or objects.
Anyone operating the machine should understand how to use
and operate it before starting it up.
KEEP AWAY FROM CHILDREN
Children should be supervised to ensure that they do not play
with the appliance. This machine is not intended for use by
persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge
unless they have received instructions regarding the use and
are supervised by a person responsible for their safety.

Bona Belt Lite Manual
5
EN
5
Operator Safety (Cont.)
Sanding/nishing wood oors can create an environment that
can be explosive.
The following safety procedures must be adhered to:
• Cigarette lighters, pilot lights, and any other sources
of ignition can create an explosion when active during
a sanding session. All sources of ignition should be
extinguished or removed entirely, if possible, from the work
area.
• Work areas that are poorly ventilated can create an
explosive environment when certain combustible materials
(solvents, thinners, alcohol, fuels, certain nishes, wood
dust, etc) are in the atmosphere. Floor sanding machines
can cause ammable material and vapors to ignite. Read
the manufacturer’s label on all chemicals being used to
determine combustibility. Keep the work area well ventilated.
• Hitting a nail while sanding can cause sparks and create
an explosion or re. Always use a hammer and punch to
countersink all nails before sanding oors.
Electrocution could occur if the machine is used on a power
circuit that repeatedly trips or is undersized. Have a licensed
electrician check the fuse, breaker, or power supply.
Electrocution could occur if maintenance and repairs are
performed on a unit that is not properly disconnected from the
power source. Disconnect the machine from all power.
Electrocution could occur if the machine is used on an
ungrounded electrical circuit. Never remove or disable the
grounding supply conductor on the electrical cord.
Consult an electrician if the grounding conductor is missing or
if you suspect your circuit is not grounded properly.
Use of this machine with a damaged power cord or plug could
result in an electric shock. DO NOT pull or carry by cord, use
power cord as a handle, close a door on cord, or pull cord
around sharp edges or corners.
DO NOT unplug by pulling on cord. To unplug, grasp the plug,
not the power cord. DO NOT handle plug or operate machine
with wet hands. DO NOT put any objects into motor openings.
Electrocution or injury could occur if the power cord is run over
and damaged by the sanding machines. Keep the cord away
from contact with the sanding heads. Always lift the cord over
the machine and sand away from the cord.
Moving parts on this machine can cause serious injury and or
damage. Keep hands, feet, hair, and loose clothing away from
all moving parts of the unit.
Operating the machine without all guards, doors, or covers in
place can cause an injury or damage.
DO NOT pass with the machine on objects that are hot,
burning or smoking, such as cigarettes, matches or cinders.

Bona Belt Lite Manual
66
Operator Safety (Cont.)
Injury to the operator or
bystanders could occur if the
machine is plugged in while
performing maintenance,
servicing, changing lter, or
inspecting. Always unplug
machine when not in use.
DO NOT use solvents or other
ammable products to clean
this machine.
Dry use only. DO NOT use for
liquid recovery, which could
result in motor failure, electric
shock, and electrocution.
Airborne sanding dust should not be breathed in while operating a sanding
machine. Always wear an approved particulate respirator while operating
sanding equipment.
Injury to the eyes and or body can occur if protective clothing and or
equipment is not worn while sanding. Always wear hearing protection, and a
dust mask while sanding.
Exposure to high noise levels can cause hearing loss or impairment. Wear
EN-ISO approved hearing protection (earmuffs) when using this equipment.
Bodily injury could occur if power is supplied to the machine with the power
switch already in the “ON” position. Always check to assure the power
switch is “OFF” before connecting the machine to its power source.
DO NOT use this machine to sand steps or furniture. DO NOT ride on this
machine.
DO NOT put any objects into openings. DO NOT use with blocked openings.
Keep free from dust, lint, hair or anything that may reduce airow.
Storage
It is advisable to store the machine in its original
packaging. Doing so makes it possible to form a
column of two packages maximum, with one on
top of the other.
If the machine is removed from the original
packaging and is not used for some time ensure
the wheels and drum are not in contact with
the ground. In this case use two supports at
least 50mm in height to rest the machine on,
ensuring contact is with the base frame.
This equipment is for dry use only and must not be used
or kept outside in wet conditions. Store the machine in a
dry building, otherwise the machine could be damaged.
Storage temperature from -20°C to 50°C.

Bona Belt Lite Manual
7
EN
7
Transporting the machine by yourself? Proceed as follows:
Transporting and Handling
With one person
The machine is heavy therefore remove the motor and handle unit before it is transported.
Ask for assistance to transport the three parts.
The machine can be dismantled into three parts to facilitate transportation:
Motor Suction tube/handle unit Base frame with drum
Ensure the power supply cable is disconnected from the mains
and the machine.
Open the belt guard after loosening the screw with the
tool provided.
1. 2.

Bona Belt Lite Manual
8
3. A.
4. 5.
6.
Transporting and Handling (Cont.)
With one person (cont.)

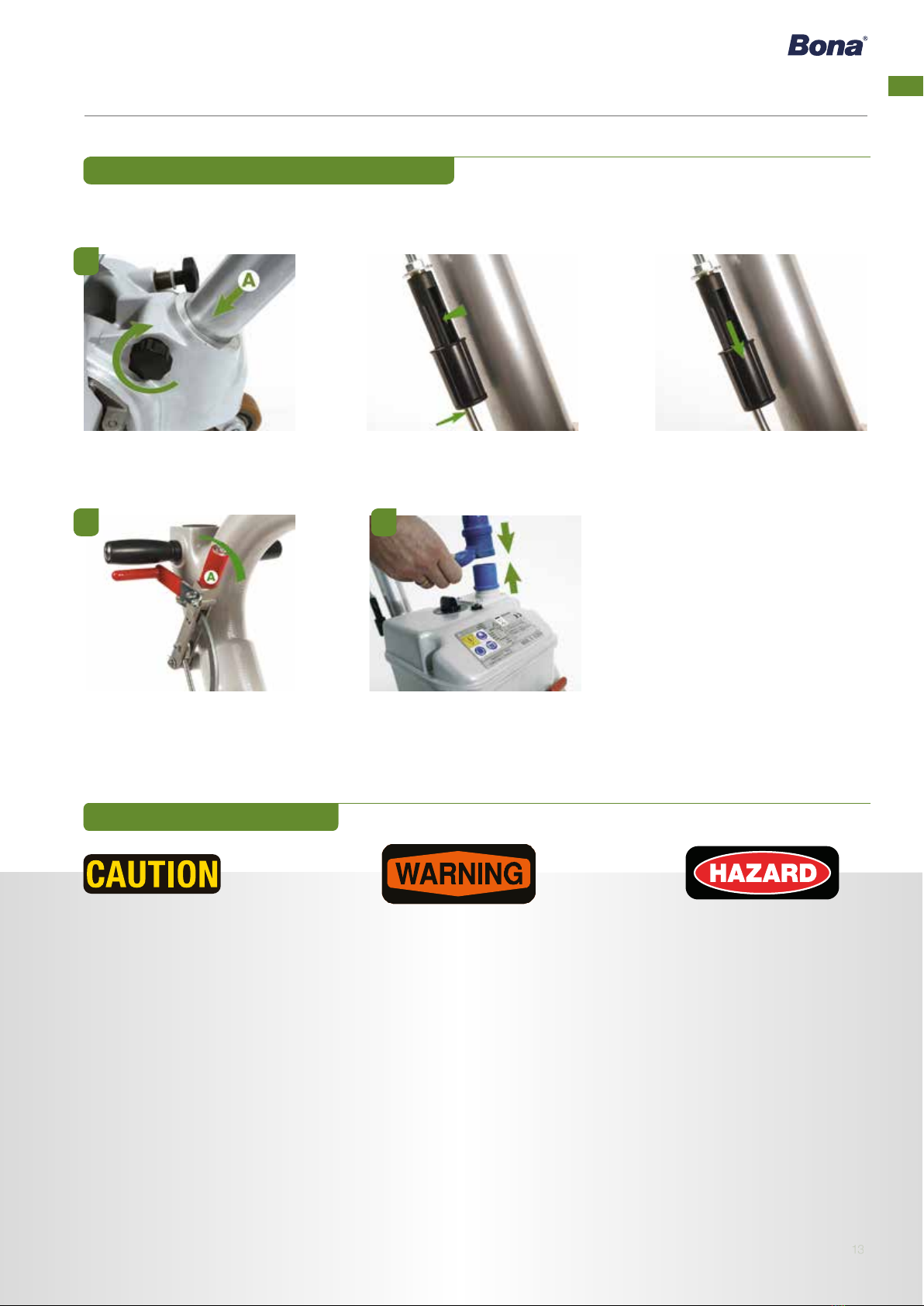

Loosen the belt tightener (A) and remove the belts.
Once the nut (A) has been
loosened, turn it towards the inside
of the machine until the hollow
washers positioned on the motor
support spindle come out of their
support housings.
Remove the motor and take it
to the work area.
After lowering the lever (A), lift the tube (B) and release the rod (C) from the coupling (D).
8

Bona Belt Lite Manual
9
EN
Transporting and Handling (Cont.)
Loosen the handle (A) and remove the suction
pipe (B) from its housing and take it to the
work area.
Lift the base frame by clasping the front
and back. Bring the belt guard to the
edge and take it to the work area.
7. 8.
One operator should clasp the handle grip...
1.
...The second, holding the lift handle, will lift the
machine.
2.
With one person (cont.)
With two people
Transporting the machine with two people? Proceed as follows:
9

Bona Belt Lite Manual
10
Transporting and Handling (Cont.)
Introduction
With two people (cont.)
Safe and correct use
This instruction manual should be read carefully before
using the Bona Belt Lite wood flooring sander for the
first time.
The instruction manual contains important information on
safety and preventing improper use of the machine and will
resolve any doubts or questions, making possible to operate
the machine safely and with ease. Removing safety features
could cause death or physical injury. Familiarize yourself with
the machine before using it for the rst time.
This equipment is not to be used by anyone (children included)
with physical or mental disabilities, or anyone without the
relevant experience and knowledge, unless they have received
instructions on using the equipment and are supervised by a
responsible person to ensure their safety.
Children must be supervised to ensure that they DO NOT play
with the machine.
If a situation arises which has not been described in this manual, contact your distributor or Bona
Representative.
The Bona Belt Lite wood ooring sander is suitable for the dry
sanding of wood oors. Any other use without the consent of
the manufacturer is prohibited. DO NOT use on wet oors.
See ‘Machine Warnings’ on page 19.
Keep hands and clothing away from moving mechanical parts.
The work area is protected via the base frame and the mobile
cover on the abrasive drum.

Bona Belt Lite Manual
11
EN
11
Introduction (Cont.)
Commencing Operation

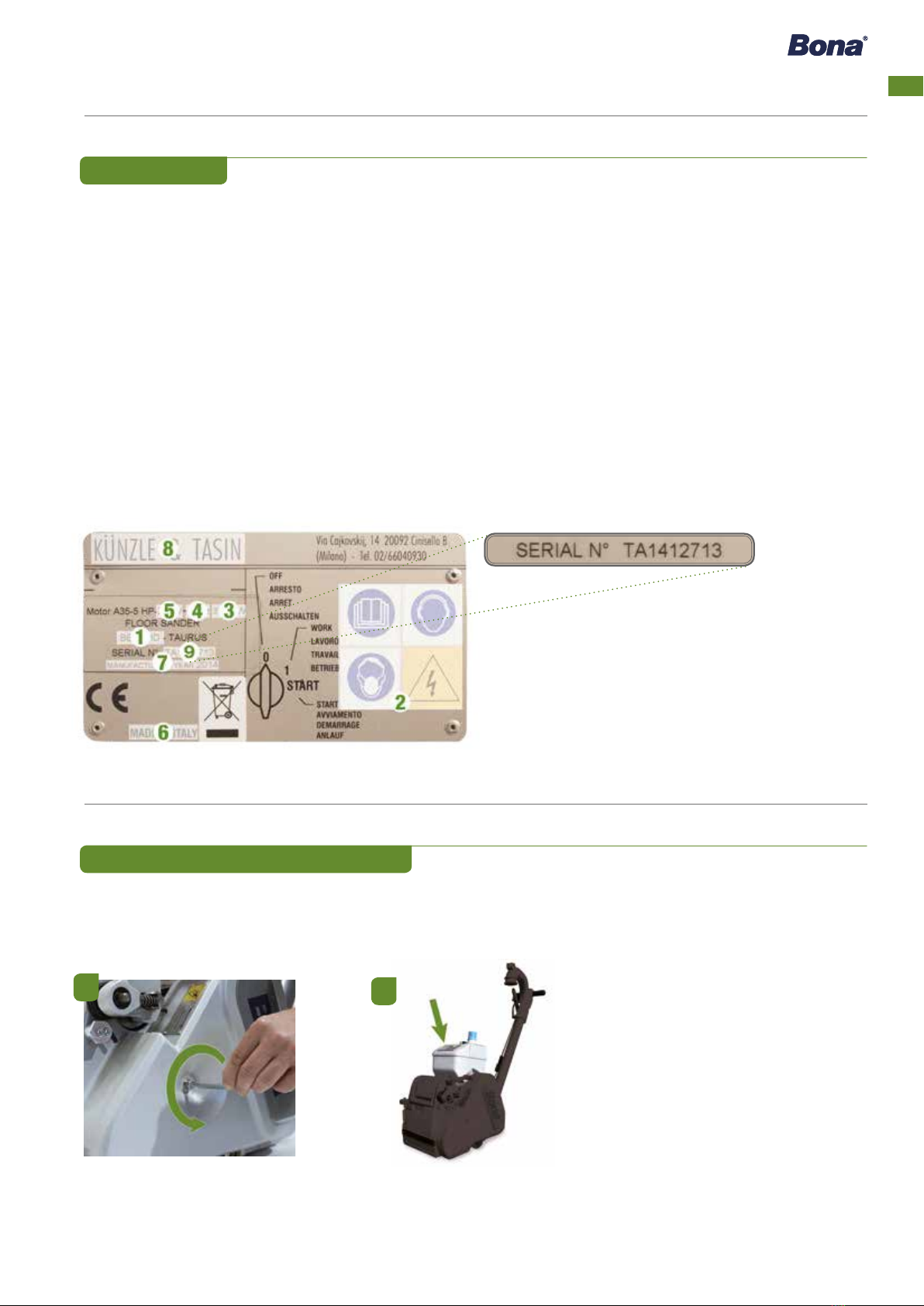

Machine data plate
Instructions for assembly following transportation
1) Machine model
2) Safety symbols
3) Motor power
4) Frequency
5) Supply voltage
6) Country of manufacture
The following information can be found on the machine data plate:
7) Year of manufacture (see 9)
8) Name of the manufacturer
9) Serial number:
• The rst two numbers refer to the year of manufacture
(14 = 2014)
• The second group of three numbers indicates the day of
the year the machine was manufactured (127 = May 7th)
• The last two numbers indicate the progressive number of
machines produced that day of manufacture
(13 = 13th machine produced that day)
To re-assemble the machine after transportation, proceed as follows:
Open the belt guard after turning
the screw counter-clockwise.
1.
Position the motor in its
housing.
2.

Bona Belt Lite Manual
12
Commencing Operation (Cont.)
Instructions for assembly following transportation (cont.)

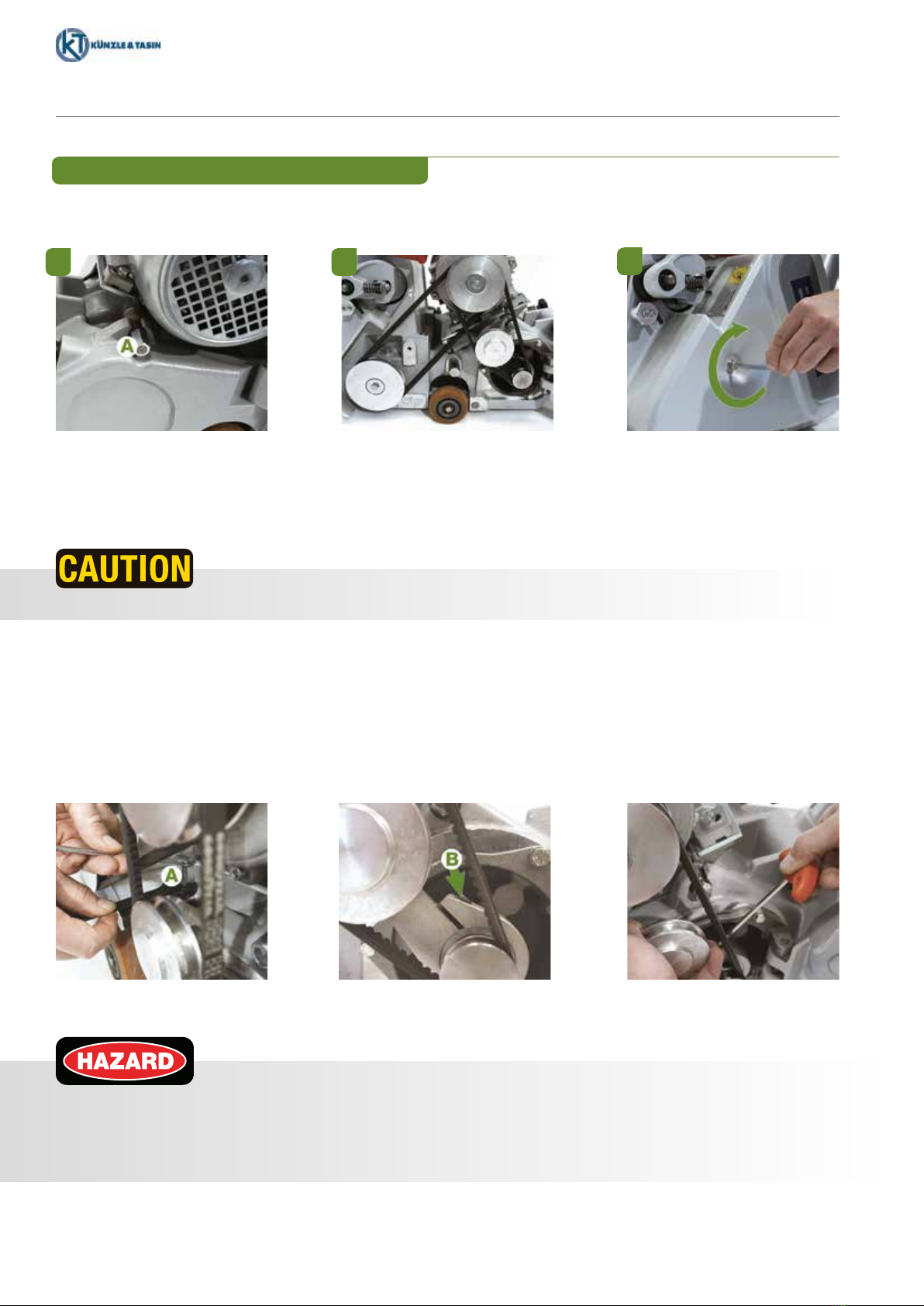

Secure the motor by tightening the
knob (A).
Fit and stretch the belts.
3. 4.
Close the belt guard and tighten
the screw.
5.
Excessive belt tension may cause the premature failure of the ball bearings.
The drum belt must have a 10.5mm stretch with a center load of 30±3N.
Belt tension can be adjusted acting on the screw and the nut (A).
The suction belt must have a 8mm stretch with a center load of 18±2N.
The belt tension can be adjusted acting on the allen screw (B).
Using the machine when not fully assembled may cause injury or damage to people or objects.
DO NOT use the machine when it is not fully assembled. Keep all ttings tightly closed. Maintain
machine settings in accordance with the specications.

Bona Belt Lite Manual
13
EN
13
Commencing Operation (Cont.)
Instructions for assembly following transportation (cont.)
Instructions for electrical connection

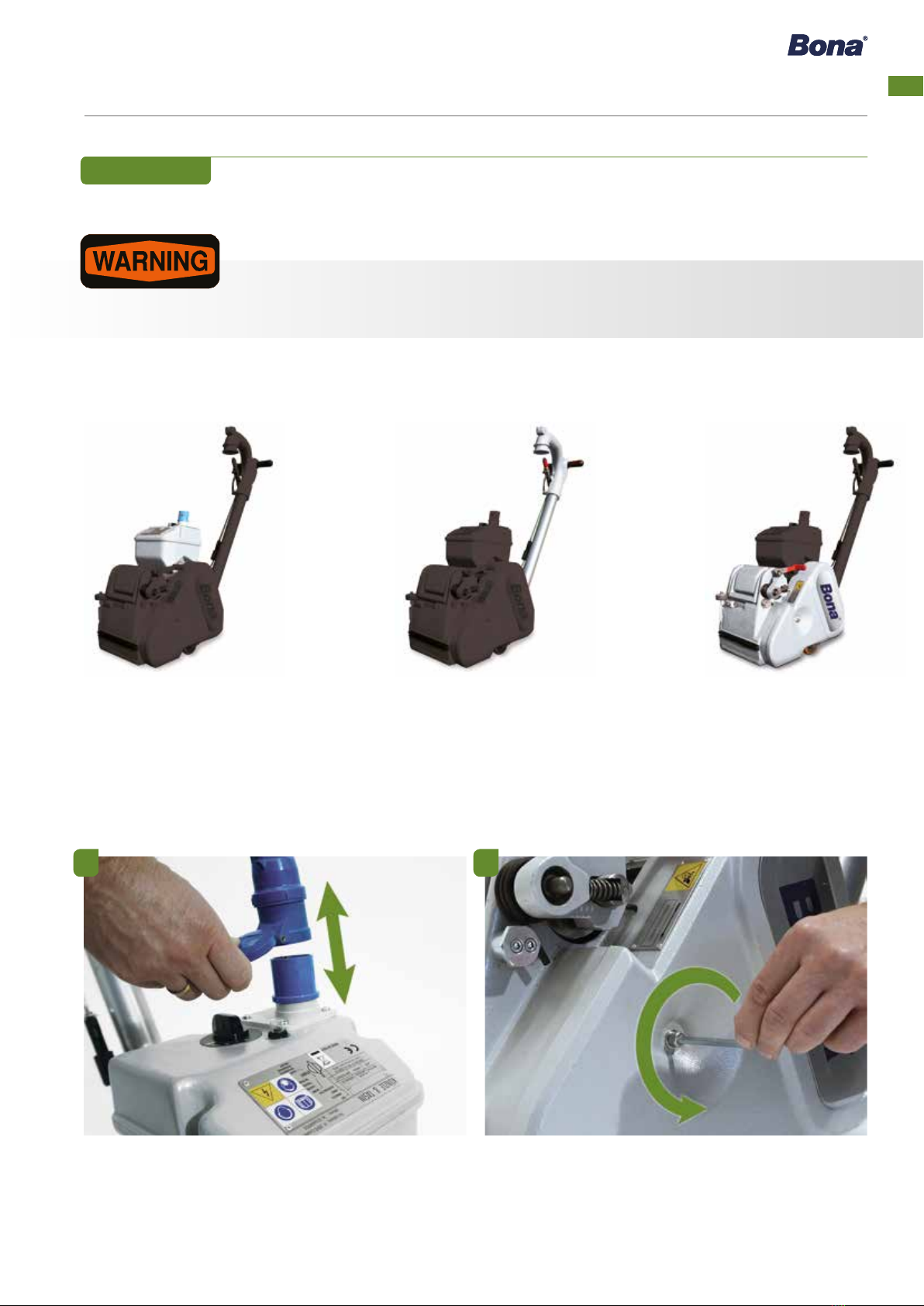

Lift the drum with the lever (A).
7.
Connect the power supply cable
to the machine and
power supply.
8.
Fit the suction pipe (A) and drum control rod (b).
6.
This machine only operates
with the voltage and
frequency shown on the
machine data plate. Before
connecting the cable to
the power supply ensure
the correct voltage and
frequency are available.
DO NOT expose the machine to rain. This machine is intended
for dry use only. Keep the machine in a dry building and DO
NOT use it in damp or wet places.
If the machine is not connected correctly to the electricity
network, death due to electrocution may occur. To prevent
electric shocks always use a grounded three wire electrical
system. For maximum protection against electric shocks use a
circuit protected with a differential cut-out switch.
Tampering with the grounding plug in any way may result in
death from electrocution. DO NOT cut, remove or break the
grounding plug. If the socket does not match the plug consult
a qualied electrician.
Do not use the machine if the switch malfunctions.
If the machine is used with
a damaged plug or power
supply cable, death may
occur from electrocution.
If cables or plugs are worn
or damaged in any way,
have them replaced by the
manufacturer or certied
machine repair center in
order to prevent risks to
safety.

Bona Belt Lite Manual
14
Cables, extensions and plugs
Commencing Operation (Cont.)
Using the machine with unsuitable cable cross-sections
and/or excessively long cables may cause injury or damage
to people or objects.
The machine must never be moved using its cable and the cable
must never be pulled when disconnecting from the socket.
Keep the cable away from sources of heat, oil and sharp edges.
Only use approved cables. The maximum recommended cable length is 10m; for greater lengths use cables
with a larger cross-section.
MACHINE WITH 230V~50Hz MOTOR
For machines with a 230V~50Hz motor (EU), a HO5VV-F-3x2,.5mm2HAR-approved power supply cable must be used
along with an approved SCHUKO 2P+E 16A 200-250V plug.

Bona Belt Lite Manual
15
EN
Commencing Operation (Cont.)
Prevention Measures for Users
Removing sawdust generated during use
Personal safety measures
Compliance with safety measures and warnings
Sawdust can ignite spontaneously and cause injury or
damage. Empty the contents of the dust bag when it is 1/3 full.
Empty the dust bag at the end of each machine use. Never
leave the dust bag unattended when it contains sawdust.
DO NOT empty the contents of the dust bag above a re.
Sawdust can spread through the air and be inhaled when
using the sander. Always wear a dust mask when using the
sanding equipment.
The eyes and/or body may suffer injury if personal safety
clothing is not used. Always wear safety goggles, protective
clothing and a dust mask during sanding operations.
Lengthy exposure to noise levels during sanding operations
may damage the hearing. Always use ear protectors during
sanding operations.
Never become distracted during sanding operations, check
what is happening continually. Use common sense. DO NOT
use the machine when tired.
Using the machine when not fully assembled may cause injury or damage to people or objects.
DO NOT use the machine when it is not fully assembled. Keep all ttings tightly closed. Maintain
machine settings in accordance with the specications.

Bona Belt Lite Manual
16
16
Prevention Measures for Users (Cont.)
Compliance with safety measures and warnings (cont.)
Using the machine without the safety guards and covers in
position may cause injury or damage. Always ensure that all
safety guards and covers are in position and secured well.
The sanding machine may create an explosive environment.
Cigarettes, cigars, pipes, lighters, pilot ames, or any other
source of re may create an explosion if lit during sanding
operations. No sources of re should be kept near the work
area.
Poorly ventilated work areas may create an explosive
environment when some combustible materials are present
in the atmosphere, such as solvents, thinners, alcohol, fuel,
some paints, wood dust or other combustible materials. Floor
sanding may cause various materials and fumes to ignite.
Read the manufacturer’s instructions for each chemical
product used and establish its combustibility. Always keep
the work area well-ventilated.
Striking nails when sanding may generate an explosion or re.
Always ensure all nails are sunk before sanding surfaces.
Serious damage may occur if the power supply circuit trips
repeatedly or is undersized. Have the fuses, safety circuit and
power supply line checked by an authorized electrician.
Performing maintenance and/or repairing the machine when
it is not fully disconnected from the power supply may cause
death due to electrocution. Disconnect the power supply
before carrying out any maintenance and/or repair work.
The use of this machine on a circuit which is not grounded
may cause death due to electrocution. Never disconnect or
disable the grounding conductor. Consult an electrician if the
ground conductor is missing or it is suspected that the circuit
is not suitably grounded.
The use of this machine with a damaged power supply cable
may cause electric shock. Check the power supply cable
regularly for damage such as splitting or wear and tear. DO
NOT use the machine if the power supply cable is damaged.
DO NOT use the electric cable to move the machine.
Injury or damage may occur if the machine runs over the
power supply cable and it becomes damaged. Keep the cable
away from the lower part of the machine to avoid contact
with the abrasive. Always keep the power supply cable raised
above the machine.
The moving parts on this machine may cause serious injury
and/or damage. Keep hands, feet and loose clothing away
from all moving parts of the machine.
Performing maintenance or replacing the dust bag may cause
injury to the operator or people nearby if the machine is
connected to the power supply.

Bona Belt Lite Manual
17
EN
17
Prevention Measures for Users (Cont.)
Instructions on Correct Machine Use
Compliance with safety measures and warnings (cont.)
Failure to comply with instructions on this machine and in
this manual may cause serious injury and/or damage. Read
and comply with all safety instructions. Ensure that all plates,
labels, warnings and instructions are secured to the machine.
New plates can be obtained from an authorized Bona dealer.
Injury or damage may occur if maintenance operations or
repairs are carried out by any unauthorized personnel.
The machine may become damaged if it is not kept in a dry
building. Keep in a dry building.
Read this manual carefully and become familiar with the machine.
The equipment is suitable for industrial use (e.g. in hotels, schools, hospitals, ofces, factories and shops).
The following information highlights particularly hazardous situations for the operator and/or machine. Understand when these
conditions may be present. Removing safety features could cause death or physical injury. Take all steps necessary to instruct
personnel who may use the machine. Report any damage on the machine or incorrect operation immediately.
1) Keep hands and clothes away from rotating parts.
2) Keep hands on the handle when the motor is operating.
3) DO NOT leave the machine unattended when the motor is operating.
4) Always use the machine with the dust bag in the correct position.
5) DO NOT detach the dust bag when the motor is operating.
6) Always disconnect the power supply cable from the machine before performing maintenance.
7) Transport the machine with care due to the heavy weight of the individual parts making up the machine.
8) Always use the machine in well-ventilated areas.
9) Always keep the work area well-lit.
10) Always dispose of the sawdust appropriately.
11) Use the type and amount of abrasive specied in the instruction manual.
12) The use of accessories other than those recommended in this manual may cause injury.
13) The machine is for indoor use only.

Bona Belt Lite Manual
1818
Machine Specications
Abrasive Belt Dimensions:
Drum Width:
Drum Diameter:
Drum Speed:
Motor:
Safety Motor Protection:
Drum Control:
Wheels Adjustment:
Wheels:
Bearings:
Drum Pressure Adjustment:
Noise Level:
(IEC 60704-1 [continuous weighted sound
pressure level A, measured at a distance
of 0.4m from the handle and a height of
1.5m from the ground])
Vibration:
(weighted value of the
mean square deviation
of the acceleration)
Machine Dimensions:
(assembled)
Net Weight:
Gross Packaging Dimensions:
Gross Weight:
(cardboard packages)
Standard Equipment:
750mm x 203mm
200mm
150mm
50Hz — 2400rpm
(A15) EU — 230V~50Hz — 2.2kW
THERMAL SWITCH 16A
In the event of a power cut the motor will not start without manual intervention.
Hand grip lever
Via wheel cam
Ø 80mm replaceable
Lifetime lubricated ball bearings
Innite adjustment
86dB(A) max
≤1.45m/s2
960mm x 360mm x 980mm
60kg
2 cardboard packages
680mm x 370mm x 640mm
68.5kg
Dust bag
Electric plug
Start-up keys
User and maintenance manual

Bona Belt Lite Manual
19
EN
19
Machine Warnings
Prohibited use
Children should be supervised to ensure that they do not play with the appliance. This machine
is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge unless they have received instructions
regarding the use and are supervised by a person responsible for their safety.
This equipment is not suitable for collecting hazardous dust.
Using the machine to move objects or moving on an incline may cause injury or damage. The
machine must only be used to sand dry wooden oors which are level or have a maximum
incline of 2%. DO NOT use the machine to sand steps or furniture. DO NOT sit astride the
machine when it is operating.
Work surfaces may be seriously damaged if the machine is left turning on one point while
the tool is in contact with the surface. To avoid damaging the surface, approach the cutting
line carefully. DO NOT stop when lowering and raising the equipment, keep moving at
constant speed.

Bona Belt Lite Manual
2020
Starting the Machine
To start the machine proceed as follows:
Become familiar with
the machine and read all
instructions & safety notices.
Ensure that all operators read
this manual.
1. 2. 3.
Locate the power supply. The
socket must be compatible
with the plug. To avoid
electrical hazards the socket
must be grounded with a
20 Amp fuse.
Arrange the dust bag as
shown and secure it with the
cord. If using DCS, connect
the adaptor supplied with
the machine and DCS hose
directly.
4.
Wind the cable around the
cable safety arm (A) to keep
it away from the path of the
machine.
Open the side guard (A).
5. 6.
Lower the tensioning unit
using the drum tensioning
lever (A).
Insert the abrasive belt,
ensuring it protrudes
approximately 2mm from
the rubber drum area but
runs along the inside of the
tensioning unit.
7.
