Bond SKS-500 User manual

User manual
Bond Sidekick for Shades
Model: SKS-500
Product outline drawings:
Olibra Confidential

Features:
● controls up to 5 channels
● works with all leading shade motors
○ Somfy RTS
○ Rollease Automate ARC
○ Turnils AMP Motorization
○ Allen & Roth
○ Dooya
○ Bofu
○ A-OK
● mix & match shade motor types on a single remote
● multiple channels can be selected and controlled simultaneously
● no hub required, but works seamlessly with Bond Bridge Pro
● securely flush mounts to wall without junction box
● can also can mount over existing junction box
● compatible with standard decorator cover plates
● optionally can be used as a hand-held remote
Contents:
1. Specifications
2. Parts
3. Safety
4. Installation
5. Programming
6. Operation
7. Troubleshooting
Olibra Confidential

Specifications
Tech Specs
Battery
CR2430 (3V)
RF Frequency
431–437MHz
Operating Temperature
-10C -- +50C
Range
300 sq ft
Modulations supported
GFSK,OOK
Parts
1x Bond Sidekick for Shades (SKS-500)
1x CR2430 3V lithium battery
1x mounting bracket
2x mounting screws & matching drywall anchors
1x decorator wall plate
1x user manual
Safety
Improper installation or operation of this product may result in personal injury or property
damage. Please follow these instructions carefully including the following important safety
notes:
1. This product contains a lithium coin cell battery. Please beware the following regarding
this battery:
a. These batteries are small and can be a choking hazard for small children.
b. The chemicals inside the battery can cause fire, explosion, or severe burns if
mishandled. Do not dispose of in fire, do not eat, and do not puncture. Dispose
only in accordance with local regulations for hazardous materials.
c. These coin cell batteries are NOT rechargeable. Only replace with another
non-rechargeable ("primary") 3V lithium battery of size CR2430. Use of an
unauthorized battery is unsafe and will void your warranty.
Olibra Confidential

2. This product is designed to operate motorized shades, awnings, and pergolas. The
movement of these shades or awnings may pose a physical threat to people in their
vicinity. For this reason, please beware the following:
a. Please follow all manufacturer safety instructions regarding the installation,
operation, and maintenance of your shade, awning, pergola, or similar appliance.
b. Do not permit children to operate this product. When installing on a wall, install at
a height out of reach of small children.
c. Do not operate if under the influence of alcohol or other drugs which may impair
reaction time or judgement.
Programming
Pairing with Shades
Here's how to program your shade motor. If your motor is not Somfy RTS, please first change
the protocol as described in the Changing Protocols section.
1. Select the channel you want to program. Make sure just one channel is selected.
2. Hold the pairing button on the motor until the motor responds.
3. Hold the STOP button on the Sidekick for ~2 seconds.
4. The motor should respond, indicating that the pairing is complete.
5. Try to control the motor with the Up / Down buttons.
For many shade motors, you also have the option of using another remote control already
paired to the motor to introduce the Sidekick. Just hold down the pairing button on the existing
remote control instead of the pairing button on the motor in step 2 above.
Setting Favorite Position
Many shade motors have the ability to learn a "favorite position". Please follow instructions
below based on which motor protocol you are using:
Somfy RTS
Rollease, Turnils, Wynstan, Coulisse, Riel Americano
1. Select a single channel on Sidekick. You cannot set a favorite position for multiple shade
channels simultaneously.
2. Move the shade to the desired position using the Up, Down, and Stop buttons.
3. Tap the PAIR button on the back of Sidekick. The shade should jog once.
4. Now press the Stop button. The shade should jog once again.
5. Now press the Stop button again. The shade should now jog twice.
Olibra Confidential

6. The favorite position is now set.
Allen & Roth
Unfortunately, my favorite position is not supported by these shade motors.
Changing Protocols
Sidekick comes pre-programmed for Somfy RTS on all channels. To change to a different motor
protocol, follow the steps below:
1. Select the channel or channels that you want to change. To change all channels, make
sure you have selected all 5 channels before continuing.
2. Press and hold the bond button on the back of the remote control for 2 seconds.
3. The indicator LEDs will blink to indicate the current protocol for these channels. See
table below.
4. Use the Up / Down buttons to select the protocol that you want to set. See table below.
5. Press and hold the STOP button for 2 seconds to save the change. The LEDs for the
channels changed will go solid for 2 seconds to indicate which channels were changed.
NOTE: After 30 seconds of no activity, the lights will stop blinking and Sidekick will go back to
normal operation mode without any change.

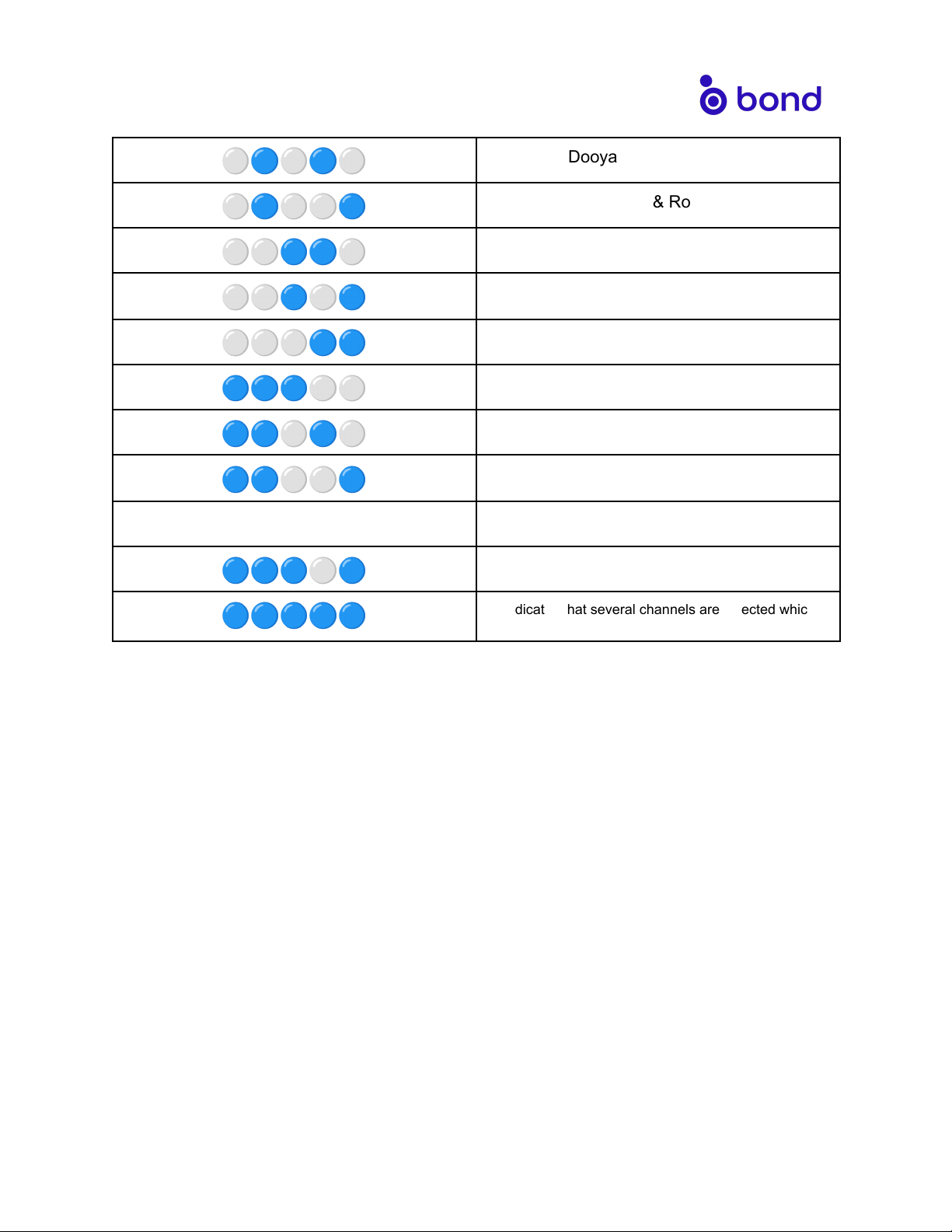

LED Code
1 2 3 4 5
Motor Protocol
🔵 ⚪⚪⚪⚪
Somfy RTS (Shade)
🔵🔵 ⚪⚪⚪
Rollease Automate ARC
🔵 ⚪ 🔵 ⚪⚪
Turnils AMP Motorization
🔵 ⚪⚪ 🔵 ⚪
Wynstan Wynmotion
🔵 ⚪⚪⚪ 🔵
Coulisse
⚪ 🔵🔵 ⚪⚪
Somfy RTS (Lights)
Olibra Confidential

⚪ 🔵 ⚪ 🔵 ⚪
Dooya XYZPDQ (OOK)
⚪ 🔵 ⚪⚪ 🔵
Allen & Roth
⚪⚪ 🔵🔵 ⚪
Bofu
⚪⚪ 🔵 ⚪ 🔵
⚪⚪⚪ 🔵🔵
🔵🔵🔵 ⚪⚪
🔵🔵 ⚪ 🔵 ⚪
🔵🔵 ⚪⚪ 🔵
...
🔵🔵🔵 ⚪ 🔵
🔵🔵🔵🔵🔵
(indicates that several channels are selected which
currently are set to different motor protocols)
Pairing with a Bond Bridge Pro
Sidekick can be paired with a Bond Bridge Pro so that the state of your shades does not get out
of sync in the app when using Sidekick to control them. Pairing is very easy:
1. Open the Bond Home app.
2. Open the Bond Bridge Pro settings.
3. Tap on "Add a Sidekick".
4. Briefly tap the bond button on the back of the remote control.
5. Follow on-screen instructions to connect the Sidekick to devices in the Bond Home app.
Operation
Single Channel
To operate a specific shade channel:
1. Tap the channel you want to control (1, 2, 3, 4, or 5).
Olibra Confidential

2. Now tap the Up / Down button to Raise / Lower the shade.
3. Tap the STOP button to hold the shade at a specific position.
4. For most shades, tapping the STOP button when the shade is already stopped will
cause the shade to move to the Favorite Position.
If you tap Up / Down / STOP without first selecting a channel, the previously selected channel
will be used.
Multi-Channel Control
To operate several shades at once:
1. Select more than one channel by pressing each channel button.
2. Now tap Up / Down / STOP buttons as needed.
If you later tap Up / Down / STOP without selecting a channel or group of channels, the
previously selected channel(s) will be used.
NOTE: For some shade protocols (Rollease, Turnils, Wynstan, Allen & Roth), all shades will
move at exactly the same time because these protocols support broadcast commands. For
other protocols (Somfy, Bofu), the shades will start moving at slightly different times because
separate signals need to be sent to each shade.
Moving Shade to Favorite Position
Somfy RTS
1. Select one or more channels of Somfy shades.
2. Tap the Stop button once.
3. If a favorite position is set, the shade(s) will move to their position.
Rollease, Turnils, Wynstan, Coulisse, Riel Americano
1. Select one or more channels.
2. Hold down the Stop button for approximately 2 seconds.
3. All selected shade channels will move to their favorite position.
Allen & Roth
Unfortunately my favorite position is not supported by these shade motors.
Olibra Confidential
