Bonnet B-D9P.FR500 User manual

PREMIUM
COOKINGTOPS&UNITS
ELECTRIC
MANUFACTURER'S INSTRUCTIONS
Part A: Technical data
Part B: Installation manual
- WARNING -
• Installation and repairs must be carried out by personnel approved by the manufacturer and in
accordance with current regulations and standards.
• If any modifications are made the manufacturer can accept no responsibility whatsoever.
• These appliances must be used in a well-ventilated area.
• Read the notice carefully before installation.
• The unit must be kept on its base for handling until it is in it’s final location.
N° 390 333
N
O
B
N
E
T
9

Page 1
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
CONTENT
ELECTRIC COOKING TOPS &
UNITS
A) TECHNICAL DATA.......................................………………………........... 2
B) INSTALLATEUR MANUAL
1. Location of the identification plate ..............………........................…... 23
2. Installation: General features ………….…….…………………….…..…. 24
2.1 General requirements …………..……….……...…...…...…...…….. 24
2.2 Handling ……….....…………………………..…………………….…. 24
2.3 Unpacking ……….….………..………………………..…………….... 24
2.4 Access to components behind the front facia ….………….…….... 25
3. Installation: Positioning ……………………………………….….….……. 26
3.1 Cooking tops ……………..…...……...………………..……….…..... 26
3.2 Cooking units ……………..…...……...…………..……..…..……..... 32
4. Installation: Connection ……………………………………………...……. 38
4.1 Electrical connection ……………..…...……...……………..……..... 38
4.2 Water connection ……………..…...……...………...……..…..…..... 40
4.3 Drain connection ……………..…...……...…………..…………….... 40

Page 2
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
A: TECHNICAL DATA

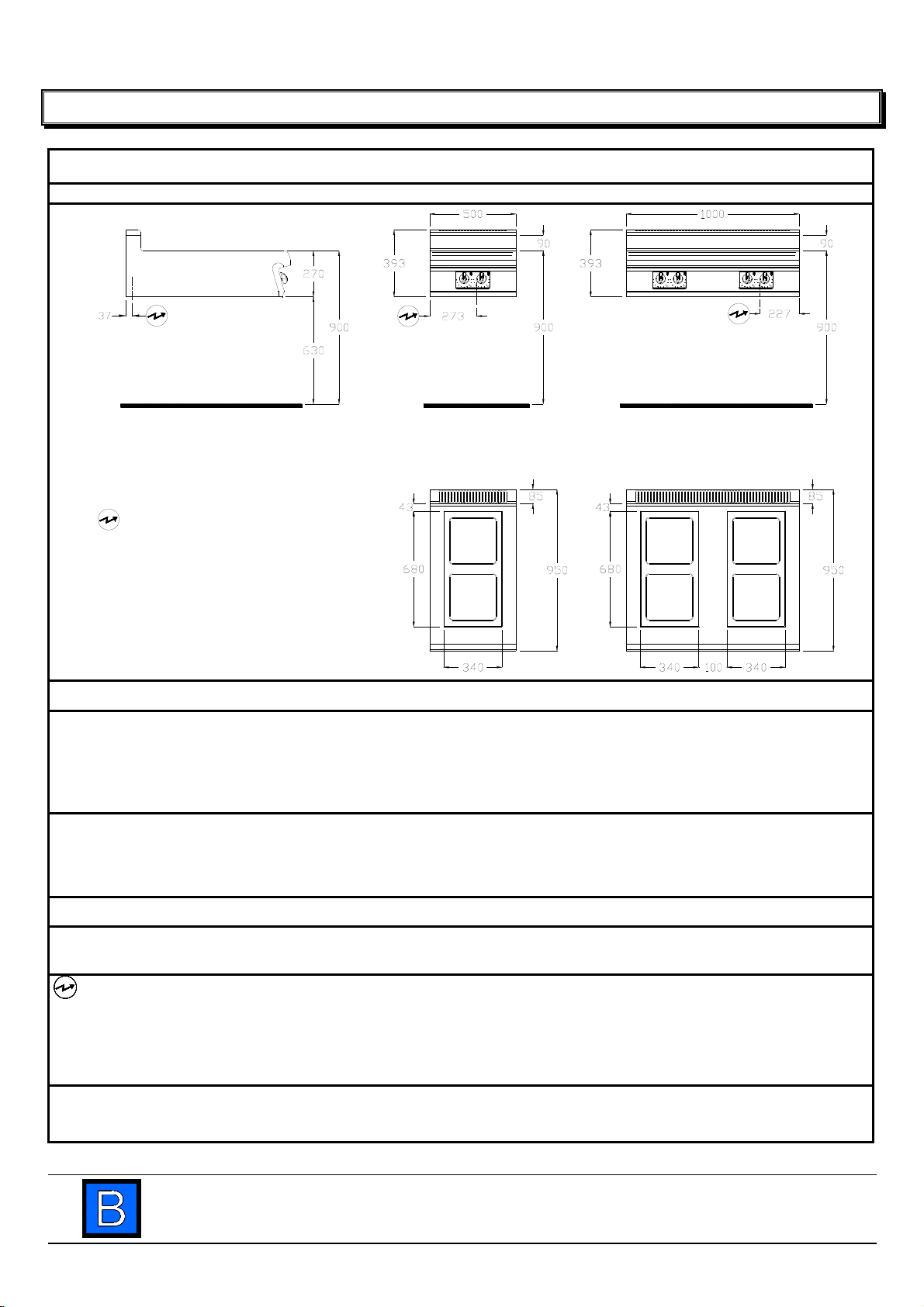

PREMIUM, Electric cooking top, Radiant hobs
P075193: 500 wide P075194: 1000 wide
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.FR500 B-D9P.FR1000
DIMENSIONS (mm)
Height 393 393
Width 500 1000
Depth 950 950
Plate 340 x 680 340 x 680 (2 plates)
PACKAGING (mm)
Height 500 500
Width 600 1100
Depth 1050 1050
WEIGHT (KG) 77 120
TOP COMPRISES
Hearth 4000 or 3500 Watts 2 4
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Power (kW) 230V 3a.c. 7 14
400V 3Na.c. 8 16
Intensity max (A) 230V 3a.c. 26.3 40.3
400V 3Na.c. 17.3 26.5
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN201

Page 3
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking top, solid top
P075195: 500 wide P075196: 1000 wide
5
4
3
2
1 5
3
1
424
5
2
4
3
1
2
3
51 1 5
3
2
1
3
42
5
4
DRAIN
Drain connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.PEC500 B-D9P.PEC1000
DIMENSIONS (mm)
Height 393 393
Width 500 1000
Depth 950 950
Heated surface 364 x 616 764 x 616
Usable area (dm2) 22 47
PACKAGING (mm)
Height 500 500
Width 600 1100
Depth 1050 1050
WEIGHT (KG) 75 135
TOP COMPRISES
Hearth 4000 or 3500 Watts 2 4
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Power (kW) 230V 3a.c. 7 14
400V 3Na.c. 8 16
Intensity max (A) 230V 3a.c. 26.3 40.3
400V 3Na.c. 17.3 26.5
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN202

Page 4
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

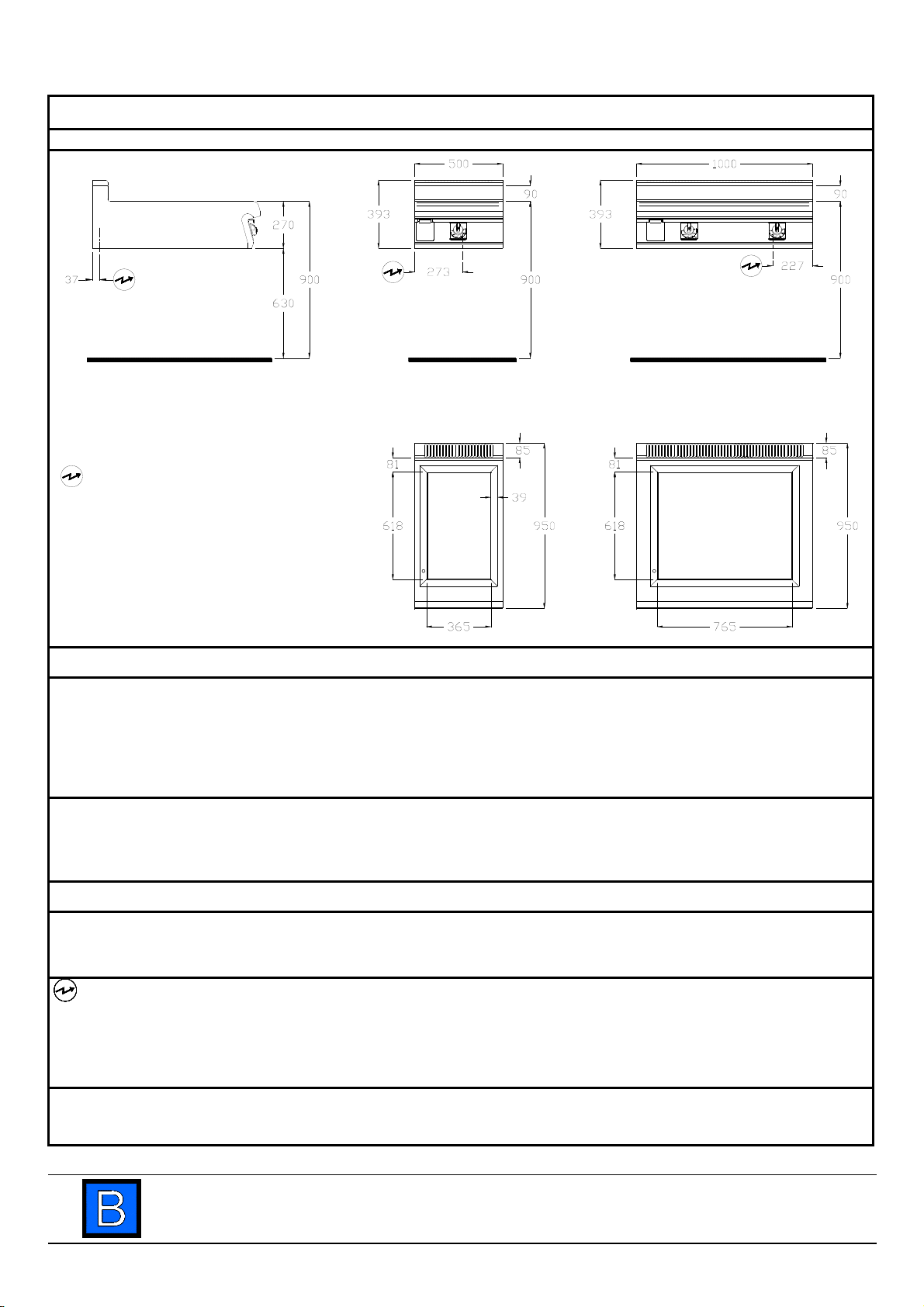

PREMIUM, Electric cooking top, plancha
P075197: 500 wide P075198: 1000 wide
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.SN500 B-D9P.SN1000
DIMENSIONS (mm)
Height 393 393
Width 500 1000
Depth 950 950
Heated surface 616 x 364 616 x 764
Usable area (dm2) 22 47
PACKAGING (mm)
Height 500 500
Width 600 1100
Depth 1050 1050
WEIGHT (KG) 80 140
TOP COMPRISES
365mm wide plate 1 -
765mm wide plate - 1
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Power (kW) 230V 3a.c. 5.4 10.8
400V 3Na.c. 5.4 10.8
Intensity max (A) 230V 3a.c. 13.6 27.1
400V 3Na.c. 7.8 15.6
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN203

Page 5
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

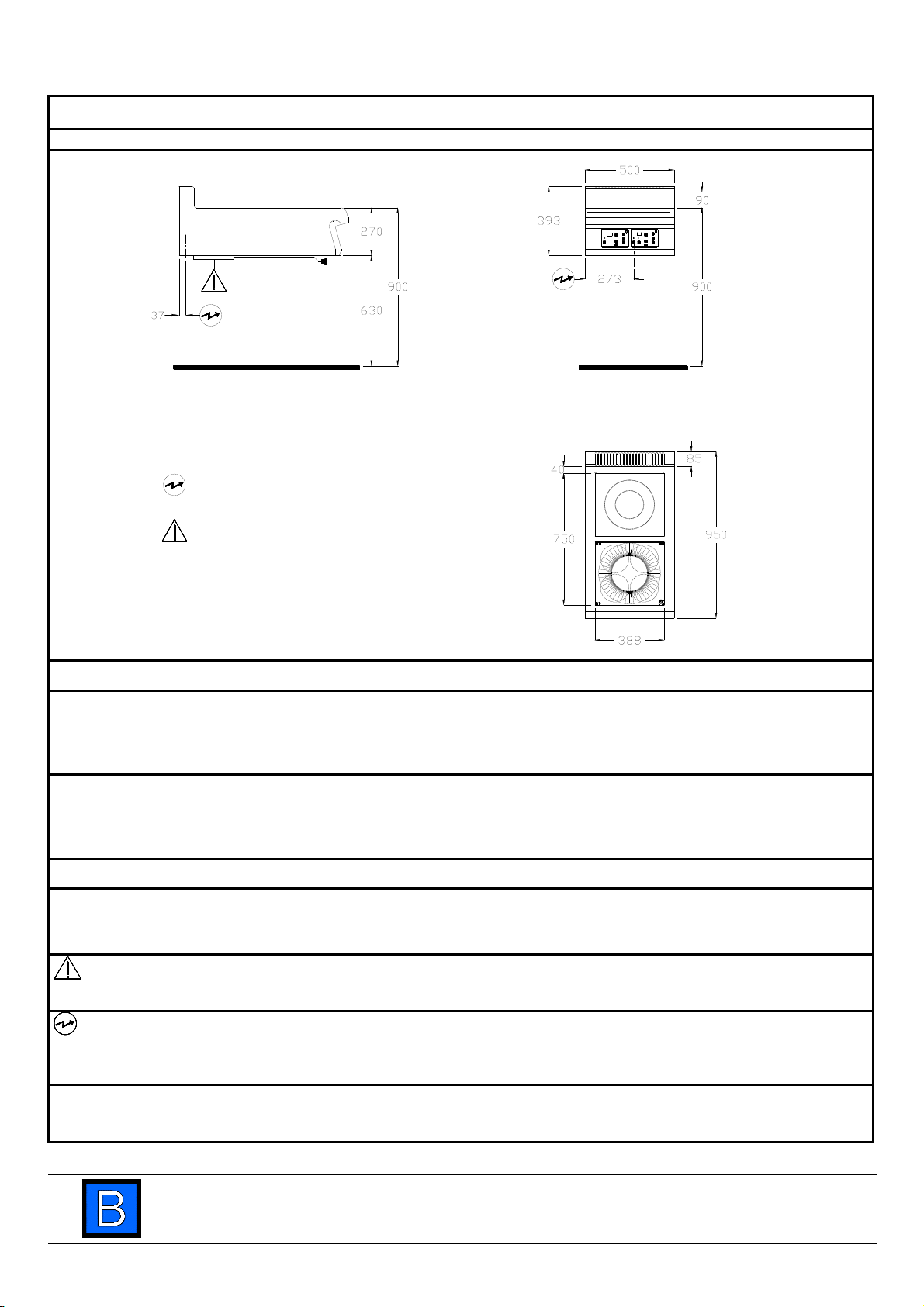

PREMIUM, Electric cooking top, Induction 6+3
P075199
ELECTRICAL connection
(Leave 1.5 m cable tails)
AIR inlet
MODEL B-D9P.IN63
DIMENSIONS (mm)
Height 393
Width 500
Depth 950
PACKAGING (mm)
Height 500
Width 600
Depth 1050
WEIGHT (KG) 55
TOP COMPRISES
Front hob(Watts) 4500
Rear hob (Watts) 2300
AIR INLET
Filter dimensions 250 x 250
ELECTRICITY (Three phase 400V+N+E)
Power(kW) 400V 3Na.c. 6.8
Intensity max (A) 400V 3Na.c. 9.8
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN204

Page 6
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

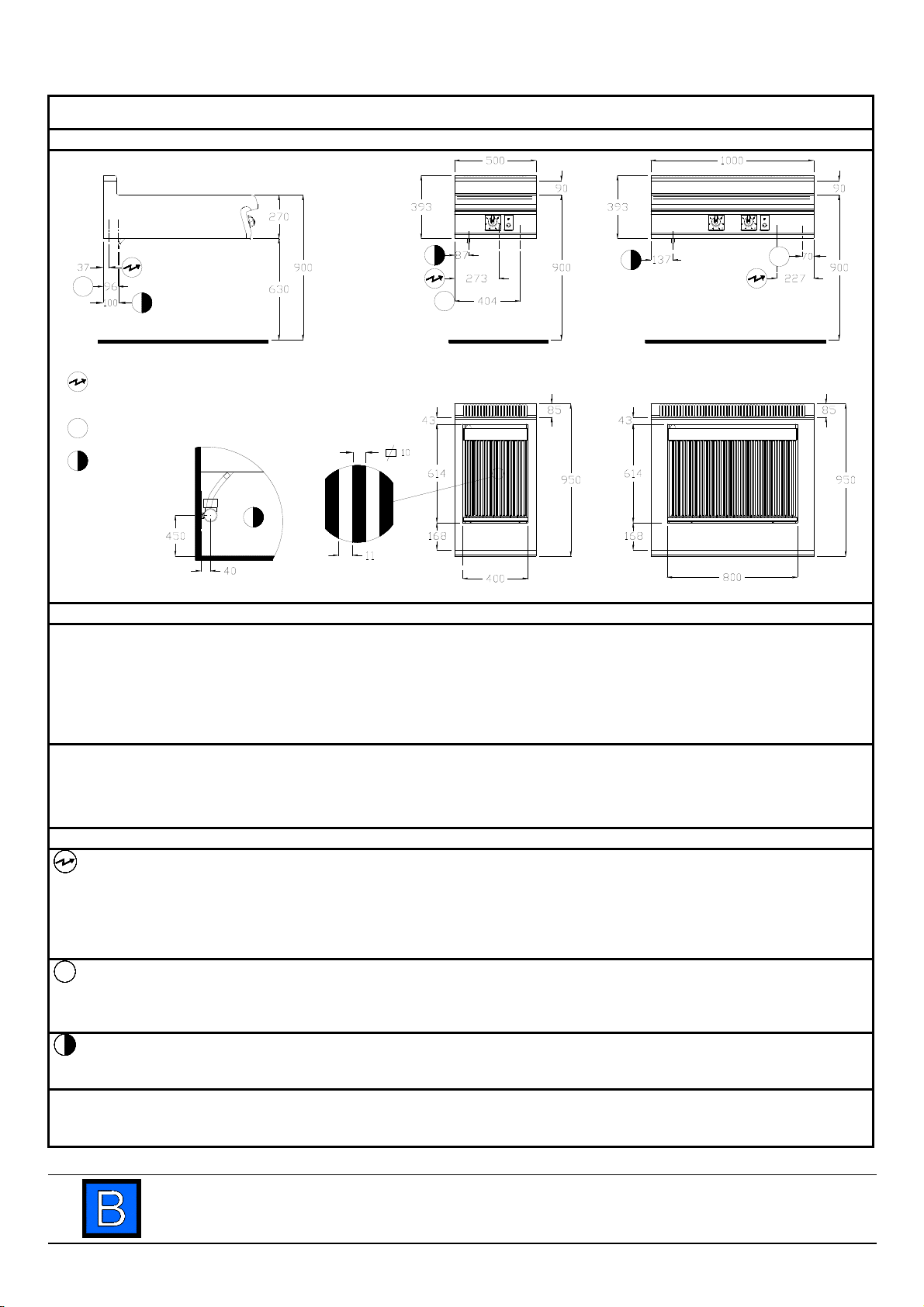

PREMIUM, Electric cooking top, Bar Grill
P075201: 500 wide P075202: 1000 wide
BarsDrain connection
DRAIN
COLD WATER
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.GR500 B-D9P.GR1000
DIMENSIONS (mm)
Height 393 393
Width 500 1000
Depth 950 950
Grill dimensions 480 x 390 480 x 750
Usable area (dm2) 18.7 36
PACKAGING (mm)
Height 500 500
Width 600 1100
Depth 1050 1050
WEIGHT (KG) 52 98
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Power (kW) 230V 3a.c. 7.8 15.7
400V 3Na.c. 7.8 15.7
Intensity max (A) 230V 3a.c. 19.7 39.3
400V 3Na.c. 11.3 22.6
COLD WATER
Pressure 2.5/6 bars
Connection Flexible 21 (1/2") ∅
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN205

Page 7
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking top, bain-marie
P075203: 4 containers P075204: 5 containers
Drain connection
DRAIN
HOT WATER
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.BM500 B-D9P.BM1000
DIMENSIONS (mm)
Height 393 393
Width 500 1000
Depth 950 950
PACKAGING (mm)
Height x Depth 500 x 1050 500 x 1050
Width 600 1100
WEIGHT (KG) 52 98
TOP COMPRISES
Number of containers GN 1/3 150 mm deep 4 5
ELECTRICITE (Single phase or three phase 230V+E or 400V+N+E)
Power (kW) 230V a.c. 1.5 2.3
230V 3a.c. 1.5 2.3
400V 3Na.c. 1.5 2.3
Intensity max (A) 230V a.c. 6.5 10
230V 3a.c. 6.5 10
400V 3Na.c. 6.5 10
HOT WATER
Pressure 2.5/6 bars
Max. temperature 60°C
Connection Flexible 21 (1/2") ∅
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN206

Page 8
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking top, french fry store
P075205: neutral P075206: Infrared heated
DRAIN
Drain connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-D9P.RF B-D9P.RFI
DIMENSIONS (mm)
Height 393 752
Width 500 500
Depth 950 950
Well (Width x Length x Depth ) 310 x 692 x 150 310 x 692 x 150
PACKAGING (mm)
Height 500 850
Width 600 600
Depth 1050 1050
WEIGHT (KG) 45 50
TOP COMPRISES
Well width 310 1 1
ELECTRICITY
Voltage - Single phase 230V a.c.
Power (kW) - 1.6
Intensity max (A) - 7
DRAIN Smooth stainless 18mm Ø tube + 20cm silicone pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
630 mm from floor
Non contractual document Edition 04/2002 – EN207

Page 9
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

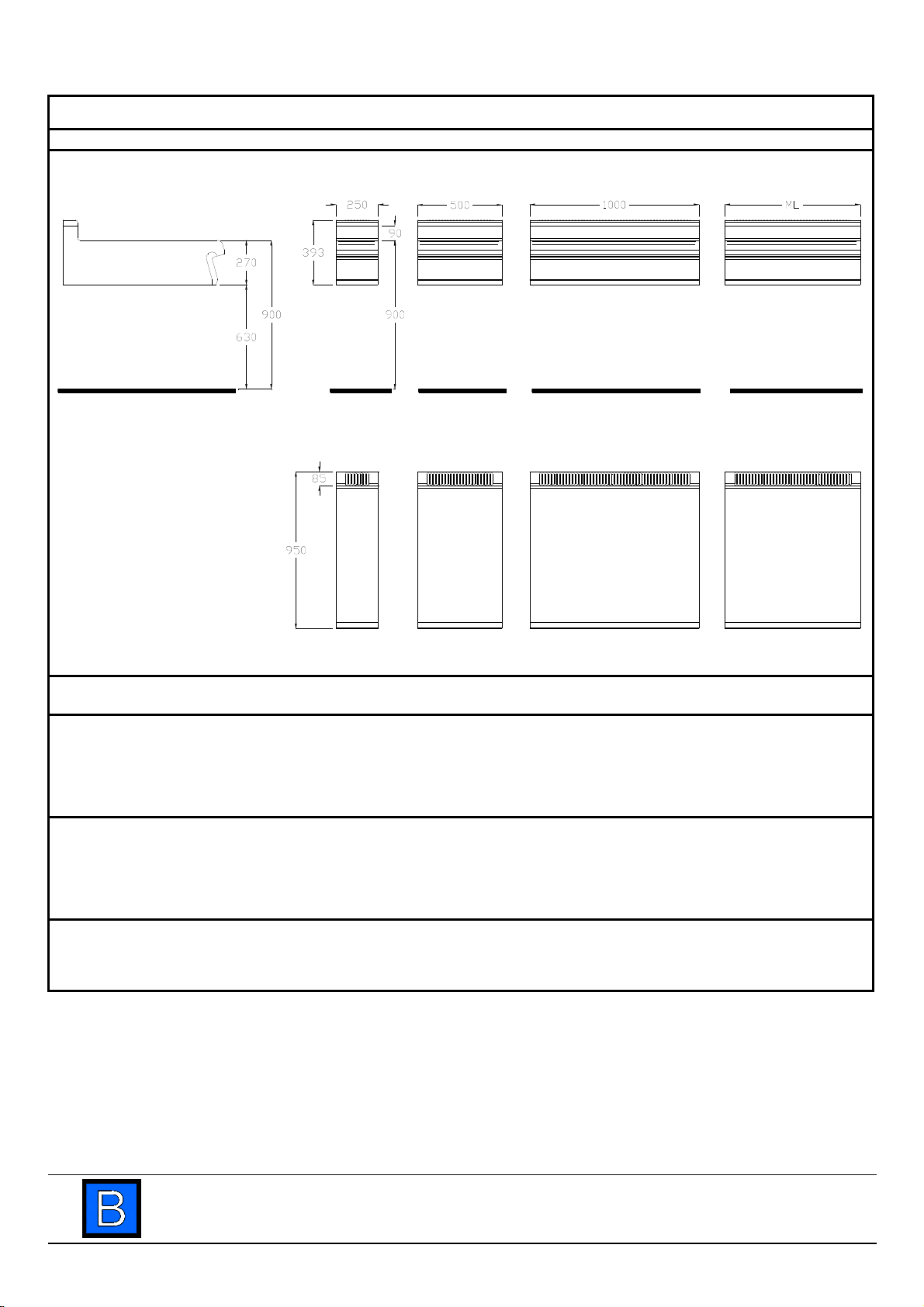

PREMIUM, Neutral unit
P075234: 250 wide P075226: 500 wide P075227: 1000 wide P075228: Per linear metre
MODEL B-D9P.DN250 B-D9P.DN500 B-D9P.DN1000 B-D9P.DNML
DIMENSIONS (mm)
Height 393 393 393 393
Width 250 500 1000 Per linear metre
Depth 950 950 950 950
PACKAGING (mm)
Height 500 500 500 500
Width 350 600 1100 Width + 100
Depth 1050 1050 1050 1050
WEIGHT (KG) 26 45 85 -
Non contractual document Edition 04/2002 – EN208

Page 10
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Stands 630mm high fixed or mobile
Fixed stand height 630
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
CODES
P075236 P075291 P075237 P075238 P075239
DIMENSIONS (mm)
Appliance width: A500 750 1000 1500 2000
Leg centres: B380 630 880 1380 1880
Shelf width: C277 647 777 1397 1777
PACKAGING (mm)
Height 750 750 750 750 750
Width 600 850 1100 1600 2100
Depth 750 750 750 750 750
WEIGHT (KG) 28 31 34 42 50
Mobile stand height 630
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
CODES
P075240 P075231 P075241 P075242 P075243
DIMENSIONS (mm)
Appliance width: A500 750 1000 1500 2000
Leg centres: B380 630 880 1380 1880
Shelf width: C277 647 777 1397 1777
PACKAGING (mm)
Height 750 750 750 750 750
Width 600 850 1100 1600 2100
Depth 750 750 750 750 750
WEIGHT (KG) 30 33 36 44 54
Non contractual document Edition 04/2002 – EN209

Page 11
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

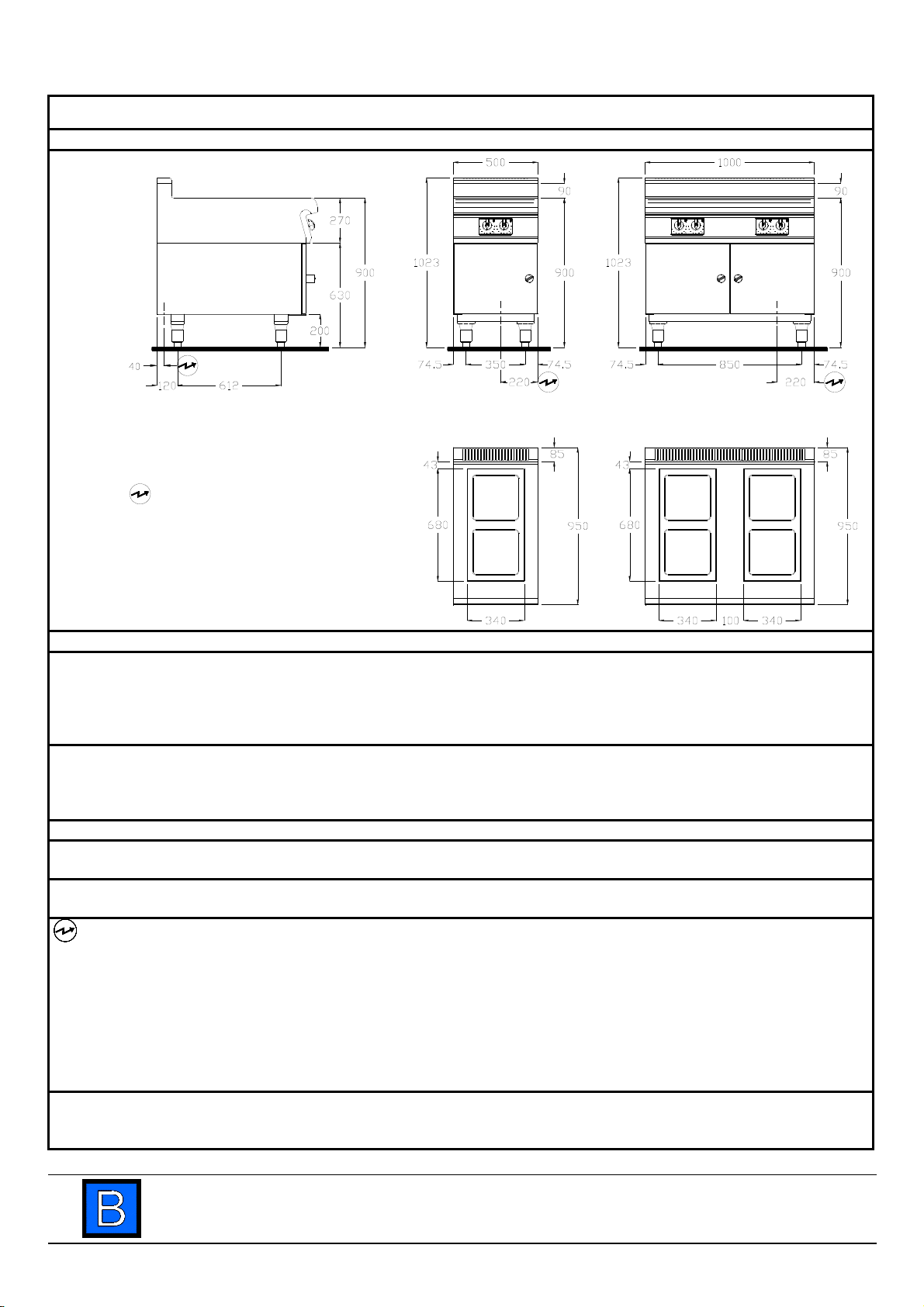

PREMIUM, Electric cooking unit, Radiant hobs on cupboard
P075263: 500 wide P075264: 1000 wide
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.FR500 B-B9P.FR1000
DIMENSIONS (mm)
Height 1023 1023
Width 500 1000
Depth 950 950
Plate 340 x 680 340 x 680 (2 plates)
PACKAGING (mm)
Height 1150 1150
Width 600 1100
Depth 1050 1050
WEIGHT (KG) 97 150
TOP COMPRISES
Hearth 4000 or 3500 Watts 2 4
BASE COMPRISES
Cupboard with 500 1000
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Appliance
Power (kW) 230V 3a.c. 7 14
400V 3Na.c. 8 16
Intensity max (A) 230V 3a.c. 26.3 40.3
400V 3Na.c. 17.3 26.5
Optional heated cupboard (Adds to the total power of the appliance) (Not compatible with Three phase 230V, in width 1000)
Power (kW) 1 2
Intensity max (A) 4.5 9
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN225

Page 12
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking unit, Radiant hobs on electric oven
P075265
4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.FR1000.FE
DIMENSIONS (mm)
Height 1023
Width 1000
Depth 950
Plate 340 x 680 (2 plates)
PACKAGING (mm)
Height 1150
Width 1100
Depth 1050
WEIGHT (KG) 180
TOP COMPRISES
Hearth 4000 Watts 4
BASE COMPRISES
Electric oven (kW) 5.1
ELECTRICITY (Three phase 400V+N+E)
Power (kW) 400V 3Na.c. 21.1
Intensity max (A) 400V 3Na.c. 33.4
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN226

Page 13
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking unit, solid top on cupboard
P075266: 500 wide P075267: 1000 wide
5
4
3
2
1 5
3
1
4 2 4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
Drain connection
DRAIN
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.PEC500 B-B9P.PEC1000
DIMENSIONS (mm)
Height x Depth x Width 1023 x 950 x 500 1023 x 950 x 1000
Heated surface 364 x 616 764 x 616
Usable area (dm2) 22 47
PACKAGING (mm)
Height x Depth x Width 1150 x 1050 x 600 1150 x 1050 x 1100
WEIGHT (KG) 85 165
TOP COMPRISES
Hearths 4000 or 3500 Watts 2 4
BASE COMPRISES
Cupboard with 500 1000
ELECTRICITY (Three phase 230V+E or 400V+N+E)
Appliance
Power (kW) 230V 3a.c. 7 14
400V 3Na.c. 8 16
Intensity max (A) 230V 3a.c. 26.3 40.3
400V 3Na.c. 17.3 26.5
Optional heated cupboard (Adds to the total power of the appliance) (Not compatible with Three phase 230V, in width 1000)
Power (kW) 1 2
Intensity max (A) 4.5 9
DRAIN 22mm ∅pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN227

Page 14
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

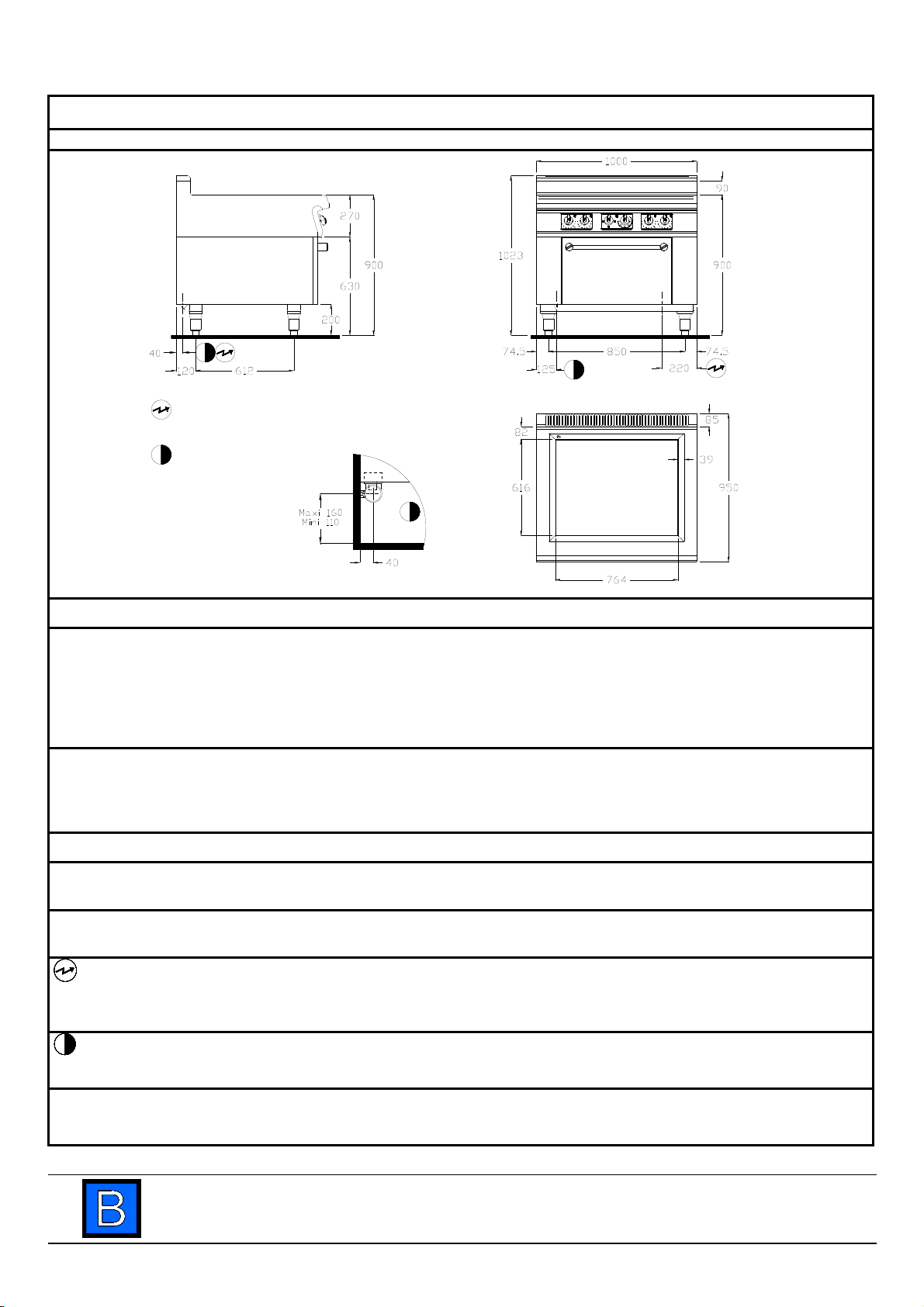

PREMIUM, Electric cooking unit, solid top on electric oven
P075268
4
5
24
3
1
2
3
51 1 5
3
2
1
3
4 2
5
4
Drain connection
DRAIN
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.PEC1000.FE
DIMENSIONS (mm)
Height 1023
Width 1000
Depth 950
Heated surface 764 x 616
Usable area (dm2) 47
PACKAGING (mm)
Height 1150
Width 1100
Depth 1050
WEIGHT (KG) 195
TOP COMPRISES
Hearth 4000 Watts 4
BASE COMPRISES
Electric oven (kW) 5.1
ELECTRICITY (Three phase 400V+N+E)
Power (kW) 400V 3Na.c. 21.1
Intensity max (A) 400V 3Na.c. 33.4
DRAIN Durite ∅22
Connection Prévoir collecteur mural en PVC ∅50
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN228

Page 15
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

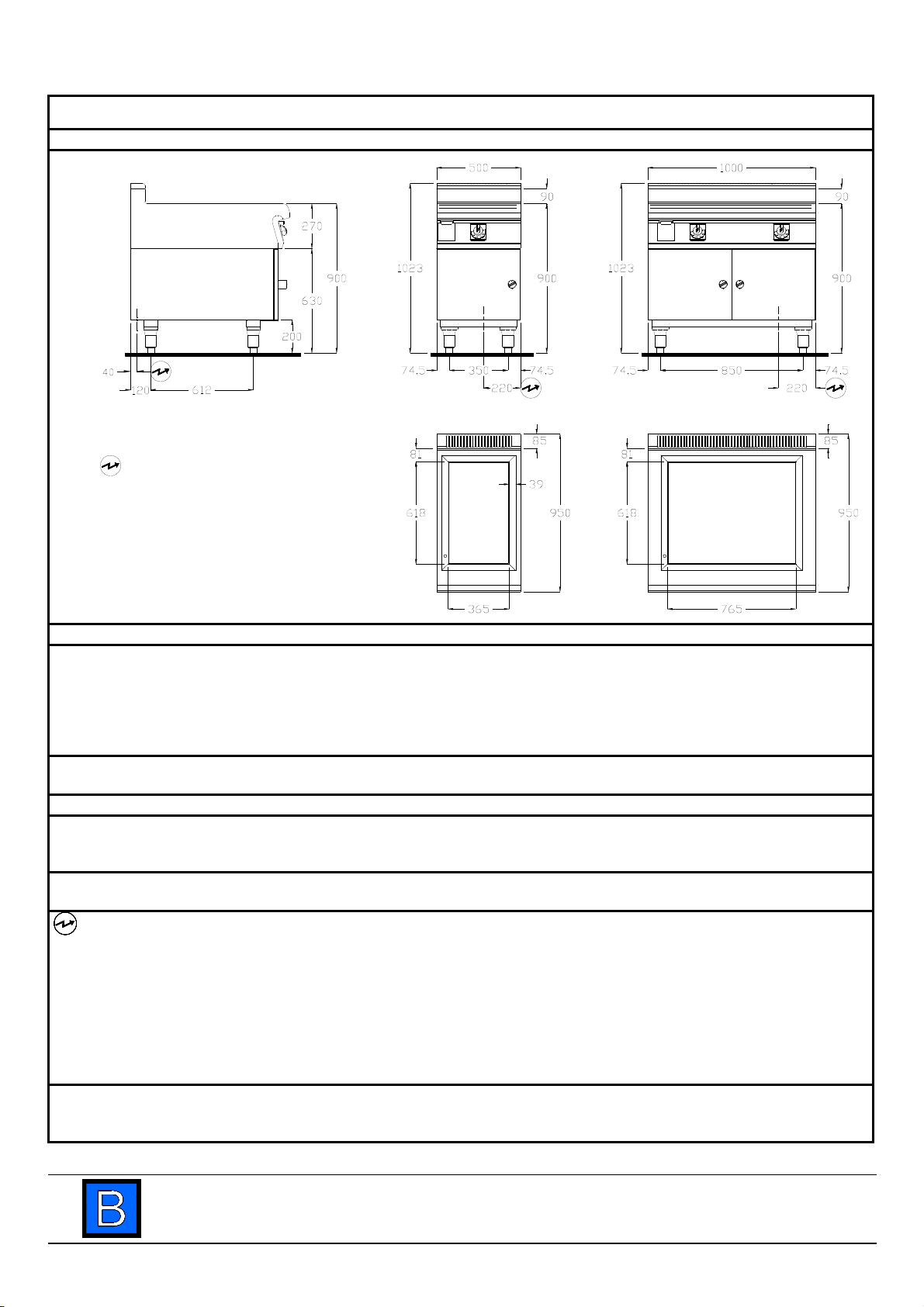

PREMIUM, Electric cooking unit, plancha on cupboard
P075271: 500 wide P075272: 1000 wide
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.SN500 B-B9P.SN1000
DIMENSIONS (mm)
Height x 1023 1023
Width 500 1000
Depth 950 950
Heated surface 616 x 364 616 x 764
Usable area (dm2) 22 47
PACKAGING (mm)
Height x Width x Depth 1150 x 600 x 1050 1150 x 1100 x 1050
WEIGHT (KG) 85 150
TOP COMPRISES
365mm wide plate 1 -
765mm wide plate - 1
BASE COMPRISES
Cupboard width 500 1000
ELECTRICITY (Single phase or three phase 230V+E or 400V+N+E)
Appliance
Power (kW) 230V 3a.c. 5.4 10.8
400V 3Na.c. 5.4 10.8
Intensity max (A) 230V 3a.c. 13.6 27.1
400V 3Na.c. 7.8 15.6
Optional heated cupboard (Adds to the total power of the appliance)
Power (kW) 230V 3a.c. 1 2
Intensity max (A) 230V 3a.c. 4.5 9
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN229

Page 16
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric unit cooking, Induction 6+3 on technical cupboard
P075273
AIR filter
Electrical connection
(Leave 1.5 m cable tails)
MODEL B-B9P.IN63
DIMENSIONS (mm)
Height 1023
Width 500
Depth 950
PACKAGING (mm)
Height 1150
Width 600
Depth 1050
WEIGHT (KG) 60
TOP COMPRISES
Front hob(Watts) 4500
Rear hob (Watts) 2300
BASE COMPRISES
Technical cupboard width 500
AIR INLET
Filter dimensions 250 x 250
ELECTRICITY (Three phase 400V+N+E)
Power (kW) 400V 3Na.c. 6.8
Intensity max (A) 400V 3Na.c. 9.8
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN230

Page 17
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
PREMIUM, Electric cooking unit, Bar Grill
P075269: 500 wide P075270: 1000 wide
BarsDrain connection
ELECTRICAL connection
(Leave 1.5 m cable tails)
COLD WATER
DRAIN
MODEL B-B9P.GR500 B-B9P.GR1000
DIMENSIONS (mm)
Height x Width x Depth 1023 x 500 x 950 1023 x 1000 x 950
Grill dimensions 480 x 390 480 x 750
Usable area (dm2) 18.7 36
PACKAGING (mm)
Height x Width x Depth 1150 x 600 x 1050 1150 x 1100 x 1050
WEIGHT (KG) 72 130
BASE COMPRISES
Cupboard with 500 1000
ELECTRICITY (Single phase or three phases 230V+E or 400V+N+E)
Appliance
Power (kW) 230V 3a.c. 7.8 15.7
400V 3Na.c. 7.8 15.7
Intensity max (A) 230V 3a.c. 19.7 39.3
400V 3Na.c. 11.3 22.6
Option heated cupboard (Adds to the total power of the appliance)
Power (kW) 230V 3a.c. 1 2
Intensity max (A) 230V 3a.c. 4.5 9
COLD WATER
Pressure 2.5/6 bars
Connection Flexible 21 (1/2") ∅
DRAIN 22mm ∅pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN231

Page 18
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

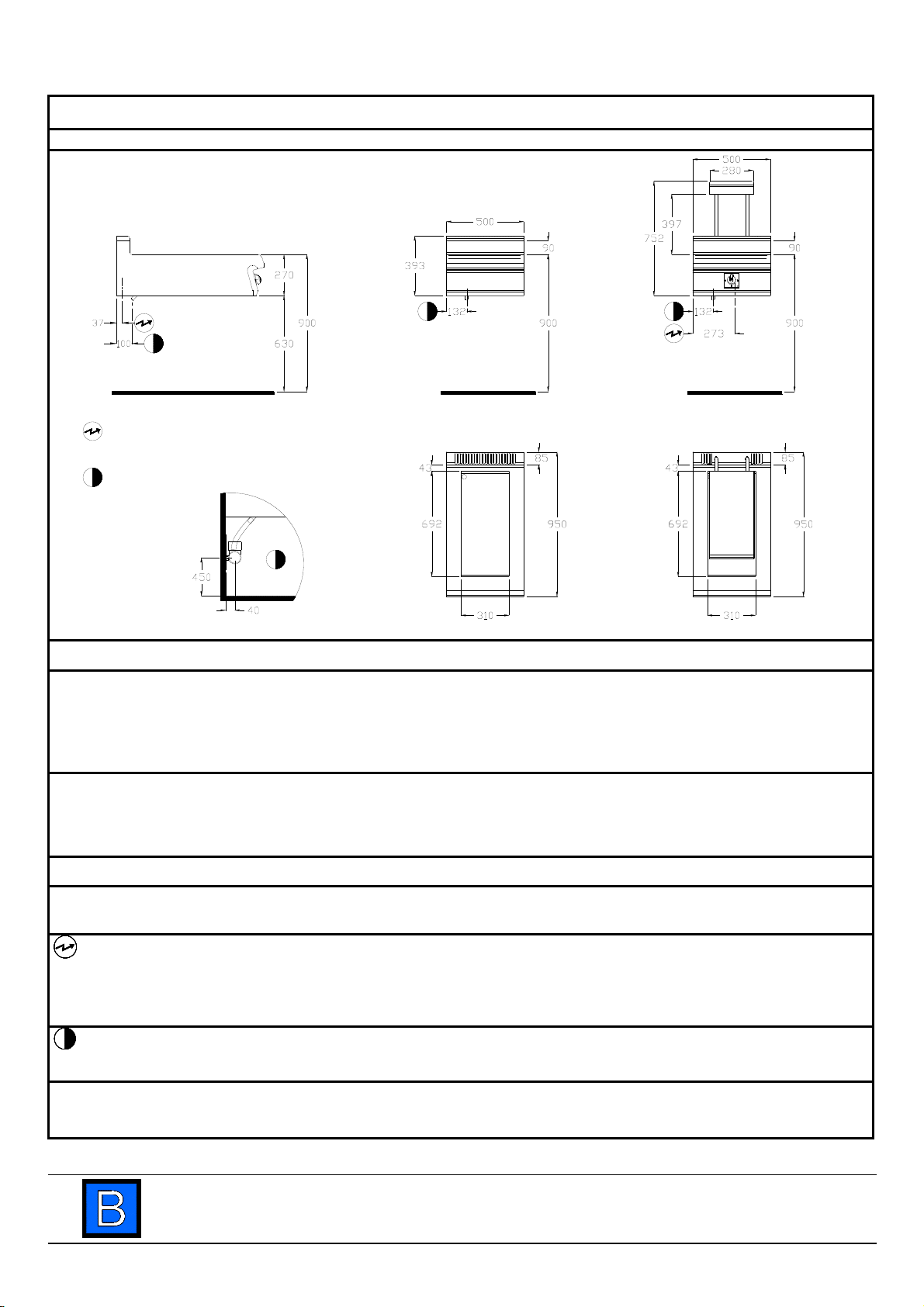

PREMIUM, Electric cooking unit, bain-marie on cupboard
P075275: 4 containers P075276: 5 containers
Drain connection
DRAIN
HOT WATER
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.BM500 B-B9P.BM1000
DIMENSIONS (mm)
Width x Height x Depth 500 x 1023 x 950 1000 x 1023 x 950
PACKAGING (mm)
Width x Height x Depth 600 x 1150 x 1050 1100 x 1150 x 1050
WEIGHT (KG) 70 140
TOP COMPRISES
Number of containers GN 1/3 150 mm deep 4 5
BASE COMPRISES
Cupboard width 500 1000
ELECTRICITY (Single phase or three phases 230V+E or 400V+N+E)
Appliance
Power (kW) 230V a.c. 1.5 2.3
230V 3a.c. 1.5 2.3
400V 3Na.c. 1.5 2.3
Intensity max (A) 230V a.c. 6.5 10
230V 3a.c. 6.5 10
400V 3Na.c. 6.5 10
Optional heated cupboard (Adds to the total power of the appliance) (Not compatible with Three phase 230V, in width 1000)
Power (kW) 1 2
Intensity max (A) 4.5 9
HOT WATER
Pressure 2.5/6 bars
Max. temperature 60°C
Connection Flexible 21 (1/2") ∅
DRAIN 22mm ∅pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN232

Page 19
N
O
B
N
E
T
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

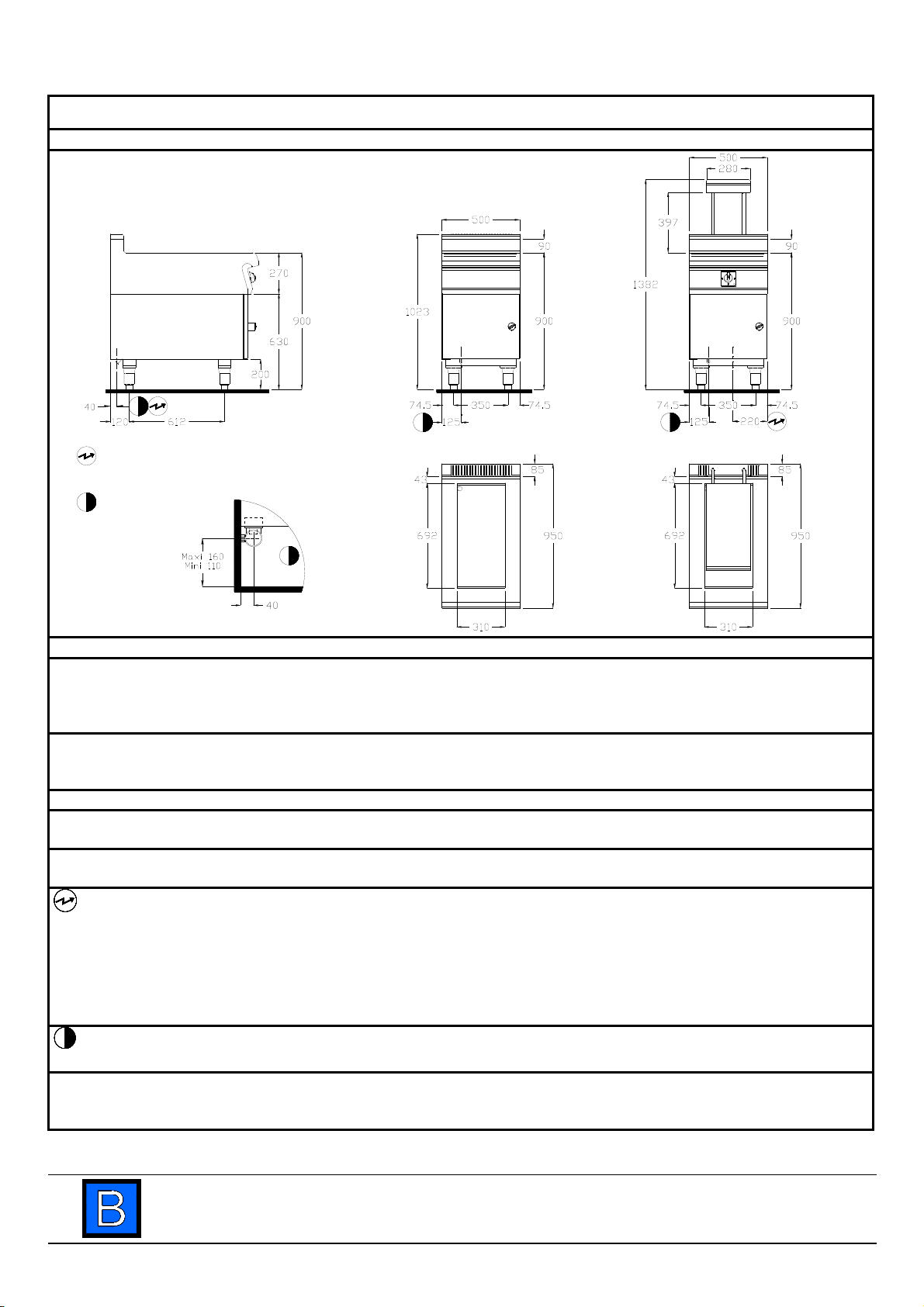

PREMIUM, Electric cooking unit, french fry store on cupboard
P075277: neutral P075278: Infrared heated
Drain connection
DRAIN
ELECTRICAL connection
(Leave 1.5 m cable tails)
MODEL B-B9P.RF B-B9P.RFI
DIMENSIONS (mm)
Height 1023 1382
Width x Depth 500 x 950 500 x 950
Well (Width x Length x Depth ) 310 x 692 x 150 310 x 692 x 150
PACKAGING (mm)
Height 1150 1500
Width x Depth 600 x 1050 600 x 1050
WEIGHT (KG) 70 75
TOP COMPRISES
Well width 310 1 1
BASE COMPRISES
Cupboard with 500 1000
ELECTRICITY (Single phase 230Va.c.)
Appliance
Power (kW) - 1.6
Intensity max (A) - 7
Optional heated cupboard (Adds to the total power of the appliance)
Power (kW) 1 2
Intensity max (A) 4.5 9
DRAIN 22mm ∅pipe
Connection Provide a 50mm ∅drain outlet
ELECTRICAL CONNECTION
200 mm from floor
Non contractual document Edition 04/2002 – EN233
