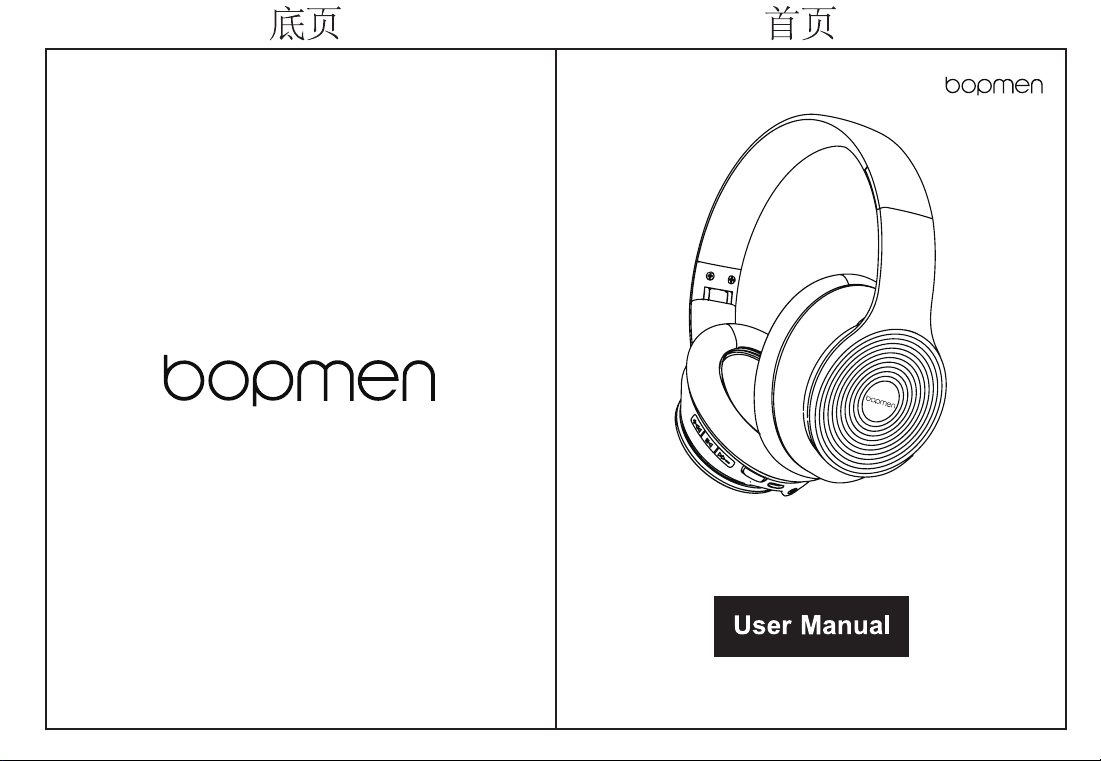

Bopmen S40 User manual

Wireless Active Noise Cancelling Headphones
S40

2
1
Safety Instructions What’s in the box?
EN
  
  
www.bopmen.com
[email protected]
S40
Operation Safety:
1. Avoid dropping.
2. Do not disassemble.
3. Keep away from children to avoid danger from improper use.
4. Do not submerge in water.
5. Do not use the device outdoor during thunderstorm.
6. Avoid operate in extreme temperatures, please use the device
within its operation temperature: -15°C (5°F)~55°C (131°F).
7. Use original or certified cables to charge.
8. Do not use any corrosive cleaner/oil to clean the headphones.
Hearing Safety:
1. To avoid hearing damage, please do not listen for a long time
at high volume.
2. Please cautiously use or stop using in potentially dangerous
situations.
3. Do not use the headphones while driving.
4. For your safety, please do not turn the volume too high while
running outside, so that you can hear your surroundings.

43
At a Glance
How to use?
Hold Multi-function Button for 3 seconds to turn on the
headphones, and then the device enters the paring mode.
(Indication light turns blue)
Hold Multi-function Button for 3 seconds to turn off the
headphones.
Press to adjust volume. Long press to skip to
next/previous song.
Press and hold the volume up and down buttons
simultaneously for 5 second to clear the Bluetooth pairing
record.
Press Multi-function Button to play/pause music.
Hold the ANC button for one second to turn on/off Active
Noising cancelling(Indication light turns green)
Press Multi-function Button to answer/end call.
Double press Multi-function Button to reject coming call /
activate the Siri voice control function.
WARNING
The in-flight plug adaptor lets you enjoy balanced sound from the in-flight entertainment
system while travelling in a plane.
The In-flight adaptor is NOT MEANT to charge your device. Plugging the in-flight adaptor
into a AC Power Socket to charge the headphones will cause severe damage to the device.
Volume Up/Next Song
Multi-function Button
Volume Down/Previous Song
ANC Button
Charging Port
3.5mm AUX Port
1s Press Multi-function Button to reject coming call

Easy Pairing
1. Hold Power Button for 3 seconds to turn on the
headphones, and then the device enter paring mode.
2. Keep the headphones and your Bluetooth device as close
as possible during the pairing process.
3. Turn on Bluetooth function of your Bluetooth device.
Search headphones' Bluetooth signal on your Bluetooth
device, and select “S40” to pair it with your Bluetooth
device. The Indicator Light slowly flashes blue when the
headphones pair successfully.
4. lf you are asked for the Password/PIN code during the
pairing procedure, enter “0000” (four zeros).
Pair to The Second Bluetooth Device
1. Make sure the headphones have been connected to the
first Bluetooth device successfully. And the headphones are
not playing music.
2. Turn off the first device’s Bluetooth.
3. Turn on the second device’s Bluetooth, find the “S40” model
name and select it to pair with your device.
4. Turn on the first device’s Bluetooth and select “S40” pair
it again.
Restore factory setting
Press and hold the volume up and down buttons simultaneously
for 5 seconds to clear the Bluetooth pairing record.
65
Functions
ANC-Active Noise Cancelling :
Turn on ANC: Push ANC button to “on” side and the ANC
Indicator light on green.
Turn off ANC: Push ANC button to “off ” side and the ANC
Indicator turns off.
AUX Wired Connection:
The headphones supports AUX input for wired external audio
source connection. Simply Power Off the headphones and plug
in the audio cable.(Note：Wired mode is not available when the
headphones ran out of battery)
NOTE: The buttons and microphone on bopmen S40 will not
work when connected as wired headphones.
NOTE: bopmen S40 only has one audio channel, if you want
to play music from another Bluetooth device, please pause the
current device's music first.

78
Technical Specifcation
Product Name: S40
Bluetooth Version: V5.0
Input: 5V/220mA
Noise Reduction Depth: 20~25dB
Charging Time: About 2.5 hours
Using Time 1: 15 hours (ANC+BT)
Using Time 2: 20 hours (BT only)
Using Time 3: 40 hours (ANC only)
Bluetooth Profile: A2DP AVRCP HFP HSP
Bluetooth Range: 10m/33ft
Sensitivity: 102+/-3dB
Impedance: 32Ω
Driver Diameter: 40mm
Frequency Response: 20Hz-20kHz
Net Weight: 230g
:
Specification
Pairing: Red and blue light flash alternately
Paired: Blue light flashes
Playing: Slow flashes blue light
Charging: Red light on
Full Charge: Red light turns off
Battery Low: Red light flashes with voice prompt
ANC Working: Green light turns on
Indicator Light
Collapsible Design

9 10
Q & A
Why the headphones can't pair with my mobile phone?
Please check whether your headphones are in pairing mode
or reconnection mode, check if Bluetooth search function
of your Bluetooth device has been turned on. And then go
to Bluetooth menu of your Bluetooth device, delete/forget
the headphones, and reconnect the headphones.
Why headphones can't be turned on?
Please double check battery status of your headphones.
Can I replace battery for the headphones?
No. these headphones use built-in non detachable
Li-Polymer battery. lt can't be replaced.
Can l use the headphones while driving?
For your safety, we strongly recommend you to not use
headphones to avoid distraction while driving.
Why the headphones sometimes disconnect with Bluetooth
device within 10 meters?
Please check if there is any metal material within relatively
close range may interfere Bluetooth connection. Because
Bluetooth is a radio technology that is sensitive to objects
between the headphones and its connected devices.
and its connected devices.
Why I cannot hear any voice from my computer or
mobile phone?
Please check if the output channel of your computer
support A2DP profle. And please check the volume of
your headphones, as well as computer/mobile phone.
Why am I unable to use the headphones to control
volume of select track of APP in my mobile phone?
Due to configuration of different application software, the
headphones may not totally compatible with some
applications.
What can I do if the Bluetooth is crashed?
(Cannot close or open)
Please reset headphone Bluetooth by inserting audio cable
into audio jack then removing it.
Why the Bluetooth is turned off when I use the audio
cable to connect?
This is our special set. All Bluetooth feature buttons stop
working and Bluetooth should be turned off when users
insert audio cable into jack. Don't worry, the Bluetooth will
be available when the audio cable is moved.
Why does the headphones not work when using audio cable?
If the battery of the headphones is completely dead, it cannot
be used in the wired state. Please after charging the
headphones for10 minutes and then use the audio cable to
enter wired mode.
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:
Q:
A:

11 12
What is not Covered?
How to Make a Claim?
This warranty does not cover defects resulting from improper or
unreasonable use or maintenance; failure to follow operating
instructions; accidents; excess moistures; insects; lightning;
unauthorized alteration or modification of original condition;
damage caused by inadequate packing or shipping procedures;
loss of, damage to or corruption of stored data; damage caused
by use with non-bopmen products; product that requires
modification or adaptation to enable it to operate in any country
other than the country for which it was designed, manufactured,
approved and/or authorized, or repair of
products damaged by there modifications; and products purchase
form unauthorized dealers.
Please sign up for bopmen warranty service at
www.bopmen.com
bopmen warrants that this product, for a period of 2 years
from the date of retail purchase by the original end-use
purchaser, when delivered to you in new condition, in original
package, from an bopmen authorized reseller and used in
normal conditions, is free from any defects in manufacturing
and workmanship. We will, at our sole option, repair or replace
(using new or refurbished replacement parts) any defective
parts within a reasonable period of time and free of charge.
24/7 Customer Service
Email: [email protected]
Limited Warranty
In the event damage has occurred to products, you must follow
these instructions:
Contact [email protected] with order number in e-commerce
website after you discover a product defect (or should have
discovered it, if such product defect was obvious);
In order to get professional solutions of bopmen, please give a
detailed explanation of how the damage occurred.
Return the products. bopmen will, at our sole option, repair or
replace (using new or refurbished replacement parts) any defective
parts within a reasonable period of time and free of charge.
Other Legal rights
This limited warranty gives you specific legal rights, and you also
may have other rights that vary from state to state or country to
country. Some places do not allow limitations on implied
warranties or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions
may not apply to you.
