BORETTI ML9015IFSIX Instruction Manual

ML9015IFSIX / ML9015IFSAN /
ML9015IFSZW / ML9015IFSMAT
EN | USER GUIDE - INSTALLATION ADVICE
www.boretti.com

2
Dear customer,
Thank you for having purchased and given your preference to our product.
The safety precautions and recommendations reported below are for your
own safety and that of others. They will also provide a means by which to
make full use of the features offered by your appliance. Please preserve
this booklet carefully. It may be useful in future, either to yourself or to
others in the event that doubts should arise relating to its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage
is to be considered as inappropriate and therefore dangerous. The
manufacturer declines all responsibility in the event of damage
causedby improper, incorrect or illogical use of the appliance.
Declaration of CE conformity
*This appliance has been designed to be used only for cooking. Any other
use (such as heating a room) is improper and dangerous.
*This appliance has been designed, constructed, and marketed in
compliance with:
*Safety requirements of the “Low voltage” Directive 2014/35/EU;
*Safety requirements of the “EMC” Directive 2014/30/EU;
*Requirements of EU Directive 93/68/EEC;
*Requirements of EU Directive 2011/65/EU.
Important information for correct disposal of the product in
accordance with ec directive 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local
authority differentiated waste collection centre
or to a dealer providing this service.
Disposing of a household appliance separately
avoids possible negative consequences for the
environment and health deriving from inappropriate
disposal and enables the constituent materials to
be recovered to obtain significant savings in energy
and resources. As a reminder of the need to dispose
of household appliances separately, the product is
marked with a crossed-out wheeled dustbin.
BE
ENBoretti Milano / User guide - Installation advice

3
Important safety precautions and recommendations
Important
This appliance is designed and manufactured solely for the cooking of
domestic (household) food and is not suitable for any non domestic
application and therefore should not be used in a commercial
environment. The appliance guarantee will be void if the appliance
is used within a non domestic environment i.e. asemi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using the appliance.
*This appliance has been designed and manufactured in compliance with
the applicable standards for the household cooking products and it fulfills all
the safety requirements shown in this manual, including those for surface
temperatures. Some people with sensitive skin may have a more pronounced
temperature perception with some components although these parts are within
the limits allowed by the norms. The complete safety of the appliance also
depends on the correct use, we therefore recommend to always pay a extreme
attention while using the product, especially in the presence of children.
*After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly. In case of doubt, do not
use it and consult your supplier or a professionally qualified technician.
*Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps,
etc.) should not be left around within easy reach of children, as these may
cause serious injuries.
*Some appliances are supplied with a protective film on steel and
aluminium parts. This film must be removed before using the appliance.
Important
The use of suitable protective clothing/gloves is recommended when
handling or cleaning this appliance.
*Do not attempt to modify the technical characteristics of the appliance as this
may become dangerous to use. The manufacturer declines all responsibility
for any inconvenience resulting from the inobservance of this condition.
*Do not operate your appliance by means of an external timer or separate
remote-control system.
*Do not carry out cleaning or maintenance operations on the appliance
without having previously disconnected it from the electric power supply.
ENBoretti Milano / User guide - Installation advice

4
Warning:
Ensure that the appliance is switched off before replacing the oven
lamp to avoid the possibility of electric shock.
*Do not use a steam cleaner because the moisture can get into the
appliance therefore making it unsafe.
*Do not touch the appliance with wet or damp hands (or feet).
*Do not use the appliance whilst in bare feet.
*If you should decide not to use this appliance any longer (or decide to
substitute another model), before disposing of it, it is recommended that
it be made inoperative in an appropriate manner in accordance to health
and environmental protection regulations, ensuring in particular that all
potentially hazardous parts be made harmless, especially in relation to
children who could play with unused appliances.
*The various components of the appliance are recyclable. Dispose of them
in accordance with the regulations in force in your country. If the appliance
is to be scrapped, remove the power cord.
*After use, ensure that the knobs are in the off position.
*Children less than 8 years of age shall be kept away unless continuously
supervised.
*This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
*The manufacturer declines all liability for injury to persons or damage to
property caused by incorrect or improper use of the appliance.
Warning
During use the appliance and its accessible parts become hot; they
remain hot for some time after use.
*Care should be taken to avoid touching heating elements (on the
hob and inside the oven).
*The door is hot, use the handle.
*To avoid burns and scalds, young children should be kept away.
ENBoretti Milano / User guide - Installation advice

5
*Make sure that electrical cables connecting other appliances in the proximity
of the cooker cannot come into contact with the hob or become entrapped in
the oven door.
Warning
Unattended cooking on a hob with fat or oil can be dangerous and
may result in fire. NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid or a fire blanket.
Warning
Danger of fire: do not store items on the cooking surfaces.
*Do not place or leave empty pans on the glass ceramic hob.
*Do not allow heavy or sharp objects to drop on the glass ceramic hob.
*Do not scratch the hob with sharp objects. Don’t use the hob as a work
surface.
Warning
If the hob is cracked or otherwise damaged by falling objects etc.,
disconnect the appliance from the electrical power supply to avoid the
possibility of electric shock and call Customer Service.
Warning
When correctly installed, your product meets all safety requirements
laid down for this type of product category. However special care
should be taken around the rear or the underneath of the appliance
as these areas are not designed or intended to be touched and may
contain sharp or rough edges, that may cause injury.
ENBoretti Milano / User guide - Installation advice

6
Warning
When correctly installed, your product meets all safety requirements
laid down for this type of product category. However special care
should be taken around the rear or the underneath of the appliance
as these areas are not designed or intended to be touched and may
contain sharp or rough edges, that may cause injury.
First use of the oven
It is advised to follow these instructions:
*Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
*Switch on the empty oven on max to eliminate grease from the
heating elements.
*Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a cloth
soaked in water and neutral detergent; then dry carefully.
Caution:
Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface, which may
result in shattering of the glass.
*Do not line the oven walls or base with aluminium foil. Do not place baking
trays or the drip tray on the base of the oven chamber.
*Do not cover the hob with aluminium foils.
*FIRE RISK! Do not store flammable material in the oven or in the storage
compartment.
*Always use oven gloves when removing the shelves and food trays from
the oven whilst hot.
*Do not hang towels, dishcloths or other items on the appliance or its handle
– as this could be a fire hazard.
*Clean the oven regularly and do not allow fat or oils to build up in the oven
base or tray. Remove spillages as soon as they occur.
*Do not stand on the cooker or on the open oven door.
*Always stand back from the appliance when opening the oven door to
allow steam and hot air to escape before removing the food.
Safe food handling:
Leave food in the oven for as short a time as possible before and after
cooking. This is to avoid contamination by organisms which may
cause food poisoning. Take particular care during warmer weather.
ENBoretti Milano / User guide - Installation advice

7
Caution:
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Warning:

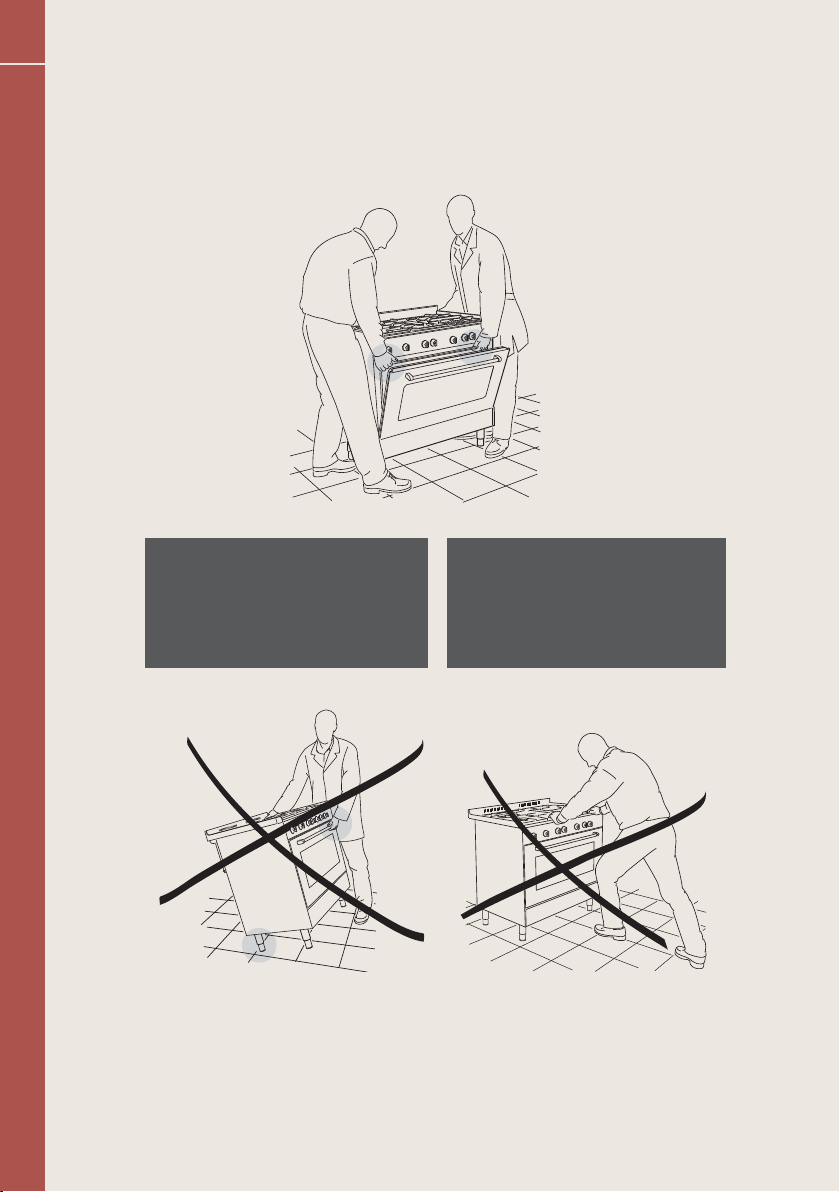

Take care NOT to lift the cooker by the door handle.
*The appliance must not be installed behind a decorative door in order to
avoid overheating.
*The oven accessories (e.g. oven wire rack) must be fitted correctly as
indicated at page 44.
*If the power supply cable is damaged, it must be replaced only by an
authorized service agent in order to avoid a hazard.
*INDUCTION HOBS:
*Metallic objects such as knives, forks, spoons and lids shouldnot be placed on
the hob surface since they can get hot.
*Do not use metallic kitchen utensils (e.g. ladles). It is preferable to use plastic or
wood kitchen utensils.
*Please use pans of recommended size (see minimum pan diameter
recommended). It is not advisable to use pans smaller than the cooking zone.
The pans have to be placed in the centre of the cooking zone.
*Do not use defective pans or pans with a curved bottom.
*Please use suitable pans marked for induction cooking.
*Please keep your distance from the electromagnetic fields by standing 5-10 cm
from the cooking zones. When possible use the rear cooking zones.
*Magnetic objects (e.g. credit cards, floppy disks, memory cards) and electronic
instruments (e.g. computers) should not be placed near the induction hob.
*The heating of magnetic tins is forbidden! Closed tins may explode by exceeding
pressure while heating. There is a burning risk with open tins as well, because
the integrated temperature protection will not work correctly.
Important warning
The induction hob complies with European Standards for domestic
cooking appliances. Therefore it should not interfere with other electronic
units. Persons with cardiac pacemakers or any other electrical implants
must check with their doctor if they can use an induction cooking system
(and check any possible interferences with the implants).
ENBoretti Milano / User guide - Installation advice

8
Energy labelling/Ecodesign
*Commission delegated regulation (EU) No 65/2014 (supplementing
Directive 2010/30/EU of the European Parliament and of the Council).
*Commission regulation (EU) No 66/2014 (implementing Directive
2009/125/EC of the European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish
compliance with the above requirements:
*Standard EN 60350-1 (electric ovens).
*Standard EN 60350-2 (hobs: electric cooking zones and/or areas).
Use of the appliance, energy saving tips
Oven
*Check the oven door always closes properly and the door gasket is clean
and in order. During use, open the oven door only when strictly necessary to
avoid heat losses (for some functions it may be necessary to use the oven
with the door half-closed, check the oven operating instructions).
*Turn off the oven 5-10 minutes before the end of the theoretical cooking
time to recuperate the stored heat.
*We recommend using oven proof dishes and adjusting the oven
temperature during cooking if necessary.
Hob
Induction cooking zones and/or areas
*To save electricity, use lids whenever possible.
*When the pan comes to the boil, turn the heat down to the level desired.
*Please use suitable pans marked for induction cooking. Some cookware
available on the market has an effective ferromagnetic area which is much
smaller than the diameter of the pan itself. Avoid using this cookware because
the induction cooktop may not function properly or may be damaged.
*Always use pans/coffee pots with thick, completely flat bottom. Do not
use pans/coffee pots with concave or convex bottom; these could cause
overheating of the cooking zone.
*Important: Do not use pots/coffee pot adaptors.
ENBoretti Milano / User guide - Installation advice

9
Advice for the installer
Important
*Cooker installation must only be carried out by QUALIFIED
TECHNICIANS and in compliance with local safety standards.
Failure to install the appliance correctly could invalidate any
manufacturer’s warranty.
*The appliance must be installed in compliance with regulations
in force in your country and in observation of the manufacturer’s
instructions.
*Always disconnect the appliance from the electrical supply
before carrying out any maintenance operations or repairs.
*Some appliances are supplied with a protective film on steel
and aluminium parts. This film must be removed before using
the cooker.
ENBoretti Milano / User guide - Installation advice

10
1 Installation
Location
The appliance must be kept no less than 50 mm away from any side wall
which exceed the height of the hob surface (fig. 1.1). Curtains must not be
fitted immediatly behind appliance or within 500 mm of the sides.
It is essential that the cooker is positioned as stated below.
The appliance must be housed in heat resistant units.
The walls of the units must be capable of resisting temperatures of
75°C above room temperature.
Do not install the appliance near inflammable materials (eg. curtains).
If the cooker is located on a pedestal it is necessary to provide safety
measures to prevent falling out.
200 mm
650 mm
500 mm
450 mm
Fig. 1.1
ENBoretti Milano / User guide - Installation advice

11
Fitting the adjustable feet
The adjustable feet must be
fitted to the base of the cooker
before use (fig. 1.2). Rest the rear
of the cooker on a piece of the
polystyrene packaging exposing
the base for the fitting of the feet.
Fit the 4 legs by screwing them
tight into the support base as
shown in figure 1.3.
Fig. 1.2
Levelling the cooker
The cooker may be levelled by screwing the lower ends of the feet IN or
OUT (fig. 1.4).
Fig. 1.4 Fig. 1.3
Backguard
Before installing the cooker,
assemble the backguard “C”
(fig.1.5).
*The backguard “C” can be found
packed at the rear of the cooker.
*Before assembling remove any
protective film/adhesive tape.
*Remove the two spacers “A” and
the screw “B” from the rear of the
cooktop.
*Assemble the backguard as
shown in figure 1.5 and fix it by
screwing the central screw “B”
andthe spacers “A”.
C
B
A
Fig. 1.5
ENBoretti Milano / User guide - Installation advice

12
Moving the cooker
WARNING: When raising cooker to upright position always ensure two
people carry out this manoeuvre to prevent damage to the adjustable feet
(fig. 1.6).
Fig. 1.6
Warning:
Be carefull: do not lift the cooker
by the door handle when raising
to the upright position (fig. 1.7).
Warning:
When moving cooker to its final
position DO NOT DRAG (fig. 1.8).
Lift feet clear of floor (fig. 1.6).
Fig. 1.7 Fig. 1.8
ENBoretti Milano / User guide - Installation advice

13
Anti-tilt bracket
Important!
To restrain the appliance and prevent it tipping accidentally, fit a bracket
to its rear to fix it securely to the wall.
To fit the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the
wall the place where the two screws of the anti-tilt bracket have to be fitted.
Please follow the indications given in fig. 1.9.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will not damage any pipes or
electrical wires.Permis aceriocchum opotil horum potervi terorei sci
3. Loosely attach the anti-tilt bracket with the two screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket
so that it can engage in the slot on the cooker’s back, as shown in fig. 1.9.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully
inserted in the slot on the cooker’s back.
Attention!
When sliding the cooker into place pay special attention not to trap the
power supply cable in the stability bracket.
Pay special attention to the gas connection hose.
900 mm
Fig. 1.9
ENBoretti Milano / User guide - Installation advice

14
3 Electrical section
Important
The appliance must be installed in accordance with the
manufacturer’s instructions. Incorrect installation, for which the
manufacturer accepts no responsibility, may cause damage to
persons, animals and property.
The connection of the appliance to earth is mandatory. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
Before carrying out any work on the electrical parts of the appliance,
the appliance must be disconnected and locked off from the mains.
The appliance must be connected to the electrical network verifying that
the voltage corresponds to the value indicated on the specifications plate
and that the cables section of the electrical wiring can bear the load which
is indicated on the rating plate.
We recommend that the appliance is connected by a suitably qualified
person who will comply with the current IEE and local regulations.
It is recomended that the appliance is connected via a dedicated cooker
circuit using a double pole cooker switch with a rating equal or greater
than the total loading of the cooker, with a minimum opening between
thecontacts of 3 mm.
Alternative connection methods may be available as long as they conform
to current IEE wiring regulations.
The power supply cable must not touch the hot parts and must be
positioned so that it does not exceed 75°C at any point.
Once the cooker has been installed, the switch must always be easily
accessible within 2 metres.
ENBoretti Milano / User guide - Installation advice

15
Connection of the power supply cable
Warning
If the power supply cable is damaged, it must be replaced only by an
authorised service agent in order to avoid a hazard.
*Unhook the terminal board cover by inserting a screwdriver into the two
hooks “A” (fig. 2.1).
*Unscrew the screw “D” and open completely the cable clamp “E”
(figs.2.2 - 2.3 - 2.4).
*Position the U bolts “F” onto terminal board “G” (figs. 2.2 - 2.3 - 2.4)
according to the diagrams in fig. 2.5.
*Connect the phase, neutral and earth wires to terminal board “G”
according to the diagrams in fig. 2.5.
*Strain the feeder cable and block it with cable clamp “E” (by screwing
screw “D”).
*Close the terminal block cover (check the two hooks “A” are correctly
hooked).
Important
To connect the power supply cable DO NOT unscrew the screws
fixing the cover plate behind the terminal block.
Note
The earth conductor must be left about 3 cm longer than the others.
ENBoretti Milano / User guide - Installation advice

16
Feeder cable section “TYPE
H05RR-F or H05VV-F”
220-240 V ac 3 x 6 mm2(**)
380-415 V 3N ac 5 x 2,5 mm2(**)
380-415 V 2N ac 4 x 6 mm2(**)
(**) Connection with wall box
connection.
*Diversity factor applied.
*A diversity factor may be
applied to the total loading of
the appliance only by a suitably
qualified person.
1
2
3
5
4
N
L2
PE
L1
G
D
E
PE
N
L
Abb. 3.3
Abb. 3.2
Fig. 2.1
220-240 V ac
A
ENBoretti Milano / User guide - Installation advice

17
1
2
3
5
4
N
L2
PE
L1
G
F
D
E
1
2
3
5
4
PE
N
L1
L2
G
F
D
E
1
2
3
5
4
PE
N
L1
L2
L3
G
F
D
E
Fig. 2.2
Fig. 2.4
Fig. 2.3
PE
N (L2)
L1
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
PE
PE
N
L1
L2
N
L1
L3
L2
Fig. 2.5
220-240 V ac
220-240 V ac
380-415 V 2N ac
380-415 V 3N ac
380-415 V 3N ac
380-415 V 2N ac
ENBoretti Milano / User guide - Installation advice

18
Advice for the user
ENBoretti Milano / User guide - Installation advice

19
1 Cooking hob
Fig. 1.1
2 2
1 1
3
4
5
5
Induction cooking hob
1. Induction cooking zone Multizone Normal Power: 1600 W
Booster Power: 1850 W
2. Induction cooking zone Multizone Normal Power: 2100 W
Booster Power: 3000 W
3. Induction cooking zone Ø 250 mm Normal Power: 2300 W
Booster Power: 3000 W
4. Cooking zones display
5. “Bridge” function: when enabled, cooking zones 1 and 2 work together as
a single zone - 3700 W maximum.
Note:
The Nominal and Booster Power may change depending on the size
and material of the pan set on the cooking zone.
Attention:
Detach the appliance from the mains if the ceramic glass is cracked
and contact the After-Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot.
ENBoretti Milano / User guide - Installation advice

20
2 Control panel
Fig. 2.1
40
100
200
150
250
300
6 5 4 3 2 1789
1011
Controls description
1. Front right cooking zone control knob
2. Rear right cooking zone control knob
3. Central cooking zone control knob
4. Rear left cooking zone control knob
5. Front left cooking zone control knob
6. Multifunction oven thermostat control knob
7. Multifunction oven selector control knob
8. Electronic clock/programmer “Touch-control”
9. Oven thermostat indicator
10. Power on indicator
Note
Your appliance has been fitted with a cooling fan to achieve optimum
efficiency of the controls and to ensure lower surface temperatures
are maintained. When the oven is operating the cooling fan motor
switches ON/OFF depending on temperature. Depending on
cooking temperatures and times, the cooling fan may run on even
after appliance has been switched off. The duration of this time is
dependent on previous cooking temperature and duration.
ENBoretti Milano / User guide - Installation advice
