Bosch Worcester Greenstar Ri ErP + Series User manual

UK/IE
User instructions
Wall hung RSF gas fired condensing regular appliance
GREENSTAR Ri ErP +
6720813340-00.1Wo
For central heating systems
6 720 821 669 (2018/06)
If you smell gas:
▶ Keep well away from the building: call the National Gas Emer-
gency
Service on 0800 111 999.
▶ L.P.G. appliances: Call the supplier’s number on the side of the
gas tank.
These appliances are for use with :
Natural Gas or L.P.G.
(Cat. II 2H 3P type C13, C33 & C53)
Model GC Number
Natural Gas 9Ri ErP + 41-406-74
12Ri ErP + 41-406-75
15Ri ErP + 41-406-76
18Ri ErP + 41-406-77
21Ri ErP + 41-406-78
24Ri ErP + 41-406-79
L.P.G. 9Ri ErP + 41-406-68
12Ri ErP + 41-406-69
15Ri ErP + 41-406-70
18Ri ErP + 41-406-71
21Ri ErP + 41-406-72
24Ri ErP + 41-406-73

2
Preface
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
Preface
Dedicated to heating comfort
Thank you for purchasing a Worcester product. We pride
ourselves on manufacturing appliances to the strictest quality
control standards throughout every stage of production.
Worcester, Bosch group has led the field in innovative
appliance design and performance for over 50 years. This
heritage means all our products are of exceptional quality and
proven reliability.
Our products employ the latest technologies and they are
reliable, extremely energy efficient, offering you economical
running costs and value for money. They are amongst the top
energy rated appliances available.
There is also the reassurance of our parts and labour
guarantee. Our Customer Service team is here to help you get
the best from your Worcester product throughout its lifetime.
Whatever your enquiry, our specially trained team is available
at our Worcester based contact centre and online via the
website. For contact details see the back cover.
Contents
1 Key to symbols and safety instructions ................. 3
1.1 Key to symbols ....................................... 3
1.2 Safety precautions .................................. 4
2 General information ............................................ 5
2.1 Energy efficiency .................................... 5
2.2 Appliance identification and serial
number ..................................................5
2.3 Servicing ............................................... 5
2.4 Maintaining your appliance ....................... 5
2.5 Benchmark standard ............................... 6
2.6 User caution ........................................... 6
3 Prepare for operation .......................................... 7
3.1 Open vented heating systems ................... 7
3.2 Sealed heating systems ........................... 7
3.2.1 Checking the system pressure .................. 7
3.2.2 Constantly re-pressuring the system
pressure ................................................7
3.3 Topping up the system pressure ................ 8
4 Controls ............................................................. 9
4.1 Operating the appliance ......................... 10
4.1.1 Switching the appliance ON/Off .............. 10
4.1.2 Setting the appliance flow temperature .... 10
4.1.3 Turning the central heating off during
the summer ..........................................11
4.1.4 Appliance frost protection ...................... 11
5 Clearances and ventilation information .............. 12
5.1 Appliance clearances ............................. 12
5.2 Ventilation information .......................... 12
6 Malfunction or failure ........................................ 13
6.1 Fault finding ......................................... 14
6.2 Appliance reset ..................................... 15
6.3 Extreme cold weather ............................ 16
7 Environment protection/ disposal ...................... 16
8 Tips on energy saving ........................................ 17
9 Your guarantee ................................................. 18
9.1 Guarantee registration ........................... 18
10 Glossary ........................................................... 19

3
Key to symbols and safety instructions
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
1 Key to symbols and safety instructions
1.1 Key to symbols
Warnings
The following keywords are defined and can be used in this
document:
•NOTICE indicates a situation that could resultin damage to
property or equipment.
•CAUTION indicates a situation that could result in minor to
medium injury.
•WARNING indicates a situation that could result in severe
injury or death.
•DANGER indicates a situation that will result in severe
injury or death.
Important information
Additional symbols
Examples of additional symbols used
A numbered step in an action sequence
A sequence of numbered steps or actions carried out in a
specific order to complete a task.
1. First action
2. Second action
3. Third action
etc.
A step in an action sequence
A sequence of defined actions or steps carried out in order to
complete a task.
▶Action
▶Nextaction
▶etc
A reference to a related part in the document or to other
related documents.
To refer the reader to a specific figure/table/section within the
manual.
e.g. figure 1.
A reference number to identify or refer to a part or item.
In a related figure, items or parts identified by a sequential
number.
List entries, first and second levels
• A single component/item
• A component/list, made up of multiple parts/items.
– Sub component or sublist of main component/list.
–etc.
Safety instructions in this document are
framed and identified by a
warning triangle which is printed on a grey
background.
This symbol indicates important information
where there is no risk to people or property.
Symbol Meaning
1. a numbered step in an action sequence
▶ a step in an action sequence
a reference to a related part in the document or to
other related documents
a reference number to identify or refer to a part or
item
•alistentry
– a list entry (second level)
Table 1
1

4
Key to symbols and safety instructions
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
1.2 Safety precautions
Instructions for the target group:
These operating instructions are intended for the heating
system user.
All instructions must be observed. Failure to comply with
instructions may result in material damage and personal injury,
including possible loss of life.
▶ Read and retain the operating instructions (heat source,
heating controller, etc.) prior to operation.
▶ Observe the safety instructions and warnings.
If you smell gas:
A gas leak could potentially cause an explosion. If you smell gas,
observe the following rules.
▶ Prevent flames or sparks:
– Do not smoke, use a lighter or strike matches.
– Do not operate any electrical switches or unplug any
equipment.
– Do not use the telephone or ring doorbells.
▶ Turn off the gas at the meter or regulator.
▶ Open windows and doors.
▶ Warn your neighbours and leave the building.
▶ Prevent anyone from entering the building.
▶ Keep well away from the building: call the National Gas
Emergency Service on 0800 111 999.
▶ L.P.G. appliances: Call the supplier’s number on the side of
the gas tank.
Combustible and corrosive materials:
Chemically aggressive substances can corrode the appliance
and invalidate any guarantee.
• Do not store or use any combustible materials (paper,
thinners, paints, propellants, cleaning agents etc.) inside
the cupboard containing the appliance or within the vicinity
of the appliance.
Fittings and modifications:
Only a competent engineer can remove the appliance case and
carry out any work, in accordance with the Gas Safety
(Installation and Use) Regulations.
• Do not remove the appliance case.
Any misuse or unauthorised modifications to the appliance,
flue or associated accessories and heating system will
invalidate the guarantee.
• Do not modify the appliance or flue system in any way.
Worcester, Bosch Group accepts no liability arising from any
such actions. This does not affect your statutory rights.
Safety of electrical devices for
domestic use and similar purposes:
The following requirements apply in
accordancewithEN 60335-1 inorderto
prevent hazards from occurring when
using electrical appliances:
“This appliance can be used by children
of 8 years and older, as well as by people
with reduced physical, sensory or
mental capabilities or lacking in
experience and knowledge, if they are
supervised and have been given
instruction in the safe use of the
appliance and understand the resulting
dangers. Children shall not play with the
appliance. Cleaning and user
maintenance must not be performed by
children without supervision.”
“If the power cable is damaged, it must
be replaced by the manufacturer, its
customer service department or a
similarly qualified person, so that risks
are avoided.”
Please read these instructions carefully
▶ These instructions are applicable to the Worcester, Bosch
Group appliance model stated on the front cover only.
▶ These instructions apply in the UK/IE only and must be
followed except for any statutory obligation.

5
General information
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
2 General information
2.1 Energy efficiency
Energy efficiency information is given in the Installation,
Commissioning and Servicing Instructions supplied with the
appliance.
2.2 Appliance identification and serial number
The data label [1] contains information of the appliance model
and serial number. This is located in the indent on the bottom
panel.
Fig. 1 Data label location
For your own records
Please ensure that the Commissioning Checklist has been
completed by your installer or service engineer.
2.3 Servicing
The Service Record can be found at the rear of the appliance’s
Installation and Maintenance Instructions. It will be required in
the event of any guarantee work and may be required by the
local Building Control Inspector.
▶ The appliance must be serviced regularly by a competent,
qualified person, such as a Worcester service engineer or
other Gas Safe registered engineer.
▶ Ensure that the service engineer completes the Service
Record, at the rear of the Installation and Maintenance
Instructions manual, after each service.
▶ Have any work carried out only by a competent, Worcester
service engineer or other Gas Safe registered engineer.
▶ Always use original spares, to help maintain the efficiency,
safety and reliability of the appliance.
2.4 Maintaining your appliance
Your new appliance represents a long term investment in a
reliable, high quality product.
Wipe the appliance casing with a soft clean cloth. Please do not
use chemical cleaning products which may damage the paint
finish.
In order to realise its maximum working life, and to ensure it
continues to operate at peak efficiency and performance, it is
essential that servicing and maintenance checks are performed
at least once a year by an competent engineer in accordance
with the current Gas Safe Regulations.
If you would like to know more about servicing options from
Worcester, Bosch Group, please visit worcester-bosch.co.uk.
Please tick the appropriate box on your warranty registration
card for further details of the Worcester, Bosch Group Service
Contract.
When your appliance requires servicing please contact a
Worcester, Bosch Group contact centre (see rear cover,
appointments).
In addition to the service contract we are pleased to offer a one-
off annual service or breakdown call out for your appliance.
Model:
Serial number:
Date of installation:
Table 2 Appliance details
6720821669-03.1Wo
1
Ensure that the service engineer completes
the Service Record in the Benchmark
Checklist after each service.

6
General information
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
Maintenance tips
• Appliances on a sealed heating system:
– Regularly check the system pressure.
• Do not obstruct the flue outlet or the air inlet.
• Use in hard water areas:
– In exceptionally hard water areas a device to prevent
scale formation may be fitted. Installation of a scale
inhibitor assembly should be in accordance with the
requirements of the local water company. An isolating
valve should be fitted to allow for servicing.
2.5 Benchmark standard
The Benchmark initiative is a
code of practice to encourage
the correct installation,
commissioning and servicing of
domestic central heating
appliances and system
equipment.
A “checklist” is dispatched with every appliance and can be
found towards the back of the Installation, Commissioning and
Servicing Instructions. This is a vital document that needs to be
completed by the installer at the time of installation. It confirms
that the appliance has been installed and commissioned
according to the manufacturer's instructions.
The service record provides space for the recording of regular
servicing of the appliance/heating system and this can become
a valuable document when, for example, you wish to sell the
property. The service record will show a potential purchaser
that the heating system has received regular professional
maintenance and servicing during its lifetime.
The Benchmark initiative aims to:
• Raise standards among professional installers
• Build and maintain high safety standards in the industry
• Improve customer satisfaction levels
• Make a contribution to the nation's commitment to climate
change
2.6 User caution
• It is forbidden for any interference with the appliance other
than those actions allowed in this document.
Important note:
▶Ifyouhavetoaddwater regularly in your
heating system, call a competent,
qualified person.
CAUTION: Incorrect use
▶ Any incorrect use can result in danger to
the householder.

7
Prepare for operation
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
3 Prepare for operation
3.1 Open vented heating systems
Appliances that can be connected to open vented heating systems will have the pressure maintained automatically by the header
tank feeding the system.
3.2 Sealed heating systems
Appliances that can be connected to sealed heating systems are pre-pressurised before operation, this pressure must be
maintained for safe use of the appliance.
Your installer will have fitted a pressure gauge and filling loop so that the system can be monitored and adjusted as necessary.
▶ Check regularly that the pressure is maintained.
▶ Re-charge the system if the pressure gauge reads less than 1 bar.
▶ If a permanent significant decrease or increase in pressure is indicated on the pressure gauge, contact your installer or
maintenance engineer.
3.2.1 Checking the system pressure
Your installer will advise you of the optimum operating pressure.
▶ Check the system pressure from the pressure gauge.
–Static pressure is when appliance is cold and has not fired for heating or hot water. This will generally be 1 - 1.5 bar.
–Operating pressure is when the appliance is firing for a heating or hot water demand. This will generally be 1 - 2 bar.
▶ Top up the heating water, if the pressure is too low.

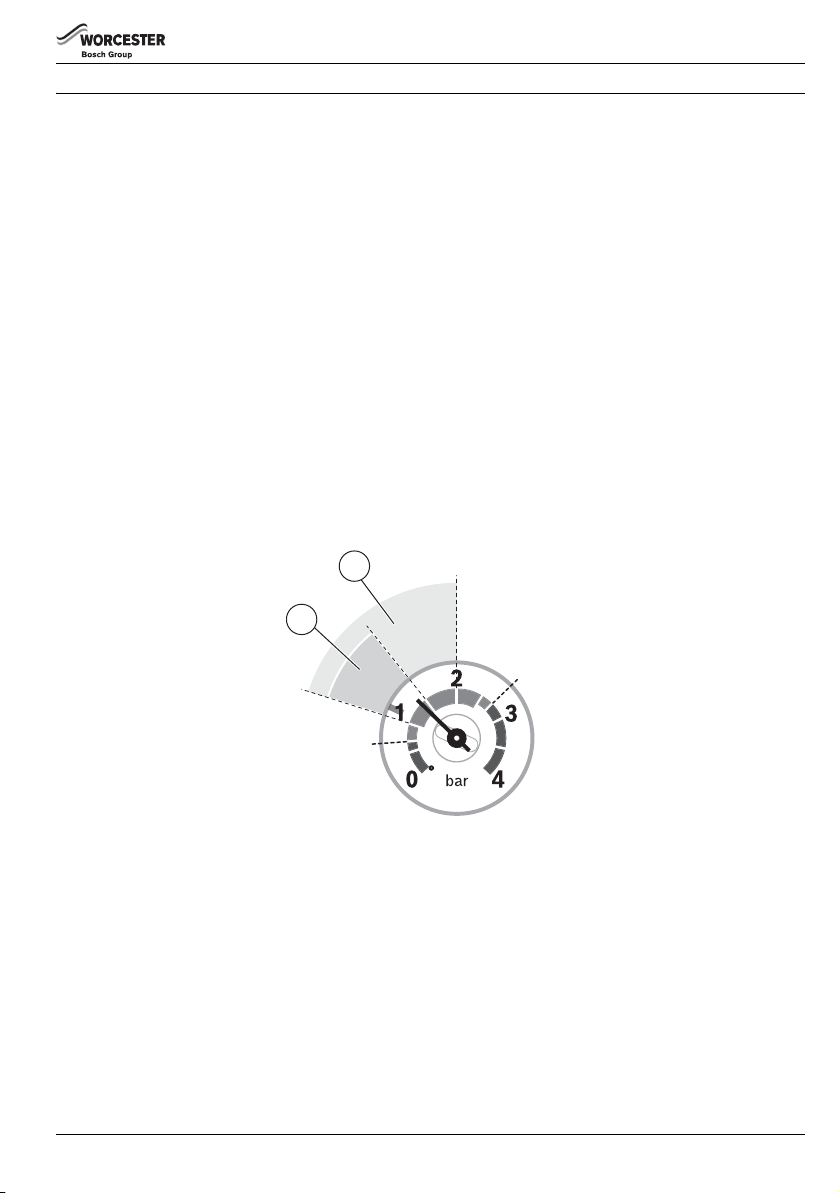

Fig. 2 Pressure gauge for checking the operating pressure
[1] Static pressure range
[2] Operating pressure range
3.2.2 Constantly re-pressuring the system pressure
Constantly having to re-pressuring the heating system should be investigated as the concentration of inhibitor protection in the
system will be reduced; this can result in corrosion within the heating system reducing the efficiency and increasing contaminates.
▶ Check for leaks on heating system (pipe work and radiator valves).
▶ Contact your installer or maintenance engineer if a permanent significant decrease or increase in pressure is indicated on the
pressure gauge.
6720821669-01.1Wo
1
2
Min
Max

8
Prepare for operation
Greenstar Ri ErP + - 6 720 821 669 (2018/06)

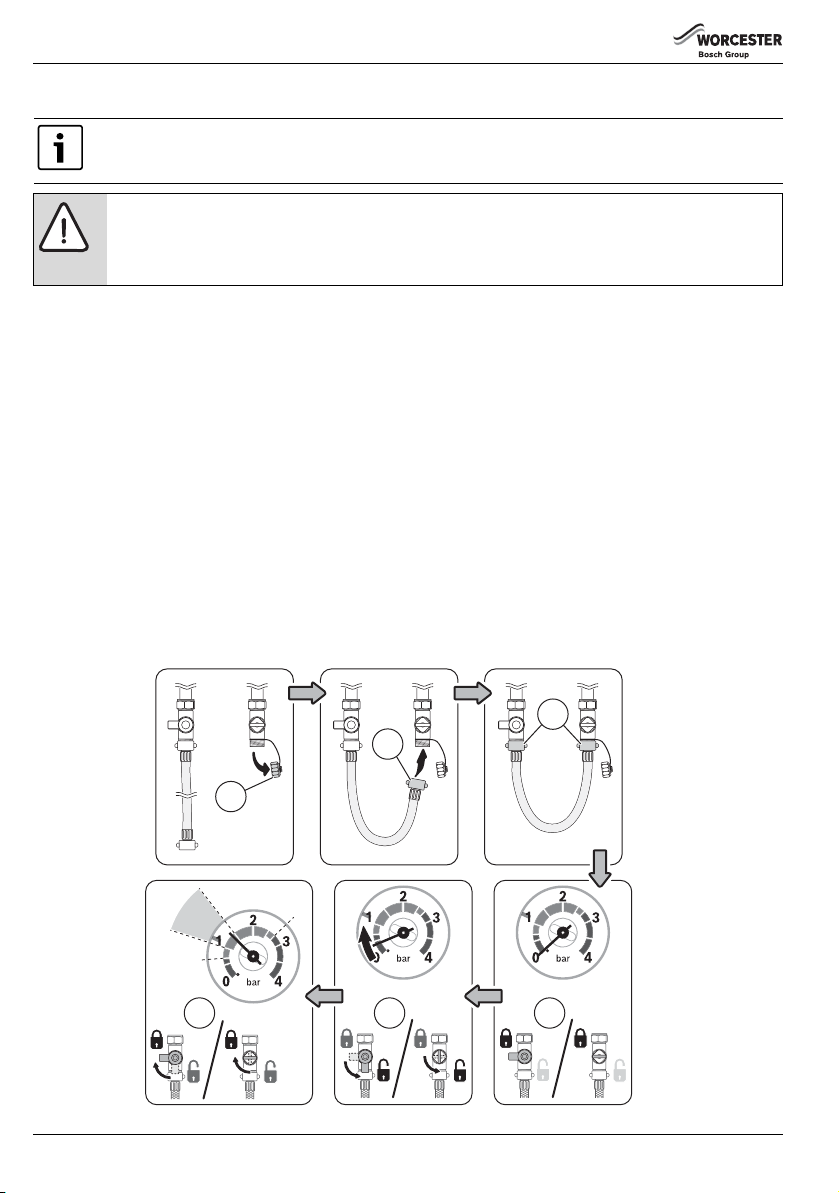

3.3 Topping up the system pressure
External filling loop
Once the external filling loop and pressure gauge has been located, follow the instructions for re-pressurising the system.
▶ Unscrew the blanking cap [1].
▶ Attach the hose [2] to the valve.
– Usually one end of the hose is already connected to one of the system fill isolation valves.
▶ Ensure both ends [3] of the hose are screwed on hand tight.
▶ Monitor the pressure gauge.
– The system fill isolation valves [4] are in a closed position (the handle/screwdriver slot is across the valve).
▶ Turn the handle/screwdriver slot through 90?‹ to open valves and slowly fill the system.
– The system fill isolation valves [5] are opened (the handle/screwdriver slot is in-line with the valve).
– The needle on the pressure gauge will start to rise.
▶ Set the pressure between 1 and 1.5 bar pressure.
▶ Turn the handles/screwdriver slots back, through 90?‹, to close the valves.
– The system fill isolation valves [6] are in a closed position (the handle/screwdriver slot is across the valve).
If the pressure drops off, below 1 bar as a result of the air bleeding:
▶ Top up the system pressure.
Once the pressure has settled between 1 and 1.5 bar.
▶ Remove the hose [2] and replace the blanking cap [1].
If the pressure gauge reads more than 1.5 bar as a result of over filling, Bleed one radiator until the pressure gauge
returns to between 1 and 1.5 bar.
NOTICE: System fill method
Your installer should have informed you where to find the filling system and instructed you in its use.
▶ To comply with the Water Authority regulations you must disconnect the external filling loop after re-
pressurisation.
6720821669-02.1Wo
1
2
3
4
5
6
Min
1 bar
1.5 bar
Max

9
Controls
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
4 Controls
Fig. 3 Controls
1 Mains power ON/OFF knob 5 Maximum flow temperature position
2 Indicator/Diagnostic light “MAINS ON/OFF” (Blue) 6 Appliance reset position
3 Minimum flow temperature position 7 Burner ON indicator light (Green)
4 Flow temperature control knob
Table 3
6720813340-01.1Wo
14
32
76
5

10
Controls
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
4.1 Operating the appliance
4.1.1 Switching the appliance ON/Off
▶ Turn the “MAINS POWER” knob to 1 to switch ON the appliance.
▶ Turn the “MAINS POWER” knob to 0 to switch OFF the appliance.
Fig. 4 Switch ON/OFF appliance.
4.1.2 Setting the appliance flow temperature
1. Turn the central heating temperature control knob [1] to the desired level.
The temperatures range available is between approximately 35 to 82°C. This is not the room temperature but the flow
temperature through to the system (radiators and/or hot water cylinder).
2. When there is a demand for heat, the appliance burner indicator [2] will be illuminate to indicate that the appliance is firing.
Fig. 5 Central heating temperature control
6720813340-02.1Wo
1
ON
OFF
Appliance frost protection function
▶ The appliance frost protection function will not work if the mains power knob is switch to OFF.
6720813340-03.1Wo
1
2
35ºC
82ºC

11
Controls
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
4.1.3 Turning the central heating off during the summer
▶ To turn your central heating off during warm periods:
▶ Set the programmer to OFF
– Please refer to the programmer manufacturer's instructions.
-or-
▶ Turn the room thermostat temperature down to minimum.
4.1.4 Appliance frost protection
If you are leaving your property unoccupied during cold weather, please leave your programmer on constant and your room
thermostat set to 15°C.
▶ If the temperature within the appliance falls below 8°C the pump will run to circulate water and prevent the system freezing.
– If the temperature does not rise to 9°C within 30 minutes of the pump operating, the appliance will fire up to provide heat
to bring the temperature up.
▶ If the temperature within the appliance falls below 5°C the appliance will fire, bringing the appliance temperature up to 25°C to
avoid the possibility of the system freezing.
▶ This process will be repeated until such time that the appliance temperature does not drop below 5°C.
Do not switch the appliance off at the mains power switch or mains fused spur.

12
Clearances and ventilation information
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
5 Clearances and ventilation information

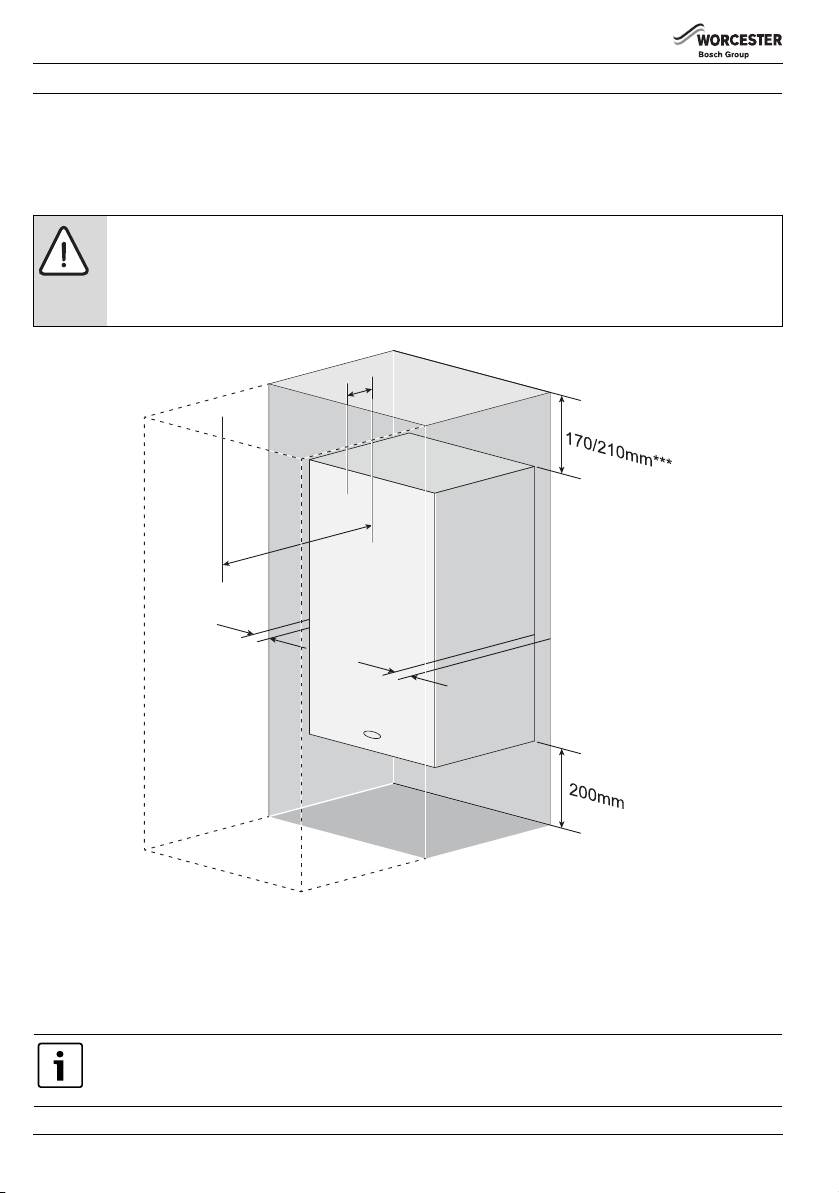

5.1 Appliance clearances
Your installer will have provided adequate space around the appliance for operation, safety and servicing/maintenance access.
• The following details covering the clearances service and maintenance for the appliance.
Fig. 6 Service clearances
[*] Minimum clearances to removable door
[**] Minimum clearances required for servicing
[***] Height for either 60/100 flue or 80/125 flue above the appliance
5.2 Ventilation information
CAUTION: Risk of damage to appliance or property
The appliance will overheat if the clearance space around the appliance is restricted by objects.
▶ Do not restrict this space with the addition of cupboards, shelves etc. next to or around the appliance.
▶ Do not store any combustible materials on or next to the appliance, such as clothes, towels, paper or plastic
bags.
6720813340-05.1Wo
5
m
m
5
m
m
6
00mm
*
*
2
0
mm
*
Ventilation considerations
▶ Do not place objects to hinder the air circulation required by the appliance.
▶ The installation premises may require ventilation to be fitted according to its features or use.

13
Malfunction or failure
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
6 Malfunction or failure
If you believe there is a problem with your central heating or hot
water supply, in the first instance it is advised to carry out the
following basic checks before you contact your installer/
maintenance engineer and report the error and appliance type.
Basic checks
Some items to check before placing a call are:
• Is the electrical power switched on to the appliance?
• Is the programmer/timer set to ON or in an ON period?
• Is the room thermostat set too high/low?
• Is the cylinder thermostat set too high/low?
• Is the cold water main turned on?
• Appliances on a sealed heating system.
– Is the static system pressure (when appliance is cold)
between 1 - 1.5 bar?
• Do you have gas?
– Are other gas appliances working, gas cooker/hob for
example?
– Has your credit run out on your gas pre-payment
meter?
Details of your installer should be available in the
Commissioning Checklist or can be recorded in the following
section.
Installer/maintenance engineer
Worcester, Bosch Group
The appliance is supported in the UK and Eire by Worcester,
Bosch Group.
Specialist service engineers are available to attend a
breakdown occurring on this appliance.
Contact details can be found at the rear of this manual or via the
Worcester Bosch website www.worcester-bosch.co.uk.
• No charge will be made for parts and/or labour providing:
– The appliance fault is found and the appliance is within
the guarantee period. Reasonable evidence of this
must be supplied on request. i.e. the Commissioning
Checklist.
• A call-out charge will be made where:
– The appliance is outside the guarantee period.
– Our Field Service Engineer finds no fault with the
appliance.
– The cause of breakdown is misuse or with other parts of
your plumbing/heating system, or with equipment not
supplied by Worcester, Bosch Group.
In the event of a appliance fault or breakdown please contact
Worcester, Bosch Group appointments team on
0330 123 9339. Your advisor will arrange for an engineer to
call with the minimum of delay; under normal circumstances
this will be from 1 - 3 working days (excluding weekends and
bank holidays) for priority breakdown situations (no hot water
and/ or heating).
Installer/maintenance engineer details
Engineer name:
Company name:
Company address:
Telephone:
Email:
Invoices for attendance and repair work
carried out on this appliance by any third
party will not be accepted.
No appliance fault is found on over 30% of all
service calls.
▶ In the case of a suspected fault, refer to
the basic checks earlier in this section.

14
Malfunction or failure
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
6.1 Fault finding
Problem Cause Remedy
Operation/fault light
(blue) flashing
No gas supply/low gas supply pressure ▶ Contact your gas supplier.
Condensate outlet blocked ▶ If it is safe to do so, check your condensate pipe
outlet for blockages, such as ice or foreign
objects.
Flue blocked ▶ If it is safe to do so, check your flue outlet for
damage or blockages.
Desired room
temperature is not
reached
Thermostatic radiator valve(s) set too low ▶ Increase thermostatic radiator valve setting(s).
Temperature control for central heating flow on
appliance set too low
▶ Increase central heating flow temperature
control setting
Low temperature setting on the room thermostat ▶ Increase settings on room thermostat
Radiators are too
hot
Temperature control for central heating flow on
appliance set too high
▶ Reduce central heating temperature by turning
down the Central Heating control on appliance.
Note: This could prevent your property reaching
the desired temperature during cold weather
periods.
Desired room
temperature is too
high
Thermostatic radiator valve(s) are set too high ▶ Turn down thermostatic radiator valves/room
thermostat
Room thermostat is set too high ▶Turndownroomthermostat.
Heating stays on for
too long
Clock is incorrectly set ▶ Check setting and adjust
No blue Operation/
Fault Indicator
Momentary power failure ▶ Disconnect appliance supply, wait a few seconds
then reconnect.
Hot water
temperature too low
Temperature set too low on cylinder thermostat
control.
▶ Check setting and adjust
Hot water
temperature too
high
Temperature set too high on cylinder thermostat
control.
▶ Check setting and adjust
Table 4 Fault finding

15
Malfunction or failure
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
6.2 Appliance reset
In the event of a fault, the blue mains indicator light will flash if there is a fault.
To reset the appliance:
▶ Turn the Central heating temperature knob[1] anticlockwise to the “RESET” position [2] and hold for approximately five
seconds and then turn the knob back to the original temperature setting.
▶ When the appliance resets the mains indicator [3] will no longer be flashing and the appliance will function normally, dependant
on the programmer and room thermostat settings.
A reset fault condition will exist If the electrical power to the appliance has been interrupted. Reset the appliance as described
above.
Fig. 7 Reset button and mains light
If the fault remains and cannot be cleared by resetting the appliance, contact Worcester, Bosch Group for
assistance.
6720813340-04.1Wo
1
2
3

16
Environment protection/ disposal
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
6.3 Extreme cold weather
In certain instances where the condensate pipe work is run externally or in an unheated area, such as a garage, the condensate pipe
work can be at risk of freezing, even if well insulated.
A frozen/blocked condensate pipe will cause the appliance to shut down. Worcester, Bosch Group have helpful videos available on
our website in the Customer service section.
If the condensate pipe has frozen:
▶ Locate the blockage.
– It is likely that the pipe is frozen at the most exposed point outside the building or where there is an obstruction to flow. This
could be the open end of the pipe, at a bend or elbow, or where there is a sag in the pipe in which condensate can collect.
– The location of the blockage should be identified as closely as possible before taking further action.
▶ Thaw the frozen pipe.
– The pipe can be thawed by applying a hot water bottle, a microwaveable heating pack (the sort used for muscular aches and
pains) or a cloth soaked in hot water to the exterior of the pipe, close to the point of blockage.
– Hot water, but not boiling, can also be poured onto the pipe from a watering can or similar container.
– Care must be taken at pedestrian areas where this water may freeze and create a slip hazard.
▶ Worcester, Bosch Group have available on our website helpful videos in the Customer service section to aid in thawing a frozen
pipe.
▶ Once the pipe has been thawed the appliance must be reset, press the reset button for five seconds and wait two to three
minutes for the appliance to restart.
▶ If the appliance does not restart, contact Worcester, Bosch Group Appointments Team on: 0330 123 9339.
▶ Contact your installer in order to find a permanent solution to the problem.
7 Environment protection/ disposal
Environmental protection is a fundamental corporate strategy of the Bosch Group.
The quality of our products, their economy and environmental safety are all of equal importance to us and all environmental
protection legislation and regulations are strictly observed.
We use the best possible technology and materials for protecting the environment taking account of economic considerations.
Packaging
Where packaging is concerned, we participate in country-specific recycling processes that ensure optimum recycling.
All of our packaging materials are environmentally compatible and can be recycled.
Used appliances
Used appliances contain valuable materials that can be recycled. The various assemblies can be easily dismantled. Synthetic
materials are marked accordingly. Assemblies can therefore be sorted by composition and passed on for recycling or disposal.
WARNING: Falling hazard!
Failure to follow this guidance may result in personal injury.
▶ Only attempt to thaw a condense pipe that can be reached from ground level, and that is easily accessible.
▶ Never attempt to thaw a condense pipe that is at height.
CAUTION: Risk of damage to pipe work!
Thermal shock damage to plastic from frozen condensate pipe and boiled water used to thaw the pipe.
▶DO NOT use boiling water to thaw the condensate pipe!

17
Tips on energy saving
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
8 Tips on energy saving
Heating economically
The appliance provides a high level of comfort whilst keeping fuel consumption and the environment effects as low as possible.
The appliance is controlled in such a way that it delivers heat at the correct rate and only if there is a clear demand from the system.
Central heating systems with room thermostat/thermostatic radiator valves
With modern heating systems set around a 20 °C heat loss, the optimum setting for a condensing appliance will be approximately
73 °C for the central heating temperature. This is to ensure a return temperature of less than 52 °C.
The system must be balanced correctly and the radiators may need upgrading. This allows the appliance to condense as much as
possible for the central heating system.
The temperature of each room can be set individually (except primary room with the room thermostat) using the thermostatic
radiator valves.
Room thermostats
Reducing the setting of the room thermostat by 1°C can reduce fuel consumption by up to 10%.
New control systems
Upgrade your heating control system if necessary with the latest equipment available.
Roof insulation
Around 30% of the heat loss from a property is through the roof. Replace any old insulation with new insulation, preferably of around
200mm thickness or more.
Window frames
Single glazed windows, particularly those with steel frames, can lose a great deal of heat. Consideration should be given to
replacement with PVCu or wooden framed double glazed units.
Radiators
If a radiator is sited underneath a window, its performance will be affected if the curtains are allowed to drape over the radiator.
Shelves fitted above or in front of the radiator should also be avoided.
It is advisable to manually adjust all thermostatic radiator valves every 2 - 3 months to prevent them sticking. Ensure radiator valves
are correctly set and not damaged.
Draughts
Try to ensure that draughts around doors, windows, letter boxes and keyholes etc. are reduced by using a suitable draught excluder.
Curtains
Lined curtains, or heavier full length curtains can provide excellent insulation. However, always ensure that the curtains do not
drape over radiators.
WARNING: Air vents
▶ Do not block or seal any air vents that are installed to ensure that the central heating appliance operates safely.

18
Your guarantee
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
9 Your guarantee
This appliance has a guarantee against faulty materials or workmanship from the date of installation subject to the following terms
and conditions:
• During the period of this guarantee any components of the appliance which are proven to be faulty or defective in manufacture
will be exchanged or repaired free of charge by Bosch Thermotechnology Ltd.
• The householder may be asked to prove the date of installation, that the appliance was correctly commissioned and, where
appropriate, the first year's service has been carried out to the satisfaction of Bosch Thermotechnology Ltd., when requested.
These should be documented as a part of the Commissioning Checklist.
• The appliance has been used only for the normal domestic purposes for which it was designed.
This guarantee does not affect your statutory rights.
9.1 Guarantee registration
Your appliance carries a guarantee against faulty material or manufacture subject to Terms and Conditions.
Guarantee Registration can be completed:
• On-line:
– You can register on our website:
www.worcester-bosch.co.uk/guarantee
•Byphone:
– You can register by ringing 0330 123 2552.
•Bypost:
– Please send your completed form to:
Worcester, Bosch Group, Cotswold Way, Warndon,Worcester,WR4 9SW.
To read full terms & Conditions please visit us on-line at www.worcester-bosch.co.uk/guarantee.
Your statutory rights are not affected by the manufacturer’s guarantee.

19
Glossary
Greenstar Ri ErP + - 6 720 821 669 (2018/06)
10 Glossary
Central heating systems
All radiators must be heated at an even rate. If the top of a radiator is at a lower temperature than the bottom then it should be bled
by releasing air through the bleed screw at the top of the radiator.
Ask your installer to show you how this is done.
If this appliance is fitted to a sealed system and water leaks are found or if excessive bleeding is required, then a service engineer
must be contacted to inspect the installation and rectify any fault.
Only additives that are compatible with aluminium may be used in the system. Any incompatible additive used will invalidate the
warranty.
Pluming and condensate drain
This is a condensing appliance and the flue terminal will, at times give out a plume of water vapour. This is quite normal.
The appliance produces condensate which is discharged regularly by a syphon within the appliance via a plastic pipe to a drain. This
pipe must not be blocked or altered in any way.
Room thermostat / programmer
A room thermostat / programmer must be fitted to control the central heating. This controls the times and temperatures of the
central heating, preventing the appliance from firing unnecessarily. Refer to the instructions supplied with the thermostat and
programmer for further information.
Thermostatic radiator valves
Thermostatic radiator valves must be fitted in sleeping accommodation. It is recommended that this type of valve is fitted to all but
one of the radiators. The remaining radiator, where the room thermostat is located, must be uncontrolled and left open.
Pump over run function
After the appliance has finished a demand for central heating or hot water, the pump may continue to run for a short while to
dissipate the heat from within the appliance.
Pump anti-seizure
If there has been no heating demand for 24 hours the appliance will run the system pump for a few seconds to reduce the possibility
of pump seizure during long periods of inactivity.

WORCESTER, BOSCH GROUP:
TECHNICAL SUPPORT: 0330 123 3366
APPOINTMENTS: 0330 123 9339
SPARES: 0330 123 9779
LITERATURE: 0330 123 9119
TRAINING: 0330 123 0166
SALES: 0330 123 9669
Worcester, Bosch Group
Cotswold Way, Warndon, Worcester WR4 9SW.
Tel. [phone]
Worcester, Bosch Group is a brand name of
Bosch Thermotechnology Ltd.
worcester-bosch.co.uk
6 720 821 669 (2018/06)
