Congratulations on purchasing your Bosch Smart Home Door/Window Contact. It
will help you to make your home even safer and smarter. You will be able to use the
Bosch Smart Home App to quickly and easily identify open windows or doors even
when you are away from home. It will also cause radiators to be turned down auto-
matically when a window is opened or trigger an alarm if a door or window is opened
when you are not at home.
We hope you enjoy your new product,
The Bosch Smart Home Team
Dear customer,

6 7
1.0 Product description.................. 08
1.1 Intended use.............................. 09
2.0 In the box .................................10
3.0 Warning notices .......................12
3.1 Explanation of symbols .............. 12
3.2 Safety instructions ..................... 13
4.0 The door window contact........14
4.1 Product overview ....................... 14
5.0 Installation and setup............... 16
5.1 Installation................................. 18
5.2 Inserting the batteries................ 20
5.3 Configuring the device ............... 22
6.0 Fixing ........................................24
6.1 Mounting location ...................... 24
6.2 Mounting instruction.................. 26
6.3 Fixing with adhesive tape ........... 28
6.4 Fixing with screws...................... 34
7.0 Maintenance and care .............. 40
8.0 Product details .........................42
8.1 Technical data............................ 42
8.2 Declaration of conformity........... 44
8.3 Faults in radio operation............. 45
8.4 Open-source software ............... 46
8.5 Environmental protection
and disposal .............................. 49
9.0 Further information ..................50
TABLE OF CONTENTS

8 9
Your Door/Window Contact detects
open windows and doors inconspic-
uously by means of an app. It causes
radiators to be turned down auto-
matically if a window is opened, and
it triggers an alarm if windows and
doors are opened without permission.
The Door/Window contact is kept up
to date once connected to the Bosch
Smart Home System.
1.0 PRODUCT DESCRIPTION
The product may only be used together
with original Bosch Smart Home
components, and is for indoor use only.
▶ Follow the safety instructions and the
directions in this manual and the Bosch
Smart Home App to ensure that the
product is set up correctly
▶ Please note the details in the
Technical Data section
(see p. 40)
▶ Avoid installing in areas prone
to high amounts of dust, direct
sunshine or heat
1.1 Intended use
Do not modify the product in any way. Any other use is considered
unintended use. We will not assume liability for any resulting damage.

10 11
2.0 IN THE BOX
To operate the Door/Window Contact
you will require the app, a Controller
and an internet connection.Door/Window Magnet unit Spacker 2 adhesive strips 2 AAA batteries4 screws

12 13
3.0 WARNING NOTICES
3.1 Explanation of symbols
3.2 Safety instructions
Info.
Indicates important information.
Warning.
This alerts you to danger.
Proper handling of batteries
▶ Take the batteries out of the device if it is not used for a prolonged
period of time.
▶ The enclosed batteries are not suitable for charging.

14 15
4.0 THE DOOR WINDOW CONTACT

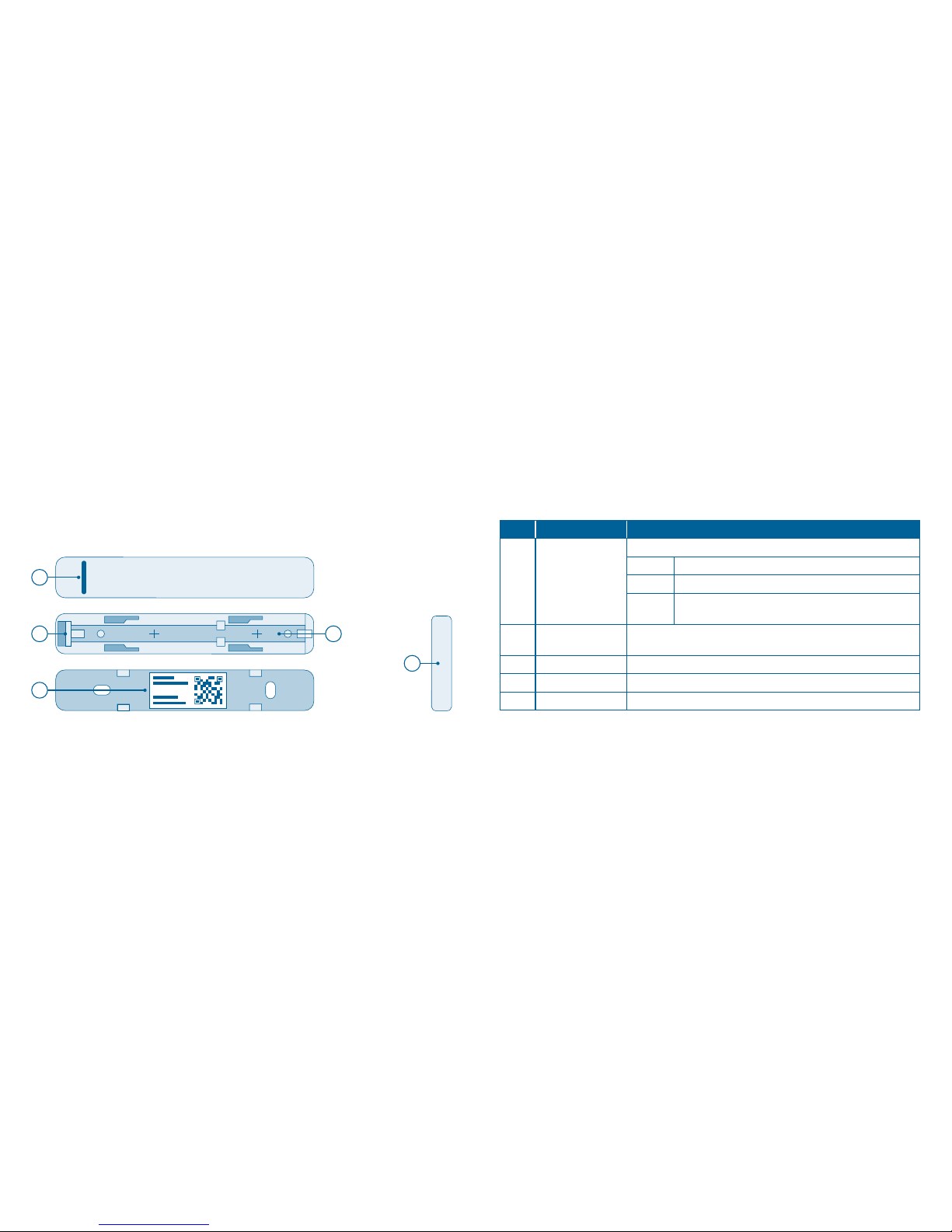

4.1 Product overview Item Part Explanation
1LED
Indicator for status and errors
Red Fault
Orange Process or update is being performed
Green Status display “on”; Process or update
has been completed successfully
2Battery com-
partment –
3System button For resetting the device
4QR code Inside the bottom section
5Magnet unit For triggering the Door/Window Contact
3 2
4
1
Top section
Top section
(inside view)
Bottom section
(inside view)
5

16 17
5.0 INSTALLATION AND SETUP
Before you start
Please ensure that you have a Bosch Smart Home Controller and
the Bosch Smart Home App, and that you have set both of them up
successfully.
For assistance with installing your Bosch Smart Home Door/Window
Contact, you may also refer to the explanatory video on our website:
www.bosch-smarthome.com/installation

18 19
5.1 Installation
Start the Bosch Smart Home App and select “Add device”.
The app will prompt you to scan the
QR code on the product. Open the
device by sliding the top and bottom
sections against each other.
You will find the QR code on the inside
of the bottom section of the Door/Win-
dow Contact.
From this point, the app guides you through
the installation process. You will find a detailed
description in this instruction manual.

20 21
Insert the batteries into the battery
compartment. Ensure they are installed
in the correct orientation.
Then close the battery compartment
again.
5.2 Inserting the batteries
Now the app guides you through
the installation process. You will
find a detailed description in this
instruction manual.

22 23
Confirm the batteries have been
inserted in the app. The Door/Window
Contact will now try to connect to your
Controller.
The Door/Window Contact’s LED
indicates the status of the configura-
tion attempt using the following flash
codes:
The app will also inform you if the
configuration was successful.
If the device is not able to establish a connection to the Controller
within 3 minutes, the configuration mode is ended. To start the
configuration mode again, please press the system button on the
Door/Window Contact.
5.3 Configuring the device
LED state Explanation
Flashes orange Searching for system controller
Flashes green once Successful configuration attempt
Flashes orange Unsuccessful configuration attempt

24 25
6.0 FIXING
6.1 Mounting location
Do not fit your Door/Window Contact to the hinge side of the window!
It could be damaged when the window is opened.
Please fit the Door/Window Contact
to the upper part of the window frame
with the LED facing down. The magnet
unit is fitted to the window sash.

26 27

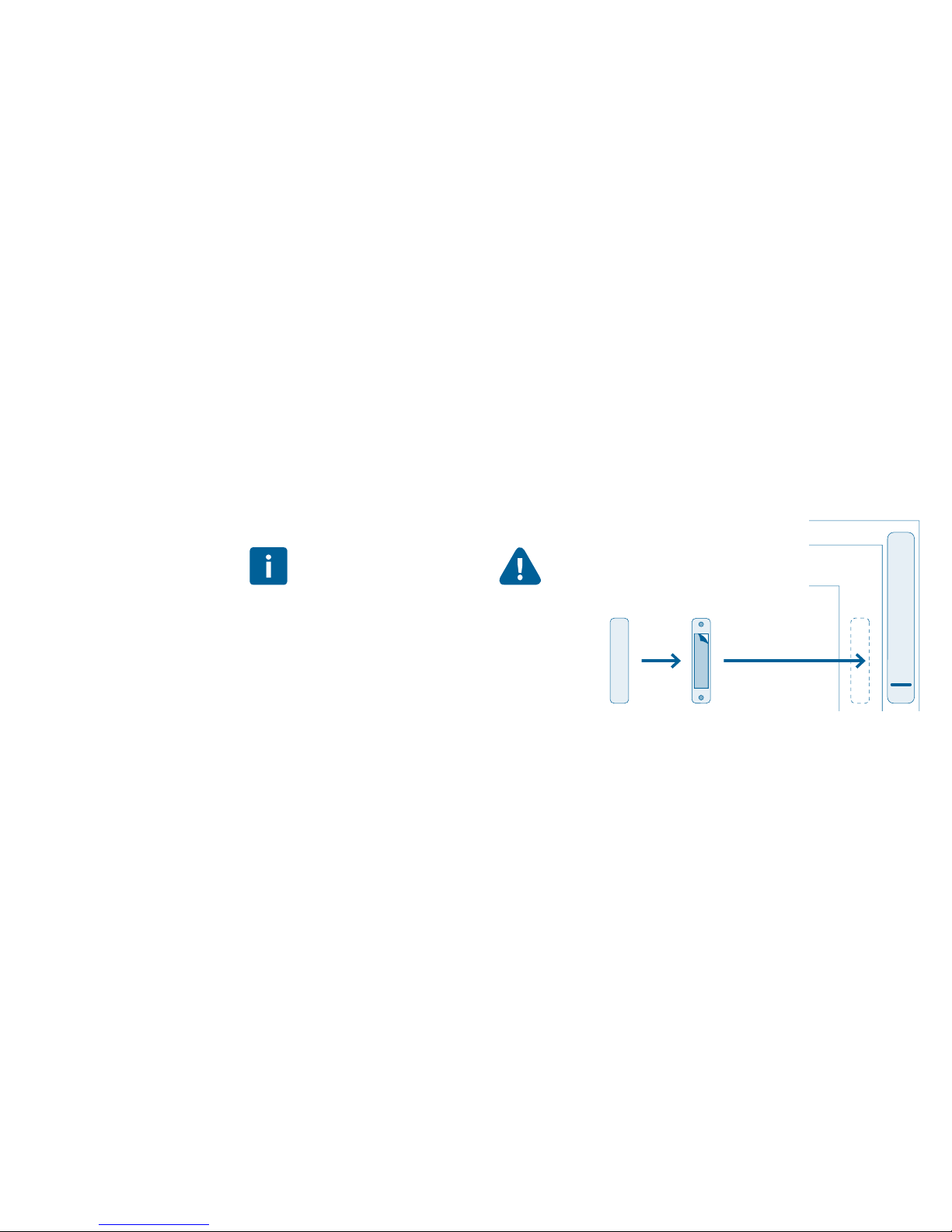

6.2 Mounting instruction
Make sure that the Door/Window Contact and
the magnet unit are flush (using the enclosed
spacer where necessary) and that the bottom
edges are level. If correctly aligned, the LED will
flash briefly. The bottom edges of the devices
should be level with each other.
The Door/Window Contact and the magnet
unit can be glued or screwed to the window.
Instructions on how to do so on the following
pages.
Maintain the minimum distance to the surroundings (1.5 cm) when
mounting the Door/Window Contact so that it can still be slid together.
The distance between magnet unit and
Door/Window Contact must be no more
than 8 mm.
max. 8 mm

28 29
6.3 Fixing with adhesive tape
Mounting the Door/Window
Contact
▶ Fit the adhesive strip to the rear side
of the Door/Window Contact’s bot-
tom section and peel off the second
protective film
▶ Place the Door/Window Contact in
the required position on the window
frame and firmly press in place
Maintain the minimum
distance to the surroundings
(1.5 cm) when mounting
the Door/Window Contact
so that it can still be slid
together.
Observe the mounting
instructions on pages 26
and 27.
Rear side

30 31
Observe the mounting
instructions on pages 26
and 27.
Mounting the magnet unit with
spacer
▶ Fit the adhesive strip to the rear
side of the spacer and peel off the
second protective film
▶ Place the spacer at the required
position on the window frame and
firmly press on the spacer
▶ Put the magnet unit on the spacer
If everything is correctly
aligned, the LED in the de-
vice will flash briefly.
Rear side of
spacer

32 33
Observe the mounting
instructions on pages 26
and 27.

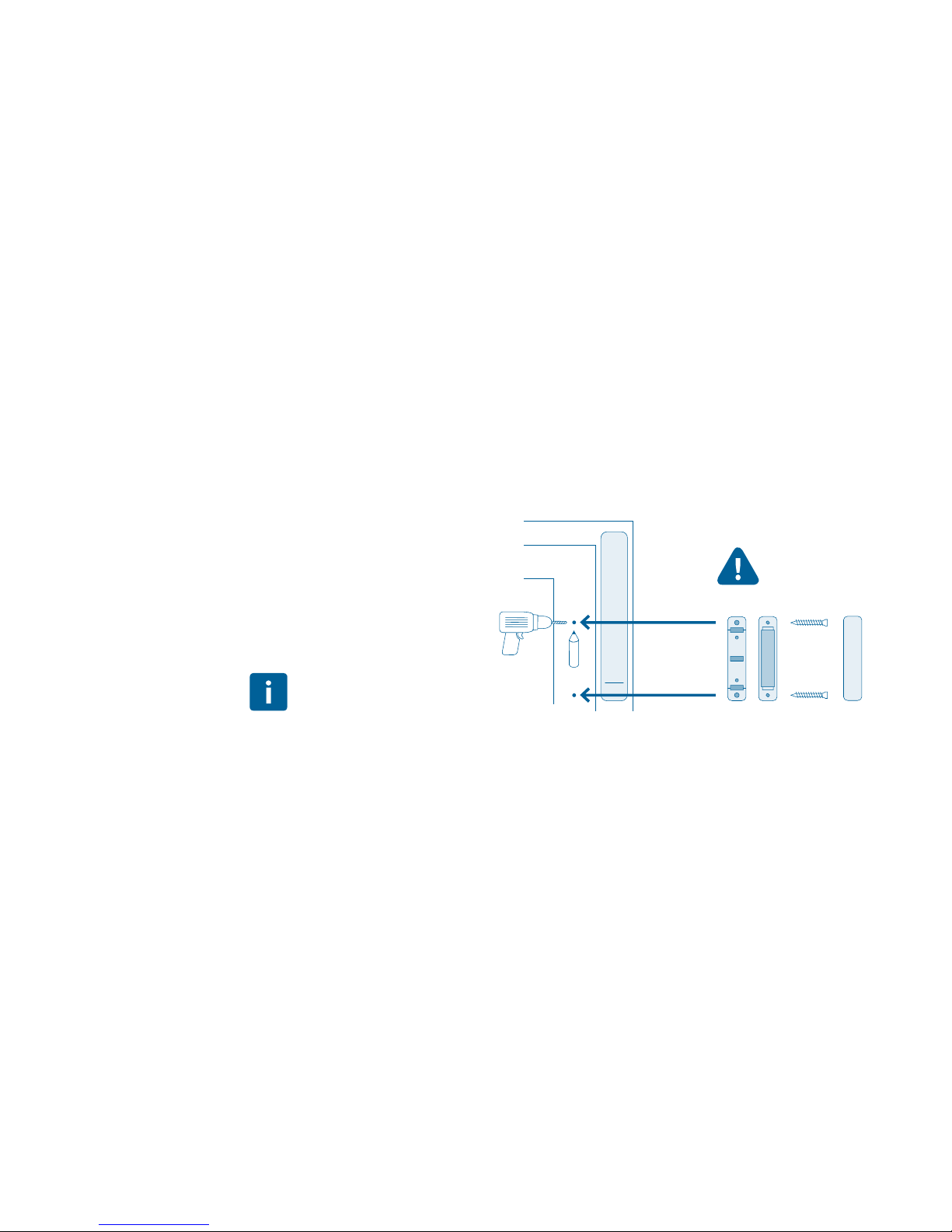

Mounting the magnet unit without
spacer
▶ Fit the adhesive strip to the rear side
of the magnet unit and peel off the
second protective film
▶ Place the magnet unit in the
required position on the window
frame and firmly press in place
If everything is correctly
aligned, the LED in the de-
vice will flash briefly.
Rear side
Magnet unit

34 35
6.4 Fixing with screws
Observe the mounting
instructions on pages 26
and 27.
Mounting the Door/Window
Contact
▶ Separate the battery compartment
from the bottom section of the
Door/Window Contact
▶ Hold the bottom section in the
required position on the window
frame and mark the positions for the
drill holes
▶ Drill the holes
▶ Position the bottom section over the
holes and screw it on tight. Use the
short screws to do this
▶ Now put the top section containing
the batteries back onto the mounted
bottom section

36 37
Mounting the magnet unit with
spacer
▶ Hold the spacer in the required
position on the window sash and
mark the positions for the drill holes
▶ Drill the holes
▶ Open the lid of the magnet unit
▶ Put the magnet unit on the spacer
and screw the magnet unit and
spacer onto the window frame. Use
the long screws to do this
▶ Put the lid back on the magnet unit
If everything is correctly
aligned, the LED in the de-
vice will flash briefly.
Observe the mounting
instructions on pages 26
and 27.

38 39
Mounting the magnet unit without
spacer
▶ Open the lid of the magnet unit
▶ Hold the magnet unit in the required
position on the window sash and
mark the positions for the drill holes
▶ Drill the holes
▶ Position the magnet unit over the
holes and screw the magnet unit
onto the window frame. Use the long
screws to do this
▶ Put the lid back on the magnet unit
If everything is correctly
aligned, the LED in the
device will flash briefly.
Observe the mounting
instructions on pages 26
and 27.
