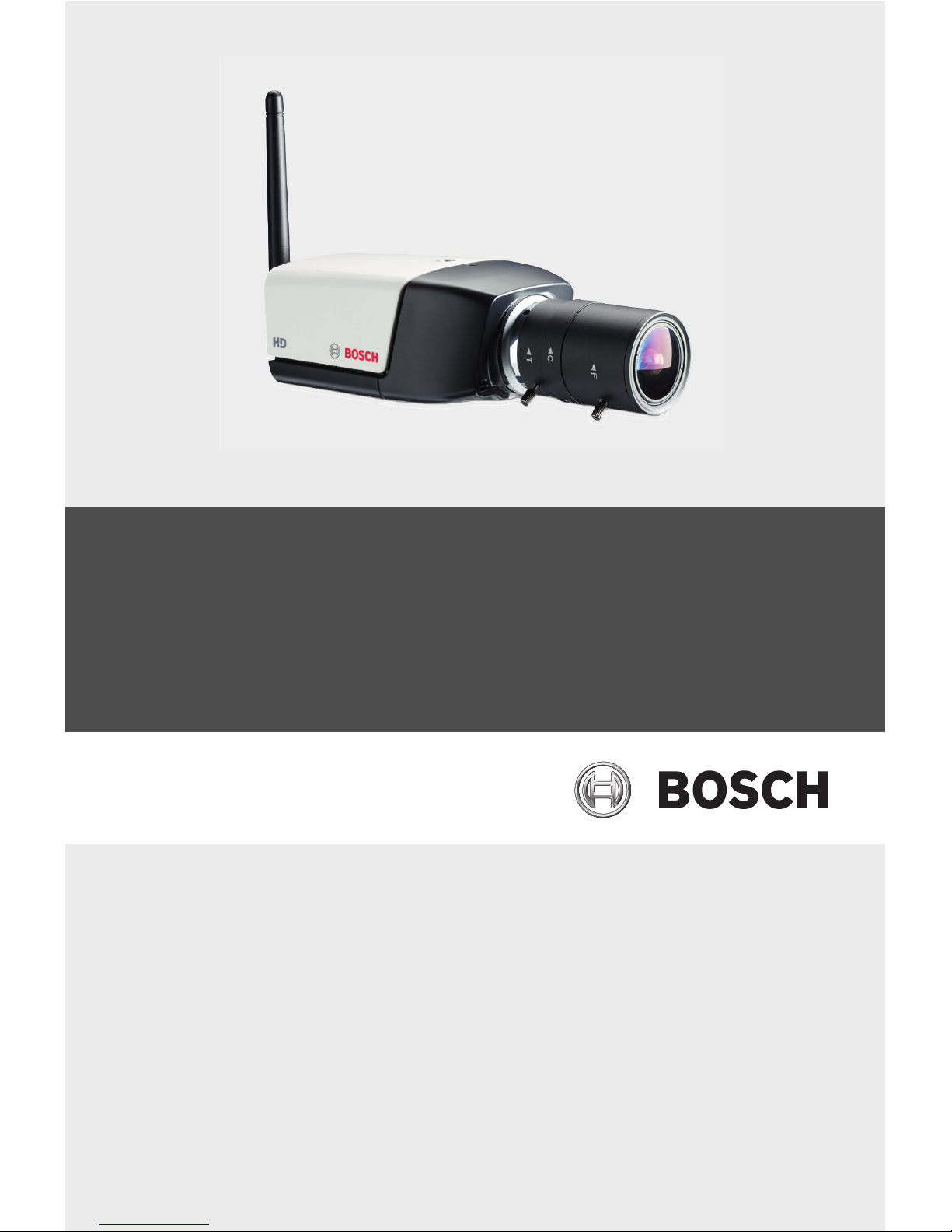

Bosch NBC-265-W User manual

HD 720p IP Wireless Camera
NBC-265-W
en Installation and Operation Manual

IP Camera 200 Series Table of Contents | en 3
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
Table of Contents
1Safety 8
1.1 Safety precautions 8
1.2 Important safety instructions 9
1.3 FCC & ICES compliance 10
1.4 UL certification 11
1.5 CE certification 12
1.6 Bosch notices 12
1.7 Copyrights 13
2 Introduction 14
2.1 Features 14
2.2 Unpacking 16
3 Installation 18
3.1 Wireless antenna 18
3.2 SD card 19
3.3 Mounting the camera 22
3.5 Network connector 26
3.6 Power connection 27
3.6.1 DC power connection 27
3.7 I/O connector 29
3.8 Audio connectors 31
3.9 Resetting the camera 32
4 Browser connection 59
4.1 System requirements 59
4.2 Establishing the connection 60
4.2.1 Password protection in camera 60
4.3 Protected network 60
4.4 Connection established 61
4.4.1 Livepage 62
4.4.2 Recordings 63
4.4.3 Settings 63

4en | Table of Contents IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
5 Basic Mode 64
5.1 Basic Mode menu tree 64
5.2 Device Access 65
5.2.1 Camera name 65
5.2.2 Password 65
5.3 Date/Time 66
5.4 Network 67
5.5 Encoder 68
5.6 Audio 68
5.7 Recording 68
5.7.1 Storage medium 68
5.8 System Overview 68
6 Advanced Mode 69
6.1 Advanced Mode menu tree 69
6.2 General 70
6.2.1 Identification 70
6.2.2 Password 70
6.2.3 Date/Time 72
6.2.4 Display Stamping 73
6.3 Web Interface 75
6.3.1 Appearance 75
6.3.2 LIVEPAGE Functions 76
6.3.3 Logging 77
6.4 Camera 78
6.4.1 Installer Menu 78
6.4.2 Picture Settings 79
6.4.5 Encoder Streams 89
6.4.6 Audio 90
6.5 Recording 91
6.5.1 Storage Management 92
6.5.2 Recording Profiles 96
6.5.3 Retention Time 98
6.5.4 Recording Scheduler 99
6.5.5 Recording Status 100
6.6 Alarm 101

IP Camera 200 Series Table of Contents | en 5
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
6.6.1 Alarm Connections 101
6.6.2 Video Content Analyses (VCA) 104
6.6.3 VCA configuration- Profiles 105
6.6.4 VCA configuration - Scheduled 111
6.6.5 VCA configuration - Event triggered 113
6.6.6 Audio Alarm 114
6.6.7 Alarm E-Mail 115
6.7 Interfaces 118
6.7.1 Alarm input 118
6.7.2 Relay 118
6.8 Network 120
6.8.1 Network Access 120
6.8.2 Advanced 124
6.8.3 WLAN 125
6.8.4 Multicast 126
6.8.5 FTP Posting 127
6.9 Service 129
6.9.1 Maintenance 129
6.9.2 System Overview 131
7 Operation via the browser 132
7.1 Livepage 132
7.1.1 Processor load 133
7.1.2 Image selection 134
7.1.3 Digital I/O 135
7.1.4 System Log / Event Log 136
7.1.5 Saving snapshots 136
7.1.6 Recording video sequences 136
7.1.7 Running recording program 136
7.1.8 Audio communication 137
7.2 Recordings page 138
7.2.1 Controlling playback 138
8 Troubleshooting 140
8.1 LED indicators 140
8.2 Resolving problems 140

6en | Table of Contents IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
8.3 Customer service 141
9 Maintenance 142
9.1 Repairs 142
9.1.1 Transfer and disposal 142
10 Technical Data 143
10.1 Specifications 143
10.1.1 Dimensions 157
10.1.2 Accessories 160

8en | Safety IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
1Safety
1.1 Safety precautions
DANGER!
High risk: This symbol indicates an imminently hazardous
situation such as "Dangerous Voltage" inside the product.
If not avoided, this will result in an electrical shock, serious
bodily injury, or death.
WARNING!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily
injury.
CAUTION!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of
damage to the device.

IP Camera 200 Series Safety | en 9
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
1.2 Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Heed all warnings on the unit and in the
operating instructions before operating the unit.
1. Cleaning - Generally, using a dry cloth for cleaning is
sufficient but a moist, fluff-free cloth or leather shammy
may also be used. Do not use liquid cleaners or aerosol
cleaners.
2. Heat Sources - Do not install the unit near any heat
sources such as radiators, heaters, stoves, or other
equipment (including amplifiers) that produce heat.
3. Water - Never spill liquid of any kind on the unit.
4. Lightning - Take precautions to protect the unit from
power and lightning surges.
5. Controls adjustment - Adjust only those controls specified
in the operating instructions. Improper adjustment of
other controls may cause damage to the unit.
6. Power sources - Operate the unit only from the type of
power source indicated on the label.
7. Servicing - Unless qualified, do not attempt to service this
unit yourself. Refer all servicing to qualified service
personnel.
8. Replacement parts - Use only replacement parts specified
by the manufacturer.
9. Installation - Install in accordance with the manufacturer's
instructions and in accordance with applicable local codes.
10. Attachments, changes or modifications - Only use
attachments/accessories specified by the manufacturer.
Any change or modification of the equipment, not
expressly approved by Bosch, could void the warranty or,
in the case of an authorization agreement, authority to
operate the equipment.

10 en | Safety IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
1.3 FCC & ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received,
including interference that may cause undesired operation.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for
corrective action.

IP Camera 200 Series Safety | en 11
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.
FCC RF Radiation Exposure Statement
The equipment complies with RF exposure limits set forth for
an uncontrolled environment. The antenna(s) used for this
transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
1.4 UL certification
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Closed
Circuit Television Equipment, UL 2044. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.

12 en | Safety IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
1.5 CE certification
This indicates compliance with the R&TTE Directive 1999/5/EC
and meets the relevant parts of following technical
specifications:
ETSI EN 300 328 V1.7.1:2006
ETSI EN301489-17 V2.1.1:2009
ETSI EN301489-1 V1.8.1:2008
IEC60950-1:2005+A1:2009
EN60950-1:2006+A11:2009
EN 62311:2008
This equipment complies with CE RF radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
1.6 Bosch notices
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
Disposal - Your Bosch product was developed and
manufactured with high-quality material and components that
can be recycled and reused. This symbol means that
electronic and electrical appliances, which have reached the
end of their working life, must be collected and disposed of
separately from household waste material. Separate collecting
systems are usually in place for disused electronic and
electrical products. Please dispose of these devices at an
environmentally compatible recycling facility, per European
Directive 2002/96/EC

IP Camera 200 Series Safety | en 13
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
1.7 Copyrights
The firmware 4.1 uses the fonts "Adobe-Helvetica-Bold-R-
Normal--24-240-75-75-P-138-ISO10646-1" and "Adobe-
Helvetica-Bold-R-Normal--12-120-75-75-P-70-ISO10646-1" under
the following copyright:
Copyright 1984-1989, 1994 Adobe Systems Incorporated.
Copyright 1988, 1994 Digital Equipment Corporation.
Permission to use, copy, modify, distribute and sell this
software and its documentation for any purpose and without
fee is hereby granted, provided that the above copyright
notices appear in all copies and that both those copyright
notices and this permission notice appear in supporting
documentation, and that the names of Adobe Systems and
Digital Equipment Corporation not be used in advertising or
publicity pertaining to distribution of the software without
specific, written prior permission.
This software is based in part on the work of the Independent
JPEG Group.

14 en | Introduction IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
2 Introduction
2.1 Features
This WLAN HD 720p IP camera is a ready-to-use, complete
network video surveillance system inside a compact camera.
The camera offers a cost-effective solution for a broad range of
applications. It uses H.264 compression technology to give
clear images reducing bandwidth and storage.The camera can
be used as a stand-alone video surveillance system with no
additional equipment or it can easily integrate with the Bosch
DVR 700 Series recorders.
Features include:
–SD/SDHC card slot supports edge recording up to 32 GB
– Tri-streaming: Two H.264 streams and one M-JPEG stream
– HD 720p Progressive scan for sharp images of moving
objects
– Two-way audio and audio alarm
– Tamper and motion detection
– Conforms to the ONVIF standard for wide compatibility
– Wireless LAN connection

IP Camera 200 Series Introduction | en 15
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
2.2 Unpacking
Unpack carefully and handle the equipment with care.
The packaging contains:
– IP camera with lens
– Universal power supply with US, EU and UK plug
– Camera mount kit
– Quick installation guide
–CDROM
– Bosch Video Client
– Documentation
–Tools
– Wireless antenna
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
WARNING!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
CAUTION!
The camera module is a sensitive device and must be handled
carefully.

18 en | Installation IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
3 Installation
3.1 Wireless antenna

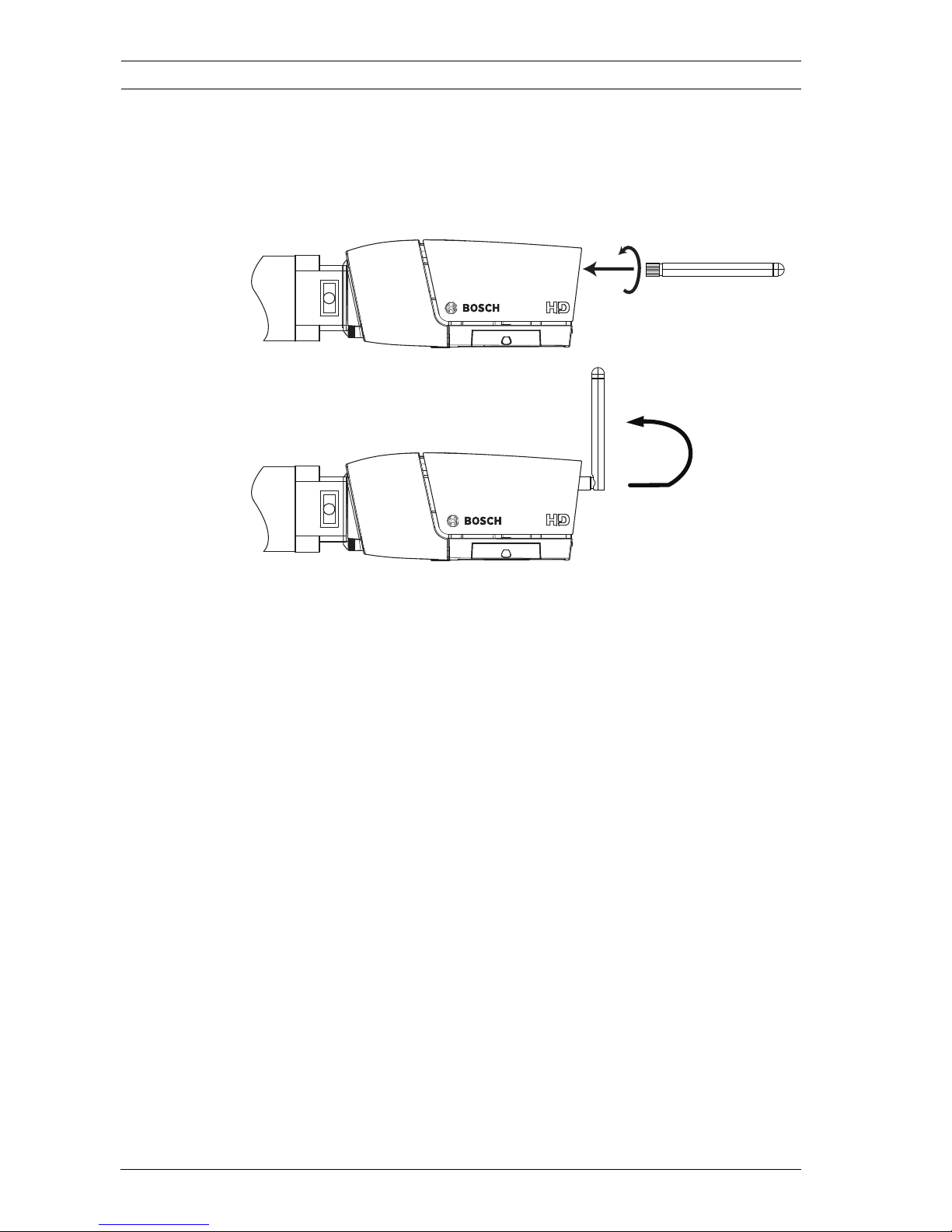

Figure 3.1 Wireless antenna
1. Screw the antenna onto the screw connector on the rear of
the camera.
2. Straighten the antenna.

IP Camera 200 Series Installation | en 19
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
3.2 SD card

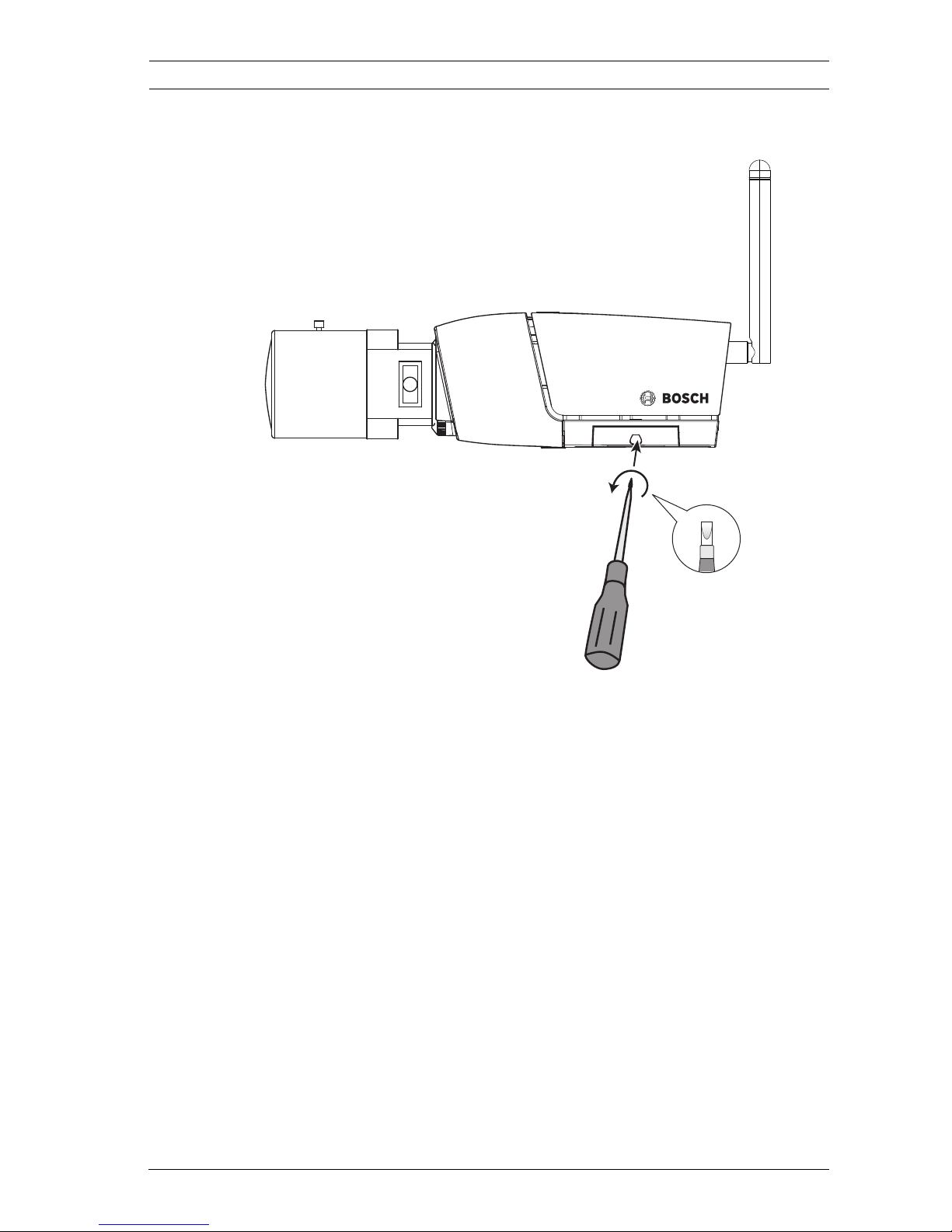

Figure 3.2 SD card
1. Unscrew the cover on the right side of the camera.
2. Slide the SD card into the slot.
3. Close and secure the cover.
The camera supports most SD/SDHC cards.
Note:
Use high speed SD cards, class 4 or above (the higher read/
write speed the better).

20 en | Installation IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
3.3 Mounting the camera
The camera can be mounted either from the top or from the
bottom (1/4"-20 UNC thread). The mounting socket is isolated
from ground to prevent ground loops.
Figure 3.3 Mounting a camera
1. Use three screws to secure the base of the mounting unit
to a wood (Ø3.8 mm, 26 mm deep) or concrete (Ø6 mm,
26 mm deep) surface.
2. On the mounting unit, loosen the ball-socket adjustment
ring (2).
CAUTION!
Do not point the camera/lens into direct sunlight as this may
damage the sensors.
3x Ø3.8 mm
D: 26 mm
3x Ø6 mm
D: 26 mm
120°
120°
27 mm

IP Camera 200 Series Installation | en 21
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
3. Adjust the ball-socket so that camera mount is correcrly
aligned for the required angle.
4. Screw camera onto mount and, when in position, tighten
the locking ring (1) securely.
5. Tighten the ball-socket adjustment ring (2) securely.

22 en | Installation IP Camera 200 Series
AR18-10-B012 | v1.54 | 2011.08 Installation and Operation Manual Bosch Security Systems
3.4 Network connector

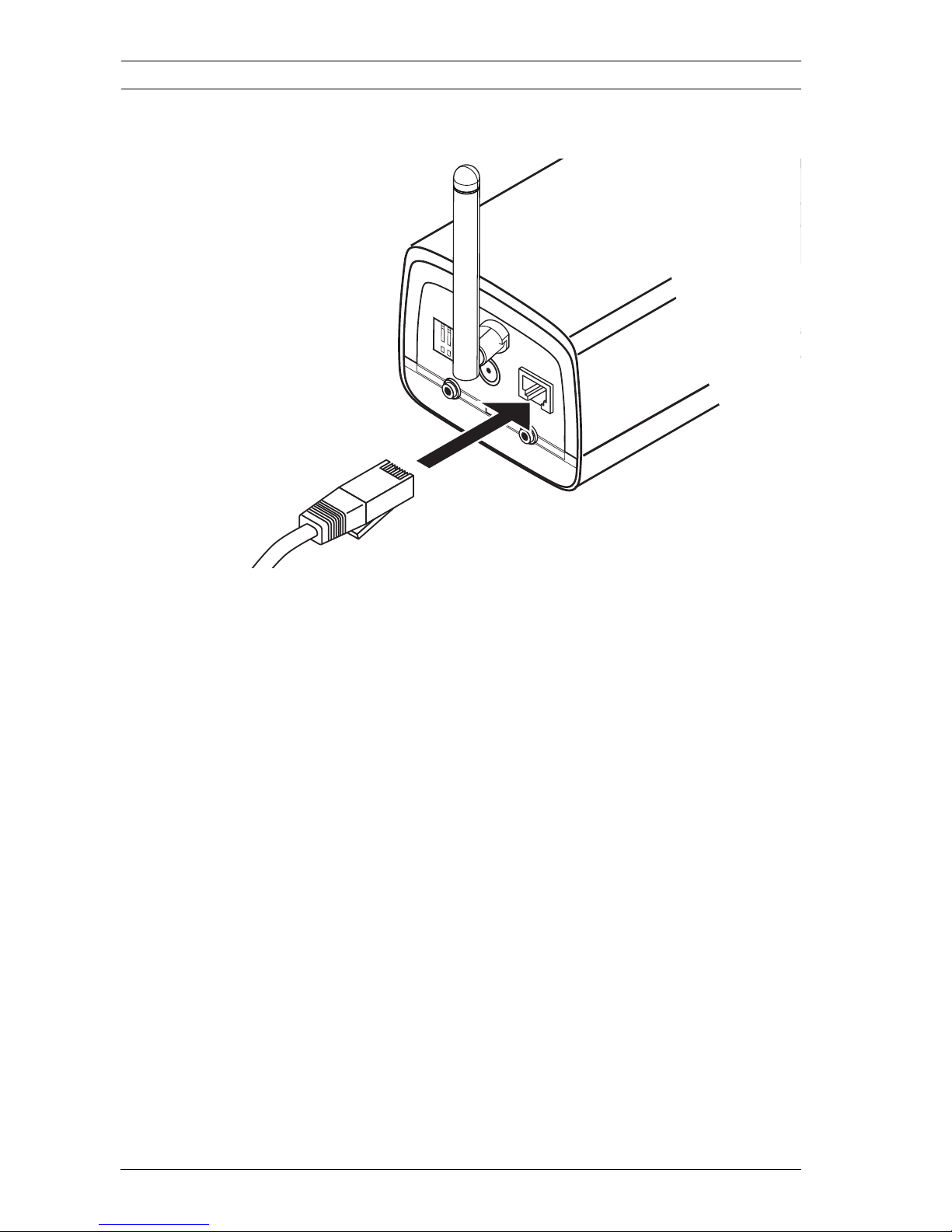

Figure 3.4 Network connection
– Connect the camera to a 10/100 Base-T network.
– Use a shielded UTP Category 5e cable with RJ45
connectors.
1 2 3 4
DC12V Ethernet
Line-out Reset Line-in
I/O

IP Camera 200 Series Installation | en 23
Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.08
3.5 Power connection
3.5.1 DC power connection
Figure 3.5 DC power connection
1. Slide the plug adapter that matches your outlet socket
onto the supplied power supply.
2. Insert the power connector jack from the power supply
into the DC12V socket of the camera.
3. Connect the power supply to either a 230 VAC or a
120 VAC power supply outlet.
When power is supplied to the camera the LED on the bottom-
front of the camera lights. (This LED can be disabled in the
Installer menu.)
Note:
The date/time must be synchronized each time after power on.
It is important to ensure that the date/time is correct for
recording. An incorrect date/time setting could prevent correct
recording.
1 2 3 4
DC12V Ethernet
Line-out Reset Line-in
I/O
