Bosch NDN-265-PIO User manual

IP Camera 200 Series
NDN-265-PIO
en Installation Manual

IP Camera 200 Series Table of Contents | en 3
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
Table of Contents
1Safety 5
1.1 Safety precautions 5
1.2 Important safety instructions 6
1.3 FCC & ICES compliance 7
1.4 UL certification 8
1.5 Bosch notices 8
1.6 Copyrights 9
2 Introduction 10
2.1 Features 10
2.2 Unpacking 11
3 Installation 12
3.1 Disassembly 12
3.2 MicroSDHC card 13
3.3 Network (and power) connector 14
3.4 Power connection 15
3.4.1 DC power connection 15
3.5 I/O connector 16
3.6 Audio connectors 17
3.7 Mounting 18
3.8 Camera set-up 19
3.8.1 Camera positioning 20
3.8.2 Focal length and focus 22
3.9 Resetting the camera 23
4 Browser connection 24
4.1 System requirements 24
4.2 Establishing the connection 25
4.2.1 Password protection in camera 25
4.3 Protected network 25
5 Troubleshooting 26
5.1 Resolving problems 26
5.2 Customer service 26

4en | Table of Contents IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
6 Maintenance 27
6.1 Repairs 27
6.1.1 Transfer and disposal 27
7 Technical Data 28
7.1 Specifications 28
7.1.1 Accessories 30

IP Camera 200 Series Safety | en 5
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
1Safety
1.1 Safety precautions
DANGER!
High risk: This symbol indicates an imminently hazardous
situation such as "Dangerous Voltage" inside the product.
If not avoided, this will result in an electrical shock, serious
bodily injury, or death.
WARNING!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily
injury.
CAUTION!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of
damage to the device.

6en | Safety IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
1.2 Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Heed all warnings on the unit and in the
operating instructions before operating the unit.
1. Cleaning - Generally, using a dry cloth for cleaning is
sufficient but a moist, fluff-free cloth or leather shammy
may also be used. Do not use liquid cleaners or aerosol
cleaners.
2. Heat Sources - Do not install the unit near any heat
sources such as radiators, heaters, stoves, or other
equipment (including amplifiers) that produce heat.
3. Water - Never spill liquid of any kind on the unit.
4. Lightning - Take precautions to protect the unit from
power and lightning surges.
5. Controls adjustment - Adjust only those controls specified
in the operating instructions. Improper adjustment of
other controls may cause damage to the unit.
6. Power sources - Operate the unit only from the type of
power source indicated on the label.
7. Servicing - Unless qualified, do not attempt to service this
unit yourself. Refer all servicing to qualified service
personnel.
8. Replacement parts - Use only replacement parts specified
by the manufacturer.
9. Installation - Install in accordance with the manufacturer's
instructions and in accordance with applicable local codes.
10. Attachments, changes or modifications - Only use
attachments/accessories specified by the manufacturer.
Any change or modification of the equipment, not
expressly approved by Bosch, could void the warranty or,
in the case of an authorization agreement, authority to
operate the equipment.

IP Camera 200 Series Safety | en 7
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
1.3 FCC & ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received,
including interference that may cause undesired operation.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for
corrective action.

8en | Safety IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.
1.4 UL certification
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Closed
Circuit Television Equipment, UL 2044. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.
1.5 Bosch notices
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
Disposal - Your Bosch product was developed and
manufactured with high-quality material and components that
can be recycled and reused. This symbol means that
electronic and electrical appliances, which have reached the
end of their working life, must be collected and disposed of
separately from household waste material. Separate collecting
systems are usually in place for disused electronic and
electrical products. Please dispose of these devices at an
environmentally compatible recycling facility, per European
Directive 2002/96/EC

IP Camera 200 Series Safety | en 9
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
1.6 Copyrights
The firmware 4.1 uses the fonts "Adobe-Helvetica-Bold-R-
Normal--24-240-75-75-P-138-ISO10646-1" and "Adobe-
Helvetica-Bold-R-Normal--12-120-75-75-P-70-ISO10646-1" under
the following copyright:
Copyright 1984-1989, 1994 Adobe Systems Incorporated.
Copyright 1988, 1994 Digital Equipment Corporation.
Permission to use, copy, modify, distribute and sell this
software and its documentation for any purpose and without
fee is hereby granted, provided that the above copyright
notices appear in all copies and that both those copyright
notices and this permission notice appear in supporting
documentation, and that the names of Adobe Systems and
Digital Equipment Corporation not be used in advertising or
publicity pertaining to distribution of the software without
specific, written prior permission.
This software is based in part on the work of the Independent
JPEG Group.

10 en | Introduction IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
2 Introduction
2.1 Features
The Bosch NDN-265-PIO 720p is a ready-to-use, complete
network surveillance infrared IP camera system inside a robust
dome. This camera offers a cost effective solution for a broad
range of applications. The robust aluminum camera body is
IP66 rated, offering water and dust proofing for demanding
environments. The built-in active infrared illuminator ensures
effective vision under extreme low-light conditions.
H.264 compression technology provides clear images reducing
bandwidth and storage. The camera can be used as a stand-
alone video surveillance system with no additional equipment
or it can easily integrate with the Bosch DVR 700 Series
recorders.
Features include:
–MicroSD/SDHC card slot supports edge recording up to 32GB
– Tri-streaming: Two H.264 streams and one M-JPEG stream
– Vandal-resistant and IP66-rated robust design
– Two-way audio and audio alarm
– Power over Ethernet (IEEE 802.3af compliant)
– Tamper and motion detection
– Conforms to the ONVIF standard for wide compatibility
– High performance active infrared illuminator inside the
camera for extreme low-light environments

IP Camera 200 Series Introduction | en 11
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
2.2 Unpacking
Unpack carefully and handle the equipment with care.
The packaging contains:
– IP camera with lens
– Torx screwdriver
– Camera fixing screw kit
– Installation paper sticker
– Quick installation guide
–CDROM
– Bosch Video Client
– Documentation
–Tools
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
WARNING!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
CAUTION!
The camera module is a sensitive device and must be handled
carefully.

12 en | Installation IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
3 Installation

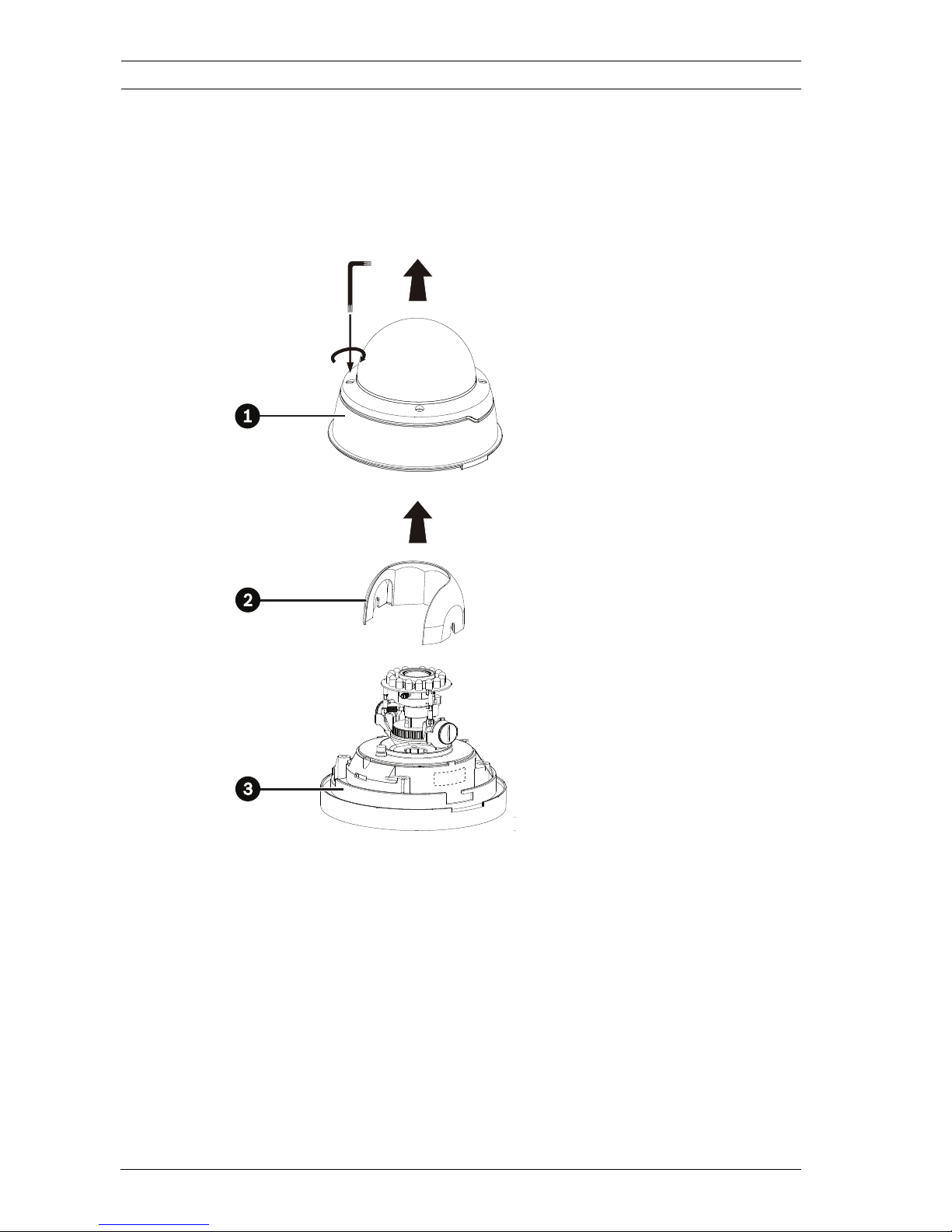

3.1 Disassembly
The camera/housing consists of the following parts:
To disassemble the unit proceed as follows:
1. Using the special screwdriver bit supplied, loosen the four
tamper-resistant screws in the dome (the screws remain in
place).
2. Remove the dome from the base.
3. Remove the inner liner by pulling it off the base.
1. Dome
2. Inner liner
3. Camera module and mounting base
x4

IP Camera 200 Series Installation | en 13
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
3.2 MicroSDHC card
1. Disassemble the camera.
2. Add the supplied desiccant pack to the side of the camera
module.
3. Slide the microSDHC card into the slot.
The camera supports most microSD/SDHC cards.
1. MicroSDHC card
2. Desiccant

14 en | Installation IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
3.3 Network (and power) connector
Figure 3.1 Network connection
– Connect the camera to a 10/100 Base-T network.
– Use a shielded UTP Category 5e cable with RJ45
connectors.
– Power can be supplied to the camera via the Ethernet
cable compliant with the Power-over-Ethernet
(IEEE 802.3af) standard.
RJ45
Ethernet (PoE)
CAUTION!
This equipment is only to be connected to PoE networks
without routing to outside plant.

IP Camera 200 Series Installation | en 15
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
3.4 Power connection
The camera can accept power from both the DC12V power
input and the Ethernet input at the same time. You can remove
either one of the power sources without interrupting camera
operation.
3.4.1 DC power connection
Figure 3.2 DC power connection
Connect power from a 12 VDC class 2 power supply as follows:
1. Use AWG22 wire; cut back 5 mm (0.2 in) of insulation.
2. Remove the 2-pole connector from the camera cable tree.
3. Loosen the screws and insert the wires.
4. Tighten the screws and reconnect the 2-pole connector to
the power connector of the camera cable tree.
5 mm
(0.2 in)
12 VDC
22AWG

16 en | Installation IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
3.5 I/O connector
Figure 3.3 I/O connector pins
– Cut back 5 mm (0.2 in) of insulation.
– Relay switching capability: Max. voltage 24 VAC or 24 VDC.
Max. 1 A continuous, 12 VA.
– Alarm in: Short or +5 VDC activation.
– Alarm input configurable as active low or active high.
Function Wire Color
Relay out AWG20 Grey
AWG20 Red
Alarm input AWG30 Orange
AWG30 Brown
5 mm
(0.2 in)
In: AWG30
Out: AWG20

IP Camera 200 Series Installation | en 17
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
3.6 Audio connectors
Figure 3.4 Audio connectors
Connect audio devices to the Line In and Line Out connectors.
– Line in: 9 kOhm typical, 200 mVrms
– Line out: 16 Ohm minimum 200 mVrms (earphone
compatible)
Line - R
GND
Line - L

18 en | Installation IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
3.7 Mounting
Figure 3.5 Mounting the camera
To mount the camera to a wall or ceiling:
1. Stick the supplied installation paper sticker to the surface
taking care to orientate it correctly.
2. Drill four holes with a diameter of 6 mm.
3. Insert the supplied plugs into the holes.
4. Attach the camera and base unit securly to the surface
using the four supplied T4 screws.
T4 (Ø3.3 mm)
Ø6 mm
x4
x4
Torque 8 kg-m
Camera Outline
Cut Line
CAUTION!
Do not point the camera/lens into direct sunlight as this may
damage the sensors.

IP Camera 200 Series Installation | en 19
Bosch Security Systems Installation Manual AM18-Q0616 | v1 | 2012.02
3.8 Camera set-up
To help set up the camera, connect a monitor to the BNC
connector of the camera cable tree. This connector provides a
composite video signal (with sync) for installation purposes
only.

20 en | Installation IP Camera 200 Series
AM18-Q0616 | v1 | 2012.02 Installation Manual Bosch Security Systems
3.8.1 Camera positioning
The camera position can be adjusted along three axes. When
adjusting ensure that the picture display on the monitor is level.
Set the camera to the desired position by performing the
following steps:
1. For horizontal adjustment (pan), rotate the camera module
in the base. Do not rotate more than 350°.
