Bosch LTC 8555/02 User manual

Allegiant Keyboards
LTC 8555 Series
en Instruction Manual

Allegiant Keyboards Table of Contents | en iii
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
Table of Contents
1Safety 1
1.1 Important Safety Instructions 1
1.2 Safety Precautions 3
1.3 Important Notices 3
1.4 Customer Support and Service 8
2 Unpacking 9
3 Keyboard Models 9
4 Description 10
5 Installation 11
5.1 General 11
5.2 LTC 8555/00 and LTC 8555/01 (standard keyboard) Installation 12
5.3 LTC 8555/02 and LTC 8555/03 (RS-232 Protocol Model) Installation 13
5.3.1 General 13
5.3.2 Keyboard Number Assignments when Using RS-232 Model Keyboards 13
5.3.3 Allegiant System Command Scripts for RS-232 Model Keyboards 14
5.3.4 Modem Interface Information when Using RS-232 Model Keyboards 16
5.3.5 Console Expander Configuration when Using RS-232 Model Keyboards 17
5.3.6 Login Feature when Using RS-232 Model Keyboards 19
6 Keyboard Controls 19
6.1 Joystick 19
6.2 Focus and Iris Lens Controls 19
6.3 Numeric Keypad 19
6.4 “*” (Star) Button 19
6.5 Other Keyboard Buttons 19
6.6 Keyboard Displays 19

iv en | Table of Contents Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
7 User Information 20
7.1 General 20
7.2 Keyboard Login Procedure 20
7.3 Keyboard Log Off Procedure 20
7.4 Modem Dialing (applies to LTC 855/02 and LTC 8555/03 models only) 21
7.5 Keyboard Operating Instructions 21
7.5.1 Camera Selection 21
7.5.2 Monitor Selection 21
7.5.3 Lock or Unlock Control of a Camera 21
7.5.4 Lock or Unlock Control of a Monitor 22
7.5.5 Recording a Camera Pre-position Scene 22
7.5.6 Recalling a Camera Pre-position Scene 22
7.5.7 Activate/Deactivate Auxiliary Function 22
7.5.8 Arm/Disarm Individual Alarms 23
7.5.9 Arm/Disarm All Alarms 23
7.5.10 Arm/Disarm Monitor 23
7.5.11 Acknowledgment of Alarms 23
7.5.12 Load/Clear a Sequence 23
7.5.13 Run a Sequence 24
7.5.14 Stop a Running Sequence 24
7.5.15 Controlling the Direction of a Sequence 24
7.5.16 Programming a Simple Camera Sequence 24
7.5.17 Programming a SalvoSwitching Camera Sequence 26
7.6 Keyboard User Functions 27
7.7 Error Messages 28
8 Data Interface and Cable Pinouts 29
9Troubleshooting 30
9.1 General 30
9.2 Local Keyboard Test -- Keyboard User Function 1 31
10 Icon Translator Chart 33

Allegiant Keyboards Safety | en 1
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
1Safety
1.1 Important Safety Instructions
Read, follow, and retain for future reference all of the following safety instructions. Heed all
warnings on the unit and in the operating instructions before operating the unit.
1. Cleaning - Unplug the unit from the outlet before cleaning. Follow any instructions
provided with the unit. Generally, using a dry cloth for cleaning is sufficient, but a moist
fluff-free cloth or leather shammy may also be used. Do not use liquid cleaners or aerosol
cleaners.
2. Heat Sources - Do not install the unit near any heat sources such as radiators, heaters,
stoves, or other equipment (including amplifiers) that produce heat.
3. Ventilation - Any openings in the unit enclosure are provided for ventilation to prevent
overheating and ensure reliable operation. Do not block or cover these openings. Do not
place the unit in an enclosure unless proper ventilation is provided, or the manufacturer's
instructions have been adhered to.
4. Water - Do not use this unit near water, for example near a bathtub, washbowl, sink,
laundry basket, in a damp or wet basement, near a swimming pool, in an outdoor
installation, or in any area classified as a wet location. To reduce the risk of fire or
electrical shock, do not expose this unit to rain or moisture.
5. Object and liquid entry - Never push objects of any kind into this unit through openings
as they may touch dangerous voltage points or short-out parts that could result in a fire
or electrical shock. Never spill liquid of any kind on the unit. Do not place objects filled
with liquids, such as vases or cups, on the unit.
6. Lightning - For added protection during a lightning storm, or when leaving this unit
unattended and unused for long periods, unplug the unit from the wall outlet and
disconnect the cable system. This will prevent damage to the unit from lightning and
power line surges.
7. Controls adjustment - Adjust only those controls specified in the operating instructions.
Improper adjustment of other controls may cause damage to the unit. Use of controls or
adjustments, or performance of procedures other than those specified, may result in
hazardous radiation exposure.
8. Overloading - Do not overload outlets and extension cords. This can cause fire or
electrical shock.
9. Power cord and plug protection - Protect the plug and power cord from foot traffic,
being pinched by items placed upon or against them at electrical outlets, and its exit
from the unit. For units intended to operate with 230 VAC, 50 Hz, the input and output
power cord must comply with the latest versions of IEC Publication 227 or IEC Publication
245.
10. Power disconnect - Units with or without ON/OFF switches have power supplied to the
unit whenever the power cord is inserted into the power source; however, the unit is
operational only when the ON/OFF switch is in the ON position. The power cord is the
main power disconnect device for switching off the voltage for all units.

2en | Safety Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
11. Power sources - Operate the unit only from the type of power source indicated on the
label. Before proceeding, be sure to disconnect the power from the cable to be installed
into the unit.
– For battery powered units, refer to the operating instructions.
– For external power supplied units, use only the recommended or approved power
supplies.
– For limited power source units, this power source must comply with EN60950.
Substitutions may damage the unit or cause fire or shock.
– For 24 VAC units, voltage applied to the unit's power input should not exceed ±10%,
or 28 VAC. User-supplied wiring must comply with local electrical codes (Class 2
power levels). Do not ground the supply at the terminals or at the unit's power
supply terminals.
– If unsure of the type of power supply to use, contact your dealer or local power
company.
12. Servicing - Do not attempt to service this unit yourself. Opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
13. Damage requiring service - Unplug the unit from the main AC power source and refer
servicing to qualified service personnel when any damage to the equipment has
occurred, such as:
– the power supply cord or plug is damaged;
– exposure to moisture, water, and/or inclement weather (rain, snow, etc.);
– liquid has been spilled in or on the equipment;
– an object has fallen into the unit;
– unit has been dropped or the unit cabinet is damaged;
– unit exhibits a distinct change in performance;
– unit does not operate normally when the user correctly follows the operating
instructions.
14. Replacement parts - Be sure the service technician uses replacement parts specified by
the manufacturer, or that have the same characteristics as the original parts.
Unauthorized substitutions may cause fire, electrical shock, or other hazards.
15. Safety check - Safety checks should be performed upon completion of service or repairs
to the unit to ensure proper operating condition.
16. Installation - Install in accordance with the manufacturer's instructions and in
accordance with applicable local codes.
17. Attachments, changes or modifications - Only use attachments/accessories specified by
the manufacturer. Any change or modification of the equipment, not expressly approved
by Bosch, could void the warranty or, in the case of an authorization agreement, authority
to operate the equipment.

Allegiant Keyboards Safety | en 3
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
1.2 Safety Precautions
1.3 Important Notices
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit
may fall, causing serious injury and/or serious damage to the unit. Use only with the cart,
stand, tripod, bracket, or table specified by the manufacturer. When a cart is used, use
caution and care when moving the cart/apparatus combination to avoid injury from tip-over.
Quick stops, excessive force, or uneven surfaces may cause the cart/unit combination to
overturn. Mount the unit per the manufacturer's instructions.
All-pole power switch - Incorporate an all-pole power switch, with a contact separation of at
least 3 mm in each pole, into the electrical installation of the building.
If it is needed to open the housing for servicing and/or other activities, use this all-pole switch
as the main disconnect device for switching off the voltage to the unit.
Camera grounding - For mounting the camera in potentially damp environments, ensure to
ground the system using the ground connection of the power supply connector (see section:
Connecting external power supply).
Camera lens - An assembled camera lens in the outdoor housing must comply and be tested
in accordance with UL/IEC60950. Any output or signal lines from the camera must be SELV or
Limited Power Source. For safety reasons the environmental specification of the camera lens
assembly must be within the environmental specification of -10 °C (14 °F) to 50 °C (122 °F).
Camera signal - Protect the cable with a primary protector if the camera signal is beyond 140
feet, in accordance with NEC800 (CEC Section 60).
Coax grounding:
– Ground the cable system if connecting an outside cable system to the unit.
– Connect outdoor equipment to the unit's inputs only after this unit has had its grounding
plug connected to a grounded outlet or its ground terminal is properly connected to a
ground source.
DANGER! High risk:
This symbol indicates an imminently hazardous situation such as “Dangerous Voltage”
inside the product. If not avoided, this will result in an electrical shock, serious bodily
injury, or death.
!
WARNING! Medium risk:
Indicates a potentially hazardous situation. If not avoided, this could result in serious bodily
injury or death.
CAUTION! Medium risk:
Indicates a potentially hazardous situation. If not avoided, this may result in minor or
moderate injury. Alerts the user to important instructions accompanying the unit.
!
CAUTION! Low risk: (without safety alert symbol)
Indicates a potentially hazardous situation. If not avoided, this may result in property
damage or risk of damage to the unit.
i
NOTICE!
This symbol indicates information or a company policy that relates directly or indirectly to
the safety of personnel or protection of property.

4en | Safety Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
– Disconnect the unit's input connectors from outdoor equipment before disconnecting
the grounding plug or grounding terminal.
– Follow proper safety precautions such as grounding for any outdoor device connected to
this unit.
U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides
information regarding proper grounding of the mount and supporting structure, grounding of
the coax to a discharge unit, size of grounding conductors, location of discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
Your Bosch product was developed and manufactured with high-quality material and
components that can be recycled and reused. This symbol means that electronic and
electrical appliances, which have reached the end of their working life, must be collected and
disposed of separately from household waste material. Separate collecting systems are
usually in place for disused electronic and electrical products. Please dispose of these units at
an environmentally compatible recycling facility, per European Directive 2002/96/EC.
Environmental statement - Bosch has a strong commitment towards the environment. This
unit has been designed to respect the environment as much as possible.
Electrostatic-sensitive device - Use proper CMOS/MOS-FET handling precautions to avoid
electrostatic discharge.
NOTE: Wear required grounded wrist straps and observe proper ESD safety precautions when
handling the electrostatic-sensitive printed circuit boards.
Fuse rating - For security protection of the device, the branch circuit protection must be
secured with a maximum fuse rating of 16A. This must be in accordance with NEC800 (CEC
Section 60).
Grounding and polarization - This unit may be equipped with a polarized alternating current
line plug (a plug with one blade wider than the other blade). This safety feature allows the
plug to fit into the power outlet in only one way. If unable to insert the plug fully into the
outlet, contact a locally certified electrician to replace the obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
Alternately, this unit may be equipped with a 3-pole grounding plug (a plug with a third pin for
earth grounding). This safety feature allows the plug to fit into a grounded power outlet only.
If unable to insert the plug into the outlet, contact a locally certified electrician to replace the
obsolete outlet. Do not defeat the safety purpose of the grounding plug.
Moving - Disconnect the power before moving the unit. Move the unit with care. Excessive
force or shock may damage the unit and the hard disk drives.
Outdoor signals - The installation for outdoor signals, especially regarding clearance from
power and lightning conductors and transient protection, must be in accordance with NEC725
and NEC800 (CEC Rule 16-224 and CEC Section 60).
Permanently connected equipment - Incorporate a readily accessible disconnect device in
the building installation wiring.
Pluggable equipment - Install the socket outlet near the equipment so it is easily accessible.
PoE - Never supply power via the Ethernet connection (PoE) when power is already supplied
via the power connector.
Power disconnect - Units have power supplied whenever the power cord is inserted into the
power source. The power cord is the main power disconnect for all units.
i
NOTICE!
This device is intended for use in public areas only.
U.S. federal law strictly prohibits surreptitious recording of oral communications.

Allegiant Keyboards Safety | en 5
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
Power lines - Do not locate the camera near overhead power lines, power circuits, or
electrical lights, nor where it may contact such power lines, circuits, or lights.
SELV
All the input/output ports are Safety Extra Low Voltage (SELV) circuits. SELV circuits should
only be connected to other SELV circuits.
Because the ISDN circuits are treated like telephone-network voltage, avoid connecting the
SELV circuit to the Telephone Network Voltage (TNV) circuits.
Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security
Systems cannot be held liable for any damage that results from missing video information. To
minimize the risk of lost digital information, Bosch Security Systems recommends multiple,
redundant recording systems, and a procedure to back up all analog and digital information.
FCC & ICES INFORMATION
(U.S.A. and Canadian Models Only, CLASS B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules and ICES-003 of Industry Canada. These
limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer, or an experienced radio/TV technician for help.
Intentional or unintentional changes or modifications, not expressly approved by the party
responsible for compliance, shall not be made. Any such changes or modifications could void
the user’s authority to operate the equipment.The user may find the following booklet,
prepared by the Federal Communications Commission, helpful: How to Identify and Resolve
Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing
Office, Washington, DC 20402, Stock No. 004-000-00345-4.
i
NOTICE!
This is a class A product. In a domestic environment this product may cause radio
interference, in which case the user may be required to take adequate measures.

6en | Safety Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
INFORMATIONS FCC ET ICES (Residential applications)
(modèles utilisés aux États-Unis et au Canada uniquement, CLASSE B)
Cet appareil est conforme aux exigences imposées par la section 15 du règlement de la
Commission fédérale des communications des États-Unis (FCC). Son utilisation est soumise
aux deux conditions suivantes :
– Cet appareil ne doit pas provoquer d'interférences nuisibles, et
– doit supporter toutes les interférences reçues, dont les interférences susceptibles
d'entraîner un fonctionnement imprévu.
REMARQUE : suite à différents tests, cet appareil s'est révélé conforme aux exigences
imposées aux appareils numériques de classe B, en vertu de la section 15 du règlement de la
Commission fédérale des communications des États-Unis (FCC), et en vertu de la norme ICES-
003 d'Industrie Canada. Ces exigences visent à fournir une protection raisonnable contre les
interférences nuisibles lorsque l'appareil est utilisé dans le cadre d'une installation
résidentielle. Cet appareil génère, utilise et émet de l'énergie de radiofréquences et peut, en
cas d'installation ou d'utilisation non conforme aux instructions, engendrer des interférences
nuisibles au niveau des radiocommunications. Toutefois, rien ne garantit l'absence
d'interférences dans une installation particulière. Il est possible de déterminer la production
d'interférences en mettant l'appareil successivement hors et sous tension, tout en contrôlant
la réception radio ou télévision. L'utilisateur peut parvenir à éliminer les interférences
éventuelles en prenant une ou plusieurs des mesures suivantes:
Au besoin, l’utilisateur consultera son revendeur ou un technicien qualifié en radio/télévision,
qui procédera à une opération corrective. La brochure suivante, publiée par la Commission
fédérale des communications (FCC), peut s’avérer utile : « How to Identify and Resolve Radio-
TV Interference Problems » (Comment identifier et résoudre les problèmes d’interférences de
radio et de télévision). Cette brochure est disponible auprès du U.S. Government Printing
Office, Washington, DC 20402, États-Unis, sous la référence n° 004-000-00345-4.
AVERTISSEMENT: Ce produit est un appareil de Classe A. Son utilisation dans une zone
résidentielle risque de provoquer des interférences. Le cas échéant, l’utilisateur devra
prendre les mesures nécessaires pour y remédier.
– Modifier l'orientation ou l'emplacement de l'antenne réceptrice;
– Éloigner l'appareil du récepteur;
– Brancher l'appareil sur une prise située sur un circuit différent de celui du récepteur;
– Consulter le revendeur ou un technicien qualifié en radio/télévision pour obtenir de
l'aide.
Toute modification apportée au produit, non expressément approuvée par la partie
responsable de l'appareil, est strictement interdite. Une telle modification est susceptible
d'entraîner la révocation du droit d'utilisation de l'appareil.
La brochure suivante, publiée par la Commission fédérale des communications (FCC), peut
s'avérer utile : « How to Identify and Resolve Radio-TV Interference Problems ». Cette
brochure est disponible auprès du U.S. Government Printing Office, Washington, DC 20402,
États-Unis, sous la référence n° 004-000-00345-4.

Allegiant Keyboards Safety | en 7
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
Disclaimer
Underwriter Laboratories Inc. (“UL”) has not tested the performance or reliability of the
security or signaling aspects of this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Closed Circuit Television Equipment, UL
2044. UL Certification does not cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER
REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED
FUNCTIONS OF THIS PRODUCT.
Disclaimer
Underwriter Laboratories Inc. (“UL”) has not tested the performance or reliability of the
security or signaling aspects of this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Information Technology Equipment, UL
60950-1. UL Certification does not cover the performance or reliability of the security or
signaling aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER
REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING-
RELATED FUNCTIONS OF THIS PRODUCT.
Copyright
This user guide is the intellectual property of Bosch Security Systems, Inc. and is protected by
copyright.
All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be registered
trademarks and must be treated accordingly.
i
NOTICE!
This user guide has been compiled with great care and the information it contains has been
thoroughly verified. The text was complete and correct at the time of printing. The ongoing
development of the products may mean that the content of the user guide can change without
notice. Bosch Security Systems accepts no liability for damage resulting directly or indirectly
from faults, incompleteness or discrepancies between the user guide and the product
described.

8en | Safety Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
1.4 Customer Support and Service
If this unit needs service, contact the nearest Bosch Security Systems Service Center for
authorization to return and shipping instructions.
Service Centers
USA
Repair Center
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Customer Service
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Technical Support
Telephone: [phone]
Fax: [phone] or 717-735-6560
E-mail: [email protected]
Canada
Telephone: [phone]
Fax: [phone]
Europe, Middle East, Africa Region
Repair Center
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Asia Region
Repair Center
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Customer Service
Telephone: [phone] or
86 (0) 756 7633121
Fax: [phone]
E-mail: [email protected]
Warranty and more information
For additional information and warranty queries, please contact your Bosch Security Systems
representative or visit our website at www.boschsecurity.com.

Allegiant Keyboards Unpacking | en 9
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
2 Unpacking
This electronic equipment should be unpacked and handled carefully. Check for the following
items:
– LTC 8555 Series Keyboard
– 3 m (10 ft) data/power cable with 6-pin connectors, p/n 303 0239 001
– Allegiant Quick Reference Card, p/n 3935 890 11212
– Allegiant Quick Reference Card (LTC 8555/01 and LTC 8555/03 models only),
p/n 3935 890 10512
– Installation manual (this manual) p/n 3935 890 1151# (where # designates the revision
number)
If an item appears to have been damaged in shipment, replace it properly in its carton and
notify the shipper. If any items are missing, notify your Bosch Security Systems Inc. Sales
Representative or Customer Service.
The shipping carton is the safest container in which the unit may be transported. Save it for
possible future use.
3 Keyboard Models
The LTC 8555 Series keyboards are available in four models. The table below summarizes the
differences between models:
The LTC 8555/00 and LTC 8555/01 models use the Allegiant RS-485 communication protocol,
and are the most common versions. These models are ready to operate as soon as they’re
connected to the Allegiant system.
The LTC 8555/02 and LTC 8555/03 are similar, but use an RS-232 communication protocol.
These models can be used with communication links that support full duplex RS-232
transmission. Since the RS-232 models connect to the Allegiant’s RS-232 ports rather than
the standard RS-485 keyboard ports, some initial configuration programming of the Allegiant
switcher is necessary. With a few minor exceptions, general operation is identical for all
models.
Although the LTC 8555/00 and LTC 8555/01 are compatible with Allegiant systems of any age,
the LTC 8555/02 and LTC 8555/03 models require Allegiant CPU firmware version 7.6 or
higher. Although this version was released in late 1998, it is possible to update older systems
using a firmware download in some cases or by replacement of the CPU module with a
current version. If necessary, contact your local sales office for additional details.
Model No. Top Bezel Graphics Protocol
LTC 8555/00 English text RS-485
LTC 8555/01 Icons RS-485
LTC 8555/02 English text RS-232
LTC 855/03 Icons RS-232

10 en | Description Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Figure 3.1 Typical Allegiant Keyboards
4 Description
The LTC 8555 Series Keyboard is the primary operator interface to the Allegiant Series of
Video Matrix Switcher/Controllers. These keyboards provide access to system switching
operations, programming, alarm response, and camera control. Both fixed speed and variable
speed pan/tilt-equipped cameras are easily operated via the intuitive joystick control. In
addition, simple rotation of the joystick knob allows operators to control cameras equipped
with motorized zoom lenses.
Easy to read LED displays show real time camera, monitor, and communication status, as well
as error messages. Keyboards also provide audible and visual indications of system alarm
conditions. A built-in diagnostic mode makes troubleshooting of suspected fault conditions
easy.
User
Set
Prog
Lock
Alarm
Ack
Monitor
Shot
1
4
7
0
Seq
Run
Next
Prev
Hold
Clear
On
2
5
8
Camera
Off
3
6
9
Focus
Iris
Enter
ALLEGIANT
1
4
7
0
2
5
8
3
6
9
ALLEGIANT

Allegiant Keyboards Installation | en 11
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
5 Installation
5.1 General
The maximum number of keyboards that can be connected to an Allegiant system depends on
the Allegiant model. The following table lists Allegiant Switcher models and the number of
keyboards supported by each:
In LTC 8600, and LTC 8900 systems, standard keyboards above eight are connected to the
systems using either an LTC 8714 Series Keyboard Port Expander, or a combination of LTC
8714 and LTC 8715 Series Keyboard Port Expander accessory units. Keyboard Port Expander
units are Allegiant accessory devices that are purchased separately. In LTC 8800 systems,
keyboards above eight can be connected to the LTC 8802 Monitor Expansion bay (up to 8
more) and/or Keyboard Port Expanders. RS-232 model keyboards are connected to the
Allegiant’s console or printer port or to ports provided by a LTC 8712 Series Console
Expander unit.
When connected directly to an Allegiant CPU bay using either the supplied cable or the
optional LTC 8558 Extension Cable, the keyboard is powered by the Allegiant power supply.
In all other configurations power to the keyboard is typically provided via a power adapter
included in the optional LTC 8557 Series Remote Hookup kit.
The Allegiant Switcher supports several options affecting keyboard operation:
– login security mode setting
– enabled / disabled keyboard ports
– fixed or variable speed communication protocol setting
– 4-digit or 6-digit Camera ID mode
These options are selected via Allegiant CPU dipswitch settings, Allegiant Keyboard User
Functions, or via options in the PC based Master Control Software package. Refer to the
Allegiant Installation manual for complete details regarding these options.
Several options are available to connect the LTC 8555 Series Keyboards to the Allegiant main
CPU bay. Although other configurations are possible, the tables below summarize typical
connections. Additionally, refer to the system configuration diagrams later in this manual.
Maximum Keyboards
Allegiant Model Total Keyboards RS-232 Model Keyboards
LTC 8100 Series 2 2
LTC 8200 Series 4 4
LTC 8300 Series 4 4
LTC 8500 Series 8 8
LTC 8600 Series 16 8
LTC 8800 Series 32 8
LTC 8900 Series 120 4/8
LTC 8555/00, LTC 8555/01
RS-485 type Keyboards Maximum Distance
Supplied 3 m (10 ft) cable 3 m (10 ft)
LTC 8558/00 30 m (100 ft) Allegiant accessory cable130 m (100 ft)
User-supplied 0.5 mm (24 AWG) shielded twisted pair cable
note2(Belden 9841 or equivalent)
1.5 km (5000 ft)
Fiber Optic link, compatible with Allegiant RS-485 protocol
note3
5–10 km (3–6 miles), typical

12 en | Installation Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
Notes:
1. Allegiant accessory, purchased separately.
2. LTC 8557 Series Remote Hookup kit required (purchased separately).
3. Requires RS-485 fiber optic link designed to support Allegiant keyboard protocol
operating at 9600 baud.
4. Requires full duplex RS-232 compatible fiber optic link operating at 9600 baud.
5.2 LTC 8555/00 and LTC 8555/01 (standard keyboard) Installation
There are several options available for connecting these keyboard models to an Allegiant
system. The keyboard is supplied with a 3 m (10 ft) cable for local hookups, as shown in
FIGURE 1. Using the optional LTC 8558/00 cable, a keyboard can be remoted up to 30 m (100
ft) per Figure 2. In both of these cases, the keyboard cable can be connected directly to the
RJ-11 keyboard port located on the rear panel of the Allegiant system where it will be
provided with both data and power.
For connections beyond 30 m (100 ft), the LTC 8557 Series Remote Hookup Kit can be used,
as shown in Figure 3. The LTC 8557 is also required when the keyboard is remoted over a long
distance communication link, such as a fiber optic system shown in Figure 4.

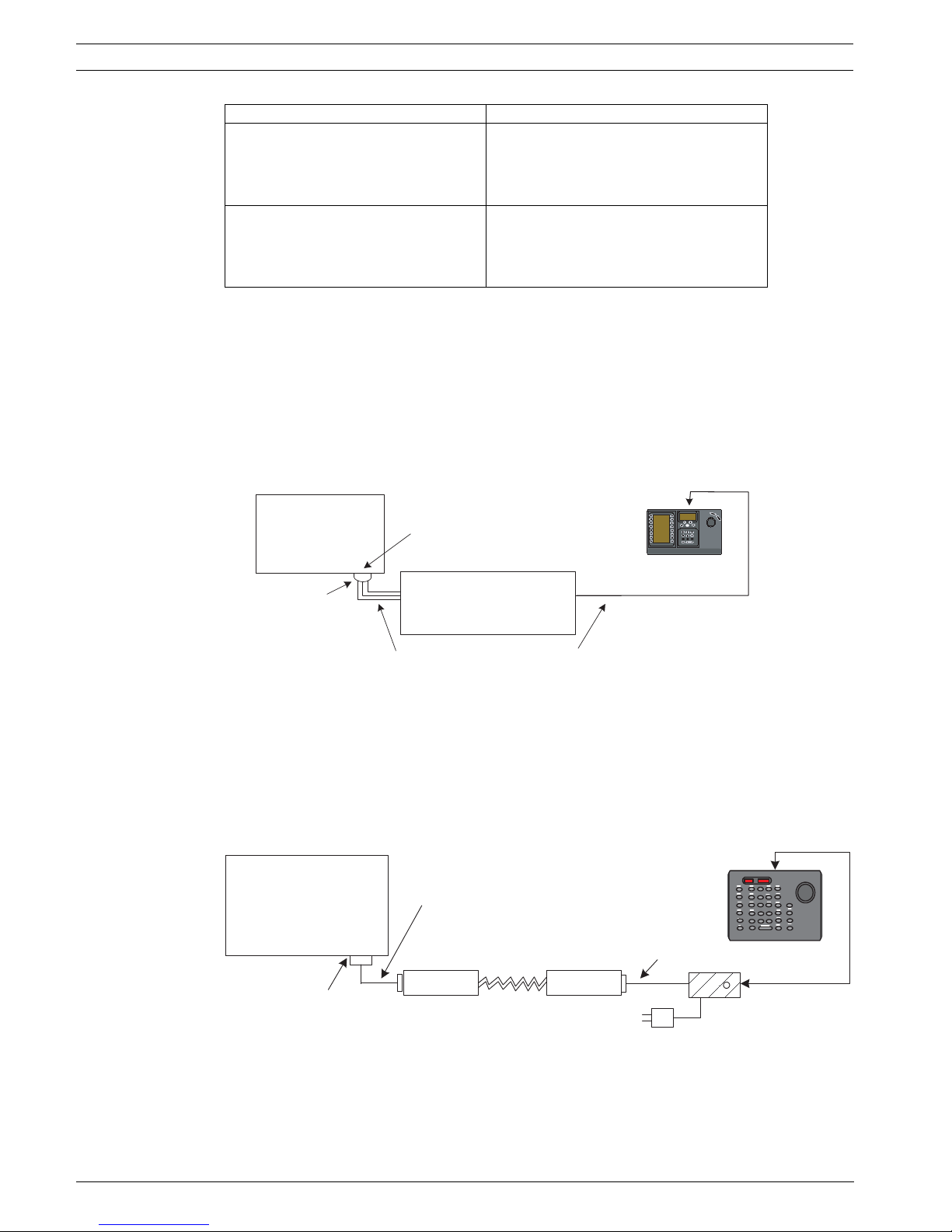

Figure 5.1 Typical Configuration using supplied data/power cable
Figure 5.2 Typical Configuration using optional LTC 8558/00 cable
The larger Allegiant models support Keyboard Expander accessory units. These accessory
units are used with LTC 8557 Series Remote Hookup Kit, to provide additional keyboard
connections to the system, as shown in Figure 5.
LTC 8555/02, LTC 8555/03
RS-232 type Keyboards Maximum Distance
User-supplied RS-232 grade cable21–30 m (1–100 ft), typical
Dial-up modem, Hayes compatible Unlimited
Fiber optic link, compatible with standard RS-232 protocol45–10 km (3–6 miles), typical
Other RS-232 compatible data link4Dependent on limits of link
Allegiant system main
CPU bay 3 m (10 ft) data/power cable
(supplied with keyboard)
Allegiant Keyboard
Port
Allegiant system main
CPU bay
Optional LTC 8558/00 30 m (100 ft)
data/power cable
Allegiant
Keyboard Port

Allegiant Keyboards Installation | en 13
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03

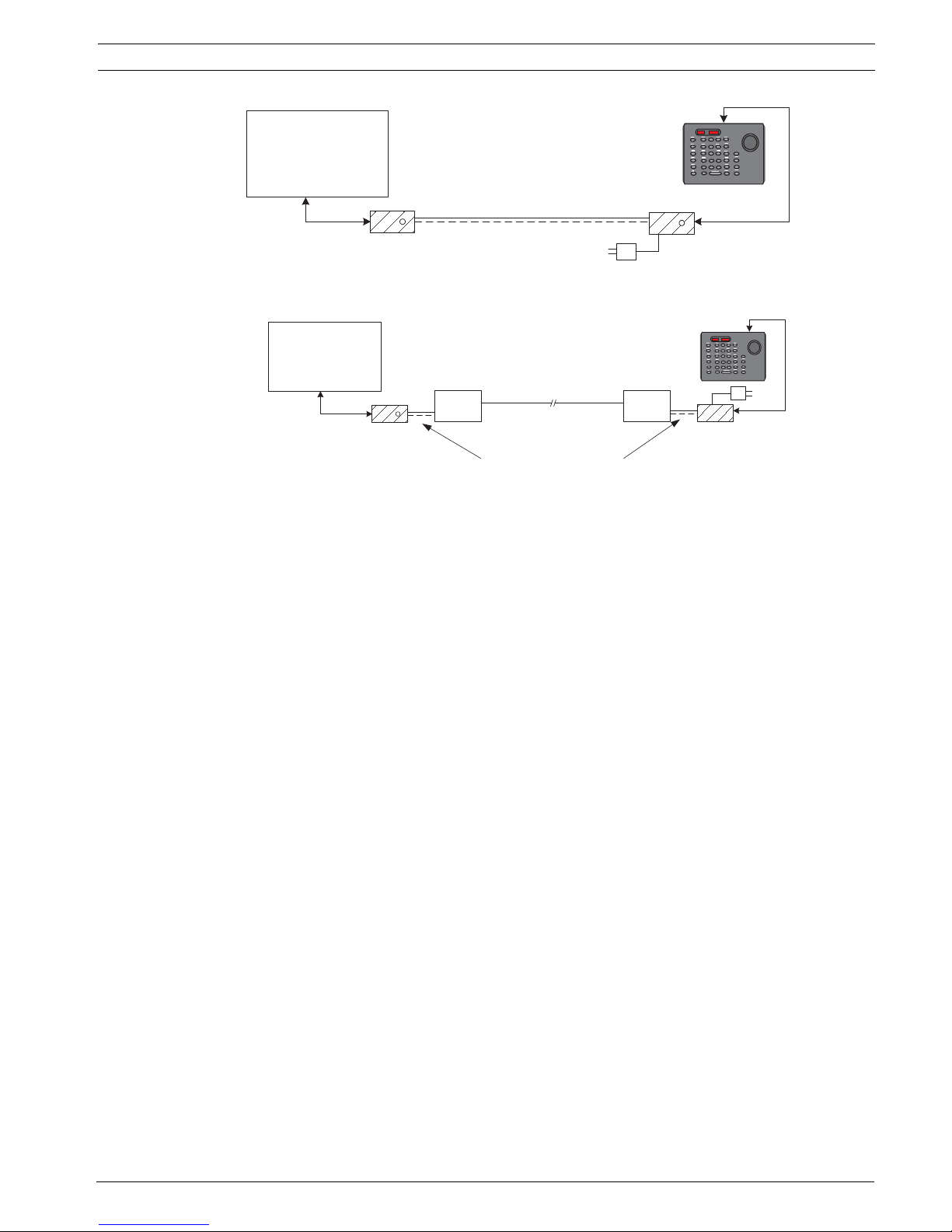

Figure 5.3 Typical Configuration using optional LTC 8557 Series Hookup Kit
Figure 5.4 Typical Configuration using fiber optic link
5.3 LTC 8555/02 and LTC 8555/03 (RS-232 Protocol Model)
Installation
5.3.1 General
The RS-232 protocol versions of the LTC 8555 Series keyboards can be connected to either an
Allegiant LTC 8712 Series Console Port Expander accessory unit, or the 9-pin Console or
Printer (if equipped) RS-232 port on the back of the Allegiant system. The keyboard may be
connected via hardwired cable or using another type of communication system conforming to
standard RS-232 transmission.
For each keyboard being installed, an LTC 8557 Series Remote Hookup Kit (sold separately),
user-supplied 9-pin mating connector, and user-supplied cable suitable for use with RS-232
signals is required. Refer to the most applicable configuration diagram.
5.3.2 Keyboard Number Assignments when Using RS-232 Model Keyboards
Use of RS-232 protocol keyboards does not increase the total number of keyboards that can
be connected to an Allegiant switcher. When an RS-232 keyboard is connected in the system,
a standard keyboard port will automatically become disabled. The disabled keyboard port
number will be based on the interface connection type of the RS-232 keyboard. Keeping track
of these keyboard numbers is necessary when priority-based restrictions, or other keyboard
related lockouts, are assigned and used in the system.
The table below indicates which keyboard number will be assigned, based on the connection
being used.
Allegiant system main
CPU bay Up to 1.5 km (5000 ft) of
user-supplied 0.5 mm2 (24 AWG) shielded
twisted pair cable
(Belden 9841 or equivalent)
Junction box supplied
with LTC 8557 kit
Power adapter supplied
with LTC 8557 kit
3 m (10 ft) data/
power cable
supplied with
keyboard
Junction box and 3 m (10 ft)
cable supplied with LTC 8557 kit
Allegiant system main
CPU bay
LTC 4600 Series, or other fiber optic
link designed for use with Allegiant
RS-485 protocol
Junction box and power adapter
supplied with LTC 8557 kit
Fiber link Fiber link
4 km (2.5 miles)
typical distance
3m (10 ft) data/
power cable
supplied with
keyboard
Junction box and 3 m (10 ft)
cable supplied with LTC 8557 kit User-supplied shielded twisted pair
cable
(Belden 9841 or equivalent)
Allegiant
Keyboard Port

14 en | Installation Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
5.3.3 Allegiant System Command Scripts for RS-232 Model Keyboards
When a keyboard is being connected to an Allegiant’s Console port, or an Allegiant Printer
port configured to operate in the Console mode, the Allegiant must be preprogrammed so the
port will operate in the RS-232 keyboard mode.
The mode of the Allegiant’s Console port can be changed either by a manually entered ASCII
text command, or preprogramming the Allegiant CPU with an Allegiant Command Script. The
Command Script method is preferred since the appropriate settings are automatically
restored after a system power loss or reset. Manually entered commands remain valid only
until the system is reset or powered off/on, so typically they should be used only for
temporary or test purposes.
To manually configure an Allegiant’s Console port to operate in the keyboard mode, it is
necessary to connect to the system via Windows® HyperTerminal or another dumb terminal
emulator.
Note: Allegiant Console and Printer RS-232 ports do not use a standard RS-232 pinout. Use of
an Allegiant Console cable is recommended (If necessary refer to the Allegiant Console cable
pinout reference at the end of this manual).
The Allegiant RS-232 settings are user-programmable, but the default settings are:
Once online with the system, an Allegiant prompt appears each time Enter is pressed. The
prompt will look as follows:
TC8x00 >
where x is a digit from one to nine (varies based on the Allegiant model being interfaced)
At the system prompt, manually enter the appropriate command, based on the Allegiant port
in use, and type of keyboard interface. Refer to the table below to determine the correct
command. Enter the command exactly as shown below, then press ENTER.
Keyboard Connection Type Keyboard Number
Direct to Console port 1
Direct to Printer port 5
Port 1 of Expander, when Expander is connected to Console port 1
Port 2 of Expander, when Expander is connected to Console port 2
Port 3 of Expander, when Expander is connected to Console port 3
Port 4 of Expander, when Expander is connected to Console port 4
Port 1 of Expander, when Expander is connected to Printer port 5
Port 2 of Expander, when Expander is connected to Printer port 6
Port 3 of Expander, when Expander is connected to Printer port 7
Port 4 of Expander, when Expander is connected to Printer port 8
Baud: 19,200
Stop bits: 1
Data bits: 8
Parity: None
Handshake: None

Allegiant Keyboards Installation | en 15
Bosch Security Systems, Inc. Instruction Manual F.01U.127.290 | 2.0 | 2009.03
After entering the command, the port will immediately begin to operate in the keyboard mode.
The port will generate a series of constantly repeating codes. The setting remains in effect
until the system is reset, powered off/on, or manually cancelled by entering Ctrl-C several
times, using Windows HyperTerminal program operating at 9600 baud.
If using the LTC 8059 Master Control Software, while online, select the Command Script tab
and enter the script for your connection type exactly as it appears in the table below:
Keyboard Interface Connection Type
Direct to Console port (except LTC 8900)
Command: SET-PORT-RS232 0 4 8 0 1 0;_SET_KBD_MODE 0 1
Direct to Printer port (except LTC 8900)
Command: SET-PORT-RS232 4 4 8 0 1 0;_SET_KBD_MODE 4 1
Modem connected to Console port (except LTC 8900)
Command: SET-PORT-RS232 0 4 8 0 1 1;_SET_KBD_MODE 0 1
Modem connected to Printer port (except LTC 8900)
Command: SET-PORT-RS232 4 4 8 0 1 1;_SET_KBD_MODE 4 1
Direct to Controller port (LTC 8900 only)
Command: SET-PORT-RS232 0 4 8 0 1 0;_SET_KBD_MODE 0 1
Direct to Console port (LTC 8900 only)
Command: SET-PORT-RS232 4 4 8 0 1 0;_SET_KBD_MODE 4 1
Modem connected to Controller port (LTC 8900 only)
Command: SET-PORT-RS232 0 4 8 0 1 1;_SET_KBD_MODE 0 1
Modem connected to Console port (LTC 8900 only)
Command: SET-PORT-RS232 4 4 8 0 1 1;_SET_KBD_MODE 4 1
Keyboard interface connection type Command Script
Direct to Console port
(except LTC 8900)
Begin @boot
SET-PORT-RS232 0 4 8 0 1 0
_SET_KBD_MODE 0 1
break
Direct to Printer port
(except LTC 8900)
Begin @boot
SET-PORT-RS232 4 4 8 0 1 0
_SET_KBD_MODE 4 1
break
Modem connected to Console port
(except LTC 8900)
Begin @boot
SET-PORT-RS232 0 4 8 0 1 1
_SET_KBD_MODE 0 1
break
Modem connected to Printer port
(except LTC 8900)
Begin @boot
SET-PORT-RS232 4 4 8 0 1 1
_SET_KBD_MODE 4 1
break
Direct to Controller port
(LTC 8900 only)
Begin @boot
SET-PORT-RS232 0 4 8 0 1 0
_SET_KBD_MODE 0 1
break
Direct to Console port
(LTC 8900 only)
Begin @boot
SET-PORT-RS232 4 4 8 0 1 0
_SET_KBD_MODE 4 1
break

16 en | Installation Allegiant Keyboards
F.01U.127.290 | 2.0 | 2009.03 Instruction Manual Bosch Security Systems, Inc.
After the script has been entered, download the script into the Allegiant CPU. Reset the
system by powering the CPU off/on, or by entering Keyboard User Function 15 on an
operating keyboard. The specified port will begin to operate in the keyboard mode. The port
will remain in the keyboard mode unless manually cancelled by entering Ctrl-C several times
using Windows HyperTerminal program, operating at 9600 baud.
The keyboard can now be physically connected to the Allegiant according to details shown in
Figure 5.5. For modem connections, refer to the next section and Figure 5.6.
Once the keyboard is in communication with the Allegiant, camera and monitor numbers will
appear in the LED displays.
Figure 5.5 Direct Connection to Allegiant Console/Printer Port
5.3.4 Modem Interface Information when Using RS-232 Model Keyboards
RS-232 model keyboards can be connected to an Allegiant via dial-up modem link. The
keyboard supports a rudimentary ability to dial a phone number of an attached modem.
Further details for the dial-up feature will follow, in the operating instructions.
Figure 7 shows a typical system configuration using a modem connection.
Figure 5.6 Connection Using Dial-up Modem Link
Modem connected to Controller port
(LTC 8900 only)
Begin @boot
SET-PORT-RS232 0 4 8 0 1 1
_SET_KBD_MODE 0 1
break
Modem connected to Console port
(LTC 8900 only)
Begin @boot
SET-PORT-RS232 4 4 8 0 1 1
_SET_KBD_MODE 4 1
break
Keyboard interface connection type Command Script
Allegiant system main
CPU bay
CONSOLE port on Allegiant
system must be configured
for
RS-232 Keyboard mode
(refer to text for details)
User-supplied female
9-pin D connector
3 m (10 ft) data/
power cable
supplied with
keyboard
User-supplied cable or other link
suitable for
full duplex RS-232 transmissions
at 9600 baud
Console pin 2 (Rx) to Tx of link or directly to pin 3 of IntuiKey's 9 pin connector
Console pin 3 (Tx) to Rx of link or directly to pin 2 of IntuiKey's 9 pin connector
Console pin 7 (Gnd) to Data Gnd of link or directly to pin 5 of IntuiKey's 9 pin connector
123
4 5 6
7 8 9
0
Shot
MonProd
Clr
BOSCH
Allegiant system main
CPU bay
CONSOLE port on Allegiant
system must be configured
for
RS-232 Keyboard mode
Junction box and power
adapter supplied with
LTC 8557 kit
User-supplied
Allegiant-to-modem
interface cable
User-supplied dial-up
modem link
ModemModem
User-supplied
modem interface
cable
