Bosch Nexxt WTZ 1295 Installation guide

NEXXT™ LAUNDRY PEDESTAL
Operating, Care and Installation Instructions
Notice d’utilisation, de maintenance et d’installation
Operación, cuidado e instrucciones para la instalación
Model: WTZ1295

2
1. Position the packaged washer/
dryer close to the final location.
Using a utility knife, cut the two
packaging straps.
2. Remove the top cardboard, four
corner supports, and two foam
packaging pieces.
3. Lift and remove the one-piece
cardboard sleeve and lay it flat on
the floor to the left of the unit.
4. Place the two corner supports as
shown in Figure 1.
If corner supports are not avail-
able, items such as rolled up
towels can be used.
Important Safety
Information
Please read and follow these
Installation Instructions along with
all other information enclosed with the
pedestal.
Indicates serious injury or death
may occur as a result of
nonobservance of this warning.
WARNINGWARNING
WARNINGWARNING
WARNING
Tools required
1. Pull the washer/dryer away from
the wall so it can be positioned on
its left side.
2. Protect the floor and washer/dryer
with a large piece of cardboard
(pedestal carton). Lay the washer/
dryer on its LEFT side so that the
cardboard is under the entire left
side of the washer/dryer. Refer to
Figure 1 and corresponding
instructions for recommended
placement of protection.
3. Go to “Installing the Pedestal”
section of this manual.
If your washer or dryer is
still in its packaging:
Definitions
❑Utility Knife
❑6 mm Hex L-Key wrench,
(supplied)
❑17 mm open end wrench,
(supplied)
Before you start
Important: If your washer and dryer
are already installed, they MUST be
uninstalled.
If you need to uninstall your washer or
dryer, refer to the Operating, Care
and Installation Instructions
provided with your model for tools and
information required.
Excessive Weight Hazard
Use two or more people to move
and uninstall washer or dryer.
Failure to do so can result in a
back or other injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
Indicates minor or moderate
injury or significant damage may
occur as a result of
nonobservance of this warning.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
Figure 2

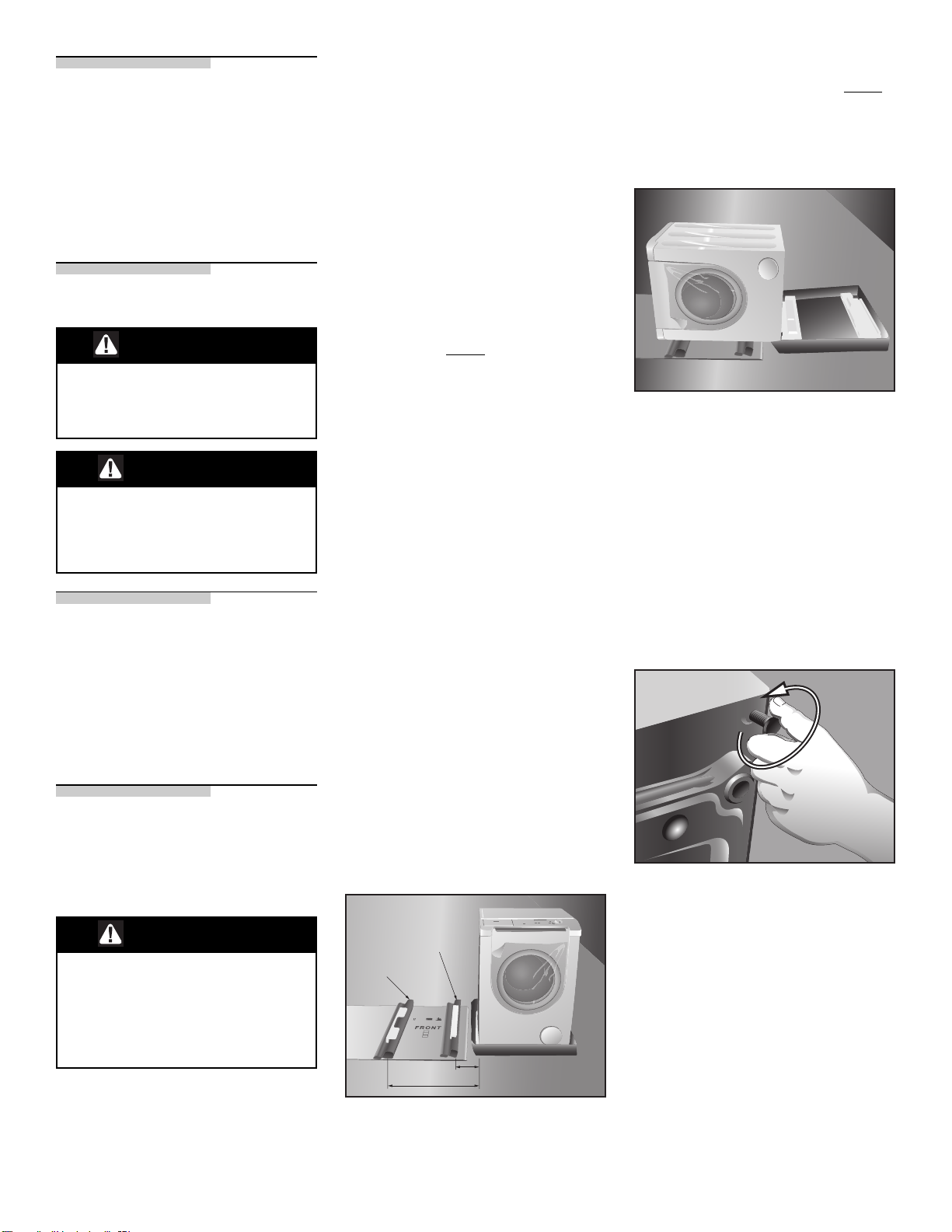

5. Lay the washer/dryer on its LEFT
side as shown in Figure 2.
Note: Slight water spillage may be
noticed due to laying washer on its
side.
Figure 1
For new washer or dryer installations,
proceed to the “If your washer or
dryer is still in its packaging” section
of this manual.
Preparing your existing
washer or dryer:
6. Remove the bottom of the packag-
ing.
Helpful hint: Washer/dryer should
be approximately 1-1/2” to 2”
above floor.
7. Remove and discard the feet
originally installed in the washer/
dryer (see Figure 3). DO NOT
reinstall these feet into the
pedestal.
Figure 3
8. Go to “Installing the Pedestal”
section of this manual.
Rear
corner
support
Front
corner
support
approx. 30"
approx. 8"

3
Follow these instructions to install the
pedestal on a washer or dryer.
1. Confirm receipt of the following:
❑(4) M10 x 30 Socket Head
Cap Screws
❑(4) M10 Flat Washers
❑(4) Adjustable Feet
❑6mm L-Hex key wrench
❑17mm open end wrench
❑Warranty Card
2. Remove transportation foam tape
adhered to the pedestal.
3. Remove the drawer by pushing up
on the left side drawer lever and
down on the right side drawer lever
while pulling drawer out (see
Figure 4).
Set drawer aside.
4. Place the pedestal against the
washer/dryer bottom (use of an
assistant is required).
Ensure pedestal drawer opening
and appliance door face the same
direction (see Figure 5).
Helpful hint: Foam packaging
may be used to match height of
pedestal with appliance.
Installing the
pedestal
Figure 4
Do not put fingers around
bottom of pedestal while moving
drawer.
Doing so can result in a cut or
pinch injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
5. Using the 6mm L-Hex key install
the M10x30 screws and flat
washers as shown in Figure 6.
Helpful hint: Do not tighten any
screws until all are started into
their threads.
Use wrench as shown in Figure 6
to HAND TIGHTEN all screws.
After all screws are hand tight, use
wrench as shown in Figure 7 to
tighten an additional 1/3 to 1/2
turn.
Note: Tightening torque for
M10x30 pedestal screws,
Max. 13 ft-lb (18 Nm),
Min. 10 ft-lb (14 Nm).
6. Install the four new appliance feet
that are included in the accesso-
ries envelope.
Figure 8
Figure 5
Figure 6
Do not pick up by or use dolly
on side of pedestal.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
Figure 9
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
7. Lift the washer/dryer and pedestal
assembly back to an upright
position (use of an assistant is
required). See Figure 9.
Figure 7
Do not use original feet from
washer.
Using the supplied 17mm open
end wrench, tighten only the two
rear feet locknuts (see Figure 8).
Hand tighten only the two front
feet.
Excessive Weight Hazard
Use two or more people to move
and uninstall washer or dryer.
Failure to do so can result in a
back or other injury.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
Pull
Push
Up
Push
Down

4
WARRANTY
Full One-Year Warranty on Mechanical Parts
For one year from the date of purchase, when this pedestal is installed with the listed washer or dryer and operated
according to the instructions provided in the washer or dryer Operating, Care and Installation Instructions, supplier will
repair or replace any of its mechanical parts if defective in material or workmanship.
Warranty Restriction
If the Pedestal is subject to other than private family use and/or used with any other product than those listed in the
Installation Instructions, the warranty is null and void.
Warranty Service
Warranty service is available by contacting the retailer where the Pedestal was purchased. If retailer is not available, please
refer to the Operating, Care and Installation Instructions that came with the washer or dryer that is installed with the
Pedestal and contact the service department listed there.
This warranty applies only while the Pedestal is in use in the United States or Canada*. This warranty gives you specific
rights and you may also have other rights which vary from state to state or province to province.
*Warranty terms may vary in Canada.
In the space below, record the purchase date of your pedestal and model and serial number of the appliance on which the
pedestal is installed.
Save these instructions and your sales receipt for future reference.
Purchase Date
Washer/Dryer Model Number
Washer/Dryer Serial Number
8403
9000017852
8. Slide the washer/dryer to its final
location.
9. Follow the Installation Instructions
that came with your appliance to
finish installing or reinstalling your
washer/dryer (i.e., hoses, vents,
etc.).
10. Adjust front feet to level washer/
dryer.
Note: Correct adjustment of feet
(equal weight distribution to all
feet) is required to insure minimal
movement (walking) of washer
during operation.
11. Use supplied open-end wrench to
securely tighten both front feet
locknuts against the pedestal. All
locknuts must be tightened.

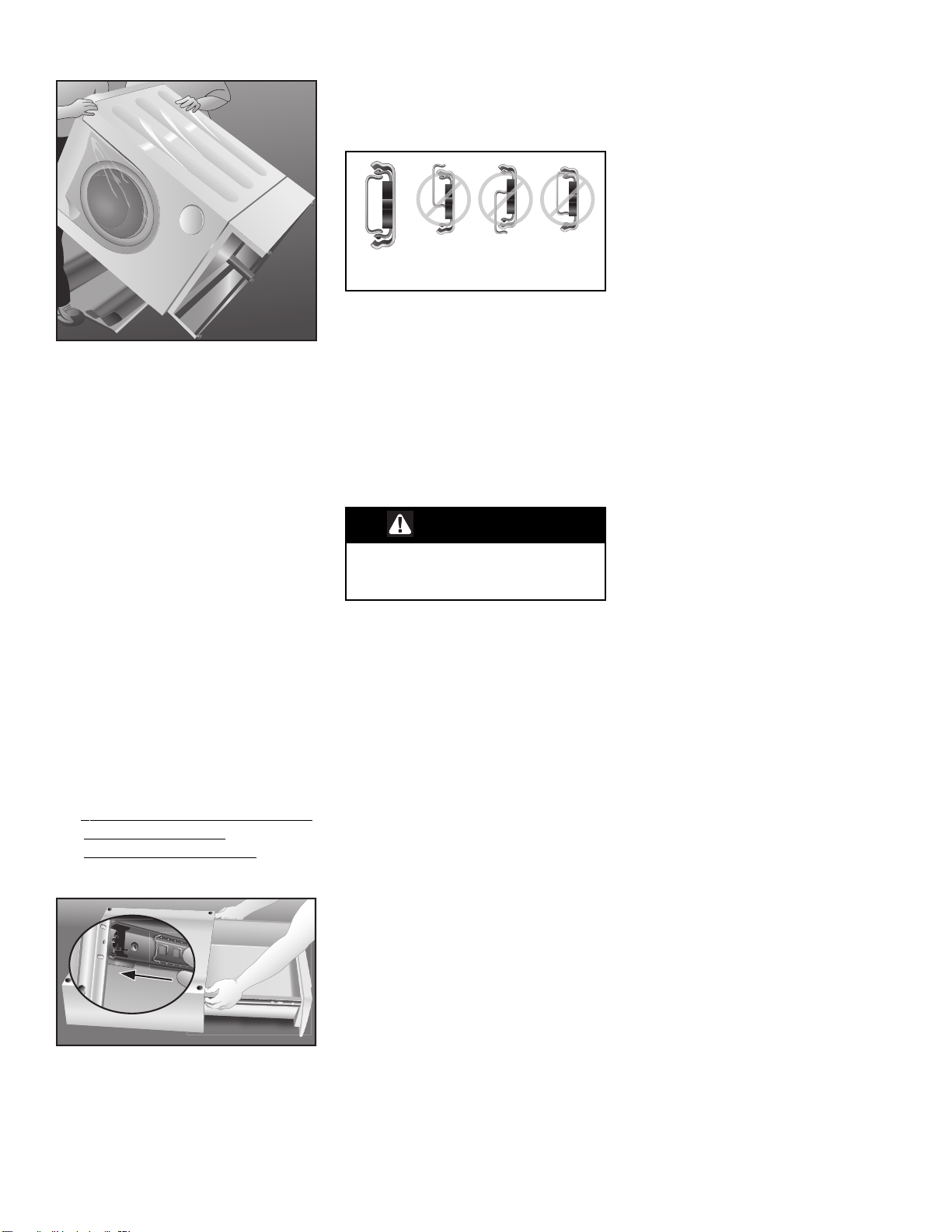

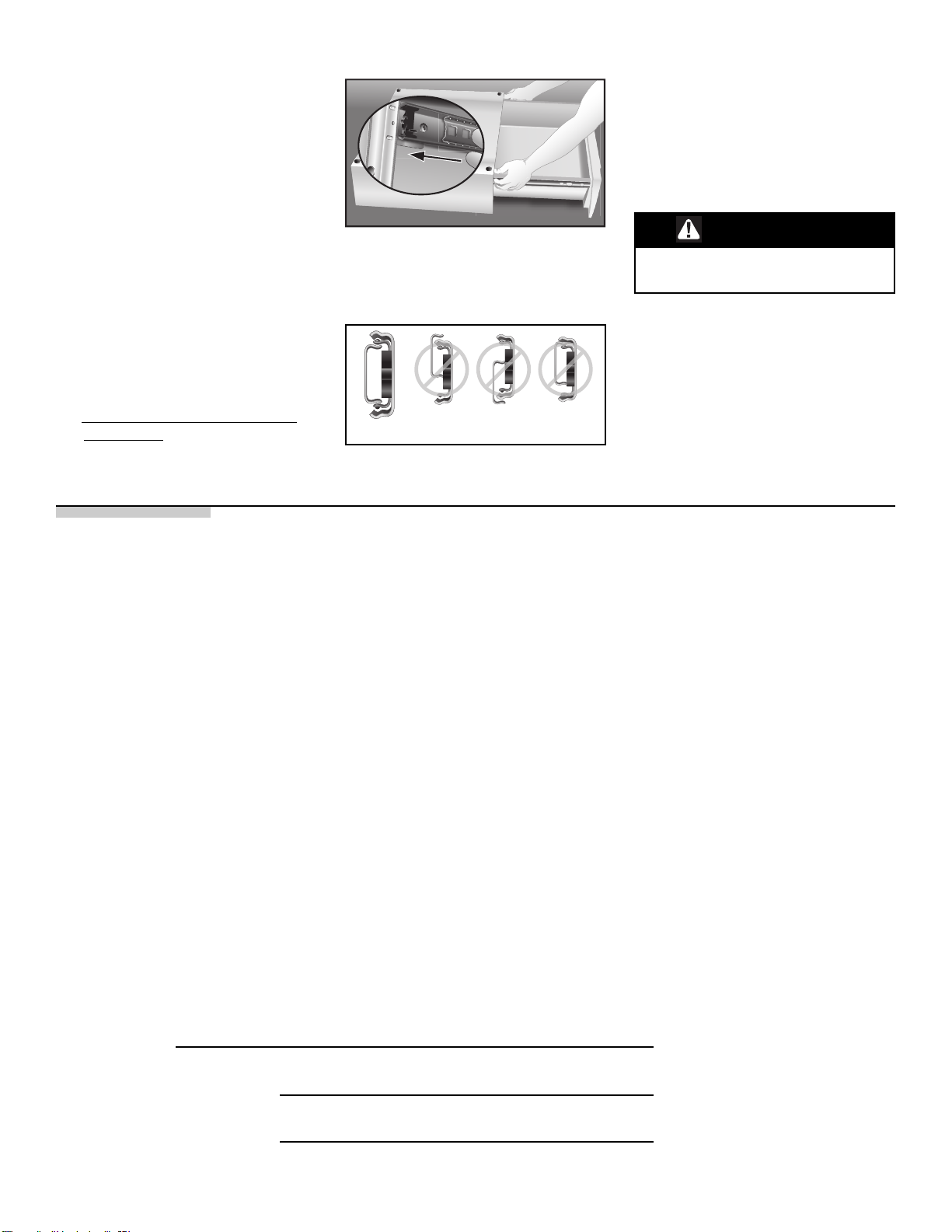

12. SLIDE BALL BEARING RAILS
TO FRONT (see Figure 10).
Figure 10
13. Ensure slides of pedestal and
drawer are aligned correctly (see
Figure 11).
14. Reassemble the drawer to the
drawer slides.
Close the drawer.
Ensure drawer slides are correctly
engaged by freely opening and
closing the drawer.
For problems with or service on your
pedestal contact BSH Home
Appliances. Contact information is
available in the “Customer Service”
section of the appliance manual.
Do not use drawer as a step.
CACA
CACA
CAUTIONUTION
UTIONUTION
UTION
Figure 11
Incorrect
Correct

5
1. Placer la laveuse ou la sécheuse
emballée près de son emplace-
ment final. À l’aide d’un couteau,
couper les deux sangles
d’emballage.
2. Enlever le carton du dessus, les
protecteurs de coins et les deux
pièces d’emballage en mousse.
3. Soulever et enlever le manchon de
carton monopièce et le placer à
plat sur le plancher, à la gauche de
l’unité.
4. Placer les deux protecteurs de
coins, comme l’illustre la figure 1.
S’il n’y a pas de protecteurs de
coins, vous pouvez utiliser des
serviettes roulées.
Renseignements
importants sur la
sécurité
Lire et suivre les recommandations
contenues dans la notice
d’installation et lire tous les autres
documents d’information fournis avec
le socle.
Risque possible de blessures
graves ou même de décès si
vous ne suivez pas ces
instructions.
AA
AA
AVERVER
VERVER
VERTISSEMENTTISSEMENT
TISSEMENTTISSEMENT
TISSEMENT
Outils
nécessaires
1. Avancer la laveuse ou la sécheuse
afin de pouvoir la coucher sur son
côté gauche.
2. Protéger le plancher et la laveuse
ou la sécheuse à l’aide d’un grand
carton (l’emballage du socle).
Coucher la laveuse ou la sécheuse
sur son côté GAUCHE de sorte
qu’il soit entièrement placé sur le
carton. Voir la figure 1 ainsi que
les instructions correspondantes
relatives à la façon de déplacer
l’appareil en toute sécurité.
3. Consulter la section « Installation
du socle » du présent manuel.
Si la laveuse ou la
sécheuse est encore dans
son emballage :
Définitions
❑Couteau
❑Clé à tube de 6 mm (fournie)
❑Clé à fourche de 17 mm (fournie)
Avant de
commencer
Important : Si la laveuse et la
sécheuse sont déjà installées, il
FAUT les désinstaller.
Risque de poids excessif
Il faut deux personnes ou plus
pour déplacer et désinstaller la
laveuse ou la sécheuse.
Le non-respect de cette
instruction peut causer une
blessure au dos ou autre.
AA
AA
ATTENTIONTTENTION
TTENTIONTTENTION
TTENTION
Risque possible de blessures
mineures ou modérées si vous
ne suivez pas ces instructions.
AA
AA
ATTENTIONTTENTION
TTENTIONTTENTION
TTENTION
Figure 2

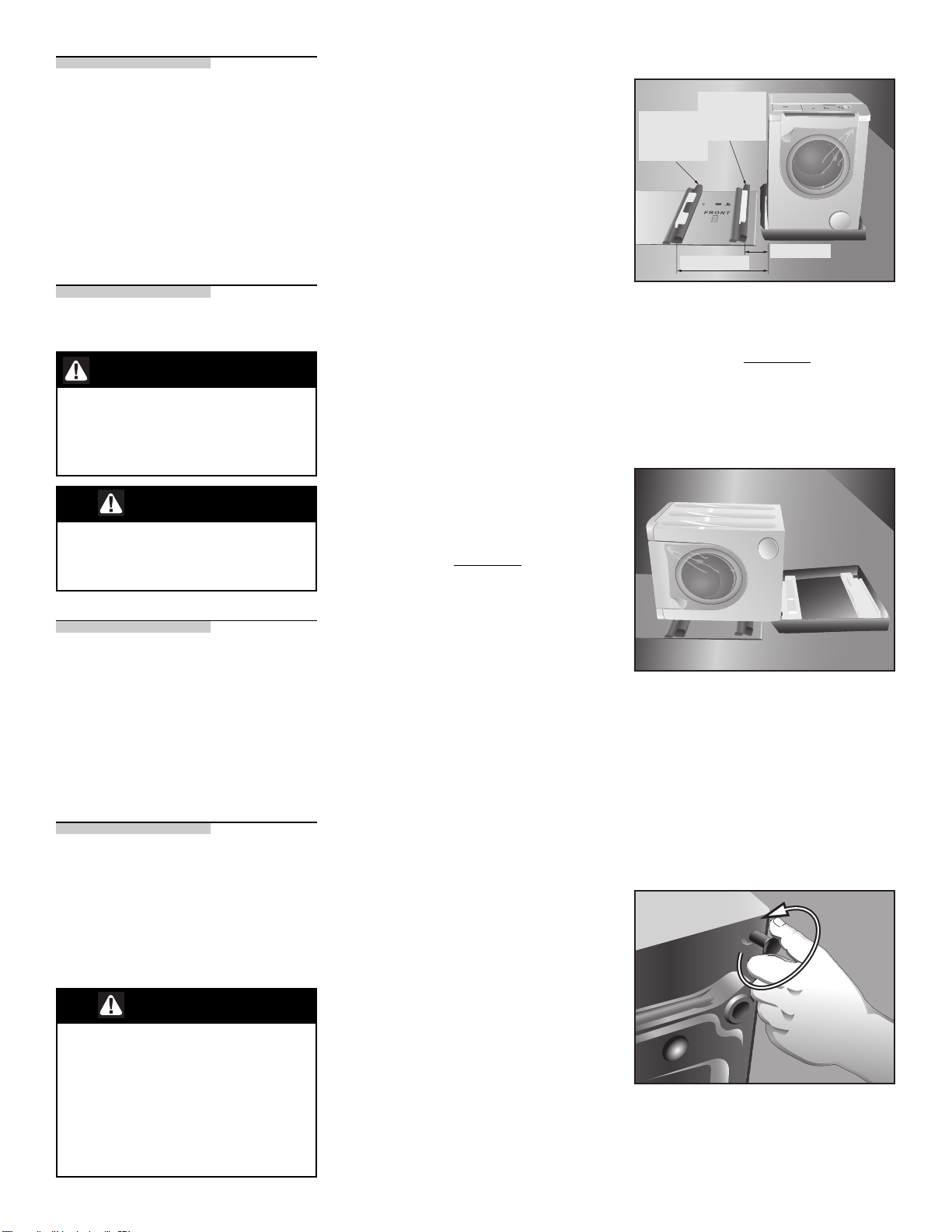

5. Coucher la laveuse ou la sécheuse
sur son côté GAUCHE, comme
l’illustre la figure 2.
Remarque : Comme la laveuse
repose sur son côté, il se peut
qu’un peu d’eau s’écoule.
Si vous devez désinstaller la laveuse
ou la sécheuse, consultez les
instructions relatives à
l’installation, à l’entretien et au
fonctionnement fournies avec
l’appareil pour connaître les
instructions et les outils requis.
Pour l’installation d’une nouvelle
laveuse ou sécheuse, suivez les
instructions de la section « Si la
laveuse ou la sécheuse est encore
dans son emballage » du présent
manuel.
Préparation de la laveuse
ou de la sécheuse déjà
installée :
6. Retirer le dessous de l’emballage.
Conseil pratique : La laveuse ou
la sécheuse devrait être placée à
environ 1 ½ à 2 po du sol.
7. Enlever et jeter les pieds installés
à l’origine sur la laveuse ou la
sécheuse (voir la figure 3). IL NE
FAUT PAS réinstaller ces pieds sur
le socle.
Figure 3
Figure 1
8. Consulter la section « Installation
du socle » du présent manuel.
Rear
corner
support
Front
corner
support
approx. 30"
approx. 8"
Protecteur
de coins
arrière
Protecteur
de coins
avant
Environ 30 po
Environ 8 po
