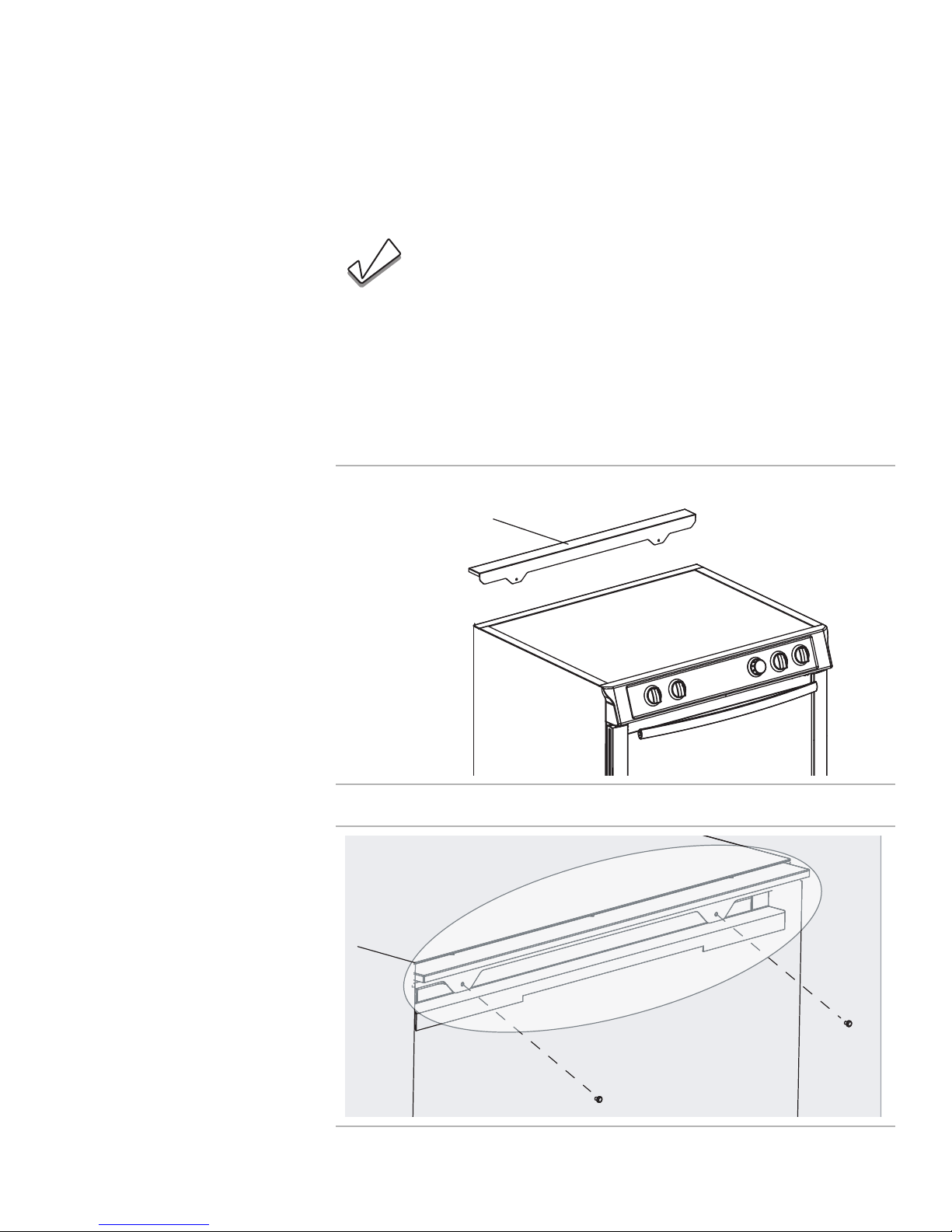

Install Backwall Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Connect Electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connect Gas Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Test for Gas Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Test the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Product Data Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

English 1
Important Safety
Instructions
WARNING:
Do not repair or replace any part of the appliance unless specifically
recommended in the manuals. Improper installation, service or maintenance can
cause injury or property damage. Refer to this manual for guidance. All other
servicing should be done by a qualified technician.
Related Equipment Safety WARNING:
All ranges can tip. Injury to persons could result. Install anti-tip device packaged
with range. Verify that the anti-tip devices are engaged. See installation
instructions.
• Remove all tape and packaging before using the appliance. Destroy the pack-
aging after unpacking the appliance. Never allow children to play with packag-
ing material.
• Never modify or alter the construction of the appliance. For example, do not
remove leveling legs, panels, wire covers or anti-tip brackets/screws.
• To eliminate the risk of burns or fire by reaching over heated surface units,
cabinet storage space located above the surface units should be avoided. If
cabinet storage is to be provided, the risk can be reduced by installing a hood
that projects horizontally a minimum of 5 inches beyond the bottom of the
cabinet.
• Verify that cabinets above the cooktop are a maximum of 13" (330 mm) deep.
Appliance Handling Safety • Do not lift appliance by door handle. Remove the door for easier handling and
installation. See instructions in Use and Care Manual.
• Unit is heavy and requires at least two people or proper equipment to move.
• Hidden surfaces may have sharp edges. Use caution when reaching behind
or under appliance.
Safety Codes and Standards • This appliance complies with one or more of the following Standards:
• UL 858, The Standard for the Safety of Household Electric Ranges
• UL 923, The Standard for the Safety of Microwave Cooking Appliances
• UL 507, The Standard for the Safety of Electric Fans
• ANSI Z21.1, The American National Standard for Household Cooking
Gas Appliances
• CAN/CSA-C22.2 No. 113-M1984 Fans and Ventilators
• CAN/CSA-C22.2 No. 61-M89 Household Cooking Ranges
Safety
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Figure 1: Tipping Precautions

Safety
English 2
It is the responsibility of the owner and the installer to determine if additional
requirements and/or standards apply to specific installations.
• Installation must conform with local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• The appliance must be electrically grounded in accordance with local codes
or, in the absence of local codes, with the National Electrical Code ANSI/
NFPA 70, latest edition. (In Canada, installation must be in accordance with
the CAN 1-B149.1 and .2 Installation Codes for Gas Burning Appliances and/
or local codes).
Electric Safety • Before you plug in an electrical cord, be sure all controls are in the OFF posi-
tion.
• For appliances equipped with a cord and plug, do not cut or remove the
ground prong. It must be plugged into a matching grounding type receptacle
to avoid electrical shock. If there is any doubt as to whether the wall recepta-
cle is properly grounded, the customer should have it checked by a qualified
electrician.
• If required by the National Electrical Code (or Canadian Electrical Code), this
appliance must be installed on a separate branch circuit.
• Only a power-supply cord kit rated for this appliance and marked "for use with
ranges" shall be used.
• Installer - show the owner the location of the circuit breaker or fuse. Mark it for
easy reference.
• Important - Save these instructions for the local electrical inspector's use.
• Before installing, turn power OFF at the service panel. Lock service panel to
prevent power from being turned ON accidentally.
• Be sure your appliance is properly installed and grounded by a qualified tech-
nician. Installation, electrical connections and grounding must comply with all
applicable codes.
Gas Safety • Install a gas shutoff valve near the appliance. It must be easily accessible in
an emergency.
• Leak testing must be conducted by the installer according to the instructions
in this manual.
• The appliance and its individual shutoff valve must be disconnected from the
gas supply piping system during any pressure testing at pressures in excess
of ½ psi (3.5 kPa).
• The appliance must be isolated from the gas supply piping system by closing
its individual manual shutoff valve during any pressure testing of the gas sup-
ply piping system at test pressures equal to or less than ½ psi (3.5 kPa)
• The minimum supply pressure must be 1" water column above the manifold
pressure printed on the data plate.

Safety
English 3
• The maximum supply pressure must not exceed 14.0 inches water column
(34.9Millibars).
• This appliance has been CSA certified for safe operation up to a height of
10,000 ft. without any modifications. Exception: For use with propane the
appliance must be converted per the LP conversion instructions.
• For Massachusetts installations:
• Installation must be performed by a qualified or licensed contractor,
plumber or gas fitter qualified or licensed by the state, province or region
where this appliance is being installed.
• Shut-off valve must be a "T" handle gas cock.
• Flexible gas connector must not be longer than 36 inches.
• Installer - show the owner where the gas shut-off valve is located.
Propane Gas Installation • The propane gas tank must be equipped with its own high pressure regulator.
In addition, the regulator supplied with this unit must also be used.
• The appliance is shipped from the factory for use with natural gas. It must be
converted for use with propane. A qualified technician or installer must do the
conversion.
Figure 2: Gas Precautions
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
• Do not store or use combustible materials, gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department. Instal-
lation and service must be performed by a qualified installer, autho-
rized service agency or the gas supplier.

English 4
Before You Begin
Overview
Proceed to the sections that follow for step-by-step instructions.
Tools and Parts Needed • Range Power Supply Cord Kit (240V -30 Amp)
Note: Not necessary for Canadian installations; Canadian units are shipped
with the power cord already installed.
• Measuring Tape
• Phillips Head Screwdriver
• 1-1/4” (31.8 mm) Wrench
•Pencil
• T-20 Torx Screwdriver
• Screws (2) and Anchors (2) for Anti-Tip Bracket (Style will vary depending on
mounting surface)
•Level
• Drill and Drill Bit
• Soapy Water
• Pipe Wrench
• Teflon Tape
• Channel Lock Pliers
• Gas Leak Test Solution
• Gas Supply Line
• Gas Shut Off Valve
• Safety Gloves and Goggles
• Tape (Optional)
• Cloth or Cardboard (Optional - to Protect Floor)
Additional Parts Needed For
Hard Wire Installations • Flexible Conduit
• Torque Wrench
•Note: Power Supply Cord Kit Not Necessary For Hard Wire Installations
Installation
Table 1: Overview
Step Task
1. Preparation
2. Apply Foam Tape
3. Install Backwall Trim (Optional)
(Optional)
4. Connect Electric
5. Connect Gas Supply
6. Test for Gas Leaks
7. Test the Installation

Installation
English 5
Parts Included • Anti-Tip Bracket
• Foam Tape
• Terminal Lugs (For Use With Hard Wire Installations)
Note: not necessary for Canadian installations
General Information
Overall Dimensions
Level For best results, cabinets, countertops walls and floors in the installation location
should be as level and plumb as possible. Variance may cause damage to
countertops and floors during installation, could jeopardize the seal around the
cooktop and may adversely affect cooking and baking performance.
Preparation
Prepare Unit Remove all packaging material and discard.
Remove drawer and set aside.
1. Pull drawer all the way out.
2. Locate locking clips on the rails, one on each side.
3. Push up on the clip on the left rail. Pull the drawer out until clip locks into
place.
4. Push down on the clip on the right rail. Pull the drawer out until clip locks into
place.
5. Pull the drawer straight out and set aside.
6. Push rails into range.
Table 2: Overall Dimensions
Dimension Inches Centimeters
Height 36” 91.44 cm
Width 31” 78.74 cm
Depth 25 5/8” 65.09 cm
WARNING:
Remove all tape and packaging before using the appliance. Destroy
the packaging after unpacking the appliance. Never allow children to
play with packaging material.
Tip:
Place the range on a piece of the cardboard to protect floors.

Installation
English 6
Remove oven door and set aside.
1. Be sure to read the above WARNING before attempting to remove oven door.
2. Open the door all the way.
3. Flip levers on hinges (one on each side) toward you.
4. Close the door until it stops. It will be about half-
way open.
5. Holding the door firmly on both sides and using
both hands, pull the door straight out of the
hinge slots. Hold firmly, the door is heavy.
6. Place the door in a stable location.
Electrical Requirements Refer to data plate for more information. See “Product Data Plate” on page 24 for
data plate location.
We recommend that the range be installed with a power cord set (not supplied).
The electrical rating of the power cord set must be 120/240 volt, 30 amperes
minimum. The power cord set shall be marked “For Use with Ranges.” Always
use a new power cord.
WARNING:
When removing the door:
• Make sure oven is cool and power to the oven has been turned off before removing the door. Failure
to do so could result in electrical shock or burns.
• The oven door is heavy and fragile. Use both hands to remove the oven door. The door front is glass.
Handle carefully to avoid breaking.
• Grasp only the sides of the oven door. Do not grasp the handle as it may swing in your hand and
cause damage or injury.
• Failure to grasp the oven door firmly and properly could result in personal injury or product damage.
• To avoid injury from hinge bracket snapping closed, be sure that both levers are securely in place
before removing door. Also, do not force door open or closed - the hinge could be damaged and
injury could result.
Figure 3: Hinge Positions
Note:
In Canada, the range is shipped from the factory with the range cord
already installed.

Installation
English 7
Ranges are dual rated for use on either 120/240 VAC or 120/208 VAC. Check the
data plate for the kW rating. Reference the kW rating in the table below to
determine amperage requirements.
The electrical outlet must be located in the shaded space shown in “Gas Supply
Line and Electrical Outlet Placement” on page 8.
Verify that wiring to house is adequate
Contact your local utility company to verify that the present electric service to your
home is adequate. In some instances, the size of the wiring to the house and
service switch must be increased to handle the electrical load demanded by the
range.
Most wiring codes require a separate circuit with separate disconnect switch and
fuses either in the main entrance panel or in a separate switch and fuse box.
The range requires a minimum of a three wire 120/240 or 120/208 volt, 30 AMP,
60 Hz AC circuit. Check local codes for proper amperage ratings. A four wire
connection is preferred.
Most local building regulations and codes require that electrical wiring be done by
licensed electricians. Be sure to install your range according to the electric codes
in place in your region.
Gas Requirements
Shut off main gas supply valve before disconnecting the old range and leave it off
until the new hook-up has been completed. Don’t forget to relight the pilot on
other gas appliances when you turn the gas back on.
Table 3: Electrical Specifications
kW Rating Hz Amps Req’d
120/240V 120/208V
6.2 4.8 60 30
CAUTION:
Make certain that gas shutoff valve and all burner controls are in the
OFF position before beginning.

Installation
English 8
The gas supply line and electrical outlet must be located in the shaded space as
shown in Figure 4: Gas Supply Line and Electrical Outlet Placement.
If not already present, install gas shut off valve in an easily accessible location.
Make sure all users know where and how to shut off the gas supply to the range.
Important note for LP users
The range is shipped from the factory for use with natural gas. For use with
propane (LP) gas, your range must first be converted using the LP conversion kit.
Cabinet Requirements This unit is designed for installation near adjacent walls and projecting surfaces
constructed of combustible materials. Prepare the countertop and cabinets as
shown in Figure 5: Cutout Requirements - Typical Installation.
Allow a minimum of 30 inches between cabinets where range is to be installed.
Figure 4: Gas Supply Line and Electrical Outlet Placement
Note:
The installer should inform the consumer of the location of the gas
shutoff valve.
7 1/2"
(190.5 mm)
13 1/8 "
(333 mm)
4"
(101.6 mm)
3 7/8"
(98 mm)
4 1/2"
114.3 mm
3 1/2"
88.9 mm
30"
(762 mm)
4 1/2"
114.3 mm
Figure 5: Cutout Requirements - Typical Installation
23 1/16"
(585.4 mm)
30" (762 mm)

Installation
English 9
Required Clearance1
Note:
The slide-in range can also replace a freestanding range. In this
case, verify that the opening is at least 30 inches.
Figure 6: Cutout Requirements - Replacing a Free-Standing Model
Figure 7: Cabinet Preparation
WARNING:
To eliminate the risk of burns or fire by reaching over heated surface
units, cabinet storage space located above the surface units should
be avoided. If cabinet storage is to be provided, the risk can be
reduced by installing a hood that projects horizontally a minimum of 5
inches beyond the bottom of the cabinet.
1. Instructions were determined using standard American cabinets. Standard base cabinets mea-
sure 36" high x 24" deep. Cabinets over the cooking surface and cabinets adjacent to those over
the cooking surface measure 13 inches deep from backwall. If nonstandard cabinets are used,
care should be taken to alter dimensions accordingly.
30in (76.2 cm )
min. centered
30in (76.2 cm) min.
4in (10.2 cm )
min
4in
(10.2 cm
)
min
no clearance required

Installation
English 10
From cooktop to materials above: There must be a minimum clearance of 30
inches between the top of the cooking surface and the bottom of an unprotected
wood or metal cabinet. See Figure 7: Cabinet Preparation.
24 inches is acceptable when the bottom of the wood or metal cabinet is protected
by (a) not less than 1/4" of flame retardant material which must be covered with
(b) not less than No. 28 MSG sheet metal, 0.015 inch stainless steel’ or 0.024 inch
aluminum or copper.
From range walls to adjacent materials: See Figure 7: Cabinet Preparation. No
clearance is required from unit walls to adjacent vertical combustible walls on rear,
right or left.
Clearance from range top to adjacent vertical walls must be at least 4”.
Prepare Walls and Floor Seal any holes in the walls or floor. Remove any obstructions (extra electrical or
gas connections, etc.) so that range will rest against wall properly.
Countertop Requirements Countertops must be smooth and level.
Mounting Requirements Install Anti-Tip Bracket
1. Measure to locate bracket position as shown in See Figure 8: Anti-Tip
Bracket.
2. Secure bracket with 2 screws adequate for mounting surface (i.e., for wood
floor use wood screws, for concrete floor use concrete anchors and screws).
Ventilation Recommendations We strongly recommend the installation of a ventilation hood above this
appliance. For most kitchens a certified hood rating of not less than 300 CFM is
recommended. The range hood must be installed according to instructions
furnished with the hood.
Note:
Some cabinet finishes cannot survive the temperatures allowed by
safety standards, particularly self-cleaning ovens; the cabinets may
discolor or stain. This is most noticeable with laminated cabinets.
Figure 8: Anti-Tip Bracket
flush against
cabinet wall
floor
cabinet wall
rearwall
anti-tippin g
device
1 9/16" (39.7 mm)
from rear wall to center of screw hole

Installation
English 11
Installation Procedure
Apply Foam Tape Apply foam tape to underside of cooktop trim in one continuous piece.
Install Backwall Trim
(Optional)
Install 2 screws through holes in trim and in range backwall. See Figure 9:
Backwall Trim Strip and Figure 10: Install Backwall Trim Strip
Note:
This step is only required if the countertop does not connect behind
the range (i.e.; when replacing a free-standing range). If backwall
trim and attachment screws are required, they may be ordered from
the service center by calling 800-944-2904 at no charge for up to one
year after purchase date of your Slide-In Range. When ordering,
refer to Service Backwall Trim Kit part no. 652010. See “Cabinet
Requirements” on page 8 for more information
Figure 9: Backwall Trim Strip
Figure 10: Install Backwall Trim Strip
Backwall
Trim Strip
Back of Range

Installation
English 12
Connect Electric There are two possible electrical connections:
1. Four wire range cord
2. Three wire range cord
The four wire range cord connection is the recommended method, but where local
codes permit, three wire connections are also acceptable.
For installations other than those in Canada, connect the range cord at the
terminal block (See next page for detailed instructions). Access the terminal block
by removing the cover in the lower right hand corner of the range back panel.
Install Strain Relief Place strain relief in knockout below terminal block. See Figure 11: Strain Relief
Knockout.
1. In the knockout panel below the terminal block, remove the knockout that fits
your strain relief.
2. Feed range cord through hole and strain relief up to terminal block. Allow for
slack in the cord between the strain relief and terminal block.
3. Once cord length/ slack has been adjusted, attach strain relief per instructions
included with strain relief.
Note:
In Canada, the range is shipped from the factory with the range cord
already installed. Continue to “Connect Gas Supply” on page 16.
WARNING:
The strain relief provided with your range cord must be properly
installed.
Strain reliefs vary. Carefully read and follow the instructions included
with your strain relief.

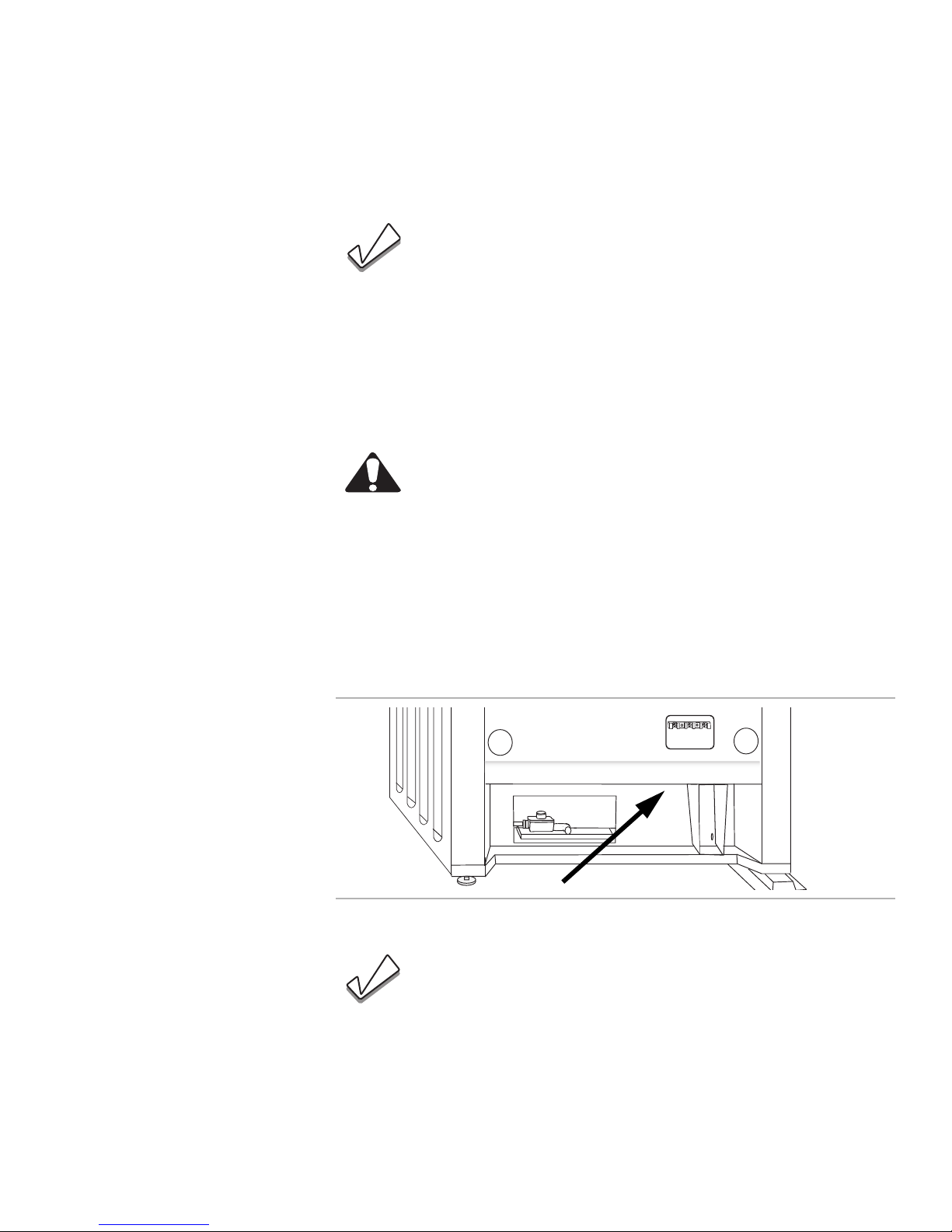

Figure 11: Strain Relief Knockout
Tip:
The knockout panel below the terminal block can be removed from
the range to install the strain relief: Remove knockout panel from
range, install strain relief in panel and reattach. DO NOT remove
entire range back panel.

Installation
English 13
.
Four Wire Range Cord Connection
(Recommended Method) 1. Disconnect electrical power at breaker box.
2. Remove the terminal block cover to expose the terminal block.
WARNING:
Risk of Electric Shock or Fire. Frame grounded to neutral through a
ground strap. Grounding through the neutral conductor is prohibited
for new branch-circuit installations (1996 NEC), mobile homes, and
recreational vehicles, or in an area where local codes prohibit
grounding through the neutral conductor.
For installations where grounding through the neutral conductor is
prohibited, (a) disconnect the link from the neutral, (b) use grounding
terminal or lead to ground unit, (c) connect neutral terminal to lead
branch circuit neutral in usual manner (when the appliance is to be
connected by means of a cord kit, use 4-conductor cord for this
purpose).
Use only cord kits rated 125/250 volts (minimum), 30 amperes and
labeled “For Use with Ranges”. Strain relief provided with cord must
be installed per instructions included with cord.
Figure 12: Grounding Requirements
WARNING:
To prevent electrical shock, the grounding prong on the range cord
should not be cut or removed under any circumstances. It must be
plugged into a matching grounding type receptacle and connected to
a correctly polarized 240- Volt circuit. If there is any doubt as to
whether the wall receptacle is properly grounded, have it checked by
a qualified electrician.
Figure 13: 4 Wire Connection

Installation
English 14
3. Remove top nut, star washer, and round washer from each post.
4. Remove screw from bottom end of ground strap.
5. Remove ground strap from center post, rotate so that wide end is at top and
attach wide end to range through hole below junction box. Attach green wire
on top of ground strap. Tighten Screw.
6. Attach red wire, round washer, star washer and nut IN THIS ORDER to left
post.
7. Attach white wire, round washer, star washer and nut IN THIS ORDER to cen-
ter post.
8. Attach black wire, round washer, star washer and nut IN THIS ORDER to right
post.
9. Tighten all connections securely and replace terminal block cover.
10. Properly secure strain relief (see previous section).
Note:
DO NOT remove last round washer, last nut or internal wiring leads.

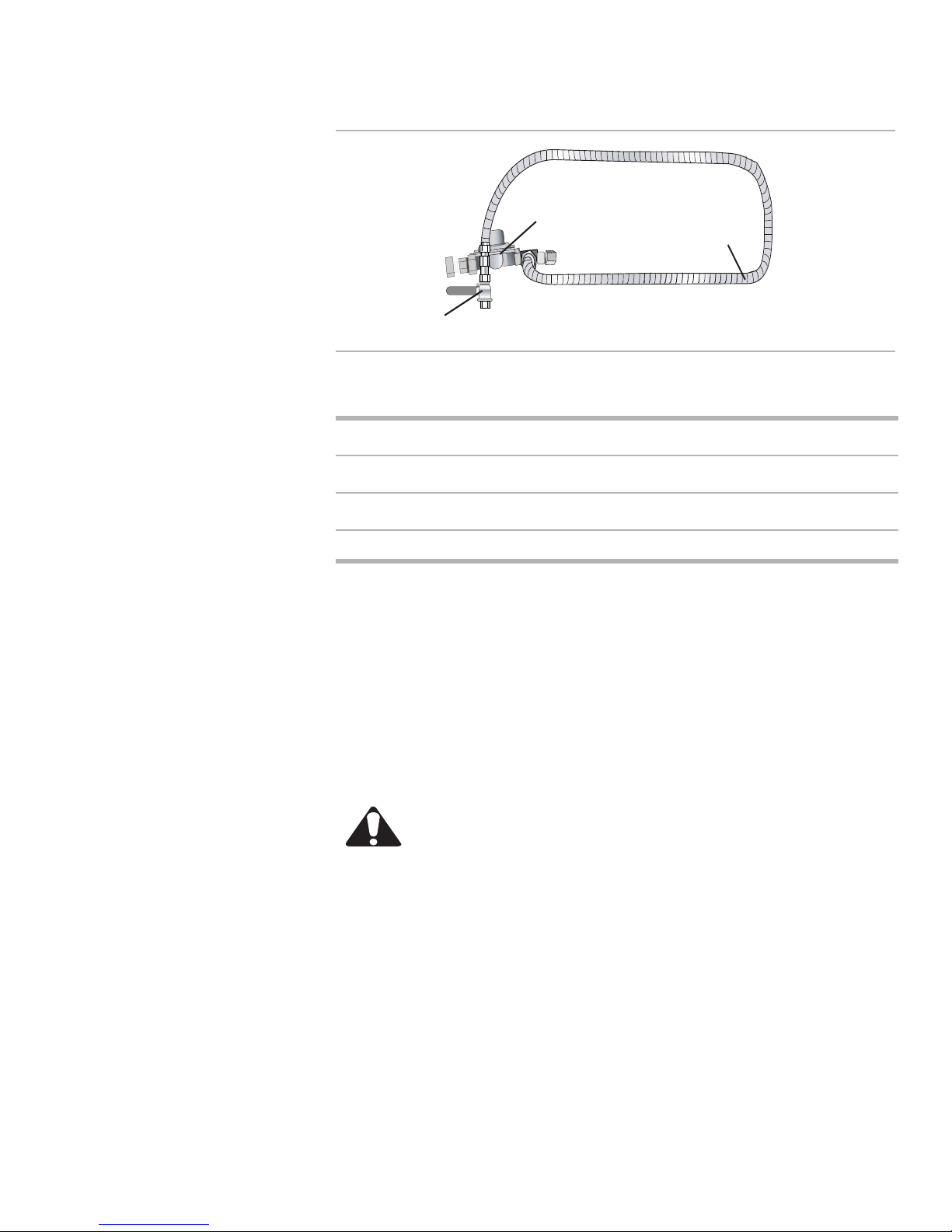

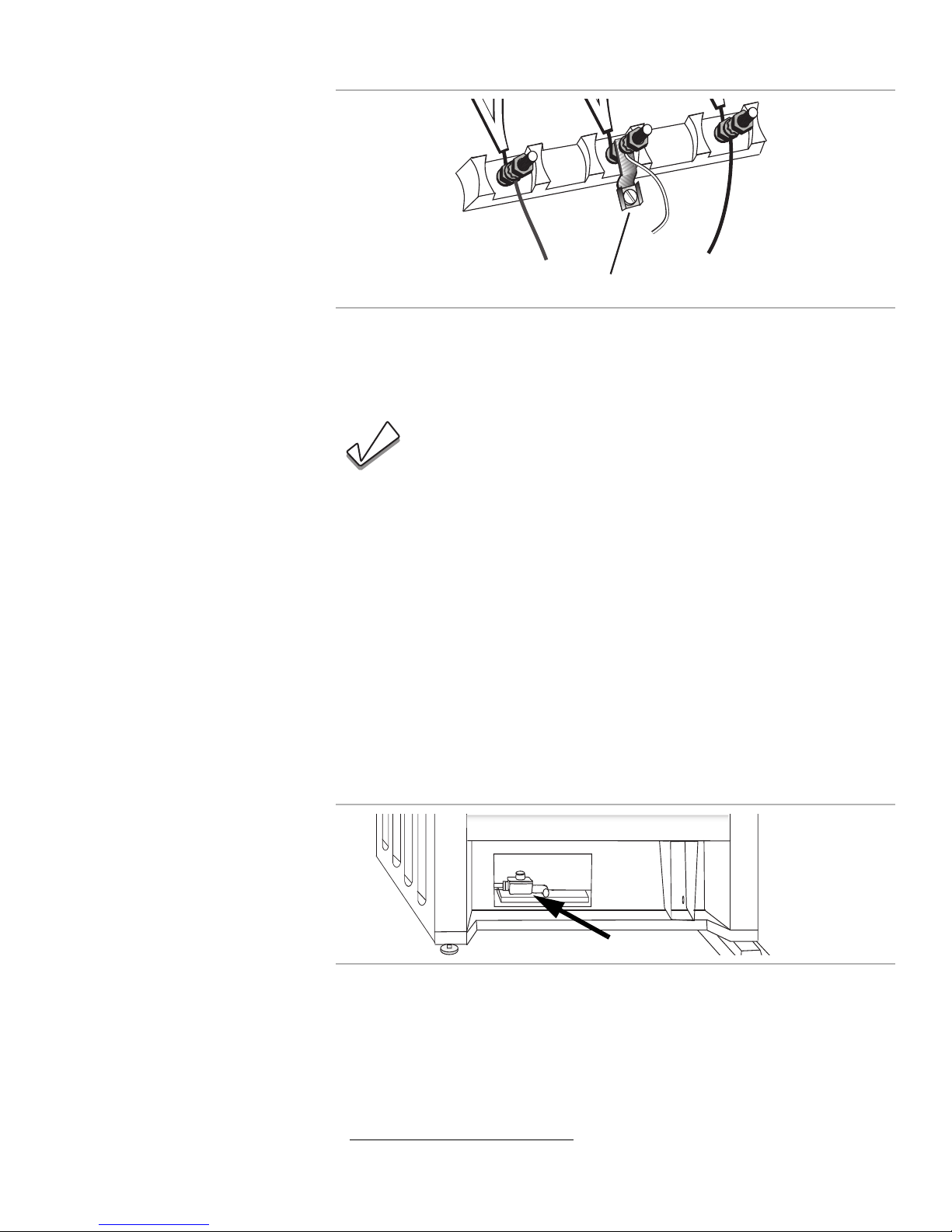

Figure 14: Four Wire Range Cord Connection - Ground Strap and Wire
Figure 15: Four Wire Range Cord Connection (continued)
Note:
DO NOT plug in range at this time.
ground strap
green ground screw
ground wire
red white black

Installation
English 15
Three Wire Range Cord Connection The Four Wire Connection (above) is preferred, but where local codes and
ordinances permit grounding through neutral and where conversion to four wire is
impractical, the unit may be connected to the power supply via a three wire
connection.
1. Disconnect electrical power at breaker box.
2. Remove the terminal block cover to expose the terminal block.
3. Remove top nut, star washer, and round washer from each post.
4. Attach white wire, round washer, star washer and nut IN THIS ORDER on top
of ground strap on center post.
5. Attach red wire, round washer, star washer and nut IN THIS ORDER to left
post.
6. Attach black wire, round washer, star washer and nut IN THIS ORDER to right
post.
Figure 16: Terminal Block
Note:
DO NOT remove last round washer, last nut or internal wiring leads.
Figure 17: Three Wire Connection
red white
black
ground strap

Installation
English 16
7. Tighten all connections securely and replace terminal block cover.
8. Properly secure strain relief. See “Install Strain Relief” on page 12 for detailed
instructions.
Connect Gas Supply Shut off main gas supply valve before disconnecting the old range and leave it off
until the new hook-up has been completed. Don’t forget to relight the pilot on
other gas appliances when you turn the gas back on.
The range can be installed using rigid pipe or a CSA International-certified flexible
metal appliance connector. If using a flexible connector, always use a new
connector.
Apply pipe joint compound or Teflon1tape appropriate for use with LP gas and
Natural gas around all male pipe threads to prevent leaks.
The gas connection is located below the back panel of the range. See “Gas
Connection Location” on page 16. It is accessible through the drawer access
panel or from the back of the range. To reach access panel, remove drawer.
Important note for LP users The range is shipped from the factory for use with natural gas. For use with
propane (LP) gas, your range must first be converted using the LP conversion kit.
Figure 18: Completed Three Wire Range Cord Connection
Note:
DO NOT plug in range at this time.
green ground screw
1.Teflon is a registered trademark of DuPont
Figure 19: Gas Connection Location

Installation
English 17
Flexible Connector Method If using rigid pipe, skip to “Rigid Pipe Method” on page 19.
Attach Connector
1. Install male 1/2” flare adaptor at the 1/2” NPT internal thread of the range
inlet. Use a backup wrench on the elbow fitting to avoid damage.
2. Install male 1/2” or 3/4” flare union adapter on the internal thread of the man-
ual shutoff valve.
3. Connect flexible metal appliance connector.
Plug in Range Cord
1. Make sure circuit breaker is off and then plug range cord into electrical outlet.
2. Connect flexible connector at gas inlet valve.
Adjust Leveling Legs
1. Line up range in front of opening.
2. Measure back left corner of opening from floor to top of countertop.
3. Measure back left corner of range to bottom of cooktop trim. Adjust leveling
leg until this height is the same as the corner dimension.
4. Repeat in right back corner.
5. Adjust front leveling legs so that the bottom of the cooktop trim is ½" higher
than the corresponding countertop surface.
Figure 20: Flexible Connector Method
Table 4: Flexible Connector Method
Letter Item
AGas Shut Off Valve
BRegulator
CFlexible Connector
CAUTION:
Before you plug in an electrical cord, be sure all controls are in the
Off position.
A
BC
