Bosch Dinion LTC0335/20 User manual

LTC 0335 & LTC 0355
Installation Manual
Digital Monochrome
Cameras
EN
Manuel d’installation
Caméra Numérique Noir et
Blanc
FR
Installationsanleitung
Digitale Schwarz-Weiß-
Kamera
DE
Installatiehandleiding
Digitale Zwart/Wit Camera
NL
Manual de instalación
Cámara Digitales de
Blanco y Negro
ES
Manuale d’installazione
Videocamera Digitale in
Blanco e Nero
IT
Manual de Instruções
Câmara Digital
Monocromática
PT
ZH

Bosch Security Systems | 2003-08 | Version 2
EN | 1
LTC 0335 & LTC 0355 | Installation Manual
SAFETY PRECAUTIONS
EN
Installation ManualENGLISH
Important Safeguards
1. Keep these instructions.
2. Heed all Warnings.
3. Follow all instructions.
4. Do not use the apparatus near water.
5. Clean with a dry cloth only.
6. Do not install near heat sources such as radiators, heat registers,
stoves, or other apparatus that generates heat (including
amplifiers).
DANGER
The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk to persons.
WARNING
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance accompanying the appliance.
CAUTION
To reduce the risk of electric shock, do not remove cover
(or back). No user - servicable parts inside. Refer
servicing to qualified service personnel.

Bosch Security Systems | 2003-08 | Version 2
EN | 2
LTC 0335 & LTC 0355 | Installation Manual
7. Do not defeat the purpose of a polarized or grounded mains plug.
A polarized plug has dissimilar prongs (one wider than the other)
to ensure correct polarity, while a grounded plug has an
additional 'ground' prong provided for your safety. If the plug
supplied with the apparatus does not fit into your outlet, consult
an electrician for advice.
8. Protect the power-supply cord from being walked on or pinched,
particularly close to plugs, receptacles and the point where it exits
from the apparatus.
9. Only use attachments and accessories (including stands, tripods,
mounting brackets and housings) specified or recommended by
the manufacturer.
10. Unplug the apparatus during lightning storms and when unused
for extended periods.
11. Do not attempt to service this unit yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
12. Servicing is required when the apparatus does not function in the
normal way, has been dropped, if liquid has been spilled on it, or
if it has been exposed to rain or water. Unplug the unit from the
outlet and refer servicing to qualified service personnel.
13. An all-pole mains switch with contact separation of at least 3 mm
in each pole shall be incorporated in the electrical installation of
the building.
EN
WARNING
To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.

Bosch Security Systems | 2003-08 | Version 2
EN | 3
LTC 0335 & LTC 0355 | Installation Manual
FCC INFORMATION
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
CAUTION
Any changes or modifications to construction of this
device that are not expressly approved by the party
responsible for compliance could void the userfs authority
to operate the equipment.

Bosch Security Systems | 2003-08 | Version 2
EN | 4
LTC 0335 & LTC 0355 | Installation Manual
SPECIFICATIONS
LTC 0335/x0 LTC 0355/x0
Standard resolution High resolution
Standard CCIR EIA CCIR EIA
Active pixels (H x V) 512 x 582 512 x 492 752 x 582 768 x 494
Imager 1/3" interline CCD
Resolution 380 TVL 570 TVL
Minimum illumination <0.12 lux <0.09 lux
Signal-to-noise ratio > 50 dB
Video output 1 Vpp, 75Ω
Synchronization Internal or Line-Lock (selectable)
Shutter Auto / Flickerless / Off (selectable)
CCIR: 1/50 - 1/500000 - EIA: 1/60 - 1/600000
Autoblack On / Off (selectable)
AGC On (0-21 dB)/ Off (0 dB) (selectable)
BLC On / Off (selectable)
Lens mount C and CS compatible
ALC Video-iris or DC-iris (auto detect)
Power supply LTC 03x5/10 & /20: 12 to 28 VAC or 11 to 36 VDC
LTC 03x5/50 & /60: 100 to 230 VAC
Power consumption <4 W
Dimensions (HxWxL) 58 x 66 x 122 mm (2.28 x 2.6 x 4.8 inch without lens)
Weight 450 g (0.99 lbs) (without lens)
Camera mount Two 1/4" 20 UNC - isolated (bottom) and non-isolated
(top)
Operating temperature -20ºC to +50ºC (-4ºF to +122ºF)
Controls On-screen display (OSD) with softkey controls

Bosch Security Systems | 2003-08 | Version 2
EN | 5
LTC 0335 & LTC 0355 | Installation Manual
Type number overview
UNPACKING
Unpack carefully and handle the equipment with care. The
packaging contains:
• Camera
• CCD protection cap
• Spare lens connector (male)
• These Instructions
Note:
If equipment appears to have been damaged during shipment, repack
it in the original packaging and notify the shipping agent or supplier.
CONNECTION
Power
Low voltage High voltage
CCIR (Eur.) EIA (USA) CCIR (Eur.) EIA (USA)
Standard resolution LTC 0335/10 LTC 0335/20 LTC 0335/50 LTC 0335/60
High resolution LTC 0355/10 LTC 0355/20 LTC 0355/50 LTC 0355/60
LTC 03x5/10 and /20 LTC 03x5/50 and /60.

Bosch Security Systems | 2003-08 | Version 2
EN | 6
LTC 0335 & LTC 0355 | Installation Manual
To open the quick-connect, push in on the tabs.
Connections are not polarity sensitive
Use stranded or solid wire AWG16 to AWG22, cut back 10mm (0.4")
of insulation.
Composite Video
LENS MOUNTING
• Video-iris and DC-iris lenses are recommended for the best
picture performance.
• The camera automatically detects the type of lens used, and
optimizes performance accordingly.
• A spare male lens connector is provided if required.
Pin Video iris lens DC iris lens
1Supply (11 V, 50 mA max.) Damp-
2Not used Damp+
3Video signal 1 Vpp, 1 kΩDrive+
4Ground Drive-

Bosch Security Systems | 2003-08 | Version 2
EN | 7
LTC 0335 & LTC 0355 | Installation Manual
Note:
If a short circuit is detected on the lens connector, the on-screen
display (OSD) failure message 'LENS SHORT CIRCUIT' is shown.
The lens circuit is automatically disabled to avoid internal damage.
Remove the lens connector and check the pin connections.

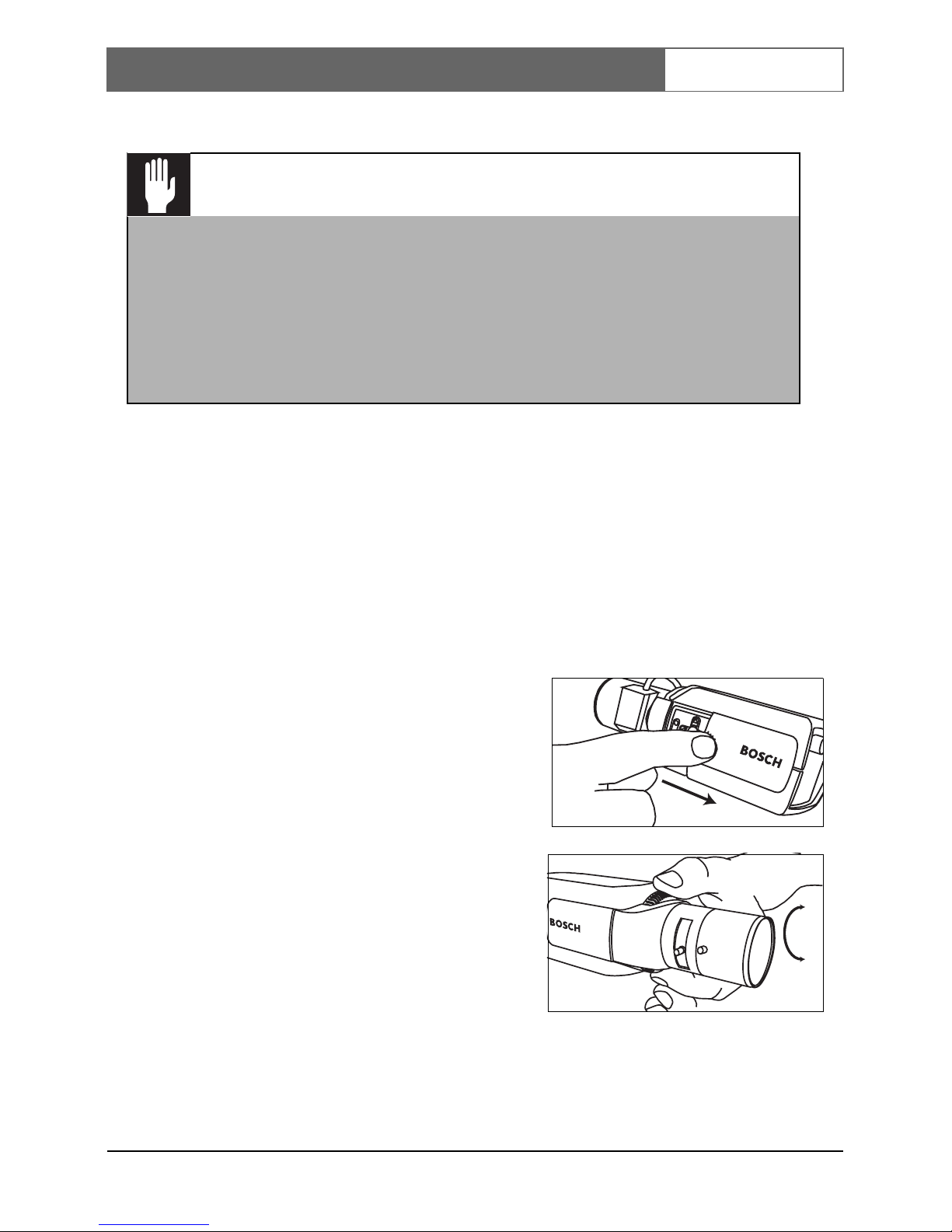

Back focus adjustment
• Camera accepts both C and CS-mount lenses.
1. Unlock the back focus locking
button.
2. Turn the back focus adjustment as
required. (See Note 1).
3. Lock the back focus locking button.
Notes:
1. The camera's unique "Lens Wizard"
allows focusing to optimize picture
sharpness in both bright and low
level lighting. The lens wizard can
be found in the Installer menu.
CAUTION
• To avoid damaging the CCD sensor when using a C-
mount lens, turn the 'green' back-focus ring counter
clockwise until it stops ('Back focus adjustment')
before mounting the lens.
• Lenses weighing more than 0.5 kg (1.1lbs) must be
separately supported.

Bosch Security Systems | 2003-08 | Version 2
EN | 8
LTC 0335 & LTC 0355 | Installation Manual
2. When back focusing vari-focus lenses, it must be possible to
obtain a sharp picture in both wide-angle and tele positions, and
for both far and near focus.
3. When back focusing zoom lenses, ensure the object of interest
remains in focus throughout the entire zoom range of the lens.
(See Advanced Set up).
MOUNTING THE CAMERA
The camera can be mounted from the top or bottom.
Note:
The BOTTOM mounting is
isolated from ground.
ADVANCED SET-UP
The camera will normally give an optimal picture without the need
for further adjustments. However for special circumstances advanced
set up options are available.
CAUTION
Do not point the camera/lens into direct sunlight. When
viewing an outdoor scene, a video- or DC-iris lens is
recommended.

Bosch Security Systems | 2003-08 | Version 2
EN | 9
LTC 0335 & LTC 0355 | Installation Manual

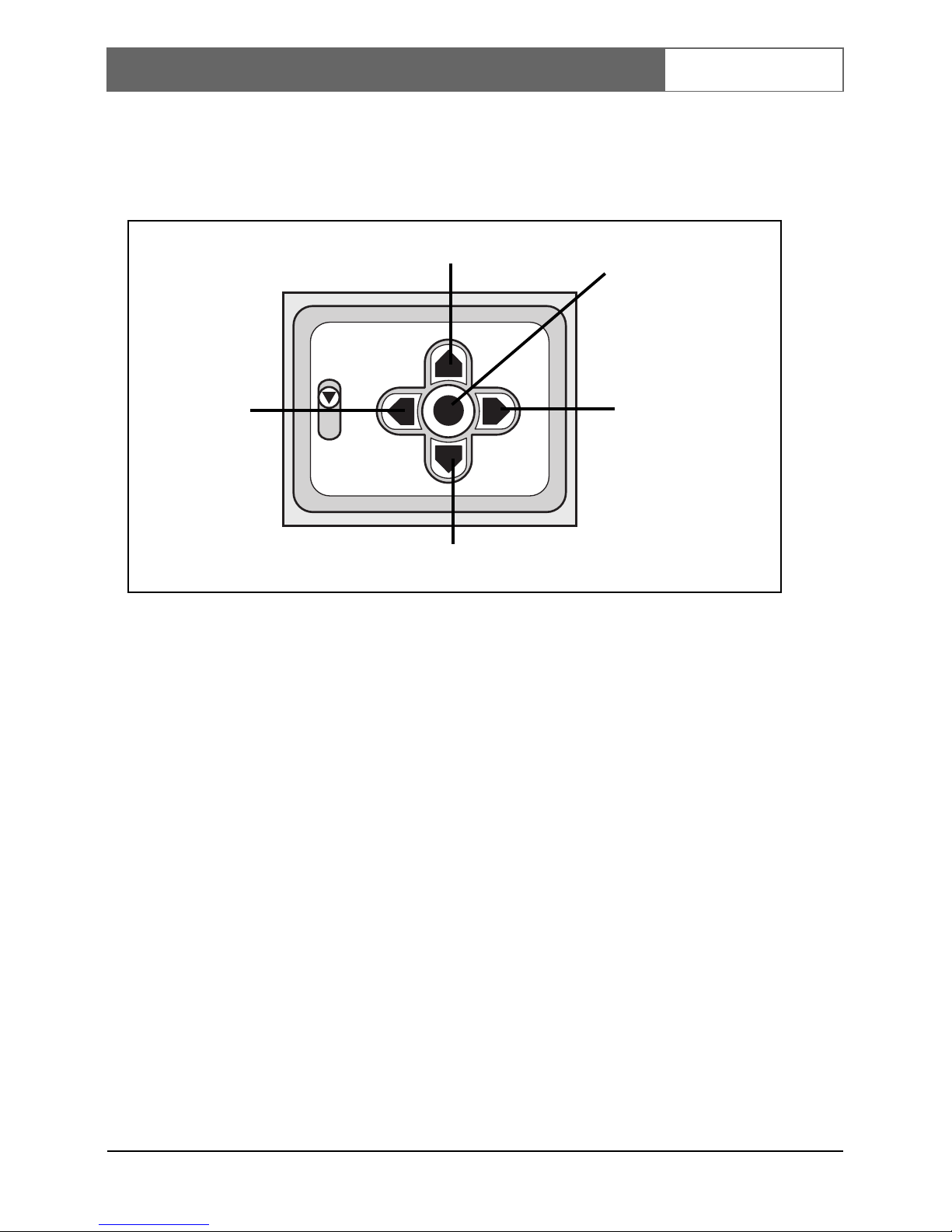

Hints for menu navigation
How to use the 5 keys
• Press the menu/select key to access the menus or to move to the next or
previous menu.
• Press the menu/select key for approximately 1.5 seconds to open
the Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set
parameters.
• When in a menu, quickly pressing the menu/select key twice
restores the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item and hold
down the menu/select key until the menu display disappears.
Lock
Menu/select key
Right key
Down key
Up key
Left key

Bosch Security Systems | 2003-08 | Version 2
EN | 10
LTC 0335 & LTC 0355 | Installation Manual

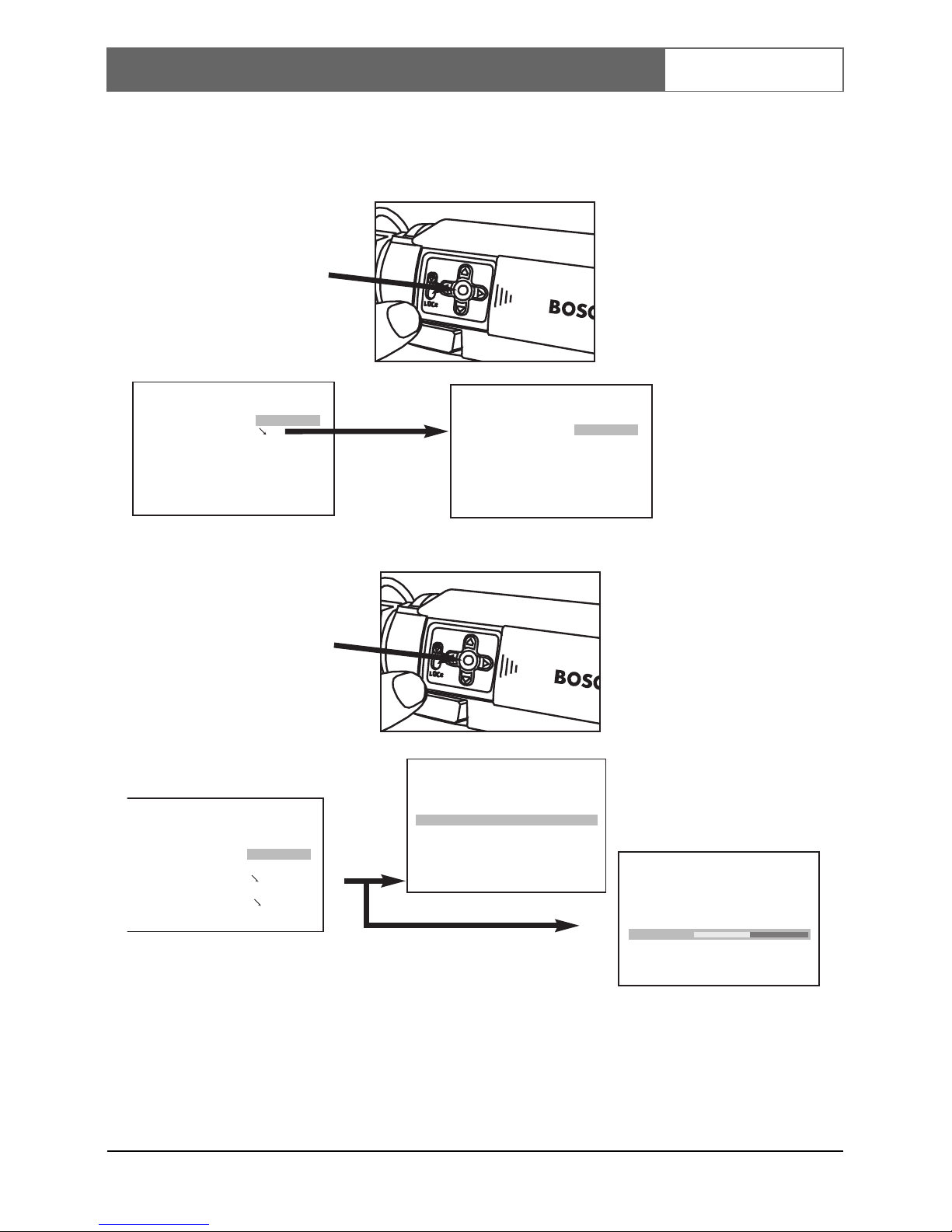

Menu Navigation
MAIN MENU
LEVEL 0
SHUT/AGC
BLC OFF
SYNC LINE LOCK
VPHASE 0¡
EXIT
SHUT/AGC MENU
SHUTTER AES
AGC ON
AUTOBLACK ON
EXIT
LENS WIZARD
DETECTED LENS VIDEO
SET BACK FOCUS NOW
SET LVL
EXIT
LENS WIZARD
DETECTED LENS DCIRIS
SET BACK FOCUS NOW
EXIT
INSTALLER
VERSION 00.0010.XX
LENS AUTO
SPEED FAST
WIZARD
DEFAULTS
EXIT
COAX COMM ON
Press the menu button
Main Menu Shutter/AGC Menu
Press the menu button
for more than 5sec.
Installer Menu Lens Wizard Menus

Bosch Security Systems | 2003-08 | Version 2
EN | 11
LTC 0335 & LTC 0355 | Installation Manual
Main menu
Shutter/AGC menu
Accessing installer menu
• To access the installer menu, press and hold the menu/select key
for five seconds.
Function Selection Description
LEVEL -15 - 0 - +15 Adjusts video level.
SHUT/AGC Select next menu Shutter / Automatic Gain Control menu.
BLC ON ON
OFF When 'ON', the level is optimized at the center of OFF the screen. Parts outside the center
may be under- or over-exposed (this is normal).
SYNC LINE LOCK Select 'LINE LOCK' to synchronize with the
power INTERNAL supply frequency. Select
'INTERNAL' for use with internal
synchronization (automatically selected with
DC supply).
V PHASE 0-358º Adjusts the vertical phase offset (when in
'LINE LOCK' mode).
EXIT Exit the menu.
Function Selection Description
SHUTTER AES (AES) Auto-shutter sets the optimum shutter
speed FL for manual iris lenses. (FL)
Flickerless mode avoids OFF interference from
light sources (recommended for use with
video-iris or DC-iris lenses only).
AGC ON/OFF Automatic gain control
AUTOBLACK ON/OFF Autoblack automatically increases the visibility
of details.
EXIT Exit the menu.

Bosch Security Systems | 2003-08 | Version 2
EN | 12
LTC 0335 & LTC 0355 | Installation Manual
Installer menu
Lens wizard menu
Function Selection Description
VERSION Read-only firmware release number (for
service purposes).
LENS AUTO Automatically detect lens type.
A different lens type can be selected.
SPEED FAST Selects the response time of DC-iris lenses.
Some lenses require slow lens control to avoid
overshoots.
WIZARD Access the lens wizard menu.
COAX COM ON/OFF If OFF Bilinx™ communication is disabled
DEFAULTS Select next menu Return all set-up settings to
factory defaults.
EXIT Exit the menu.
Function Description
SET BACK FOCUS NOW Back focus the lens (see 'Back focus adjustment'). The
scene is focused at maximum lens opening to ensure
that the object of interest remains in focus in bright and
low-light conditions.
SET LVL When a Video-iris lens is detected, a level
potentiometer is displayed to obtain the best picture
performance. The lens wizard includes a level detector
meter that must be set to the center using the
potentiometer for best results.
EXIT Exit the menu.

Bosch Security Systems | 2003-08 | Version 2
EN | 13
LTC 0335 & LTC 0355 | Installation Manual
Adjustment procedure DC-iris Lens:
1. Unlock the back focus locking button.
2. Access the "Lens Wizard" menu.
3. The "SET BACK FOCUS NOW" option is highlighted in the
menu.
4. Turn the back focus adjustment as required.
5. Lock the back focus locking button.
6. Exit the menu.
Adjustment procedure Manual-iris Lens:
1. Unlock the back focus locking button.
2. Adjust the lens to the maximum lens opening.
3. Turn the back focus adjustment as required.
4. Lock the back focus locking button.
Adjustment procedure Video-iris Lens:
1. Unlock the back focus locking button.
2. Access the "Lens Wizard" menu.
3. The "SET BACK FOCUS NOW" option is highlighted in the
menu.
4. Turn the back focus adjustment as required.
5. Select the "SETLVL" option in the menu, and the LEVEL bar
appears.
6. Adjust the level potentiometer located on the lens until the
LEVEL bar is in the central position.
7. Lock the back focus locking button.
8. Exit the menu.

Bosch Sicherheitssysteme GmbH
Ludwig-Bölkow-Allee
85521 Ottobrunn
Germany
www.bosch-sicherheitssysteme.de
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven
The Netherlands
www.boschsecuritysystems.com
3122 165 22651 03-40
© 2003 Bosch Security Systems B.V.
Subject to change Printed in Portugal
