Bosch use IP FLEXIDOME IP starlight 6000 VR User manual

FLEXIDOME IP starlight
6000 VR
NIN-63013 | NIN-63023
en Installation Manual
use
www.use-ip.co.uk
01304 827609

Table of contents
1Safety 5
1.1 Safety precautions 5
2Short information 7
3System overview 8
3.1 Performance 8
3.2 Using the camera 8
3.3 Application variants 10
4Planning information 11
4.1 Unpacking 11
4.2 Contents 11
5Installation 12
5.1 Preparation 12
5.2 Local storage 13
5.3 Wiring 13
5.3.1 Cable tree 14
5.3.2 Earthing 14
5.3.3 Network (and PoE power) 15
5.3.4 Auxiliary power 15
5.3.5 Alarm 15
5.3.6 Audio 16
5.3.7 Video 16
5.4 Mounting the camera module 17
5.4.1 Mounting flush to ceiling 17
5.4.2 Mounting to ceiling with SMB-IP 18
5.5 Camera positioning and field-of-view 20
5.5.1 Pan 21
5.5.2 Tilt 22
5.5.3 Twist 22
5.6 Local set-up 23
5.6.1 Using the install wizard 23
5.6.2 Reset 24
5.7 Mount inner and outer dome 25
FLEXIDOME IP starlight
6000 VR Table of Contents | en 3
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

6Connection via web browser 27
7Configuration 28
8Troubleshooting 29
8.1 Resolving problems 29
8.2 Testing the network connection 31
8.3 Customer service 32
9Maintenance 33
9.1 Cleaning 33
9.1.1 Lens cleaning 33
9.2 Repair 33
10 Decommissioning 34
10.1 Transfer 34
10.2 Disposal 34
11 Technical data 35
4en | Table of Contents FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Safety
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
Safety precautions
!
Caution!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings before operating the
device.
1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.
2. Do not install device near any heat sources such as
radiators, heaters, stoves, or other equipment (including
amplifiers) that produce heat.
3. Never spill liquid of any kind on the device.
4. Take precautions to protect the device from power and
lightning surges.
1
1.1
FLEXIDOME IP starlight
6000 VR Safety | en 5
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

5. Adjust only those controls specified in the operating
instructions.
6. Operate the device only from the type of power source
indicated on the label.
7. Unless qualified, do not attempt to service a damaged
device yourself. Refer all servicing to qualified service
personnel.
8. Install in accordance with the manufacturer's instructions in
accordance with applicable local codes.
9. Use only attachments/accessories specified by the
manufacturer.
10. Protect all connection cables from possible damage,
particularly at connection points.
11. Connect the yellow/green earth wire of the camera to the
system earth of the installation to ensure correct safety and
EMC/RFI protection.
6en | Safety FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Short information
http://www.boschsecurity.com/catalog_overview.htm
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
2
FLEXIDOME IP starlight
6000 VR Short information | en 7
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

System overview
Performance
This camera provides clear images 24/7 – even at night or under
low-light conditions.
The exceptional starlight sensitivity enables this camera to work
with a minimum of ambient light. The extended dynamic mode
provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions
and provides up to 60 images per second.
The aesthetic vandal-resistant housing makes the camera
suitable for indoor or outdoor installation.
Using the camera
Use a web browser to access the camera features and to view
the camera streams live. Use the same browser interface to
access and change the camera configuration parameters and
recording/storage functions (including local alarm recording,
and recording to iSCSI-based systems).
Refer to the software manual for more information on the
browser interface.
The web browser is the most direct way of using the camera,
however, the Bosch download store provides several other free
applications (listed below) for viewing and controlling the
camera.
Download store
Download the latest applications and firmware from:
http://downloadstore.boschsecurity.com/
3
3.1
3.2
8en | System overview FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Video Security Client
The Video Security Client is a free, easy-to-use video-surveillance
application provided by Bosch for local and remote monitoring
of IP cameras and appliances. The software supports up to 16
cameras.
Bosch Video Client
The Bosch Video Client is a free Windows application to view,
operate, control, and administer surveillance cameras and
installations at remote locations. It offers a user-friendly
interface for easy live viewing of multiple cameras, playback,
forensic search and export.
IP Helper
The IP Helper tool is a free PC application that makes it easy to
detect Bosch cameras and devices on your network.
Video security app
The Bosch video security mobile app has been developed to
enable Anywhere access to HD surveillance images allowing you
to view live images from any location. The app is designed to
give you complete control of all your cameras, from panning and
tilting to zoom and focus functions. It’s like taking your control
room with you.
This app, together with the separately available Bosch
transcoder, will allow you to fully utilize our dynamic
transcoding features so you can play back images even over low-
bandwidth connections.
FLEXIDOME IP starlight
6000 VR System overview | en 9
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

Application variants
The camera has a choice of application variants that set up the
camera for optimum performance in a specific environment.
Select the application variant best suited to your installation.
The application variant must be selected before any other
changes are made, as the camera reboots automatically and
resets the factory defaults when the application variant is
changed.
This camera has the following application variants:
– Starlight mode (default) – to continue viewing in color at
very low light levels
– Extended Dynamic mode - simultaneously see details in
very bright and very dark objects in the same scene
3.3
10 en | System overview FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Planning information
Unpacking
This equipment should be unpacked and handled with care. If an
item appears to have been damaged in shipment, notify the
shipper immediately.
Verify that all parts are included. If any items are missing, notify
your Bosch Security Systems Sales or Customer Service
Representative.
The original packaging is the safest container in which to
transport the unit and can be used if returning the unit for
service.
Contents
The packaging contains:
Qty Component
1 FLEXIDOME IP camera
1 T-25H security torx bit
3 Screws (5 REF pozidrive DIN7505-B 50 mm)
3 Wall plugs (8 x 40 mm)
1 Installation Guide
1 Identification label sheet
1 RJ45 shielded coupler
1 Desiccant sachet
The version of the camera with surface mount box contains:
1Surface mount box with RJ45 connection box
3 Screws (M5 x 16 mm)
1 Rubber grommet for RJ45 connection box
4
4.1
4.2
FLEXIDOME IP starlight
6000 VR Planning information | en 11
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

Installation
Preparation
To separate the different parts of the camera:
1. Remove the outer dome by unscrewing the 3 attachment
bolts.
2. Remove the inner dome by gently pulling it from its mount
seal.
3. Store the domes in a safe place where the outer dome
cannot become scratched.
4. Remove the camera module from the surface mount box by
unscrewing the 3 screws.
To remove the desiccant sachet:
1. Slide the sachet out of its storage slot in the camera.
2. Dispose of the sachet in an environmentally friendly way.
x3
DESICCANT
SILICA GEL
5
5.1
12 en | Installation FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Local storage
Notice!
Local storage on memory cards should only be used for alarm
recording. To minimize the risk of losing information, use
multiple, redundant recording systems and a procedure to back
up all digital information.
To insert a memory card:
1. Slide the memory card into the slot.
2. Press it firmly until it latches into place in the slot (when
removing the card, press it down firmly again until it
unlatches).
Wiring
!
Caution!
The unit has connection terminals on flying leads. In wet or
outdoor installations, use a field wiring box with NEMA Type 4X
or IP66 protection level or better. After connections are made,
ensure the watertight compartment is tightly closed and cables
and conduits are properly sealed to prevent water ingress.
Notice!
Use proper surge suppression on network/video/power/audio/
data/alarm cables that are routed outdoors, or close to large
inductive loads or electrical mains supply cables.
5.2
5.3
FLEXIDOME IP starlight
6000 VR Installation | en 13
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

Cable tree
Use the following table to identify the wires in the cable tree:
Wire color AWC Signal
Red 26 +12 VDC
Brown 26 -12 VDC
Yellow /
Green
24 Earth
Black /
Brown
28 Alarm Out A
White /
Orange
28 Alarm Out B
White /
Violet
28 Ground (Alarm In)
Orange /
Violet
28 Alarm In 1
Violet 28 Alarm In 2
White 28 Audio In
(Shield) 28 Ground (Audio)
Black 28 Audio Out
BNC
connector
CVBS analog
Earthing
!
Caution!
This device must be connected to earth (ground).
Safety (power) ground is indicated by the symbol.
5.3.1
5.3.2
14 en | Installation FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

Connect the yellow/green wire of the camera to the system
earth of the installation to ensure correct safety and EMC/RFI
protection.
Network (and PoE power)
Connect the camera to a 10/100 Base-T network:
– Use STP Category 5e cable with RJ45 connectors (the
camera network socket is Auto MDIX compliant).
– Power is supplied to the camera via the Ethernet cable
compliant with the Power-over-Ethernet standard.
Notice!
Use only PoE approved devices.
Power-over-Ethernet can be connected at the same time as a
12 VDC power supply. If auxiliary power (12 VDC) and PoE is
applied simultaneously, the camera selects PoE and shuts off
the auxiliary input.
Auxiliary power
Connect a SELV-LPS or a SELV Class 2 power supply with a
rated supply voltage of 12 VDC as follows:
– Cut back 7 mm (0.28 in) of insulation.
– Connect the power wires (red+ , brown-) to the external
power supply.
!
Caution!
Use only a +12 VDC power supply as an auxiliary power source.
The auxiliary power supply unit must be isolated from earth.
Alarm
Use the stranded and solid wires with maximum diameter AWG
22-28; only cut back 5 mm (0.2 in) of insulation.
5.3.3
5.3.4
5.3.5
FLEXIDOME IP starlight
6000 VR Installation | en 15
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

Alarm out:
Use the alarm output for switching external devices such as
lamps or sirens.
The alarm output switching capability has max. voltage 30 VAC
or +40 VDC; max. 0.5 A continuous, 10 VA.
Alarm in:
Use the alarm input to connect external alarm devices such as
door contacts or sensors:
– TTL logic, +5 V nominal, +40 VDC max, DC coupled with
50 kOhm pull-up to +3.3 V.
– Configurable as active low or active high.
Use a zero potential make-contact or switch as the actuator
(with a bounce-free contact system).
Audio
Connect audio devices to the audio input and audio output
connectors.
The unit has full-duplex mono audio for two-way communication
between a speaker or door intercom system. The audio input
signal is transmitted in sync. with the video signal.
Audio input:
Line input level (not suitable for direct microphone signal);
impedance 18 kOhm typical; 1 Vrms maximum input voltage.
Audio output:
Line output level (not suitable for direct speaker connection);
impedance 1.5 kOhm minimum; 0.85 Vrms maximum output
voltage.
Use shielded audio connection cable with advised maximum
cable lengths for audio line input and output levels.
Video
Use the composite video connector (CVBS) on the camera to
connect an analog monitor for setting up the camera or as a
permanent analog output for viewing or recording:
5.3.6
5.3.7
16 en | Installation FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

– To connect a monitor for set-up, use the optional 3 m cable
(NBN-MCSMB-30M) to connect directly to the CVBS
connector of a monitor.
– For a permanent analog output, use the optional 0.3 m
cable (NBN-MCSMB-03M) to connect to a high quality coax
cable.

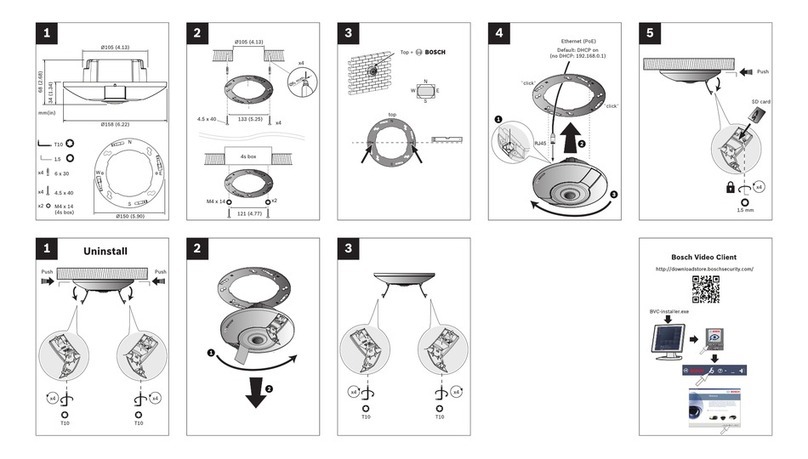

Mounting the camera module
Mounting flush to ceiling
To mount the camera flush to the ceiling:
1. Mark out the recess hole and the three mounting holes. The
mounting holes are equally spaced around a diameter of
133 mm (5.25 in).
2. Cut out the inner recess hole: Ø105 mm (4.13 in).
3. Use a 8 mm (0.31 in) bit to drill the three mounting holes
4. Insert the supplied mounting plugs (8 x 40) into the
mounting holes.
5. Use the supplied screws (DIN7505-B 50mm) to securely
mount the camera to the ceiling surface; if the ceiling is too
thin, use appropriate ceiling bolts (not supplied).
57.6 (2.27) 57.6 (2.27)
33.3 (1.31)
66.5 (2.62)
Ø 133 ( Ø 5.25) mm (in)
4S box
(x2)
5.4
5.4.1
FLEXIDOME IP starlight
6000 VR Installation | en 17
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

Ø 8 mm
x3
105 (4.13)
STP Cat5e
RJ45
Ethernet
(PoE)
Earth+12 VDC
Power
Alarm
Audio
BNC
female
75 Ohm
CVBS
Note:
If using a recessed 4s mounting box, attach the camera to the
box using two screws and washers (M4 x 14).
Mounting to ceiling with SMB-IP
To mount the camera using a Surface Mount Box and cable
conduit:
1. Use the SMB to mark out the cable hole in the ceiling and
to mark the three mounting holes. The mounting holes are
equally spaced around a diameter of 133 mm (5.25 in).
2. Cut out the cable hole in the ceiling, and use a 8 mm
(0.31 in) bit to drill the three mounting holes.
3. Insert the supplied mounting plugs (8 x 40) into the
mounting holes.
5.4.2
18 en | Installation FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems

4. Use the supplied screws (pozidrive DIN7505-B 50mm) to
securely attach the SMB to the surface.
5. Feed the Ethernet RJ45 cable from source through the
ceiling into the SMB
6. Remove the cover from the SMB cable conduit and slide
out the rubber seals at either end.
7. Thread the Ethernet cables from the camera and source
through the seals (they can be pulled open to fit the
cables). If required, use the larger bore seal (supplied in
parts package) to fit thicker cables.
8. Slot the seals (with cables) into either end of the conduit.
9. Connect the Ethernet cables inside the conduit using the
supplied RJ45 shielded connector.
10. Close the cover on the conduit and position the conduit
inside the SMB.
11. Feed the other camera cabling through the cable hole in the
SMB.
12. If IP66 water ingress protection is required, connect the
camera cabling to the source cabling inside an IP66
approved box.
13. Mount the camera to the SMB using the 3 supplied screws
(M5x16mm torx).
FLEXIDOME IP starlight
6000 VR Installation | en 19
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0711

IP66
STP Cat5e
RJ45
Ethernet
(PoE)
Earth
+12 VDC
Power
Alarm
Audio
CVBS
Camera positioning and field-of-view
The camera module position can be adjusted along three axes
and several zoom positions can be selected.
To help position the camera and set the field-of-view:
1. Connect a monitor to the 2.5 mm jack using the optional
monitor cable (S1460) which provides a CVBS signal (for
installation purposes only).
2. Apply power to the camera.
3. After power-up, wait a little (about 20 seconds).
4. Press the Menu button. This stops the IP video stream and
enables the service video analog output.
5.5
20 en | Installation FLEXIDOME IP starlight
6000 VR
2016.06 | v1.0 | AM18-Q0711 Bosch Security Systems
