Bosch EX40N User manual

EX40N
Ultra Vandal-Proof Dome Camera
INSTALLATION INSTRUCTIONS
MAN-40N-01

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep this instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install
in accordance with manufacturer instructions.
7. Do not install near any heat sources where the
temperature goes above the product rating.
8. Protect the cabling from being walked on or
pinched particularly at connection points and
where they exit from the apparatus.
9. Only use accessories specified by the
manufacturer.
10. Disconnect this apparatus during lightning
storms or when unused for long periods of
time if precautions are not taken to prevent
lightning/electrical damage to the product.

11. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in a way, such
as internal wiring is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.

IMPORTANT
For best results, please read this Instruction Booklet prior to
installing the EX40N camera.
For best results in infrared image quality, when reassembling the
dome to the housing, make sure the foam donut is in tight 360
contact with the dome.
WARNING !
CSA Certified / UL Listed CLASS 2 power adaptors must be used
in order to comply with electrical safety standards.
12-24 VDC/VAC (60Hz), 10W
CSA Type 4
CAN/CSA 60065 – 03 + Amd 1
Audio, Video and Similar Electronic Apparatus – Safety Requirements
UL Std No. 60065 - 07
Audio, Video and Similar Electronic Apparatus – Safety Requirements
This Product Has Been Certified By CSA International To
Include the Health Care Facility Requirements Of UL 2044.
This installation should be made by a qualified service person and
conform to all local codes. Bosch will not be responsible for
injuries or damages resulting from the improper installation or use
of any camera sold by Bosch, their agents, distributors or dealers.
EU Directives covered by this declaration:
72/9/EC Low Voltage Directives
89/336/EEC Electromagnetic Compatibility Directive

NOTE: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. As part of it's
normal operation this device can generate radio
frequency energy and if not installed and used in
accordance with the installation manual may cause
interference to radio communications. However, there
is no guarantee that interference will not occur on a
particular installation. If the device does cause
interference to radio or television reception the user is
encouraged to try to correct the interference by one or
more of the following measures:
1) Fit Ferrite beads on all cable to and from the power
supply box, within the box walls.
2) Route the composite cable between the camera and
the power supply in steel conduit piping over the entire
run of the cable up to and including connection to a
deep conduit base fitted under the camera and a conduit
fitting adaptor in the wall of the PSU box.
3) Contact BOSCH Service Center for further advice.

INDEX – EX40N
Page
Description..................................................1
Unpacking...................................................2
Parts List.....................................................2
Items Required for Installation ....................2
Initial Preparations......................................3
Guidelines...................................................3
Section 1. Dome Removal ..........................4
Section 2. Input Power Connections...........6
Section 3. Mounting - Camera Base ...........9
Section 4. Adjustments .............................15
Section 5. Camera Re-Assembly..............22
Section 6. Troubleshooting Guide.............24
Section 7. Template – Mounting Holes .....27
Section 8. General Specifications .............28

1
DESCRIPTION
The EX40N High Impact Dome Night Vision
Camera has been engineered for day/night
surveillance in hostile environments. Compact
and good looking, the camera features armour-
tough construction for protection against
vandalism or accidental damage.
An aluminum housing, CNC-machined from a
billet, with an impact resistant polycarbonate
dome and locking retaining ring, make it
extremely rugged and weather-tight.
For flexibility, the CCD Camera/LED Array can
be fully rotated using a unique “Pan-Tilt-Twist”
(PTT) mounting bracket.
A voltage regulator circuit allows for 12V DC or
24V AC operation, and a range in between, also
providing protection from voltage surge,
transient spikes, and reverse voltage.
The EX40N is available in several models
designed to meet specific needs.

2
UNPACKING
Care should be taken when unpacking the
shipped unit. Check the parts list and confirm all
items have been located. Inspect the equipment
thoroughly to ensure nothing was damaged in
transit.
Contact a Bosch Service Center if a problem is
noted, see the rear page of this booklet for
contact numbers.
PARTS LIST (items supplied with unit)
- Camera Assembly
- Half-tint dome bubble (installed)
- Clear dome bubble (spare)
- Installation Instructions booklet
-EX40N Plastic bag containing a Hex key and
one ½ NPT plug wrapped with Teflon tape
- Desiccant pack for moisture absorption (do not
remove)
ITEMS REQUIRED FOR INSTALLATION
(not supplied with unit)
- Philips, Robertson screwdrivers
- Silicone sealant and Teflon sealing tape
- Mounting screws, etc.

3
INITIAL PREPARATIONS
Determine the operating voltage at the
installation site. The camera’s Voltage
Regulator Board can accept a 12V DC or 24V
AC input. See Section 2, Input Power
Connections.
Determine the optimum location for the
camera. Section 3, Mounting-Camera Base.
All cameras have been tested prior to
shipment. After the wiring has been
reconnected, it is advisable to check the
camera’s operation before installation.
ESD protection – Cameras and circuit boards
are sensitive electronic components. It is
recommended to wear a ground strap to
ground any static charge. (Alternative: touch a
grounded metal plate for at least a minute
before proceeding with any disassembly)
GUIDELINES
The installation of the EX40N camera is explained
in Sections 1 to 5 listed below. It is important that
these steps are followed in sequence:
1. Dome Removal
2. Input Power Connections
3. Mounting - Camera Base
4. Adjustments
5. Camera Re-Assembly

4
1. DOME REMOVAL
The camera’s dome and its retaining ring must
be removed prior to mounting the camera or
performing any wiring disconnections and re-
connections. The set-screws in the retaining ring
are not tightened in the factory and protrude by
1/8" (3mm) in order for the ring to be rotated.
Refer to Figure 1 - 1 on page 5.
Step 1.1 - Place the camera on a flat surface.
Step 1.2 - Press firmly on the dome with one
hand and rotate the retaining ring in
a counter-clockwise direction with
the other hand. Push against the
protruding set-screws with a finger
to rotate the ring. Do not use a
screwdriver or other metal device.
Step 1.3 - Remove the dome and the retaining
ring. Set them aside.

5
FIGURE 1 – 1
Dome Removal
Set Screws
Retaining
Ring
Loosen or tighten ring
Dome
Camera
Base

6
2. INPUT POWER CONNECTIONS
Attention: External Video Cable Systems Must
Be Properly Grounded In Accordance With The
National Electrical Code, ANSI/NFPA 70.
The EX40N camera units are pre-connected
with an electrically isolated power board (VRB)
for 24V AC or 12V DC operation, with no change
to the polarity of the wires.
The VRB connects to the Camera and LED
Array Power Board.
See Figure 2 – 1 on page 7 and Figure 2 – 2 on
page 8.
NOTE:
For DC input, the input voltage range is
10.8V DC to 26.4V DC.
The recommended input current from the power
supply should be approximately 1 Amp.
For AC input, the input voltage range is
10.8V AC to 26.4V AC.
The recommended input current from the power
supply should be approximately 1 Amp.

7
Power
IN Power OUT
FIGURE 2 – 1
12V – 24V AC / DC
Electrically Isolated Power Board (VRB)

8

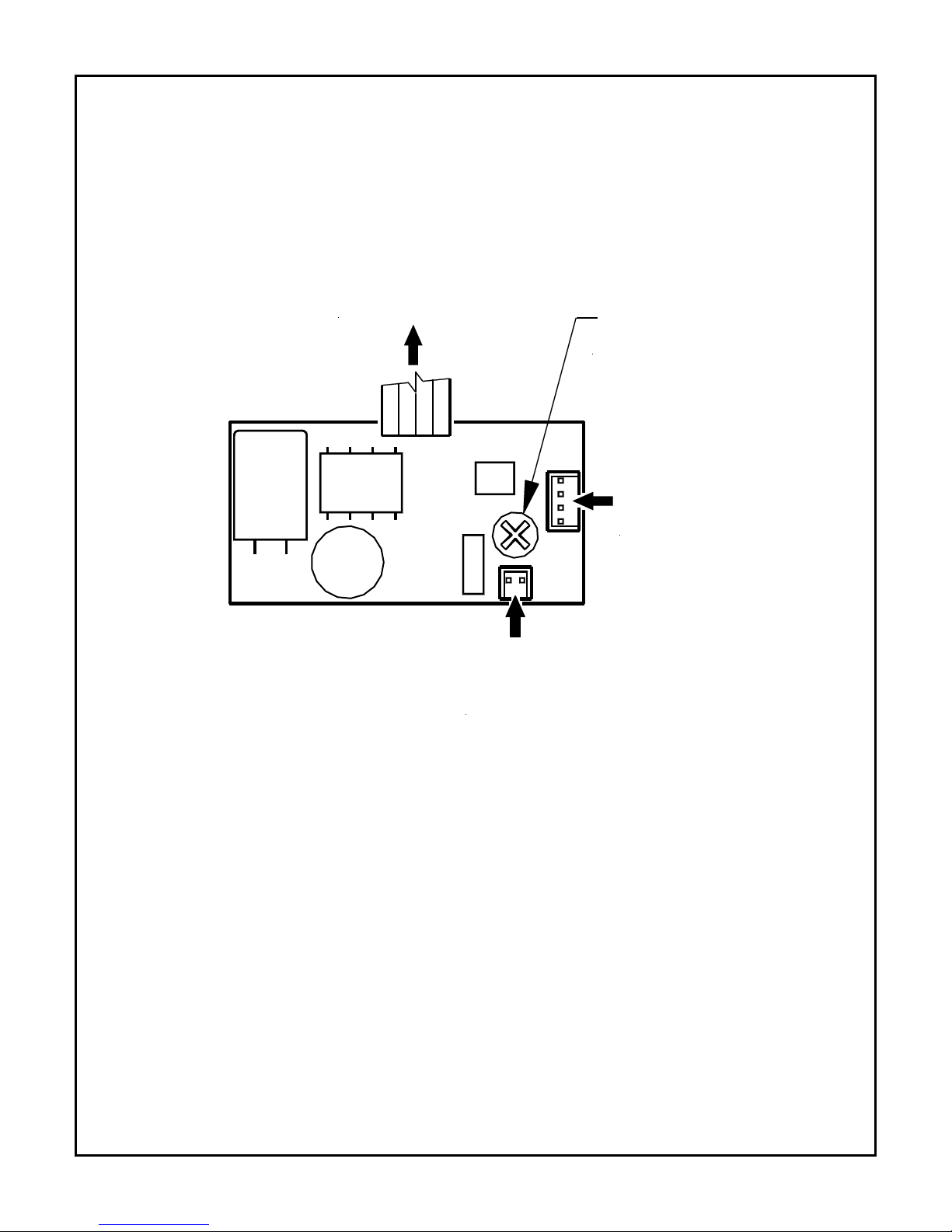

FIGURE 2 – 2
LED Array Power Board
Power
Input
12V
Enable
Power to
LED Array Photocell
Adjustment

9
3. MOUNTING - CAMERA BASE
IMPORTANT MOUNTING INSTRUCTIONS
WARNING: THIS APPARATUS MUST BE SECURELY
ATTACHED TO THE WALL OR CEILING IN
ACCORDANCE WITH INSTALLATION INSTRUCTIONS.
FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS
MAY RESULT IN INJURY
The selected mounting location should not place the
camera in a situation where its environmental
specifications could be exceeded. See page 28.
Caution: Ensure the selected location is protected
from falling objects, accidental contact with moving
objects, and unintentional interference from personnel.
Follow all applicable building codes.
The following installation guidelines
must be followed:
Installation should only be performed by skilled
personnel.
Locate the camera such that it cannot be easily
interfered with, either intentionally or accidentally.
Select a mounting surface capable of supporting
the combined weight of the camera and mounting

10
hardware under all expected conditions of
vibration and temperature or equivalent.
Secure all cabling.
Camera has been evaluated for wall/ceiling
mounting using #8 1¼” long, 12 TPI, wood
screws with Robertson heads secured into a 2x4
stud under ½” drywall
Camera has not been evaluated for safety
requirements using other mounting kits.
The mounting holes are configured for a single-gang
electrical box or a round ceiling electrical box. See
page 27 for the mounting hole diagram. The housing
can also be mounted to any flat surface.
Step 3.1 - Once the mounting location has
been selected, determine if the
video and the power input wires
should enter the housing through
either the side or the bottom. For
ease of re-assembly, this step
should be performed in conjunction
with Section 2, Input Power
Connections.

11
Step 3.2 - For side wiring entry, feed the
power and video cables through a
½ NPT electrical conduit and
connect them as per Figure 3-1 on
page 12. Tighten the conduit into
the side of the base. Seal the wiring
conduit with silicone to prevent
moisture penetration.
Step 3.3 - For bottom wiring entry, feed the
wires through the hole in the base
and connect them as per Figure 3-2
on page 13. Close the side hole with
the supplied ½” NPT plug.
Step 3.4 - Mount the camera base. A mounting
hole template has been provided on
page 27 for this procedure.
Step 3.5 - Seal all holes in the neoprene pad
and around the ½” NPT plug with
silicone to prevent moisture
penetration.

12
Feed all cables through the electrical conduit
and connect them as shown.
NOTE: Make sure the BNC connector and all
other wires are tucked into an area of the
camera base where no damage can occur to
any electrical parts.
FIGURE 3 – 1
Side Entry Wiring Connections
Camera/Lens
and PTT
Assembly are
not shown for
clarit
y
reasons.
BNC Connector
Video
Cable
Electrical
Conduit VRB
Power Input
Cable Power Cable to Camera Board

13
Make sure the cables are not crimped or chafed
when feeding them through the bottom hole.
Close the side entry hole with the ½ NPT plug.
NOTE: Make sure the BNC connector and all
other wires are tucked into an area of the
camera base where no damage can occur to
any electrical parts.
FIGURE 3 - 2
Bottom Entry Wiring Connections
Camera/Lens
and PTT
Assembly are
not shown for
clarity reasons.
BNC Connector
Power Input
Cable
VRB
Video
Cable
Power Cable to Camera Board

14
Note:
Gasket Back Cover - Some products have a paper
backing on the gasket. Please remove it before
installation.
Mounting - It is recommended that the camera be
mounted to a flat non-porous surface for best
results. The mounting holes and the area around
the mounting screws should be sealed with
silicone to prevent water or moisture from
entering into the unit.
Conduits and Connectors - The conduits and
connectors connecting to the housing should be
sealed with silicone to prevent water and
moisture from entering into the unit.
Mountin
g
Hole
Mountin
g
Bolt
Seal area around mounting hole
and bolt with silicone
Housing
Seal conduit/connector
connection with silicone
Conduit/Connecto
r
