Bosch DINION IP starlight 6000 HD User manual

DINION IP starlight 6000 HD
NBN-63013 | NBN-63023
en Installation Manual

Table of contents
1Safety 5
2Short information 6
3System overview 7
3.1 Performance 7
3.2 Using the camera 7
3.2.1 Larger surveillance systems 9
3.3 Application variants 9
4Planning information 10
4.1 Unpacking 10
4.2 Contents 10
5Installation 11
5.1 Lens Mounting 11
5.2 Mounting the camera 12
5.3 Local storage 13
6Connection 14
6.1 Network (and PoE power) 14
6.2 Auxiliary power 15
6.3 Alarm 16
6.4 Audio 17
6.5 Video monitor 18
6.6 Data 19
7Configuration 20
7.1 Setting up the camera 20
7.2 Configuration via web browser 20
7.2.1 Set-up via web browser 21
7.3 Local set-up 22
7.3.1 Using the install wizard 22
7.4 True Day/Night switching 24
7.5 Reset 26
8Troubleshooting 27
8.1 LED error status 27
8.2 Resolving problems 27
8.3 Testing the network connection 31
DINION IP starlight 6000
HD Table of Contents | en 3
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

8.4 Customer service 31
9Maintenance 32
10 Decommissioning 33
11 Technical data 34
4en | Table of Contents DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

Safety
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
1
DINION IP starlight 6000
HD Safety | en 5
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Short information
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
Trademarks
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
http://www.boschsecurity.com/catalog_overview.htm
2
6en | Short information DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

System overview
Performance
This camera provides clear images 24/7 – even at night or under
low-light conditions.
The exceptional starlight sensitivity enables this camera to work
with a minimum of ambient light. The extended dynamic mode
provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions
and provides up to 60 images per second.
There is a selection of high quality lenses separately available.
Using the camera
Use a web browser to access the camera features and to view
the camera streams live. Use the same browser interface to
access and change the camera configuration parameters and
recording/storage functions (including local alarm recording,
and recording to iSCSI-based systems).
Refer to the software manual for more information on the
browser interface.
The web browser is the most direct way of using the camera,
however, the Bosch download store provides several other free
applications (listed below) for viewing and controlling the
camera.
Download store
Download the latest applications and firmware from:
http://downloadstore.boschsecurity.com/
3
3.1
3.2
DINION IP starlight 6000
HD System overview | en 7
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Video Security Client
The Video Security Client is a free, easy-to-use video-surveillance
application provided by Bosch for local and remote monitoring
of IP cameras and appliances. The software supports up to 16
cameras.
Bosch Video Client
The Bosch Video Client is a free Windows application to view,
operate, control, and administer surveillance cameras and
installations at remote locations. It offers a user-friendly
interface for easy live viewing of multiple cameras, playback,
forensic search and export.
IP Helper
The IP Helper tool is a free PC application that makes it easy to
detect Bosch cameras and devices on your network.
Video security app
The Bosch video security mobile app has been developed to
enable Anywhere access to HD surveillance images allowing you
to view live images from any location. The app is designed to
give you complete control of all your cameras, from panning and
tilting to zoom and focus functions. It’s like taking your control
room with you.
This app, together with the separately available Bosch
transcoder, will allow you to fully utilize our dynamic
transcoding features so you can play back images even over low-
bandwidth connections.
8en | System overview DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

Larger surveillance systems
Bosch Video Management System
The Bosch Video Management System is a unique enterprise IP
video surveillance solution that provides seamless management
of digital video, audio and data across any IP network. It is
designed to work with Bosch security products as part of a total
video surveillance management system.
Third-party integration
Third-party integrators can easily access the internal feature set
of the camera for integration into large projects. Access to
metadata is available to integrators via RTSP.
When connected to external systems, many of the camera
configuration parameters are controlled by the system and not
by the settings made via a web browser.
Application variants
The camera has a choice of application variants that set up the
camera for optimum performance in a specific environment.
Select the application variant best suited to your installation.
The application variant must be selected before any other
changes are made, as the camera reboots automatically and
resets the factory defaults when the application variant is
changed.
This camera has the following application variants:
– Starlight mode (default) – to continue viewing in color at
very low light levels
– Extended Dynamic mode - simultaneously see details in
very bright and very dark objects in the same scene
3.2.1
3.3
DINION IP starlight 6000
HD System overview | en 9
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Planning information
Unpacking
This equipment should be unpacked and handled with care. If an
item appears to have been damaged in shipment, notify the
shipper immediately.
Verify that all parts are included. If any items are missing, notify
your Bosch Security Systems Sales or Customer Service
Representative.
The original packaging is the safest container in which to
transport the unit and can be used if returning the unit for
service.
Contents
Qty Component
1 DINION camera
1 Sensor protection cap (mounted on camera)
1 Power connector (2 Pins)
1 Data/Alarm connector (12 Pins)
1 Installation Guide
1 Identification label sheet
1 C/CS mount adapter ring for mounting a lens with a C-
mount
4
4.1
4.2
10 en | Planning information DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

Installation

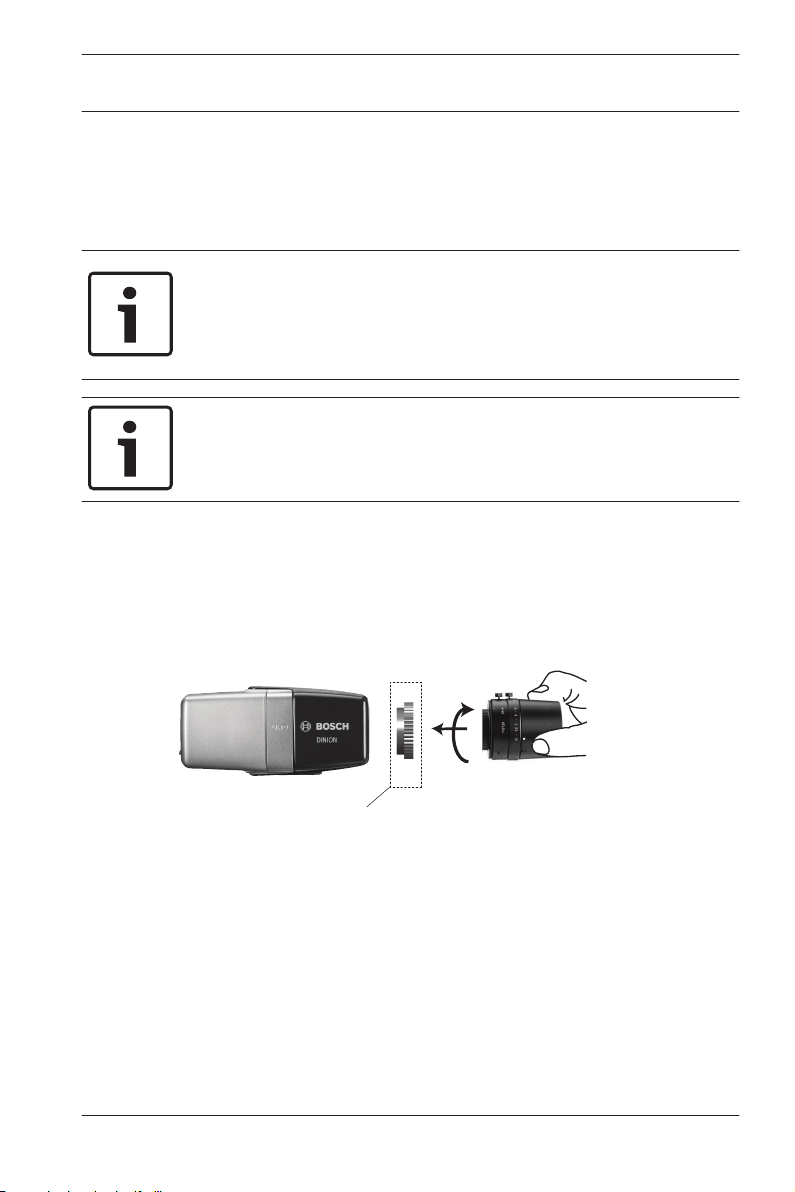

Lens Mounting
Notice!
Optical elements are sensitive and should be protected at all
times. Do not allow objects to come into contact with glass
surfaces and do not touch optical elements with your fingers.
Notice!
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
1. Remove the sensor protection cap from the camera (if
present).
2. Screw the lens onto the camera using the CS or C‑mount
(use the supplied adapter ring to attach a C-mount lens).
C/CS
adapter
Plug the lens connector into the camera (it automatically
detects the type of lens).
5
5.1
DINION IP starlight 6000
HD Installation | en 11
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

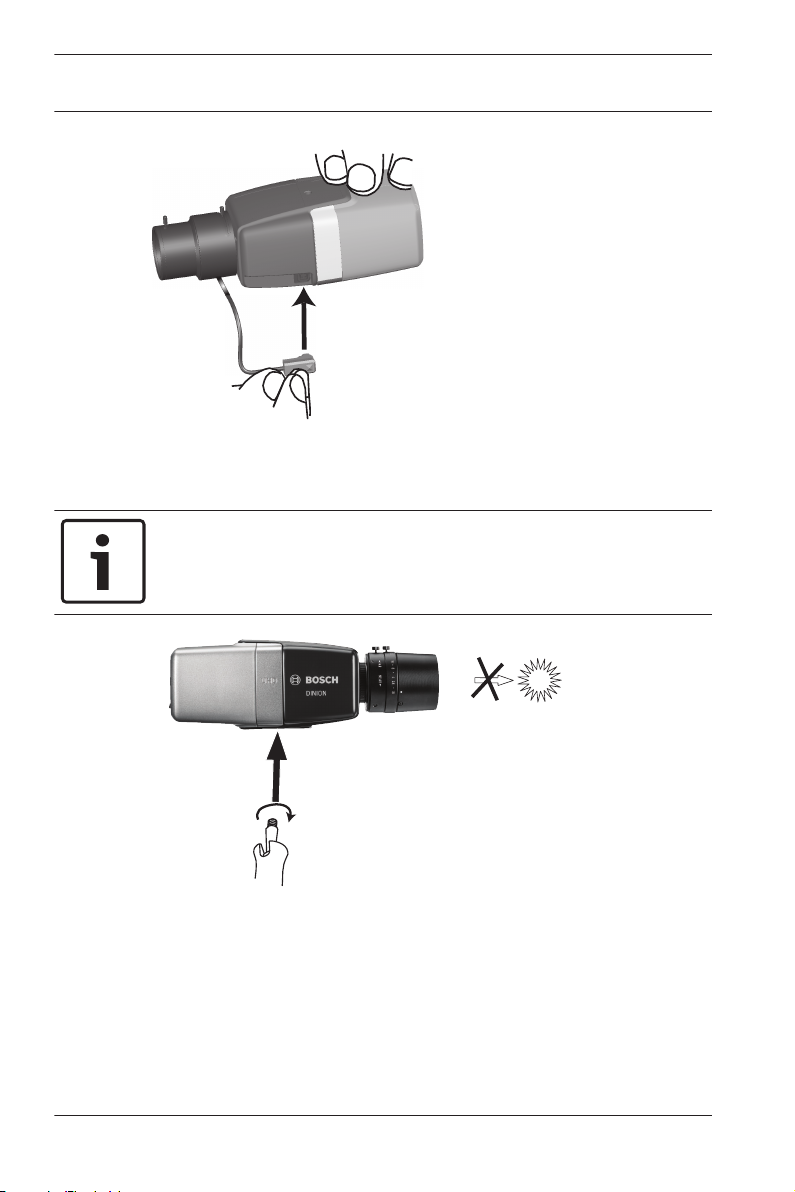

Mounting the camera
Notice!
Do not expose the image sensors to direct sunlight.
Do not obstruct the free flow of air around the camera.
1/4”-20 UNC
The camera can be mounted either from the top or from the
bottom (1/4" 20 UNC thread).
5.2
12 en | Installation DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

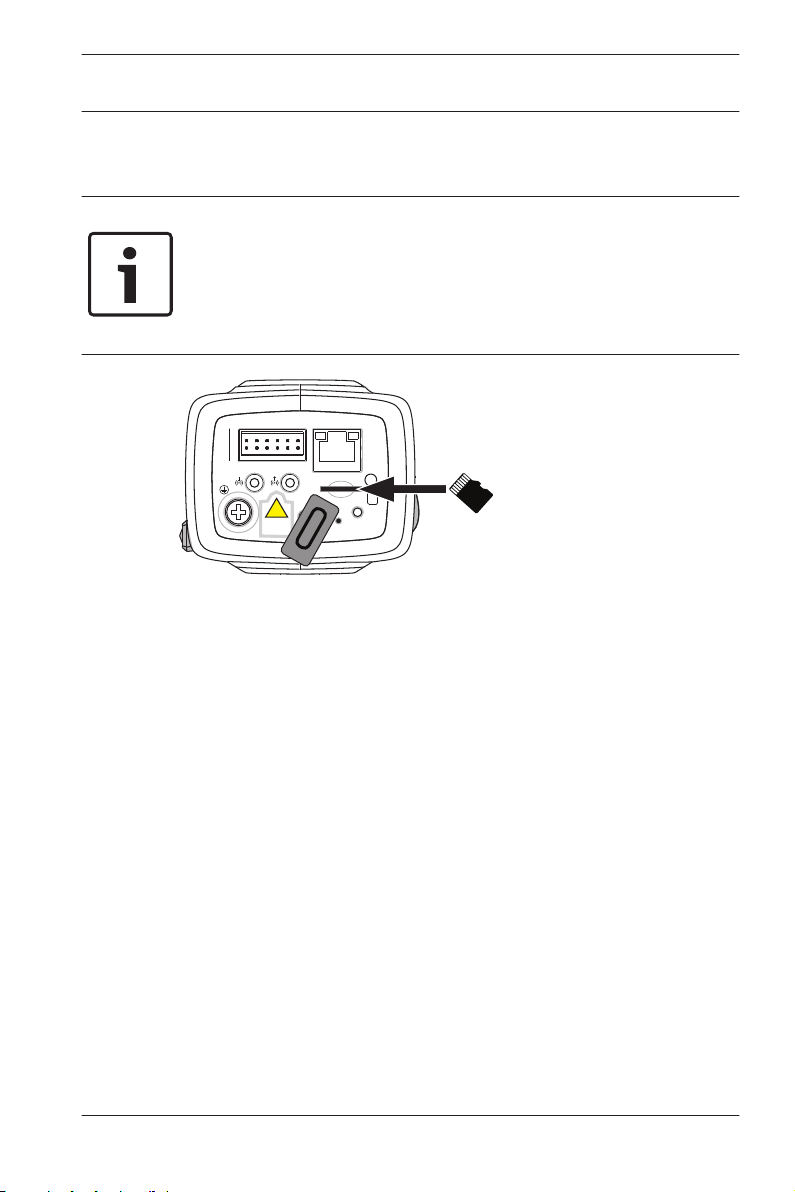

Local storage
Notice!
Local storage on memory cards should only be used for alarm
recording. To minimize the risk of losing information, use
multiple, redundant recording systems and a procedure to back
up all digital information.
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
INSTALL
24VAC
MENU
SD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
CVBS
!!
!
12VDC
only
1. Unscrew the card slot cover.
2. Slide the memory card into the slot until it locks in place.
3. Screw the cover into place to seal the slot.
5.3
DINION IP starlight 6000
HD Installation | en 13
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Connection
Notice!
Use proper surge suppression on network/video/power/audio/
data/alarm cables that are routed outdoors, or close to large
inductive loads or electrical mains supply cables.
Network (and PoE power)
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
SD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
Ethernet (PoE)
STP Cat 5e
RJ45
!
12VDC
only
Connect the camera to a 10/100 Base-T network:
– Use STP Category 5e cable with RJ45 connectors (the
camera network socket is Auto MDIX compliant).
– Power can be supplied to the camera via the Ethernet cable
compliant with the Power-over-Ethernet standard.
The LEDs beside the Ethernet connection indicate network
connection (green lit) and IP traffic (orange flashing).
Notice!
Use only PoE approved devices.
Power-over-Ethernet can be connected at the same time as a
12 VDC power supply. If auxiliary power (12 VDC) and PoE is
applied simultaneously, the camera selects PoE and shuts off
the auxiliary input.
6
6.1
14 en | Connection DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

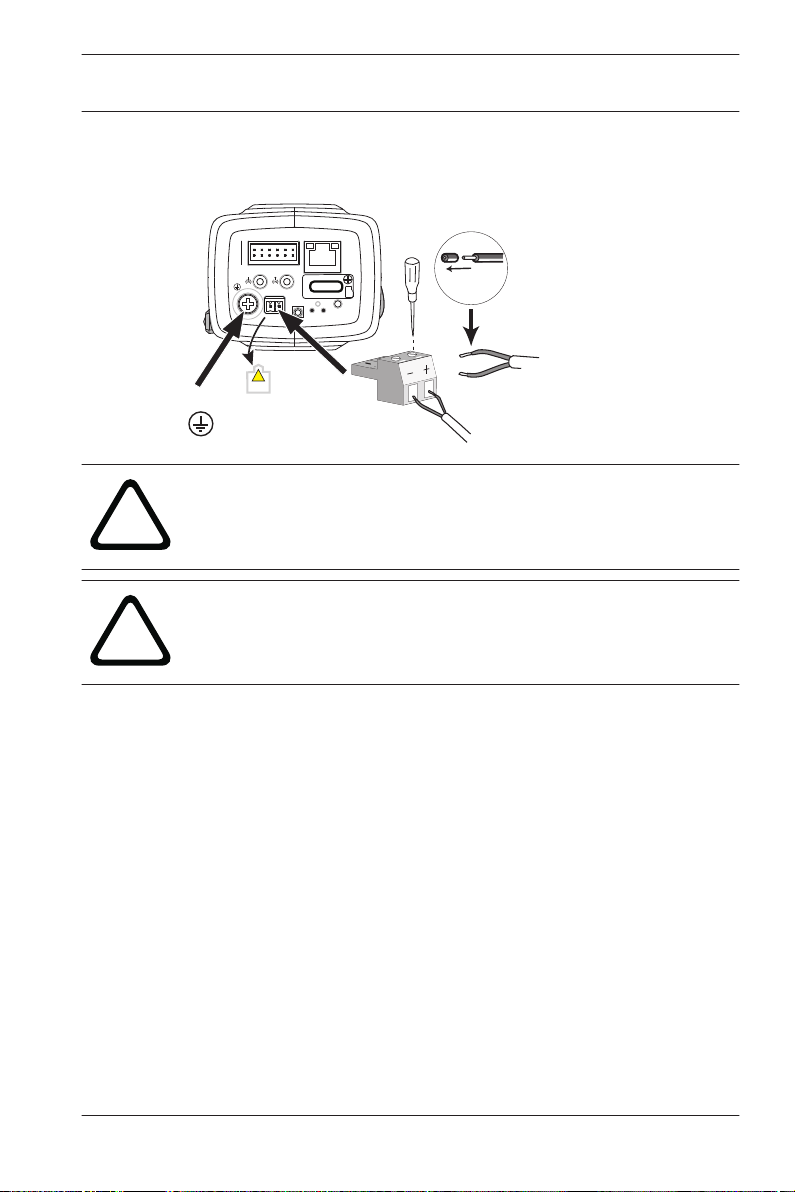

Auxiliary power
7 mm
4 5 6 4 5 6
1 2 3 1 2 3
|
|
- +
CVBS
MENU
µSD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
Earth
!!
!
12VDC
only
!
Caution!
Use only a +12 VDC power supply for auxiliary power, and
check this supply complies with EN/UL 60950.
!
Caution!
Ensure the output from the power supply is isolated from earth.
The camera is originally supplied with a warning sticker over the
12VDC connections on the back of the camera (stating that only
a 12VDC power supply may be used). Always first peel off this
sticker before connecting power wires.
Connect an approved power supply unit with a rated supply
voltage of 12 VDC as follows:
1. Strip back 7 mm (0.28 in) of insulation on the power supply
cable; must be 14-30 AWG (stranded wire) or 16-28 AWG
(solid wire).
2. Loosen the screws of the supplied 2-pole connector and
insert the stripped wires, then tighten the screws again.
3. Insert the 2-pole connector into the camera power socket.
6.2
DINION IP starlight 6000
HD Connection | en 15
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

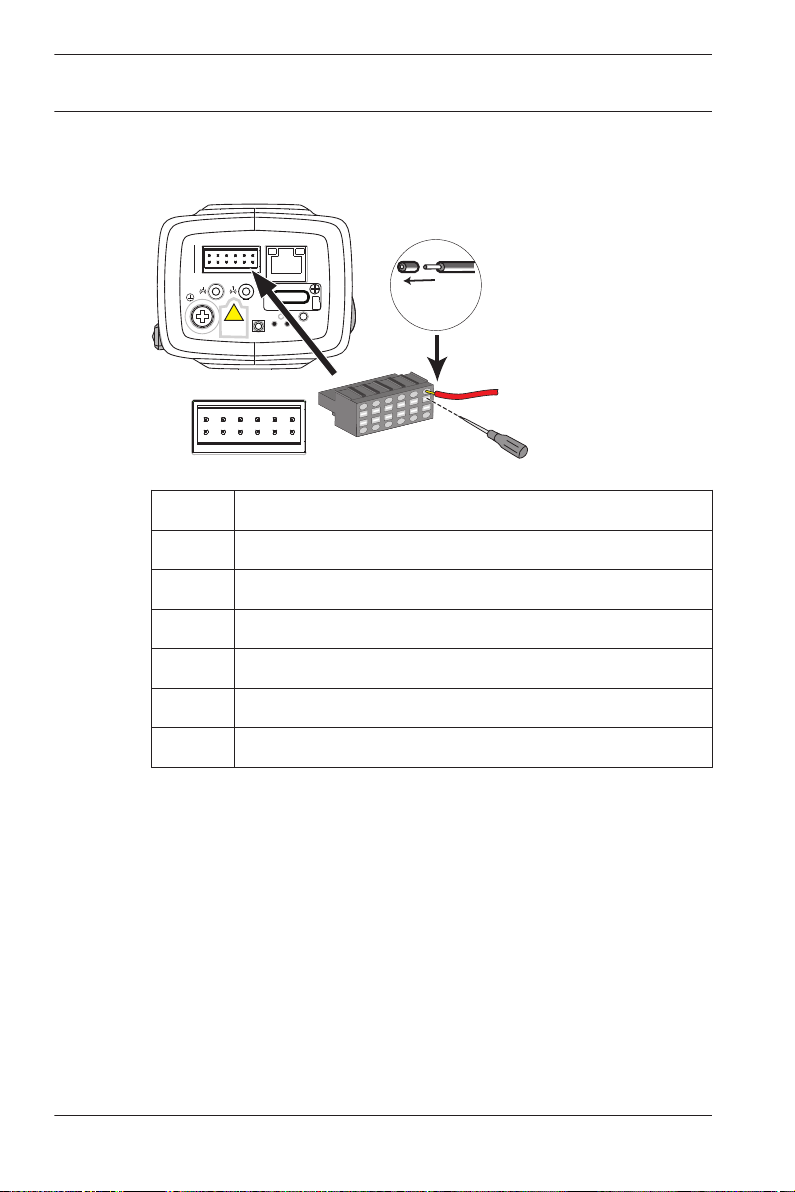

Alarm
7 mm
(0.28 in)
Alarm
4 5 6
1 2 3
|
|
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
µSD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
!
12VDC
only
Pin Alarm socket
1 Alarm in 1
2 Alarm in 2
3 Alarm out contact 1
4 Ground
5 Ground
6 Alarm out contact 2
The maximum wire diameter is AWG 18-28 (CSA) or AWG 16-28
(UL); cut back 7 mm (0.28 in) of insulation.
Alarm out
Use the alarm output for switching external devices such as
lamps or sirens.
Alarm output switching capability:
– Max. voltage 30 VAC or +40 VDC. Max. 0.5 A continuous,
10 VA.
Alarm in:
Use the alarm input to connect external alarm devices such as
door contacts or sensors:
6.3
16 en | Connection DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

– TTL logic, +5 V nominal, +40 VDC max, DC coupled with
50 kOhm pull-up to +3.3 V.
– Configurable as active low or active high.
A zero potential make-contact or switch can be used as the
actuator (use a bounce-free contact system).
Note:
If IR illumination is used, the alarm interface provides a stable
switching control of the day/night function of the camera.
Audio
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
SD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
!
12VDC
only
Line
GND
Line in: 12 kOhm typ.
1 Vrms
Line out: 1.5 kOhm min.
1 Vrms
Connect audio devices to the Audio In and Audio Out
connectors.
The unit has full-duplex mono audio for two-way communication
between a speaker or door intercom system. The audio input
signal is transmitted in sync. with the video signal.
Audio input: Line input level (not suitable for direct microphone
signal); impedance 18 kOhm typical; 1 Vrms maximum input
voltage.
Audio output: Line output level (not suitable for direct speaker
connection); impedance 1.5 kOhm minimum; 0.85 Vrms
maximum output voltage.
6.4
DINION IP starlight 6000
HD Connection | en 17
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Video monitor
CVBS
NBN-MCSMB
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
SD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
!
12VDC
only
Use the SMB video connector (CVBS) to connect an analog
monitor for setting up the camera:
– To connect a monitor, use the optional 3 m cable (NBN-
MCSMB-30M) to connect directly to the CVBS connector of
a monitor.
– To connect to a coax cable, use the optional 0.3 m cable
(NBN-MCSMB-03M).
6.5
18 en | Connection DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems

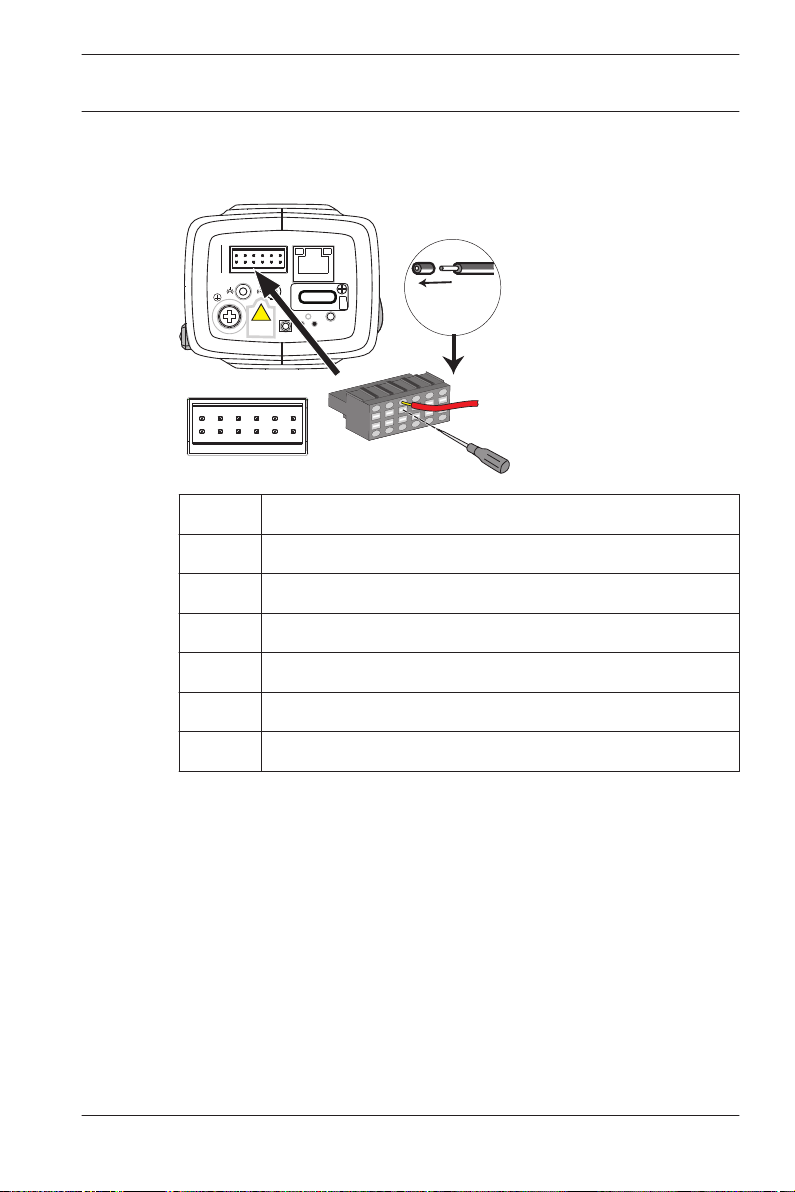

Data
7 mm
(0.28 in)
Data
4 5 6
1 2 3
|
|
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
CVBS
24VAC
MENU
µSD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
!
12VDC
only
Pin Data socket
1 Ground
2 RxD / Rx+
3 Rx-
4 Ground
5 TxD / Tx-
6 Tx+
The maximum wire diameter is AWG 18-28 (CSA) or AWG 16-28
(UL); cut back 7 mm (0.28 in) of insulation.
Use the data connector to connect to an external device for
sending control data from the camera to the external device.
This data connection supports RS485, RS422, and RS232.
6.6
DINION IP starlight 6000
HD Connection | en 19
Bosch Security Systems 2016.06 | v1.0 | AM18-Q0705

Configuration
Setting up the camera
Configure the settings (such as application variant, focus and
picture orientation) using one of the following methods:
– Locally using the Menu button on the camera to step
through the basic camera settings.
– Via a web browser; this method also enables you to change
other camera parameters.
Notice!
Changing the application variant overwrites your camera
settings with the factory defaults.
Note:
The Menu button on the camera is used for camera settings in
the application variants “Starlight mode” (default) and “Starlight
mode 1.3 MP”. In other application variants, pressing Menu will
only switch the analog output on/off; use the web browser to
set up camera settings (focus, zoom, etc.) for these variants.
Configuration via web browser
The unit must have a valid IP address and a compatible subnet
mask to operate on your network. By default, DHCP is pre-set at
the factory to On and so your DHCP server assigns an IP
address. With no DHCP server the default address is
192.168.0.1
To view the camera in your web browser:
1. Start the Web browser.
2. Enter the IP address of the unit as the URL.
3. During initial installation, confirm any security questions
that appear.
Note:
7
7.1
7.2
20 en | Configuration DINION IP starlight 6000
HD
2016.06 | v1.0 | AM18-Q0705 Bosch Security Systems
