FlexiDomeVF | User Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 3
SAFETY PRECAUTIONS
Important Safeguards
1. Read these instructions.
2. Keep these instructions.
3. Comply with all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other equipment (including amplifiers) that produce heat.
Danger
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's enclosure
that may be of sufficient magnitude to constitute a risk to persons.
Warning
The exclamation mark within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Caution
To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.

FlexiDomeVF | User Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 4
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. Both
the wide blade and the third prong are provided for your safety. If the
supplied plug does not fit into your outlet, consult an electrician for
advice.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
equipment.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this equipment during lightning storms or when unused for
long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required
when the equipment has been damaged in any way, such as when
power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the equipment, the equipment has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
14. An all-pole mains switch with a contact separation of at least 3mm in
each pole shall be incorporated in the electrical installation of the
building.
Warning
To reduce the risk of fire or electric shock, this apparatus should
not be exposed to rain or moisture and objects filled with liquids,
such as vases, should not be placed on this apparatus.
Caution
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).

FlexiDomeVF | User Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 5
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Note
Any change or modification of the equipment not expressly approved by
Bosch could void the user's authority to operate the equipment. For
additional information or to speak to a representative, please contact the
Bosch Security Systems location nearest to you or visit our web site at
www.boschsecuritysystems.com

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 6
Introduction
The FlexiDomeVF camera is a small, discreet, surveillance dome camera
containing a high-performance 1/3-inch CCD camera with integral
varifocal lens. The integrated unit is mounted to an electrical box or to a
wall or ceiling. The sturdy construction of the enclosure and polycarbon
dome protect the camera module from damage.
The camera incorporates advanced digital signal processing for
outstanding picture performance under all lighting conditions. The
FlexiDomeVF camera is easy to install and ready to use, and offers the best
solution for demanding indoor scene conditions.
Features include:
• Polycarbonate dome
• 540 TVL resolution for color cameras
•NightSense™
• On-screen setup menu
• Bilinx™ bi-directional coaxial communications
The FlexiDomeVF camera is available in color and monochrome versions.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 7
Type number overview
FlexiDomeVF Monochrome
FlexiDomeVF Color
Unpacking
Unpack carefully and handle the equipment with care. The packaging
contains:
• Integrated FlexiDome camera
• Mounting hardware kit
• Installation manual
Note
If equipment appears to have been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
Type number VDM-
345V03-10
VDM-
345V04-10
VDM-
345V03-20
VDM-
345V04-20
Lens Varifocal
2.6-6 mm
F1.4-360
Varifocal
4-9 mm
F1.6-360
Varifocal
2.6-6 mm
F1.4-360
Varifocal
4-9 mm
F1.6-360
Standard CCIR EIA
Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc
CCD type 1/3"
Type number VDC-
445V03-10
VDC-
445V04-10
VDC-
445V03-20
VDC-
445V04-20
Lens Varifocal
2.6-6 mm
F1.4-360
Varifocal
4-9 mm
F1.6-360
Varifocal
2.6-6 mm
F1.4-360
Varifocal
4-9 mm
F1.6-360
Standard Color PAL Color NTSC
Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc
CCD format 1/3"

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 8
Disassembly

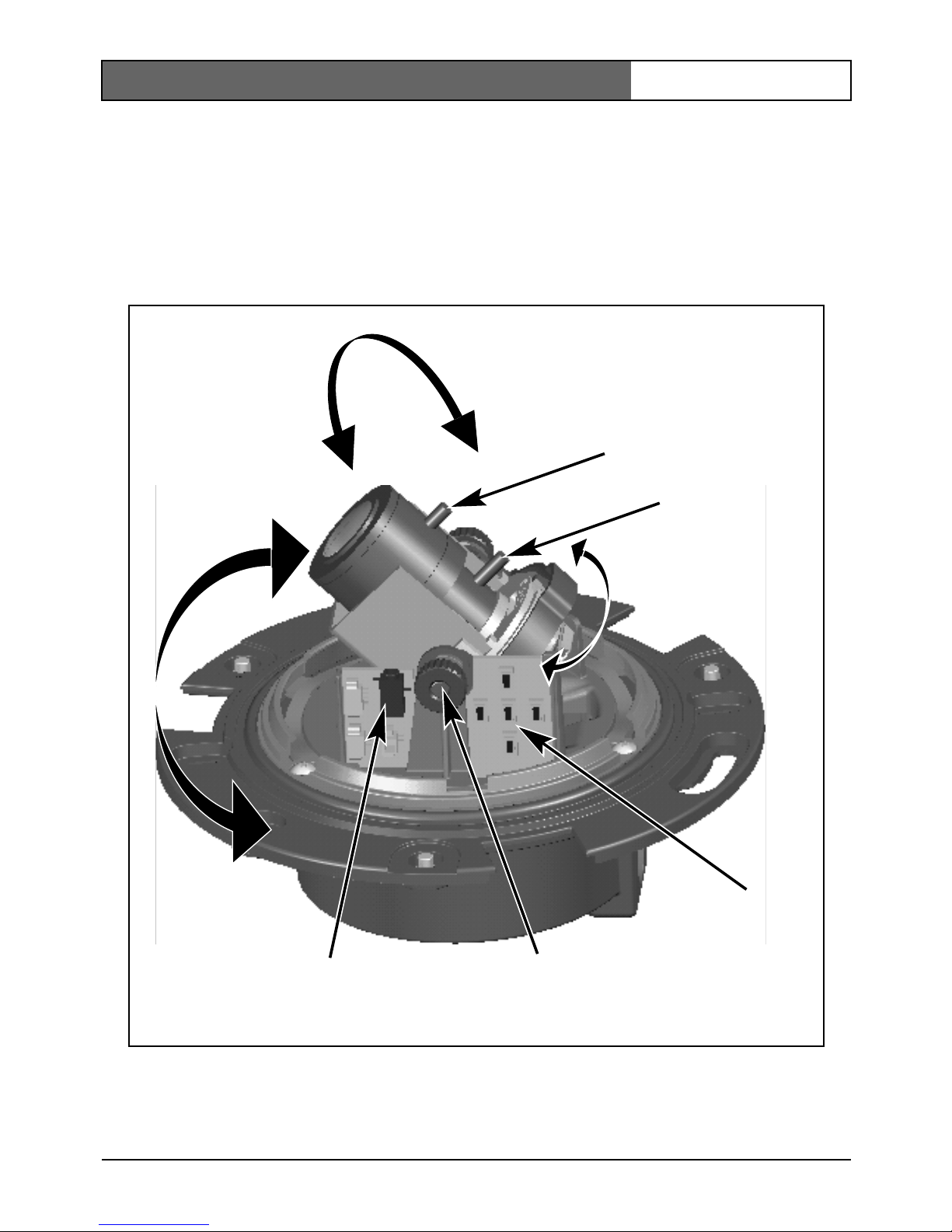

The camera/housing unit consists of the following parts:
To disasemble the unit proceed as follows:
• Rotate the trim ring counterclockwise to release it from its bayonet on
the camera base.
• Remove the trim ring with dome.
• Remove the inner liner by pulling it off of the base.
Caution
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
Caution
The camera module is a sensitive device and must be handled
carefully. Do not drop when disassembling the unit.
Camera module and
mounting base
Inner liner
Trim ring
Dome

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 9
Mounting the unit
The unit may be mounted in several different ways depending on the type
of surface, whether an electrical box is used and whether the connection is
via the rear or the side (surface mounted).
If the unit is surface mounted, use the separately available surface
mounting box (VDA-445SMB) and mount the unit onto this base.
Tips
• Refer to the dimensions drawing to find the exact position of the screw
holes and the entry hole for the wires.
• Partially screw in two screws for the keyholes and use them to
temporarily hang the camera while the connections are made.
The following figures show the different ways of mounting the unit.
Figure 1 Rear connection - hollow surface
Caution
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
Wires
Strong surface
(three pre-drilled
8mm holes)
Three screws
(supplied)
Mounting
base

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 10
Figure 2 Connection to an electrical box (4S)
Figure 3 Surface mounting - side connection
S4 Electrical box
Two screws
(not supplied)
Mounting
base
Wires
Three screws
(M5, supplied)
Raised
mounting base
(VDA-445SMB)
Conduit
Three screws
(supplied with
camera)
Camera unit
and base
Solid surface
(three pre-drilled
8mm holes)

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 11
Figure 4 Surface mounting - rear connection
Raised mounting
When using the surface mounting box:
• With a side connection, remove the cap covering the side entrance.
With a rear connection, leave the cap in place.
• Attach the conduit to the mounting base.
• Make the connection inside the mounting case.
Cap
Three screws
(M5, supplied)
Surface
mounting box
(VDA-445SMB)
Conduit
Three screws
(supplied with
camera)
Camera unit
and base
Solid surface
(three pre-drilled
8mm holes)
Wires

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 12
Connection and set-up
Power and video connections
The wiring harness has a BNC connector to accept the video coax cable
(with male BNC connector) and two stripped low voltage power wires for
connection to a power connector. (A UTP adapter is available as an
accessory to allow a UTP video cable to be connected to the BNC
connector.)
The easiest way to connect the low voltage power lines and the video
connection is as follows:
• Bring the building connections through the surface wire hole so that
they hang clear.
• Partially insert two screws into the pre-drilled holes.
• Using the keyholes, hang the mounting base on one screw temporarily
and tilt the base slightly to gain access to the cable connections.
• Connect the BNC connector of the camera module to the video coax
cable.
• Connect the stripped power wires to the power supply connector.
Note
For a DC supply the polarity is not important. For an AC supply try to
maintain a consistent wiring polarity in multiple camera systems to help
avoid rolling when switching.
• Push the connections back through the surface wire hole.
• Secure the mounting base to the surface with three screws.
Caution
Before proceeding, be sure to disconnect the power from the
cable to be installed into the unit. Be sure that the unit is of the
proper voltage type for the line power being used.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 13
Setting up the camera
You can connect a monitor to the miniature 2.5mm jack socket on the
printed circuit board to help set up the camera. This socket provides a
composite video signal (with sync). An optional cable (code number
S1460) is available for making this connection.
Thumbwheels
Monitor jack
Navigation
switches
Focus
Focal length

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 14
Camera positioning
The physical default position of the camera is that the top of the image
corresponds to the indication TOP.
The camera module position can be adjusted along three axes. When
adjusting the camera position ensure that the picture display on the
monitor is level. Set the camera to the desired position by performing the
following steps:
• For horizontal adjustment (pan), rotate the camera module in the base.
Do not rotate more than 360°.
• For vertical adjustment (tilt), loosen thumbscrews, position camera,
then gently tighten thumbscrews to secure camera.
• To obtain a horizontal horizon (for tilted ceilings or sidewall
mounting), rotate the base of the lens as necessary to align the picture
shown on the monitor. Do not rotate more than 340°.
Focal length and focus
• To set the field of view of the varifocal lens, loosen the focal length
screw and turn the mechanism until the required view is displayed on
the monitor. (Image goes out of focus.)
• Focus the image on the monitor by loosening the focus screw and
turning the mechanism until the image is in focus.
• Readjust the focal length if necessary.
• Repeat these two adjustments until the desired view is in focus.
• Tighten both screws.
Verify that the image stays in focus when the dome is held in place.
Refocus if necessary.
Caution
The CCD image sensors are highly sensitive and require special
care for proper performance and extended lifetime. Do not expose
them to direct sunlight or bright spotlights in operating and non-
operating conditions. Avoid bright lights in the field of view of the
camera.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 15
Closing the unit
When the camera position is set and all adjustments have been made, close
the unit.
• Place the inner liner in position aligning its fin with the bracket on the
base.
• Place the trim ring with dome onto the base. (If necessary clean its
surface with a soft cloth.)
• Fix the trim ring onto the camera base by rotating clockwise.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 16
Advanced Set-up
The FlexiDomeVF normally provides an optimal picture without the need
for further adjustments. However, advanced set-up options are available for
getting the best results from the camera under special circumstances. There
are two menus; a Main menu and an Installer menu.
The Main menu allows you to select and set-up the picture enhancement
functions for each mode. If you are not happy with your changes, you can
always recall the default values for the mode.
The camera also has an Installer menu in which the installation settings
can be set.
The Main and Installer menus have functions that can be selected directly
or submenus for more detailed set-up.
Accessing and navigating menus
Five keys are used for navigating through the various menus. To access the
set-up menus, press the menu/select key (center). The main menu appears
on the OSD. Use the arrow keys for navigation.
When the Bilinx™ communications link is active, the buttons on the
camera are disabled. You can also set up Bilinx™ so that the camera
buttons remain disabled even when Bilinx™ is not actively controlling the
camera. This prevents unauthorized change of the camera settings.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 17
Menu Structure
* Only for the Color version of the camera.
Main menu
Level
Shut/AGC
BLC
Color
Sync
Vphase
Exit
Shut/AGC
Shutter
AGC
Auto black
NightSense*
COLOR*
White balance
R-gain
B-gain
Installer
Set focus now
Comm
Defaults
Exit
Defaults
Restore all?

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 18
Hints for menu navigation
How to use the 5 keys
• Press the menu/select key to access the menus or to move to the next
or previous menu.
• Press the menu/select key for approximately 1.5 seconds to open the
Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set parameters.
• When in a menu, quickly pressing the menu/select key twice restores
the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item and
hold down the menu/select key until the menu display disappears.
Menu/select key
Right key
Down key
Up key
Left key
Camera
base

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 19
Main menu
* Only in color version of camera. If a color camera is in monochrome
mode, all color related menu items are disabled and cannot be accessed.
Shutter/AGC submenu
Function Selection Description
LEVEL -15 - 0 - +15 Adjusts the video output level
SHUT/AGC Select submenu Select to access the Shutter / Automatic Gain
Control menu
BLC ON, OFF When ON, the video level is optimized for the
selected area of the image. Parts outside this area
may be underexposed or overexposed (this is
normal).
COLOR* ATW
ATB HOLD
Select submenu
Select to access the color menu.
SYNC LINE LOCK
INTERNAL
Select LINE LOCK to synchronize with the power
supply frequency. Select INTERNAL for use with
internal synchronization (automatically selected
with DC supply).
VPHASE 0, 2, … 358° Adjusts the vertical phase offset (when in LINE
LOCK mode and a valid power supply frequency
is detected).
EXIT Exit the menu
Function Selection Description
SHUTTER AES, FL • AES - auto-shutter - the camera automatically
sets the optimum shutter speed
•FL - flickerless mode avoids interference from
light sources (recommended for use with video
iris or DC iris lenses only)
AGC ON/OFF Automatic gain control
AUTOBLACK ON/OFF Autoblack automatically increases the visibility of
details.

FlexiDomeVF | Installation Manual
Bosch Security Systems | 2005-11 | V1.0
EN | 20
* Only in color version of camera.
Note
If NightSense™ is active, some noise or spots may appear in the picture.
This is normal camera behavior.
If a color camera is in monochrome mode, all color related menu items are
disabled and cannot be accessed.
Color submenu*
* Only in color version of camera.
** It is only necessary to change the white point offset for special scene
conditions.
NIGHTSENSE* AUTO
FORCED
OFF
Nightsense™ extends the low-light performance
of the camera.
•In AUTO mode, the camera automatically inches
to monochrome in low-light conditions.
•In FORCED mode, the camera remains in high-
sensitivity monochrome operation.
EXIT Exit the menu
Function Selection Description
WHITE
BALANCE
ATW
AWB HOLD
•ATW: Auto tracking white balance allows the
camera to constantly adjust for optimal color
reproduction.
•AWB HOLD: Puts the ATW on hold and saves
the color settings.
RED gain** -5 - 0 - +5 Offset factory white point alignment (reducing red
introduces more cyan).
BLUE gain** -5 - 0 - +5 Offset factory white point alignment (reducing
blue introduces more yellow).
EXIT Exit the menu
