Bosch BBH3 Series User manual

1
Register your
new device on
MyBosch now and
get free benefits:
bosch-home.com/
welcome
BBH3.../BCH3...
[en] Instruction manual 12
[zf] 15
用說使書

2
1
2
19
20
8
3
4
6
5
7
9
10
11
12
15
16
18
17
14
13

3
2
1
1
21
1
2
5
1
2
1
3
4
2

4
Click!
11
6
2
1
1
Click!
2
1
10
9
8
7
Click!

5
13
Click!
b
15 a b
14 a
12
1
16 a
b
24h
16 c
13

6
17
17
1
2
Click!

7
en Safety information ............................................................................................................................. 8
Your vacuumcleaner........................................................................................................................ 12
zf 安全信息 ......................................................................................................................................... 10
您的吸塵機...................................................................................................................................... 15

8
reduced physical,sensory or
mental capacity or by per-
sons with a lack of experi-
enceor knowledgeif they
aresupervised or havebeen
instructed on thesafeuseof
theapplianceand haveun-
derstood thepotential dan-
gers of using theappliance.
Children must never play
with theappliance.
Cleaning and user mainte-
nancemust never becarried
out by children without su-
pervision.
Plastic bags and films must
bekept out of thereach of
children and disposed of.
>= Thereis a risk of suffoca-
tion.
Proper use
To charge, only usethecharging cableincluded in the
scopeof supply.
Thecharging cablemust only beconnected and oper-
ated as specified on therating plate.
Theappliancemust only bestored and charged in-
doors.
Do not exposetheapplianceto temperatures below
0 °Cor above40 °C.
Never vacuumwithout thedust bag or dust container,
motor protection or exhaust filter.
>= This may damagethevacuumcleaner.
Keep thevacuumcleaner away fromyour head when
using nozzles and tubes. => This could causeinjury.
Do not usea damaged charging cable. Replaceit with
an original charging cable.
When disconnecting thecharging cablefromthe
mains,pull theplug itself to removeit; do not pull on
thepower cord.
Do not pull thecharging cableover sharp edges or
allow it to become trapped.
Beforecarrying out any work on thevacuumcleaner,
switch off theapplianceand disconnect it fromthe
charging cableand themains.
Do not operatethevacuumcleaner if it is damaged.
If a fault is detected,switch off theapplianceand dis-
connect it fromthecharging cableand themains.
For safety reasons,only authorised after-sales service
personnel arepermitted to carry out repairs and fit
replacement parts to thevacuumcleaner.
Pleasekeep this instruction manual for futurerefer-
ence.
When passing thevacuumcleaner on to a third party,
pleasealso pass on this instruction manual.
Intended use
Pleaseread theinformation on intended useto ensure
that you usetheappliancecorrectly and safely.
Only use thisappliance:
As specified in this instruction manual.
With genuineparts and accessories. Damagecaused
by using third-party products is not covered under the
warranty.
For cleaning surfaces.
In privatehouseholds and in enclosed spaces in a do-
mestic environment at roomtemperature.
Up to an altitudeof max. 2000 mabovesea level.
In order to prevent injuriesand damage, the vacuum
cleaner must not be used for:
Vacuuming persons or animals.
Vacuuming up:
− Hazardous,sharp-edged,hot or red-hot substances.
−Damp or liquid substances.
− Highly flammableor explosivesubstances and
gases.
− Ash,soot fromtiled stoves and central heating
systems.
−Toner dust fromprinters and copiers.
Spare parts, accessories
Our original spareparts and original (special) acces-
sories aredesigned to work with thefeatures and
requirements of our vacuumcleaners. Wetherefore
recommend that you only useour original spareparts
and original (special) accessories. This will ensurethat
your vacuumcleaner has a long servicelifeand that the
quality of its cleaning performancewill remain consist-
ently high throughout.
!Please note:
Using unsuitableor inferior-quality spareparts and
(special) accessories can damageyour vacuum
cleaner. Damagecaused by theuseof such products
is not covered by our guarantee.
Safety information
This vacuumcleaner complies
with therecognised rules of
technology and therelevant
safety regulations.
Theappliancemay beused
by children over theageof
8 years and by persons with
en

9
In thefollowing cases,you must stop theappliance
immediately and contact theafter-sales service:
− If you haveaccidentally vacuumed up some liquid
or liquid has entered theinsideof theappliance;
− If theappliancehas been dropped and damaged.
Protect thevacuumcleaner fromoutsideweather con-
ditions,moistureand sources of heat.
Do not pour flammablesubstances or substances con-
taining alcohol onto thefilters (motor protection filter,
exhaust filter,etc.).
Thevacuumcleaner is not suitablefor useon con-
struction sites. => Vacuuming up building rubblemay
damagetheappliance.
Switch off theappliancewhen it is not in use.
For safety reasons,theapplianceis fitted with an over-
heating protection system to safeguard thebattery
and motors. Theappliancewill switch off automati-
cally if it or thebattery is too hot.
>=Theappliancewill need around 30 minutes to cool
down beforeit can beused again.
Thepackaging is designed to protect thevacuum
cleaner frombeing damaged during transportation.
Wethereforerecommend keeping thepackaging for
thepurposeof futuretransportation.
Li-ion batteries
Read all thesafety information and instructions.
>= Failureto act in accordancewith thesafety
information and instructions may result in electric
shock,fireand/or serious injury.
Keep all thesafety information and instructions for
futurereference.
Protect thebattery fromheat sources,for example
avoiding long periods in thesun and exposureto fire,
as well as fromwater and moisture.
>= Risk of explosion.
Fumes may bereleased if thebattery is damaged or
used improperly. Circulatefresh air,and seek medical
assistancein theevent of physical symptoms arising
as a result of exposure.
>=Thefumes may irritatetheairway.
If thebattery is used incorrectly,liquid may leak out of
thebattery. Avoid touching theliquid. In theevent of
accidental contact,rinsetheaffected area with water.
If theliquid comes into contact with theeyes,seek
medical assistance.
>= If battery liquid leaks,it can irritateor burn the
skin.
Transportation information
TheLi-ion batteries in theappliancearesubject to the
requirements of dangerous goods legislation. Thebat-
teries can betransported by theuser by road without
any further requirements. In theevent that they are
shipped by a third party (e.g. transported by air or
freight carrier),special requirements regarding packag-
ing and identification must bemet. In this case, a dan-
gerous goods expert must beconsulted when preparing
thegoods for dispatch.
Information on disposal
Vacuumcleaners,batteries,accessories and packag-
ing should berecycled in an environmentally friendly
manner.
Do not disposeof thevacuumcleaner or thebatteries in
thehousehold rubbish.
Packaging
Thepackaging is designed to protect thevacuum
cleaner frombeing damaged during transportation.
It is madeof environmentally friendly materials and
can berecycled. Disposeof packaging that is no
longer required at an appropriaterecycling point.
Old appliances
This appliancecontains rechargeablelithium-ion
batteries. Theappliancemust thereforeonly be
disposed of by an authorised after-sales serviceor
dealer.
Batteries
Pleasefollow thenotes on transport.
Integrated batteries may only beremoved by special-
ist personnel for thepurposeof disposal. Opening
thehousing shell may damagethevacuumcleaner.
Only for qualified professional:
To removethebattery fromthevacuumcleaner,
press theon/off switch (Fig. 4) until thebattery is
fully discharged. Unscrew thescrews on thehousing
and takeoff thehousing shell to removethebattery.
To prevent a short circuit,disconnect thebattery
connections individually oneafter theother and
then insulatetheterminals.
Even in thecaseof completedischarge, thebattery
still contains a residual capacity that may bere-
leased in theevent of a short circuit.

10
zf
請妥善保存使用說明書。
將吸塵器轉交第三方時，請連同使用說明書
一併交付。
符合規定使用
為安全且正確使用本裝置，請注意使用須知中所
提供的提示說明。
使用本機時應符合以下要件：
根據使用說明書。
僅能搭配原廠零組件和附件使用。因使用其他
產品造成損壞，不得 主張保固。
用於清潔表面。
僅限私人家庭和室溫下的居家環境室內區域。
本機可在海拔最高 2000 公尺以下的環境使用。
為了避免人身受傷與機器損壞，不可將本吸
塵器用在：
人類和動物。
吸入：
− 有害健康、尖銳、高熱或灼熱的物質。
− 潮濕或液態的物質。
− 容易起燃或爆炸的物質和氣體。
− 煙灰、爐具和中央暖氣設備的煤灰。
− 印表機和複印機的碳粉塵。
備件、配件
與我們的原裝備件一樣，我們的原裝配件和特殊配件
都是根據真空吸塵器的特性進行特殊設計的。因此，
建議僅使用原裝備件，原裝零件和特殊配件。才可確
保您吸塵器能擁有長期使用壽命和持久的高品質清
潔性能。
!注意事項： 使用非精確或劣質備件，配件/特殊配件可能會損壞
您的吸塵器如果因使用上述產品而造成損壞，則不
在保修範圍內。
安全注意事項
本吸塵器符合公認的技術規範以
及相關安全規定。
年滿 8 歲的兒童以及身體、感官
或智力有缺陷之人士及缺 乏相
關經驗和知識之人士，應 在負
責安全使用機器人員的監 督或
指導下，瞭解使用機器可 能帶
來的危險後，方能使用本 機。
請勿讓孩童將本機當成玩具玩
耍。
在無人監督的情況下，不可由
兒童進行清潔或保養。
塑料袋和包膜必須存放在兒
童 拿不到的地方並進行廢棄處
理。
>= 有造成窒息的危險！
適當使用
只可使用隨貨附送的充電線進行充電。
僅可依照銘牌資料連接充電線和使用。
本產品僅可存放於室內並充電。
不可使本產品曝露在溫度 0°C 以下和 40°C
以上。
未安裝集塵袋或集塵盒、馬達防護和排氣過濾
網時，絕不 可進行吸塵。
>= 可能會造成產品損壞！
吸塵時，避免將吸頭和吸氣管置於頭部附近。
>= 此舉可能
造成受傷危險！
電線如損壞則不得再使用，並應更換新的原廠
充電線。
不可拉住充電線將產品拔掉電源，而應拉住插
頭。
不可將電線拉往鋒利的邊緣並且不可擠壓。
在吸塵器上進行任何操作之前，請先關機或拔
掉充電線和 電源。
不可操作損壞的吸塵器。
出現故障時，請關機或拔掉充電線和電源。
為避免發生危險，僅可由授權的客服中心進行
吸塵器的維 修和備件更換。
發生以下狀況時，請立即關機停用並連絡客服
中心：
− 如不慎吸入液體，或液體滲入產品內部時
− 如產品掉落並受損時。
請保護吸塵器不受氣候、濕度和熱源的影響。
不可將可燃性或含酒精的物品放置在濾網（馬
達防 護濾網、排氣濾網等）上。
本吸塵器不適用於建築場所。=> 吸入建築碎片
可能造成本 產品損壞。
不需吸塵時，請將產品關機。
 基於安全考量，電器的電池和馬達安裝有過熱
保護系統。電器或電池過熱時，電器將會自動
關閉。
>= 需要約30分鐘冷卻才能再次使用電器。
包裝可保護吸塵器在運送時不受損傷。因此我
們建議將保 留包裝，以備運輸之用。

11
鋰電池
請先詳讀重要安全資訊與說明。
>= 若不遵循安全資訊與說明，可能會造成觸
電、火災和/或嚴重受傷。
請妥善保存安全資訊與說明，以便日後參考。
請避免電池靠近熱源，例如長時間曝曬於太陽
下與靠近火源，並避免碰水與潮溼環境。
>= 爆炸風險。
若電池受損或使用不當，可能會冒出煙霧。請
立即確保空氣流通，若因接觸到煙霧而產生任
何身體不適，請尋求醫療協助。
>= 煙霧可能會造成呼吸道不適。
如果沒有正確使用電池，可能會有液體從電池
中滲出。請避免碰觸此液體。若不小心接觸此
液體，請用清水沖洗。若液體濺到眼睛，請尋
求醫療協助。
>= 如果電池漏液，可能會造成皮膚發炎或灼
傷。
運送資訊
此電器所使用的鋰電池需遵循危險貨品相關法規之要求。使用者
若無需額外要求，可透過陸運運送電池。若使用第三方運送例如
空運或貨運物流公司，則必須遵循特定包裝與識別要求。準備運
送貨品前，必須諮詢危險貨品專家。
回收注意事項
吸塵器、蓄電池、配件和包裝物應以符合環保的回收方式處理。
不可將本吸塵器和蓄電池／電池棄置於家用垃圾！
包裝
包裝可保護吸塵器在運送時不受損傷。它以環保材質製作而
成，因此可以回收再利用。請將不再需要的包裝材料送至「綠
點」回收系統的收集處 。
老舊家電
本裝置含有可重複充電的鋰離子蓄電池。因此，本裝置只能
透過授權的客戶服務處和零售商進行回收處理。
蓄電池／電池
請留意運輸時的注意事項。
內建蓄電池僅可經由專業人員取出。打開機體外殼可能將吸
塵器損毀。
僅針對合格人員：
欲將蓄電池從吸塵器取出時，請持續操作開關（圖 4），直
到蓄電池完全放電為止。將機殼的螺栓旋出，請取下外殼以
取 出蓄電池。為了避 免 短 路 ，請依次個別拔掉蓄電池的接頭，
並立即將電極 絕緣。即使在完全放電狀態，蓄電池在短路時
仍可釋放內部的剩餘 電量。

12
en
Congratulations on your purchaseof a Bosch vacuum
cleaner fromtheBBH3/BCH3 series.
This instruction manual describes various BBH3/BCH3
models,which means that some of theequipment fea-
tures and functions described may not apply to your
model. You should only useoriginal Bosch accessories,
which havebeen specially developed for your vacuum
cleaner,to achievethebest possiblevacuuming re-
sults.

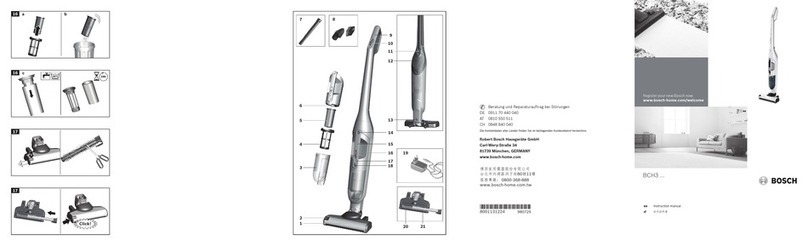

Your vacuumcleaner
1 Floor nozzlewith electric brush
2 Brush roller releasebutton
3 Dust container
4 Outer filter unit
5 Filter cartridgewith motor protection filter and foam
filter
6Motor unit
7Extendablecrevicenozzle*
8 Combination nozzle*
9Hand stick handle
10 Hand stick sliding switch
11 Accessory holder for extendablecrevicenozzle
12 Accessory compartment for combination nozzle
13 Floor nozzlereleasebutton
14 Hand-held cordless vacuumcleaner releasebutton
15 Hand-held cordless vacuumcleaner handle
16Hand-held cordless vacuumcleaner sliding switch
17Battery charging status indicator
18 Dust container releasebutton
19Charging cable*
20 Brush roller
Before using the appliance for the first
time
Fig. 1
Open theaccessory compartment and removethe
combination nozzle.
Carefully placethehandleonto themain housing
and screw it into place.
Placethecombination nozzlein theaccessory com-
partment and closeit.
Fig. 2
Plug thehand stick into thefloor nozzleand lock it
into place.
To releasethefloor nozzle, press thereleasebutton
and pull thehand stick out of thenozzle.
Charging
!Caution:
Beforeusing thevacuumcleaner for thefirst time,
fully chargethebatteries.
To chargetheappliance, only usethecharging cable
included with theappliance. Thecharging cable
must only beconnected and operated as specified
on therating plate. Do not chargetheapplianceat
temperatures below 0 °Cor above40 °C.
Fig. 3
To chargethevacuumcleaner,placeit near to a so-
cket. Theappliancecan beleft standing anywhere
on thefloor. Fig. 6
Plug thecharging cableinto theconnection at the
rear of theappliance.
Plug thecharging cableplug into thesocket.
Thecharging indicator is flashing slowly in white
when theapplianceis charging.
Oncethebattery is fully charged,thecharging indi-
cator lights up whiteand goes out after a few minu-
tes. Thebattery will stop charging. Disconnect the
appliancefromthemains briefly to check. Theindi-
cator will then light up whiteagain.
It is safeto leavetheapplianceconnected to the
charging cableand socket even when it is fully char-
ged.
It is normal for thepower adapter and vacuumclea-
ner to heat up and this is not a causefor concern.
Battery state indicator
Operating statusLED indicator
Normal modeWhiteLED lit
Battery capacity below
20%
Red LED flashing slowly
Battery flat LED off
Charging WhiteLED flashing slow-
ly
Battery is fully charged WhiteLED remains lit
continuously for 2 minu-
tes,then goes out
Over-/undertemperature
protection
Red LED remains lit
continuously for 10 se-
conds,then goes out
* Depending on model

13
Using the hand-held cordless vacuum
cleaner
Fig. 7
Unlock thehand-held cordless vacuumcleaner by
pressing thereleasebutton and removeit fromthe
hand stick.
Vacuuming with accessories
Fig. 8 Crevice nozzle
For vacuuming in difficult-to-reach places and over-
head.
Open theaccessory holder using therecessed grip
and removethecrevicenozzle. Placeit on theair
intakeopening of thecordless handheld vacuum
cleaner and click into place.
Thecrevicenozzlecan beextended as required. To
do this,press theunlock button,pull out thecrevice
nozzleand engageit in theend position.
After use, push thecrevicenozzletogether again,
placeit in theaccessory holder and closetheholder.
Fig. 9 Combination nozzle
Combination nozzlewith furniturebrush and uphols-
tery nozzlefor vacuuming window frames,cup-
boards,furniture, etc.
Open theaccessory compartment and removethe
combination nozzle. Placeit on theair intakeope-
ning of theupright vacuumcleaner and click into
place.
Thefurniturebrush attachment can bepushed to the
side. Theupholstery nozzleis located underneath.
Thecombination nozzlecan also beplaced on thetip
of thecrevicenozzle.
After use, placethecombination nozzleback in the
accessory compartment for storage, closetheac-
cessory compartment,clicking it into place.
Charging the hand-held cordless vacuumcleaner
Fig. 10
To chargethehand-held cordless vacuumcleaner,
insert it into thehand stick and lock into place. Make
surethat it is seated correctly.
After using the appliance
Fig. 11
Switch off theapplianceafter vacuuming.
Emptying the dust container
In order to achievethebest possiblevacuuming re-
sults,thedust container should beemptied after every
useor,at thelatest,when dust at onepoint in thedust
container has reached themarking.
Werecommend that you not fill thedust container bey-
ond themarking,as this leads to considerablesoiling
of thefilter.
Using the hand stick vacuumcleaner
Vacuuming
Fig. 4
Actuatethesliding switch in thedirection of thear-
row.
Controlling the suction level
Fig. 5
Slidethesliding switch into therequired position in
order to set thesuction power:
Position 1 1
Vacuuming with theelectric brush switched on.
For routinecleaning tasks on all surfaces.
Theapplianceachieves themaximumrun time at
this level.
Position 2 2
Vacuuming with theelectric brush switched on.
For stubborn cleaning tasks on all surfaces (carpets,
in particular).
Theapplianceachieves a shorter runtime at this le-
vel.
Runtime
Likeevery other Li-Ion battery thebattery is subject
to natural wear as well. That means thebattery ca-
pacity and thus runtime decreaseover time. This is a
natural aging process and not theresult of a material/
production failureor a product defect.
BBH3/BCH3
25,2V
On normal modewith
electrical nozzlefor
normal cleaning tasks
Up to 55 min.
Turbo modewith
electrical floor nozzleor
hand-held for demanding
cleaning tasks
Up to 20 min.
Fig. 6
During short pauses in vacuuming,theappliancecan
beleft standing anywherein theroom. To do this,tilt
thevacuumcleaner forwards slightly in thedirection
of thenozzle.
!Caution: When the appliance isleft standing, it
must be switched off because, if the brush is
turning while the appliance isstanding still, it could
cause damage to the floor covering.
* Depending on model

14
Fig. 12
Removethehand-held cordless vacuumcleaner
fromthehand stick. Fig. 7
Using thereleasebutton,unlock thedust container
and removeit fromthemotor unit.
Fig. 13
Takethefilter unit out of thedust container.
Empty thedust container.
Fig. 14
Removeany dirt which may havebeen lodged under-
neath thecontainer ejector opening.
a) Insert thefilter unit into thedust container,making
sureit is correctly seated
b) Insert thedust container in theappliance, so that it
'clicks' audibly into place
!Caution: If you noticeany resistancewhen inserting
thedust container,check that thefilter is complete
and that thefilter unit and dust container arecorrect-
ly seated.
Cleaning the filter
Theouter filter unit and filter cartridgeshould beclea-
ned at regular intervals in order to ensureoptimum
operation of thevacuumcleaner.
!Caution: Thefilter can only becleaned if theappli-
anceis switched off.
Never vacuumwithout theouter filter unit and its
fitted filter cartridge.
Fig. 15 Cleaning the outer filter unit
Switch off theappliance. Fig. 11
Removethehand-held cordless vacuumcleaner
fromthehand stick. Fig. 7
Using thereleasebutton,unlock thedust container
and removeit fromthemotor unit. Fig. 12
Takethefilter unit out of thedust container.
a) It is usually sufficient to lightly shakeor tap out the
wholefilter unit when thedust container is emptied in
order to dislodgeany particles of dirt.
b) If this is not sufficient,you can usea dry cloth to remo-
vedirt particles fromthesurface.
Fig. 16 Cleaning the filter cartridge
a) Removethefilter cartridgefromthefilter unit.
b) Firstly,clean thefilter cartridgeby tapping out thedirt.
c) Pull out thefoamfilter fromthemotor protection and
rinseseparately.
Allow thefoamfilter and motor protection filter to
dry completely (approx. 24 hours)
After fitting thefoamfilter,insert thefilter unit into the
dust container.
New filters can beobtained fromour after-sales ser-
vice, if required.
Cleaning the floor nozzle
Beforecarrying out any maintenance, switch off the
vacuumcleaner and disconnect it fromthecharging
cable.
Fig. 17
Usethereleasebutton to releasethebrush roller
and pull it sideways out of thefloor nozzle.
Using thegrooveprovided,cut through threads and
hairs wound round therollers with scissors.
Push thebrush roller in sideways along theguiderod
in thefloor tool and lock in placeusing therelease
button.
!
Caution: The floor nozzle must only be put into
operation with the brush roller fitted.
!
Caution:
Floor nozzles aresubject to a certain amount of
wear,depending on thetypeof hard floors you have
(e.g. rough,rustic tiles). You must thereforecheck
theundersideof thefloor tool at regular intervals.
Worn undersides of floor nozzles may havesharp
edges that can damagedelicatehard floors,such as
parquet or linoleum. Themanufacturer does not ac-
cept any responsibility for damagecaused by worn
floor tools.
Care
Beforecleaning thehand stick vacuumcleaner or hand-
held cordless vacuumcleaner,it must beswitched off
and disconnected fromthecharging cable. Thevacuum
cleaner and accessories can becleaned using a stan-
dard commercially-availableplastic cleaner.
!Caution: Do not useabrasivematerials,glass-
cleaning agents or all-purposecleaning products.
Never immersethevacuumcleaner in water.
Subject to technical modifications.
* Depending on model

15
zf
感謝您購買博世BBH3/BCH3系列吸塵器。
本說明書為BBH3/BCH3系列通用，某些功能與配備或不適用於
您的機型。請使用本吸塵器專用的博世原廠配件，以達到最佳吸
塵效果。
您的吸塵器
1 電動地吸
2 毛刷桿釋放按鈕
3 集塵盒
4 馬達保護濾網
5 濾芯，含馬達保護濾網和泡綿濾網
6 馬達部件
7 可伸縮式狹縫吸頭*
8 傢俱/軟墊二合一刷頭*
9 把手
10 電源開關
11 可伸縮式狹縫吸頭收納處
12 傢俱/軟墊二合一刷頭收納處
13 電動地吸釋放按鈕
14 手持式無線吸塵器釋放按鈕
15 手持式無線吸塵器把手
16 手持式無線吸塵器電源開關
17 充電指示燈
18 集塵盒釋放按鈕
19 充電器*
20 毛刷桿
首次使用前
圖 1
打開收納處並取出傢俱/軟墊二合一刷頭。
小心地將把手裝在機體上，並鎖至定位。
將傢俱/軟墊二合一刷頭放回收納處後關上。
圖 2
將吸塵器本體插入電動地吸中，並鎖至定位。
要拆下電動地吸，請按下釋放按鈕，並將吸塵器本體地吸上
拔出。
充電
! 小心：
首次使用吸塵器前，請先將電池充滿。
務必使用隨附的充電器為電器充電。充電器必須依照額定銘
牌上的指示連接與操作。請勿在低於 0°C或高於40°C的溫度
下充電。
圖 3
要為吸塵器充電，請將它放在插座旁。本電器可以直立放在地
板的各種位置。
圖 6
將充電線插入電器後方的接頭。
將充電線插頭插入插座中。
電器充電時，充電指示燈會緩慢地閃爍白燈。
電池充滿後，充電指示燈將會亮白燈，在幾分鐘後熄滅。電池
將會停止充電。如果不確定是否充滿，請暫時斷開電器的主電
源以確認。指示燈將會再次亮白燈。
即使電器已充滿，連接在充電線和插座上也很安全。
在充電時，電源變壓器和吸塵器會發熱，這是正常的現象。
電池狀態指示燈
操作狀態 LED指示燈
一般模式 白色LED燈
電池容量低於20% 紅色L ED緩慢閃爍
電池沒電了 LED關閉
充電 白色LED緩慢閃爍
電池已充滿 白色LED會持續亮起2分鐘，
然後熄滅
溫度過高／過低保護 LED紅燈會持續亮10秒，然
後熄滅
使用吸塵器
吸塵
圖 4
依箭頭方向操作滑動開關。
控制吸力
圖 5
將滑動開關推至所需的吸力位置：
位置1 1
啟動電動刷頭的吸塵。
適合所有日常清潔工作。
在這個功率等級下電器可以達到最長的運轉時間。
位置2 2
啟動電動刷頭的吸塵。
適合清潔所有頑強污漬（特別是地毯）。
在這個功率等級下電器的運轉時間較短。
* 視機型而定：

16
使用本電器後
圖 11
吸塵完成後請關閉電源。
清空集塵盒
為達最佳吸塵效果，每次使用後請清理集塵盒，或至少在集塵盒
內一部分灰塵累積達到標示時清理。
我們建議您在灰塵超過標示前清理，如果超過可能會造成濾網
附有過多灰塵。
圖 12
將手持式無線吸塵器從吸塵器本體上拆下。圖 7
使用釋放按鈕，將集盒器解鎖並從馬達部件上拆下。
圖 13
將濾芯從集塵盒取出。
清空集塵盒。
圖 14
清除堵塞在集塵盒下方排出口的所有灰塵。
a) 將濾芯裝回集塵盒中，並確認是否安裝妥當。
b) 將集塵盒裝回吸塵器中，發出喀噠聲即表示鎖至定位。
! 小心：裝回集塵盒時若明顯感覺到有任何阻力，請檢查濾
網齊全無缺且濾芯和集塵盒都位於正確位置上。
清潔濾網
定期清潔馬達保護濾網 和濾芯，以確保吸塵器保持在最佳運作
狀態。
! 小心：必須關閉吸塵器的電源才能清潔濾網。
請勿在未安裝外部過濾裝置和其中安裝的濾芯時操作吸
塵器。
圖 15 清潔外部過濾裝置
關閉本電器的電源。圖 11
將手持式無線吸塵器從吸塵器本體上拆下。圖 7
使用釋放按鈕，將集塵盒解鎖並從馬達部件上拆下。圖 12
將濾芯從集塵盒取出。
a) 於集塵盒清空後稍微搖晃或輕敲整組濾芯，通常就能抖落所有
灰塵顆粒。
b) 但這麼做無效時，您可以用乾布掃除表面的灰塵顆粒。
圖 16 清潔濾芯
a) 拆除馬達保護濾網中的濾芯。
b) 先輕敲，讓濾芯的灰塵彈落。
c) 抽出泡綿濾網並單 獨清洗。
晾乾泡綿濾網和馬達保護濾網（約24小時）
安裝泡綿濾網後，將過濾裝置裝回集塵盒中。
如有需要，可向售後服務中心購買新濾網。
運作時間
電池與其他鋰電池一樣會自然耗損。這表示電池容量和運作時
間將會逐漸縮短。這屬於自然損耗現象，而非材料／生產問題
或產品瑕疵。
BBH3/BCH3
25,2V
普通模式: 整機配備電動地吸
用於一般清潔工作
最高可達55分鐘
高速模式: 整機配備電動地吸
或使用手持吸塵器進行高強
度清潔工作
最高可達20分鐘
圖 6
暫停吸塵時，本電器可以直立放在房間的各種位置。請將吸
塵器稍微朝地吸的方向推即可立起。
! 小心：電器在直立時必須關閉，如果立起時刷頭仍在轉
動，可能會造成地板表面受損。
使用手持式無線吸塵器
圖 7
按下手持式無線吸塵器的釋放按鈕解鎖，然後將它從吸塵器
本體中拆下。
使用配件吸塵
圖 8 可伸縮式狹縫吸頭
適合在難以觸及的地方和高於頭頂的位置吸塵。
使用凹槽式握把打開配件收納處並取下可伸縮式狹縫吸頭。
將它裝入手提式無線吸塵器的進氣口並卡至定位。
可伸縮式狹縫吸頭可視需要延伸。如要延伸，請按下解鎖按
鈕，拉出可伸縮式狹縫吸頭並卡入尾端。
使用後，請將可伸縮式狹縫吸頭收回並放入配件收納處，然
後將之收回原處。
圖 9 傢俱/軟墊二合一刷頭
配備雙重功能的傢俱/軟墊二合一刷頭，適合進行窗框、櫥
櫃、家具的吸塵等工作。
打開收納處並取出傢俱/軟墊二合一刷頭。將它裝入手提式無
線吸塵器上方的進氣口並卡至定位。
傢俱吸頭可水平推出。軟墊吸頭則位於其下方。
傢俱/軟墊二合一刷頭可以安裝在可伸縮式狹縫吸頭的前端。
使用後，將傢俱/軟墊二合一刷頭放回收納處存放，關上收納
處並卡至定位。
為手持式無線吸塵器充電
圖 10
要為手持式無線吸塵器充電，請將它插入吸塵器本體中並鎖
至定位。請確定已確實裝妥。
* 視機型而定：

17
清潔電動地吸
進行維護前，請先關閉吸塵器並將充電線拔除。
圖 17
利用毛刷桿釋放按鈕解開毛刷桿，然後將之從電動地吸的側
面拉出。
沿著隨附的槽溝，使用剪刀剪斷纏繞在刷頭上的線頭和毛
髮。
將毛刷桿從側面沿著毛刷桿固定導桿 推回地板工具中，並利
用釋放按鈕固定。
!
小心：電動地吸中必須裝有毛刷桿才能運作。
!
小心：
電動地吸會受到一定程度的磨損，依硬質地板的種類而定（例
如表面粗糙的瓷磗）。每隔一段時間必須檢查地板工具的底
部。地板工具底部因磨損所造成的尖銳表面，可能會 造成實木
地板或亞麻地板等精緻的硬質地板表面受損。因電動地吸磨
損而造成的損壞，製造商概不負責。
保養
清潔吸塵器本體或手持式無線吸塵器前，必須關閉吸塵器並將充
電線拔除。您可以使用市售的一般塑膠清潔劑保養吸塵器和塑
膠配件。
! 小心：請勿使用具研磨效果的物品、玻璃清潔劑或多功能
清潔產品。切勿將吸塵器浸在水中。
本說明書可能因技術變更而修改。

18
DE Deutschland, Germany
BSH Hausgeräte Service GmbH
Zentralwerkstatt für kleine Hausgeräte
Trautskirchener Strasse 6-8
90431 Nürnberg
Online Auftragsstatus, Filterbeutel-

www.bosch-home.com
Reparaturservice, Ersatzteile & Zubehör,



AE United Arab Emirates,
BSH Home Appliances FZE

Jebel Ali Free Zone - Dubai


www.bosch-home.com/ae

AL Republika e Shqiperise, Albania
Elektro-Service sh.p.k





EXPERT Service





AM Armenia,





www.zigzag.am
AT Österreich, Austria
BSH Hausgeräte Gesellschaft mbH


1100 Wien


www.bosch-home.at
Reparaturservice, Ersatzteile & Zubehör,




Sie erreichbar.
AU Australia





www.bosch-home.com.au

 
Azerbaijan



Baku


www.ser-cen.az











www.optimal.az
BA Bosna i Hercegovina,
Bosnia-Herzegovina





BE Belgique, België, Belgium






www.bosch-home.be
BG Bulgaria






www.bosch-home.bg
BH Bahrain,
Khalaifat Est.





 



CA Canada



www.bosch-home.ca
CH Schweiz, Suisse,
Svizzera, Switzerland
BSH Hausgeräte AG
Bosch Hausgeräte Service


Reparaturservice, Ersatzteile & Zubehör,




www.bosch-home.ch
CN China,

中国江苏省南京市鼓楼区清江南路号幢

Gulou District,
Nanjing, Jiangsu Province


www.bosch-home.cn







CYN Turkish Rep. Of North Cyprus







Girne


 










DK Danmark, Denmark

Telegrafvej 4




EE Eesti, Estonia





www.renerk.ee






ES España, Spain







www.bosch-home.es
FI Suomi, Finland






-

Kundendienst – Customer Service


19
0,40 € / min
0,40 € / min
FR France





01 40 10 11 00






bosch-home.com
www.bosch-home.com/fr
GB Great Britain



Wolverton



please visit www.bosch-home.co.uk
Or call



GE Georgia,





Tbilisi


 

Central Branch Service




www.bosch-home.gr
HK Hong Kong,

ВࠑĥʆℽࡗнȔɢġઍęధ֛ة 


Tsuen Wan, New Territories,
Hong Kong



www.bosch-home.com.hk
HR Hrvatska, Croatia


10000 Zagreb


www.bosch-home.com/hr
 





www.bosch-home.com/hu
IE Republic of Ireland



Walkinstown



please call

www.bosch-home.ie


IL Israel

1, Hamasger St.,




www.bosch-home.co.il
 






www.bosch-home.in

IS Iceland

Noatuni 4


www.sminor.is
IT Italia, Italy





www.bosch-home.com/it
JO Jordan,
Diab Qawasmi & Sons Co.



Amman



KG


Jibek Jolu str. 40
Bishkek


KR Republic Korea,
Daehan Minguk,






 







LB Lebanon,






LT Lietuva, Lithuania





www.agservice.lt





www.balticcontinent.lt
UAB Emtoservis




www.emtoservis.lt
LU Luxembourg






www.bosch-home.com/lu
LV Latvija, Latvia





www.serviscentrs.lv


1004 Riga


www.koroso.lv

Katlakalna 1



www.emta.lv
Sia Elektronika-Serviss

1004 Riga


www.elektronika.lv
MD Moldova





ME Crna Gora, Montenegro

Elektronika komerc







20
 
GORENEC

1000 Skopje



MT Malta





MV Raajjeyge Jumhooriyyaa,
Maledives






www.lintel.com.mv
NL Nederlande, Netherlands

Taurusavenue 36





www.bosch-home.nl
NO Norge, Norway

Grensesvingen 9
0661 Oslo


www.bosch-home.no
NZ New Zealand


Smales Farm Business Park

Takapuna



www.bosch-home.co.nz

PK Pakistan,

Plaza 46-A, Commercial Sector XX,
Phase 3, DHA




www.megahome.pk

PL Polska, Poland

Domowego Sp. z o.o.
Al. Jerozolimskie 183



www.bosch-home.pl
PT Portugal






www.bosch-home.pt
RO România, Romania
BSH Electrocasnice srl.




www.bosch-home.ro
 




www.bosch-home.com
SA Kingdom Saudi Arabia,








www.aljelectronics.com.sa

SE Sverige, Sweden
BSH Home Appliances AB




www.bosch-home.se
SG Singapore,

38C Jalan Pemimpin, #01-01



www.bosch-home.com.sg


SI Slovenija, Slovenia





www.bosch-home.com/si
SK Slovensko, Slovakia











TH Thailand,




Bangkok, 10310

www.bosch-home.com/th

TJ Tadschikistan, Ҷ
ҷ


Dushanbe




Dushanbe


www.volna.tj
TM Türkmenistan, Turkmenistan



Ashgabat


TR Türkiye, Turkey






www.bosch-home.com/tr



TW Taiwan, 台湾
āĵʿ๐ǷăבĀȈϱ֡뻟
΀ශઅͱ˖ө뻟Dz׋᚞અϢ˖ʖϠ

хЀʯܯҟŔى8011֛
11F., No.80, Zhouzi St., Neihu Dist.



www.bosch-home.com.tw
 



www.bosch-home.com.ua

UZ O‘zbekiston Respublikasi,
Republic of Uzbekistan


Tashkent


XK Kosovo
Service-General SH.P.K.




XS Srbija, Serbia





www.bosch-home.rs
ZA South Africa






www.bosch-home.com/za

