[en] Instruction manual
Extractor hood
DID128R59

3
ÚTable of contents [en]Instructionmanual
Important safety information.....................................................3
Environmental protection ..........................................................5
Saving energy......................................................................................5
Environmentally-friendly disposal.....................................................5
Operating modes........................................................................5
Exhaust air mode................................................................................5
Circulating-air mode ...........................................................................5
Operating the appliance ............................................................6
Lighting .................................................................................................6
Saturation signal .................................................................................6
Cleaning and maintenance........................................................7
Trouble shooting ........................................................................9
After-sales service .....................................................................9
Accessories for circulated air mode.........................................9
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.bosch-home.com and
in the online shop www.bosch-eshop.com
: Important safety information
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for
future use or for subsequent owners.
The appliance can only be used safely if it
is correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly
at its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside.
Do not leave the appliance unattended
during operation. The manufacturer is not
liable for damage which is caused by
improper use or incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around
the appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old
at a safe distance from the appliance and
power cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance
if it has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused
by incorrect connection is not covered
under warranty.
Danger of suffocation!
Packaging material is dangerous to
children. Never allow children to play with
packaging material.

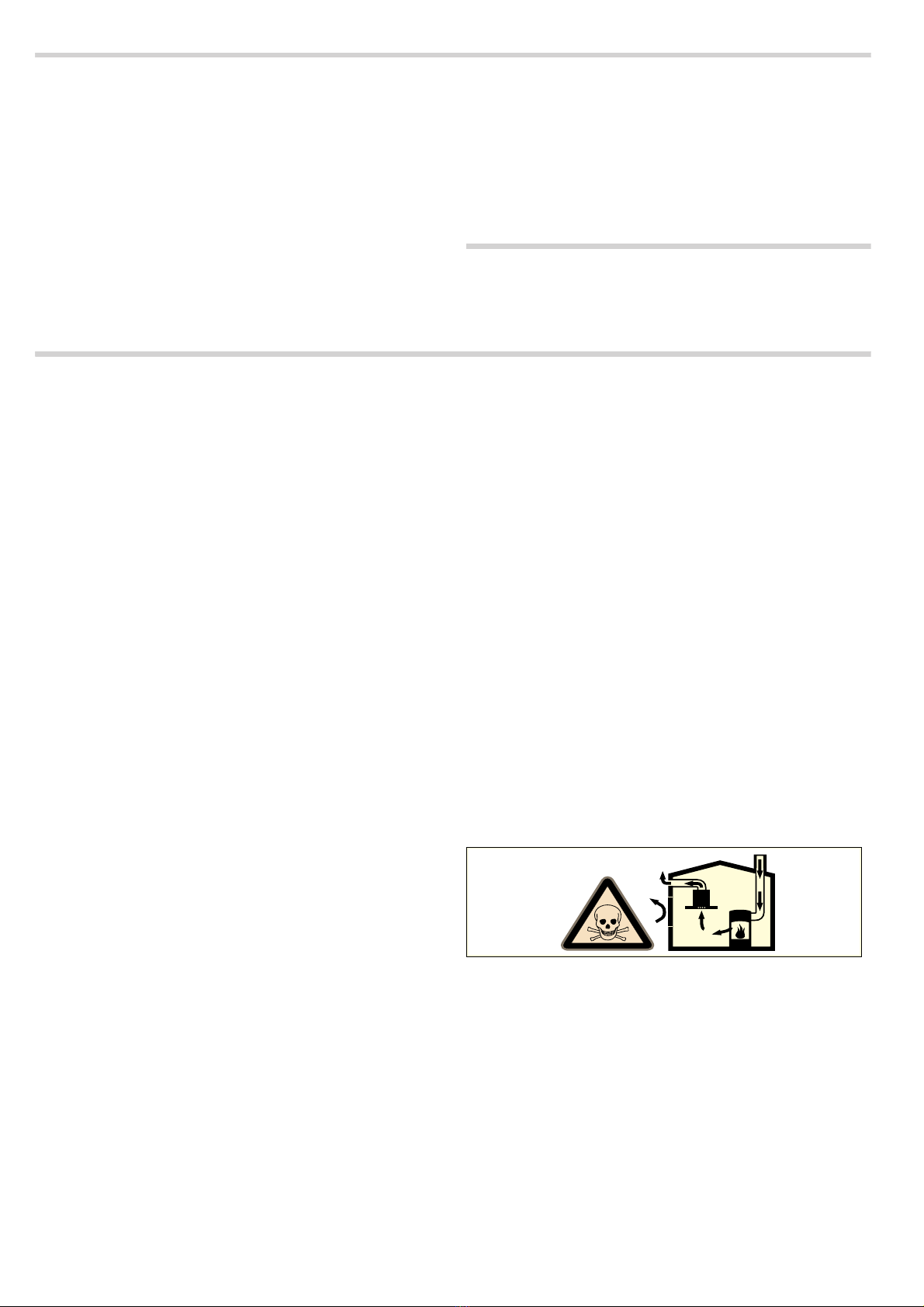

Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as room
air-dependent heat-producing appliance is
being operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters
or water heaters) obtain combustion air
from the room in which they are installed
and discharge the exhaust gases into the
open air through an exhaust gas system
(e.g. a chimney).

4
In combination with an activated vapour
extractor hood, room air is extracted from
the kitchen and neighbouring rooms - a
partial vacuum is produced if not enough
fresh air is supplied. Toxic gases from the
chimney or the extraction shaft are sucked
back into the living space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone
will not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for
combustion is able to enter through
openings that cannot be sealed, for
example in doors, windows, incoming/
exhaust air wall boxes or by other technical
means.
In any case, consult your responsible
Master Chimney Sweep. He is able to
assess the house's entire ventilation setup
and will suggest the suitable ventilation
measures to you.
Unrestricted operation is possible if the
vapour extractor hood is operated
exclusively in the circulating-air mode.
Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly.
Never leave hot fat or oil unattended.
Never use water to put out burning oil or
fat. Switch off the hotplate. Extinguish
flames carefully using a lid, fire blanket or
something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the
same time gives rise to a great deal of
heat. A ventilation appliance installed
above the cooker may become damaged
or catch fire. Never operate two gas
burners simultaneously on the highest
flame for longer than 15 minutes. One
large burner of more than 5 kW (wok) is
equivalent to the power of two gas
burners.
Risk of burns!
The accessible parts become very hot when
in operation. Never touch hot parts. Keep
children at a safe distance.
Risk of injury!
■Components inside the appliance may
have sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.

5
Causes of damage
Caution!
Risk of damage due to corrosion. Always switch on the
appliance while cooking to avoid condensation. Condensate
can produce corrosion damage.
Always replace faulty bulbs to prevent the remaining bulbs from
overloading.
Risk of damage due to ingress of humidity into the electronic
circuitry. Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless
steel surfaces in the direction of the grain only. Do not use any
stainless steel cleaners for operator controls.
Surface damage due to strong or abrasive cleaning agents.
Never use strong and abrasive cleaning agents.
Risk of damage from returning condensate. Install the exhaust
duct in such a way that it falls away from the appliance slightly
(1° slope).
Environmental protection
Your new appliance is particularly energy-efficient. Here you
can find tips on how to save even more energy when using the
appliance, and how to dispose of your appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient supply of air
so that the extractor hood can work efficiently and with a low
level of operating noise.
■Adjust the fan speed to the intensity of the cooking fumes.
Only use intensive mode where this is required. A lower fan
speed means that less energy is consumed.
■If there are intensive cooking fumes, select a higher fan
speed in good time. If cooking fumes have already spread in
the kitchen, the extractor hood must be operated for longer.
■Switch off the extractor hood if you no longer require it.
■Switch off the lighting if you no longer require it.
■Clean and, if required, replace the filter at regular intervals in
order to increase the effectiveness of the ventilation system
and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
Operating modes
This appliance can be used in exhaust-air mode or circulating-
air mode.
Exhaust air mode
Note: The exhaust air must not be conveyed into a functioning
smoke or exhaust gas flue or into a shaft which is used to
ventilate installation rooms which contain heat-producing
appliances.
■Before conveying the exhaust air into a non-functioning
smoke or exhaust gas flue, obtain the consent of the heating
engineer responsible.
■If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Circulating-air mode
Note: To bind odours in circulating-air mode, you must install
an activated carbon filter. The different options for operating the
appliance in circulating-air mode can be found in the brochure.
Alternatively, ask your dealer. The required accessories are
available from specialist outlets, from customer service or from
the Online Shop. The accessory numbers can be found at the
end of the instructions for use.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning used
electrical and electronic appliances (waste electrical
and electronic equipment - WEEE). The guideline
determines the framework for the return and recycling
of used appliances as applicable throughout the EU.
The air which is drawn in is cleaned by the
grease filters and conveyed to the exterior
by a pipe system.
The air which is drawn in is cleaned by the
grease filters and an activated carbon filter and
conveyed back into the kitchen.

6
Operating the appliance
Note: Switch on the extractor hood when you start cooking and
switch it off again several minutes after you have finished
cooking. This is the most effective way of removing the kitchen
fumes.

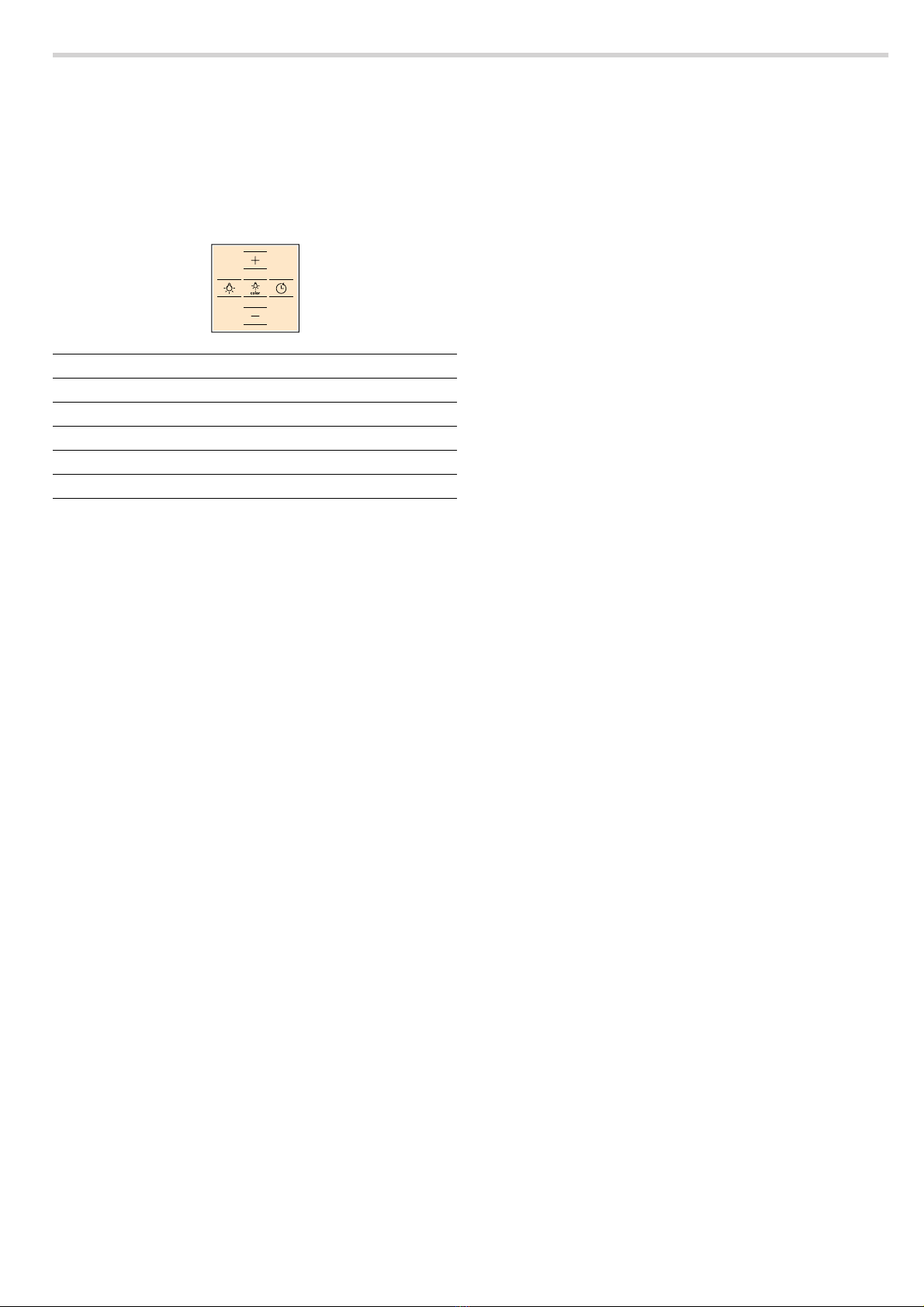

Remote control
Remote control
Connecting the remote control to the appliance
If the appliance cannot be operated with the remote control,
e.g. after the battery has been changed, the connection
between the remote control and the appliance must be re-
established.
1. Press and hold the @button.
2. Attach the appliance to the mains voltage.
A long audible signal sounds. The remote control has been
connected to the appliance.
Note: If no audible signal sounds within 30 seconds, repeat
this procedure.
Setting the fan
Switching on
1. Press the @button.
The fan starts at fan setting 2.
2. Press the @or A button to set a different fan setting.
Note: The appliance has three fan settings and an intensive
setting. To set the lowest setting, press Aonce. If you press it
more frequently, the appliance will switch off again.
Switching off
Press the Abutton until the appliance switches off.
Intensive setting
You can use the intensive setting if there is a large build-up of
odours and fumes/vapours.
Press the @button until you hear the appliance switch into
intensive mode.
Note: The run time of the intensive mode is 4 minutes. Once
this time has elapsed, the appliance switches back to fan level
2.
Fan run-on
With fan run-on, the appliance switches off automatically after
10 minutes.
Press the ybutton.
Note: The fan run-on is only activatable in fan levels 1-3.
Lighting
The lighting can be switched on and off independently of the
ventilation system.
Press the Bbutton.
RGB function
Press the Pbutton repeatedly until the desired colour is set.
Note: You can set the colour in the following sequence:
■Red
■Green
■Blue
■Cyan
■Yellow
■Magenta
Setting the brightness
Press and hold the Bbutton until the desired brightness is
reached.
Saturation signal
If the filters are saturated, an audible signal sounds:
■Three consecutive audible signals: Clean the metal grease
filters
■Six consecutive audible signals: Replace the activated
charcoal filters
See the Cleaning and maintenance section or the "CleanAir air
recirculation module" printed supplement.
Resetting the saturation signal
Press the ybutton.
An audible signal sounds for three seconds.
Note: The appliance switches off the saturation signal
automatically after 20 hours.
Switching over the appliance to air recirculation
1. Switch off the appliance.
2. Press and hold the ybutton for four seconds until an audible
signal sounds.
The electronic control is switched over to air recirculation.
Switching over the appliance to air extraction
1. Switch off the appliance.
2. Press and hold the ybutton for four seconds until two
audible signals sound.
The electronic control is switched over to air extraction.
Explanation
BLight on/off/dimming
@Increase fan level
AReduce fan level
PChange colour
yFan run-on

7
Cleaning and maintenance
: Risk of burns!
The appliance will become hot during operation, especially
near the bulbs. Allow the appliance to cool down before
cleaning.
: Risk of electric shock!
Penetrating moisture may result in an electric shock. Clean the
appliance using a damp cloth only. Before cleaning, pull out the
mains plug or switch off the circuit breaker in the fuse box.
: Risk of electric shock!
Do not use any high-pressure cleaners or steam cleaners,
which can result in an electric shock.
: Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged by using
the wrong cleaning agent, observe the information in the table.
Do not use any of the following:
■Harsh or abrasive cleaning agents,
■Cleaning agents with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the cleaning
agents.
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It is
possible that individual features are described which do not
apply to your appliance.
: Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■Do not use any aggressive, acidic or alkaline cleaning
agents.
■When cleaning the metal mesh grease filters, also clean the
holder for the metal mesh grease filters in the appliance
using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for stubborn dirt. It
can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy solution.
■Clean the filters with a brush and then rinse them thoroughly.
■Leave the metal mesh grease filters to drain.
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has no effect
on the function of the metal mesh grease filters.
■Do not clean heavily soiled metal mesh grease filters together
with utensils.
■Place the metal mesh grease filters loosely in the dishwasher.
The metal mesh grease filters must not be wedged in.
Area Cleaning agent
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry
with a soft cloth.
Clean stainless steel surfaces in the
grind direction only.
Special stainless steel cleaning prod-
ucts are available from our after-sales
service or from specialist retailers.
Apply a very thin layer of the cleaning
product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plas-
tic
Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a
glass scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and dry
with a soft cloth/towel.
Risk of electric shock caused by pene-
trating moisture.
Risk of damage to the electronics from
penetrating moisture. Never clean
operating controls with a wet cloth.
Do not use any stainless steel cleaners.

8
Removing metal grease filter
1. Press the lock on the filter cover.
Note: Grip the filter cover with two hands.
2. Open the filter cover as far as it will go.
Note: The filter cover can be opened to approx. 40°.
3. Press the lock on the metal grease filters.
Note: To avoid causing damage, do not bend the metal
grease filters.
4. Take the metal grease filter out of the holder.
Note: Fat may accumulate in the bottom of the metal grease
filter. Hold the metal grease filter level to prevent fat from
dripping out.
5. Clean the appliance from the inside.
6. Clean the metal grease filter and let it dry before re-fitting.
Installing the metal mesh grease filter
1. Insert metal grease filter.
While doing this, place your other hand under the metal
grease filter.
2. Fold up metal grease filter and engage the lock.
3. Close the filter cover upwards.
Note: Ensure that the filter cover lock engages correctly.
Replacing the batteries in the remote control
1. Undo screws.
2. Remove cover.
3. Remove the batteries.
4. Correctly insert the new batteries (23AE 12 V).
5. Dispose of flat or faulty batteries according to local
regulations.
Note: Do not dispose of batteries in general household waste.

9
Trouble shooting
Malfunctions often have simple explanations. Please read the
following notes before calling the after-sales service.
: Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be carried
out and damaged power cables replaced by one of our trained
after-sales technicians. If the appliance is defective, unplug the
appliance from the mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
LED lights
Defective LED lights must only be replaced by the
manufacturer, their customer service department or a licensed
technician (electrician).
Malfunction table
--------
After-sales service
Our after-sales service is there for you if your appliance needs
to be repaired. We will always find the right solution in order to
avoid unnecessary visits from a service technician.
When calling us, please give the product number (E no.) and
the production number (FD no.) so that we can provide you with
the correct advice. The rating plate with these numbers can be
found inside the appliance (remove the metal mesh grease
filter to gain access).
You can make a note of the numbers of your appliance and the
telephone number of the after-sales service in the space below
to save time should it be required.
Please be aware that a visit by an after-sales engineer will be
charged if a problem turns out to be the result of operator error,
even during the warranty period.
Please find the contact data of all countries in the enclosed
customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You can
therefore be sure that the repair is carried out by trained service
technicians who carry original spare parts for your appliances.
Accessories for circulated air mode
(not included in the delivery)
Fault Possible cause Solution
The appliance does not work The plug is not plugged into the mains Connect the appliance to the power
supply
Power cut Check whether other kitchen appliances
are working
The fuse is faulty Check in the fuse box to make sure that
the fuse for the appliance is in working
order
The lighting is not working The LED lights are defective Call the after-sales service
Three consecutive audible signals The metal grease filter is saturated. Clean the filter; see section Cleaning
and maintenance.
Six consecutive audible signals The activated charcoal filter is saturated. Replace the filter; see the "CleanAir air
recirculation module" printed supple-
ment
The remote control is not working The battery is empty Change the batteries in the remote con-
trol, see section Cleaning and mainte-
nance
The appliance does not respond to the
remote control
The remote control is not connected to
the appliance
Connect the remote control to the appli-
ance, see section Operating the appli-
ance
E no. FD no.
After-sales serviceO
GB 0344 892 8979
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 € per
minute.
DSZ5300
DSZ5201

10

11

951201
*9001029773*
9001029773
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
Germany
www.bosch-home.com
