BOSER Technology HS-1760 User manual

HS-1760
Intel® Core™ 2 Duo/Mobile Celeron® processor
Mini ITX Board
•1066/800MHz FSB•DDR3•CompactFlash•
•PCIe x1•PCIe x16•Mini PCI•PCI•
•GPIO•DVI-I/CRT/LVDS•Dual GB LAN•
•HD Audio•4 SATA•RS-232/422/485•4 COM•
•6 USB2.0•WDT•H/W Monitor•

Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The manufacturer will
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e., electronic, mechanical, photocopying, recording)
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
T
Tr
r
ra
a
ad
d
de
e
em
m
ma
a
ar
r
rk
k
ks
s
s
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2010 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.2, February 24, 2011

Table of Contents
Chapter 1 General Description..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 2
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking .................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ..................................................................... 10
3.5 Configuring the CPU ........................................................... 11
3.6 System Memory................................................................... 11
3.7 VGA Controller..................................................................... 11
3.8 Serial ATA Connector ......................................................... 13
3.9 Serial Port Connectors ....................................................... 14
3.10 Ethernet Connector............................................................. 15
3.11 USB Port............................................................................... 16
3.12 CMOS Data Clear................................................................. 16
3.13 Parallel Port.......................................................................... 17
3.14 Power and Fan Connectors................................................ 18
3.15 Keyboard/Mouse Connectors ............................................ 19
3.16 System Front Panel Control ............................................... 19
3.17 Watchdog Timer .................................................................. 20
3.18 Audio Connectors ............................................................... 22
3.19 CompactFlashConnector................................................ 22
3.20 8-bit GPIO Function............................................................. 24

Chapter 4 AMI BIOS Setup ....................................25
4.1 Starting Setup...................................................................... 25
4.2 Using Setup ......................................................................... 26
4.3 Main Menu............................................................................ 27
4.4 Advanced Settings .............................................................. 28
4.5 Advanced PCI/PnP Settings ............................................... 32
4.6 Boot Settings ....................................................................... 33
4.7 Security Settings ................................................................. 34
4.8 Advanced Chipset Settings................................................ 35
4.9 Exit Options ......................................................................... 36
Chapter 5 Software Utilities ....................................37
5.1 Chipset Driver Installation.................................................. 37
5.2 VGA Driver Installation ....................................................... 40
5.3 LAN Driver Installation........................................................ 43
5.4 Audio Driver Installation..................................................... 45
Appendix A Riser Card Application ..........................47

Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: HS-1760
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the HS-1760 to ensure
harmlessly discharge any static electricity through the strap.
Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

1
Chapter 1
General Description
The HS-1760 is an Intel® GM45/ICH9-M chipset-based board
designed, the board supports Intel® Mobile Dual-Core processor. The
HS-1760 is an ideal all-in-one mini ITX board. Additional features
include an enhanced I/O with CF, DVI-I/CRT/LVDS, dual GB LAN, HD
audio, 4 SATA, 4 COM, and 6 USB2.0 interfaces.
The Intel® GM45 integrated Intel® Gen5.0 GMA 4500MHD Graphics
shared system memory up to 352MB with DVMT5.0 supports
CRT/Panel displays up to 2048 x 1536. It also supports 24-bit
single/dual channel LVDS interface.
System memory is also sufficient with the two 204-pin SO-DIMM
sockets DDR3 800/1066MHz up to 4GB.

2
Additional onboard connectors include six advanced USB2.0 ports
providing faster data transmission. And two RJ-45 connectors for
10/100/1000 Based Ethernet uses. To ensure the reliability in an
unmanned or standalone system, the watchdog timer (WDT) onboard
HS-1760 is designed with software that does not need the arithmetical
functions of a real-time clock chip. If any program causes unexpected
halts to the system, the onboard WDT will automatically reset the CPU
or generate an interrupt to resolve such condition.
1.1 Major Features
The HS-1760 comes with the following features:
Socket P for Intel® Core™ 2 Duo/Mobile Celeron® processor, supports
1066/800/667MHz FSB
2 x SO-DIMMs up to 4GB DDR3 SDRAM
Intel® GM45/ICH9-M system chipset
Intel® GM45 integrated VGA for DVI-I, CRT & LVDS
2 x 10/100/1000 Mbps Ethernet
High Definition audio codec
Supports CF, 4 x SATA, 4 x COM, 6 x USB2.0, mini PCI slot, PCIe x1
slot, PCIe x16 slot, standard PCI slot
Supports 24-bit LVDS, 8-bit GPIO, H/W Monitor function
1.2 Specifications
System
CPU:
Intel® Core™ 2 Duo and Mobile Celeron® processor
FSB:
1066/800/667MHz FSB
BIOS:
AMI PnP Flash BIOS
System Chipset:
Intel® GM45/ICH9-M
I/O Chipset:
Winbond W83627UHG
System Memory:
2 x 204-pin SO-DIMM sockets DDR3 800/1066MHz up to 4GB
Storage:
1 x Type II CF socket

3
Watchdog Timer:
Software programmable time-out intervals from 1~255 sec. or 1~255
min.
H/W Status Monitor:
Monitoring temperatures, voltages, and cooling fan status
Expansion Interface:
1 x PCIe x1 slot
1 x PCIe x16 slot
1 x Type III mini PCI slot
1 x Standard PCI slot
Power Function:
ATX power
Operating Temperature:
0~60 degrees C
Operating Humidity:
0~95%, non-condensing
Size (L x W):
170 x 170 mm
I/O Interface
MIO:
3 x RS-232 (2 x external)
1 x RS-232/422/485
6 x USB2.0 (2 x internal, 4 x external)
1 x Parallel
4 x SATA
1 x PS/2 for KB/MS
GPIO:
8-bit general purpose input/output port
Display
Chipset:
Intel® GM45 integrated Intel® GMA 4500 MHD
Display Memory:
352MB video memory
LVDS:
24-bit single/dual-channel
Resolution:
2048 x 1536
DVI chipset:
Intel® GM45 integrated Intel® GMA 4500 MHD
Audio
Chipset:
RealTek ALC262 High Definition audio codec
Audio Interface:
MIC In, Line Out

4
Ethernet
Chipset:
Dual RealTek RTL8111C 10/100/1000 Mbps LAN
Ethernet Interface:
2 x RJ-45
1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-1760 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-1760 delivery package
contains the following items:
HS-1760 Board x 1
Utility CD Disk x 1, including User’s Manual
Cables (as following table)
Jumper Bag x 1

6
Cables Package
NO. Description QTY.
1 SATA cable 50cm (w/Lock) 1
2 Print DB25-26P(2.0) cable 1
3 SATA power cable 15cm 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
Option Accessories
NO. Description
1 USB 1-to-2 cable
2 SATA cable 50cm (w/Lock)
3 COM DB9*2-10P(2.0) cable
4 H=23mm CPU Cooler

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-1760. This chapter also contains information related to
jumper settings of switch, and watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (JP8 short 1-2)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the driver CD in good condition for future reference and
use.

8
3.2 Board Layout
TOP Side

9

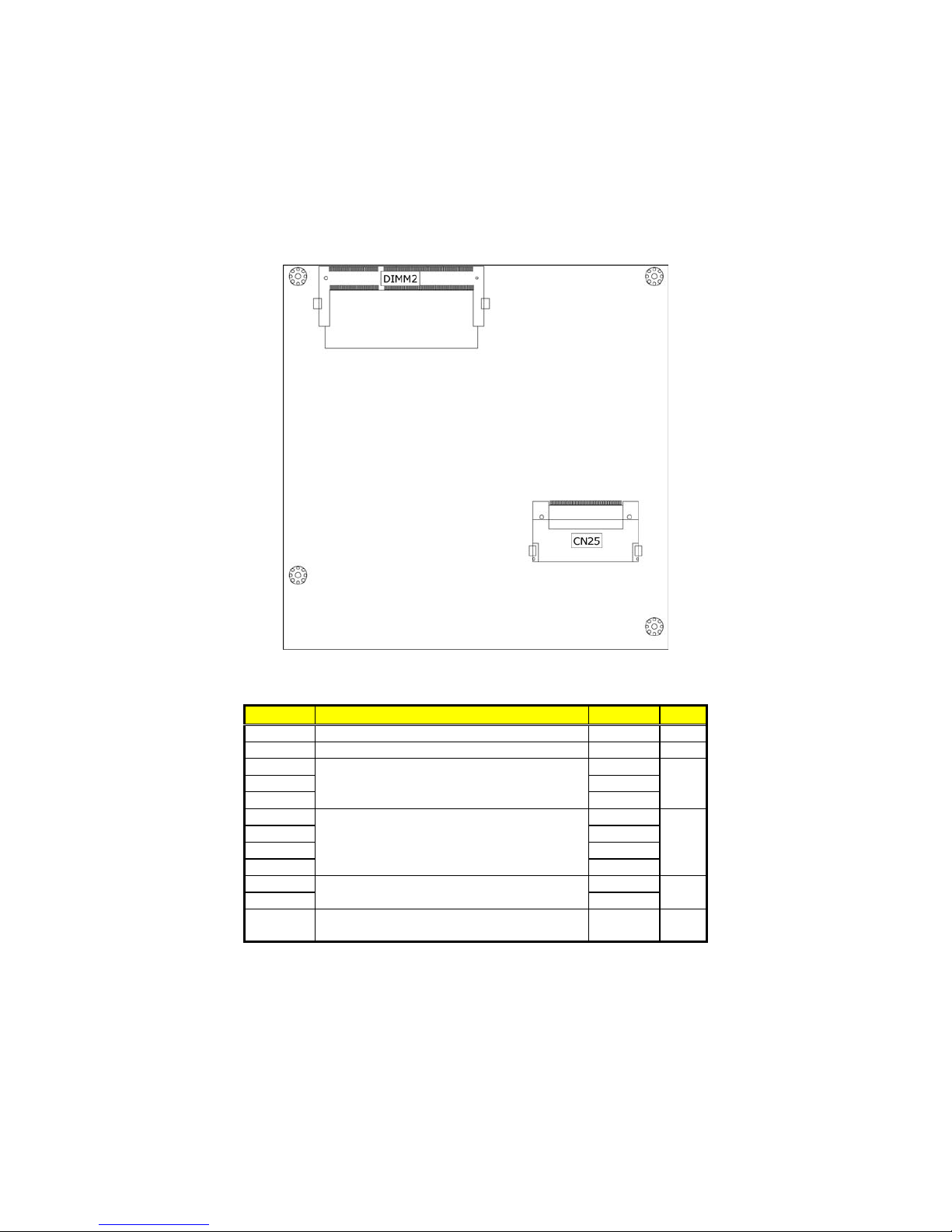

Solder Side
3.3 Jumper List
Jumper Default Setting Setting Page
JP3 Panel Voltage Select: +3.3V Short 2-3 11
JP8 Clear CMOS: Normal Operation Short 1-2 16
JP9
FSB Frequency Select: CPU Driven
Short 2-3
11
JP11 Short 1-2
JP12 Short 1-2
JP13
CF or SATA 3 Connector Select: SATA
Short 2-3
13/22
JP14 Short 2-3
JP15 Short 2-3
JP16 Short 2-3
JP18 Onboard Display or External PCIe x16 Bus
Select: CRT Function
Open 11
JP19 Short 1-2
CN21 COM 2 Use RS-232 or RS-422/485 Select:
RS-232 Open 14

10
3.4 Connector List
Connector Definition Page
ATX1 24-pin ATX Power Connector 18
CN2 PS/2 6-pin Mini DIN KB & MS
Connector
19
CN3/CN5 LVDS Panel Connector 11
CN4 System Front Panel Connector 19
CN6 15-pin CRT/DVI-I Connector 11
CN7 COM 1/COM 2 Connector (DB9) 14
CN8/CN11/CN13/CN15 SATA 0~SATA 3 Connector 13
CN9/CN12 RJ-45 + External USB2.0 Ports 15/16
CN14 MIC In/Line Out Connector 22
CN16 Internal USB2.0 Ports 16
CN18/CN19 COM 3/COM 4 Connector (5x2 header) 14
CN22 8-bit GPIO 24
CN23 RS-422/485 Connector (3x2 header) 14
CN24 Parallel Port 17
CN25 CompactFlash Connector 22
CN26 External Reset Button 18
CON1 PCIe x1 Expansion Slot ----
DIMM1/DIMM2 DDR3 Socket 11
FN1/FN2 Fan Power Connector 18
JP6 Inverter Power Connector 11
PCI1 Mini PCI Expansion Slot ----
PCI2 PCI Expansion Slot ----
PCIE_1 PCIe x16 Expansion Slot ----

11
3.5 Configuring the CPU
The HS-1760 use Socket P for Intel® Core™ 2 Duo (Penryn 45nm)
and Mobile Celeron® processor.
zJP9/JP11/JP12: FSB Frequency Select
Options Settings
JP9 JP11 JP12
CPU Driven (default) Short 2-3 Short 1-2 Short 1-2
1066MHz FSB Short 2-3 Short 2-3 Open
800MHz FSB Short 2-3 Open Open
667MHz FSB Short 2-3 Open Short 2-3
13 13 13
3.6 System Memory
The HS-1760 provides two 204-pin SO-DIMM sockets at locations
DIMM1/DIMM2. It supports DDR3 800/1066MHz up to 4GB.
3.7 VGA Controller
The HS-1760 provides three types of connection for display device.
CN6A is a 15-pin CRT connector. CN3/CN5 are the LVDS interface
connectors onboard reserved for flat panel installation. HS-1760 also
provides DVI-I connector at location CN6B.
zCN6A: 15-pin CRT Connector
PIN
Description
PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 N/C 12 DDCDA
13 HSYNC 14 VSYNC
15 DDCCL
1
7123914
5
611281341015

12
zCN3/CN5: LVDS Interface Connector
PIN
Description
PIN
Description
1
2
13
14
1 VLCD 2 VLCD
3 GND 4 GND
5 A0-/B0- 6 A0+/B0+
7 A1-/B1- 8 A1+/B1+
9 A2-/B2- 10 A2+/B2+
11 CLK1-/CLK2- 12 CLK1+/CLK2+
13 A3-/B3- 14 A3+/B3+
NOTE: LVDS cable should be produced very carefully. A0- & A0+ have to
be fabricated in twister pair (A1- & A1+, A2- & A2+ and so on)
otherwise the signal won’t be stable. Please set the proper voltage
of your panel using JP6 before proceeding on installing it.
zJP6: Inverter Power Connector
PIN Description
16
1 +12V
2 +12V
3 VCC
4 BK_EN
5 LCD_EN
6 GND
NOTE: If use CN3 only, it just supports 24-bit single channel LVDS panel;
If you want to use 48-bit dual channel LVDS panel, please use CN3
and CN5 combined.
The HS-1760 has an onboard jumper that selects the working voltage
of the flat panel connected to the system. Jumper JP3 offers two
voltage settings for the user.
zJP3: Panel Voltage Select
Options Settings
13
+3.3V (default) Short 2-3
+5V Short 1-2
zJP18/JP19: External PCIe x16 Slot Enabled/Disabled Select
Options Settings
JP18 JP19
Enabled Short Short 2-3
Disabled (default) Open Short 1-2
132
1

13
zCN6B: DVI-I Connector
PIN
Description
PIN Description
1 - DATA2 2 DATA2
3 GND 4 -DATA4
5 DATA4 6 DDCCLK
7 DDCDATA 8 VSYNC
9 -DATA1 10 DATA1
11 GND 12 -DATA3
13 DATA3 14 VCC5
15 GND 16 HPDET
17 -DATA0 18 DATA0
19 GND 20 -DATA5
21 DATA5 22 GND
23 CLK 24 -CLK
25 RED 26 GREEN
27 BLUE 28 HSYNC
29 GND 30 GND
3.8 Serial ATA Connector
You can connect the Serial ATA device that provides you high speeds
transfer rates (300MB/sec.).
zCN8/CN11/CN13/CN15: SATA 0~SATA 3 Connector
PIN Description
17
1 GND
2 SATATXP
3 SATATXN
4 GND
5 SATARXN
6 SATARXP
7 GND

14
zJP13/JP14/JP15/JP16: CF or SATA 3 Connector Select
Options Settings
JP13 JP14 JP15 JP16
SATA 3 (default) Short 2-3
CF Short 1-2
1
3
1
3
1
3
1
3
3.9 Serial Port Connectors
The HS-1760 offers 16C550 compatible UARTs with Send/
Receive 16-byte FIFO serial ports.
zCN7: COM 1/COM 2 Connector (DB9)
PIN Description
PIN
Description
1
5
6
9
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND
zCN18/CN19: COM 3/COM 4 Connector (5x2 Header)
PIN Description
PIN
Description
19
102
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 Don’t Use
zCN23: RS-422/485 Connector (3x2 Header, COM 2)
PIN Description
PIN
Description
15
62
1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 N/C
NOTE: The terminal resistance of RX & TX is set at 180 Ω .
