BOSER Technology HS-2610 User manual

HS-2610
HS-2610M
Intel® Pentium® M/Celeron®M/
ULV Intel® Celeron® M processor
Embedded Engine Board
•Mini PCI•CompactFlash•SO-DDR•
•CRT/LVDS•Dual LAN•Audio•
•RS-232/422/485•4 COM•USB2.0•WDT•
•Single +5V•H/W Monitor•

Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The manufacturer will
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e., electronic, mechanical, photocopying, recording)
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
T
Tr
r
ra
a
ad
d
de
e
em
m
ma
a
ar
r
rk
k
ks
s
s
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2006 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.3, May 19, 2009

Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 10
3.7 VGA Controller .................................................................... 10
3.8 PCI E-IDE Drive Connector................................................. 12
3.9 Serial Port Connectors ....................................................... 13
3.10 Ethernet Connector............................................................. 14
3.11 USB Connector.................................................................... 15
3.12 CMOS Data Clear................................................................. 16
3.13 Power and Fan Connectors................................................ 16
3.14 Keyboard/Mouse Connectors ............................................ 17
3.15 System Front Panel Control ............................................... 17
3.16 Watchdog Timer .................................................................. 18
3.17 Audio Connectors ............................................................... 19
3.18 CompactFlashConnector................................................ 19
3.19 Mini PCI Slot......................................................................... 20
3.20 8-bit I/O Function................................................................. 20

Chapter 4 AMI BIOS Setup..................................... 25
4.1 Starting Setup...................................................................... 25
4.2 Using Setup ......................................................................... 26
4.3 Main Menu............................................................................ 27
4.4 Advanced Settings .............................................................. 28
4.5 Advanced PCI/PnP Settings............................................... 31
4.6 Boot Settings ....................................................................... 32
4.7 Security Settings ................................................................. 33
4.8 Advanced Chipset Settings................................................ 34
4.9 Power Settings .................................................................... 35
4.9 Exit Options ......................................................................... 36
Chapter 5 Software Utilities..................................... 37
5.1 IDE Driver Installation ......................................................... 37
5.2 VGA Driver Installation ....................................................... 41
5.3 LAN Driver Installation........................................................ 50
5.4 Audio Driver Installation..................................................... 63
5.5 USB2.0 Driver Installation .................................................. 66

Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: HS-2610, HS-2610M
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the product to ensure
harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

1
Chapter 1
General Description
The HS-2610 is an Intel® 852GME GMCH and HS-2610M is an Intel®
852GM GMCH chipset-based board designed. The HS-2610/
HS-2610M is ideal all-in-one embedded engine board. Additional
features include an enhanced I/O with CF, CRT/LVDS, dual LAN,
audio, 4 COM, and USB2.0 interfaces.
Its onboard ATA/33 to IDE drive interface architecture allows the
HS-2610/HS-2610M to support data transfers of 33, 66 or 100MB/sec.
to one IDE drive connection. The HS-2610 supports Intel® Pentium®
M/Celeron® M processor, and HS-2610M supports ULV Intel®
Celeron® M processor 600MHz/512K.
The Intel® 852GM with 8MB shared main memory supporting CRT
display up to 1600 x 1200. It also supports 18-bit single channel/36-bit
dual channel LVDS interface.
System memory is also sufficient with the one SO-DDR socket that can
support up to 1GB.
Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission. And two external RJ-45 connectors
for 10/100 Based Ethernet use.

2
To ensure the reliability in an unmanned or standalone system, the
watchdog timer (WDT) onboard HS-2610/HS-2610M is designed with
software that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard WDT will automatically reset the CPU or generate an interrupt
to resolve such condition.
1.1 Major Features
The HS-2610/HS-2610M comes with the following features:
 Intel® Pentium® M/Celeron® M processor 1.3~2.0GHz (HS-2610)
ULV Intel® Celeron® M processor 600MHz/512K (HS-2610M)
 Supports 533MHz FSB (only HS-2610)
 One SO-DDR socket with a max. capacity of 1GB
 Intel® 852GME GMCH/ICH4 system chipset (HS-2610)
Intel® 852GM GMCH/ICH4 system chipset (HS-2610M)
 Winbond W83627HF super I/O chipset
 Intel® 82852GME graphics controller (HS-2610)
Intel® 82852GM graphics controller (HS-2610M)
 18-bit/36-bit LVDS Panel display interface
 Intel® 82551QM and 82562ET fast Ethernet controller
 AC97 3D audio controller
 Fast PCI ATA/33/66/100 IDE controller
 CF card adapter, 4 COM, 6 USB2.0
 Single +5V power in
 Hardware Monitor function

3
1.2 Specifications
 CPU:
HS-2610 provides
Intel® Pentium® M processor 760 2.0GHz
Intel® Pentium® M processor 745 1.8GHz
Intel® Celeron® M processor 370 1.5GHz
Intel® Celeron® M processor 320 1.3GHz
HS-2610M provides ULV Intel® Celeron® M processor 600MHz/512K
 Front Side Bus:
HS-2610 supports 400/533MHz FSB
HS-2610M supports 400MHz FSB
 Memory: One SO-DDR socket supporting up to 1GB
 Chipset:
Intel® 852GME GMCH/ICH4 (HS-2610)
Intel® 852GM GMCH/ICH4 (HS-2610M)
 I/O Chipset: Winbond W83627HF
 CompactFlash: One, Type I/II IDE interface adapter
 PCI Slot: One, Type III mini PCI slot
 VGA: Intel® 82852GME (HS-2610)/Intel® 82852GM (HS-2610M) for
CRT display with 8MB shared main memory supporting up to 1600 x
1200
 LVDS Panel: Supports 18-bit single channel/36-bit dual channel LVDS
interface
 Ethernet: Intel® 82551QM and 82562ET 10/100 Based LAN
 Audio: AC97 3D audio controller
 IDE: One 2.0-pitch 44-pin IDE connector
 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
 USB: 6 USB2.0 ports, internal x 2 and external x 4
 Keyboard/Mouse: 6-pin connector
 BIOS: AMI PnP Flash BIOS
 Watchdog Timer: Software programmable time-out intervals from
1~256 sec.
 CMOS: Battery backup
 Power In: Single +5V power in
 Hardware Monitor: Winbond W83627HF
 Board Size: 14.5(L) x 10.2(W) cm

4
1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package

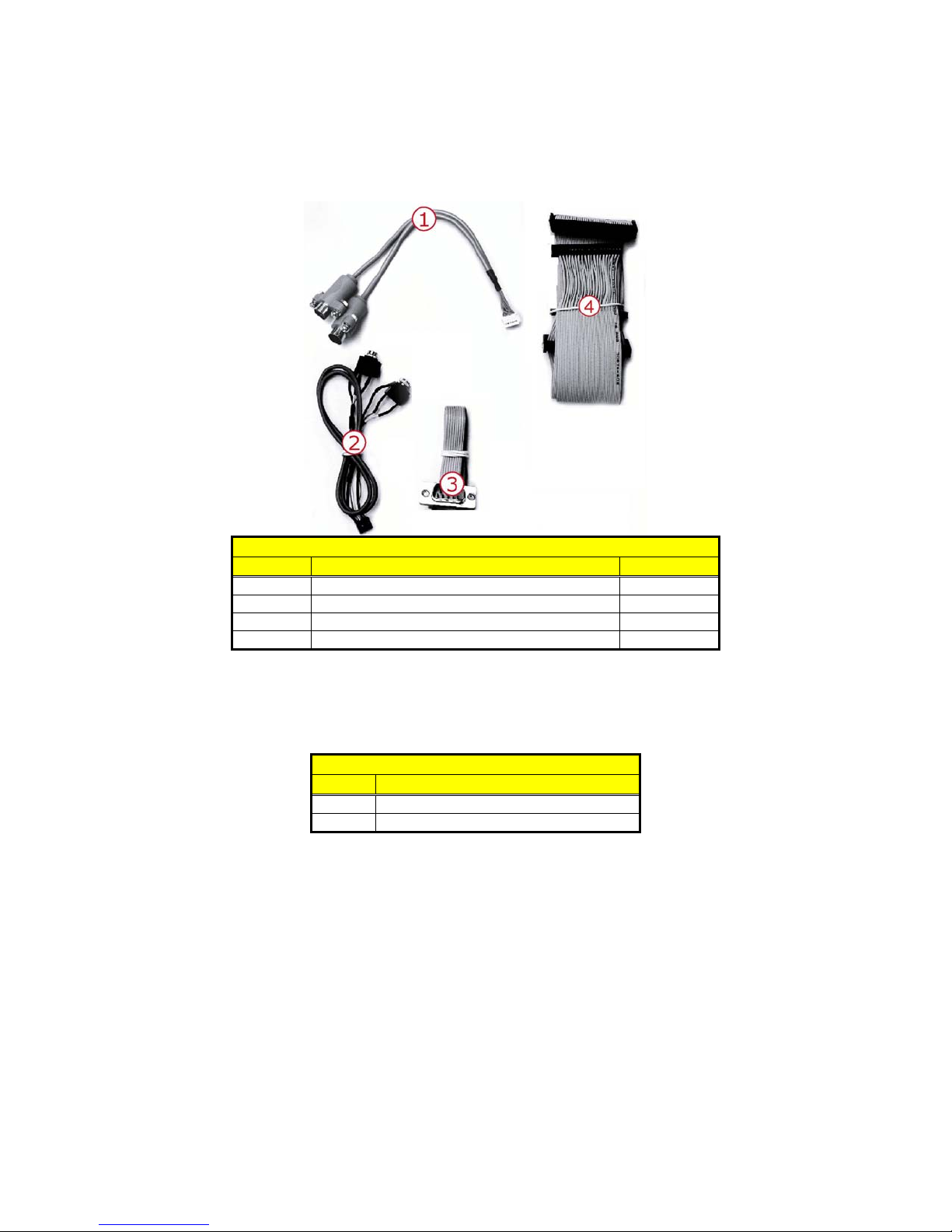

The HS-2610/HS-2610M is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-2610/HS-2610M delivery
package contains the following items:
 HS-2610 or HS-2610M Board x 1
 Utility CD Disk x 1
 Cables Package x 1
 Jumper Bag x 1
 User’s Manual

6
Cables Package
NO. Description QTY.
1 6P(JST2.0) Mini DIN * 2 1
2 SPK 8P(2.0)-Phone Jack * 2 1
3 COM DB9-10P (2.0-pitch) 1
4 40-pin to 44-pin IDE flat cable 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
Option Accessories
NO. Description
1 1-to-2 USB cable with bracket
2 COM DB9-10P (2.0-pitch)

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-2610/HS-2610M. This chapter also contains information
related to jumper settings of switch, and watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (set JP2 1-2)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

8
3.2 Board Layout
Top Side
Solder Side

9
3.3 Jumper List
Jumper Default Setting Setting Page
JP2 Clear CMOS: Normal Operation Short 1-2 16
JP6 Short 3-4
CN19 System Frequency Select: 400MHz Short 3-4 10
JP7 Onboard LAN 2 Enabled/Disabled Select:
Enabled Short 1-2 14
JP8 COM4 Use RS-232 or RS-422/485 Select:
RS-232 Open 13
3.4 Connector List
Connector Definition Page
CN1 MIC In/Line Out Connector 19
CN2 External Reset Button ----
CN3 15-pin CRT Connector 10
CN4 COM 1 (DB9) 13
CN5/CN6 LVDS Panel Connector 10
CN7/CN9 RJ-45 & Dual USB2.0 Port 14/15
CN8 IDE Connector 12
CN11/CN12/CN13 COM 2~COM 4 Connector (5x2 header) 13
CN14 Internal USB2.0 Port 15
CN15 6-pin KB/MS Connector 17
CN16 SO-DDR Socket 10
CN17 CompactFlash Connector 19
CN18 RS-422/485 Connector 13
FN1 Fan Power In Connector 16
PW1 4-pin Power In Connector 16
JP1 System Front Panel Control 17
JP5 Inverter Power In Connector 10
JP9 8-bit I/O Connector 20
PC1 Mini PCI Slot 20

10
3.5 Configuring the CPU
The HS-2610 provides Intel® Pentium® M processor 760 2.0GHz,
Pentium® M processor 745 1.8GHz, Celeron® M processor 370
1.5GHz, and Celeron® M processor 1.3GHz. The HS-2610M
embedded with ULV Intel® Celeron® M processor 600MHz/512K. If
you want to use 533MHz FSB processor, please set JP6/CN19, and
JP6/CN19 is only for HS-2610.
 JP6/CN19: System Frequency Select
Settings
Options JP6 CN19
400MHz FSB (default) Short 3-4 Short 3-4
533MHz FSB Open Open
14
13
24
3.6 System Memory
The HS-2610/HS-2610M provides one SO-DDR socket at locations
CN16. The maximum capacity of the onboard memory is 1GB.
3.7 VGA Controller
The HS-2610/HS-2610M provides two connection methods of a VGA
device. CN3 offers a single standard CRT connector and CN5/CN6 are
the LVDS interface connectors onboard reserved for flat panel
installation.
 CN3: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
1
515
10
611

11
 CN5/CN6: LVDS Interface Connector
PIN Description PIN Description
1 VLCD 2 VLCD
3 GND 4 GND
5 A0-/A4- 6 A0+/A4+
7 A1-/A5- 8 A1+/A5+
9 A2-/A6- 10 A2+/A6+
11 CLK1-/CLK2- 12 CLK1+/CLK2+
13 N/C 14 N/C
12
13 14
NOTE: LVDS cable should be produced very carefully. A0- & A0+ have to
be fabricated in twister pair (A1- & A1+, A2- & A2+ and so on)
otherwise the signal won’t be stable.
NOTE: If use CN5 only, it just supports 18-bit single channel LVDS panel;
If you want to use 36-bit dual channel LVDS panel, please use CN5
and CN6 combined.
 JP5: Inverter Power In Connector
PIN Description
1 +12V
2 +12V
3 VCC5
4 BK_EN
5 LCD_EN
6 GND
1
6

12
3.8 PCI E-IDE Drive Connector
CN8 is a standard 44-pin 2.0-pitch connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-2610/
HS-2610M. A maximum of two ATA/33 IDE drives can be connected to
the HS-2610/HS-2610M via CN8.
 CN8: IDE Connector
PIN Description PIN Description
1 Reset 2 GND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GND 20 N/C
21 PDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 PR1PD1-
29 RPDACK- 30 GND
31 Interrupt 32 N/C
33 RPDA1- 34 PATA66
35 RPDA0- 36 RPDA2-
37 RPCS1- 38 RPCS3-
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C
1
2
43
44

13
If you want to use ATA/66/100 IDE device, please purchase this cable
separately.
Optional Cable
Part No. Description
291-04010200G ATA/66/100 IDE cable for
2.0-pitch IDE connector
3.9 Serial Port Connectors
The HS-2610/HS-2610M offers NS16C550 compatible UARTs
with Read/ Receive 16-byte FIFO serial ports and internal 10-pin
headers and RS-422/485 connector.
 CN4: COM 1 Connector (DB9)
PIN Description PIN Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
1
5
6
9
 CN11/CN12/CN13: COM 2~COM 4 Connector (5x2 Header)
PIN Description PIN Description
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 N/C
19
10 2

14
 CN18: RS-422/485 Connector (3x2 Header, COM4)
PIN Description PIN Description
1 TX- 2 TX+
3 RX+ 4 RX-
5 GND 6 VCC
15
62
NOTE: The terminal resistance of RX & TX is set at 180 Ω .
 JP8: COM 4 use RS-232 or RS-422/485 Select
Options Settings
RS-232 (default) Open
RS-485 by Auto (*1) Short 1-2, 3-4, 5-7, 8-10
RS-485 by –RTS (*-1) Short 1-2, 3-4, 7-9, 8-10
RS-422/485 Full Duplex (*2) Short 1-2, 3-4, 6-8
19
10 2
NOTE: *1: 2-wires RS-485 function
*2: 4-wires point-to-point full duplex function
4-wires point-to-point full duplex RS-422/485
Typical RS-485 2-wires Mutildrop Network
