Boss Audio Systems DVD-2900T User manual

DVD-2900T

2
Compatible with PAL DVD (Video CD)
and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
• A single LSI chip now integrates all
major DVD playback circuit functions
including MPEG2 decoder, video D/A
converter, and audio decoders.
• L/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
• Supplied remote handles multi-
function software (multi-language
audio-track/subtitle, multi-angle,multi-
story, etc.), plus all basic functions.
Built In TV Tuner
• PLL Tuning System
• I2C Bus Control
USE THIS PRODUCT SAFELY
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
When Parked
Parking in direct sunlight can produce
very high temperatures inside your
vehicle. Give the interior a chance to
cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system (the regular system in a North
American car).
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise
mechanism of this unit.
Use Authorized Service Centers
Do not attempt to disassemble or adjust
this precision product. Please refer to
the Service Center list included with this
product for service assistance.
For Installation
The unit should be installed in a
horizontal position with the front end up
at a convenient angle, but not more than
30˚.
FEATURES

3
CONTENTS
Safety Information ........................................................................................4
Disc Notes .....................................................................................................5
The Player......................................................................................................6
Front View ...............................................................................................................6
Back View ...............................................................................................................6
Installation .....................................................................................................7
Electric Connection ......................................................................................8
Remote Control.............................................................................................9
Location and Function of Keys...............................................................................9
Preparing the Remote Control..............................................................................11
General Operation.......................................................................................12
Turn the Unit On....................................................................................................12
Basic Play .............................................................................................................12
DVD Video Menu Play...........................................................................................13
Mode Selection.....................................................................................................13
Last Play Memory .................................................................................................13
Advanced Operation...................................................................................13
Repeat Play/ Paragraph Repeat Play ...................................................................13
PBC Menu Playback of VCD/SVCD .....................................................................13
On-screen Display Function .................................................................................14
PAL/NTSC System Selection................................................................................15
Random Playing....................................................................................................15
Zoom Function......................................................................................................16
Special Function for DVD .....................................................................................16
Special Function for VCD .....................................................................................17
Data Disc and Audio CD Play Operation ..............................................................17
Setup ............................................................................................................19
Language Setup ...................................................................................................19
Display Setup........................................................................................................20
Audio Setup ..........................................................................................................20
Lock Setup............................................................................................................21
Others Setup.........................................................................................................22
TV Operation ...............................................................................................22
Trouble Shooting.........................................................................................23
Specifications..............................................................................................24

4
CAUTION:
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
WARNING:
•TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
•TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
•THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
SAFETY INFORMATION
Region Management Information
Region Management Information:
This Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.

DISC NOTES
5
Disc formats supported by this player
DVD
12 cm disc
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this
player
•DVD-ROM
•DVD-RAM
•CDV
•CD-G
Handling and Cleaning
•Dirt, dust, scratches and warping disc
will cause misoperation.
•Do not place stickers or make
scratches on discs.
•Do not warp discs.
•A disc should always be kept in its
case when not in use to prevent from
damage.
•Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handling
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Preparing New Discs with Rough
Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a ball
point pen or pencil as shown on the right.
To remove the rough edges, press the
side of the pen or pencil against the
inside and outside edges of the disc.
Rough spots
on inside edge
Ball point pen
or pencil
Rough spots on
outside edge
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from center
toward the outside edge

6
THE PLAYER

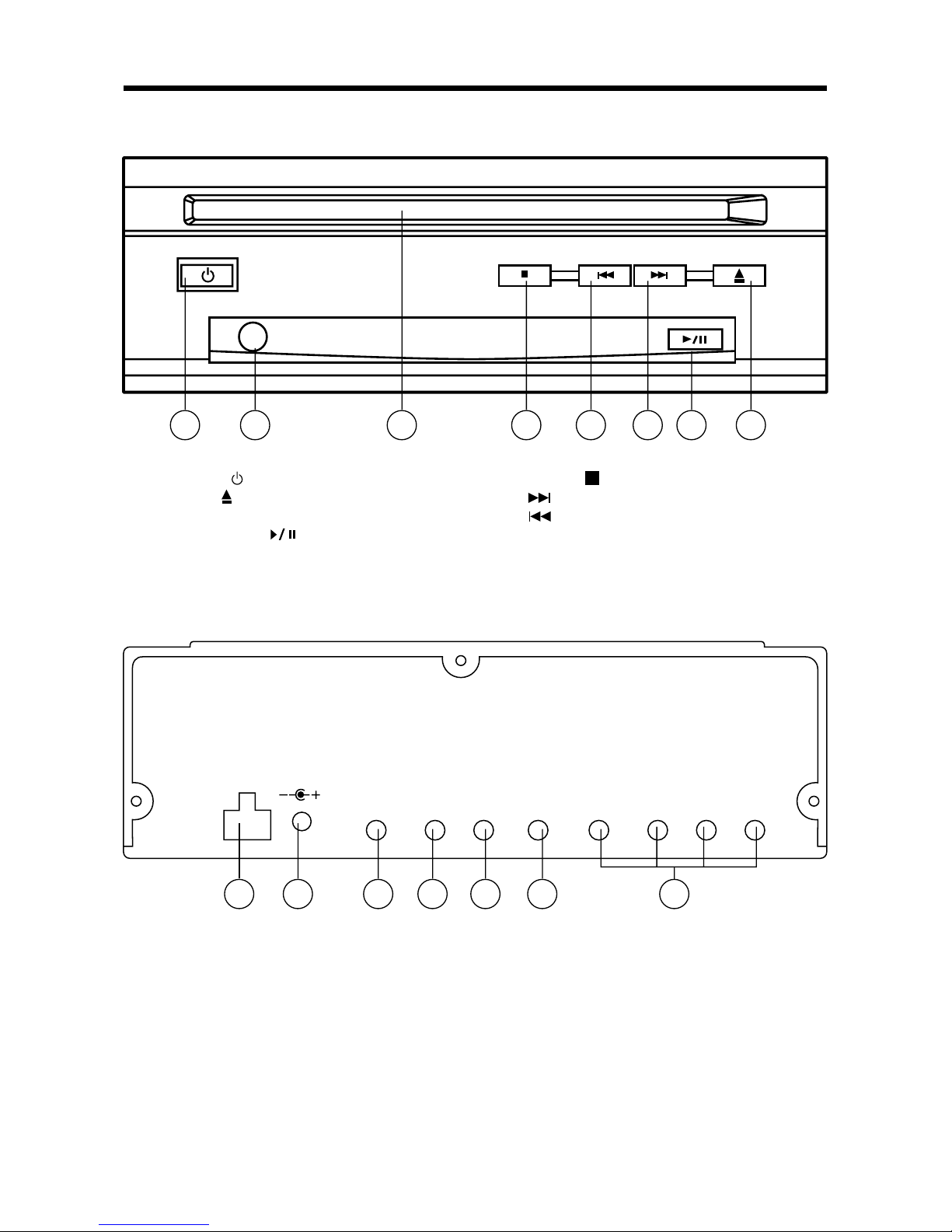

FRONT VIEW
1. POWER ( )
2. EJECT ( )
3. DISC SLOT
4. PLAY/PAUSE ( )
5. STOP ( )
6. /CH+
7. /CH-
8. IR
2467581 3
BACK VIEW
9. DIVERSITY ANTENNA
10. DC 12V IN Socket
11. DC 12V OUT Socket
12. REMOTE Socket
13. DIGITAL AUDIO
14. AUDIO OUTPUT L/R
15. VIDEO OUTPUT
151413121110 9

7
INSTALLATION

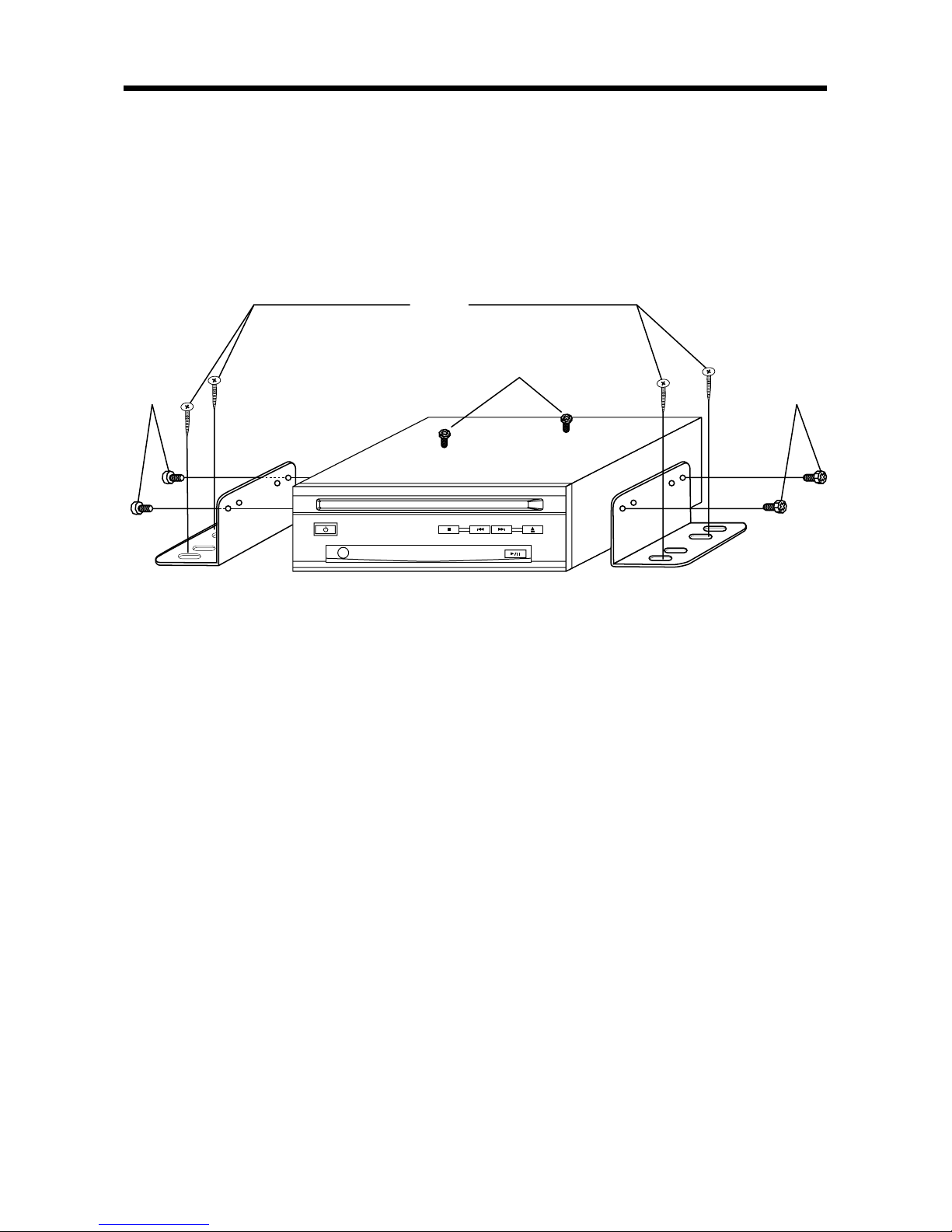

This unit is designed for home-use and car-use. When installed on the car, please
follow the installation instruction below.
Note:
1. First remove the two screws that lock the DVD mechanism, then attach the brackets
on both sides of unit with screws (M4x5), last install the unit with screws (M5x25).
2. When fix the unit, you can slide the screw (M5x25) to left side or right side to meet
your needed position. In the figure above, select two holes among positions that
marked 1, 2, 3 and 4 to fix the bracket.
SCREW
M4x5
12
3
SCREW
M5x25
SCREW
M4x5
12
34
SCREWS LOCK THE DVD MECHANISM

8

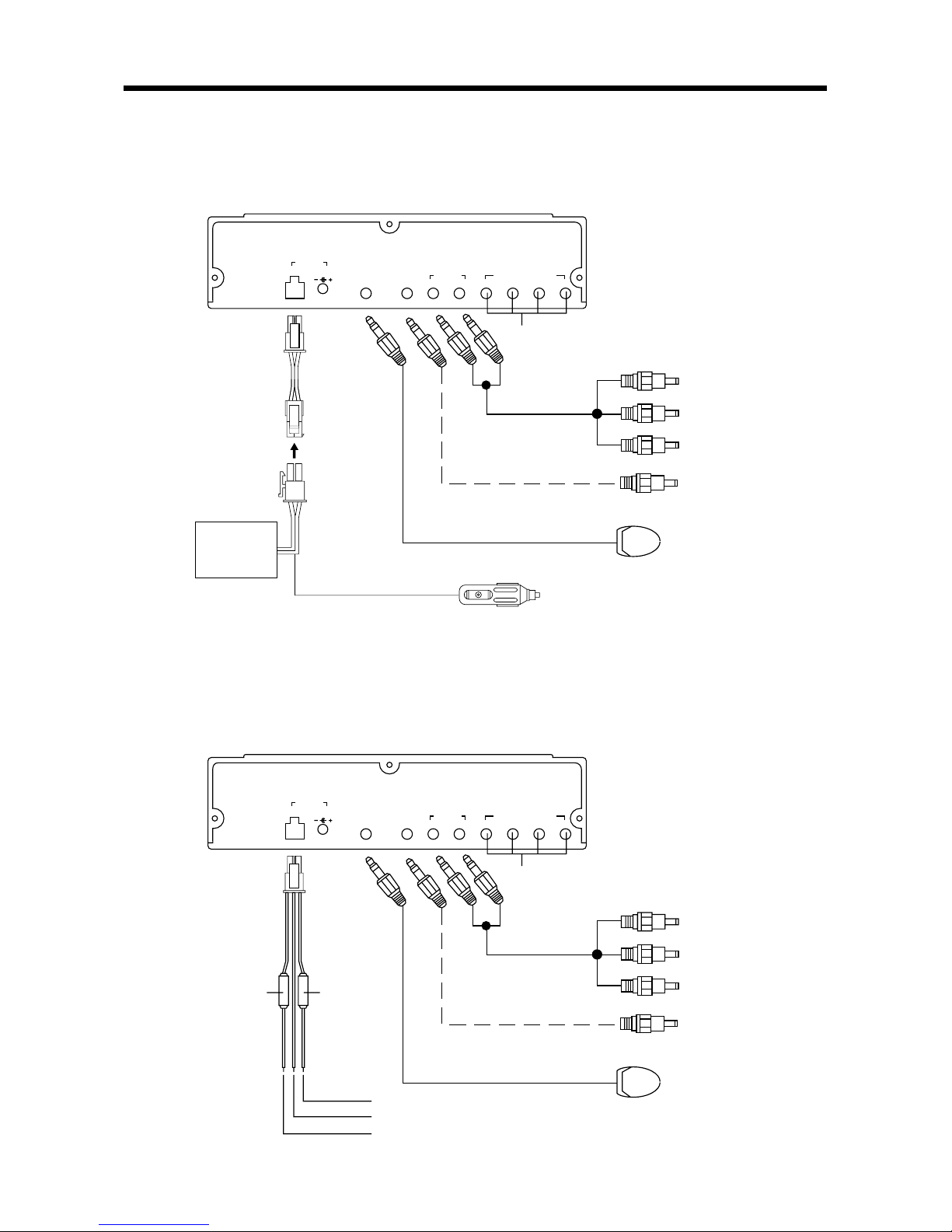

ELECTRIC CONNECTION
DC 12V
IN OUT
REMOTE DIGITAL
AUDIO
A/V OUT
L/R VIDEO
YELLOW
RED
WHITE
VIDEO OUT
AUDIO R OUT
AUDIO L OUT
DIGITAL AUDIO
(OPTIONAL)
REMOTE CONTROL RECEIVER
DVD PLAYER
AC/DC
ADAPTOR
(OPTIONAL)
CIGARETTE LIGHTER
DIVERSITY ANTENNA
DIVERSITY ANTENNA
METHOD B
According to the figure below, install the unit in the car and obtain DC 12V power
supply input.
METHOD A
Use the conversion cable to obtain DC 12V power supply input through the AC/DC
ADAPTER or the cigarette lighter according to the figure below:
FUSE (3A)FUSE (3A)
MEMORY/BATTERY (B+) (YELLOW)
GROUND (B-) (BLACK)
IGNITION SWITCH (ACC+) (RED)
DC 12V
IN OUT
REMOTE DIGITAL
AUDIO
A/V OUT
L/R VIDEO
YELLOW
RED
WHITE
VIDEO OUT
AUDIO R OUT
AUDIO L OUT
DIGITAL AUDIO
(OPTIONAL)
REMOTE CONTROL RECEIVER
DVD PLAYER
DIVERSITY ANTENNA
DIVERSITY ANTENNA

9
REMOTE CONTROL
LOCATION AND FUNCTION OF KEYS
6
1
3
7
11
4
8
10
5
9
12
13
14
16
15
17
20
18
19
24
21
28
22
32
23
25
29
2726
3130
2

10
REMOTE CONTROL
1. POWER Press POWER to turn the unit ON or OFF.
2. EJECT Press to eject the disc.
3. MUTE Press to mute the sound.
4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle
language DVD disc.
5. ANGLE Changing of the view angle on multi-angle DVD disc.
6. CONSOLE Display statistical disc information during playback.
7. MODE Changing between DVD mode, TV mode.
8. SETUP Display the SETUP menu.
9. PAL/NTSC Switch between PAL mode, NTSC mode and AUTO mode.
10. AUDIO Changing of the AUDIO soundtrack on multi-audio
soundtrack DVD disc.
Changing of the sound mode of the VCD/CD discs.
11. TITLE Display the TITLE menu that is stored in DVD disc.
12. MENU Display the root menu that is stored on the DVD disc.
In TV mode, press it to enter into search state, then pressing
button to start searching TV channels.
13. / , / In case of MENU mode, / , / buttons served as cursor
buttons to select item left/right, ahead/back.
14. ENTER Confirm the Track/Chapter selected with the numeric buttons
or selected with the cursor buttons on TV screen.
15. / Changing for slow forward/ reverse playback motion.
16. Press to play the disc.
17. / Press to search forward rapidly & to search reverse
rapidly.
18.
(CH+)/ (CH-) Press to skip to the next track & press to skip back
one track.
In TV mode, press (CH+) button or (CH-) button to choose
channel upward or downward.
19. Press it once to pre-stop playback; press it twice to stop
playback.
20. Press it for the first time to pause playback. Press it again
to stop at the next picture (step function for DVD/VCD/SVCD).
21. 0-9 Numeric buttons
22. 3D (-/--) In TV mode, Digital select button, cooperatively used with numeric
buttons.
During disc playback, press it to select normal or 3D
surround effect mode.
23. CLEAR When you input a number in error, press the button to clear
it.
24. VOLUME+/- Press VOLUME+/- button to increase or decrease the volume
level.
25. ZOOM Allows the picture to be increased in size.
26. BOOKMK During playback, press to enter bookmark function.
27. GOTO Press to select the bookmark that you set.
28. PBC Changing between PBC ON and PBC OFF on the VCD disc.
29. RANDOM Allows the track played in random order.
30. PROGRAM Allows the track played in the order you programmed.
31. REPEAT Switch the Repeat mode of discs.
32. A-B A-B repeat allows a passage to be repeated continuously.

11
Preparing the Remote Control
Inserting the Batteries
1. Open the battery compartment cover.
2. Insert the new batteries. Make sure
that the positive and negative
terminals of the batteries are oriented
as indicated.
3. Close the cover
Battery: Two AAA size battery.
Using the Remote Control
Face the remote control towards the front
face IR mark (remote control signal
receiver).
Operation angle: About ±30 degree in
each direction of the front of the IR mark.
REMOTE CONTROL

GENERAL OPERATION
12
TURN THE UNIT ON
After all connections are completed
correctly, press the (POWER) on the
front panel or (POWER) on the remote
control to turn on the power. When the
unit is on, it will search the disc
automatically. If there is a disc in the disc
slot, the unit will start playback
automatically. Besides this, you should
turn on the monitor thats connected to
the player.
Standby State
1) When the unit is on, press (POWER)
on the front panel or (POWER) on
the remote control to turn the unit off
temporarily, in order to stop the
playback in a short time and the unit
goes into standby state.
2) In standby state, press (POWER) on
the front panel or (POWER) on the
remote control again to recall
playback. For disc playback, it can
realize memory play function.
Note: The unit has screen saver function
(select “ON”in Screen Saver setup). If
the playback is stopped and there is no
function operation in 5 minutes, it will
activate the screen saver function
automatically; when any function for DVD
player is activated, the screen saver
function will release automatically.
Remote Sensor (IR)
Point the remote handset to the remote
sensor IR on the front panel. Receive
the signal from remote handset.
Loading a Disc
1. Insert the disc with printed side facing
up into the disc slot.
2. The player will start playback
automatically.
Ejecting a Disc
Press (EJECT) button on the front panel
or on the remote control to eject the disc.
BASIC PLAY
Stopping Playback
- Briefly press (Stop) button to pre-
stop the unit playback, when
button on the front panel or (Play)
button on the remote control is
pressed, normal playback will
continue.
- Press (Stop) button twice to stop the
playback and go back to DVD LOGO.
Pausing Play/Step Play
Pressing on the remote control for the
first time or presing on the front panel
during playback will stop playback
temporarily. To return to normal
playback, press on the remote control
or on the front panel.
If you play a DVD/VCD/SVCD, press on
the remote control again to stop at the
next picture (step function). If you play a
CD/MP3/Picture CD, pressing on the
remote control again is ineffective.
Fast Forward/Fast Reverse
Press & during playback. Each
time the button is pressed, the speed of
fast forward/reverse changes according
to the disc as follow.
DVD:
VCD/CD/MP3:
Slow Motion Playback (For DVD Only)
Press / during play.
Each time the button is pressed, the
speed of slow forward/reverse changes
according to the disc as follow.
DVD:
In slow motion state, press on the
remote control to recover normal playback.
Skipping Track
Press / buttons on the remote
control or / on the front panel
during playback.
Press to skip to the next track, and
press to skip to the previous track.
Note: For some VCD2.0 discs (PBC-
playback control), / buttons may
be unavailable.
Normal Playback X2 X4 X16 X100
Normal Playback X2 X4 X8
X1/32 X1/16 X1/8 x1/4 x1/2

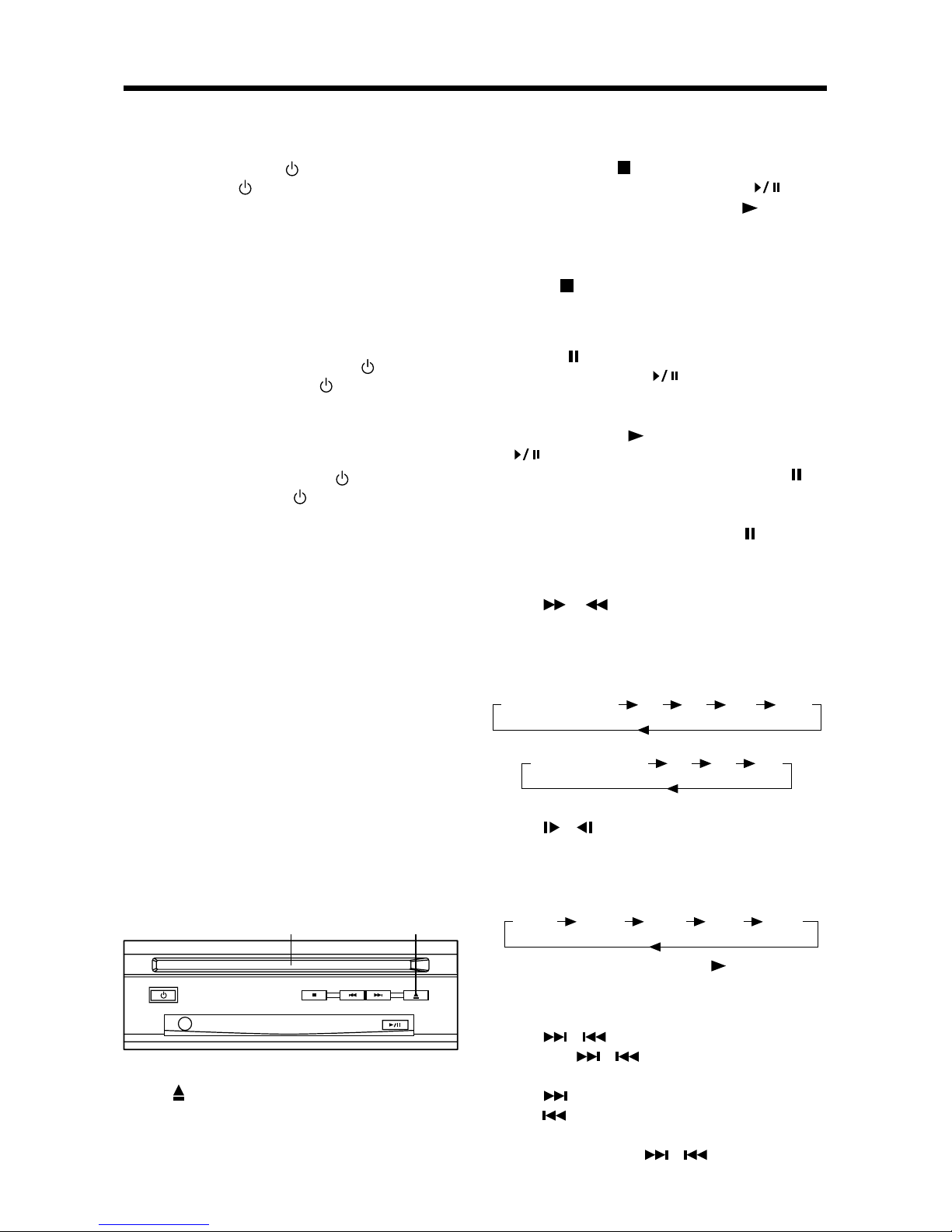

EJECT ButtonDisc Slot

13
GENERAL OPERATION
Mute
Press MUTE button to mute the sound,
but the disc continues playing. Press
MUTE again or press volume up/down
buttons, sound will resume.
Volume Level Adjustment
Press VOLUME +/- on the remote
control to increase or decrease the
volume level.
DVD VIDEO MENU PLAY
When playing a DVD disc in the DVD
player:
1) The disc will be played automatically
and stop at menu picture.
2) Use / , / cursor buttons to
move between the highlight bars in the
menu.
3) Press ENTER button to confirm the
selected item.
MODE SELECTION
Press MODE button on the remote
control or press MODE button on the
front panel shortly to select among DVD,
TV mode.
LAST PLAY MEMORY
•During disc playback, if you press
(POWER) button to turn off the unit
and then press the button again to turn
on the unit, the DVD unit will resume
playing from the point that it was
interrupted.
•During disc playback, press (EJECT)
button to eject the disc then load the
disc into the slot again , the unit will
resume playing from the point that it
was interrupted.
•During disc playback, if you press
MODE button to switch to TV mode,
then return to DVD mode again, the
unit will resume playing from the point
that it was interrupted.
ADVANCED OPERATION
REPEAT PLAY/ PARAGRAPH REPEAT
PLAY
Repeat play: when you want to repeat
play the whole disc or a track or a
chapter in the disc.
1) Press REPEAT button repeatedly to
select different repeat modes.
2) For different kinds of discs, pressing
REPEAT button has different effects.
Note: REPEAT feature does not support
VCD2.0 (with PBC ON).
Paragraph Repeat Play: when you
want to repeat playing a desired
paragraph.
A-B repeat allows a passage to be
repeated continuously.
1) Press A-B button first at the start of
the required passage.
A -
2) Press A-B button secondly at the end
of the passage.
A - B
3) Then the unit will repeat playing the
passage you just set from A to B.
4) To revert to normal playing, press A-B
button again.
Off
PBC MENU PLAYBACK OF VCD/SVCD
For some VCD or SVCD disc, there is a
menu in order to select the desired
contents. This menu is called PBC
(Playback Control) menu.
Press PBC button on the remote control
to change between PBC ON and PBC
OFF on the disc.
In PBC ON mode, REPEAT, RANDOM,
BOOKMARK, A-B, PROGRAM and
GOTO functions are unavailable.
Chapter
Title
Off
DVD
Track
All
Off
VCD/SVCD
CD/MP3/
WMA

14
ON-SCREEN DISPLAY FUNCTION
Press the CONSOLE button during
playback to display the console
information of the current disc on the
screen.
For DVD:
1/1
OFF
0:01:45
1/17
1.ENG
D
3/2.1
Normal
2/32
Sound
Move Select
1) 1/17
Item: Title
Function: Display the current title
number and the total title
number; it can skip to the
desired title number.
Method: / buttons or use numeric
buttons to input and confirm
with ENTER button.
2) 2/32
Item: Chapter
Function: Display the current chapter
number and the total
chapter number; it can skip
to the desired chapter
number.
Method: / buttons or use numeric
buttons to input and confirm
with ENTER button.
3) 0:01:45
Item: Time
Function: Display the title play time/title
remain time/chapter play
time/chapter remain time;
you can input the time
directly to the skip to the

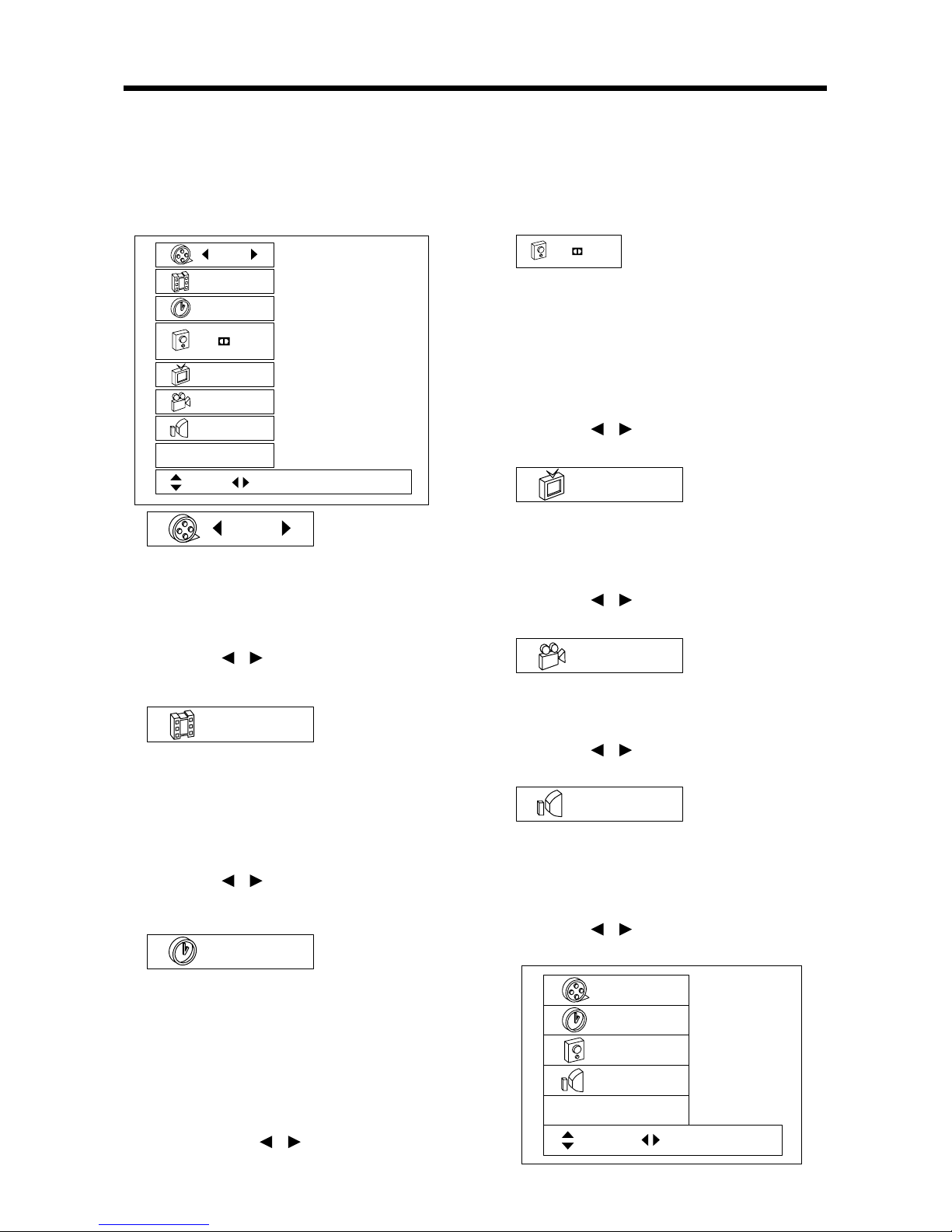

corresponding playback
point.
Method: Use / buttons to display
title play time, title remain
time, chapter play time or
chapter remain time.
Press ENTER, “-:--:--”
appears, then use numeric
buttons to input time and
confirm with ENTER button.
4) 1.ENG
D
3/2.1
Item: Audio
Function: Display the current audio
soundtrack language and
digital audio output; it can
switch to other audio
soundtrack language and
digital audio output.
Method: / buttons or press
AUDIO button.
5) OFF
Item: Subtitle
Function: Display the current subtitle
language; it can switch to
other subtitle language.
Method: / buttons or press
SUBTITLE button.
6) 1/1
Item: Angle
Function: Display the current angle; it
can switch to other angle.
Method: / buttons or press
ANGLE button.
7) Normal
Item: Sound
Function: Display the current sound
mode; it can switch between
normal and 3D surround
effect mode.
Method: / buttons or 3D button.
For VCD:
0:01:45
PBC
Stereo
Normal
Sound
Move Select
ADVANCED OPERATION

15
ADVANCED OPERATION
PAL/NTSC SYSTEM SELECTION
Press the PAL/NTSC button to switch
between PAL, NTSC and AUTO modes.
Note: The function is only effective when
the LOGO is shown. That is to say, when
there is no disc in the unit, ejecting a disc
in stop mode, or pre-stop mode when
playing DVD/VCD, pressing PAL/NTSC
is effective.
BOOKMARK FUNCTION
During playback, pressing BOOKMK
button will enter into bookmark function.
1)During playback, when you want to set
a bookmark, press BOOKMK button,
the information will appear:
#1 : 1/9
This is to tell you that you have set a
bookmark.
2)If you want to watch the section that
you just set a bookmark, press GOTO
button, then press / buttons to move
the cursor to the desired number of the
bookmark, and press or ENTER
button to confirm.
1 2 3 4 5 - - - -
NOTE:
•You can press BOOKMK button again
to close the search menu on the screen.
•You can press BOOKMK button
repeatedly to set 9 bookmarks in all.
And you can press CLEAR button on
the remote control to clear the bookmark
you have set.
RANDOM PLAYING
Pressing RANDOM button during
playback will start to play tracks in
random order.
Press the button again to revert to normal
playback.
Note:
•This function is effective on VCD,
SVCD and CD.
•When playing a VCD/SVCD, the
random playback is effective with PBC
OFF.
1)
PBC
Item: Track
Function: When it is in PBC ON mode,
it display “PBC”(only display,
can’t be changed); when it
is in PBC OFF mode, it will
display the current track
number and total track
number (such as “1/16”) and
it can skip to the desired
track number.
Method: When in PBC OFF, press /
buttons or use numeric
buttons to input and confirm
with ENTER button.
2)
0:01:45
Item: Time
Function: Display the disc play
time/disc remain time/track
play time/track remain time;
you can input the time
directly to skip to the
corresponding playback
point.
Method: Use / buttons to display
disc play time, disc remain
time, track play time or track
remain time.
In PBC OFF mode, press
ENTER, “-:--:--”appears,
then press use numeric
buttons to input time and
confirm with ENTER button.
3)
Stereo
Item: Audio
Function: Display the current audio
mode; it can switch to other
audio mode.
Method: / buttons or press
AUDIO button.
4)
Normal
Item: Sound
Function: Display the current sound
mode; it can switch between
normal and 3D surround
effect mode.
Method: / buttons or 3D button.

16

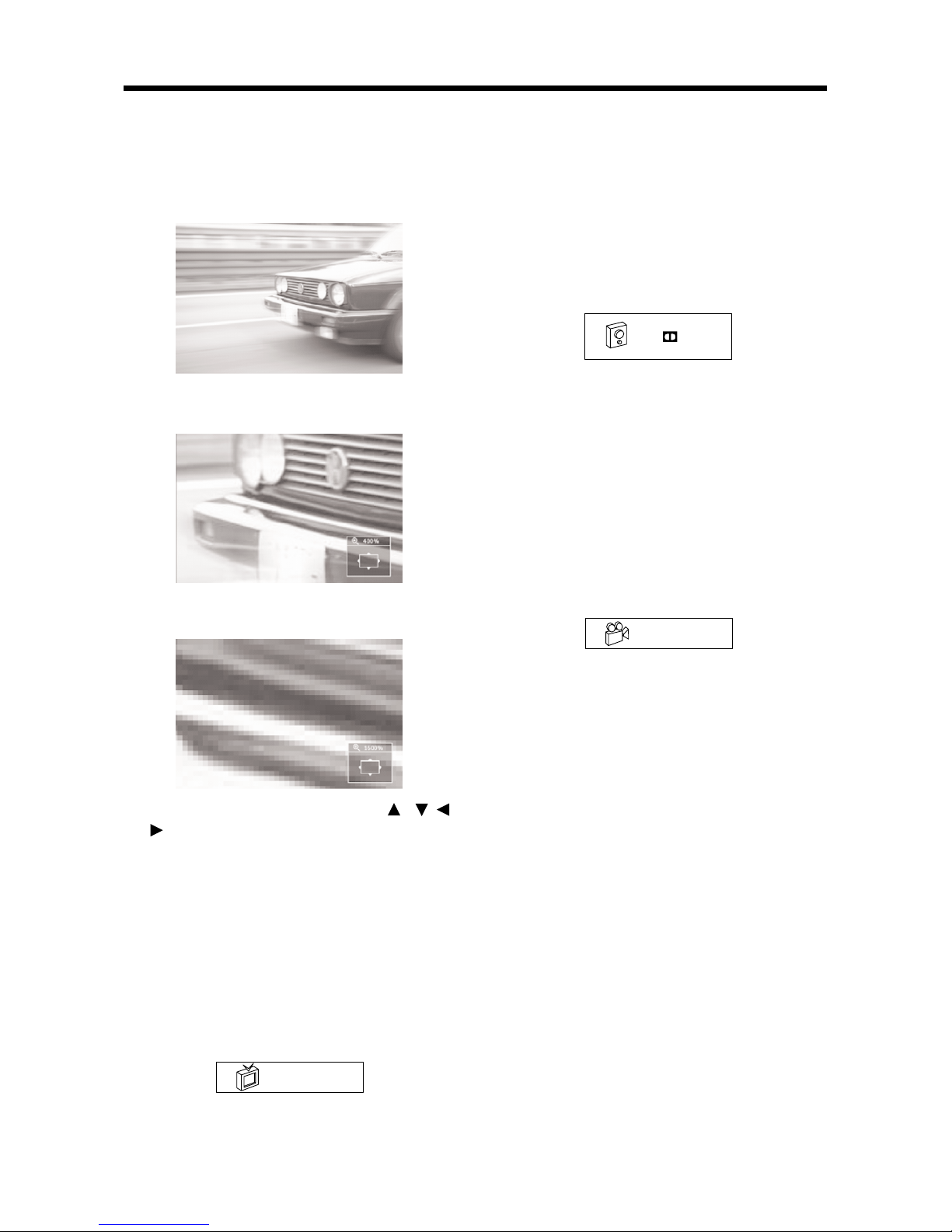

ZOOM FUNCTION
When playing DVD, VCD or some data
discs which includes picture files, if you
want to view some part of the picture
clear:
1) Press ZOOM button to zoom in the
picture 4 times.
2) Press ZOOM button again to zoom in
the picture 16 times.
3) During zoom mode, pressing / ,
/ buttons will move pictures up, down,
left or right direction in order to find the
picture that you want to zoom in.
4) When the sale is 16 times, press ZOOM
button again to cancel the ZOOM
function.
SPECIAL FUNCTIONS FOR DVD
Multi-subtitle Language Function
Press SUBTITLE during playback. The
following information will be shown on
the screen.
OFF
Each time the button is pressed, the
subtitle language changes in sequential
order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one subtitle
language.
Multi-audio Language Function
Press AUDIO during playback. The
following information will be shown on
the screen.
1.ENG
D
3/2.1
Each time the button is pressed, the
audio soundtrack language changes on
sequential order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one
soundtrack language.
Multi-angle Function
Press ANGLE during playback. The
following information will be shown on
the screen.
1/1
Each time the button is pressed, the
angle changes in sequential order.
Notes:
- The angle number is different
according to the disc.
- The function only works for discs
having scenes recorded at different
angles.
FREQUENTLY ASKED QUESTIONS
•When inserting a DVD disc, why it can’t
be played, just showing “region error”?
It is because that the DVD player and
the discs all have the “REGION CODE”.
If the region number described on the
DVD disc does not correspond to the
region number of this DVD player, the
unit cannot play the disc.
•When inserting a DVD disc, there is a
window shown on the screen that
requires entering 4 characters
password, why?
It is because that the current disc has
“Parental Control”level, and the player’s
parental level is set below the level of
the disc, you should enter the correct
password to play the disc normally.
ADVANCED OPERATION

17
NOTE:
•On how to set the “Parental Control”
level, please refer to “SETUP\LOCK”in
the following page.
ATTACHMENT: PARENTAL CONTROL
DVD discs have a parental level assigned
to the disc. The range of parental controls
is from 1 to 8. The player can be set in a
similar way. If the player’s parental level is
set to 8 it will play all discs. If the player’s
parental level is set below 8, only discs with
a lower or equal parental level will play.
For example if the player is set to 5, only
discs with parental control ratings of 5, 4,
3, 2, & 1 will play. To play a higher rated
disc you must change the player’s rating
to a higher number.
For example, consider a disc that generally
is suitable for most audiences, and is
rated as level 2 for the most part. However
in the middle there are also scenes rated
at 5 & 7 (not suitable for children).
Alternative scenes with lower rating are
included.
The player plays the highest rated scene
that the parental setting allows.
A section of the disc can have several
different sequences that vary in parental
control level. In the above example of a
disc with parental control, the player will
show a different section depending on
the parental control level set in the player’s
menu. In this way parents can control the
content of films and there is no indication
that any censorship has occurred.
The meaning of the levels 1 to 8 varies
depending upon the country and the type
of content on the disc.
The parental control levels are:
Unlock
1 Kid safe
2G
3PG
4 PG 13
5 PG R
6R
7 NC 17
8 Adult
The factory password of the parental
control is “3351”.
SPECIAL FUNCTIONS FOR VCD
For VCD discs, there is one special
function “Program Play”which makes it
different from DVD discs.
•The function is effective in PBC OFF
mode. In stop or pre-stop mode, press
PROGRAM button can activate
program edit interface.

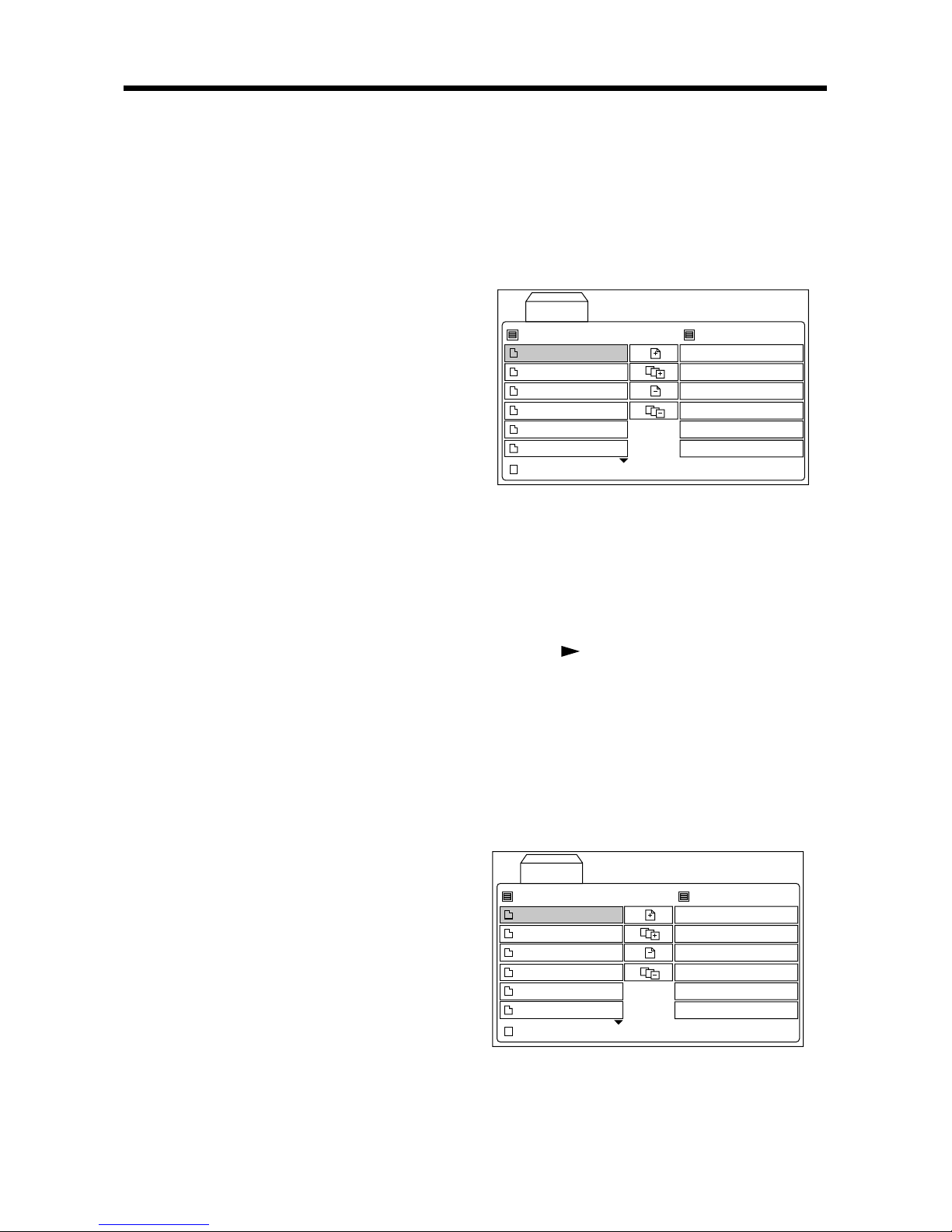

ALL
JPG
Large JPG
12 Level
MP3
Mpeg
Video CD
List Program List
0:00:00
•On how to set the program menu,
please refer to the operation of the audio
files in the media player below.
Note:
•After you have programmed the tracks,
press PROGRAM button to switch
between program play and normal play.
•Press or ENTER button to exit the
edit interface.
DATA DISC AND AUDIO CD PLAY
OPERATION
When you insert a data disc including
audio (MP3, WMA), movie (MPEG), picture
(JPG) files or audio CD into the disc slot,
the following media play window will be
shown on the screen:
ALL
JPG
Large JPG
12 Level
MP3
Mpeg
Music
List Program List
0:00:00
Photo Movie
1) Press TITLE button to switch between
Music, Photo and Movie pages.
2) In Music page, there are three areas:
Play list, Program list and the Edit area
in the middle.
ADVANCED OPERATION

18
•Press or ENTER button to open
the highlighted folder in the play list
or play the audio file in the play list
or program list.
•Use “ADD”, “ADD ALL”, “DELETE”,
and “DELETE ALL”these four
operation buttons on the middle edit
area edit the program list.
•
When highlight is on the audio file of
the play list, you can press PROGRAM
button to add the highlight file directly
to the program list.
•When highlight is on the program list,
you can press CLEAR button to
delete the highlight file directly.
3) In Photo page, there are three areas:
Play list, Preview window and the Edit
area in the middle.
•Press or ENTER button to open
the highlighted folder in the play list.
•When the highlight stops on the
picture file, the preview of the picture
will be shown in the preview window
on the right.
•When selecting the (slide
show) button in the middle area and
pressing ENTER to confirm, it will
start to display all the pictures in full
screen in turn.
When showing the picture in full
screen, the control bar will be shown
on the screen.
3/15 90˚90˚Prev Next Stop Hide
Press or button to rotate the
picture 90˚counter-clockwise
or clockwise.
Press / button to skip to the
previous or next picture.
Press button to stop slide show.
Press CLEAR button to hide or
display the control bar.
•When selecting the (Mixed
Play) button in the middle area and
pressing ENTER to confirm, it will
start to display all the pictures in full
screen in turn and add the MP3 file
as background music.
•The (Speed) button in the middle
area is used to adjust the display
interval speed between the pictures.
Press / buttons to switch between
“>”, “>>”, “>>>”and “”.
4) In Movie page, press or ENTER
button to open the highlight folder in
the play list or play the corresponding
file.
1-14053_2mpeg
2-BB_MPEGYEMANNVYOU.mpe
3-badluck.mpeg
Music
List
Photo Movie
NOTE:
For audio CD, the play interface and
operation is similar with the Music page
operation. For details, please refer to the
description of Music page above.
ADVANCED OPERATION
ALL
JPG
Large JPG
12 Level
MP3
Mpeg
Music
List Perview
Photo Movie

In the stop mode or when the disc is
playing, press SETUP on the remote
control to enter setup menu.
•When the cursor is on the topside, use
/ buttons to move between the
different pages.
•Press button to move the cursor to
the setup page below and then you can
use / buttons to move between the
different setup options.
•Press button to display the choice
list for each setup option and then use
/ buttons and ENTER button to
change your selection.
LANGUAGE SETUP
•When you open the setup menu, you will
see the language setup page at first, see
below:
•“Menu Language”is used to change the
language used in the whole menu and all
prompt information during playback. The
unit has the following languages to be
selected: English, Spanish, German,
Italian, Portuguese, French and Russian.
•“Disc Audio”is used to set a preset value
for the playback language of the DVD.
When playing a DVD disc, if the disc has
a language that matches with the preset
value, then it will play the language directly;
if the disc does not include the language
that matches with the preset, or the disc
has the compelling playback language
itself, then it will play the default language
of the disc.
The unit has the following disc audio
languages to be selected: Original,
English, Spanish, German, Italian,
19
Portuguese, French, Russian, Chinese
and Other.
•“Disc Subtitle”and “Disc Menu”are similar
with “Disc Audio”; the function is to set
a preset value for the playback subtitle
and menu display language of the DVD.
SETUP
LANGUAGE
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
Original
English
Spanish
German
Italian
Portuguese
French
Prev. SelectMove
LANGUAGE
Menu Language
Disc Audio
Disc Subtitle
Disc Menu
English
English
English
English
SelectMove

20
DISPLAY SETUP
•When you open the DISPLAY menu,
you will see the following picture:
DISPLAY
TV Aspect
Display Mode
TV Output
Video Output
4:3
Letterbox
Auto
S-VIDEO+CVBS
SelectMove
•“TV Aspect”is used to set the
appropriate display effect when wide-
screen video material is played on a
conventional screen. There are two
options to be selected: 4:3 and 16:9.
When a wide-screen TV set is
connected, you can select “16:9”to get
better view effect.
•“Display Mode”can be changed when
you set “4:3”in the “TV Aspect”. There
are Letterbox and Panscan to be
selected.
•Letterbox: Display the picture of the
cinema effect with the black bands
at the top and bottom of the screen.
•Panscan: Display the picture of the
clipped TV screen. The left and right
edges are cut off.
•“TV Output”is used to select the TV
output mode. This player can play discs
recorded in either PAL or NTSC formats.
Select NTSC format, when the unit is
connected to NTSC TV.
Select PAL format, when the unit is
connected to PAL TV.
Select AUTO format, the player TV
output format will be according to the
DVD disc format.
•In the “Video Output”item, there is only
one video output mode
“S-VIDEO+CVBS”.
SETUP
AUDIO SETUP
•When you open the AUDIO menu, you
will see the following picture:
•“Dolby Digtial”means the Dolby digital
out type. There are “Bitstream”and
“PCM”to be selected.
•Bitstream: When connecting to the
amplifier or other devices with the
Dolby Digital Decoder, DTS Decoder
or MPEG Decoder or other devices,
select this item.
•PCM (Pulse Code Modulation):
When connect to the amplifier with
two channel digital stereo, select this
item.
When playing a DVD disc with Dolby
Digital and recorded by MPEG1 or
MPEG2 record system, the DVD
player will output the audio in PCM2
playback mode.
•“DTS”means “Date Transmission
System”. There are “Bitstream”and
“PCM”to be selected.
•“Sample Freq.”means “Sample
Frequency”. Select the Sample Freq.
between 48kHz and 96kHz. The higher
the sample frequency is, the better
the output audio quality is.
•“Digital Output”is to activate the digital
audio output on or off.
AUDIO
Dolby Digital
DTS
Sample Freq.
Digital Output
Bitstream
Bitstream
48 kHz
On
SelectMove
