Boss Audio Systems MGR350B User manual

Make the mounting hole size as follows
3.00” / 76mm
1
2
Snap off break-away tabs to best fit
your applications depth
Slip the unit through the hole cutout and into U-bracket
4
Install studs mounts into rear of chassis
5
3Adjust M4 nuts for the best mounting depth
Firmly tighten remaining M4 nuts
6Secure and waterproof the wiring
BLUETOOTH®ENABLED
GAUGE HOLE RADIO
MGR350B
USER MANUAL
FEATURING ZERO
STANDBY CURRENT DRAIN
QUICK INSTALLATION GUIDE
MGR350B
USER MANUAL
QUICK INSTALLATION GUIDE
BLUETOOTH®GAUGE HOLE RADIO
PRINTED IN CHINAVER:1.0 EN0215
BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
Tech Support: www.bossaudio.com/support
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks is under
license. Other trademarks and trade names are those of their
respective owners.
BEFORE YOU START
IMPORTANT SAFETY PRECAUTIONS
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
• Do not turn up the volume so high that you can’t hear what’s
around you.
•Use caution or temporarily discontinue use in potentially
hazardous situations.
•Do not operate mobile video equipment while driving a motorized
vehicle – safe driving and safety consideration of others should
always be your highest priority.
• Set your volume control at a low setting, then slowly increase the
sound until you can hear it comfortably without distortion, or ear
discomfort.
• In the event you should notice smoke, strange noises or odor from
this product, or any other abnormal signs, immediately turn off the
power and consult your dealer or the nearest authorized
BOSS AUDIO Service Center Using this product in this condition
may result in permanent damage to the system.
WIRE DIAGRAM
Thank you for purchasing this
MGR350B Bluetooth Gauge Hole Radio
Please read thorough these instructions
carefully so you will know how to operate
your model properly.
After you have nished reading the instructions,
keep this document in a safe place
for future reference.
SUGGESTED MOUNTING METHODS
INFORMATION TO THE USER
TROUBLE SHOOTING GUIDE
!! WARNING !!
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
MGR350B
(1pc)
Hexagon Mounting Studs
(2pcs)
M4 Secure Nuts
(8pcs)
User Manual
(1pc)
Metal Bracket
(1pc)
BAND
SRC
FUNC
MENU
ENTER
DISP
VOL VOL
50w x4
USB
Warranty Card
(1pc)
Facebook Card
(1pc)
Thank You Card
(1pc)
THIS PACKAGE CONTAINS
White
Red
Yellow
Aux-In Left
Right
Black
Rear Line Out White
Red
Left
Right
Antenna
Fuse Box
Left Rear Speaker (+) Green
15A
Left Rear Speaker (-) Green/Black Left Front Speaker (+) White Left Front Speaker (-) White/Black Right Front Speaker (+) Gray Right Front Speaker (-) Gray/Black Right Rear Speaker (+) Purple Right Rear Speaker (-) Purple/Black Accessory (+12V) Red Ground (-) Black Battery (+12V) Yellow Amp Remote (+12V) Blue
1A
CHARGING MAX
Replace Fuse
with AGU
type only
BATTERY
20A
Fuse and Fuse Holder
(not included)
Chassis
ground
point
Battery Kill Switch
(not included)
OPTIONAL DIRECT BATTERY WIRING CIRCUIT
BLACK
Chassis
ground
point
Ground wire
Metal frame
Recommended
12 ~ 14ga
Primary Wire
(not included)
15A
INSERT
USB
YOUR
USB CABLE
YOUR
ANTENNA
C
NO
Normally open
ACC switch
(not included)
Grey
Subwoofer
Front Line Out White
Red
Left
Right
To avoid potential shorts in the electrical
system, be sure to disconnect the (–)
battery cable before installation. Use this
unit with a 12-Volt battery and negative
grounding only. Failure to do so may result
in a re or malfunction.
When replacing the fuse, be sure to only use a
fuse of the rating specied on this product. To
avoid short-circuiting, cover any disconnected
leads with insulating tape. It is specially impor-
tant to insulate any unused wires, which if left uncovered may cause a
short circuit. When connecting other devices to this product, refer to
the manual for the product to be connected. The black cable is ground,
make sure to connect the ground wire rst.
Ensure that the ground cable is properly connected to metal parts of
the vehicles body frame or direct to the battery if your vehicle does not
have a grounded chassis frame. The ground cable of this units power
amp and a second powered system must be connected to the frame
separately with different screws. If the screw for the ground wire
loosens or falls out, it could result in re or malfunction.
CAUTION!!
Do not ground or short the speaker leads
1-805-751-4853
www.bossaudio.com/support
TECHNICAL SUPPORT
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference
that may cause undesired operation of this device.
This transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter. The Bluetooth antenna cannot
be removed (or replaced) by user. This equipment complies with
FCC/ IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed and
operated keeping the radiator at least 20 cm or more away from
person’s body (excluding extremities: hands, wrists, feet and
ankles). Alteration or modications carried out without appropriate
authorization may invalidate the user’s right to operate the
equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Relocate or reorient the receiving antenna.
•Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC COMPLIANCE STATEMENT
1
32
TROUBLE CAUSE SOLUTION
Unit will not turn on
The fuse is blown Check / replace the fuse
Ignition not engaged Turn ignition to on position
No sound is heard
Blown speaker Replace faulty speaker
Volume is low / muted Press the volume level up
Device is paused or muted Check your devices playing / volume status
Cannot pair Bluetooth
The Bluetooth function of the
device is not enabled
Refer to the user manual of the
device for how to enable the
Bluetooth function
The MGR350B BT memory
is full Follow how to reconnect a device in section E
The audio quality is poor
after connection with a
Bluetooth enabled device The Bluetooth reception is poor
Move the device closer to the
audio system or remove any
obstacle between the device
and the systems antenna
Unit has become
unresponsive
Power glitch or interference Disconnect power for 10 seconds to reset
Low battery power Charge battery, run the engine to recharge the battery
Reset the main system Follow steps in section B
INSTALLATION PRECAUTIONS
Always consult with a professional installer
• Do not attempt to install or service this product by yourself.
Installation or servicing of this product by persons without
professional training and experience in electronic equipment and mo-
torized vehicle accessories may be dangerous and could expose you
to the risk of electric shock, injury or other hazards
• Refer any repairs to a qualied BOSS AUDIO SYSTEMS Service
Center
•The MGR350B should be wired directly to a vehicles battery
• When wiring directly to the vehicles battery, be sure to disconnect
the batteries negative terminal wire before starting any wiring
procedures, if extending the main power primary wire, it is
suggested that an optional fuse and fuse holder (not included) with
minimum rating of 20 Amperes be in-line with the positive battery
terminal
• The ground cable length should be as short as possible, if
extending from you battery, be sure to use a proper gauge rating for
the length of the run, use only high quality copper primary type wire
• The MGR350B has a IPX6 weather resistant design, it should not be
submerged in or under water under any circumstances
•Do not use abrasive cleaning materials on the lens or bezel
•Use only the installation parts provided with the MGR350B
TOOLS NEEDED:
- Measuring Tape / Ruler
- Wrench and/or Pliers
- Hole Saw
- Crimp Tool
CAUTION!!
Using other mounting methods may void
this warranty
FM TUNER FREQUENCY RANGE
•USA 87.5~107.9MHz
•Europe 87.5~108MHz
•Asia 87.5~108MHz
•Australia 87.5~108MHz
•Usable Sensitivity: 12dB (S/N=30dB)
•Bands: 2
AM TUNER FREQUENCY RANGE
•USA 530~1710KHz
•Europe 522~1620KHz
•Asia 522~1620KHz
•Australia 522~1620KHz
•Usable Sensitivity: 40dB (S/N=20dB)
•Bands: 1
WEATHER BAND SELECTION
•CH.1 162.400MHz
•CH.2 162.425MHz
•CH.3 162.450MHz
• CH.4 162.475MHz
•CH.5 162.500MHz
•CH.6 162.525MHz
•CH.7 162.550MHz
•Bands: 1
BLUETOOTH
•BT: 3.0
• BT Range: 33Ft / 10M (Class 2)
• BT Proles: A2DP / AVRCP 1.3
USB DRIVE MEDIA SUPPORTED
•MP3
•WMA
•65,000 Songs
•32GB / FAT 32
•USB 2.0 High Speed
•USB Output Voltage: 5VDC @ 1A
INTEGRATED AMPLIFIER
•MOSFET
•MAX Continuous Output: 240W
(All channels driven)
•PEAK Power Rating: 60W / channel
•RMS Total Power Output: 80W
•Channels: 4
•Class: AB
•Frequency Response: 20-20kHz
• 4Ω stable
CHASSIS
•Button Backlight Illumination: BLUE LED
•F/R/S RCA Preamp Output: 2VRMS
• RCA Input Impedance: 10kΩ
• LCD: TN Type / Active Matrix
GENERAL
•Power Source: 14.4VDC
(10.8V ~ 16V allowable)
•Grounding System: Negative type
• Maximum Current Consumption: 15A
• 3-way protection circuitry (thermal,
o v e r l o a d , a n d s p e a k e r s h o r t p r o t e c t i o n )
•Unit Weight: 1.08lbs / 0.52kg
•Storage Temperature:
-22oF to 176oF / -30oC to 80oC
•Operation Temperature:
-4oF to 158oF / -20oC to 70oC
•Replacement Fuse: 15A
(Replace with ATG Fuse Type Only)
SPECIFICATIONS
Specications subject to change without notice

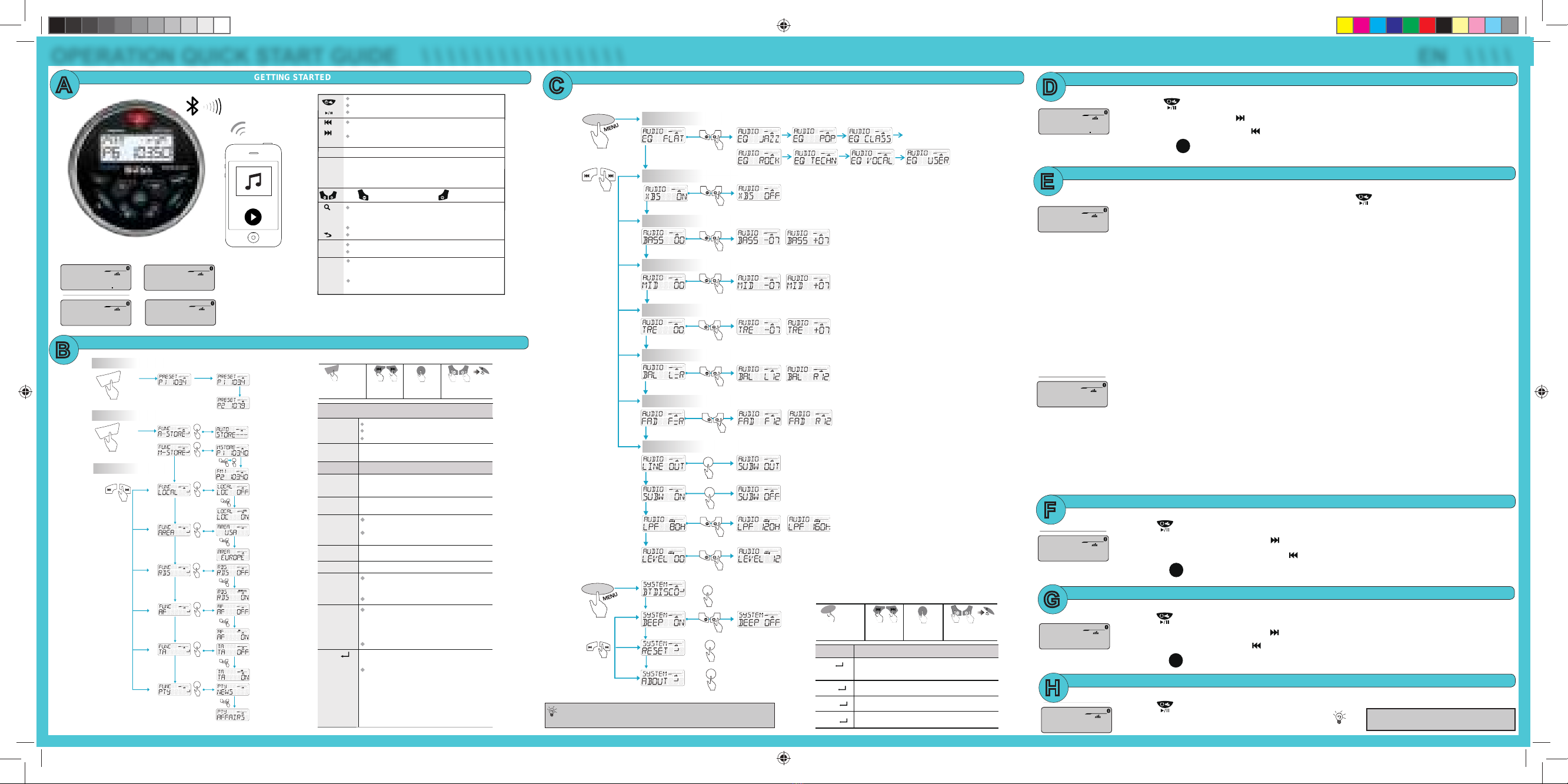

QUICK START GUIDE
FOR CHARGING ONLY: Cell Phone and iPod
Media Playback Not Supported
iPod® and iPhone® are registered trademarks of Apple Inc.
registered in the USA and other countries.
BOSS Audio Systems is not afliated with Apple Inc.
Copyright © 2015
805 322 8794

AUDIO
xBass On/Off
MID Level
Treble Level
Balance Level
Fader Level
AUDIO
Short Press
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
AUDIO
Long Press
ENTER
DISP
VOL
VOL
ENTER
DISP
ENTER
DISP
EQ
BASS Level
SYSTEM
AUDIO
VOL
VOL
Subwoofer Settings
ENTER
DISP
VOL
VOL
VOL
VOL
ENTER
DISP
BLUETOOTH OPERATION
BLUETOOTH STREAMING MUSIC
PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION
1) Power on the MGR350B by pressing and holding down the Power
VOL
VOL
button for 1 second, the Bluetooth ICON
will start to ash signalling that the MGR350B is now ready for Bluetooth pairing.
NOTE: You have 2 minutes before you must restart this procedure over again.
2) Now that the MGR350B is in pairing mode:
ANDROID users:
a. Go into the Settings Menu of your ANDROID device
b. Enter the Bluetooth Menu and press SCAN
d. If prompted, enter passcode: “0000”
iOS users:
a. Go into the Settings Menu of your iOS device
b. Enter the Bluetooth Menu
d. If prompted, enter passcode: “0000”
3) If the MGR350B is not seen, repeat the above steps to refresh the “Device List”
4) When the BT connection is successful you will see BT CONNECTED message on the MGR350B LCD display, you
are now ready to stream music from your devices favorite media player to the MGR350B
RECONNECTION
1) Power on the MGR350B and your last paired device Bluetooth
2) The unit will now automatically be reconnected
3) If your device was previously paired with the MGR350B, but it wasn’t the last paired device:
a. Ensure no other devices are currently paired
b. Press and hold MENU button to manually connect / reconnect to the MGR350B
4) If the device is out of range from the MGR350B, it will disconnect automatically:
5)The MGR350B will reconnect to the device once in range, a conrmation message will be displayed on the LCD
AUX-INPUT
1) Press the SRC button to select BT AUDIO
2) Press
VOL
VOL
to start PLAY, press again to PAUSE
3) To skip songs or advance tracks press
VOL
VOL
, press and hold to FAST FORWARD
4) To select the previous track press the button
VOL
VOL
, press and hold to FAST REWIND
5) Press the
VOL
VOL
Tuner/Weather Band Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to TrackUp Down press and hold for
FastForward/Rewind.
/ ,
Short press to mute or restore volume.
Turn the unit on, Press and hold again to turn the unit off.
Press to pause, Press again to resume playback.
Press to scroll and select available Source.
Press to decrease the volume, press to increase the volume.
Press and hold to enter into the Tuner Function modes:
A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY
SRC
PRESET
Fn
Turn On or Off the RDS function.
1
1
2
2
3
3
4
4
RDS On/Off
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first seconds
to each track on the device.
10
Turn On or Off beep sound.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Store
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select
3. will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
MGR350B
CONNECTED
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
2
If your mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter pass code of 0000
NOTE
FM Tuner
Frequency Range.....................USA 87.5~107.9MHz
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Usable Sensitivity...................12dB (S/N=30dB)
AM Tuner
Weather Band Selection
USB
Frequency Range.....................USA 530~1710KHz
Europe 522~1620KHz
Asia
Australia
522~1620KHz
522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Tuner Mode: To change different Band. Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to access into search Folder/File music mode
Returns to the previous item
/Weather Band
.
.
Tuner Mode: Press to view RDS receiver information.
Media Playback: Press to view ID3 information.
BAND
DISP
ENTER
AUDIO
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1.
2.
3.
4.
Press repeatedly to select .
Press to start play, press it again to pause.
To track up/down, press / .
Press to view song title information.
SRC [BT AUDIO]
General
USB.........................................2.0 High Speed
Power Supply Voltage.............14.4V DC(10.8 to 15.6V
allowable)
Grounding System...................Negative Ground
Speaker Impedance.................4~8 ohms per channel
VOL
VOL
VOL
VOL
FUNC
FUNC
ENTER
DISP
ENTER
DISP
FUNC
ENTER
DISP
ENTER
DISP
BAND
BAND
ENTER
DISP
Function
Button
Navigate Main
Sys Tree
Navigate Sub
Menus
Press Enter
to Finish
MENU
Press to scroll and select Presets 1 ~ 6
Long Press for
MAIN MENU options
MENU
AUDIO
Navigate Main
MENU Tree
To select through
MENU options
Press ENTER
to select option
Exit
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
FM1, FM2, AM1, WB1
Press to access into the Audio Menu mode for adjustments:
EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
REAROUT / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu:
BT RECONNECT / BEEP ON/OFF / ABOUT / RESET
button to display song ID3 information
1) Press the SRC button to select AUX IN
2) Press
VOL
VOL
to MUTE, press again to UNMUTE Ensure to adjust the level of your
devices master volume to 75%
Tips:
EN
Nyne Cruiser
USBCHARGE
5V1A
USB OPERATION
RADIO OPERATION
1) Press the SRC button to select USB
2) Press
VOL
VOL
to start PLAY, press again to PAUSE
3) To skip songs or advance tracks press
VOL
VOL
, press and hold to FAST FORWARD
4) To select the previous track press
VOL
VOL
, press and hold to FAST REWIND
5) Press the
VOL
VOL
Tuner/Weather Band Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to TrackUp Down press and hold for
FastForward/Rewind.
/ ,
Short press to mute or restore volume.
Turn the unit on, Press and hold again to turn the unit off.
Press to pause, Press again to resume playback.
Press to scroll and select available Source.
Press to decrease the volume, press to increase the volume.
Press and hold to enter into the Tuner Function modes:
A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY
SRC
PRESET
Fn
Turn On or Off the RDS function.
1
1
2
2
3
3
4
4
RDS On/Off
Item
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
Selectable settings
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first seconds
to each track on the device.
10
Turn On or Off beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Store
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select
3. will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
MGR350B
CONNECTED
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
2
If your mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter pass code of 0000
NOTE
FM Tuner
Frequency Range.....................USA 87.5~107.9MHz
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Usable Sensitivity...................12dB (S/N=30dB)
AM Tuner
Weather Band Selection
USB
Frequency Range.....................USA 530~1710KHz
Europe 522~1620KHz
Asia
Australia
522~1620KHz
522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Tuner Mode: To change different Band. Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to access into search Folder/File music mode
Returns to the previous item
/Weather Band
.
.
Tuner Mode: Press to view RDS receiver information.
Media Playback: Press to view ID3 information.
BAND
DISP
ENTER
AUDIO
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1.
2.
3.
4.
Press repeatedly to select .
Press to start play, press it again to pause.
To track up/down, press / .
Press to view song title information.
SRC [BT AUDIO]
General
USB.........................................2.0 High Speed
Power Supply Voltage.............14.4V DC(10.8 to 15.6V
allowable)
Grounding System...................Negative Ground
Speaker Impedance.................4~8 ohms per channel
VOL
VOL
VOL
VOL
FUNC
FUNC
ENTER
DISP
ENTER
DISP
FUNC
ENTER
DISP
ENTER
DISP
BAND
BAND
ENTER
DISP
Function
Button
Navigate Main
Sys Tree
Navigate Sub
Menus
Press Enter
to Finish
MENU
Press to scroll and select Presets 1 ~ 6
Long Press for
MAIN MENU options
MENU
AUDIO
Navigate Main
MENU Tree
To select through
MENU options
Press ENTER
to select option
Exit
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
FM1, FM2, AM1, WB1
Press to access into the Audio Menu mode for adjustments:
EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
REAROUT / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu:
BT RECONNECT / BEEP ON/OFF / ABOUT / RESET
button to display song ID3 information
1) Press the SRC button to select RADIO
2) Press
VOL
VOL
to MUTE, press again to UNMUTE
3) To advance stations press
VOL
VOL
4) To skip previous stations press
VOL
VOL
5) Press the
VOL
VOL
Tuner/Weather Band Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to TrackUp Down press and hold for
FastForward/Rewind.
/ ,
Short press to mute or restore volume.
Turn the unit on, Press and hold again to turn the unit off.
Press to pause, Press again to resume playback.
Press to scroll and select available Source.
Press to decrease the volume, press to increase the volume.
Press and hold to enter into the Tuner Function modes:
A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY
SRC
PRESET
Fn
Turn On or Off the RDS function.
1
1
2
2
3
3
4
4
RDS On/Off
Item
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
Selectable settings
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first seconds
to each track on the device.
10
Turn On or Off beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Store
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select
3. will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
MGR350B
CONNECTED
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
2
If your mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter pass code of 0000
NOTE
FM Tuner
Frequency Range.....................USA 87.5~107.9MHz
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Usable Sensitivity...................12dB (S/N=30dB)
AM Tuner
Weather Band Selection
USB
Frequency Range.....................USA 530~1710KHz
Europe 522~1620KHz
Asia
Australia
522~1620KHz
522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Tuner Mode: To change different Band. Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to access into search Folder/File music mode
Returns to the previous item
/Weather Band
.
.
Tuner Mode: Press to view RDS receiver information.
Media Playback: Press to view ID3 information.
BAND
DISP
ENTER
AUDIO
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1.
2.
3.
4.
Press repeatedly to select .
Press to start play, press it again to pause.
To track up/down, press / .
Press to view song title information.
SRC [BT AUDIO]
General
USB.........................................2.0 High Speed
Power Supply Voltage.............14.4V DC(10.8 to 15.6V
allowable)
Grounding System...................Negative Ground
Speaker Impedance.................4~8 ohms per channel
VOL
VOL
VOL
VOL
FUNC
FUNC
ENTER
DISP
ENTER
DISP
FUNC
ENTER
DISP
ENTER
DISP
BAND
BAND
ENTER
DISP
Function
Button
Navigate Main
Sys Tree
Navigate Sub
Menus
Press Enter
to Finish
MENU
Press to scroll and select Presets 1 ~ 6
Long Press for
MAIN MENU options
MENU
AUDIO
Navigate Main
MENU Tree
To select through
MENU options
Press ENTER
to select option
Exit
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
FM1, FM2, AM1, WB1
Press to access into the Audio Menu mode for adjustments:
EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
REAROUT / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu:
BT RECONNECT / BEEP ON/OFF / ABOUT / RESET
button to display RADIO information
6) Press the PRESET button to recall PRESETS 1 ~ 6
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
GETTING STARTED
VOL VOL
Tuner/Weather Band Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to TrackUp Down press and hold for
FastForward/Rewind.
/ ,
Short press to mute or restore volume.
Turn the unit on, Press and hold again to turn the unit off.
Press to pause, Press again to resume playback.
Press to scroll and select available Source.
Press to decrease the volume, press to increase the volume.
Press and hold to enter into the Tuner Function modes:
A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY
SRC
PRESET
Fn
Turn On or Off the RDS function.
1
1
2
2
3
3
4
4
RDS On/Off
Item
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
Selectable settings
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first seconds
to each track on the device.
10
Turn On or Off beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Store
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select
3. will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
MGR350B
CONNECTED
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
2
If your mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter pass code of 0000
NOTE
FM Tuner
Frequency Range.....................USA 87.5~107.9MHz
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Usable Sensitivity...................12dB (S/N=30dB)
AM Tuner
Weather Band Selection
USB
Frequency Range.....................USA 530~1710KHz
Europe 522~1620KHz
Asia
Australia
522~1620KHz
522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Tuner Mode: To change different Band. Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to access into search Folder/File music mode
Returns to the previous item
/Weather Band
.
.
Tuner Mode: Press to view RDS receiver information.
Media Playback: Press to view ID3 information.
BAND
DISP
ENTER
AUDIO
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1.
2.
3.
4.
Press repeatedly to select .
Press to start play, press it again to pause.
To track up/down, press / .
Press to view song title information.
SRC [BT AUDIO]
General
USB.........................................2.0 High Speed
Power Supply Voltage.............14.4V DC(10.8 to 15.6V
allowable)
Grounding System...................Negative Ground
VOL
VOL
VOL
VOL
FUNC
FUNC
ENTER
DISP
ENTER
DISP
FUNC
ENTER
DISP
ENTER
DISP
BAND
BAND
ENTER
DISP
Function
Button
Navigate Main
Sys Tree
Navigate Sub
Menus
Press Enter
to Finish
MENU
Press to scroll and select Presets 1 ~ 6
Long Press for
MAIN MENU options
MENU
AUDIO
Navigate Main
MENU Tree
To select through
MENU options
Press ENTER
to select option
Exit
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
FM1, FM2, AM1, WB1
Press to access into the Audio Menu mode for adjustments:
EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
REAROUT / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu:
BT RECONNECT / BEEP ON/OFF / ABOUT / RESET
Tips:
EN
Nyne Cruiser
USBCHARGE
5V1A
Tips:
EN
Nyne Cruiser
USB CHARGE
5V 1A
TUNER SETUP
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
SUBW
LOCALSUBW
LOCAL
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
A
B
D
E
F
G
H
OPERATION QUICK START GUIDE \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
BT
SUBW
SYSTEM
BEEP
SUBW
SYSTEM
BEEP ON
SUBW
BEEP
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
LOCAL
SUBW
SUBW
FUNC
LOC ON
SUBW
LOCALSUBW
LOCAL
LOC OFF
SUBW
LOCALSUBW
LOCAL
BT000000
SUBW
LOCALSUBW
SUBW
SYSTEM
P6 10350
SUBW
LOCAL
RADIO
MY SONGS
SUBW
BT
TITLE
SUBW
USB
SUBW
AUX-IN
EN \ \ \ \
AUDIO and SYSTEM SETUP
C
VOL
VOL
Tuner/Weather Band Mode: Press to enter into the Manual Seek mode,
press and hold to enter into the Auto Seek mode.
Media Playback Mode: Press to TrackUp Down press and hold for
FastForward/Rewind.
/ ,
Short press to mute or restore volume.
Turn the unit on, Press and hold again to turn the unit off.
Press to pause, Press again to resume playback.
Press to scroll and select available Source.
Press to decrease the volume, press to increase the volume.
Press and hold to enter into the Tuner Function modes:
A-STORE / M-STORE / LOCAL / AREA / RDS / AF / TA / PTY
SRC
PRESET
Fn
Turn On or Off the RDS function.
1
1
2
2
3
3
4
4
RDS On/Off
Item
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
Selectable settings
This feature allows to Reconnect or Disconnect to the
paired mobile phone or Bluetooth device manually.
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When one expected radio station has been detected,
press to store it in the memory.
This function allows you to play the first seconds
to each track on the device.
10
Turn On or Off beep sound.
To restore the factory defult settings.
To view the device hardward and software versions.
BT
Repeat
Auto Store
Random
On/Off
Manual Store
Introl
On/Off
Local On/Off
BEEP
RESET
ABOUT
When you press or hold the following button(s)...
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into Auto Store mode, the strongest
stations of the selected band will be saved in preset
channel automatically.
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
On your Bluetooth-enabled device, follow the steps below.
1. Search for Bluetooth devices.
2. In the device list, select
3. will appear on the display.
4. The unit will automatically enter the BT Audio source and you can
now start streaming audio from your Bluetooth enabled device.
MGR350B
CONNECTED
Bluetooth Audio Streaming A2DP
If the connected Bluetooth device supports Advanced Audio Distribution
Profile (A DP), you can listen to the music stored on the device through
the unit. If the device also supports Audio Video Remote Control Profile
(AVRCP) profile, you can use the control on the unit or its remote control
to play music stored on the device.
2
If your mobile phone doesn't support SSP (Simple Secure
Pairing) Profile, please enter pass code of 0000
NOTE
FM Tuner
Frequency Range.....................USA 87.5~107.9MHz
Europe 87.5~108MHz
Asia 87.5~108MHz
Australia 87.5~108MHz
Usable Sensitivity...................12dB (S/N=30dB)
AM Tuner
Weather Band Selection
USB
Frequency Range.....................USA 530~1710KHz
Europe 522~1620KHz
Asia
Australia
522~1620KHz
522~1620KHz
Usable Sensitivity....................40dB(S/N=20dB)
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Tuner Mode: To change different Band. Press and hold to
access into Auto Store mode, the strongest stations of the selected band
will be saved in preset channel automatically.
Media Playback Mode: Press to access into search Folder/File music mode
Returns to the previous item
/Weather Band
.
.
Tuner Mode: Press to view RDS receiver information.
Media Playback: Press to view ID3 information.
BAND
DISP
ENTER
AUDIO
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
1.
2.
3.
4.
Press repeatedly to select .
Press to start play, press it again to pause.
To track up/down, press / .
Press to view song title information.
SRC [BT AUDIO]
General
USB.........................................2.0 High Speed
Power Supply Voltage.............14.4V DC(10.8 to 15.6V
allowable)
Grounding System...................Negative Ground
Speaker Impedance.................4~8 ohms per channel
VOL
VOL
VOL
VOL
FUNC
FUNC
ENTER
DISP
ENTER
DISP
FUNC
ENTER
DISP
ENTER
DISP
BAND
BAND
ENTER
DISP
Function
Button
Navigate Main
Sys Tree
Navigate Sub
Me nus
Press Enter
to Finish
MENU
Press to scroll and select Presets 1 ~ 6
Long Press for
MAIN MENU options
MENU
AUDIO
Navigate Main
MENU Tree
To select through
MENU options
Press ENTER
to select option
Exit
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
FM1, FM2, AM1, WB1
Press to access into the Audio Menu mode for adjustments:
EQ / XBASS / BASS / MIDDLE / TREBLE / BALANCE / FADER /
REAROUT / SUBW / SUBW LPF / SUBW LEVEL
Press and hold to access into the System Menu:
BT RECONNECT / BEEP ON/OFF / ABOUT / RESET
Turn On or Off the RDS function. RDS On/Off
Media Playback
Mode
Tuner Mode
Selectable settings
Selectable settings
This function allows you to play tracks/songs from the
current album, songs or artists in a random order.
When a desired radio station is set, press M-STORE to save
it in the memory, you can store a total of 12 FM or 6 AM.
Repeat
Auto Store
Random
On/Off
Manual Store
Local On/Off
ALL:
Song:
to repeat all tracks on the storage media
the current track will be repeated
Folder: repeats all tracks in the current folder
Press to access into A-STORE mode, the strongest
stations of the selected band will be saved in FM 1 or
FM 2, AM 1 BAND presets automatically
ON:
OFF:
only stations with strong signal can be broadcast.
The Local indicator will light up
Stations of both strong and weak signals can be
broadcast.
Area Select suitable country area for this unit:
USA / EUROPE / ASIA / AUST
ON: The unit will search for another station with stronger
signal, but with the same program identification as the
current station automatically.
OFF: Turn off AF function
ON: When there is traffic announcement, unit will
automatically switch to the tuner mode (regardless of the
current mode) and begins to broadcast the announcement
on traffic conditions. When the traffic announcement is
over, unit will automatically return to the previous mode.
OFF: Traffic announcement does not cut in.
AF On/off
TA On/off
Once inside the PTY mode, press the get into program type
item, and rotat encoder volume knob to selected category.
PTY
Available Program Type:
POP M; ROCK M; EASY M; LIGHT M; CLASSICS;
OTHER M; JAZZ M; COUNTRY; NATION M; OLDIES
M; FOLK M; A-TEST; ALARM; NEWS; AFFAIRS; INFO;
SPORT; EDUCATE; DRAMA; CULTURE; SCIENCE;
VARIED; WEATHER; FINANCE; CHILDREN; SOCIAL;
RELIGION; PHONE IN; TRAVEL; LEISURE; DOCUMENT
VOL
VOL
12 3 4
ENTER
DISP
BAND
Long Press for
FUNCTION options
Fn
PRESET
Navigate Main
System Tree
To select through
FUNCTION options
Press ENTER
to select option
Exit
ENTER
DISP
Fn
PRESET
PRESET AUTO STORE 1 ~ 6
PRESET RECALL
Fn
PRESET
Short Press
Long Press
ENTER
DISP
ENTER
DISP
VOL
VOL
VOL
VOL
ENTER
DISP
VOL
VOL
ENTER
DISP
ENTER
DISP
ENTER
DISP
VOL
VOL
VOL
VOL
VOL
VOL
VOL
VOL
ENTER
DISP
ENTER
DISP
MORE SETTINGS
FM1 / FM2 / AM1 / WB1
SOURCE MODES
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any
form or by any means, including photocopying, recording, or other electronic or mechanical methods,
without the prior written permission of BOSS AUDIO SYSTEMS Inc.
To avoid battery exhaustion be sure to run the
vehicles engine while using this product.
Using this product without running the engine can drain the battery.
Tips:
EN
Nyne Cruiser
USBCHARGE
5V1A
c. “BOSS MGR350” will now be displayed
c. “BOSS MGR350” will now be display under AVAILABLE DEVICES
