Boss Security DUHD-0885AU-N User manual

P.1
8CH / 16CH DVR
Quick Start Guide
1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.6
5. Rear Panel Connectors..............P.7

P.2
1. DVR
2. Quick Start
3. Battery
4. CD
5. Hard Disk Mount
6. Screws
7. Power Cord
8. SATA Cord
Note: Standard shipping products do not include HDD

P.3
Step 1) Fix the HDD to rack mount with the screws as indicated.
Step 2) Place the HDD on the HDD plate and screw it as indicated.
Step 3) Connect the power and the SATA cables as indicated.
Note: After installation, please initialize Hard Disk before starting to record.

P.4
DVD-RW Installation
( Standard shipping products do not include HDD and DVD-RW)
Step 1:Remove the front cover from DVR.
Step 2:Put the DVD-RW into the unit as indicated.

P.5
Step 3:Put DVR bottom up, screw to fix the DVD-RW as indicated.
Step 4:Connect the power and the flat cables as indicated.

P.6

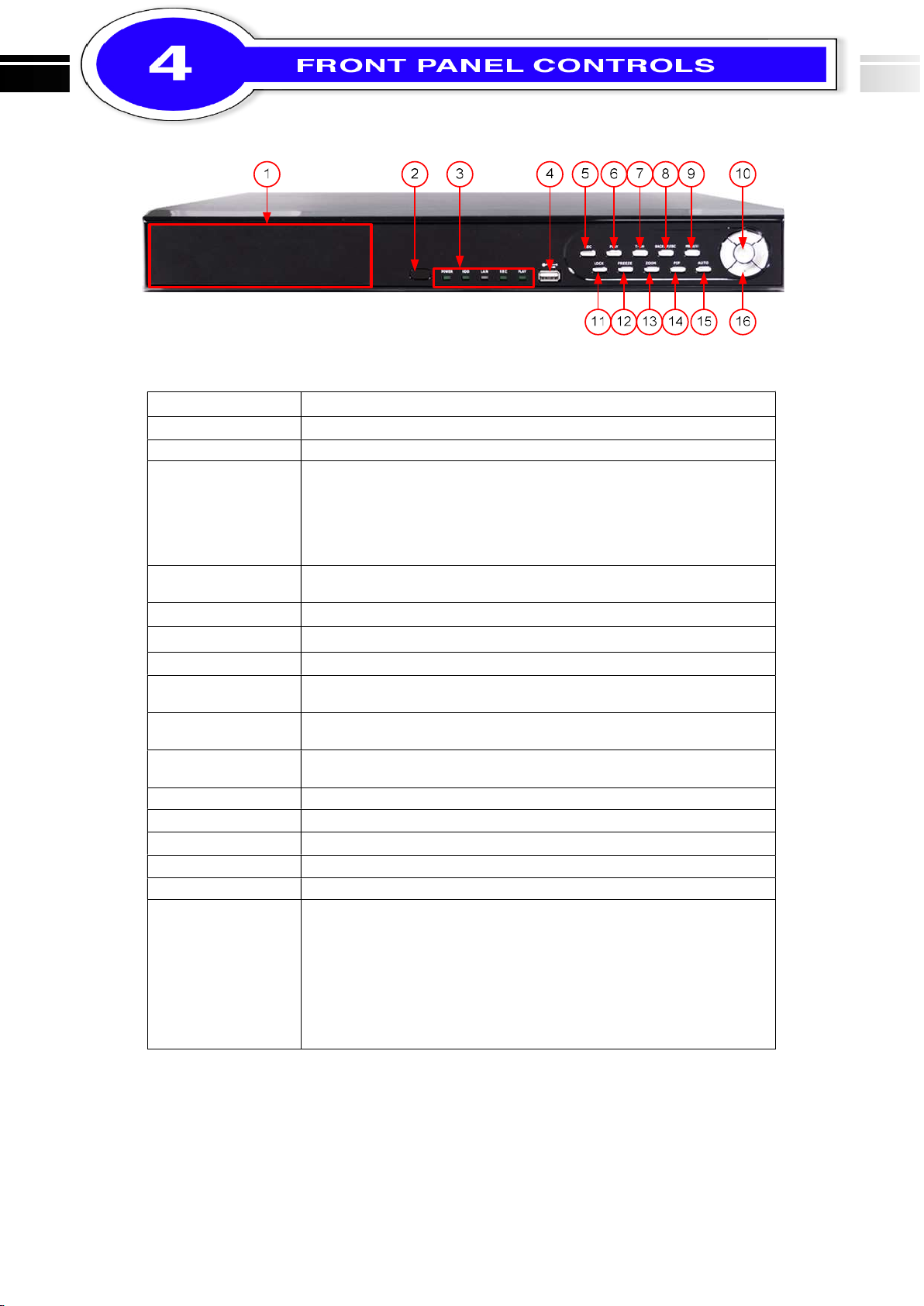

Control Keys Description
1.
DVD Writer
Optional DVD-RW backup device.
2. IR Receiver Receiving the controlling signals from the remote controller
3. LED Display
(From left to right)
Power: Power is on.
HDD: Hard disk is in use.
LAN: Connected to the internet (in red): Remote user logged in.
REC: Recording.
PLAY: Playing back.
4. USB 2.0 Port Port for USB external devices (USB flash drive devices use, the mouse
behind the back of the USB ports installed)..
5. REC Start or stop recording.
6. PLAY Play back in normal speed.
7.
T-SH
Display the search menu.
8. BACKUP/ESC In LIVE mode, press to display the BACKUP menu. In SETUP mode,
press to return to previous page.
9. MENU / II In LIVE mode, press to display menu. In PLAYBACK mode, press to pause
playback.
10. ENTER / MODE In SETUP mode, press to enter values. In PLAYBACK mode, switch
between full, quad, 9-channel, 16-channel display in order.
11. LOCK Lock all function settings.
12.
FREEZE
In LIVE mode, display can be FREEZE.
13.
ZOOM
In LIVE or PLAYBACK mode, enlarge the display of a channel.
14.
PIP
In LIVE mode, display with picture in picture format.
15. AUTO Turn on / Turn off the SPOT function.
16. Arrow Keys
▼ / ▓ In SETUP mode, press to move cursor down. In PLAYBACK
mode, press to stop playing back.
▲ / SLOW In SETUP mode, press to move cursor up. In PLAYBACK
mode, press to slow down.
► / ►► In SETUP mode, press to increase value. In PLAYBACK mode
press to play forwards.
◄ / ◄◄ In SETUP mode, press to reduce value. In PLAYBACK mode,
press to play rewind.

P.7
11 10 9
12 4 5 6783
12
13
14
1. Video Input BNC input ports for cameras, 8 or 16 in total.
2. AUDIO OUT RCA output port for audio signal.
3. HDMI HDMI Port
4. RS-485 RS-485
5. VGA VGA Port
6. USB 3.0 USB 3.0 Port
7. USB USB 2.0 Port
8. DC-in DC 12V input
9. LAN Network Port
10. ON/OFF Power Switch
11. *(eSATA) Option for eSATA
12. MAIN BNC Output
13. AUDIO IN RCA input port for audio signal.
14. Ext. I/O Ext . I/O
*default with out esata.
