User Manual of
BOSSGSM-GDU-HP33 Outdoor repeater

CATALOGUE
Chapter 1 Safety Warning………………………………………………………...
Chapter 2 Summary...................................................................................................
Chapter 3 Specs and features....................................................................................
3.1 Features ........................................................................................................................................
3.2 System diagram............................................................................................................................
3.3 Electrical Specification ................................................................................................................
3.4 Mechanical Specification.............................................................................................................
3.5 Appearance Diagram....................................................................................................................
Chapter 4 Installation................................................................................................
4.1 Installation requirements..............................................................................................................
4.2 Installation....................................................................................................................................
4.3 Connection ...................................................................................................................................
4.4 System inspection.........................................................................................................................
Chapter 5 Repeater setting........................................................................................
5.1 Power supply connection .............................................................................................................
5.2 Performance Setting.....................................................................................................................
Chapter 6 Engineering Maintenance.......................................................................
6.1 Operation and maintenance..........................................................................................................
6.2 Emergency dealing.......................................................................................................................
6.3 Maintaining directions .................................................................................................................

Chapter 1 Safety Warning
Users must follow the below principles:
1. Repeater should follow system requirement of communication equipment,
assure good groundings and lightning protection.
2. The power supply voltage of repeater should meet the standards of
security requirement; any repeater-operator can operate only after
cutting power in advance. Only the professional can operate electrified.
3. Do not dismantle machine, maintain or displace accessories by yourself,
because in this way, the equipment may be damaged or even get an
electric shock.
4. Do not open the repeater, touch the module of repeater, even not to open
the cover of module to touch the electronic component, the
components will be damaged due to electrostatic
5. Please keep away from heating-equipment, because the repeater will
dissipate heat when working. And do not cover repeater with anything
that influences heat-dissipation.
1

Chapter 2 Summary
In mobile communication, it is inevitable that macro-cell coverage cannot cover weak
or dead zones; to use repeater is a good choice in these areas. Indoor repeaters
mainly applied in covering small blind and weak zones.
Outdoor repeater BOSSGSM-GDU-HP33 is a good choice for VIP rooms, offices,
houses, restaurants, apartments, packing, etc.
Picture 2.1Application
Outdoor repeater BOSSGSM-GDU-HP33 enhances consumer satisfaction greatly
with its integrated design, compact size, easy engineering and rapid installation and
debugging,
Outdoor repeater BOSSGSM-GDU-HP33 is made with the characteristics of
aesthetic design, and thus can be installed in high-class places as a decoration.
2

Chapter 3 Specs and features
3.1 Features
Adjustable range of 31dB at 1dB per step.
Highly stable power design, to work normally even in very tough power environments.
ALC technology to maintain stable signal in coverage areas
Compact design , light weight and cost effectiveness
LED indication for power on/off
Wide band function to work on all mobile operators , GPRS ,EDGE,
HSDPA ,WCDMA support
Low power consumption , low interference
Applicable to In-building with medium or small size with maximum coverage up
to 2000 square meters , such as VIP room , office , house ,
restaurants ,apartments , parking etc

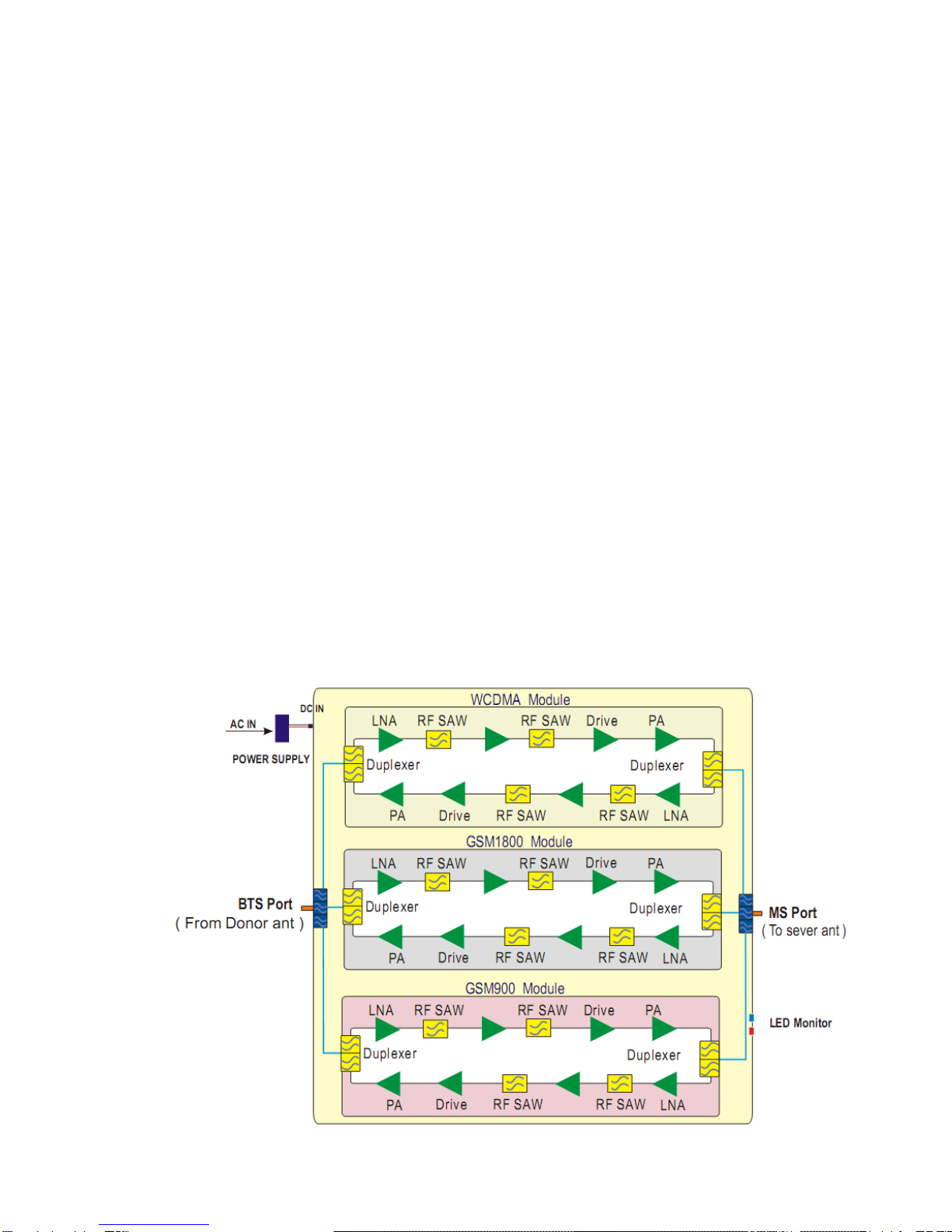

3.2 System diagram
3

3.3 Electrical Specification
Items Uplink Downlink
Frequency Range
GSM 890 ~ 915 MHz 935 ~ 960 MHz
DCS 1710 ~ 1785 MHz 1805 ~ 1880 MHz
WCDMA 1920 ~ 1980 MHz 2110 ~ 2170 MHz
Bandwidth
EGSM 25 MHz 25 MHz
DCS 75 MHz 75 MHz
WCDMA 60 MHz 60 MHz
Output Power 20±2 dBm 33±2 dBm
Gain 75±2 dB 80±2 dB
Max. Input Power Without Damage -10 dBm -10 dBm
Ripple
EGSM ≤15 dB ≤15 dB
DCS ≤10 dB ≤10 dB
WCDMA ≤6 dB ≤6 dB
VSWR ≤2≤2
Intermodulation Products ≤-45 dBc ≤-36 dBc
Spurious Emission 9KHz~1GHz ≤-36 dBm ≤-36 dBm
1GHz~12.75GHz ≤-30 dBm ≤-30 dBm
Noise Figure @ max. gain ≤8 dB ≤8 dB
ATT step of 1 dB
1~10 dB ∣△∣≤1 dB ∣△∣≤1 dB
10~20 dB ∣△∣≤1 dB ∣△∣≤1 dB
20~25 dB ∣△∣≤1.5 dB ∣△∣≤1.5 dB
ALC Active 10dB ∣△∣≤2 dB ∣△∣≤2 dB
Time Delay ≤1.5 μs ≤1.5 μs
Alarm
ALC not Active ―Green
ALC Active 5-10dB ―Orange
ALC Active15-20dB ―Red
LED Indication Power On Green
Power Off No Light
4

Power Supply AC：220V/50Hz
Environment Conditions IP65
Humidity < 90%
Operating Temperature -10℃~+55℃

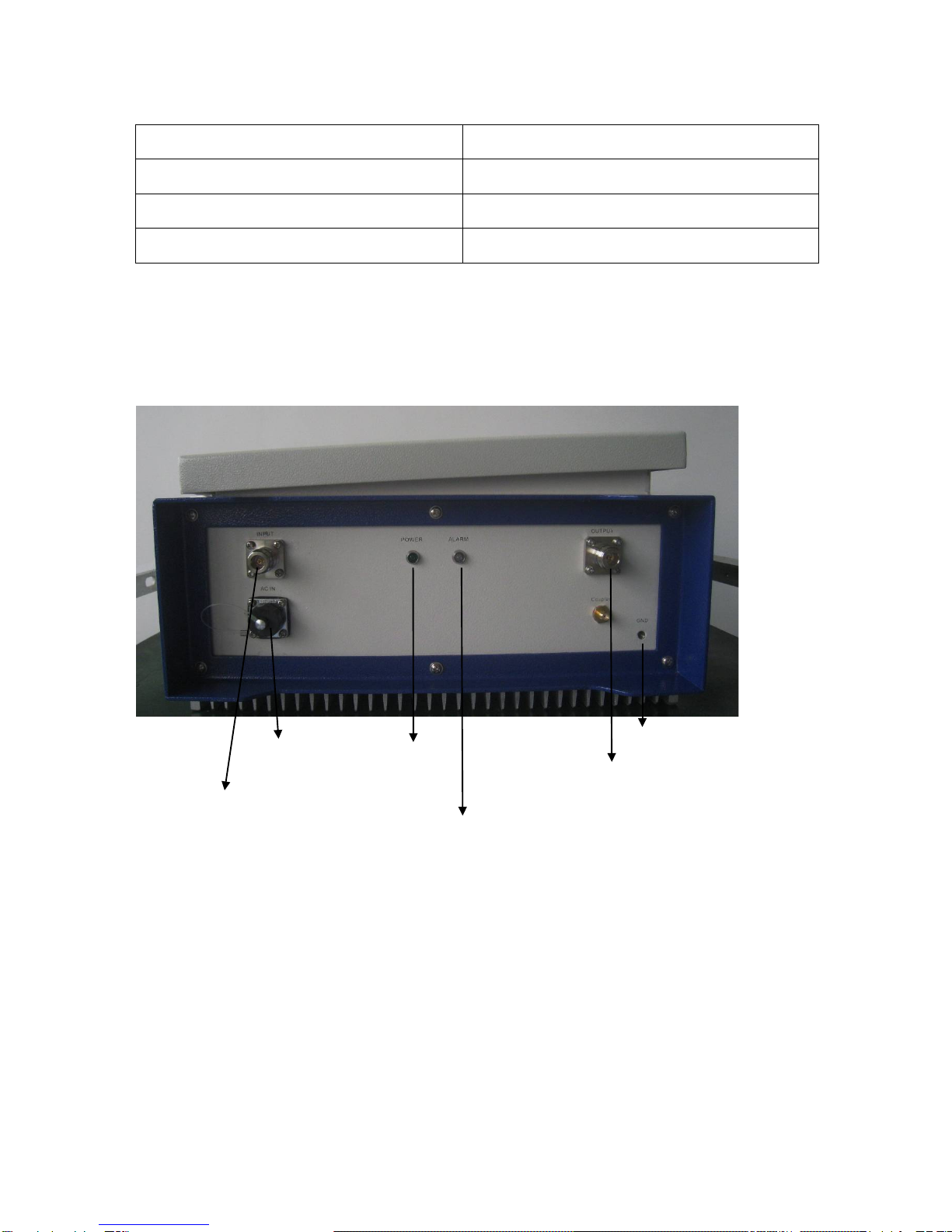

3.5 Appearance Diagram
Grounding
AC Power in Power LED
Connection of Sever Antenna
Connection of DonorAntenna
Alarm LED
5

Chapter 4 Installation
4.1 Installation requirements
Outdoor repeaters BOSSGSM-GDU-HP33 are mainly applied as indoor coverage
system, the changes of air moisture and temperature may influence its reliability. So
such factors as the temperature, air moisture, dustproof, current source and space
requirement, etc shall be fully considered during installation.
Position selection
Install in the place that is not easy to be reached by irrelevant people.
Install at the place that is convenient for power supply and cabling.
Avoid heat source and moist environment
Install at drought space, hang on wall vertically in order to assure good heat distribution.
Power supply requirement
AC power supply of 9~265V/50±5Hz
4.2 Installation
Picture 4.1 Installation diagram
6

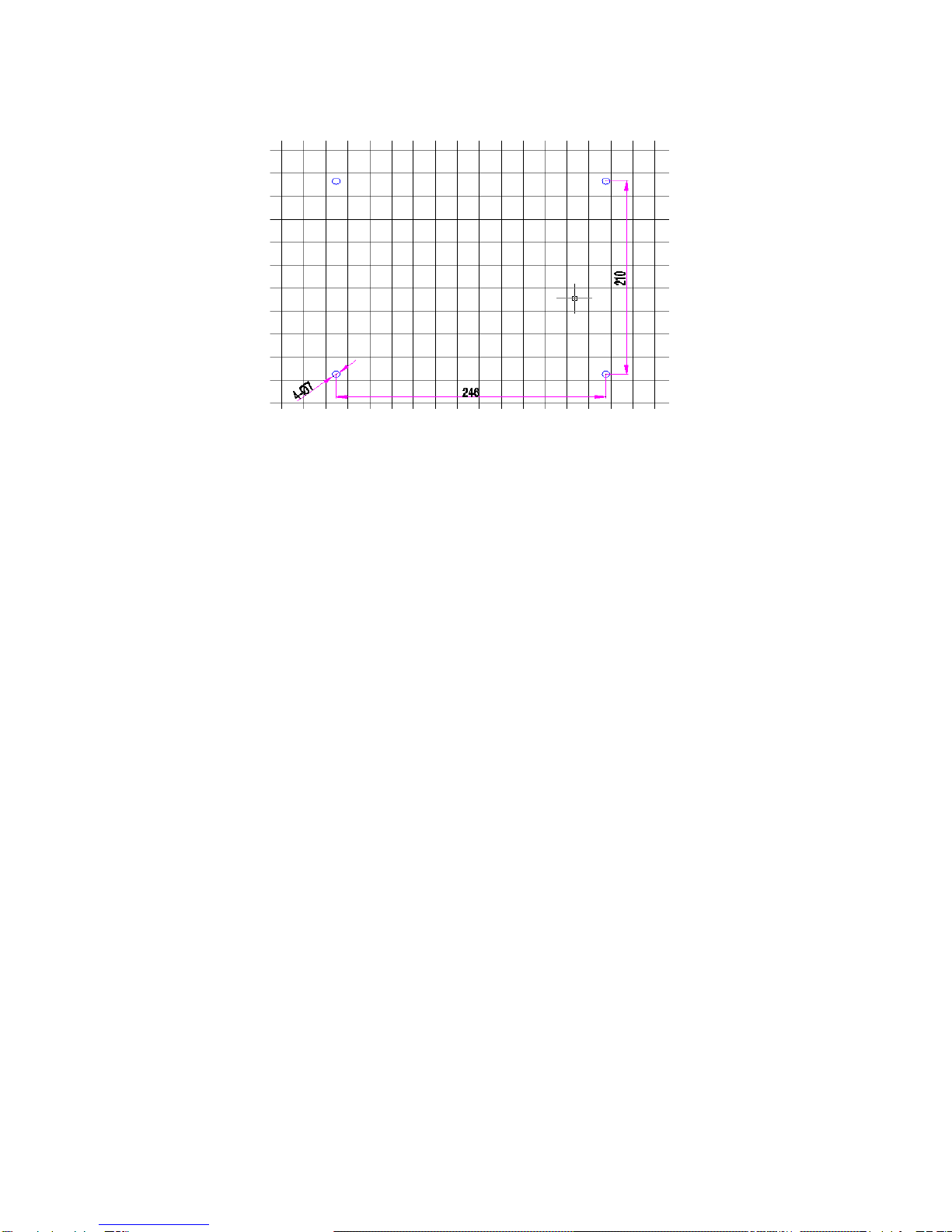

Picture 4.2 Hole positions
Installation Steps:
A) Use percussion drill to make four Φ4 holes on the wall according to above hole diagram.
B) Fill the holes with expanding plug
C) Put the tapping screw through the holes and fit tightly with the expanding plug,
and fasten the repeater onto the wall.
D) Make sure that the installation is firm and correct
4.3 Connection
Connection of RF cable
BTS Port : donor antenna cable is connected with BS Port;
MS Port : service antenna cable is connected with MS Port;
Grounding
Please connect one end of a copper wire with the intersection size of 16mm2 with
the grounding screw, and the other end with the grounding system of the building. It is
requested that the grounding impedance shall be less than 10Ohm.
Power supply connection
Installation of air switch is recommended for the convenience of power supply switch off.
Please use three-pin plug to assure good grounding
Please use the grounding screw, nut, washer to connect the grounding wire and
repeater shell
7

Lightening Arrestor can be installed if necessary

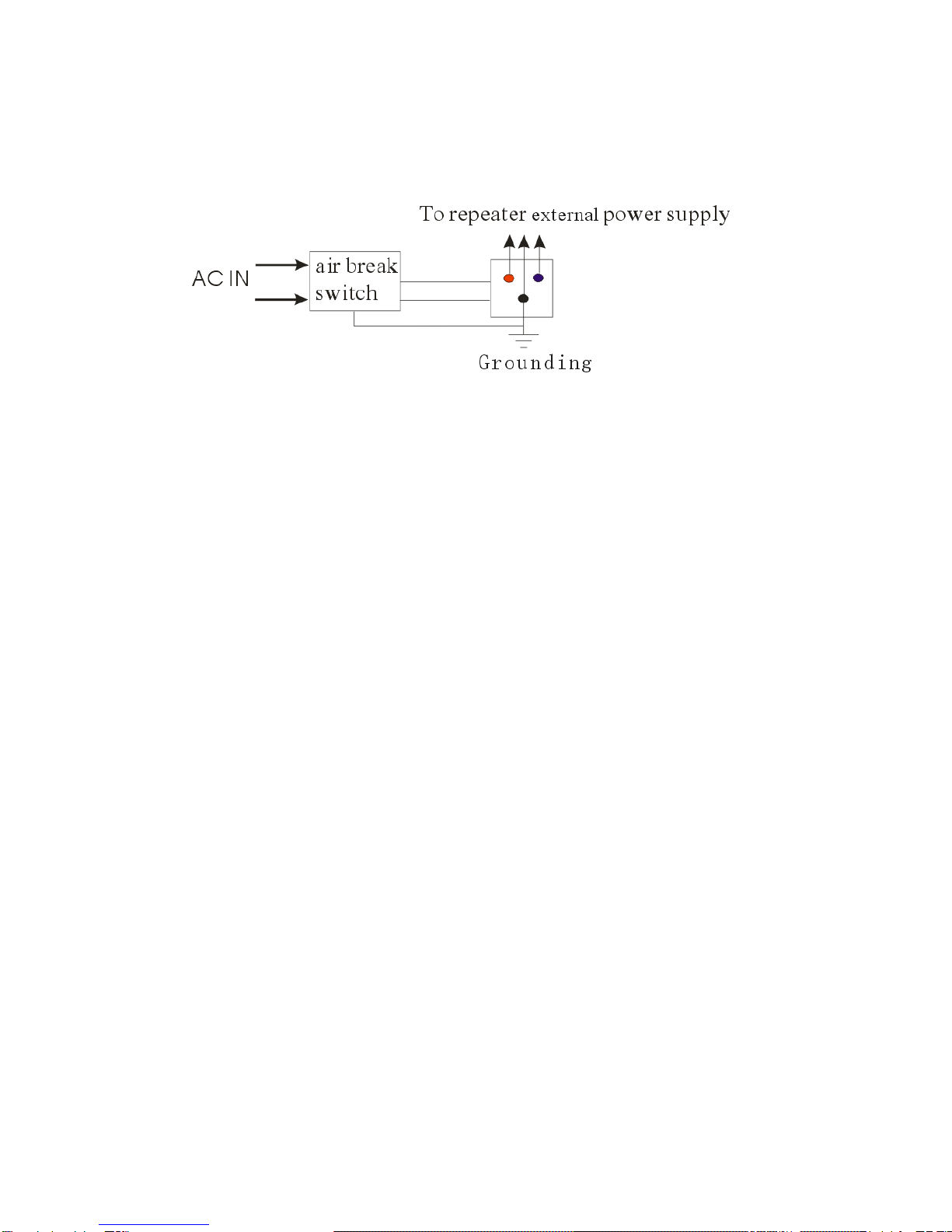

Picture 4.3 Power supply connection
4.4 System inspection
The followings should be checked after installation:
Grounding impedance<10Ω;
Antenna socket, cable are well grounded;
Power supply lightening protection
Building lightening protection
Antenna lightning Protection.
8

Chapter 5 Repeater setting
Please check whether the connection of RF cable is correct (donor antenna
connected to BTS port, service antenna connected to MS port), and whether every port
is stable. After affirmation, please go along the followings:
5.1 Power supply connection
After power supply connection, check ALARM and POWER indicators first.
Status and definition of POWER indicators:
Status and definition of ALARM indicators:
Status
Definition of ALARM
Green
Meaning: working in linearity
attention: Input signals may be not enough
Red
Meaning: overloading or self oscillation, strong input signals
Attention: cut the connection of equipment and service
antenna,then connect the MS port to load, if the red light
changes to green or orange, which means the isolation of
donor antenna and service antenna is not enough, then
please adjust the isolation.
If the red light still turning on that means over accepting of
donor antenna or strong interference, then please
adjust the
place of donor antenna..
Orange
Meaning: it is working in linearity
Notice: Please adjust MGC to increase the attenuation
value, till you find the “edge point”, and let the repeater work
at this point.
Off
Repeater break down
Status
Definition
Green
Normal
Off
AC power problem
9

5.2 Performance Setting
Curve chart of equipment working condition

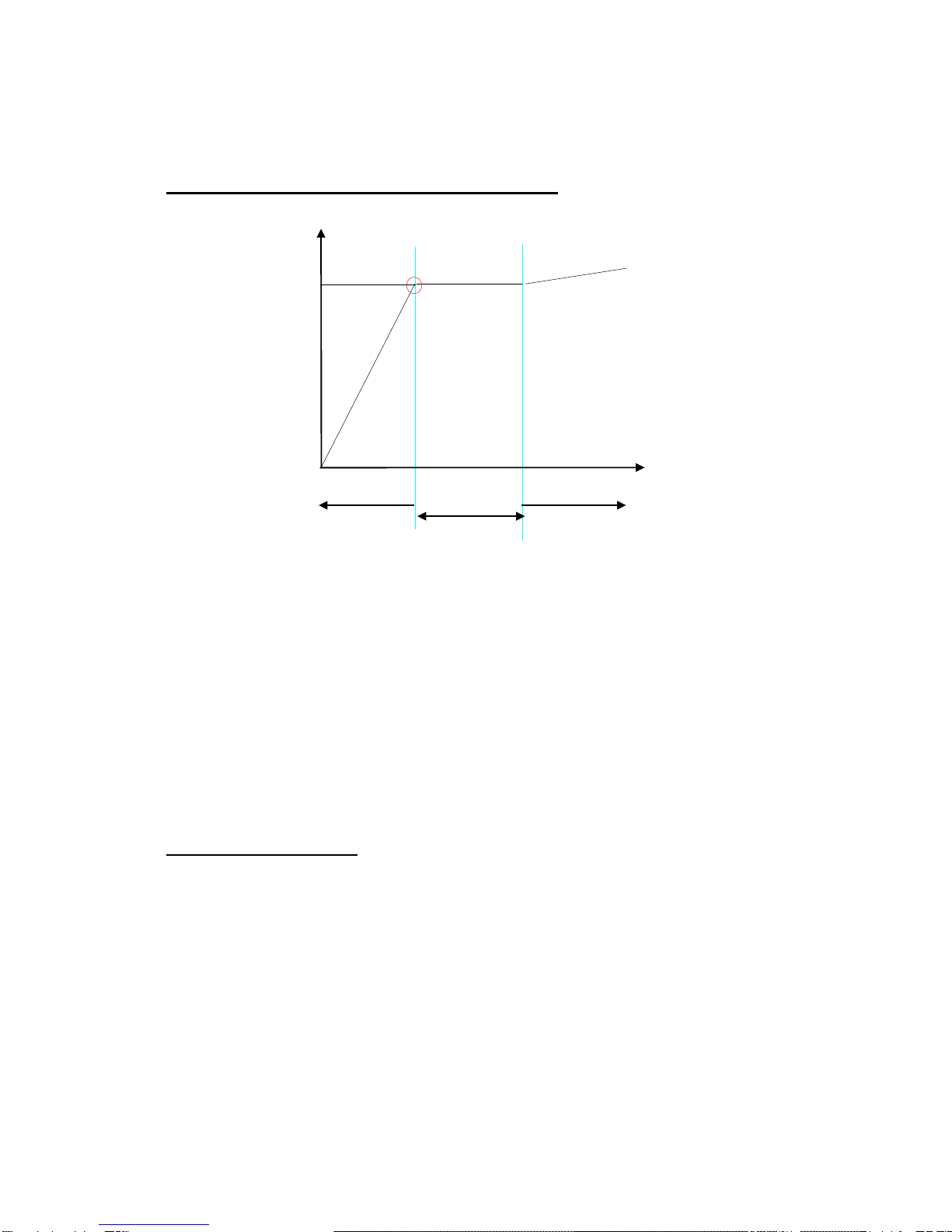

Picture 5.1 ：Curve of output power, input signal and attenuation value
POutput Powe: output power
Pinput Power: input power
VATT: attenuation vale
Pinput Power -VATT: input power—attenuation value
Pmax: output power rating
Downlink gain setting
As for the downlink working performance, “orange” is a good working point. At this
time, downlink output power and coverage effect are stable.
But from another point of view, we hope the equipment is as far as possible away
from overloading status of “red” (thus the equipment would hold higher interference
depression ability). So we try our best to set the equipment near “edge point” when
engineering.
Setting of “edge point”: (Switch on the power supply after connection with donor
antenna and coverage antenna, and observe ALARM indicator.)
POutput Power
P
max
(P
input Power
-V
ATT
)
Green: Linear
amplification
Red:
Overloading
Orange:
stable
Edge Point
10

■If it shines “orange”, use 1dB as stepping to increase attenuator until “green”
turns on, then decrease 1~3dB attenuation value until “orange” turns on. The
setting of downlink gain can reach the perfect status.
■If it shines “green” then,
◆To check whether the attenuation value has been set, if it is, use 1dB as
stepping to decrease attenuation until the “orange” turns on, then the downlink gain
can reach the perfect status.
◆But if attenuation is not set, it indicates that the input power is not enough.
Then please check coverage effect first, if the coverage effect is good, the
engineering has reached expecting target
But if the coverage effect is not so good, the donor antenna should be adjusted until “orange”
turns on or the effect reaches the target.
Uplink gain setting
Uplink gain is set based on downlink gain..
Standards: uplink attenuation value=downlink attenuation value
11

Chapter 6 Engineering Maintenance
6.1 Operation and maintenance
Equipment Disassembly
Close the outside air switch
Plug off the power supply
Cleaning
Close the outside air switch
Plug off the power supply.
Do not use liquid materials to clean the equipment to avoid short circuit;
Please use dry dishclout
Grounding
Using grounded power plug (three-pin plug)
Power supply
Please make sure the voltage and frequency comply with the repeater requirement.
Component replacement
Please do not maintain or replace components by yourself, otherwise may get
an electric shock. Only the authorized professional can maintain and replace the
components.
Waterproof and moist proof
Please do not turn on or off the booster in moist environment when its door is
opened.
6.2 Emergency dealing
Switch off is recommended during following situations:
The power supply is not normal
Liquid flows into the equipment;
Working conditions is not normal, (overheating, abnormal smelling, abnormal sundries)
Closet damage
Performance decreasement
Near to fire
Flooding
12

6.3 Maintaining directions
Please check the booster step by step according to below processes, to find out the
problem with the repeater
Abnormal performance
Green
Red
Off
LED check
Feeder system
inspection
Improve the feeder
system
Isolation
inspection
Power supply
inspection
Improve the
power supply
system
A
bnormal
A
bnormal
Contact repeater
supplier
N
ormal
N
ormal
Strong interference near donor
antenna
13
