ADRF SDR-ICS-43-W User manual

Advanced RF Technologies, Inc.
i
SDR-ICS-43 User Manual
VERSION 0.28
3116 West Vanowen St.
Burbank, CA 91505
Tel: [phone]
Fax: [phone]
www.adrftech.com

Advanced RF Technologies, Inc.
ii
Information in this document is subject to change without notice.
Advanced RF Technologies, Inc. 1996-2017.
All rights reserved.
·Please send comments to:
E-Mail: [email protected]m
Phone: [phone]
[phone]
Fax: [phone]
·Address:
Advanced RF Technologies, Inc.
Attention: Technical Publications Department
3116 Vanowen St.
Burbank, CA 91505
USA
www.adrftech.com

Advanced RF Technologies, Inc.
iii
REVISION HISTORY
CHANGE LIST
Version Change list Contents
Version Author Descriptions Date
0.1
ADRF
Initial Release
11
/
07
/ 201
7
0.
2
CK ,CHO
Update
05
/
14
/ 201
8
0.
21
CK ,CHO
Update, Model name changed
07
/
10
/ 201
8
0.
22
CK ,CHO
Update
07
/
18
/ 201
8
0.
23
CK ,CHO
AWS Bandwidth Change
08
/
31
/ 201
8
0.
25
CK ,CHO
7FN,WCS Band Add
11
/
29
/ 201
8
0.
26
CK ,CHO
7FN Update
12/10/2018
0.
2
8
CK ,CHO
Regulatory Warning Statement
update
01/23/2019
0.
2
8
CK ,CHO
Regulatory Warning Statement
update
01/2
8
/2019

Advanced RF Technologies, Inc.
iv
TABLE OF CONTENTS
1. Introduction................................................................................................................................................. 8
1.1 Highlights.............................................................................................................................................. 8
1.2 Parts List ............................................................................................................................................... 9
1.3 Repeater Quick View........................................................................................................................... 10
1.4 Warnings and Hazards......................................................................................................................... 10
2. Overview ................................................................................................................................................... 15
2.1 LED ..................................................................................................................................................... 15
2.2 Host/Remote Switch ........................................................................................................................... 15
2.3 Ethernet Port ...................................................................................................................................... 15
2.3.1 AC Power ..................................................................................................................................... 16
2.3.2 Back Up Battery Port .................................................................................................................... 16
2.4 RF Ports............................................................................................................................................... 17
3. Alarms ....................................................................................................................................................... 18
3.1 Message Board Alarms and Notification .............................................................................................. 18
3.2 Alarms ................................................................................................................................................ 19
4. Installation................................................................................................................................................. 20
4.1 Installation Procedures........................................................................................................................ 20
4.1.1 Wall Mount Procedure ................................................................................................................. 20
4.2 Grounding........................................................................................................................................... 20
4.3 Antenna Separation/Isolation.............................................................................................................. 21
4.4 Line of Sight ........................................................................................................................................ 22
5. SDR-ICS-43 Web-GUI Setup ........................................................................................................................ 23
5.1 Repeater/PC Connection Using Web-GUI............................................................................................. 23
5.2 Status Tab ........................................................................................................................................... 24
5.2.1 Band ............................................................................................................................................ 24
5.2.2 Power & Gain ............................................................................................................................... 24
5.2.3 Alarm ........................................................................................................................................... 25
5.2.4 Message Board............................................................................................................................. 25
5.2.5 Install, Power and modem Status.................................................................................................. 26
5.2.6 Repeater Info / Repeater Location / Technical Support / Installer Contact Info.............................. 26
5.3 Control Tab ......................................................................................................................................... 28
5.3.1 General Setting ............................................................................................................................ 28
5.3.2 System ......................................................................................................................................... 29
5.3.3 SNMP Trap................................................................................................................................... 29
5.3.4 Gain Control................................................................................................................................. 29
5.3.5 ICS Control ................................................................................................................................... 30
5.3.6 Alarm Setting ............................................................................................................................... 30
5.4 Install Tab ........................................................................................................................................... 31
5.4.1 Install........................................................................................................................................... 31
5.4.2 SNMP........................................................................................................................................... 32
5.4.3 Location ....................................................................................................................................... 32

Advanced RF Technologies, Inc.
v
5.4.4 Remote Ethernet Settings............................................................................................................. 32
5.4.5 Auto Installation........................................................................................................................... 33
5.4.6 Date & Time................................................................................................................................. 34
5.4.7 Band Selection ............................................................................................................................. 35
5.5 System ................................................................................................................................................ 35
5.5.1 System: Account........................................................................................................................... 35
5.5.1.1 System: Account- Account Management............................................................................. 35
5.5.1.2 System: Account- New Account........................................................................................... 35
5.5.1.3 System: Account- Change Password .................................................................................... 36
5.5.2 System- Closeout Package ............................................................................................................ 37
5.5.3 System- User Log.......................................................................................................................... 37
5.5.4 System: Update............................................................................................................................ 38
5.5.5 System- Backup............................................................................................................................ 38
5.6 Help.................................................................................................................................................... 39
5.7 Logout................................................................................................................................................. 39
6. Maintenance Guide for SDR-ICS-43 Repeater.............................................................................................. 39
6.1 Periodic Inspection Checklist ............................................................................................................... 39
6.2 Preventive Measures for Optimal Operation........................................................................................ 39
6.2.1 Recommendations ....................................................................................................................... 39
6.2.2 Precautions.................................................................................................................................. 39
7. Warranty and Repair Policy ........................................................................................................................ 40
7.1 General Warranty................................................................................................................................ 40
7.2 Limitations of Warranty....................................................................................................................... 40
7.3 Limitation of Damages......................................................................................................................... 40
7.4 No Consequential Damages................................................................................................................. 40
7.5 Additional Limitation on Warranty....................................................................................................... 40
7.6 Return Material Authorization (RMA) .................................................................................................. 40
8. Specifications............................................................................................................................................. 41
8.1 Electrical Specifications ....................................................................................................................... 41
SDR-ICS-43_Sprint Specifications ................................................................................................................... 41
SDR-ICS-43_Verizon Specifications................................................................................................................. 42
Mechanical Specifications................................................................오류! 책갈피가 정의되어 있지 않습니다.
Environmental Specifications...........................................................오류! 책갈피가 정의되어 있지 않습니다.
Power Specifications........................................................................오류! 책갈피가 정의되어 있지 않습니다.
Other Specifications ........................................................................오류! 책갈피가 정의되어 있지 않습니다.
9. Appendix ................................................................................................................................................... 45
9.1 Shutdown Retry Logic.......................................................................................................................... 45
FIGURES
Figure 1-1 SDR-ICS-43 Repeater Parts List........................................................................................................9
Figure 2-1 LED............................................................................................................................................... 15

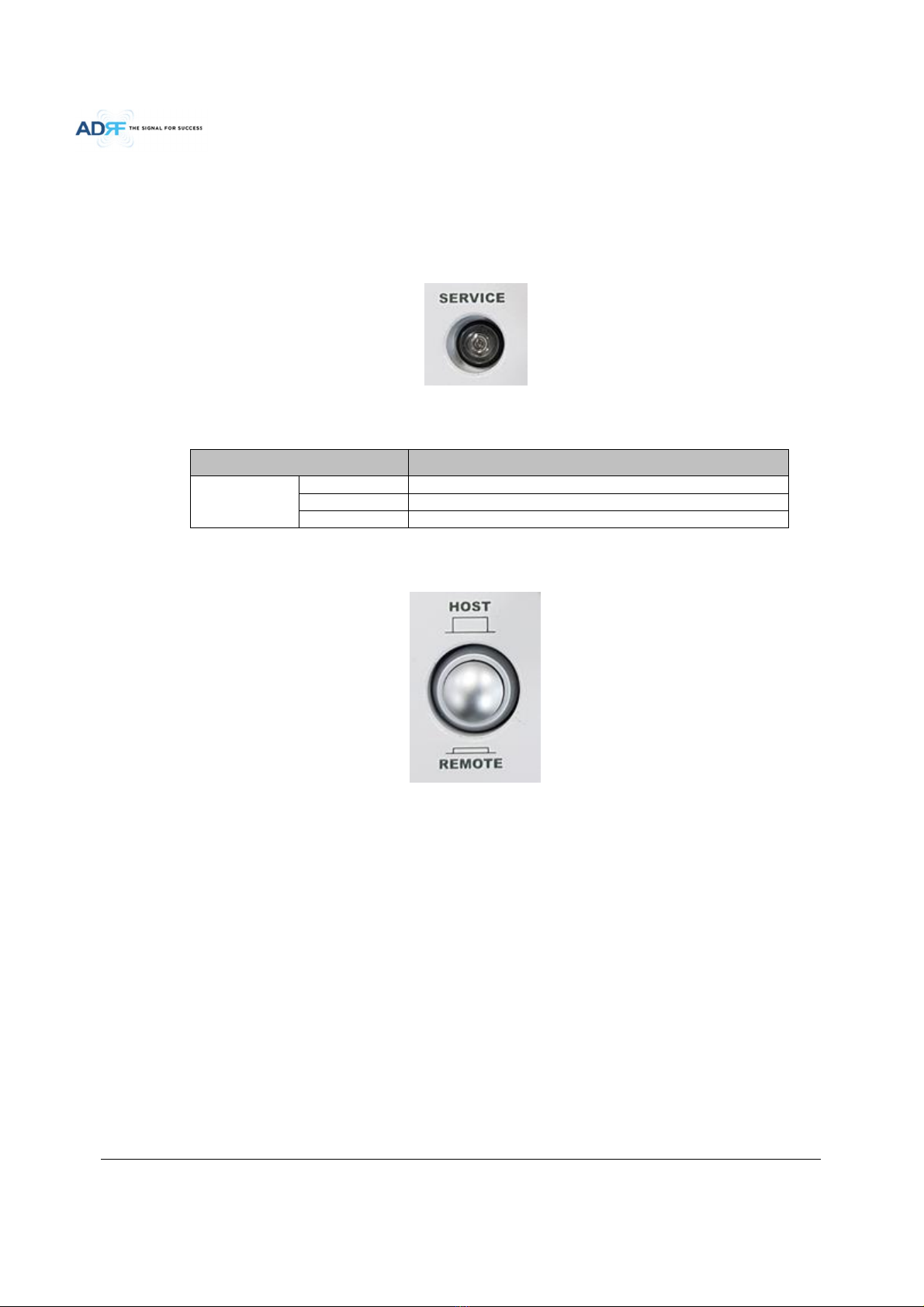

Figure 2-2 Host/Remote Switch..................................................................................................................... 15

Advanced RF Technologies, Inc.
vi
Figure 2-3 AC Input Port................................................................................................................................ 16
Figure 2-5 Battery Backup Port...................................................................................................................... 16
Figure 2-6 RF port......................................................................................................................................... 17
Figure 4-1 SDR-ICS-43 Wall Mount ................................................................................................................ 20
Figure 4-2 Ground Cable Connection............................................................................................................. 20
Figure 4-3 RF Repeater Oscillation................................................................................................................. 21
Figure 4-4 Line of Sight to the eNode-B(or BTS)............................................................................................. 22
Figure 5-1 Login page.................................................................................................................................... 23
Figure 5-2 Status Tab .................................................................................................................................... 24
Figure 5-3 Band Display ................................................................................................................................ 24
Figure 5-4 Power & Gain Display................................................................................................................... 25
Figure 5-5 Alarm Display ............................................................................................................................... 25
Figure 5-6 Message Board............................................................................................................................. 26
Figure 5-7 Install, Power and modem Status.................................................................................................. 26
Figure 5-8 Repeater Info / Repeater Location / Technical Support / Installer Contact Info.............................. 27
Figure 5-9 Control page ................................................................................................................................ 28
Figure 5-10 General Setting ............................................................................................................................ 28
Figure 5-11 System ......................................................................................................................................... 29
Figure 5-12 Pop-up message when Reboot button is pressed .......................................................................... 29
Figure 5-13 Pop-up message when Factory Setting button is pressed .............................................................. 29
Figure 5-14 SNMP Trap................................................................................................................................... 29
Figure 5-15 Gain Control Setting ..................................................................................................................... 30
Figure 5-16 ICS Control Setting........................................................................................................................ 30
Figure 5-17 Alarm Threshold Setting ............................................................................................................... 30
Figure 5-18 Install page................................................................................................................................... 31
Figure 5-19 SNMP........................................................................................................................................... 32
Figure 5-20 Location Setting ........................................................................................................................... 32
Figure 5-21 Remote Ethernet Settings............................................................................................................. 33
Figure 5-22 Auto Installation........................................................................................................................... 33
Figure 5-23 Repeater Location Info / Repeater Installer Info............................................................................ 34
Figure 5-24 Date & Time Setting ..................................................................................................................... 34
Figure 5-25 Band Selection ............................................................................................................................. 35
Figure 5-26 System: Account- Account Management ...................................................................................... 35
Figure 5-27 System: Account- New Account .................................................................................................... 36
Figure 5-29 System: Account- Change Password.............................................................................................. 36
Figure 5-30 System- Closeout Package ............................................................................................................ 37
Figure 5-31 System- Closeout Package after the file upload............................................................................. 37
Figure 5-32 System – User Log ........................................................................................................................ 37
Figure 5-33 System – Update .......................................................................................................................... 38
Figure 5-35 System Backup............................................................................................................................. 39
Figure 5-36 Help............................................................................................................................................. 39
TABLES
Table 1-1 Parts List ........................................................................................................................................ 9
Table 2-1 RF Module LED Specifications....................................................................................................... 15
Table 3-1 Message Board Alarms and Notification ....................................................................................... 18
Table 3-2 Alarms Threshold ......................................................................................................................... 19
Table 8-1 Electrical Specifications ..................................................오류! 책갈피가 정의되어 있지 않습니다.

Advanced RF Technologies, Inc.
7
Terms and Abbreviations
The following is a list of abbreviations and terms used throughout this document.
Abbreviation/Term Definition
AGC Automatic Gain Control
ALC Automatic Level Control
AROMS ADRF’ Repeater Operation and Management System
BDA Bi-Directional Amplifier
BTS Base Transceiver Station
CDMA Code Division Multiple Access
CFR Crest Factor Reduction
CP Cyclic Prefix
CW Continuous Wave (un-modulated signal)
DAS Distributed Antenna System
DL Downlink
eNode-B Evolved Node B which is the element in E-UTRA of LTE that is the evolution of the
element Node B in UTRA of UMTS
HPA High Power Amplifier
HW Hardware
ICS Interference Cancellation System
ILC Interference Level Control
IF Intermediate Frequency
LNA Low Noise Amplifier
LTE Long Term Evolution
MS Mobile Station
OFDM Orthogonal Frequency-Division Multiplexing
OFDMA Orthogonal Frequency-Division Multiple Access
PAR (PAPR) Peak to Average Power Ratio (Crest Factor)
PLL Phase Locked Loop
PSU Power Supply Unit
QAM Quadrature Amplitude Modulation
QPSK Quadrature Phase Shit Keying
RB Resource Block
RF Radio Frequency
SC-FDMA Single Carrier-Frequency Division Multiple Access
SQE Signal Quality Estimate
SW Software
eUE LTE User Equipment (LTE Mobile Station)
UL Uplink
VSWR Voltage Standing Wave Ratio

Advanced RF Technologies, Inc.
8
1. INTRODUCTION
The SDR-ICS-43 is an over-the-air high power repeater. SDR-ICS-43 supports SMR800+Cellular, PCS, BRS-TDLTE
band.
1.1 Highlights
·Active ICS (Interference Cancellation System)
·Band Selectable
·Digital filtering with sharp roll-off (>50dBc @ ± 1 MHz from sub-band edge)
·Remote monitoring and control capability using our Web-based GUI
·95 dB of max gain and 43/30dBm (DL/UL) Composite power
·Support optional internal modem box for remote access and alarming
·Configurable network setting in order to interface with 3rd party external modem boxes
·Adjustable ALC Output Power Level
·Supports SNMP v1, v2, v3 (get, set & traps)
·Incremental Automatic Shutdown/Resumption Time: SDR-ICS-43 gradually increases the time span between
automatic shutdown and resumption before it permanently shuts itself down
·Versatility and Usability: SDR-ICS-43 gives total control to the user. Most of the control parameters, e.g., gain,
output power, alarm threshold, etc. can be changed using the Web-GUI so that the user can adjust the system
perfectly to the given RF environment
·Web-GUI connectivity via DHCP
·Supports DHCP; No 3rd party GUI software required
·Automated installation
·Remote update support

Advanced RF Technologies, Inc.
9
1.2 Parts List
Table 1-1 Parts List
Label Quantity Description
SDR
-
ICS
-
43
A
1
SDR
-
ICS
-
43
B
1
Wall Mount Bracket
C
1
Mounting Bracket Template
D
1
AC Power Cable
E
1
Ethernet Cable (Crossover)
F
6
Anchor Bolt
G
1
Ground Cable
H
1
Documentation
CD*
Optional SDR-ICS-43 Modem Package
I
1
Modem
J
1
Modem
Connection
Cable
K
1
19inch Chassis
L
1
Ethernet Cable (Crossover)
Figure 1-1 SDR-ICS-43 Repeater Parts List
* CD includes: User Manual, Quick-Start Guide, and Troubleshooting Guide
D
E
F
B
G
H
A
I
J K
C
L

Advanced RF Technologies, Inc.
10
1.3 Repeater Quick View
1.4 Warnings and Hazards
DONOR
DUPLEXER
LNA0
LNA1
Server
Duplexer
Modem
CPL-20dB
Backup
Battery Port
AC Input Port
Modem
Antenna Port
LED
Host/Remote
Switch
SERVER
CPL-40dB

Advanced RF Technologies, Inc.
11
Opening the SDR-ICS-43 could result in electric shock and may cause severe
injury.
Working with the repeater while in operation, may expose the technician to RF
electromagnetic fields that exceed FCC rules for human exposure. Visit the FCC website at
www.fcc.gov/oet/rfsafety to learn more about the effects of exposure to RF electromagnetic
fields.
WARNING! EXPOSURE TO RF
Operating the SDR-ICS-43 with antennas in very close proximity facing each other could
lead to severe damage to the repeater.
WARNING! DAMAGE TO REPEATER
Actual separation distance is determined upon gain of antenna used.
Please maintain a minimum safe distance of at least 211.3 cm while operating near the donor and the server antennas.
Also, the donor antenna needs to be mounted outdoors on a permanent structure.
RF EXPOSURE & ANTENN
A PLACEMENT
Guidelines
Opening or tampering the SDR-ICS-43 will void all warranties.
WARRANTY
WARNING!
ELECTRIC
SHOCK

Advanced RF Technologies, Inc.
12
Lithium Battery: CAUTION. RISK OF EXPLOSION IF BATTERY
IS REPLACED BY
INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS.
Ethernet Instructions: This equipment is for indoor use only. All cabling should be limited to inside
the building.
NOTE: This equipment has been tested and found to comply with the limits for
a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their own expense.
FCC Part 15 Class A
Double Pole/Neutral Fusing.
CAUTION
Circuit Breaker Installation in the Box for Overcurrent Protection
Must install the circuit breaker between the system and main AC source for separation.
Make sure to install the circuit breaker on the place to operate easily.
Circuit breaker is able to operate up to 20A.
CAUTION

Advanced RF Technologies, Inc.
13
◈LABEL WARNING◈
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
410 cm between the radiator and your body. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
Regulatory Warning Statement
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 410 cm entre la source de radiation (l’antenne) et toute personne physique.
Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne ou émetteur.
RSS-102 RF Exposure
This 3.5dB back off is only required when multiple carriers are present in the pass-band.
Power Reduction Waring
Statement

Advanced RF Technologies, Inc.
14
The passband gain shall not exceed the nominal gain by more than 1.0
dB.
The 20
dB bandwidth
shall not exceed the nominal bandwidth that is stated by the manufacturer. Outside of the 20 dB
bandwidth, the gain shall not exceed the gain at the 20 dB point.
RSS-131 Warning Statement

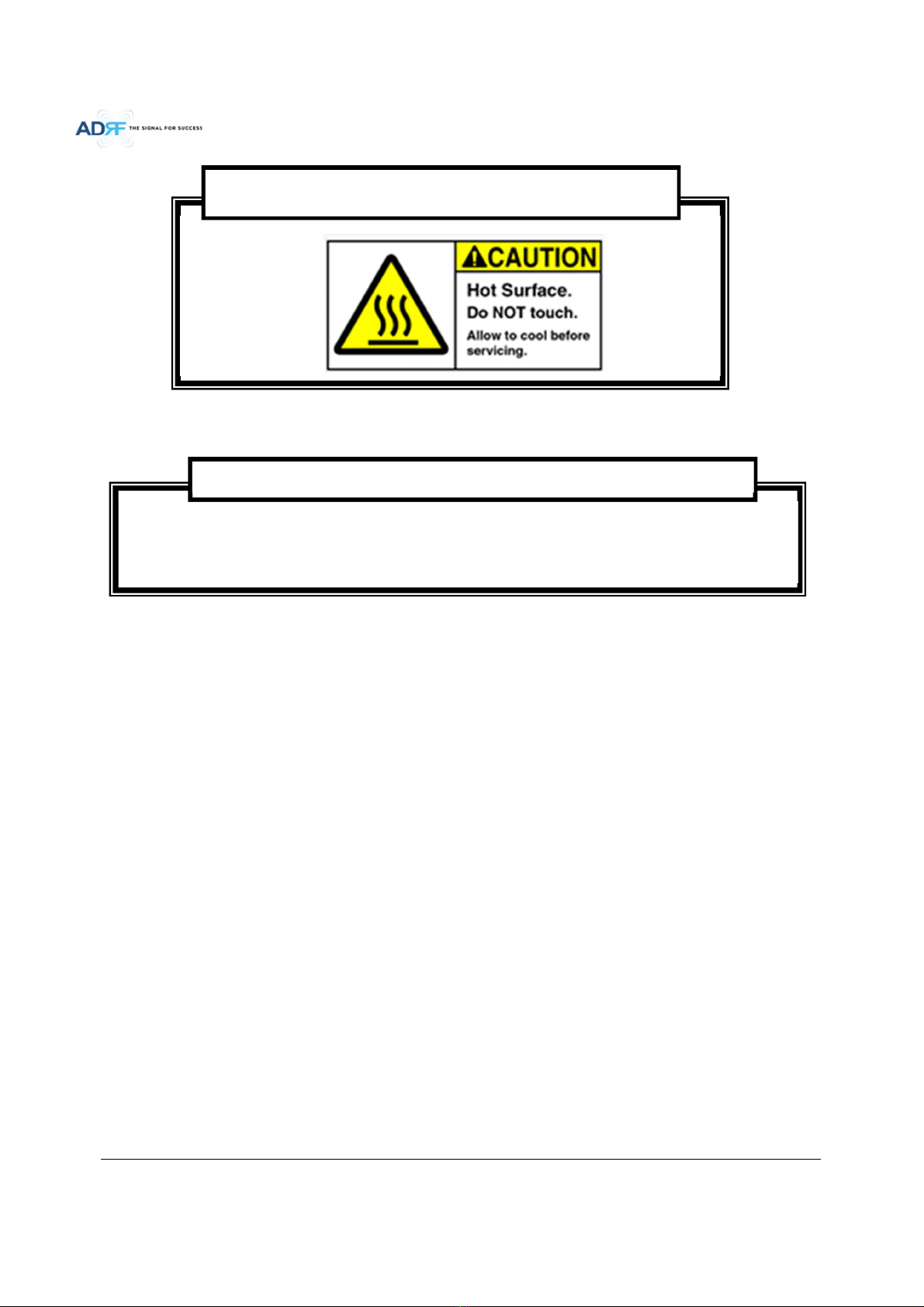

WARNING!
Hot surface

Advanced RF Technologies, Inc.
15
2. OVERVIEW
2.1 LED
SDR-ICS-43 has an LED in the Lower left corner as shown in figure below.
Figure 2-1 LED
Table 2-1 RF Module LED Specifications
LED Indicator Specifications
Service
Green
System
is
Normal
Orange
Soft
Fail
Red Hard Fail
2.2 Host/Remote Switch
Figure 2-2 Host/Remote Switch
The Host/Remote Switch allows the user to switch the default Repeater IP, Subnet Mask, and Gateway of the
LOCAL port of the repeater to an alternative setup. These settings can be adjusted by logging into the repeater in
HOST mode and configuring the settings under the Modem Box Setting section on the Install Page(section 오류!
참조 원본을 찾을 수 없습니다.).
Once the settings are set, Push the switch to the REMOTE position will reboot the repeater with the new alternate
settings. Please note that when the repeater is set to the REMOTE position, DHCP is disabled and the repeater will
not automatically assign an IP address to any device that connects directly to the repeater.
·Host IP: 192.168.63.1 (Fixed IP, unable to modify this IP address)
·Remote IP: 192.168.63.5 (Default IP, but can be modified in Host mode)
2.3 Ethernet Port

Advanced RF Technologies, Inc.
16
Figure 2-3 Ethernet Port
·LAN0 – The Local port can be used to communicate directly with the SDR-ICS-43 using a RJ-45 crossover cable
or can also be used to connect the SDR-ICS-43 to an external modem box or the optional internal Digi
Transport WR-21.
·LAN0 and LAN1 support cascade communication for modem and Web-GUI
2.3.1 AC Power
Figure 2-3 AC Input Port
The SDR-ICS-43 PSU can operate at 110V AC to 220V AC. The user should verify that the AC input voltage is the
correct voltage before powering on the SDR-ICS-43.
2.3.2 Back Up Battery Port
Figure 2-4 Battery Backup Port

Advanced RF Technologies, Inc.
17
The SDR-ICS-43 can be connected to an ADRF-BBU (ADRF Battery Backup) to provide power during a power failure.
If an ADRF-BBU is utilized, connect the ADRF-BBU to the SDR-ICS-43 via the external battery port.
(WARNING: The circuit switch on the ADRF-BBU must be set to OFF before connecting the ADRF-BBU to the SDR-
ICS-43 to prevent damage to the repeater or the ADRF-BBU and personal injury.)
Note: Please contact ADRF Technical Support for assistance if you are unfamiliar with the installation procedure of
our battery box.
2.4 RF Ports
Figure 2-5 RF port
·DONOR – 4.3-10 female which is used to connect the donor antenna
·DONOR_Modem CPL (20dB) – SMA female 20 dB coupling port which is used to Modem
·MODEM_ANT – SMA female port which is used to provide RF signal to the optional external modem box or
connect the DONOR_ CPL port.
·SERVER_CPL (30dB) – SMA female 30 dB coupling port which is used to monitor the amplified DL signal
·SERVER – 4.3-10 female which is used to connect the server antenna

Advanced RF Technologies, Inc.
18
3. ALARMS
3.1 Message Board Alarms and Notification
Table 3-1 Message Board Alarms and Notification
Parameters Remark
AC Fail
Power supply is not operating within specs
DC Fail
Power supply is not operating within specs
Fan[1/2]
Fail
System has detected an issue with the fan1 and fan2
Temperature
Module is above the normal operating temperature
Current
Power supply is not operating within specs
System Halt
System is in a shutdown state due to a hard fail alarm
DSP Fault System has detected an issue with the internal DSP chip
OSC
Oscillation detected
DL Signal not detected
DL signal is below the specified level
DL Signal Low
DL signal is below the specified level
Input Overload
Incoming in
-
band DL or UL signal is too strong
Out of band Overload
Incoming out
-
band DL or UL signal is too strong
Synthesizer Lock Fail
Issue with internal PLL
DL RF Power
Input + gain does not match the output level (above delta of 6 dB)
Overpower
Output level is above the max output levels
VSWR
Power is being reflected back to the repeater
Heartbeat Heartbeat
Reboot
Reboot
Factory setting
Factory setting
Sync Fail
(SDR
-
ICS
-
43
-
BT only)
Sync Signal Not Detect, Sync Fail

Advanced RF Technologies, Inc.
19
3.2 Alarms
Table 3-2 Alarms Threshold
Parameters Remark
AC Fail Power supply is not operating within specs. (4 seconds)
DC Fail Power supply is not operating within specs. (4 seconds)
Fan1, Fan2 Fail System has detected an issue with each fan. (4 seconds)
Temperature Module is above the normal operating temperature. (4 seconds)
Over Temperature [ Soft fail: 80~87 C, Hard fail: Above 87 C]
Current Power supply is not operating within specs. (4 Second)
Over Current [ Hard fail: Above 20A]
System Halt System is in a shutdown state due to a hard fail alarm. (10 times)
DSP Fault System has detected an issue with the internal DSP chip. (Cannot
communication with DSP)
OSC Oscillation detected. Alarm is only present when one-time
oscillation check is performed.
DL Signal not detected DL signal is below the specified level. (default: -90dBm, 4 seconds)
DL Signal Low DL signal is below the specified level. (default: -85dBm, 4 seconds)
Input Overload Input signal is above the threshold. (4 seconds)
(Soft fail: DL -10dBm/UL -12dBm, Hard fail: DL -8dBm/UL -10dBm)
Out of band Overload Out of band signal is above the threshold. (4 seconds)
(Soft fail: DL -10dBm/UL -12dBm, Hard fail: DL -8dBm/UL -10dBm)
Synthesizer Lock Fail Issue with internal PLL(4 seconds)
DL RF Power Input + gain does not match the output level
(default delta of 6 dB)
Overpower
Output level is above the max output levels
AGC On case(Soft: AGC Level+ 1~2dB, Hard: AGC Level + >2dB)
AGC Off case(Soft: max output level+ 1~2dB, Hard: max output
level + >2dB)
VSWR
Power is being reflected back to the repeater. Threshold = output
power - 8dB. For example, if the repeater is outputting 24dBm,
then if the system detects 16dBm of return power, then the VSWR
will be triggered.(Triggered in case of over +15dBm output power)
Sync(SDR-ICS-43-BT only) Sync alarm set : Sync Fail
Sync alarm clear : Sync

Advanced RF Technologies, Inc.
20
4. INSTALLATION
4.1 Installation Procedures
4.1.1 Wall Mount Procedure
·Verify that the SDR-ICS-43 and mounting hole are in good condition
·Place the SDR-ICS-43 mounting template up against the wall and mark of mount holes
·Mount the SDR-ICS-43 to wall use the six (6) mounting hole on the wall mount bracket
·Connect the GND cable
·Connect the Antenna cable
·Connect the Power cable
Figure 4-1 SDR-ICS-43 Wall Mount
4.2 Grounding
·Install the ground cable that is included in the package at the side of the repeater as show in the figure below.
·The grounding terminal is located at lower right-hand side of the BDA. The grounding cable should be
properly connected before powering on the equipment.
Figure 4-2 Ground Cable Connection
·Ground terminals located on the side consisted of a 16mm²(6AWG) and should be permanently connected to
earth(Protective earthing conductor).
Mount bracket
