Boston Acoustics G310 User manual

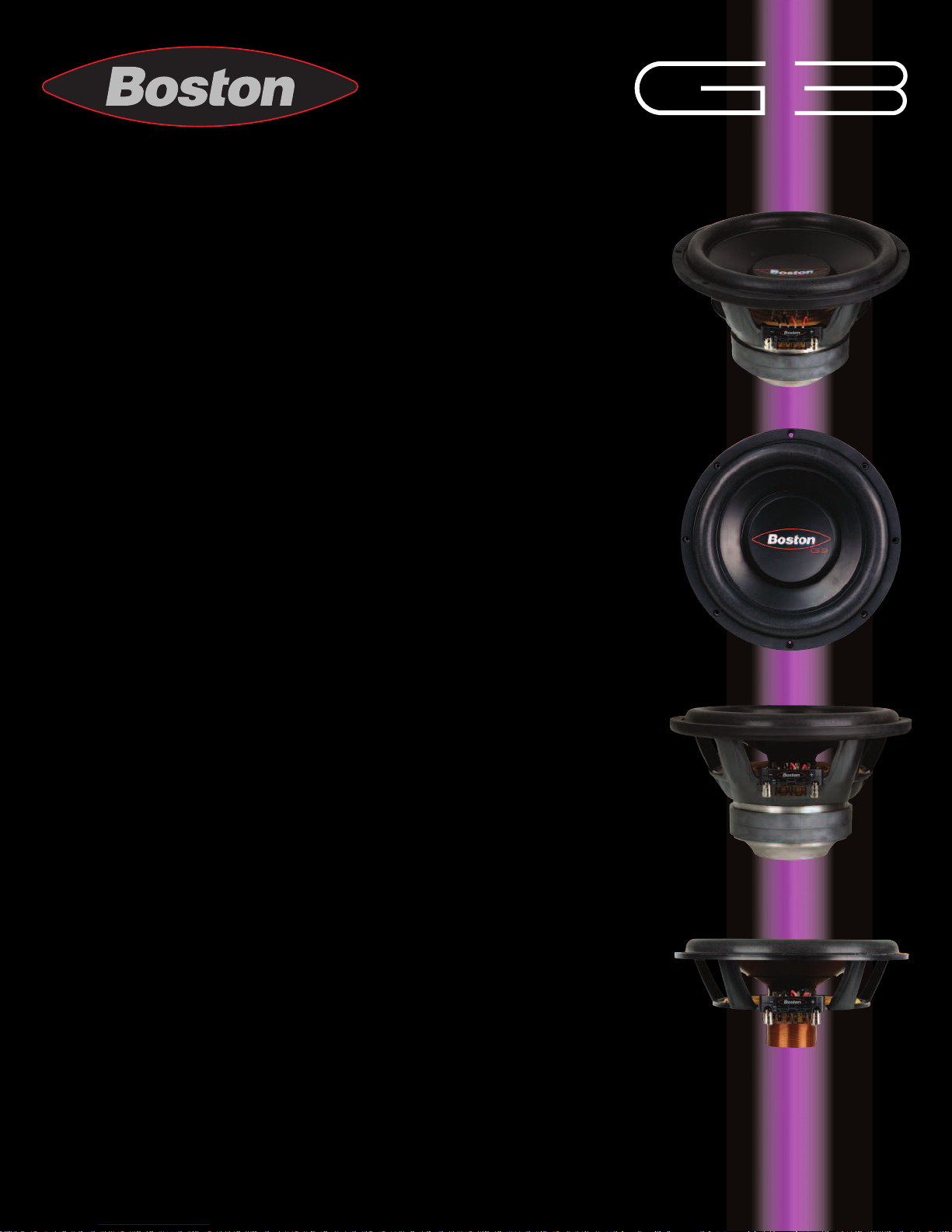

The G3 subwoofers are available in 4 models; single and dual 4-ohm
voice coils in both 10-inch and 12-inch sizes. Designed to excel in a
variety of applications, the G3 subwoofers feature great sensitivity
allowing them to play loud and deep even with moderate power
amplifiers. In addition, the G3 features the removable Boston SPS™to
allow quick and easy repair in case of damage.
Utilizing our patented RadialVent®cooling and robust 2 1⁄2-inch voice
coil, the G3 subwoofers offer exceptional power handling and
reliability compared to conventional designs. Reliability and
convenience are taken one step further with our unique SureSet™
system that delivers impedance selection as well as overdrive
protection.
Performance Features:
• 2 3⁄4-inches of peak-to-peak excursion for accurate, deep bass output from small
sealed or ported enclosures.
•SPS™allows for system growth, field service, and customization (paint,
powdercoat, or chrome) of the subwoofer.
•Patented RadialVent®collar directs airflow around an oversized 2 1⁄2-inch voice
coil for increased power handling and reliability.
•Available in single 4-ohm or dual 4-ohm voice coil configurations; allowing the
wiring of single or multiple woofers to present a final system impedance of 2-
ohms—delivering maximum power output from Boston GT amplifiers.
•SureSet™provides impedance selection as well as overdrive protection.
•Rugged input terminals accept bare 8-gauge wire or a pin connector.
Installation Features:
•G3 subwoofers excel in small sealed enclosures—only 1.0 Ft3for the 12-inch
and 0.5 Ft3for the 10-inch!
• Compatible with the GTR TunableRadiator™for increased bass output from the
above sealed volumes.
•G3 subwoofers are flexible, allowing them to be used in high output ported
enclosures.
• G3 subwoofers provide outstanding performance even in infinite baffle
applications.
•All G3 subwoofers feature integral sealing gaskets simplifying both standard
and inverted mounting.
Model Size Impedance Mounting Depth Sealed Enc. Ported Enc. GTR Enc.
G312-44 12" Dual 4-ohm (2/8-ohm) 6 9⁄16”(166mm) 1.0 Ft32.0 Ft3w/ 4” x 14” Port 1.0 Ft3
G312-4 12" Single 4-ohm 69⁄16”(166mm) 1.0 Ft32.0 Ft3w/ 4” x 14” Port 1.0 Ft3
G310-44 10" Dual 4-ohm (2/8-ohm) 6 3⁄8”(161mm) 0.5 Ft31.3 Ft3w/ 3” x 11” Port 0.5 Ft3
G310-4 10" Single 4-ohm 6
3⁄8”(161mm) 0.5 Ft31.3 Ft3w/ 3” x 11” Port 0.5 Ft3
©2007 Boston Acoustics, Inc. Covered by patents issued and pending. All Rights Reserved. SureSet and SPS are trademarks and Boston, Boston Acoustics, the
Boston Acoustics logo, and RadialVent are registered trademarks of Boston Acoustics, Inc. All specifications are subject to change.
