bp pulse public charger lite User manual

bp pulse
public charger lite
User Guide

Original Instructions bp pulse public charger lite
2
Table of content
Safety requirements
Limitations
bp pulse public charger lite status
Randomised delay start
Scheduling and o-peak charging
Starting a charge on bp pulse public charger lite
Ending a charge on bp pulse public charger lite
311
313
415
616
7
16
8
18
9
18
19
Specications
Resetting your bp pulse public charger
lite via the distribution board
Connector recommendations
Troubleshooting and further assistance
Mounting options
Decommissioning and disposal
Warranty
19 Service
20 Certication
Safety instructions
10 Load management
16 Maintenance

Original Instructions bp pulse public charger lite3
Safety requirements Limitations
Before operating the bp pulse public charger lite, the user must
read and fully understand the safety instructions included in the
manual. Failure to follow the safety information and instructions
provided in this manual and displayed on the device, may lead to
electric shock, re, severe injury and may damage device or/and
vehicle. Damage resulting from negligent actions are excluded
from warranty. Installation of the device must be carried out by
a qualied electrician in line with the applicable regulations. The
information within the installation manual does not allow the user
to overlook responsibility in regards to the norms, standards or
local regulations that might apply. The bp pulse public charger
lite has been designed, developed and manufactured to adhere
to requirements, safety dispositions and norms in accordance
with the directives provided in the Declaration of Conformity.
Safety instructions are included on page 13 of this manual.
This charger is designed for use in the UK, specically
with electrical and environmental conditions expected in
this country. It is intended for use with Electric passenger
vehicles. It is not to be used to provide electrical charge to
any other form of battery operated vehicle that does not
make use of Mode 3 charging. The certication for this
charger allows the charger to be used within residential and
industrial environments where there is restricted access.

Original Instructions bp pulse public charger lite4

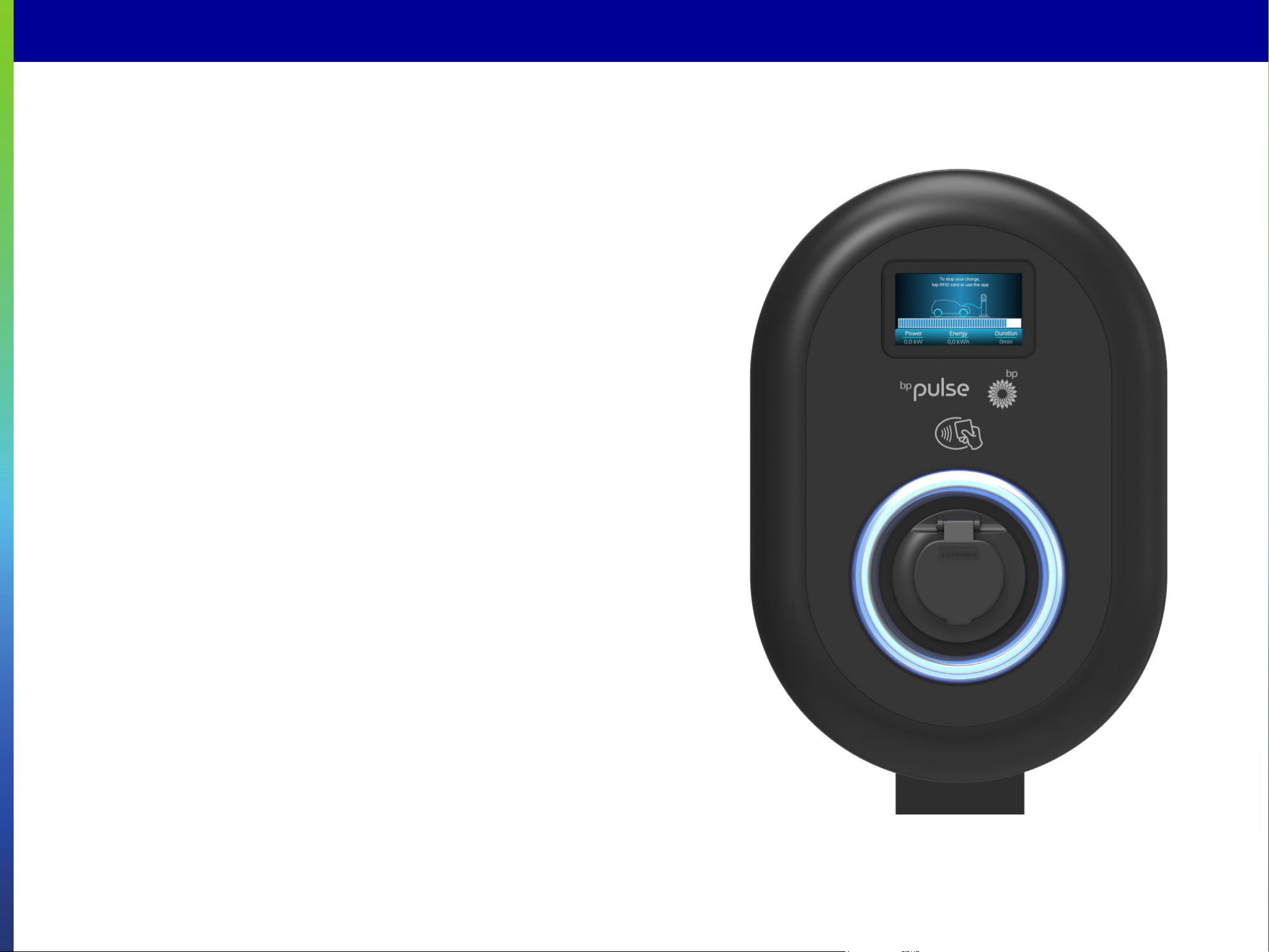

LED Light
Shows the status of your
bp pulse public charger lite
bp pulse public
charger lite
Customer care label
Unique identication number
for your charger

Original Instructions bp pulse public charger lite5
Status of the LED Status of the Charging Station
Blinks blue and red for 5 minutes
Constant Blue
Green pulsing
Blinks blue for 4 seconds
Constant Red
Blue pulsing
Charging suspended or nished.
Charging is authorised
Electric Vehicle is connected. Charger is waiting for RFID card authorisation
Fault condition do not attempt to start a charge
Charging in progress
4 sec
Blinks Green until charging starts Randomised delay in progress
No LED Indication Charger device is ready to charge
Charger has been scheduled to start at a later time

Original Instructions bp pulse public charger lite6

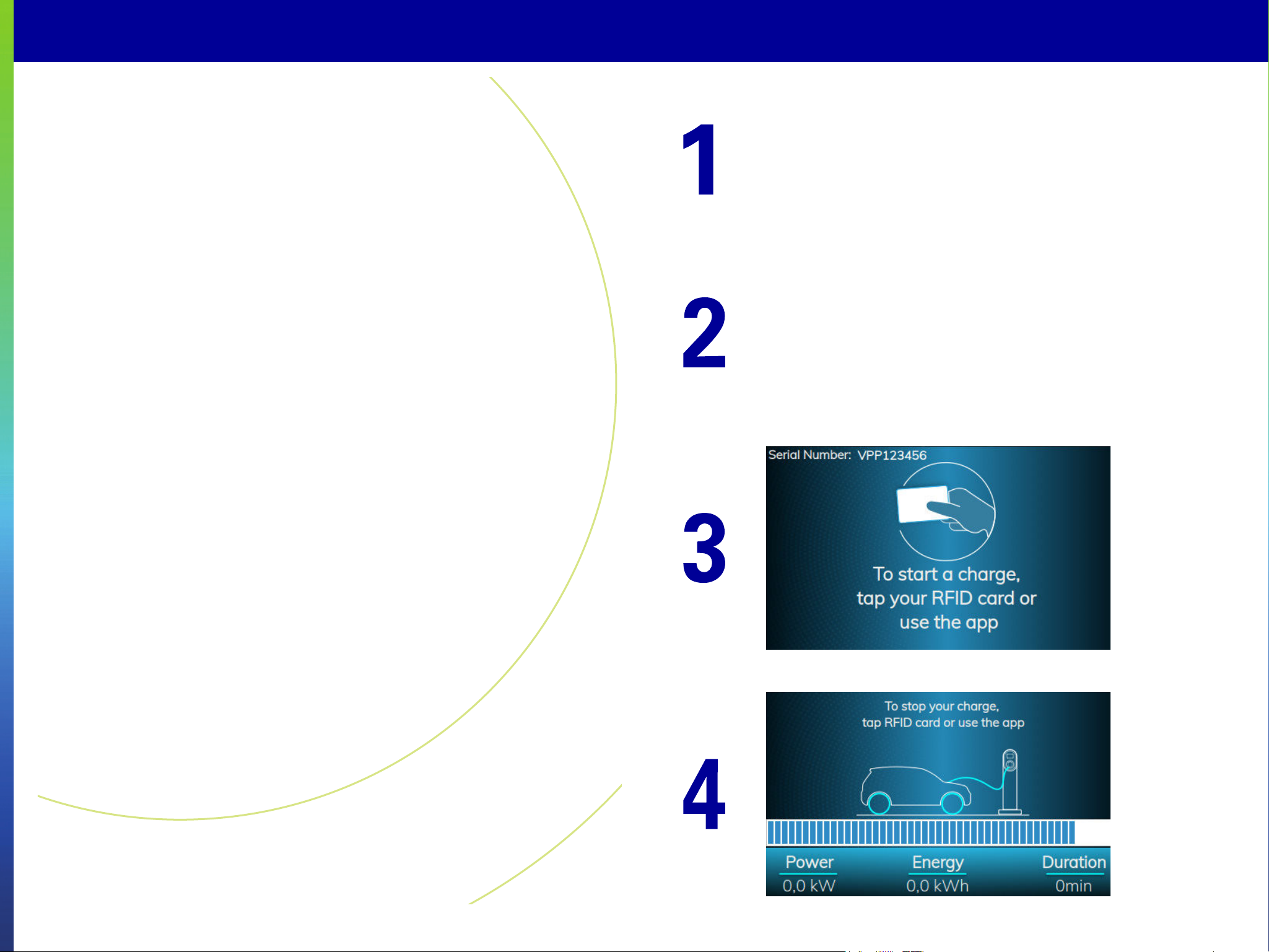

Starting a charge on
bp pulse public charger lite
Lift the ap to access the socket.
Insert the charging cable plug into the
electric vehicle before connecting to the
charging socket. Always make sure the
plug is fully inserted into the socket.
The screen will clearly display all the steps
required by the user to start a charge.
Once the vehicle is charging the screen will
show real time progress including percentage,
duration, power and energy of the charge.

Original Instructions bp pulse public charger lite7
Ending a charge on
bp pulse public charger lite
Remove the charging cable plug from
the socket.
The screen will clearly display all the steps
required by the user to end a charge.
Once the user has ended the charge, the
screen will show the outcome of the charging
session including the duration and energy
received.
To end a charge tap the RFID card on
the reader or end via the app.

Original Instructions bp pulse public charger lite8
The randomised delay start is a requirement for all
private chargepoints in the UK, which helps to ensure
the grid can support the extra demand for electricity
as EV adoption accelerates.
Every time a charge session is initiated, a delay
of up to 10 minutes will be applied to the start of
charge session. The status light will blink green until
charging starts.
Where a charge session is scheduled to start at a
specied time e.g. during o-peak times, a delay of
up to 10 minutes will also be applied to the start of
the charge session. The status light will blink green
until charging starts.
The randomised delay can be overidden by tapping
your RFID card twice on the RFID reader.
The randomised delay can not be permanently
disabled. It can only be overridden as described
above.
Randomised delay start*
*Only applicable when congured for private use cases such as workplace charging.

Original Instructions bp pulse public charger lite9
Scheduling and o-peak
charging*
Our chargers are pre-congured with a default o-
peak charging schedule. This schedule ensures that
EVs are charged only during o-peak hours when
there’s typically less demand on the grid. The o-peak
hours are 10pm - 8am and 11am - 4pm Monday to
Friday and all day Saturday and Sunday.
Upon rst use, or at any time afterwards, the
schedule can be edited or removed or if no schedule
is present, a new schedule can be created via our
web portal or by contacting our customer care team
on 0330 016 5126 or [email protected]
Once a schedule is set and a vehicle is connected,
the status indicator will blink blue and red for 5
minutes. Charging will start at the scheduled time
and the status indicator will turn a constant blue.
There may be occasions when a driver will need
to start a charge immediately in which case the
scheduling can be overridden by tapping your RFID
card twice on the RFID reader.
*Only applicable when congured for private use cases such as workplace charging.

Original Instructions bp pulse public charger lite10
Load Management is managing the charging
current to allow the available power to be shared
across all connected sockets supplied by the
same electrical circuit.
Where a power limit for a group of chargers has
been set, the chargers will automatically manage
the amount of power available to each vehicle so
as not to exceed the maximum safe current rating
of the circuit.
Depending on the number of vehicles connected
to the same circuit at any given time, users may
experience slower charge speeds. Consideration
should be given to how much time is allowed for
vehicles to charge when load management is
deployed.
Load Management

Original Instructions bp pulse public charger lite11
Input
Electrical output to vehicle
230 VAC 50/60 HZ
220-240 VAC 50/60Hz
400 VAC 50/60Hz
400 VAC 50/60Hz
Product code PVG22S2
4G/LTE, Wi-Fi, Ethernet
Rated Current 1P + N + E 32A 3P + N + E 32A
Connectivity
PVG7S2
4G/LTE, Wi-Fi, Ethernet
1 Phase 3 Phase
Specications
Power level control 10-13-16-20-25-30-32A

Original Instructions bp pulse public charger lite12
General Specications
Socketed output connector Type Output charging connector Type 2
E-GSM 900, DCS 1800, UMTS Band I, UMTS Band VIII, LTE Band 1, LTE Band 3,
LTE Band 7, LTE Band 8, LTE Band 20, GPS L1/GLONASS G1/BDS/Galileo E1
Wi-Fi frequency 802.11 a/b/g/n 2.4GHz and 5GHz
Operating frequency bands, sub-
ject to network connectivity
Wi-Fi Operating frequency bands,
subject to network connectivity
Safety and operational ratings
Ingress Protection Rating
Operating tempreture range -35°C to +55°C, Operating humidity range
5% to 95% non-condensing. Compliance to Standards IEC 61851.
IP54
IK10
Shipping weight typically 4.5kg – 5kg (4.5kg- 7kW, 5kg – 22kW)
Width 315mm
Height 460mm
Depth 135mm
Mechanical Impact Protection Rating
Dimensions and weight

Original Instructions bp pulse public charger lite13
Safety instructions
• Regularly inspect the unit, wall mounting, cable and plug. Do not
operate if any type of damage is observed, this includes cracks,
corrosion, breakage and any other type of physical defects.
• Know how to isolate the unit from the electrical supply
in case of emergency. Ask the installer how to do so.
• In the event of a power isolation incident, always
inspect the unit before attempting to reuse it.
• Unauthorised modications or conversions are not allowed.
• The bp pulse public charger lite can only be used
under the operating parameters specied at an
ambient temperature between -35ºC to 55ºC.
• Installation of the product should only be completed by a
trained electrician with the correct installation instructions.
• Only an authorised specialist and qualied personnel
may open, disassemble, repair, alter or modify
the bp pulse public charger lite device.

Original Instructions bp pulse public charger lite14
• Unauthorised modication of the bp pulse public charger lite
equipment would render the manufacturer warranty void.
• Do not touch or insert any object into the unit’s connector
pins or the pins on your vehicle’s charging socket.
• Keep the bp pulse public charger lite away
from any harmful chemical substances.
• Only use recommended cleaning products
(see Maintenance section).
• Do not jet wash or pressure wash the unit and take care
when using a jet wash or pressure washer near the unit.
• Special precautions must be taken with electronic implants.
Please contact your medical device manufacturer to nd out the
potential eects that the charging process may cause to it.
• Check your vehicle’s owner manual before using your
charger and follow the manufacturer’s instructions.
• Ensure cables are stowed properly to prevent tripping hazards.
• Do not leave the cable plugged into the socket when not in use.
• Only use the unit when the cable is completely
unwound – do not use while the cable is coiled.
• Where necessary or appropriate, disabled people and people
with health conditions or impairments that aect their ability to
use the product, should only use the product under supervision
and instruction by a person responsible for their safety.
• Children must not play with or use the unit.
• The functionality of the RCD, which protects the unit,
should be checked at least every 3 months.
• This device is intended only for charging vehicles
not requiring ventilation during charging.
Safety instructions

Original Instructions bp pulse public charger lite15
• Do not use cables if there is any sign of damage or fraying.
• Do not use the charging cable with an
extension cable or an adapter.
• Unauthorised modications or conversions are not allowed.
• Do not use extension leads or adapters.
• Keep the charging cable out of the reach of children.
• The cable should NOT be strained under any
circumstances while connected to the vehicle.
• Never use force to disconnect the vehicle connector
from the inlet or the equipment plug power outlet.
• Ensure the cable is unplugged and stowed before driving o.
• Ensure that connectors are free from dirt
and other foreign matter before use.
Connector recommendations

Original Instructions bp pulse public charger lite16
Resetting your bp pulse
public charger lite via
the distribution board
Troubleshooting and further
assistance
If your charger fails to deliver charge to your electric
vehicle, the rst thing you should try is resetting it:
1. Disconnect the charging cable from your vehicle.
2. Set the Circuit Protection Device (CPD) of your charger
in the distribution board to the ‘O’ position and leave
in the ‘O’ position for at least 10 seconds.
3. Set the CPD to the ‘On’ position and allow two minutes
for the unit to complete its start-up sequence.
4. Once the charger powers up, the status indicator will ash
from blue to green, the screen will read ‘initializing please
wait’ and then return to IDLE within 2-3 minutes.
If you are experiencing any issues with the bp pulse public
charger lite or the status indicator is displaying a fault signal,
please contact our customer care team on 0330 016 5126.
For further information on the bp pulse public charger lite and
troubleshooting guidance please refer to our latest user manual
version www.bppulse.co.uk/bp-pulse-public-lite-user-manual
If there’s still an error after the reset, your unit may have
developed a fault. Please make a note of your unit’s
serial number and contact our customer care team.
or visit the contact page at www.bppulse.co.uk

Original Instructions bp pulse public charger lite17
Blinks red in 4 seconds
Constant Purple
Constant Red
Blinks purple in 4 seconds
Ventilation required mode
Charging not possible due to over temperature or the charger is disabled
Fault condition do not attempt to start a charge
Charging with current limited to 16A due to over temperature
4 sec
4 sec
Status of the LED Status of the Charging Station
Additonal LED indicator
troubleshooting information
Maintenance
• Ensure only a damp cloth is used for cleaning the bp pulse public charger lite.
• Ensure the charger is kept clean.
• Do not keep the cable plugged into the socket.
• Do not jet wash the charger.

Original Instructions bp pulse public charger lite18
During the site survey our engineers will work with you in
deciding the best mounting solution for your workplace
or eet. If you require a dierent mounting solution in the
future please get in touch with our customer care team
to arrange a visit from one of our certied installers.
When considering post mounted installations we recommend our
certied post, designed specically for bp pulse public charger lite.
The unit should only be removed by bp pulse certied
engineers please contact customer services.
Disposing of this product correctly will help save valuable
resources and prevent any potential negative eects
on human health and the environment, which could
otherwise arise from inappropriate waste handling.
Please contact your local authority for further details
of your nearest designated collection point.
We are part of the Valpak waste disposal scheme,
contact number 0345 068 2572.
This symbol on the product(s) and / or
accompanying documents means that used
electrical and electronic products should
not be mixed with general household
waste. For proper treatment, recovery
and recycling, please take this product(s)
to designated collection points where
it will be accepted free of charge.
Mounting options
Decommissioning and disposal

Original Instructions bp pulse public charger lite19
This unit has a warranty for a period of 3 years from the
date of installation, provided that the unit has not been
tampered with and has been maintained correctly.
The unit warranty does not cover against incorrect use.
This warranty does not aect the statutory rights of
the consumer. The warranty provided by bp pulse is
subject to the terms and conditions found below.
www.bppulse.co.uk/terms-and-conditions-commercial-sales
If you need any extra support, not to worry, our
customer care team are here to help!
Contact our customer care team on 0330 016 5126,
visit the contact page at www.bppulse.co.uk
or email us at heret[email protected]
Further instructions can be found on our website
www.bppulse.co.uk
Warranty Service

This unit is certied to meet the requirements of The United
Kingdom and European Union with the following product marks:
This product meets EU and UK regulatory safety requirements.
A Declaration of conformity can be made available by request.
Please contact our customer care team via the contact page at
www.bppulse.co.uk or email us at her[email protected].
Certication
User Guide Issue 1.9 - Date of Issue: 20/01/23
