ASME COMMERCIAL ELECTRIC WATER HEATER
THE WARRANTY ON THIS WATER HEATER IS IN EFFECT ONLY WHEN
THE WATER HEATER IS INSTALLED AND OPERATED IN
ACCORDANCE WITH LOCAL CODES AND THESE INSTRUCTIONS.
THE MANUFACTURER OF THIS WATER HEATER WILL NOT BE LIABLE
FOR ANY DAMAGE RESULTING FROM FAILURE TO COMPLY WITH
THESE INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY
BEFORE STARTING.
For your family’s comfort, safety and convenience, it is
recommended this water heater be installed and serviced by a
plumbing professional.
INSTALLATION & OPERATING
INSTRUCTION MANUAL
A Spanish language version of these instructions is available by
contacting the company listed on the rating plate.
La versión espãnola de estas instructiones se puede obtener al
escribible a la fábrica cuyo nombre aparece en la placa de
especificaciones.

2
CONGRATULATIONS!
Y
ou have just purchased one of the finest water heaters on the market
today!
This installation, operation and instruction manual will explain in
detail the installation and maintenance of your new ASME Commercial
Electric Water Heater. We strongly recommend that you contact a
plumbing professional for the installation of this water heater.
We require that you carefully read this manual, as well as the
enclosed warranty, and refer to it when questions arise. If you have
any specific questions concerning your warranty, please consult the
plumbing professional from whom your water heater was purchased.
For your records we recommend that you write the model, serial
number and installation date of your water heater in the maintenance
section in the back of this manual.
This manual should be kept with the water heater.
TABLE OF CONTENTS
General Information .......................................................... 3
Installation ......................................................................... 4
Locating The Water Heater.................................................... 4
Water Connections ................................................................ 6
Electrical Connections .......................................................... 13
Amperage Chart .................................................................. 14
GPH Recovery Capacities .................................................. 14
General Operation............................................................. 15
Thermostat Adjustment......................................................... 15
Maintenance....................................................................... 16
Servicing Guide................................................................. 19

3
GENERAL INFORMATION
This electric water heater’s design is certified by Underwriters Laboratories
(UL) and listed in accordance with UL 1453. C-UL listed in accordance with
Canadian National Standard C22.2, No. 110-M90.
This water heater must be installed in accordance with local codes. In the
absence of local codes, install this water heater in accordance with the latest
edition of the National Electrical Code.
The warranty for this water heater is in effect only when the water heater is
installed, adjusted, and operated in accordance with these Installation and
Operating Instructions. The manufacturer will not be held liable for damage
resulting from alteration and/or failure to comply with these instructions.
This water heater has been designed and certified for the purpose of heating
potable water. The installation and use of this water heater for any purpose
other than the heating of potable water, may cause damage to the water
heater and create a hazardous condition and nullify the warranty.
Do not use this appliance if any part has been submerged in water. The
plumbing professional responsible for the installation of this water heater
should be contacted to inspect the appliance and to replace any part of the
control system, including thermostat(s), which has been submerged in water.
Make sure that the rating plate on the water heater is referenced for certainty
that the correct voltage is being supplied to the water heater.
CAUTION
Incorrect operation of this appliance may create a hazard to life and
property and will nullify the warranty.
DANGER
Do not store or use gasoline or other flammable, combustible, or
corrosive vapors and liquids in the vicinity of this water heater or any
other appliance.

4
General Information continued-
A sacrificial anode(s) is used to extend tank life. Removal of any anode, for
any reason, will nullify the warranty. In areas where water is unusually
active, an odor may occur at the hot water faucet due to a reaction between
the sacrificial anode and impurities in the water. If this should happen, an
alternative anode(s) may be purchased from the supplier that installed this
water heater. This will minimize the odor while protecting the tank.
Additionally, the water heater should be flushed with appropriate dissolvers
to eliminate any bacteria.
INSTALLATION
Locating The Water Heater
This water heater MUST not be installed in any location where gasoline
or flammable vapors are likely to be present, unless the installation is
such to eliminate the probable ignition of gasoline or flammable
vapors.
The location where this water heater is to be installed is of utmost
importance. Before installing this water heater, consult the installation
section of these instructions. After reading these installation and operating
instructions, select a location for the water heater where the floor is level and
is easily accessible to a power supply and water connections. It is
recommended that the water heater be located near the center of greatest
hot water usage to prevent heat loss through the pipes. DO NOT locate the
water heater where water lines could be subjected to freezing
temperatures. Locate the water heater so that access panels, drain
valves, and clean-out openings are accessible.
IMPORTANT
Before proceeding, please inspect the water heater and its components for
possible damage. DO NOT install any damaged components. If damage is
evident, please contact the supplier where the water heater was purchased
or the manufacturer listed on the rating plate for replacement parts.
WARNING
Water heaters are heat producing appliances. To avoid damage or injury,
there shall be no materials stored against the water heater and proper care
shall be taken to avoid unnecessary contact (especially by children) with
the water heater. UNDER NO CIRCUMSTANCES SHALL FLAMMABLE
MATERIALS, SUCH AS GASOLINE OR PAINT THINNER BE USED OR
STORED IN THE VICINITY OF THIS WATER HEATER OR ANY
LOCATION FROM WHICH FUMES COULD REACH THE WATER
HEATER.

5
Locating The Water Heater continued-
Water heater corrosion and component failure can be caused by the heating
and breakdown of airborne chemical vapors. Examples of some typical
compounds that are potentially corrosive are: spray can propellants, cleaning
solvents, refrigerator and air conditioning refrigerants, swimming pool
chemicals, calcium or sodium chloride, waxes and process chemicals.
These materials are corrosive at very low concentration levels with little or no
odor to reveal their presence. NOTE: DAMAGE TO THE WATER HEATER
CAUSED BY EXPOSURE TO CORROSIVE VAPORS IS NOT COVERED
BY THE WARRANTY. DO NOT OPERATE THE WATER HEATER IF
EXPOSURE HAS OR WILL OCCUR. DO NOT STORE ANY
POTENTIALLY CORROSIVE COMPOUNDS IN THE VICINITY OF THE
WATER HEATER.
This water heater must be located in an area where leakage from the tank,
water line connections, and the combination temperature and pressure relief
valve will not result in damage to the area adjacent to the water heater or to
lower floors of the structure. When such locations cannot be avoided, a
suitable drain pan must be installed under the water heater. The drain pan
must have a minimum length and width of at least 4 in. (10.2 cm) greater
than the diameter of the water heater. The drain pan, as described above,
can be purchased from your plumbing professional. The drain pan must be
piped to an adequate drain. The piping must be pitched for proper drainage.
CLEARANCES
1. Minimum clearance to combustible material is 0 inches for the Top,
Sides, Front, and Rear of this water heater. However, it is
recommended that at least 18 inches (45.7 cm) from the Top, and
24 inches (61 cm) from the Front. Clearance for servicing may be
reduced down to minimum clearance to combustible material, but
service time and effort may be greatly increased.
2. Increase distances to provide clearances for servicing.
This water heater MUST be installed indoors out of the wind and
weather.
To comply with NSF requirements this water heater is to be:
a) Sealed to the floor with sealant, in a smooth and easily cleanable
way, or
b) Installed with an optional leg kit that includes legs and/or extensions
that provide a minimum clearance of 6” beneath the water heater.
Note: For California installation this water heater must be braced,
anchored, or strapped to avoid falling or moving during an earthquake.
See instructions for correct installation procedures. Instructions may
be obtained from the DSA Headquarters Office: 1102 Q Street, Suite
5100, Sacramento, CA 95811.

6
Water Connections
Note: Before proceeding with the installation, close the main water
supply valve.
After shutting the main water supply valve, open a faucet to relieve the water
line pressure in order to prevent water from leaking out of the pipes while
making the water connections to the water heater. After the pressure has
been relieved, close the faucet. The cold water inlet line connects to the inlet
nipple at the base of the water heater. The hot water outlet line connects to
the nipple on top of the water heater. The fittings at the cold water inlet and
hot water outlet are dielectric waterway fittings with tapered male threads.
Make the proper plumbing connections between the water heater and the
plumbing system in the structure. Install a manual shut-off valve in the cold
water supply line.

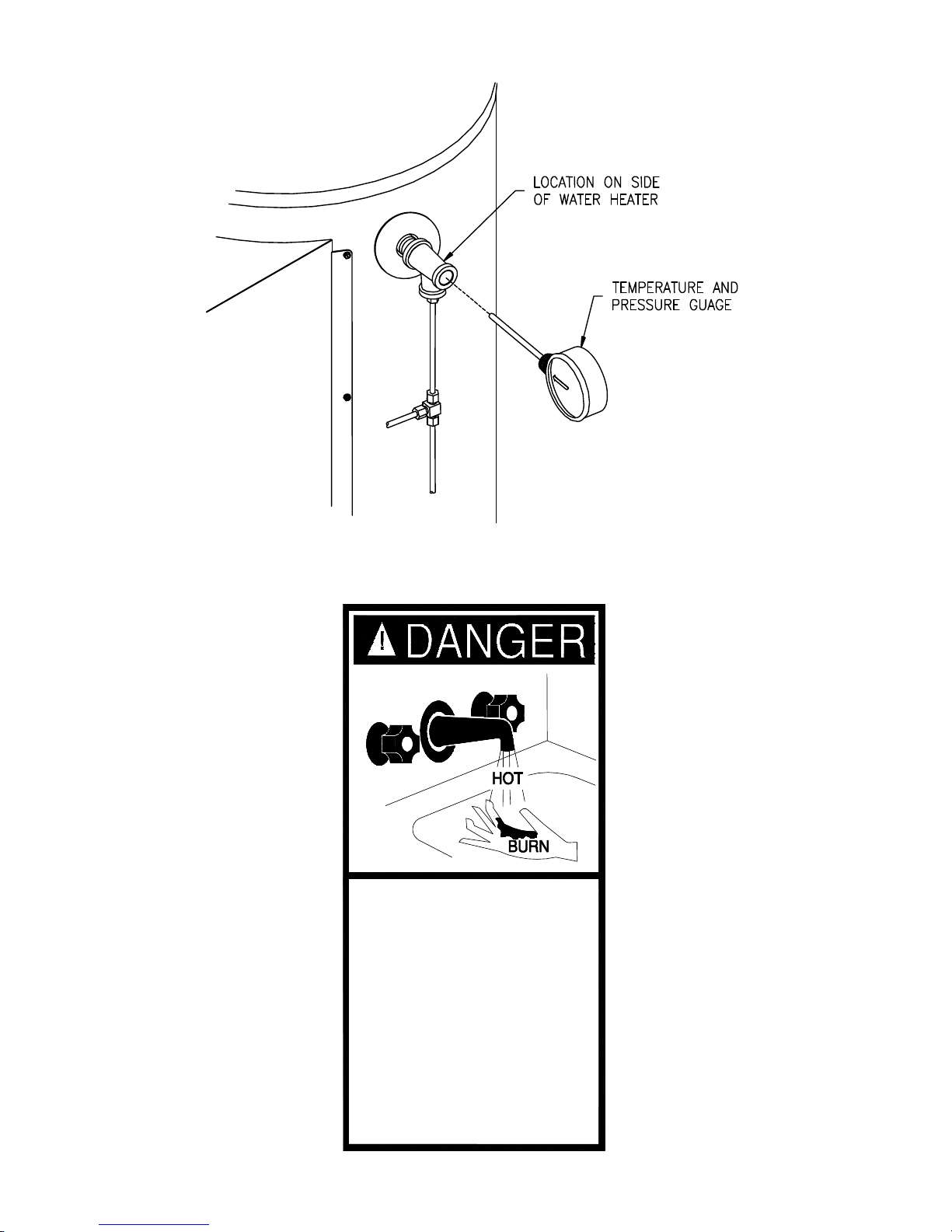

This water heater may be provided with an optional pressure and
temperature gauge. See Figure 1 for proper installation.
If this water heater is installed in a closed water supply system, such as one
having a back-flow preventer in the cold water supply, provisions must be
made to control thermal expansion. DO NOT operate this water heater in a
closed system without a provision for controlling thermal expansion. Contact
your water supplier or local plumbing inspector regarding how thermal
expansion can be controlled.
After installation of the water lines, open the main water supply valve and fill
the water heater. While the water heater is filling, open several hot water
faucets to allow air to escape from the water system. When a steady stream
of water flows through the faucets, close the faucets and inspect all water
connections for possible leaks. NEVER OPERATE THE WATER HEATER
WITHOUT FIRST BEING CERTAIN IT IS COMPLETELY FILLED WITH
WATER.
CAUTION
If sweat fittings are to be used, DO NOT apply heat to the nipples on top
of the water heater. Sweat the tubing to the adapter before fitting the
adapter to the water connections. It is imperative that heat is not applied
to the nipples containing a plastic liner.
IMPORTANT
FAILURE TO INSTALL AND MAINTAIN A NEW, LISTED
TEMPERATURE-PRESSURE RELIEF VALVE WILL RELEASE THE
MANUFACTURER FROM ANY CLAIM WHICH MIGHT RESULT FROM
EXCESSIVE TEMPERATURE AND PRESSURES.

7
Water Connections continued-
WARNING
For protection against excessive temperatures and pressure, install
temperature and pressure protective equipment required by local codes,
but not less than a combination temperature and pressure relief valve
certified by a nationally recognized testing laboratory that maintains
periodic inspection of production of listed equipment or materials, as
meeting the Requirements for Relief Valves and Automatic Gas Shutoff
Devices for Hot Water Supply Systems, ANSI Z21.22, and the Standard
CAN1-4.4 Temperature, Pressure, Temperature and Pressure Relief
Valves and Vacuum Relief Valves. The combination temperature and
pressure relief valve shall be marked with a maximum set pressure, not to
exceed the maximum working pressure of the water heater. The
combination temperature and pressure relief valve shall also have an
hourly rated temperature steam BTU discharge capacity not less than the
hourly input rating of the water heater.
Install the combination temperature and pressure relief valve into the
opening on the water heater, which is provided for this purpose.
Note: Some models may already be equipped or supplied with a
combination temperature and pressure relief valves. Verify that this
combination temperature and pressure relief valve complies with local
codes. If the combination temperature and pressure relief valve does not
comply with local codes, replace it with one that does. Follow the
installation instructions provided on this page.
Install a discharge line so that water discharged from the combination
temperature and pressure relief valve will exit within six (6) inches (15.3
cm) above, or any distance below the structural floor and at a location
where dischargers cannot contact any live electrical part. This discharge
line is to be installed complete drainage of both the temperature and
pressure relief valve and the discharge line can occur. The discharge
opening must not be subjected to blockage or freezing. DO NOT thread,
plug or cap the discharge line. It is recommended that a minimum of four
(4) inches (10.2 cm) be provided on the side of the water heater for
servicing and maintenance of the combination temperature and pressure
relief valve.
Do not place a valve between the combination temperature and pressure
relief valve and the tank.

8
Water Connections continued-
This water heater can deliver scalding temperature water at any faucet in the
system. Be careful whenever using hot water to avoid scalding injury.
Certain appliances, such as dishwashers and automatic clothes washers,
may require increased temperature water. By setting the thermostat on this
water heater to obtain the increased temperature water required by these
appliances, the potential for scald injury is increased. To protect against
injury, install an anti-scald tempering valve in the water system. This valve
will reduce the point of discharge water temperature by mixing cold and hot
water in branch supply lines. Anti-sealed tempering valves can be obtained
from your local plumbing supplier. Please consult a plumbing professional.
WARNING
Hydrogen gas can be produced in the hot water system served by
this water heater when there has been no usage for a long period of
time (generally two weeks or more). Hydrogen gas is extremely
flammable. Therefore, to reduce the risk of injury under these
conditions, it is recommended that the hot water faucet be opened
for several minutes at the kitchen sink before using any electrical
appliance connected to the hot water system. If hydrogen is present,
there will probably be an unusual sound, such as air escaping
through the pipe, as the water begins to flow. There should be no
smoking or open flame near the faucet at the time it is open.
CAUTION
INCREASING THE THERMOSTAT SETTING ABOVE THE PRESET
TEMPERATURE MAY CAUSE SEVERE BURNS AND CONSUME
EXCESSIVE ENERGY. HOTTER WATER INCREASES THE RISK OF
SCALD INJURY.

9
Water Connections continued-
Figure 1
can cause severe burns
are at hi
g
hest risk of bein
g
Children, disabled and elderly
instantly or death from scalds.
Water temperature over 125°F
Feel water before bathin
g
or
before settin
g
temperature
available.
showerin
g
.
Temperature limitin
g
valves are
Review this instruction manual
at water heater.
scalded.

10
Water Connections continued-

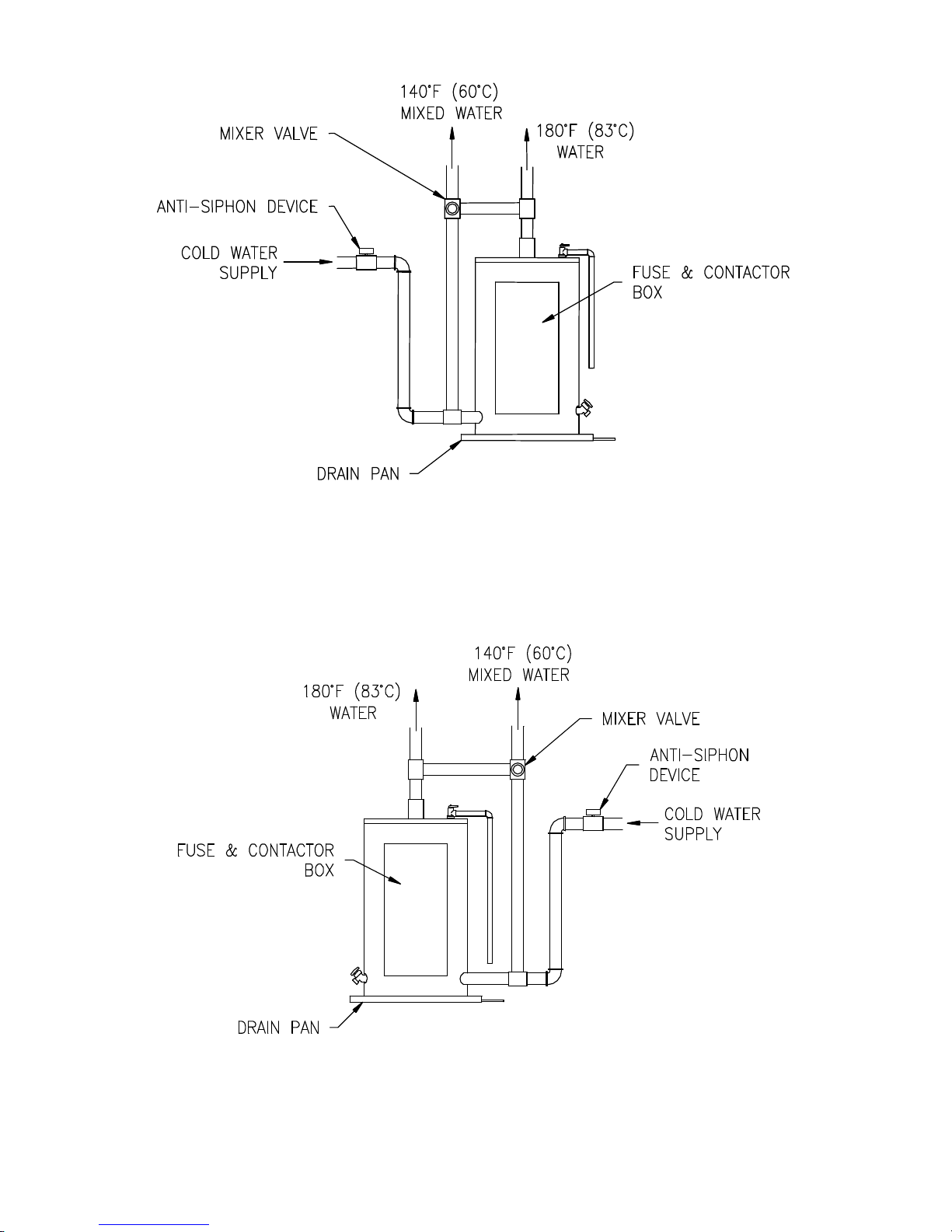

Figure 2A
(Dual Temperature System With Mixing Valve)
50A, 80A, 120A
Figure 2B
(Dual Temperature System With Mixing Valve)
6A, 12A, 20A, 30A, 40A

11
Water Connections continued-

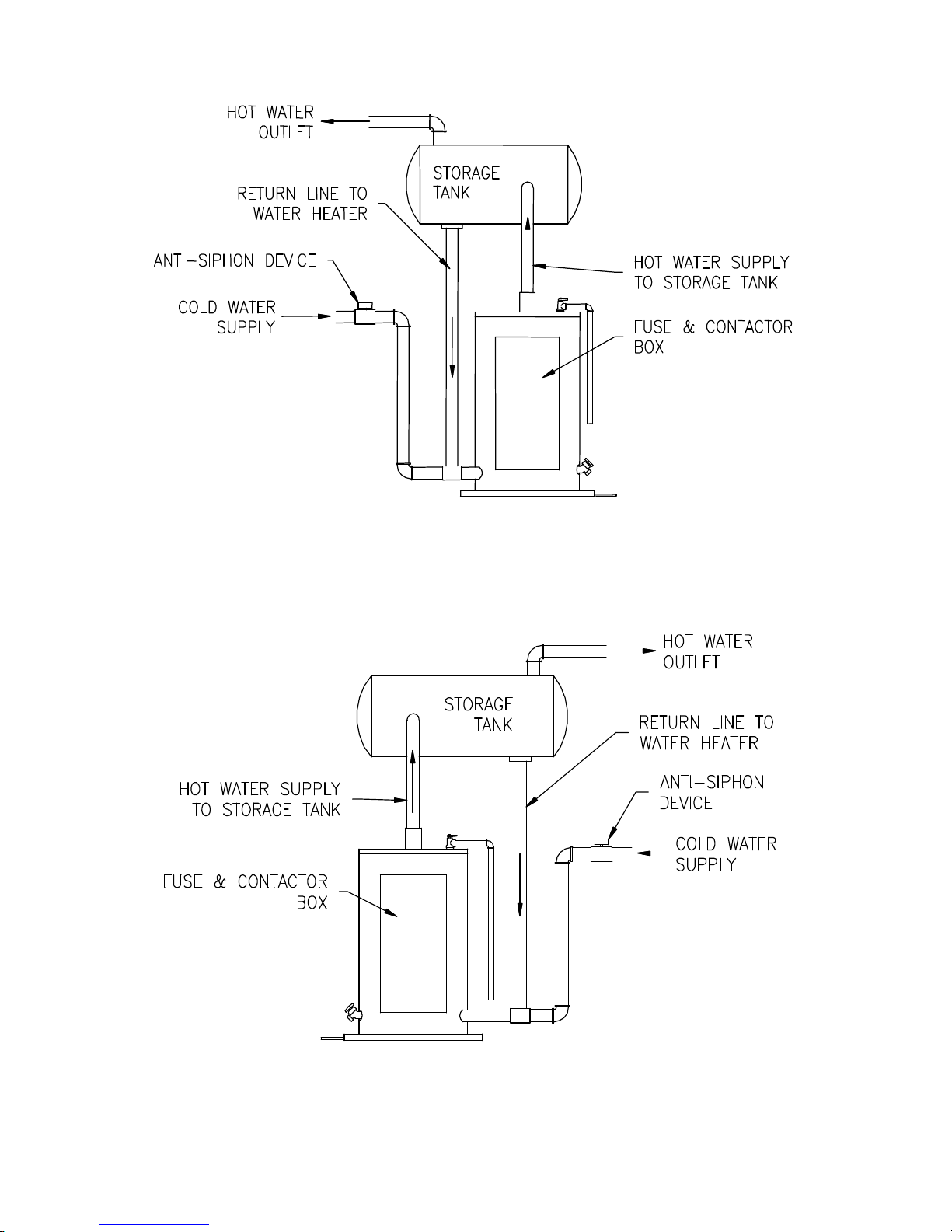

Figure 3A
(Single Installation With Storage Tank Gravity Circulation)
50A, 80A, 120A
Figure 3B
(Single Installation With Storage Tank Gravity Circulation)
6A, 12A, 20A, 30A, 40A

12
Water Connections continued-

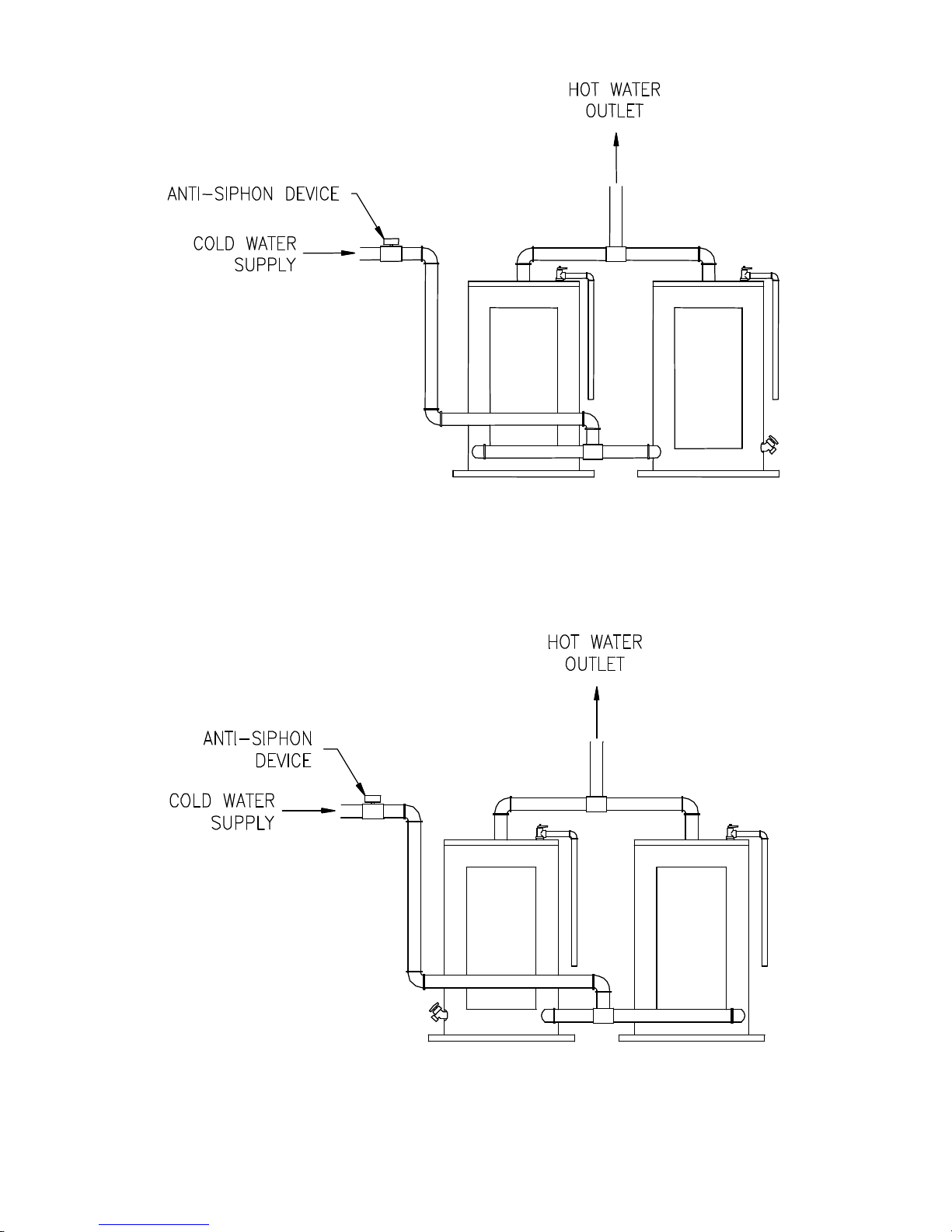

Figure 4A
(Dual Water Heater Installation)
50A, 80A, 120A
Figure 4B
(Dual Water Heater Installation)
6A, 12A, 20A, 30A, 40A

13
Electrical Connections
Before any electrical connections are attempted, be sure the water heater is
full of water and that the manual shut-off valve in the cold water supply line is
open. Heating elements, which have been energized for a very short period
of time, can be damaged (burned-out) if they are not completely immersed in
water. This warranty does not cover burned-out heating elements. Check
the rating plate and wiring diagram before proceeding. This electric water
heater was manufactured and wired in accordance with the Underwriters
Laboratories testing approvals requirements. The temperature-limiting
device is of the manual reset, trip-free type and has been factory installed to
interrupt all ungrounded power supply conductors in the event of thermostat
failure. The plumbing supplier in your area ordered this water heater wired
at the factory to comply with existing area codes, but local utility codes may
require or allow other circuitry. Consult your local power company to
determine the correct electrical hook-up in order to meet local utility and
building codes and in order to obtain the most economical rates. All
electrical connections to elements, thermostats, contactors, fuses (certain
models), and transformer have been made at the factory. DO NOT alter any
of the internal wiring. Wiring connections may loosen during shipment.
Check all connections for tightness.
To make the wiring connections to a power supply, follow the steps below.
A) Open the cover door of the control box.
B) Bring the power leads from an adequately fused disconnect switch (not
furnished with the water heater due to varying state and local codes) and
connect to the terminal block. Local ordinances and/or utility company
may require an increase in the gage size of the wiring for conditions
where long wiring lengths exist.
C) This water heater must be properly grounded. A ground lug is
provided within the electrical control box for connection to a properly
sized ground. (See wiring diagram for minimum required ground size.
The wiring diagram is located on the inside door of the control box)
D) Close the cover door of the control box.
Heating Elements
To replace heating elements, disconnect power to the water heater, drain
tank and replace element. To remove a heating element, use a screw type
element wrench (1 1/2” or 2 3/8”) available from most supply houses. Do
not over-tighten the new element, as this will cause distortion in the new
element gasket. Once the element has been replaced, follow the
instructions “To Fill The Water Heater”. It is imperative that the water heater
is full before power is restored to the heating elements.

14
Amperage Chart
kW 208V 240V 277V 380V 415V 480V 600V
Input 1Ø 3Ø 1Ø 3Ø 1Ø 3Ø 3Ø 1Ø 3Ø 3Ø
3 15 - 13 - 11 - - 7 - -
6 29 17 25 14 22 9 8 12 8 6
9 43 25 38 22 32 14 13 19 13 9
12 58 33 50 29 43 19 17 25 17 12
13.5 65 38 56 32 49 21 19 28 19 12
15 72 42 63 36 54 23 21 31 21 13
18 87 50 75 43 65 28 25 38 25 17
24 115 67 100 58 87 37 34 50 34 23
27 130 75 113 65 97 41 38 56 38 26
30 144 83 125 72 108 46 42 63 42 29
36 173 100 150 87 130 55 50 75 50 35
45 216 125 188 108 162 69 63 94 63 44
54 260 150 225 130 195 83 75 113 75 62
81 390 225 338 195 293 123 113 169 98 78
Water heaters with amperage draw of 120 AMPS or more require factory installed
internal fusing to comply with Underwriters Laboratories requirements.
GPH Recovery Capacities
kW Temperature Rise
Input 40°F 50°F 60°F 70°F 80°F 90°F 100°F 120°F 140°F
3 31 25 21 18 16 14 13 11 9
6 62 50 41 35 31 28 25 21 18
9 93 74 62 53 47 41 37 31 27
12 124 99 83 71 62 55 50 41 35
13.5 140 112 93 80 70 62 56 47 40
15 155 125 103 89 78 69 62 52 44
18 186 149 124 106 93 83 74 62 53
24 248 199 164 142 124 110 99 83 71
27 279 223 186 160 140 124 112 93 80
30 310 248 207 177 155 138 124 103 89
36 372 298 248 213 186 165 149 124 106
45 465 372 310 266 233 207 186 155 133
54 558 447 372 319 279 248 223 186 160
81 837 671 558 479 419 372 335 279 240
Multiply kW input by 3,412 to determine BTU input:
Example: 54kW x 3412 = 184,248 BTU’s
Recovery Computation Formula
GPH= (watts x 3.412) / (8.25 x °Temp. Rise)

15
GENERAL OPERATION
Before closing the switch to allow electric current to flow to the water heater,
make certain that the water heater is full of water and that the cold water inlet
valve is open. Complete failure of the heating elements will result if they are
not totally immersed in water at all times. When the switch is closed, the
operation of this electric water heater is automatic. The temperature control
knob located on the side on the control box is factory preset to 120°F (49°C).
Care must be taken whenever using hot water to avoid scalding injury.
Certain appliances require high temperature hot water (such as dishwashers
and automatic clothes washers).
TO FILL THE WATER HEATER
1. Close the water heater drain valve by turning the knob clockwise.
2. Open the cold water supply shut-off valve.
3. Open several hot water faucets to allow air to escape from the system.
4. When a steady stream of water flows from the faucets, the water heater
is filled. Close the faucets and check for water leaks at the water heater
drain valve, combination temperature and pressure relief valve and the
hot and cold water connections.
5. Reconnect power supply to water heater.
TO DRAIN THE WATER HEATER
Should it become necessary to completely drain the water heater, make sure
you follow the steps below:
1. Disconnect the power supply to the water heater. Consult the plumbing
professional or electric company in your area for service.
2. Close the cold water supply shut-off valve.
3. Open the drain valve on the water heater by turning the knob counter-
clockwise. The drain valve has threads on the end that will allow
connection of a standard hose coupling.
4. Open a hot water faucet to allow air to enter the system.
To refill the water heater, refer to “TO FILL THE WATER HEATER.”
Thermostat Adjustment
To adjust the water temperature, locate the temperature control dial on the
right side of the control box. To increase the water temperature, rotate the
temperature control dial clockwise. To decrease the water temperature,
rotate the temperature control dial counterclockwise (see Figure 5). The
thermostat(s) or temperature control dial has been factory preset to
approximately 120°F (49°C).
CAUTION
Scalding may occur within five (5) seconds at a temperature setting of
140°F (60°C).

16
Thermostat adjustment continued-
Figure 5
MAINTENANCE
Shut off the electric power whenever the water supply to the water heater is
off. Shut off the electric power and water supply, drain the water heater
completely to prevent freezing whenever the building is left unoccupied
during the cold weather months. In order to insure efficient operation and
long tank life, drain the water heater at least once a month through the drain
valve until the water runs clear. Failure to do this may result in noisy
operation and lime and sediment buildup in the bottom of the tank. Check
the temperature-pressure relief valve to insure that the valve has not
become encrusted with lime. Lift the lever at the top of the valve several
times until the valve seats properly without leaking and operates freely.
DANGER
Hotter water increases the risk of scald injury. Scalding may occur within
five (5) seconds at a temperature setting of 140°F (60°C). To protect
against hot water injury, install an anti-scald tempering valve in the water
system. This valve will reduce point of discharge water temperatures by
mixing cold and hot water in branch water lines. A licensed plumbing
professional or local plumbing authority should be consulted.
Note: This water heater is equipped with an energy cut out device to
prevent overheating. Should overheating occur, turn off the electrical
supply to the water heater and contact a qualified service technician.
IMPORTANT
The water heater should be inspected at a minimum of annually by a
qualified service technician for damaged components. DO NOT operate
this water heater if any part is found damaged.

17
Maintenance continued-
The following maintenance should be performed by a qualified service
technician at the minimum periodic intervals suggested below. In some
installations, the maintenance interval may be more frequent depending on
the amount of use and the operating conditions of the water heater. Regular
inspection and maintenance of the water heater will help to insure safe and
reliable operation.
1. Annually, check the operation of the thermostat(s).
2. Bi-annually, check the seal around the heating elements for leaks. If there
is any sign of leaking, disconnect the power supply to the water heater
and contact the plumbing professional that installed this water heater or a
qualified service technician.
3. At least once a year, check the combination temperature and pressure
relief valve to insure that the valve has not become encrusted with lime.
Lift the lever at the top of the temperature-pressure relief valve several
times until the valve seats properly without leaking and operates freely.
4. If the combination temperature and pressure relief valve on the appliance
discharges periodically, this may be due to thermal expansion in a closed
water supply system. Contact the water supplier or local plumbing
inspector on how to correct this situation. Do not plug the combination
temperature and pressure relief valve outlet for any reason.
5. Monthly, drain the water heater through the drain valve until the water
runs clear to remove silt and sediment.
6. A sacrificial anode rod has been installed to extend tank life. The anode
rod should be inspected periodically (every 2 years) and replaced when
necessary to prolong tank life. Water conditions in your area will
influence the time interval for inspection and replacement of the anode
rod. Contact the plumbing professional who installed the water heater or
the manufacturer listed on the rating plate for anode replacement
information. The use of a water softener may increase the speed of
anode consumption. More frequent inspection of the anode is needed
when using softened (or phosphate treated) water.
WARNING
When lifting lever of temperature-pressure relief valve, hot water will be
released under pressure. Be certain that any released water does not
result in bodily injury or property damage.
WARNING! THIS WATER MAY BE HOT.

18
Maintenance continued-
7. If this water heater is equipped with fuses, before removing any fuse,
disconnect the all power to the water heater. Open the control box door
and replace fuses according to the size indicated on the wiring diagram
affixed to the inside of the control box door.
Contact your local plumbing supplier or plumbing professional for
replacement parts or contact the company at the address displayed on the
rating plate of the water heater.
For faster and better service, please provide the part name, model, and
serial number(s) of the water heater(s) when ordering parts.
READ THE WARRANTY FOR A FULL EXPLANATION OF THE LENGTH
OF TIME THAT PARTS AND THE WATER HEATER ARE WARRANTED.
Complete the following information and retain for future reference:
Model No:
Serial No:
Service Phone
Days: Nights:
Address:
Supplier:
Supplier Phone No:
CAUTION
FOR YOUR SAFETY, DO NOT ATTEMPT TO REPAIR THERMOSTAT(S),
HEATING ELEMENTS, OR ELECTRICAL WIRING. REFER SUCH
REPAIRS TO A QUALIFIED SERVICE TECHNICIAN.
Manufactured under one or more of the following U.S. Patents: RE.34,534;
B1 5,341,770; 4,416,222; 4,628,184; 4,669,448; 4,672,919; 4,808,356; 4,829,983;
4,861,968; 4,904,428; 5,000,893; 5,023,031; 5,052,346; 5,081,696; 5,092,519;
5,115,767; 5,199,385; 5,277,171; 5,372,185; 5,485,879; 5,574,822; 5,596,952;
5,660,165; 5,682,666; 5,761,379; 5,943,984; 5,954,492; 5,988,117; 6,142,216;
6,395,280; 6,684,821; 7,063,132; 7,007,748
Other U.S. and Foreign patent applications pending. Current Canadian Patents:
1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,092,105; 2,107,012; 2,108,186;
2,112,515

19
SERVICING GUIDE
This “Servicing Guide“ section of this Installation and Operation Installation
manual is provided for the purpose of improving the effectiveness and the
efficiency of servicing this water heater. This information is intended to assist
qualified service personnel. Servicing of this water heater may require
knowledge of electrical testing instruments. If you are unfamiliar or unsure of
the electrical circuits or the testing instruments, consult a qualified
electrician.
This section of these Installation and Operation Instructions is not intended
for use as a troubleshooting guide. For troubleshooting instructions please
contact the supplier from whom this water heater was purchased or the
manufacturer listed on the rating plate.
This water heater has two distinct electrical systems. One system connects
the electrical power to the heating elements, while the other system controls
the water heater operation. The electrical contactors interconnect these two
systems. In order to clearly illustrate the electrical circuits, two wiring
diagrams are provided. These diagrams are labeled as the “Power Circuit
Wiring Diagram” and the “Control Circuit Wiring Diagram” and they are
attached to the surface of the panels inside the water heater control cabinet.
Control Circuit Description:
This description will explain certain aspects of the Control Circuit. The
control circuit operates with 120VAC electrical service. This voltage is
provide by the multi-tap transformer which has the primary coil connected to
the field wiring that is serving the water heater. The Transformer, the Water
Heater Thermostat, the Hi-Limit Temperature Control, and the Contactor Coil
are always included in the Control Circuit.
Referring to the “Control Circuit Wiring Diagram“, the contactor coil is
energized when the Thermostat senses a need for heating. Electrical
current to the contactor coil will be interrupted when the water temperature is
sufficient to satisfy the temperature limits of the either the Thermostat or the
Hi-Limit Control. The Hi-Limit Control is provided with manual reset buttons.

20
Servicing Guide continued-
Certain other control components are available as “Optional“. When these
optional components are installed with the water heater, the control circuit
wiring diagram accordingly will include these components. The optional
equipment available from the manufacturer includes the following:
High Water Pressure Switch
Low Water Pressure Switch
Low Water Level Switch
Alarm Horn
Heating Element Sequencers
Electrical Door Lock
Optional Components
High and Low Water Pressure Controls
These controls interrupt the electrical current to the contactor coil when the
pressure settings are exceeded. The operation and setting of these controls
are described in the manual provided by the control manufacturer. This
manual is included with the water heater Installation and Operating
Instruction manual provided by the manufacturer.
The pressure settings for these controls are adjustable. These controls are
specified for use when the installation has unique pressure requirements that
must be safeguarded. Therefore, before adjusting the pressure values, it is
recommended that you consult the person responsible for the facility that the
water heater is servicing.
The electrical connections are referenced in the Control Circuit Wiring
Diagram and in the pressure control manual provided by the control
manufacturer. Refer to these instructions when servicing the controls.
