Bradford White DS140S Supplement

238
-
41099
-
00J REV 12/03
DIRECT VENT GAS WATER HEATER
A Spanish language version of these instructions is available by contacting the
company listed on the rating plate.
La version espanola de estas instrucciones se puede obtener al escribirle a la
fabrica cuyo nombre aparece en la placa de especificaciones.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any
phone in your building.
•Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
For your family’s comfort, safety and convenience we
recommend Bradford White water heaters to be installed and
serviced by a plumbing professional.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable,
combustible, or corrosive vapors and liquids in the
vicinity of this or any other appliance.
DS140S & DS150S
INSTALLATION & OPERATING
INSTRUCTION MANUAL
WARNING: If the information in these instructions is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
INTERNET VERSION FOR REFERENCE ONLY

2
CONGRATULATIONS!
You have just purchased one of the finest water heaters
on the market today!
This installation, operation and instruction manual will
explain in detail the installation and maintenance of your
new Direct Vent Gas Water Heater. We at Bradford White
strongly recommend that you contact a plumbing
professional for the installation of this water heater.
We require that you carefully read this manual, as well as
the enclosed warranty, and refer to it when questions
arise. If you have any specific questions concerning your
warranty, please consult the plumbing professional from
whom your water heater was purchased. For your
records we recommend that you writethe model, serial
number and installation date of your water heater in the
maintenance section in the back of this manual.
This manual should be kept with the water heater.
At Bradford White we’re committed to providing you with
the finest water heater made.
INTERNET VERSION FOR REFERENCE ONLY

3
TABLE OF CONTENTS page
GENERAL INFORMATION........................................................ 4
INSTALLATION
Locating The Water Heater...................................................... 6
Minimum Clearances................................................................. 9
Optional Direct Vent-Air Intake Terminal Guard.................... 9
Venting........................................................................................ 12
Horizontal and Vertical Vent-Air Intake Lengths ................... 14
Vent-Air Intake System Installation.......................................... 17
Water Connections.................................................................... 25
Gas Connections....................................................................... 29
GENERAL OPERATION............................................................ 30
Lighting and Shutdown Instructions....................................... 31
Thermostat Adjustment............................................................. 32
Burner Flame Checks ............................................................... 33
MAINTENANCE........................................................................... 34
PARTS LIST................................................................................. 37
PARTS LIST DRAWINGS
Direct Vent Water Heater.......................................................... 38
Vent-Air Intake Kits.................................................................... 39
INSTALLATIONS FOR POTABLE WATER AND SPACE
HEATING....................................................................................... 40
INTERNET VERSION FOR REFERENCE ONLY

4
GENERAL INFORMATION
This gas-fired water heater’s design is certified by CSA International under the
American National Standard Z21.10.1 -(as indicated on the rating plate) and
CSA 4.1-M-(as indicated on the rating plate).
This water heater must be installed in accordance with local codes or, in the
absence of local codes, the National Fuel Gas Code, ANSI Z223.1-Latest
Edition) and/or in Canada CAN/CGA B149 Installation Codes (Latest Editions).
The warranty for this water heater is in effect only when the water heater is
installed, adjusted, and operated in accordance with these Installation and
Operating Instructions. The manufacturer will not be held liable for any damage
resulting from alteration and/or failure to comply with these instructions.
This water heater is not design certified for installation in a mobile home. Such
an installation may create a hazardous condition and will nullify the warranty.
This water heater has been designed and certified for the purpose of heating
potable water. The installation and use of this water heater for any purpose
other than the heating of potable water may cause damage to the water heater
and create a hazardous condition and nullify the warranty.
CAUTION
Incorrect operation of this appliance may create a hazard to life
and property and will nullify the warranty.
Do not use this appliance if any part has been submerged in water. You should
contact a qualified service technician to inspect the appliance and to replace
any part of the control system including the combination gas control which has
been submerged in water.
Do not store or use gasoline or other flammable, combustible, or
corrosive vapors and liquids in the vicinity of this or any other
appliance.
DANGER
INTERNET VERSION FOR REFERENCE ONLY

5
General Information continued-
IMPORTANT
Before proceeding, please inspect the water heater and its components for
possible damage. DO NOT install any damaged components. If damage is
evident then please contact the supplier where the water heater was
purchased or the manufacturer listed on the rating plate for replacement
parts.
Make sure that you check the rating plate and combination gas control on the
water heater to be certain that the type of gas being supplied corresponds with
the marking on the rating plate and combination gas control.
A sacrificial anode is used to extend tank life. The removal of this anode, for
any reason, will nullify the warranty. In areas where water is unusually active,
an odor may occur at the hot water faucet due to a reaction between the
sacrificial anode and the impurities in the water. If this should happen, an
alternative anode may be purchased from the supplier that installed this water
heater. This will minimize the odor while protecting the tank. Additionally, the
water heater should be flushed with appropriate dissolvers to eliminate any
bacteria.
INTERNET VERSION FOR REFERENCE ONLY

6
INSTALLATION
LOCATING THE WATER HEATER
WARNING
Water heaters are heat producing appliances. To avoid damage or injury, do
not store materials against the water heater or vent-air intake system. Use
proper care to avoid unnecessary contact (especially by children) with the
water heater and vent-air intake components. UNDER NO CIRCUMSTANCES
MUST FLAMMABLE MATERIALS, SUCH AS GASOLINE OR PAINT
THINNER BE USED OR STORED IN THE VICINITY OF THIS WATER
HEATER, VENT-AIR INTAKE SYSTEM OR IN ANY LOCATION FROM
WHICH FUMES COULD REACH THE WATER HEATER OR VENT-AIR
INTAKE SYSTEM.
DO NOT install the water heater in any location where gasoline or
flammable vapors are likely to be present.
Water Heaters in residential garages shall be installed so that all
burner(s) and burner ignition device(s) are located not less than 18
inches (46 cm) above the floor and shall be located, or protected, to
avoid physical damage. For other installations refer to local codes. In
the absence of local codes, the water heater shall be installed in
compliance with the National Fuel Gas Code, ANSI Z223.1 -(Latest
Edition) and/or in Canada, CAN/CGA B149 Installation Codes(Latest
Editions).
The location of this water heater is of the utmost importance. Before installing
this water heater, read the installation section of these instructions. After
reading these installation and operating instructions, select a location for the
water heater where the floor is level and is easily accessible to gas and water
supply lines. DO NOT locate the water heater where water lines could
be subjected to freezing temperatures. Make sure the cold water pipes
are not located directly above the gas control so that condensate
during humid weather does not drip on the controls.
INTERNET VERSION FOR REFERENCE ONLY

7
Installation (Locating The Water Heater) continued-
Water heater corrosion and component failure can be caused by the heating
and breakdown of airborne chemical vapors. Examples of some typical
compounds that are potentially corrosive are: spray can propellants, cleaning
solvents, refrigerator and air conditioning refrigerants, swimming pool
chemicals, calcium and sodium chloride, waxes and process chemicals.
These materials are corrosive at very low concentration levels with little or no
odor to reveal their presence. NOTE: DAMAGE TO THE WATER HEATER
CAUSED BY EXPOSURE TO CORROSIVE VAPORS IS NOT COVERED BY
THE WARRANTY. DO NOT OPERATE THE WATER HEATER IF
EXPOSURE HAS OR WILL OCCUR. DO NOT STORE ANY POTENTIALLY
CORROSIVE COMPOUNDS IN THE VICINITY OF THE WATER HEATER.
WARNING
Liquefied petroleum gases/propane gas are heavier than air
and will remain at floor level if there is a leak. Basements,
crawl spaces, closets and areas below ground level will
serve as pockets for accumulation of leaking gas. Before
lighting, smell all around the appliance area for gas. Be sure
to smell next to the floor.
IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any
telephone in your building.
•Immediately call your gas supplier from a neighbor’s
telephone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire
department.
DO NOT OPERATE APPLIANCE UNTIL THE LEAKAGE IS
CORRECTED!
INTERNET VERSION FOR REFERENCE ONLY

8
Installation (Locating The Water Heater) continued-
WARNING
DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE IF YOU ARE
NOT CERTAIN OF THE FOLLOWING:
•Liquefied petroleum gases/propane gas and natural gas have
an odorant added by the gas supplier that aids in the detection
of the gas.
•Most people recognize this odor as a “sulfur” or “rotten egg”
smell.
•Other conditions, such as “odorant fade” can cause the odorant
to diminish in intensity, or ”fade”, and not be as readily
detectable.
•If you have a diminished sense of smell, or are in any way unsure
of the presence of gas, immediately contact your gas supplier
from a neighbor’s telephone.
•Gas detectors are available. Contact your gas supplier, or
plumbing professional, for more information.
The water heater must be located close enough to the outside wall to keep the
venting distance within the maximum distance described in the installation
instructions. Note: The direct vent-air intake terminal must be installed on a
vertical wall. Read the venting section in this installation instruction manual
before locating the water heater.
This water heater must be located in an area where leakage of the tank or
water line connections and the combination temperature and pressure relief
valve will not result in damage to the area adjacent to the water heater or to
lower floors of the structure. When such locations cannot be avoided, a
suitable drain pan, adequately drained, be installed under the water heater.
The pan must not restrict combustion airflow. The drain pan must be no
greater than 1-½ inches (3.8 cm) deep and have a minimum length and width
of at least four (4) inches (10.2 cm) measured from the jacket of the water
heater. The drain pan, as described above, can be purchased from your
plumbing professional. The drain pan must be piped to an adequate drain.
The piping must be at least 3/4 inch (1.9 cm) in diameter and pitched for
proper drainage.
It is recommended that a minimum clearance of four (4) inches (10.2 cm) be
provided on the side of the water heater for servicing and maintenance of the
combination temperature and pressure relief valve.
INTERNET VERSION FOR REFERENCE ONLY

9
Installation continued-
MINIMUM CLEARANCES
WARNING
Failure to adhere to these installation and operating instructions
may create a hazard to life and property and will nullify the
warranty.
This installation shall allow access to the front of the water heater and
adequate clearance shall be provided for servicing and operating this
water heater. The water heater may be installed on either a combustible or
non-combustible floor. If the water heater is to be installed directly on
carpeting, it shall be installed on top of a metal or wood panel extending
beyond the full width and depth of the appliance by at least three (3) inches
(7.6 cm) in any direction or, if the appliance is to be installed in an alcove or
closet, the entire floor shall be covered by the panel. The minimum clearances
to combustibles for this water heater is: zero (0) inch (0 cm) from the sides
and rear, four (4) inches (10.2 cm) from the front of the jacket, zero (0) inch (0
cm) from the plenum, zero (0) inch (0 cm) from the air intake elbow and
telescopic tubes and twelve (12) inches (30.5 cm) from the direct vent-air
intake terminal. (See Figure 1).
OPTIONAL DIRECT VENT-AIR INTAKE TERMINAL GUARD
WARNING
The direct vent-air intake terminal is HOT while the water heater is
in operation. Do not touch. Keep children, combustibles, gasoline
and other liquids having flammable vapors away.
It is recommended that a vent-air intake terminal guard be installed when the
vent-air intake terminal is located where it can be touched accidentally, or
accessed by children. (See Figure 2).
A chain link or louvered fence may be used instead of the vent-air intake
terminal guard. Maintain proper clearances as specified in this instruction
manual to the vent-air intake terminal. (See Figure 3).
INTERNET VERSION FOR REFERENCE ONLY

10
Installation (Minimum Clearances) continued-
Figure 1
INTERNET VERSION FOR REFERENCE ONLY

11
Installation continued-
Figure 2
Figure 3
INTERNET VERSION FOR REFERENCE ONLY

12
Installation continued-
VENTING
This is a Direct Vent Gas Water Heater where all air for combustion is
obtained from the outside atmosphere and all flue gases are discharged to the
outside atmosphere.
WARNING
The vent-air intake system must be properly installed. Failure to
properly install the vent-air intake system properly could result in
property damage, personal injury or death.
DO NOT install any damaged vent-air intake system components.
Contact the manufacturer of the water heater for replacement parts.
Direct Vent-Air Intake Terminal (See Figure 4)
•Shall be installed with at least a 9 in. (22.9 cm) vent termination
clearance from any air opening into a building.
•The bottom of the direct vent-air intake terminal shall be located at
least 12 in. (30.5 cm) above grade.
•Installed at least 3 ft. (91.4 m) from any gas meter, gas valve or
other gas regulating equipment.
•Must be installed in a location where it will not be blocked by snow.
Note: Provide protection of the building materials from degradation by flue
gases from the direct vent-air intake terminal.
Exceptions for Installations in Canada
The direct vent-air intake terminal shall not terminate:
(a) directly above a paved sidewalk or paved driveway which is located
between two single-family dwellings and serves both dwellings;
(b) less than 7 ft. (2.1 m) above a paved sidewalk or a paved driveway
located on public property;
(c) within 6 ft. (1.8 m) of a mechanical air supply inlet to any building;
(d) above a gas meter/regulator assembly within 3 ft. (91.4 cm) horizontally
of the vertical centerline of the regulator;
(e) within 6 ft. (1.8 m) of any gas service regulator vent outlet;
(f) less than 12 in. (30.5 cm) above grade level;
(g) within 12 in. (30.5 cm) of a window or door which can be opened in any
building, any non-mechanical air supply inlet to any building or the
combustion air inlet of any other appliance:
INTERNET VERSION FOR REFERENCE ONLY

13
Installation (Venting) continued-
(h) underneath a verandah, porch or deck, unless:
(i) the verandah, porch or deck is fully open on a minimum of two
sides beneath the floor, and
(ii) the distance between the top of the vent-air intake termination and
the underside of the verandah, porch or deck is greater than 12 in.
(30.5 cm).
Figure 4
INTERNET VERSION FOR REFERENCE ONLY

14
Installation (Venting) continued-
The co-axial vent-air intake tubes of this water heater can be installed in any
360°configuration as long as the proper clearances for installation, plumbing,
operation and servicing are maintained. (See Figure 5).
Figure 5
Note: Maintain proper clearances for installation, plumbing, operation
and service.
HORIZONTAL AND VERTICAL VENT-AIR INTAKE LENGTHS
This Direct Vent Gas Water Heater comes with one (1) vent-air intake “Kit C”.
Optional vent-air intake kits are available that can extend the horizontal length
and/or vertical height of the vent-air intake system. Table A lists the various
vertical and horizontal vent-air intake system configurations.
INTERNET VERSION FOR REFERENCE ONLY

15
Installation (Horizontal and Vertical Vent-Air Intake Lengths) continued-
The water heater is shipped with the following standard vent and air intake
system: 239-41097-00. The components of this vent and air intake systems is
as follows:
3” Vent Tube* Vent Terminal Hardware
5” Air Intake Tube* RTV Silicone Sealant
Vent Terminal 3” Vent Elbow
Inner Wall Term. Mounting Flange 5” Vent Elbow
Outer Wall Term. Mounting Flange
*The vent and air intake telescopes from 13 3/4" to 23 11/16”.
Table A
Horizontal "X"
13 1/4
14 3/16
15
17 11/16
22 1/4
32 3/16
36
55 7/8
58 5/16
104 5/16
10
order
kit A
order
kit B no
add'l
kit req'd
order
kit C
order
kit D
14 3/4
15 11/16
*order
kit A (2)
order
kit A & B
order
kit A
order
kit A & C
order
kit A & D
16 1/2
19 3/16
order
kit A & B
*order
kit B (2)
order
kit B
order
kit B & C
order
kit B & D
23 3/4
33 11/16
order
kit A
order
kit B
order
kit C
*order
kit C (2)
order
kit D
37 1/2
57 3/8
order
kit A & C
order
kit C & B
*order
kit C (2)
*order
kit C (3)
order
kit C & D
Vertical "Y"
59 13/16
105 13/16
order
kit D & A
order
kit D & B
order
kit D
order
kit D & C
*order
kit D (2)
* (2) = Order two of the kits referenced.
* (3) = Order three of the kits referenced.
The bold text above show what kit(s) are needed in addition to the standard
vent and air intake tubes. If the standard vent and air intake tubes are not
used in the venting system (those that do not have bold text) they can be
discarded or saved.
INTERNET VERSION FOR REFERENCE ONLY

16
Installation (Horizontal and Vertical Vent-Air Intake Lengths) continued-
Figure 6
INTERNET VERSION FOR REFERENCE ONLY

17
Installation continued-
VENT-AIR INTAKE SYSTEM INSTALLATION
WARNING
The vent-air intake system must be properly installed. Failure to
properly install the vent-air intake system could result in property
damage, personal injury or death.
Do not install any damaged vent-air intake system components.
Contact the manufacturer of the water heater for replacement parts.
Tools Required For Vent-Air Intake Installation
The following minimum tools are required to properly install the vent-
air intake system. Note: Wall construction will determine tool usage.
Tape Measure
Drill
3/16 inch Diameter Drill Bit(s)
1/8 inch Diameter Drill Bit(s)
Masonry Drill Bit(s) (For Poured Concrete, Concrete Block and Brick Wall
Construction)
Reciprocating Saw w/appropriate Blade(s) (Dependent on Wall
Construction)
Chisel (For Poured Concrete, Concrete Block and Brick Wall Construction)
Hammer (For Poured Concrete, Concrete Block and Brick Wall
Construction)
1/4 & 5/16 inch Nut Drivers (Preferred) or Slotted Head Screwdriver
Phillips Head Screwdriver
IMPORTANT
When the following instructions specify, to seal a vent-air intake joint,
use only Loctite Ultra Blue 587 RTV Silicone sealant. A tube of Loctite
Ultra Blue 587 RTV Silicone sealant is supplied with every direct vent
water heater and each optional vent-air intake kit. Make sure that all
joints are completely sealed.
When drilling pilot holes for the #8 sheet metal screws through the
five (5) inch (12.7 cm) diameter components, be careful not to drill into
the inner three (3) inch (7.6 cm) diameter components.
INTERNET VERSION FOR REFERENCE ONLY

18
Installation (Vent-Air Intake System Installation) continued-
1. Measure the vertical height “Y” required in your installation. (See Figure
6). Reference the appropriate Table A to determine number of vent-air
intake kits required in your installation.
2. Measure the horizontal length “X” required in your installation (See Figure
6). Reference Table A to determine number of vent-air intake kits required
in your installation.
3. Cut a 5-1/2 inch (14 cm) diameter minimum clearance hole in the wall at
the point where the vent-air intake tubes will pass through the outside wall
and connect with the direct vent-air intake terminal
(See Figure 6).
4. From outside the building, position the outer wall mount plate and direct
vent-air intake terminal over the center of the opening. Mark the mounting
screw hole locations. With a 3/16 inch diameter drill bit (not supplied), drill
holes for the wall anchors (supplied). Install the wall anchors but DO NOT
affix the outer wall mount plate and direct vent-air intake terminal to the
wall at this time (See Figure 7). Note: Certain construction of walls may
require the use of a different type of wall anchoring means than supplied.
DO NOT modify the direct vent-air intake terminal or outer wall mount
plate.
Figure 7
INTERNET VERSION FOR REFERENCE ONLY

19
Installation (Vent-Air Intake System Installation) continued-
5. Insert the straight end of the three (3) inch (7.6 cm) diameter elbow into
the flue reducer until firmly seated and oriented in the correct direction.
With a 1/8 inch diameter drill bit (not supplied), drill three (3) holes, 120o
apart, through the flue reducer into the three (3) inch (7.6 cm) diameter
elbow. Fasten with three (3) #8 sheet metal screws (supplied). Using the
supplied special RTV silicone sealant, apply a sufficient amount to seal
the joint (See Figure 8).
Figure 8

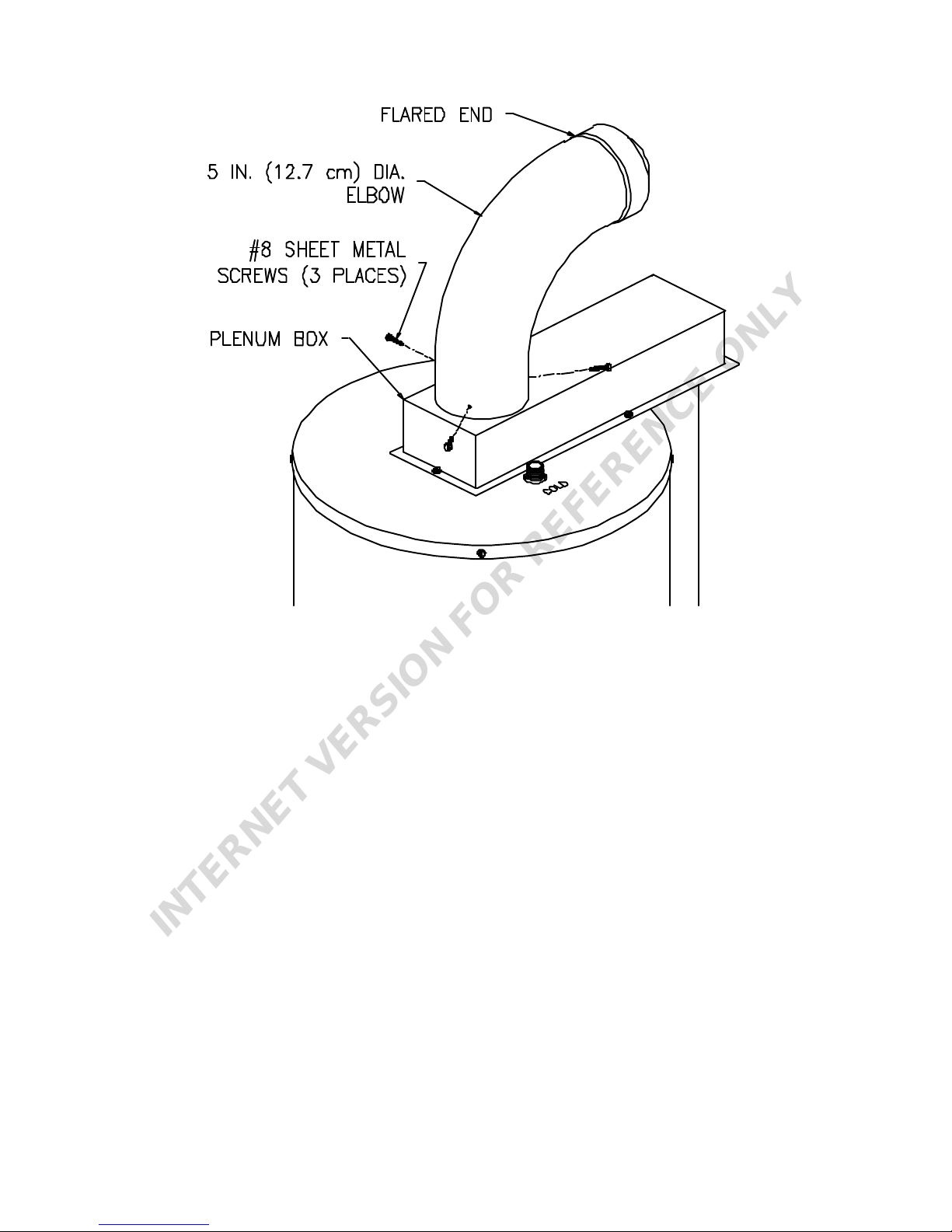

6. Place the straight end of the five (5) inch (12.7 cm) diameter elbow over the
three (3) inch (7.6 cm) diameter elbow and plenum collar until seated on
top of the plenum box. Make certain that the five (5) inch (12.7 cm)
diameter elbow is oriented in the same direction as the three (3) inch (7.6
cm) diameter elbow and both are oriented in the correct direction. Drill
three (3) 1/8 inch diameter holes, 120o apart, through the five (5) inch (12.7
cm) diameter elbow into the plenum collar. Fasten with three (3) #8 sheet
metal screws (supplied) (See Figure 9).
IMPORTANT
The following instructions detail the installation of the standard
horizontal vent-air intake kit supplied with the water heater.
INTERNET VERSION FOR REFERENCE ONLY

20
Installation (Vent-Air Intake System Installation) continued-
Figure 9
7. Extend the three (3) inch (7.6 cm) diameter telescopic tube to its
maximum length and slide the backing plate over it. Place the large end of
the three (3) inch (7.6 cm) diameter telescopic tube through the hole in the
outside wall. Insert the smaller end of the three (3) inch diameter (7.6 cm)
telescopic tube into the flared end of the three (3) inch (7.6 cm) diameter
elbow, one (1) inch (2.5 cm) (or until seated). Drill three (3) 1/8 inch
diameter holes, 120oapart, through the three (3) inch (7.6 cm) diameter
elbow into the three (3) inch (7.6 cm) diameter telescopic tube. Fasten
with three (3) #8 sheet metal screws (supplied). Adjust the overall length
of the three (3) inch (7.6 cm) diameter telescopic tube so that 2-1/2 inches
(6.4 cm) extends beyond the outside wall. Drill three (3) 1/8 inch diameter
holes, 120o apart, through the three (3) inch (7.6 cm) diameter telescopic
tubes where the small and large sections overlap. Fasten with three (3) #8
sheet metal screws (supplied). Using the supplied special RTV silicone
sealant, apply a sufficient amount to seal the joints (See Figure 10).
INTERNET VERSION FOR REFERENCE ONLY
