Electric Instantaneous Water Heaters

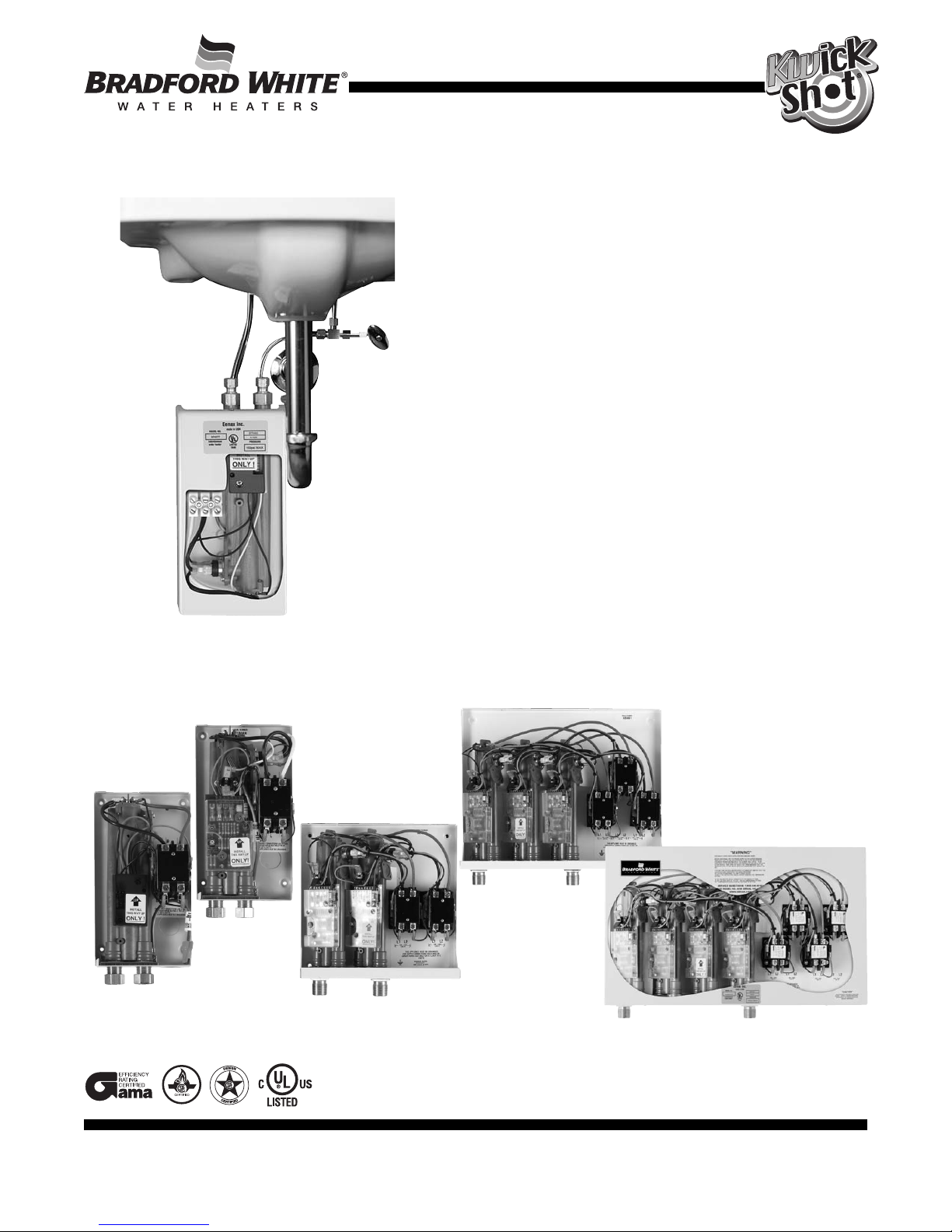

The KwickShot®Electric Instantaneous Water Heaters
Models Feature:
■On Demand Hot Water—No delay.
■Reduced Energy Waste—Flow switch activates heater only
on demand (no stand-by heat loss). 99% efficient.
■Continuous Hot Water—No storage capacity to run out.
■No Need for a T&P Relief Valve—Check local codes.
■Integral Flow Restrictor—Built-in to ensure proper
temperature rise.
■Prevention Of Bacteria Growth.
■Easy Installation—Mounts on wall – no sweat connections.
■Ni Chrome Heating Element—Aunique, patented flow
path ensures optimum heat transfer and extended
element life.
■Durable Design—Reduces calcification and sedimentation.
■Space Saving Installation—Compact size.
■High Temperature Limit Switch—Protects against element
burnout, with reset button.
■Warranty—Heaters aredesigned for durability and
guaranteed against failuredue to leaks of Heater
Body/Element Assembly for a period of 10 years. Field
serviceable element with replaceable cartridge element (1
year warranty).
■Single Phase and Three Phase models.
For more information on warranty, please visit www.bradfordwhite.com
For products installed in USA, Canada and Puerto Rico. Some states do not allow limitations on warranties.
See complete copy of the warranty included with the heater.
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 5,574,822; 5,372,185; 5,485,879; 5,277,171;
(B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968; 4,672,919; Re. 34,534;
7,270,087 B2. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012; 2,092,105; 2,409,271.
KwickShot®is a registered trademark of Bradford White®Corporation.
217-B-0908-A

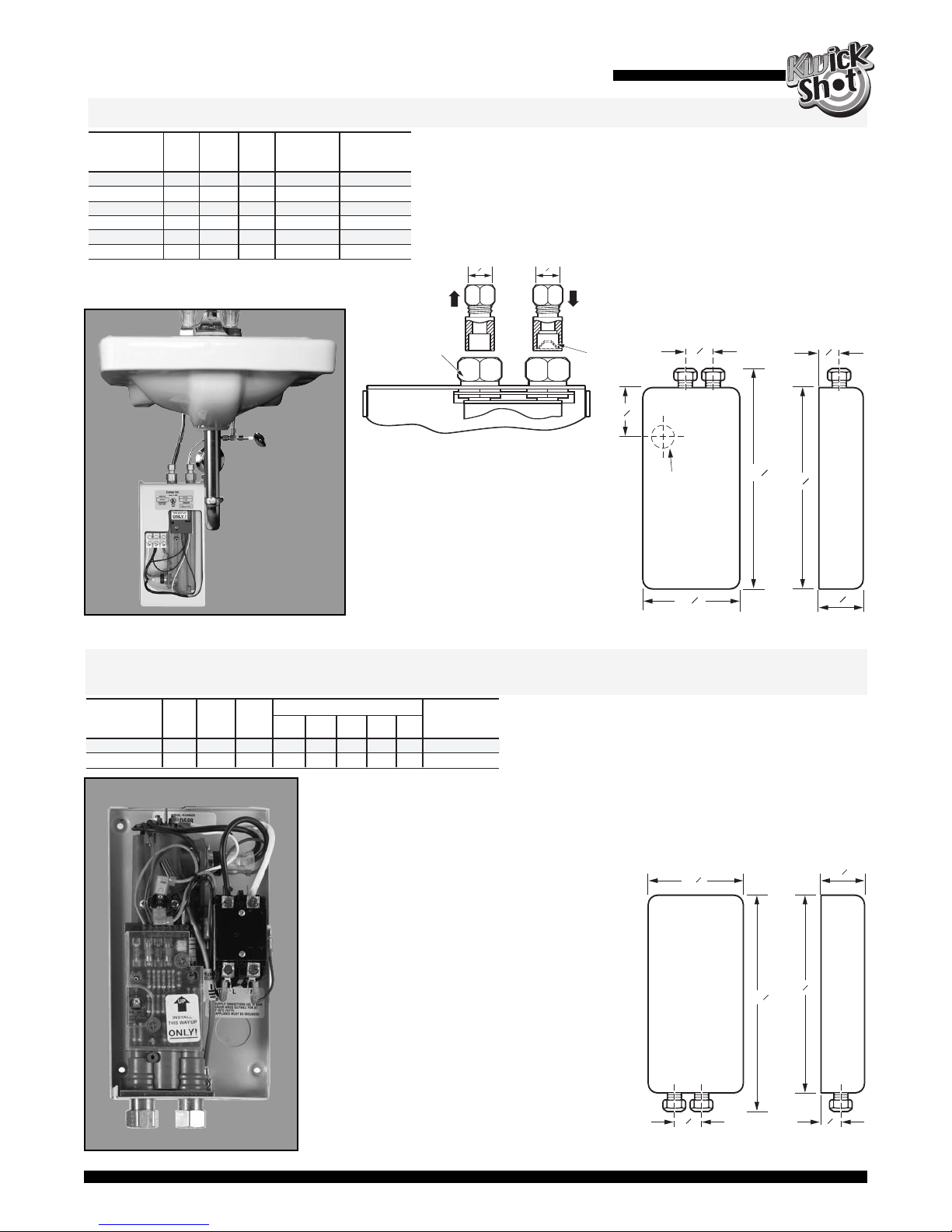

ES-3000-1-S-10 3.0 120 25.0 41 10 AWG
ES-3500-1-S-10 3.5 120 29.0 48 10 AWG
ES-3500-4-S-10 3.5 240 14.6 48 14 AWG
ES-4100-2-S-10 4.1 208 19.7 56 12 AWG
ES-4100-5-S-10 4.1 277 14.8 56 14 AWG
ES-5500-4-S-10 5.5 240 22.9 75 10 AWG
Model
Number kW
Rating Voltage AMPS Temperature
Rise °F
0.5 GPM
Recommended
Wire Size
Single Point (Single Phase)
Intregal 0.5 GPM flow control and faucet aerator provided.
Electric Instantaneous Water Heaters
38"38"
OUTLET
FLOW
REGULATOR
REMOVABLE
FILTER
INTLET
Specifications:
Dimensions: 103⁄4" x 51⁄4" x 27⁄8"
Weight: 3 lbs.
Materials:
Cover: ABS UL rated 94Vo.
Glass reinforced “UDEL†”
Heater Body and Ni Chrome Element
Color: White
Element: Replaceable cartridge insert
Pipe-Fittings: 3/8" compression at top
of unit.
Operating Pressure: Min 25 PSI,
Max 150 PSI.
5
1
4"
1
12"34"
2
7
8"
10
3
4"
9
3
4"
OUTLET INTLET
Specifications:
Dimensions: 103⁄4" x 51⁄4" x 27⁄8"
Weight: 3 lbs.
Materials:
Cover: ABS UL rated 94Vo.
Glass reinforced “UDEL†” Heater Body and Ni
Chrome Element
Color: White
Standardtemperaturerange 100°F-140°F.
Maintains accurate temperaturecontrol +/- 1°F
Element: Replaceable cartridge insert
Pipe-Fittings: 1/2" compression at bottom of unit.
Operating Pressure: Min 25 PSI, Max 150 PSI.
EFT-7500-4-S-10 7.5 240 32.0 — 68 51 34 25 8 AWG
EFT-9500-4-S-10 9.5 240 40.0 — 86 65 43 32 8 AWG
Model
Number kW Rating Voltage AMPS Temperature Rise °F
0.5
GPM 0.75 GPM 1.0 GPM 1.5 GPM 2.0 GPM
Recommended
Wire Size
Thermostatic (Single Phase)
Turn on 0.5 GPM (up to 6.5kW)
Turn on 0.7 GPM (7.5 kW and up)
Max Flow 2.0 GPM
Refer to Voltage Identification Code Chart on page 5.
Note: Designed to comply with 0.5GPM handwashing code
target outlet temperature 105°F - 110°F. Please consult local
codes for electrical requirements. Additional voltages and
wattages are available. For more information please consult
factory.
Refer to Voltage Identification Code Chart on page 5.
Applications: Single Phase Only.
Dishwashers, Boosters (to 180°F). Schools, Hospitals, Nursing
Homes, Laboratories. Emergency Eye Wash Fountains. Single
and Multiple Handwash Stations.
SPEC OPTIONS:
S-Sanitation Setting 180°F
FS -FactorySet Temperature
(Ambient to 180°F)
ML -Multiple Lavs (5.5 to 10kW)
FactorySet Temp 105°F.
.5 GPM TurnOn
Note: Designed to comply with 0.5GPM handwashing code target outlet
temperature 105°F - 110°F. Please consult local codes for electrical
requirements. Additional voltages and wattages are available. For more
information please consult factory.
Applications: Single Phase Only.
Shopping Malls, Schools, Stadiums, Public Hand Washing.
51
4"
1
12"34"
27
8"
103
4"
93
4"
212
"
ELECTRICAL
SUPPLY
2
Please specify your application
when you place your order.
Example: EFT-9500-4-S-10-S
(Dishwasher 180°F)

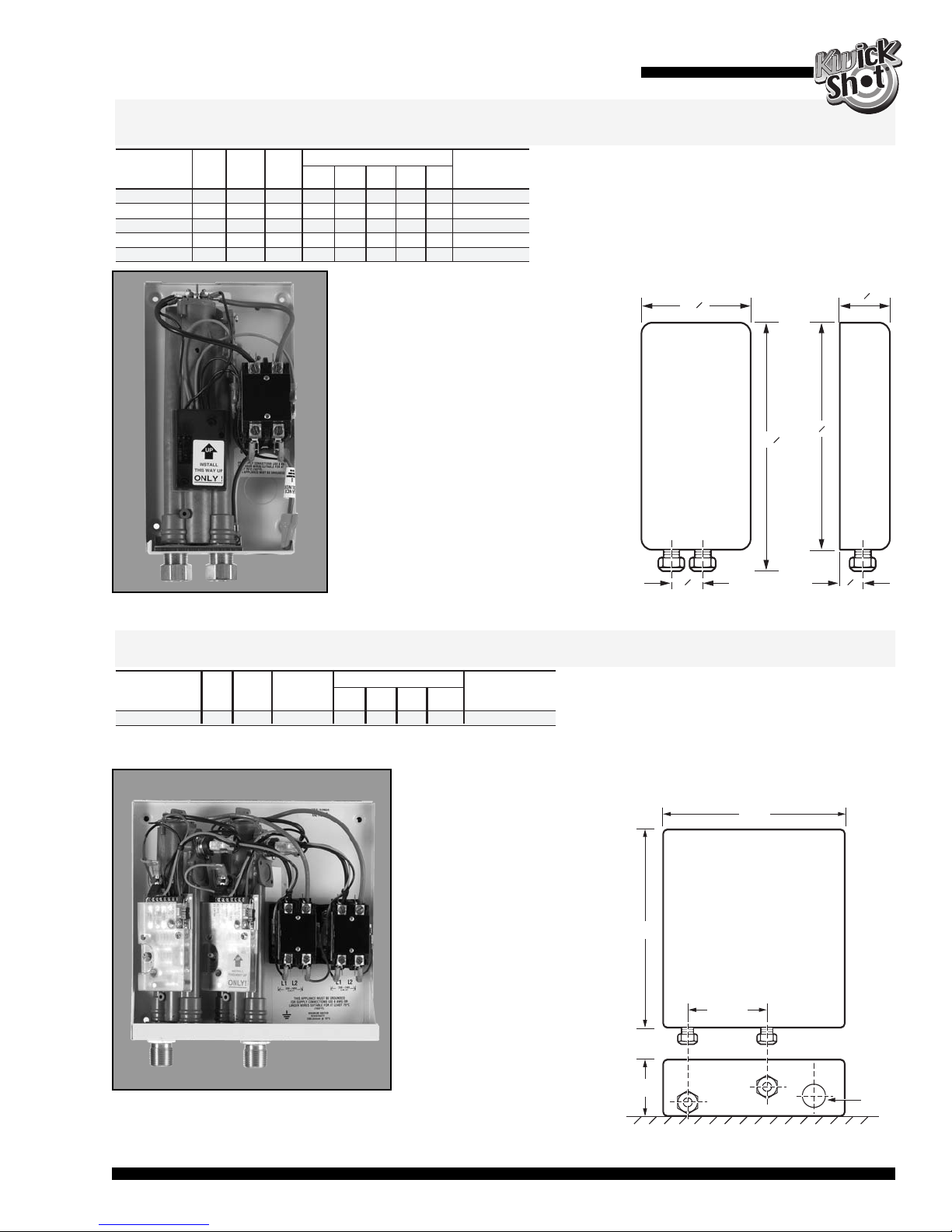

EFC-5500-4-S-10 5.5 240 23.0 75 50 38 25 18 10 AWG
EFC-6500-4-S-10 6.5 240 27.0 88 59 44 30 22 10 AWG
EFC-7500-4-S-10 7.5 240 32.0 — 68 51 34 25 8 AWG
EFC-9500-4-S-10 9.5 240 40.0 — 86 65 43 32 8 AWG
EFC-8300-2-S-10 8.3 208 39.0 — 76 57 38 29 8 AWG
Model
Number kW
Rating Voltage AMPS Temperature Rise °F
0.5
GPM 0.75 GPM 1.0 GPM 1.5 GPM 2.0 GPM
Recommended
Wire Size
Flow Controlled (Single Phase)
Turn on 0.5 GPM (up to 6.5kW)
Turn on 0.7 GPM (7.5 kW and up)
Max Flow 2.0 GPM
5
1
4"
1
12"34"
2
7
8"
10
3
4"
9
3
4"
OUTLET INTLET
Electric Instantaneous Water Heaters
Specifications:
Dimensions: 103⁄4" x 51⁄4" x 27⁄8"
Weight: 3 lbs.
Materials:
Cover: ABS UL rated 94Vo.
Glass reinforced “UDEL†” Heater Body
and Ni Chrome Element
Color: White
Standard temperature range
100°F-140°F.
Element: Replaceable cartridge insert
Pipe-Fittings: 1/2" compression at
bottom of unit.
Operating Pressure: Min 25 PSI,
Max 150 PSI.
The unit must have 2 independent electrical circuits using correctly rated wire
and 2 circuit breakers.
Specifications:
Dimensions: 10" x 9" x 3"
Weight: 8 lbs.
Materials:
Cover: Enameled Steel.
Glass reinforced “UDEL†” Heater
Body and Ni Chrome Element
Color: White
Element: Dual replaceable
cartridge inserts
Pipe-Fittings: 3/4" NPT pipe
fittings at the bottom of the unit.
Operating Pressure: Min 25 PSI,
Max 150 PSI.
EFT-19000-4-D-10 19.0 240 2 x 40 Amps 87 65 52 43 8 AWG per module
Model
Number kW
Rating Voltage AMPS Temperature Rise °F
1.5
GPM 2.0
GPM 2.5
GPM 3.0
GPM
Recommended
Wire Size
Series Two - Twin Heating Module (Single Phase)
(Twin Module) With Single Thermostatic Control
Activated in stages based on demand
Min. flow 0.7 GPM Max Flow 3.0 GPM
Please consult local codes for electrical requirements. Additional
voltages and wattages are available. For more information please
consult factory.
Refer to Voltage Identification Code Chart on page 5.
Applications: Single Phase Only.
Kitchen Sinks, Bar Sinks, Dual Lavs, Utility Sinks, Manufacturing
Facilities, and Modular Buildings.
Please consult local codes for electrical requirements.
Additional voltages and wattages are available. For more
information please consult factory.
Refer to Voltage Identification Code Chart
on page 5.
Applications: Single Phase Only.
Residential-Single Shower (Cabin or Condo), Multi Lavs.
SPEC OPTIONS:
Multi Lavs = ML 0.5 turn on
set temp.
Set Temp = 105°F.
9
"
10
"
3
"
ELECTRICAL
SUPPLY
4
"
3

EFT-28000-4-T-10 28.0 240 3x40 Amps — — — 65 50 8 AWG
Model
Number kW
Rating Voltage Current
Per
Phase
Temperature Rise °F
1.5
GPM 2.0 GPM 2.5 GPM 3.0 GPM 4.0 GPM
Recommended
Wire Size
Series Three (Single Phase) Min Flow 0.7 GPM
Max Flow 4.5 GPM
ELECTRICAL
SUPPLY
414
"
1514
"
1214
"
71
4"
OUTLETINTLET
Please consult local codes for electrical requirements.
Additional voltages and wattages are available. For more
information please consult factory.
Refer to Voltage Identification Code Chart
on page 5.
Applications: Single Phase Only.
Whole House Residential up to 4.5 GPM (Apartment,
Condo, Cabin).
This unit can only be ordered with 240V, but can be used on 208V with 25%
reduced output (no model number change required).
EFT-38000-4-F-10 38.0 240 160 (4x40 Amps) 129.8 129.8 103.8 86.5 64.9 51.9 43.3 8 AWG
Model
Number kW Rating Voltage AMPS Temperature Rise °F
1.0
GPM 2.0 GPM 2.5 GPM 3.0 GPM 5.0 GPM 6.0 GPM
4.0
GPM
Recommended
Wire Size
Series Four (Single Phase)
Min Flow 0.7 GPM
Max Flow 6.0 GPM
Electric Instantaneous Water Heaters
Please consult local codes for electrical
requirements. Additional voltages and wattages
areavailable. For moreinformation please consult
factory.
Refer to Voltage Identification Code Chart
on page 5.
Applications: Single Phase Only.
Whole House Residential.
Multi Fixture up to 6GPM.
4
Specifications:
Dimensions: 203⁄16"x
121⁄8"x 41⁄8"
Weight: 23 lbs.
Materials:
Cover: Enameled Steel.
Glass reinforced “UDEL†” Heater
Body and Ni Chrome Element
Color: White
Element: Four replaceable cartridge
inserts
Pipe-Fittings: 3/4" NPT pipe fittings
at the bottom of the unit.
Operating Pressure: Min 45 PSI,
Max 150 PSI.
ELECTRICAL
SUPPLY
4
18
"
20
316"
12
18
"
9
31 32"
OUTLETINTLET

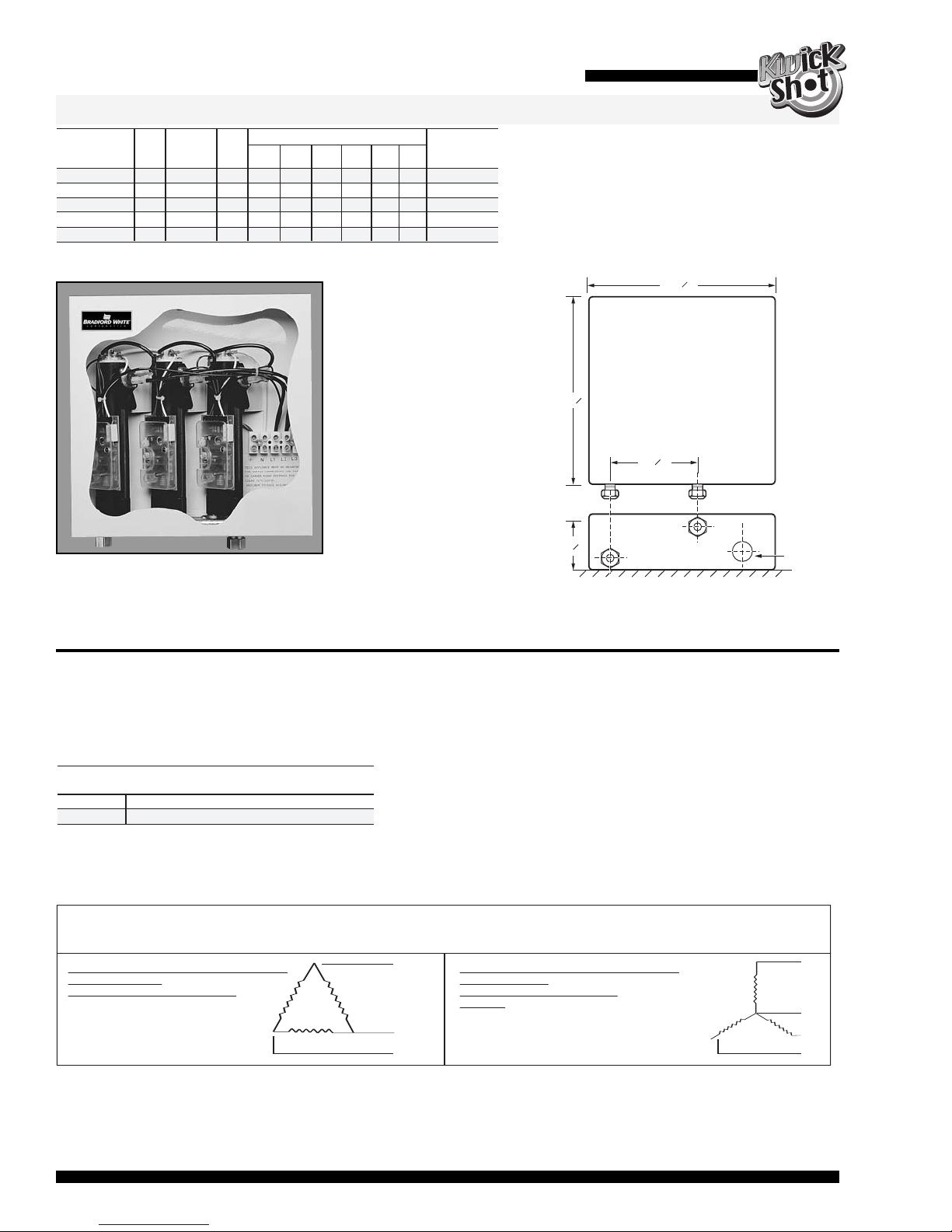

Specifications:
Dimensions: 151⁄4"x 121⁄4"x 41⁄4"
Weight: 12 lbs.
Materials:
Cover: Enameled Steel.
Glass reinforced “UDEL†”
Heater Body and Ni Chrome
Element
Color: White
Element: Triple replaceable
cartridge inserts
Pipe-Fittings: 3/4" NPT pipe
fittings at the bottom of the
unit.
Operating Pressure: Min 45
PSI, Max 150 PSI.
This unit can only be ordered with 240V, but can be used
on 208V with 25% reduced output (no model number
change required).

EFT-18000-2-T-10 18.0 208y/120v 50.0 82 61 49 41 35 32 10 AWG
EFT-24000-2-T-10 24.0 208y/120v 67.0 — 82 65 54 47 41 10 AWG
EFT-18000-6-T-10 18.0 480y/277v 21.7 82 61 49 41 35 32 10 AWG
EFT-24000-6-T-10 24.0 480y/277v 28.9 — 82 65 54 47 41 10 AWG
EFT-32000-6-T-10 32.0 480y/277v 38.5 — — 87 73 62 55 8 AWG
Model
Number kW Rating Voltage AMPS Temperature Rise °F
1.5
GPM 2.0 GPM 2.5 GPM 3.0 GPM 4.0 GPM
3.5
GPM
Recommended
Wire Size
Thermostatic Triple Module Models (Three Phase) Min Flow 0.7 GPM
Max Flow 4.0 GPM
Electric Instantaneous Water Heaters
Voltage Identification Code
For All Models
Voltage Code
Voltage
1
2
3
4
5
6
7
8
12 3 4 5 6 7 8
120 208 220 240 277 480 380 415
Example: ES-5500-4-S-10-S
The 4 in the model number indicates 240 volt.
Please be advised that the voltages listed in the Voltage Identification Code
may not be available for all models.
Additional voltages and wattages are available. For more information please
consult factory.
5
10
9
8
7
6
5
4
3
2
1
1
/ 2
FLOW CHART
Typical Flow Rates in Gallons per Minute (gpm)
Electrical Configurations and Requirements for Bradford White Three Phase Tankless Water Heaters.
All Bradford White three-phase units are custom made to order and as such are,non-returnable and non-refundable.We urge you therfore to check your
electrical supply, making sure all criteria for operating your Bradford White water heaters are met, especially that a neutral line is available for all 480/277 voltunits.
Fixture
Type
Bradford White 208/120Three Phase Units
Delta Configuration
Requires: 3Lives, 1 Ground (earth)
Three-Phase delta; Three-wire
Bradford White 480/277 Three Phase Units
Star Configuration
Requires: 3Lives, 1 Neutral and
1 Ground
Three-Phase star; Four-wire; non-earthed neutral
Flow
Rates
Lavatory
Flow Rate, (GPM) =
Rise in Temp. (°F) =
kW Rating =
kW rating x 6.83
FORMULAS
kW rating x 6.83
GPM x rise in temp.
rise in temp. (°F)
rise in temp. (°F)
6.83
0.5
Bathtub
L1
L2
L3
2.0-4.0
Shower
1.5-4.0
Kitchen
Sink
1.0-1.5
Pantry
Sink
1.5-2.5
Laundry
Sink
2.5-3.0
Dishwasher
1.0-3.0
GPM
Temperature Rise - ˚F
POWER REQUIRED-kW
29.34kW
26.4kW
23.4kW
20.5kW
17.6kW
14.6kW
11.7kW
8.8kW
5.8kW
3.0kW
—
20˚F
44kW
39.5kW
35.1kW
30.7kW
26.4kW
22kW
17.6kW
13.0kW
8.8kW
4.4kW
—
30˚F
58.6kW
52.7kW
49.9kW
41kW
35.1kW
29kW
23.4kW
17.6kW
11.7kW
5.8kW
3.0kW
40˚
73.2kW
65.9kW
58.6kW
51.2kW
44kW
37kW
29kW
22kW
14.6kW
7.3kW
3.6kW
50˚
82kW
70.3kW
61.5kW
52.7kW
44kW
35.1kW
26.4kW
17.6kW
8.8kW
4.4kW
60˚
82kW
71.5kW
61.5kW
51.2kW
41kW
30.7kW
20.5kW
10.2kW
5.1kW
70˚
79kW
70.3kW
58.6kW
46.9kW
35.1kW
23.4kW
11.7kW
5.8kW
80˚F
79kW
65.9kW
52.7kW
39.5kW
26.4kW
13.0kW
6.5kW
90˚F
73.2kW
58.6kW
44kW
29.3kW
14.6kW
7.3kW
100˚F
64.4kW
48.3kW
32.2kW
16.1kW
8kW
110˚F
L1
N
L2
L3
Please consult local codes for electrical requirements.
Additional voltages and wattages are available. For more
information please consult factory.
Refer to Voltage Identification Code Chart
and wiring diagram on page 5.
Multi-Outlet Three Phase Applications: Modular Hand
Washing, Multi-Shower, Restaurants, Beauty Salons.
Specifications:
Dimensions:
151⁄4"x 121⁄4"x 41⁄4"
Weight: 15 lbs.
Materials:
Cover: Enameled Steel.
Glass reinforced “UDEL†” Heater
Body and Ni Chrome Element
Color: White
Element: Triple replaceable
cartridge inserts
Pipe-Fittings: 1/2" compression
at bottom of unit.
Operating Pressure: Min 25 PSI,
Max 150 PSI.
SPEC OPTIONS:
S= Sanitation 180°F
ML =Multi-Lav temp
setting 105 to
110 - 0.5 turn on up
to 8 lavs
FS = Factory Set
(ambient to 180°F)
ELECTRICAL
SUPPLY
414
"
1514
"
1214
"
71
4"
OUTLETINTLET

Electric Instantaneous Water Heaters
Suggested Specification:
Instantaneous Water Heater shall be a Bradford White Model __________ with __________kW, _________vac ______________
toheat ________GPM @ a temperature rise of __________ degrees F. Unit shall have ABS UL 94 Vo rated cover. Heater body
and element shall be glass reinforced UDEL.† Element shall be replaceable cartridge insert. Unit shall have a replaceable
filter in the inlet connector. Element shall be iron free, nickel-chrome material. Heater shall be fitted with 1/2" compression
nuts and sleeves to eliminate need for soldering. Maximum operating pressure of 150 psi. Hot water storage tanks
prohibited. Unit shall be Bradford White or approved equal.
Note: All models are Single Phase except the Thermostatic Three Phase (3 Module) Models.
Kwickshot models are not recommended for Space Heating Applications.
No chemicals shall be added to the Kwickshot models: Potable Water Only.
U.S. Patent No.’s: 4,762,980 and 4,960,976
UL Patent #'s 4,762,980 and 4,960,976.
UL Listed: E197168
-Only for 208 Volt Three Phase Models
10
9
8
7
6
5
4
3
2
1
1
/ 2
FLOW CHART
Typical Flow Rates in Gallons per Minute (gpm)
Electrical Configurations and Requirements for Bradford White Three Phase Tankless Water Heaters.
All Bradford White three-phase units are custom made to order and as such are,non-returnable and non-refundable.We urge you therfore to check your
electrical supply, making sure all criteria for operating your Bradford White water heaters are met, especially that a neutral line is available for all 480/277 voltunits.
Fixture
Type
Bradford White 208/120Three Phase Units
Delta Configuration
Requires: 3Lives, 1 Ground (earth)
Three-Phase delta; Three-wire
Bradford White 480/277 Three Phase Units
Star Configuration
Requires: 3Lives, 1 Neutral and
1 Ground
Three-Phase star; Four-wire; non-earthed neutral
Flow
Rates
Lavatory
Flow Rate, (GPM) =
Rise in Temp. (°F) =
kW Rating =
kW rating x 6.83
FORMULAS
kW rating x 6.83
GPM x rise in temp.
rise in temp. (°F)
rise in temp. (°F)
6.83
0.5
Bathtub
L1
L2
L3
2.0-4.0
Shower
1.5-4.0
Kitchen
Sink
1.0-1.5
Pantry
Sink
1.5-2.5
Laundry
Sink
2.5-3.0
Dishwasher
1.0-3.0
GPM
Temperature Rise - ˚F
POWER REQUIRED-kW
29.34kW
26.4kW
23.4kW
20.5kW
17.6kW
14.6kW
11.7kW
8.8kW
5.8kW
3.0kW
—
20˚F
44kW
39.5kW
35.1kW
30.7kW
26.4kW
22kW
17.6kW
13.0kW
8.8kW
4.4kW
—
30˚F
58.6kW
52.7kW
49.9kW
41kW
35.1kW
29kW
23.4kW
17.6kW
11.7kW
5.8kW
3.0kW
40˚
73.2kW
65.9kW
58.6kW
51.2kW
44kW
37kW
29kW
22kW
14.6kW
7.3kW
3.6kW
50˚
82kW
70.3kW
61.5kW
52.7kW
44kW
35.1kW
26.4kW
17.6kW
8.8kW
4.4kW
60˚
82kW
71.5kW
61.5kW
51.2kW
41kW
30.7kW
20.5kW
10.2kW
5.1kW
70˚
79kW
70.3kW
58.6kW
46.9kW
35.1kW
23.4kW
11.7kW
5.8kW
80˚F
79kW
65.9kW
52.7kW
39.5kW
26.4kW
13.0kW
6.5kW
90˚F
73.2kW
58.6kW
44kW
29.3kW
14.6kW
7.3kW
100˚F
64.4kW
48.3kW
32.2kW
16.1kW
8kW
110˚F
L1
N
L2
L3
Printed in U.S.A.
217-B-0908-A
©2008, Bradford White Corporation. All rights reserved.
Ambler,PA
For U.S. and Canada field service, contact your professional installer or local BradfordWhite sales representative.
Sales 800-523-2931 ●Fax [phone] / Technical Support800-334-3393 ●Fax [phone] ●Warranty 800-531-2111 ●Fax [phone]
International: Telephone [phone] ●Telefax 215-641-9750 / www.bradfordwhite.com
Sales / Technical Support866-690-0961 /905-238-0100 ●Fax [phone] /www.bradfordwhite.com
