Braemar RPA Series Operation manual

January 2014

RPA INDUSTRIAL AIR CONDITIONERS
IMPORTANT
As with any product that has moving parts or is subject to wear and tear, it is VERY IMPORTANT
that you maintain the cooler and have it regularly serviced. It is a condition of warranty cover for
your cooler that you comply with all of the maintenance and service requirements set out in the
Owner’s Manual. Compliance with these requirements will prolong the life of your cooler. Further,
it is also a condition of warranty cover that each item in the Maintenance Schedule in the
Owner’s Manual is performed with the frequency indicated, by a qualified, licensed technician,
and that the Maintenance Schedule is properly filled out (ie names, signature, date, and action
taken) when the item is completed. ANY FAILURE TO CARRY OUT THE REQUIRED MAINTE-
NANCE AND SERVICING REQUIREMENTS, AND ANY FAILURE TO PROPERLY FILL OUT
THE MAINTENANCE SCHEDULE, WILL VOID YOUR WARRANTY.

TABLE OF CONTENTS
RPA INDUSTRIAL AIR CONDITIONERS
2
ITEM PAGE
Employer and Employee Responsibilities. 3
General Specifications. 4
Introduction. 5
Location of Air Conditioner. 5
Mounting the Air Conditioner 5
Product Specifications. 6
Flexible Connection. 8
Flexible Connection Kit Instructions 9
Water Supply and Drain Fittings. 11
Electrical Connection. 11
Wiring Diagram - Single Phase 12
Wiring Diagram - Three Phase 13
Variable Pitch Pulley and Belt Tension. 14
Bleed Control. 15
Effective Cooling Requirements 16
Installation Check List. 16
Operating the Air Conditioner. 17
Service Information 17
Service & Maintenance 18
Health Regulations. 18
Lubrication. 18
End of Season Maintenance. 18
Pre Season Maintenance. 19
Replacing the Filter Pads. 19
Trouble Shooting 20
Maintenance Schedule 23

EMPLOYER AND EMPLOYEE RESPONSIBILITIES
The installation and maintenance of evaporative air conditioning units, particularly at height, has the potential to
create Occupational Health and Safety issues for those involved. Installers are advised to ensure they are familiar
with relevant State and Federal legislation, such as Acts, Regulations, approved Codes of Practice and Australian
Standards, which offer practical guidance on these health and safety issues. Compliance with these regulations
will require appropriate work practices, equipment, training and qualification of workers.
Seeley International provides the following information as
a guide to contractors and employees to assist in minimising risk.
Risk Assessment:
A risk assessment of all hazardous tasks is required under legislation. A risk assessment is an essential element
that should be conducted before the commencement of work, to identify and eliminate the risk of falls and other
risks, or to minimise these risks by implementing control measures. This does not need to be a complicated
process - it is a matter of assessing the job to be done and considering what action(s) are necessary so the person
doing the job does not injure themselves.
This should be considered in terms of:
- What are the chances of an incident occurring?
- What could the possible consequences be?
- What can be done to reduce, or better still, eliminate the risk?
Some points to consider when working on or in a roof:
- Check State regulations regarding working at height.
- What is the best and safest access to the roof and working areas?
- What condition is the roof in? Should the roof structure and surface be checked?
- Does the worker have appropriate footwear?
- Are all power cables/extension leads safe and appropriately rated?
Are all ladders, tools and equipment suitable and in good condition?
Where ladders are to be used, is there a firm, stable base for them to stand on? Can they be tied or secured
in some way at the top?
- Is there a roof anchor to attach a harness and lanyard to? If so, instruction should be issued for the use of an
approved harness or only suitably trained people used
- Are all tools and materials being used, prevented from slipping and falling onto a person at ground level? Is
the area below the work area suitably protected to prevent people entering this area?
Does the work schedule take into account weather conditions, allowing for work to be suspended in high
winds, thunder storms/lightning or other types of weather giving wet, slippery surfaces?
- Is there an on-going safety check system of harnesses, ropes, ladders and access/lifting equipment, and
where they exist on roofs, anchor points before the commencement of work?
- Is there a system which prevents employees from working on or in roofs if they are unwell or under the
influence of drugs or alcohol?
- Are there any special conditions to consider i.e. excessive roof pitch, limited ground area, fragile roof,
electrical power lines?
- Use the appropriate lifting equipment.

RPA INDUSTRIAL AIR CONDITIONERS
Cabinet.
The cabinet is constructed from marine grade aluminium, incorporating channel section
corner pillars, mounted on a heavy gauge base frame for structural stability. Many
components have been powder coated for extra corrosion protection. Cabinet fasteners are
Stainless steel and Aluminium.
Fan Wheel.
The Fan wheel is a double inlet, multi-blade, forward curve, centrifugal type. Constructed
from galvanised steel, the wheel is statically balanced, The blower shaft is mounted in
plumber blocks with, self aligning, single row ball bearings.
Water Reservoir.
The water reservoir is a one piece Rotational Moulding of Polyethylene, providing a thick
walled, corrosion free component with excellent sound deadening properties.
Fan Motors.
RPA450 to 1500 - 415V 3 Phase TEFC tropic proof induction motor, coated Aluminium or
Cast iron frame, IP55 enclosures to AS1359. Motor current draw can vary depending on
supplier.
RPA400 - 240V Single Phase
Electrical Control.
Three phase starter assembly is pre-wired within the unit and incorporates a dual contactor
assembly for control of high and low speeds, Current overloads are fitted to both high and
low contactors. The enclosure is hose proof to IP55 and incorporates an isolation switch
(RPA400-900 only). RPA1000 to 1500 have an external isolation switch.
Single phase is wired directly to mains.
The wall control switch supplied incorporates the Pump, Fan and High/Low mechanisms.
Water Connection.
Water supply connection is 1/2" BSP, this connects directly to a 1/2" NB standard approved
ball valve.
Filter Pads.
Filter pads are shredded wood wool fibre or Chillcel®with a minimum operating saturation
efficiency of 80%. All models incorporate a full ABS Louvre (UV stabilised) to enhance the
appearance of the pad and to prevent water splash.
Special Features. Bleed off adjustment is by an external valve located at the
corner pillar. A mains isolator is provided. Flexible Connectors are standard on RPA400 to
900 - (RPA1000 to 1500 optional).
Unit Rating.
Units are factory set to run (free discharge) at the motor rated current, unless operating
conditions are specified. Motor ratings, Pulley and Belt sizes are nominal, and may vary
slightly due to manufacturing tolerances. Larger & Smaller motor pulleys and belts are
available on request.
It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to
change without notice. Please consult with your dealer to confirm the specifications of the model selected.
Manufacturers and Designers of Technically Advanced Quali ty Heating and Cooling Products
4

Introduction.
All Braemar air conditioners are run and electrically tested at the factory.
Subject to normal handling during storage, transit, installation and operation, they will provide
years of economical air conditioning with the minimum of service and maintenance.
All Braemar air conditioners are designed for a range of installations and are readily adaptable to
the following applications.
a. Through wall or window mounting for direct discharge through the appropriate air
diffusion equipment
b. Wall mounting for plenum chamber diffusion.
c. Roof (all models), ground or wall mounting for connection of multiple outlet duct systems.
d. Roof (all models), ground or wall mounting for connection to a duct system for central
plenum air diffusion.
Location of Air Conditioner.
To ensure only fresh air flows through the filter pads. locate the cooler away from chimneys,
exhaust/extractor flues, heater flue pipes and sewer vents.
Check your local building code for the minimum distances in your area.
Allow adequate access to and around the cooler for maintenance. Provision must be made for
access to electricity, water supply and drains
Thoroughly seal all roof penetrations, this will ensure storm water cannot enter the building as a
result of the installation
Important!
Installation must be in accordance with Municipal building Regulations,
Relevant Electrical Wiring Regulations, and any other relevant Codes and Regulations
Unit Mounting Guidelines.
Mounting the RPA unit. - A level platform is required for all units and must be strong enough to
support the unit under operating and prevailing conditions.
RPA INDUSTRIAL AIR CONDITIONERS
5
A
B
A
Model Dimension A Dimension B
RPA 1000-1500 1940 30 min
RPA 700-900 1480 30 min
RPA 600 1330 30 min
RPA 400-500 1055 30 min
RPA ROOF MOUNTED TYPE DETAILS
Typical Detail

MODEL
RPA400 / 500*
RPA600
RPA700 / 900
A
1170
1370
1650
B
1145
1375
1520
C
1050
1325
1475
D
682
700
796
E
560
F
150
140
295
G
215
215
215
H
50
115
62
I
610
660
780
J
610
660
760
K
100
200
150
L
200
300
415
M
575
1135
185
N
490
550
650
P
1032
1307
1457
DIMENSIONS
*RPA500 AVAILABLE IN DOWN DISCHARGE ONLY
RPA INDUSTRIAL AIR CONDITIONERS
6

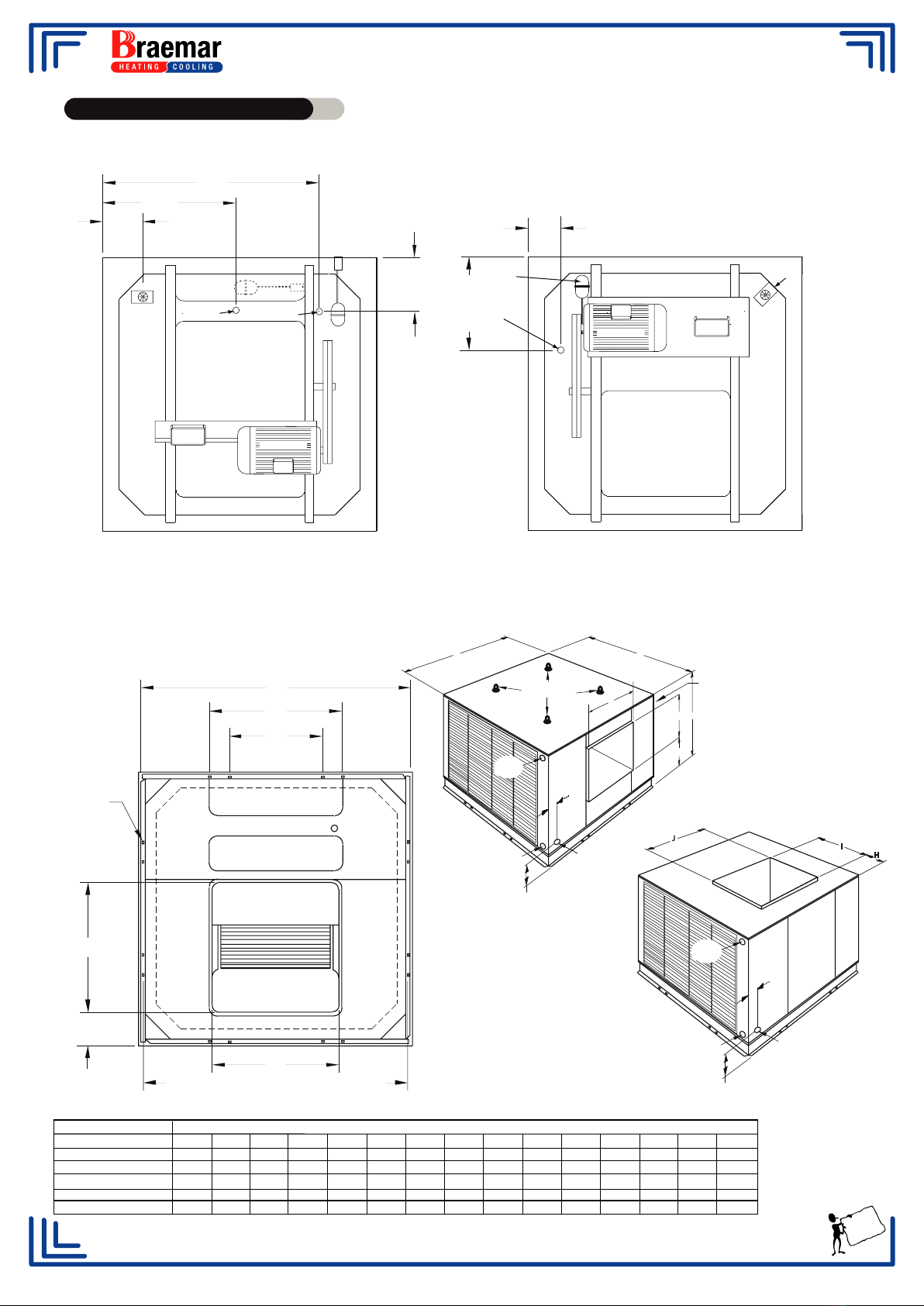

Product Specification.
Mounting Detail RPA400 - RPA900
ALL SLOTS
16 x 9.5
C
D
E
RPA 400/500 only
I
J
P = MOUNT HOLE CENTRES
K
WATER
INLET
TOP DISCHARGE
ELEC
ENTRY
ELEC
ENTRY
F
G
I
J
H
WATER
INLET
SIDE DISCHARGE
ELEC
ENTRY
N
IA
J
LIFTING EYES
OPTIONAL
ELEC
ENTRY
ELEC
ENTRY
F
G
BB
Services Layout RPA400 - RPA600
BLOWER ASSEMBLY
PUMP
CONTROL
BOX
MOTOR
PLAN VIEW
500 Only
DRAIN
600 Only
M 10
+
-
M 10
+
-
L 10
+
-
DRAIN
400/500
M 10
+
-
Services Layout RPA700 - RPA900
BLOWER ASSEMBLY
Drain
Pump
Float
PLAN VIEW
RPA700/900
M 10
+
-
L 10
+
-
CONTROL
BOX
MOTOR

RPA INDUSTRIAL AIR CONDITIONERS
Product Specifications cont.
Mounting Detail RPA1000 - RPA1800 Services Detail RPA1000 - RPA1800
TOP DISCHARGE
SIDE DISCHARGE
Water Inlet Point
Units with 8 Pads Only
Bleed Adjustment Tap
Isolating switch
Lifting Eyes (Optional Extra)
2030
890
230
890
1904
776
890
430 260
350
Water
Inlet
2030
7
WATER
INLET
FLOAT VALVE
CONTROL BOX
ISOLATION
SWITCH
200 ±10
290 ±10
DRAIN VALVE
LOCATION
MOTOR
Up to 4 pumps located behind
motor platform
2030 TYP
430
1275
Distance between mount holes centres
MOUNT HOLES
16 X 9.5
1937
1917
1625
1025
890 SQ 230

RPA INDUSTRIAL AIR CONDITIONERS
SIDE DISCHARGE
TOP DISCHARGE
DOWN DISCHARGE
Mounting Frame
Ductwork
Flexible Connector.
Flexible Connections.
8
RPA1000 to 1800

RPA INDUSTRIAL AIR CONDITIONERS
Flexible Connection....Fitting Instructions. RPA1000 to RPA1800 Series
DESCRIPTION STOCK QTY
CODE
1. Flexible Connector 609645 1
2. Channel 609423 8
3. Rivet - 5/32" Alum FAS204 60
4. Instruction Sheet 621920 1
FLEXIBLE CONNECTOR KIT - 096582
CONTENTS
Flexible Connector
Channel
FITTING INSTRUCTIONS
E
G
F
H
J
A
C
B
D
TOP DISCHARGE
Channels E to H
Channels A to D
The flexible connector on the RPA1000 to 1500 has not been fitted at the factory. It is intended to be fitted
on site to allow for better alignment to the ductwork.
1. Position the flexible connector (part J) with the seam to the bottom. The corners of the skirt will need to
be slit approximately 20mm to prevent bulging at the corners.
2. The metal channels A to H fit outside the skirt.
3. Fit channel (part G) using the rivets supplied, starting from the centre and
working towards the ends. The skirt must be tucked between the
channel and unit before securing. The bottom edge of the channel
is intended to be level with the edge of the opening in the
cooler. This is not essential and may be adjusted to suit
your installation.
4. Secure channels E to H in the same
manner as above.
5. Install ductwork between 250mm
and 320mm from unit. Secure
remaining channels A to D to side of
duct with rivets supplied.
Seal with Silicone after completion.
9

RPA INDUSTRIAL AIR CONDITIONERS
Fitting Instructions cont. RPA1000 to RPA1800 Series
10
Tank & Outlet Edge
SI D E D IS CHAR GE
D OW N D IS CHAR GE
C h a nn e l s E t o H
C h a nn e l s A t o D
Refer Diagrams on page 8
for nished assembly of
Flexible Connector and Ductwork
Note: On down discharge units,
secure flexible connector to each
of the edges (4) where the tank
and outlet meet as highlighted
by the shaded section below.

RPA INDUSTRIAL AIR CONDITIONERS
11
 Connection to the Electricity Supply
It is a requirement of Seeley International that all coolers be wired with a dedicated circuit to the
distribution board adhering to Local and National wiring standards. Ensure that the power supply
corresponds to the rating indicated on the serial plate.
RPA coolers ( RPA400 - 900 ) have a 25mm diameter knockout hole at the top and bottom of the
front panel, use one of these holes for the conduit entry. Wire the unit in accordance with the
wiring diagram supplied and the local supply regulations.
RPA coolers ( 1000 - 1800 ) have a separate mains isolator located on a corner pillar. Wire the
mains power to the isolator.
 Mounting the Control Switch - Mount the control switch in the most desirable location.
 Two Speed Single & Three Phase Units
Controls for two speed air conditioners are 240 Volt Clipsal switch plate pattern.
No adjustment of minimum or maximum speed is necessary.
Control circuit wiring is via a 240V 5 wire system.
Wire the unit in accordance with the wiring diagram supplied and the local supply regulations.
 Mains Water connection is made to the float valve fitted in the reservoir. The mains
water supply to and inside the unit should be made with the appropriate copper pipe and
fittings. A stopcock must be fitted outside the unit.
The float valve must be set to maintain the reservoir water level about 10 mm below the
overflow level.
An overflow stand pipe is supplied with the unit and must be fitted to the hole
provided in the water reservoir. RPA400 - 1800 have a 40 mm drain/overflow supplied as
standard.
 Drain Valves
When fitting drain valves, other than the Seeley type, the overflow assembly must not be
removed. Fit the drain valve in a separate location in a new hole.
When fitting the Seeley Drain Valve, use the existing overflow assembly hole.
NOTE: Flush the mains water supply before connection to the unit
to remove any foreign matter which may foul the float valve seat.
Ensure that the drain hole in the reservoir and any penetrations
through the roof are adequately sealed with an approved sealant.
Water Supply and Drain Fittings.
Electrical Connection.
10 Max

RPA INDUSTRIAL AIR CONDITIONERS
Wiring Diagram - Two Speed Single Phase.
12
WIRING INSTRUCTIONS
1. THE INCOMING MAINS POWER MUST BE TAKEN DIRECTLY TO THE COOLER.
2. 5 WIRES ARE REQUIRED BETWEEN THE COOLER AND THE WALL SWITCH.
3. FOR DRAIN KIT 077444 WIRING INSTRUCTIONS SEE MANUAL SUPPLIED IN KIT OR VISIT
OUR WEB SITE www.braemar.com.au
ALL FIELD WIRING IS SHOWN AS
TWO SPEED SINGLE PHASE WIRING DIAGRAM
107196 ISOLATION BOX
1
2
C
2
1
2
1
LO/HI FAN COOL
LO HI C
2 SPEED
FAN MOTOR
(VIEWED FROM REAR)
E NA
PUMP
8
7
6
5
4
3
2
1
9 10 11 12
LOW
HIGH
COMMON
BLUE
BROWN
EARTH
EARTH
4 POLE ISOLATOR
FUSE
FUSE
RED WHITE BROWN
BROWN
*
BROWN
BROWN
BROWN
BLUE
EARTH *
PUMP
ACTIVE
FAN LOW
FAN HIGH
8 6 4 2
7 5 3 1
NA E
MAINS IN
THESE WIRING INSTRUCTIONS ARE FOR UNITS MADE FROM JANUARY 2006
NEON1 NEON2
BLUE
WHITE
BROWN
ORANGE
Electronics
enclosure
Drain
Valve
DRAIN KIT COMPONENTS
Sensor
Solenoid
Drain Valve connections are as follows;
Brown* wire from pump to terminal 3
Brown wire to terminal 5
Blue wire to terminal 4
White wire to terminal 2
Orange wire to terminal 3
CONNECTOR

RPA INDUSTRIAL AIR CONDITIONERS
Wiring Diagram - Two Speed Three Phase.
12 3456
GREY
FAN LO
FAN HI
PUMP
GREY
GREY
GREY
GREY
GREY
EARTH
EARTH
(TO MOTOR PLATFORM)
EARTH
BLUE
BLUE
BLUE
BROWN
WHITE
BROWN
BROWN
ACTIVE
BLACK (Neutral)
RED
TO EARTH
POINT 1
WHITE
BLUE
WALL SWITCH
FIELD WIRING
2
C
1
C2
1
C2
1
Cool
Fan
Lo/Hi
3 PHASE
WIRING DIAGRAM ISOLATING
SWITCH
RPB1200-1800
RPA1000-1800
MAINS IN E N L1 L2 L3
WATER
PUMP
WATER PUMP
CONNECTION
ALL MODELS
MOTOR
RED
ORANGE
*RED
GREY
GREY
RED
BLACK
5A FUSE
BLACK
1 L1 3 L2 5 L3 21 NC
2 T1 4 T2 6 T3 22 NC
A1
A2
BLUE
WHITE
BLACK
1 L1 3 L2 5 L3 21 NC
2 T1
4 T2
6 T3 22 NC
A1 A2
CONTACTOR
OVERLOAD OVERLOAD
CONTACTOR
NC NO
GREY
GREY
GREY
GREY
95 96 97 98
2 T1 4 T2 6 T3
NC NO
95 96 97 98
2 T1 4 T2 6 T3
EARTH
POINT 1
RED
WHITE
BLUE
RED
WHITE
BLUE
ISOLATING
SWITCH
RPB600-1000
RPA450-900
L1 L2 L3 N E
TO
TERMINAL
POINT 6
1
2
3
4
5
6
7
8
9
10
11
12
3AG 250V
Electronics
enclosure
Drain
Valve
*Link wire removed when drain
Valve is installed.
Drain Valve connections are as
follows;
Brown wire to terminal 1
Blue wire to terminal 7
Orangewire to terminal 2
White wire to terminal 3
To Isolating
Switch
DRAIN KIT COMPONENTS
Neon1 Neon2
NEUTRAL
Sensor
Solenoid
13

RPA INDUSTRIAL AIR CONDITIONERS
Models RPA400 - 900 are fitted with a variable pitch pulley so that the full potential of the motor
can be utilised. The pulley is set at the factory to approximate the full motor load with the unit at
free delivery. When installed and operating against system resistance, (with doors and windows
open) adjustment may be made to the pulley in order that all the available power is utilised.
Models RPA1000 - RPA1300 are supplied with variable pitch pulleys. Fixed pulleys are fitted to
the RPA1400 - RPA1800.
 Method of Variable Pulley Adjustment.
1. Ensure installation is complete and that all registers are set to their maximum openings.
2. Operate the unit and allow the motor to warm up ( 10 - 15 minutes ).
3. Measure the current being drawn by the motor on high speed.
4. Compare the rated current shown on the rating plate, to the measured current. If the current is
significantly above or below the rated current, pulley adjustment may be made as follows.
5. Isolate unit and remove the “ V “ belt/s. Loosen the grub screws in the flange of the pulley.
Screw pulley flange in to increase the blower speed and amperage, and screw it out to
decrease blower speed and amperage.
Re-tighten the grub screws in the flange evenly.
6. Adjust the pulley as shown in figure below.
7. It will be necessary to adjust the belt tension by using the jacking screws after any pulley
adjustment has been made.
8. A new drive can be tightened initially 50% more than normal to allow for the drop in tension
during run-in.
 If turning pulley counter clockwise to reduce
blower speed, ensure that the V section is not
opened far enough to allow the belt to ride on
the threaded part of pulley, as this will cause
damage to the belt.
 Too great a belt tension will increase
motor load, and shorten belt and bearing
life.
Too loose a belt will cause belt slippage
and excessive belt and pulley wear.
1.6mm/100mm SPAN @ 2.0kg
BELT DEFLECTION FORCE
MOTOR
PULLEY
BELT TENSION SCREW

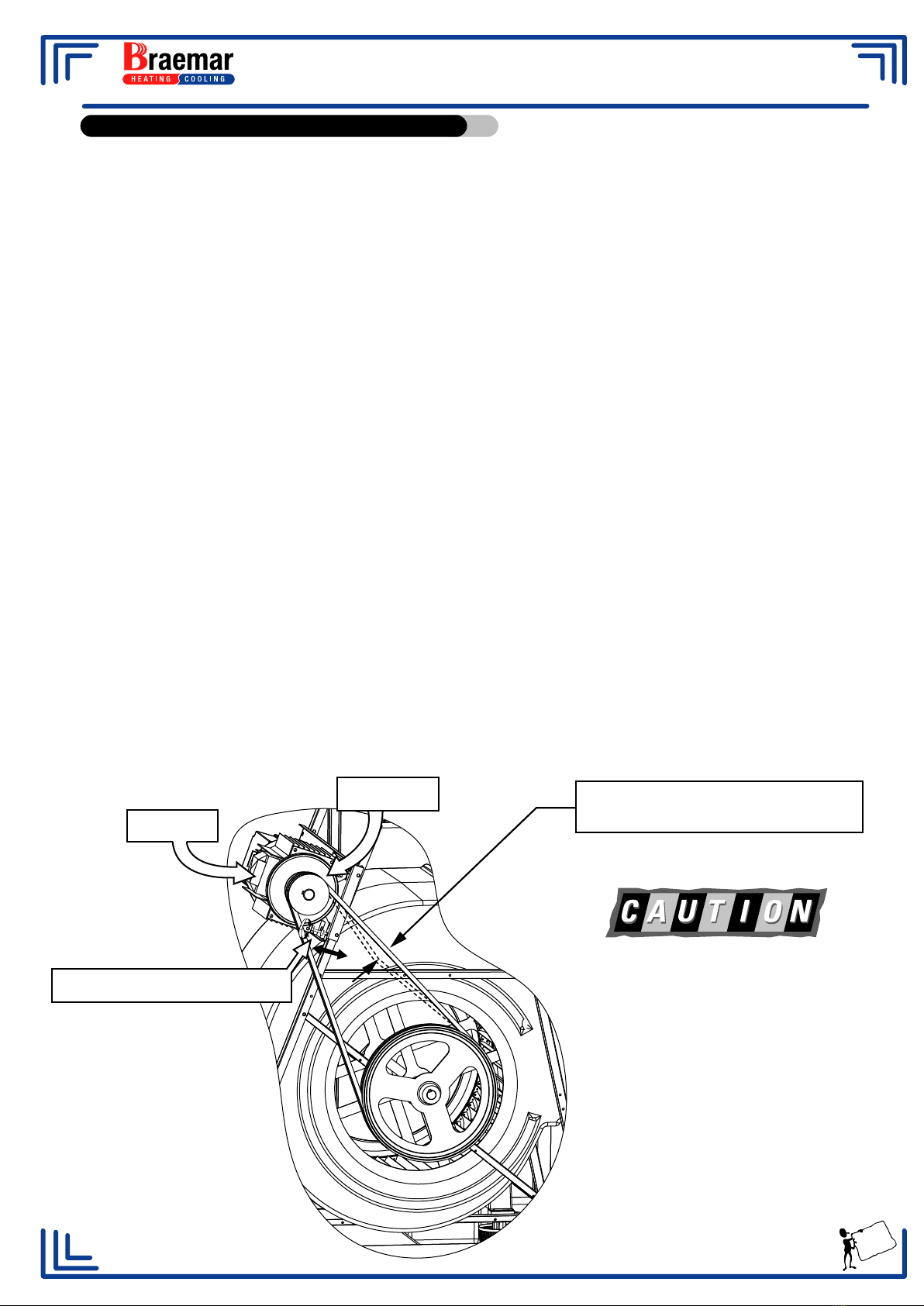

Motor / Pulley arrangement for models RPA400 TO RPA600
14
Variable Pitch Pulley and Belt Tension.

RPA INDUSTRIAL AIR CONDITIONERS

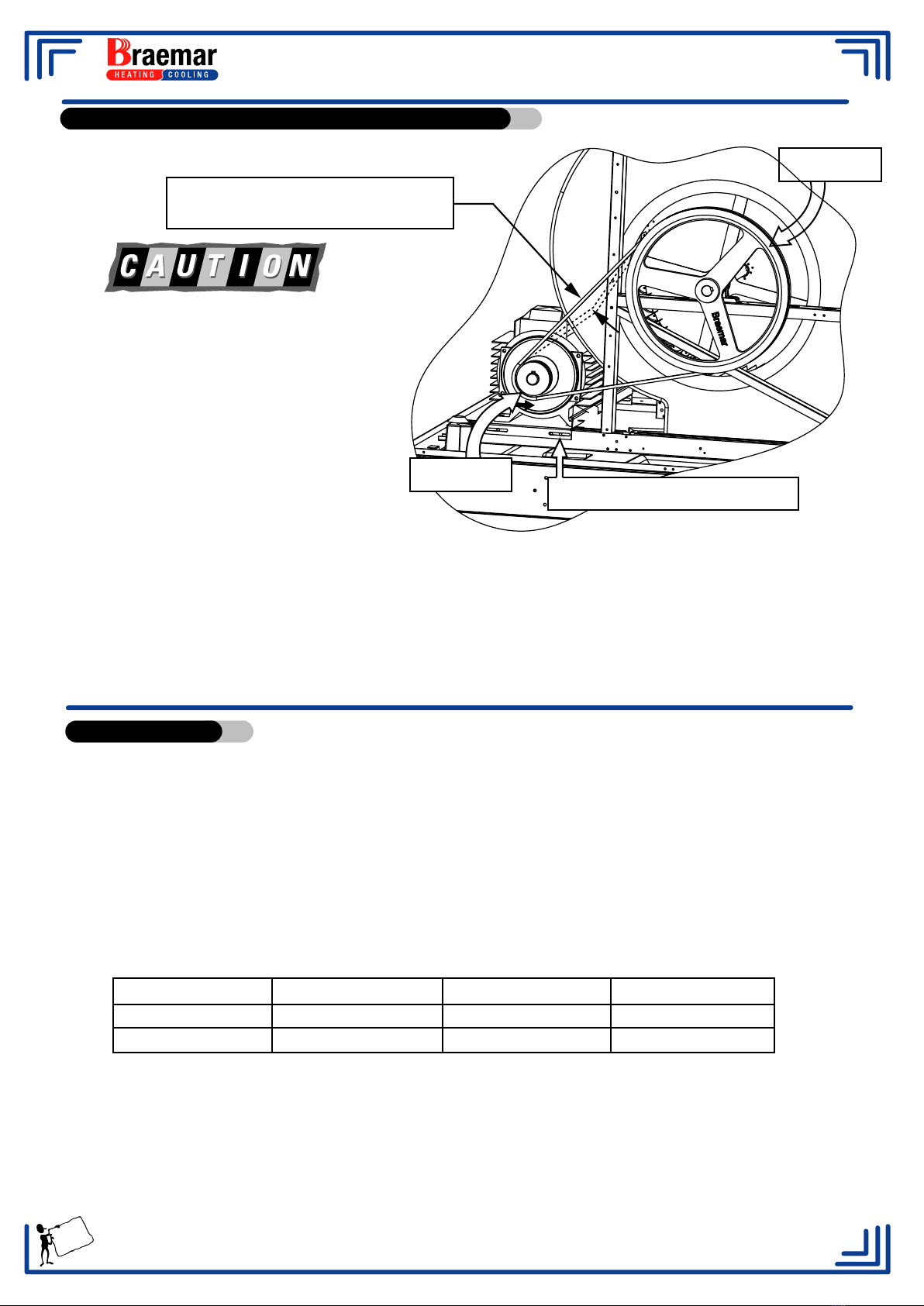

 If turning pulley counter clockwise to reduce
blower speed, be sure that the V section is not
opened far enough to allow the belt to ride on
the threaded part of pulley, as this will cause
damage to the belt.
 Too great a belt tension will increase
motor load, and shorten belt and bearing life.
Too loose a belt will cause belt slippage and
excessive belt and pulley wear.
PULLEY
BELT TENSION SCREWS
PULLEY
1.6mm/100mm SPAN @ 2.0kg
BELT DEFLECTION FORCE
Variable Pitch Pulley and Belt Tension (cont.)
Motor / Pulley arrangement for models RPA700 TO RPA1500
15
To reduce the accumulation of salts and minerals in the recirculated water it is essential to bleed a
certain amount of water to waste. Increased flow of make up water reduces the salt content.
The bleed rate will vary with the water supply quality, but should initially be set to the minimum
recommended bleed rates as set out in the chart below. The bleed line from the flow and bleed
controller in the pump delivery line, inside the unit , must be suspended through the overflow
stand pipe, or into the side of the optional drain valve. Connect suitable pipe work to bottom
thread of the drain bush so that water drains directly to waste.
Table 1 Recommended Minimum Bleed Rates (LPH)
RPA400 11 RPA600 16 RPA1000 26 RPA1400 36
RPA450 12 RPA700 18 RPA1200 31 RPA1500 39
RPA500 13 RPA900 24 RPA1300 34
 Location of Bleed Control.
The bleed control tap is located externally on a corner pillar.
Adjustment to the bleed rate is made by turning the black/red tap control to the desired setting.
Check the bleed rate by running into a graduated container for a set time, say 10 minutes.
Build up of salt deposits in the pads or the tank indicates that the bleed rate is inadequate.
Increase the rate where necessary.
 Check the Full Load Amps
After any adjustments to belt tension, the maximum full load current must be checked
to ensure it is within the rating specified on the serial plate. If the amps are not within
rating, make adjustments to the motor pulley as described in this section. Only units
with a variable pitch pulley can be adjusted, other units will need to have the
installation checked.
Check that the full load current on high and low speed is within the motor rating.
Bleed Control.

RPA INDUSTRIAL AIR CONDITIONERS
16
To provide efficient cooling or ventilation your air conditioner must be operated with sufficient
exhaust openings in the form of doors, windows, or other vents.
One square metre of open area is the minimum requirement for every 3000 m3/hr (830 l/s) of air
delivery. ( ie. a 6000 m3/hr (1660 l/s) air conditioner requires a minimum of 2 square metres of
open exhaust areas ).
For optimum cooling performance, windows opposite the prevailing wind conditions should be
opened. The cool filtered air entering the building will flow toward the exhaust openings. Doors
and windows should be set according to the airflow pattern desired.
Air should never be recirculated back through the air conditioner.
When the design of the building or prevailing winds prevent effective airflow, consideration must
be given to the use of some form of exhaust extraction device.
TO BE COMPLETED BY
THE COMMISSIONING AGENT
1. Unit level on mounting platform / dropper. 
2. Unit correctly flashed to prevent water damage. 
3. " V “ belt alignment and tension checked. 
4. Unit wired in accordance with regulations and operating correctly. 
5. Water main flushed before connection to unit. 
6. Float valve set correctly. 
7. Water flow adequate to all pads. 
8. Bleed rate set and bleed hose positioned in overflow. 
9. Filter pad frames uniformly packed (woodwool pads only). 
10. Water distribution through pads uniform. 
11. Control switch tested. 
Pump only running. 
High Speed Fan only. 
High Speed Fan and Pump running. 
Low Speed start-up. 
Low Speed running. 
12. Unit tested for maximum amperage. 
13. Air flow from duct outlets correctly set. 
14. Adequate exhaust openings provided. 
15. OWNER INSTRUCTED IN METHODS OF OPERATION. 
16. OWNER ADVISED ON MAINTENANCE SERVICING REQUIREMENT. 
17. OWNER PRESENTED WITH OPERATING INSTRUCTIONS. 
INSTALLATION CHECKED / COMMISSIONED AND APPROVED BY
Agent ..............................................DATE ........ / ........ / ..........
Effective Cooling Requirements.
Installation Check List.

RPA INDUSTRIAL AIR CONDITIONERS
17
- Turn on the water at the source and ensure
that any shut off valve is open.
- Turn on the electrical supply and the mains
isolator at the air conditioner.
- Wait for the tank to fill with water.
- Turn on the pump by switching
the Cool switch on the wall control to Cool.
- Wait 2 - 5 minutes for the pads to saturate
with water.
- Select either High or Low fan speed.
- Turn on the fan by switching the Fan switch to ON.
Should you consider that your Braemar air conditioner requires service,
you should contact your local Braemar Dealer/Service Agent.
For Service please phone
1300 650 644
quote the unit Model number and Serial number as shown below.
Model No................................... Serial No..................................
For your future reference:
Air conditioner purchased from........................................................................
Air conditioner purchase date ...... / ...... / ....... Phone No ..................
Air conditioner installed by..............................................................................
Air conditioner installation date ...... / ...... / ....... Phone No .................
Service Information.
Operating the Air Conditioner

RPA INDUSTRIAL AIR CONDITIONERS
. End of Season Maintenance. 
 Turn off the water supply.
 Remove filter pad frames.
 Turn off the power at the isolating switch inside cabinet, or on the corner pillar.
 Hose both sides of the filter pad frames to remove dust, salts, pollen etc.
Warning! Do not use high water pressure when cleaning Chillcel®pads- Damage will occur.
 Check and clean the water distributor channels.
 Empty the water reservoir through the outlet provided.
 Thoroughly clean the reservoir.
 Do not replace the drain outlet. If fitted with a drain valve, ensure that it is open.
 Ensure that there is no evidence that water is carrying over onto the motor or pumps. If so,
check the pad condition.
 Check the fan blades are tight.
 Check Pulleys and Belts for wear.
 Check alignment and tensioning.
 Replace or adjust parts if necessary.
 Leave Isolating switch OFF and refit pad frames.
18
REGULAR MAINTENANCE IS ESSENTIAL FOR MAXIMUM EFFICIENCY
To ensure that your Braemar Evaporative Air conditioner remains in first class working
condition for many years, it should be thoroughly serviced four (4) times a year. Service
schedules should include a service at the end of the summer season and prior to the
commencement of the next summer season.
Service & Maintenance
11. Lubrication - All models. 
Bearings on electric motors and water pumps are sealed for life and do not require
lubrication. The same applies to the fan shaft bearings on the RPA400-RPA900.
RPA1000 - RPA1500 fan shafts are fitted with plumber blocks with grease nipples, lubricate
at regular intervals, depending on frequency of use.
. Health Regulations. 
Please note that some State Regulations require that Evaporative Air Conditioners
used for Commercial purposes must be serviced at Three ( 3 ) Monthly Intervals.
Owners of Commercial Air Conditioners should contact the Health Authority in their State for
servicing guidelines.
