BRAINLIT ALVEN™- QUICK GUIDE
Before assembly
A1x Alven luminaire
B1x Alven pole
C1x Alven foot
D8x Assembly bolts
E1x Torx key
F1x Power cord
G1x Documents
ACB
D
E
F
G
1. Remove all packaging materials.
2. Unpack and inspect all components.
3. Lay out all parts on a flat surface.
BOX 1 BOX 2 BOX 3
Two people
recommended for
assembling and moving
your Alven
Attach luminaire to pole
NOTE: Please take care not to pinch or damage
the wires.
Connect the wire and quick connector from
the luminaire (A) with the matching connector
from the pole (B), making sure they are firmly
connected and that the latching hooks have
connected properly.
Thread the luminaire (A) over the pole (B) and
make sure that all cables are running free into
the pole (B) and are not pinched or damaged.
Attach the luminaire (A) to the top end of the
pole (B) with the remaining four bolts (D) using
the torx key (E).
Attach foot to pole
Lay the pole (B) on a stool or chair horizontally
to avoid damage, approximately 70 cm above
surface as pictured below.
Attach the foot (C) to the bottom end of the
pole (B) with four of the eight bolts (D) using
the torx key (E). C
B
D
E
B
C
A
B
D
E
For indoor
use only
Connect power
Raise your Alven to a standing position with its
foot on the floor. Insert the power cable (F), first
to your Alven and then to the wall outlet.
About 30 seconds after the power cord has been
connected the power button green LED starts
flashing. When the the power button green LED
stops flashing again your Alven is ready to use.
It will take up to 2 minutes for your Alven to be
ready for use once the power cord has been con-
nected.
Alven can be connected to a network using wifi
or an ethernet cable (not provided).
The flexible cable or cord may be specially pre-
pared and only available from the manufactu-
rer or his service agent.
NOTE: Do NOT connect to a Power over Ether-
net (PoE) connection. This device is not PoE
compatible.
F
STEP 1
STEP 2
STEP 3
Welcome to the world of BioCentric Lighting™

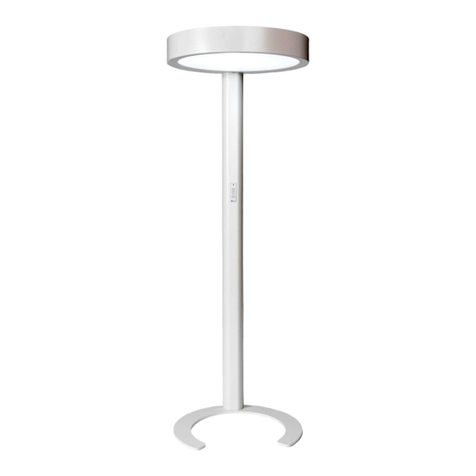

BrainLit Alven™ is the world’s first personal, connected and dynamic
BioCentric Lighting™ system in a free-standing LED luminaire. It is a
multi-user system and can also be connected to the BrainLit cloud.
The AutoLit recipe of BrainLit Alven™ provides optimal light conditions
for aligning your circadian rhythm. The light conditions can be further
adjusted through the BrainLit app. With the app, you can choose e.g. the
“Boost” scene to receive a light shower for extra energy.
PAGE 1 of 2
TURN PAGE FOR OPERATING INSTRUCTIONS →
www.brainlit.com
F Power cord type X. The flexible cable or cord may be specially prepared and only available
from the manufacturer or his service agent.
BLT_V1_03

BRAINLIT ALVEN™- QUICK GUIDE PAGE 2 of 2
www.brainlit.com
STEP 4
STEP 5
STEP 6
Start system
Use the power button to power your
Alven On/Off.
Do not look directly into BrainLit
Alven’s light. It is brighter than a
normal lamp and may cause
discomfort.
For more features, see
instructions in section 3.1 of
this user manual or in the app.
Complete setup
Complete the setup of your Alven
by downloading the BrainLit app
from the App Store or Google Play
Store and follow the instructions.
Finished
You’re all set! Welcome to the world
of BioCentric Lighting™. Scan the
QR code for the full documentation
to view more features.
AutoLit
The AutoLit recipe is the default setting that best
helps you maintain your circadian rhythm. The
circadian rhythm is referred to as our ”biological
clock” that regulates our well-being, alertness
and sleep. To maintain your normal circadian
rhythm you should use AutoLit without dim-
ming the light intensity as often as possible.
If you adjust the brightness of BrainLit Alven
using the (+) or (-) buttons, you will exit AutoLit
and the light will remain at a static light intensity
until you turn BrainLit Alven off and back on. It
may take a few days for your eyes to adapt to
the brightness of your BrainLit Alven™.
Boost
Boost increases your alertness and stimulates
your cortisol levels, giving you a refreshing effect.
Recommended usage is a 20 minutes or shorter
”light shower” preferably during the first half of
the day (08.00-14.00).
Usage of Boost at night may disturb your natural
circadian rhythm. To maintain your natural circa-
dian rhythm, you should use AutoLit without
dimming the light intensity as often as possible.
Relax
Relax creates a natural light environment that
feels more neutral to your eyes but does not
change dynamically and therefore has less im-
pact on your circadian rhythm. Recommended
usage is for shorter time periods after 14.00.
To maintain your circadian rhythm you should
use AutoLit without dimming the light intensity
as often as possible.
To activate AutoLit recipe
Turn off, turn on => AutoLit
or
1. LONG press (3 sec) Power
2. Power LED blinks slowly
3. Within 7 sec SHORT press Power
= recipe changes to AutoLit
1LONG press
2SHORT press
To activate Boost mode
1. LONG press (3 sec) Power
2. Power LED blinks slowly
3. Within 7 sec SHORT press =
scene changes to Boost
1LONG press 2SHORT press
RAL 9016
Transparent
Pantone 281 C
Matte nish
Colour print information
Print
To activate Relax mode
1. LONG press (3 sec) Power
2. Power LED blinks slowly
3. Within 7 sec SHORT press =
scene changes to Relax
1LONG press
2SHORT press
RAL 9016
Transparent
Pantone 281 C
Matte nish
Colour print information
Print
Bluetooth pairing - How to enable Bluetooth
pairing mode on your BrainLit Alven™
1. LONG press (3 sec) Power
2. Power LED blinks slowly
3. Within 7 sec LONG press (3 sec)
4. Power LED is ON and Bluetooth LED blinks
slowly when pairing is active
Bluetooth pairing is active for 60 sec. Follow instructions
on your phone or mobile device to complete pairing.
12
LONG press LONG press
RAL 9016
Transparent
Pantone 281 C
Matte nish
Colour print information
Print
AutoLit Demo - Shows the variation and
dynamics of the light
1. LONG press (3 sec) Power
2. Power LED blinks slowly
3. Within 7 sec LONG press (3 sec)
4. Demo of AutoLit is running
5. Power LED blinks fast and Bluetooth
LED is OFF when demo is running
Demo will last for approximately 90 sec.
When the demo is finished AutoLit mode is enabled.
2
1LONG press
LONG press
RAL 9016
Transparent
Pantone 281 C
Matte nish
Colour print information
Print
RECIPES & MODES

Scan for manual
Power LED
Bluetooth LED
