Brandt BF3424CW User manual

BF3424CW
BF3424CB
BF3424CX
C

PART Ⅰ: Generic Version

SAFETY INFORMATION
3
CONTENTS
PRODUCT OVERVIEW
8
9
9
11
13
13
13
16
USING YOUR DISHWASHER
Loading The Salt Into The Softener
Basket Used Tips
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
INSTALLATION INSTRUCTION
About Power Connection
Water Supply And Drain
Connection Of Drain Hoses
Positioning The Appliance
Free Standing Installation
17
17
18
19
20
20
NOTE:
Reviewing the section on troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
TROUBLESHOOTING TIPS
22

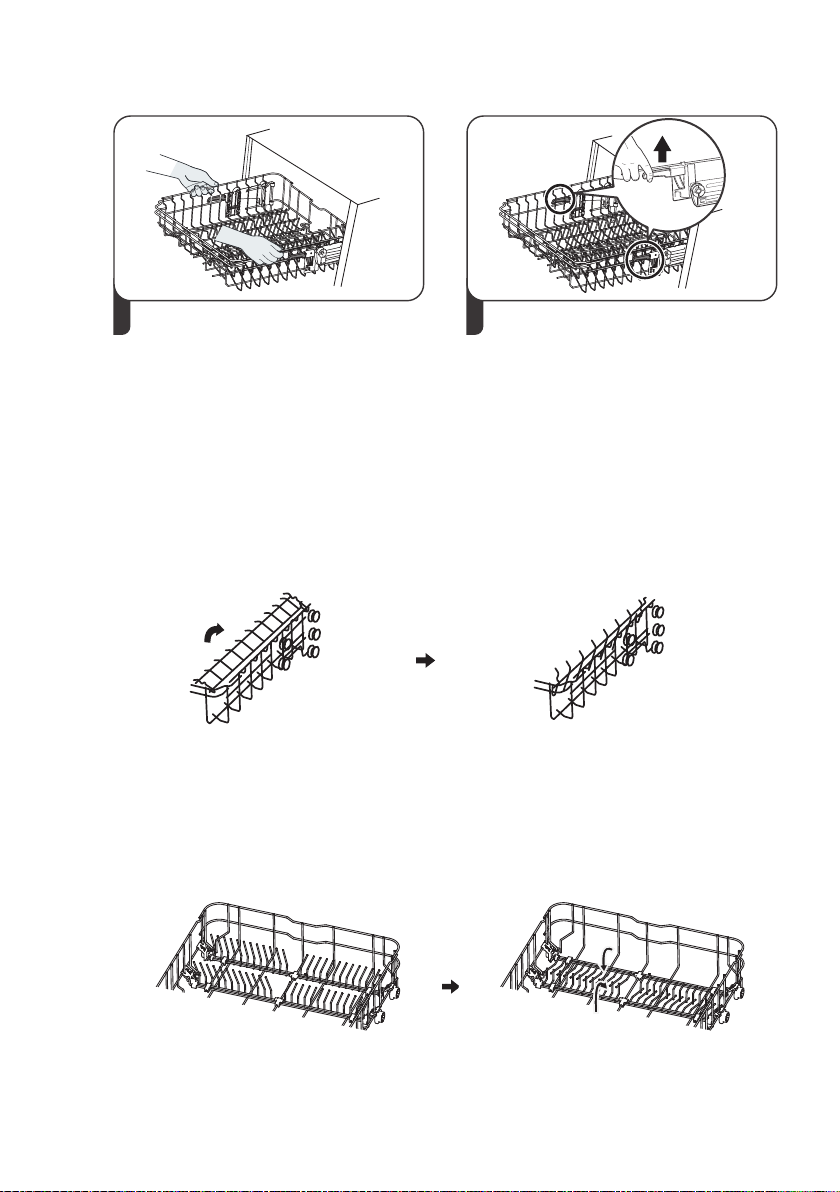

LOADING THE BASKETS
26

SAFETY INFORMATION
WARNING
When using your dishwasher, follow the
precautions listed below:
Installation and repair can only be carried out by a
qualified technician
This appliance is intended to be used in household
and similar applications such as:
-
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be done by children
without supervision. (For EN60335-1)
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory or
staff kitchen areas in shops, offices and other
3

mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and performing
maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
4
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.

Do not modify the plug provided with the
appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent powder is empty after
completion of the wash cycle.
5

6
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not be
reused.
To save energy, in stand by mode, the appliance will
switch off automatically while there is no any operation
in 15 minutes.
The maximum number of place settings to be washed
is 14.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is
0.04MPa.

Disposal
For disposing of package and the
appliance please go to a recycling center.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.
7

PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
Dispenser
Salt container Filter assembly
Lower spray arm
Inner pipe
IMPORTANT:
8
Pictures are only for reference, different models may be different. Please prevail
in kind.
NOTE:
Cutlery basket Lower basket
Upper basket
Upper spray arm
Cutlery rack Cup rack

Loading The Salt Into The Softener
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of damages
caused by the use of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been
spilled, remaining on the bottom of the machine for any period of time,
which may cause corrosion.
WARNING
Always use salt intended for dishwasher use.
The salt container is located beneath the lower basket and should be filled as
explained in the following:
Please check the section 1 “Water Softener” of PART Ⅱ: Special Version,
If you need to set the water softener .
Please check the section 1 “Water Softener” of PART Ⅱ: Special Version,
If you need to set the water softener .
9
If your model does not have any water softener, you may skip this section.
NOTE:
USING YOUR DISHWASHER
Before using your dishwasher :
Inside Outside
1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the dispenser
